HappyRun Electric Bike Display Screen G50/G60

HappyRun Tank G50/G60 LCD — Clear Ride Data, Easy Swap-In

Overview

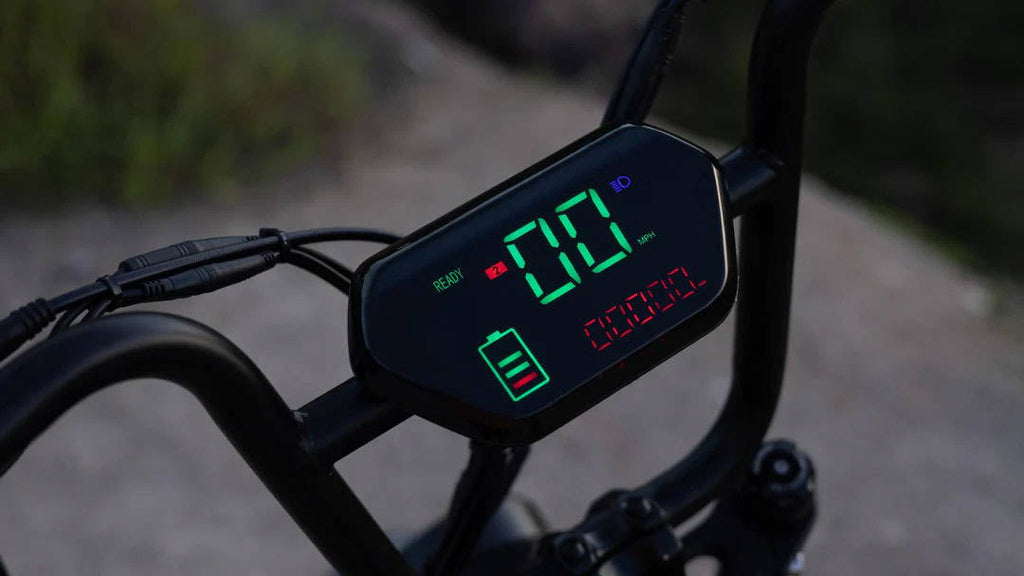

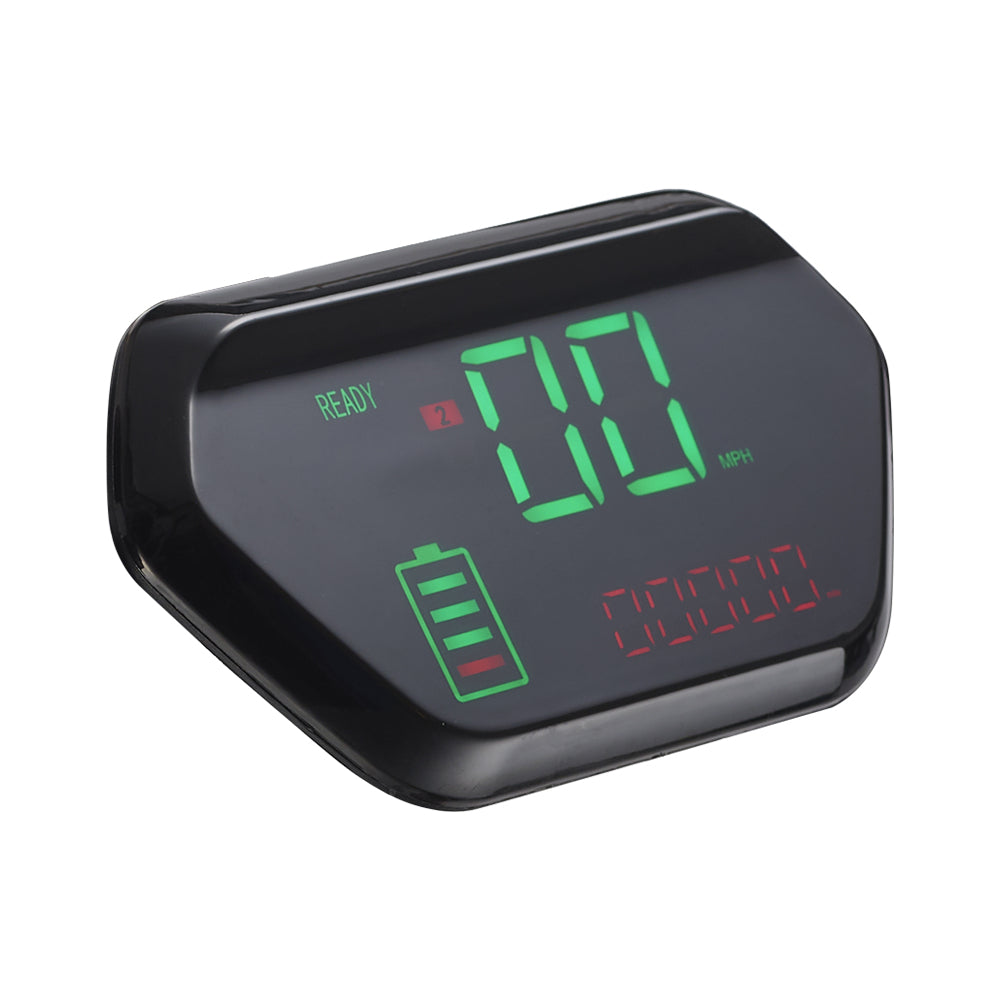

This compact replacement LCD is built for the HappyRun Tank G50 and G60 electric bikes. It provides a backlit, easy-to-read display of speed, battery status, trip distance and error codes so you can monitor rides at a glance and make quick decisions on the road.

Benefits

• Keep your eyes on the road by seeing essential ride data at a glance for safer riding.
• Plan routes and avoid surprises by monitoring battery level and remaining range.
• Save time diagnosing issues with on-screen error codes instead of trial-and-error checks.
• Replace the display quickly with a plug-and-play fit, cutting downtime and installation hassle.
• Ride confidently in low light thanks to the readable backlit screen and adjustable brightness.

Features

• Shows current, average and maximum speed.
• Displays battery level and an estimate of remaining range.
• Includes trip meter and odometer for per-ride and total distance tracking.
• Indicates assistance level and allows basic mode navigation via three physical buttons.
• Reports on-screen error codes for fast fault identification.
• Backlit monochrome LCD with adjustable brightness for low-light visibility.
• Plug-and-play connector compatible with Tank G50 and G60 wiring harnesses.
• Compact handlebar mount sized to replace the original display housing.

Specifications

• Compatibility: HappyRun Tank G50 and Tank G60 electric bikes
• Display type: Backlit monochrome LCD
• Screen size: 2.8 inches (diagonal)
• Dimensions: 95 × 48 × 22 mm (approx.)
• Weight: 95 g (approx.)
• Input voltage: rated 48 V (operates with typical 36–60 V e-bike systems)
• Power consumption: <1 W during normal operation
• Connector: 6-pin compatible connector for Tank series harness
• Buttons: 3 physical control buttons for mode and settings
• Operating temperature: -20 °C to 60 °C
• Ingress protection: IP65 splash-resistant
• Housing material: ABS plastic with polycarbonate screen cover
• Cable length: 20 cm (approx.) from connector to display
