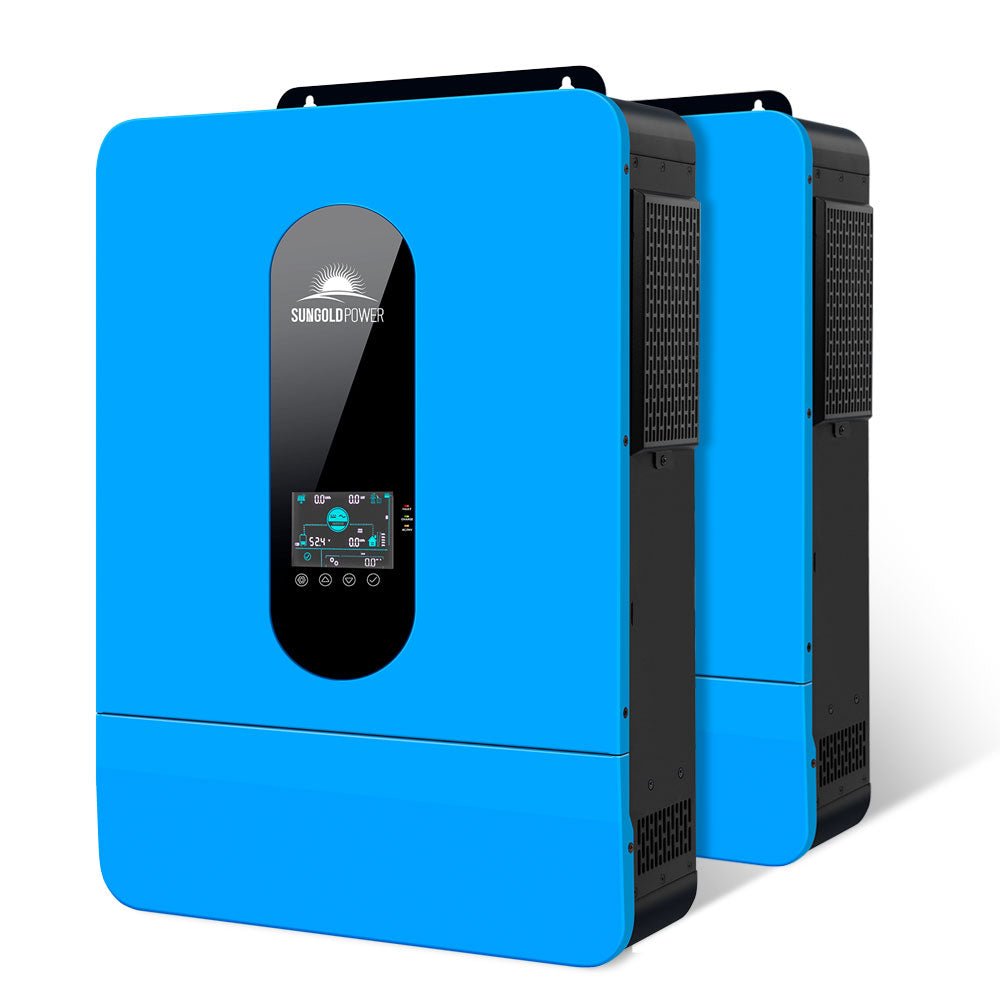

6.5KW Pure Sine Wave Solar Inverter

Discover a powerful and comprehensive energy solution with our 6.5KW Pure Sine Wave Solar Inverter. This unit combines advanced technology with user-friendly features, making it the perfect addition to your off-grid solar system, ensuring reliability and efficiency for all your energy needs.

Benefits:

• Enjoy peace of mind with stable AC output and smart protection features that keep your system running safely.
• Customize your energy use with various charging and output modes tailored to your personal or household needs.
• Reduce energy costs by utilizing our time-slot charging function, allowing you to take advantage of local utility rates.
• Connect multiple units effortlessly for increased power capacity, enhancing your energy independence and reliability.

Features:

• All-in-one unit design with integrated MPPT solar controller for efficient energy management.

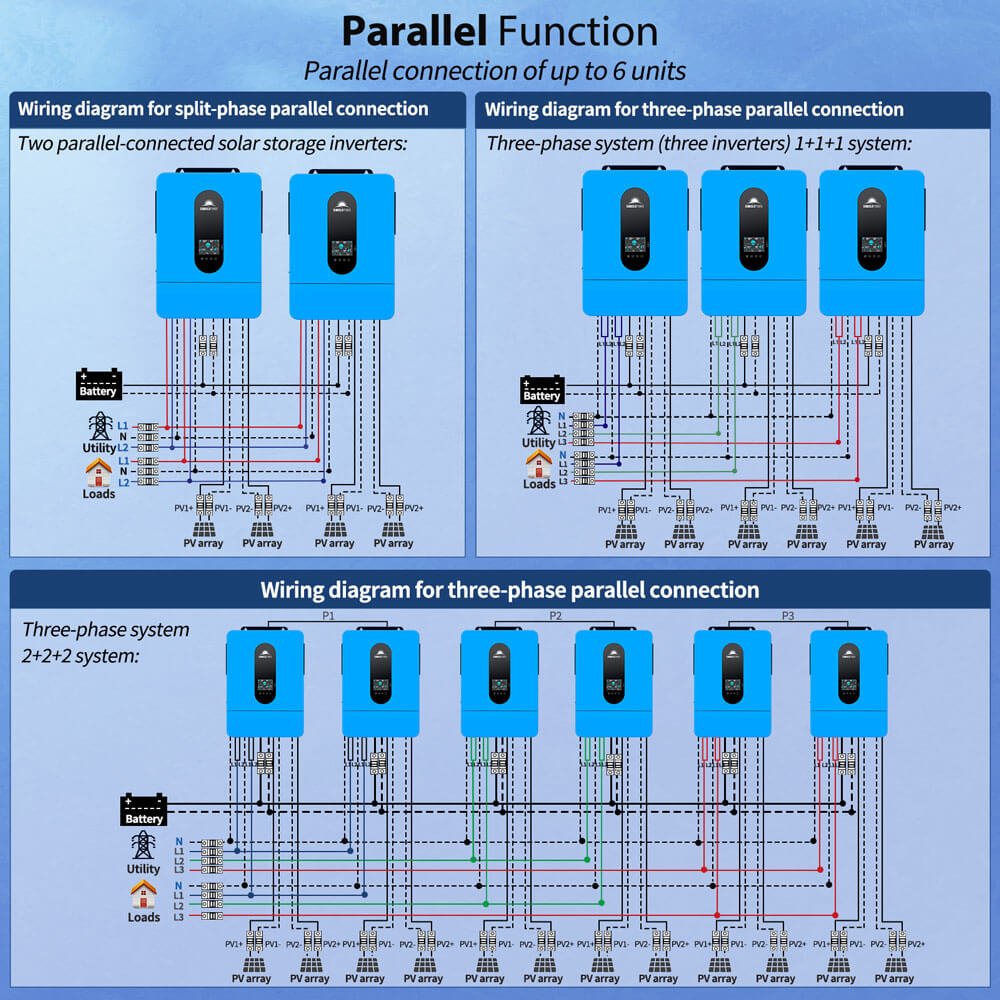

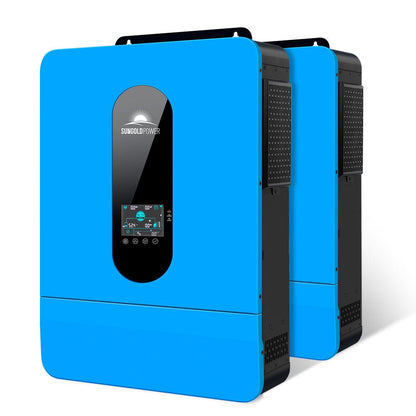

• Supports parallel configuration to connect up to 6 units for maximum output and surge capacity.
• Smart protection systems to safeguard against over-voltage, over-current, and overload conditions.

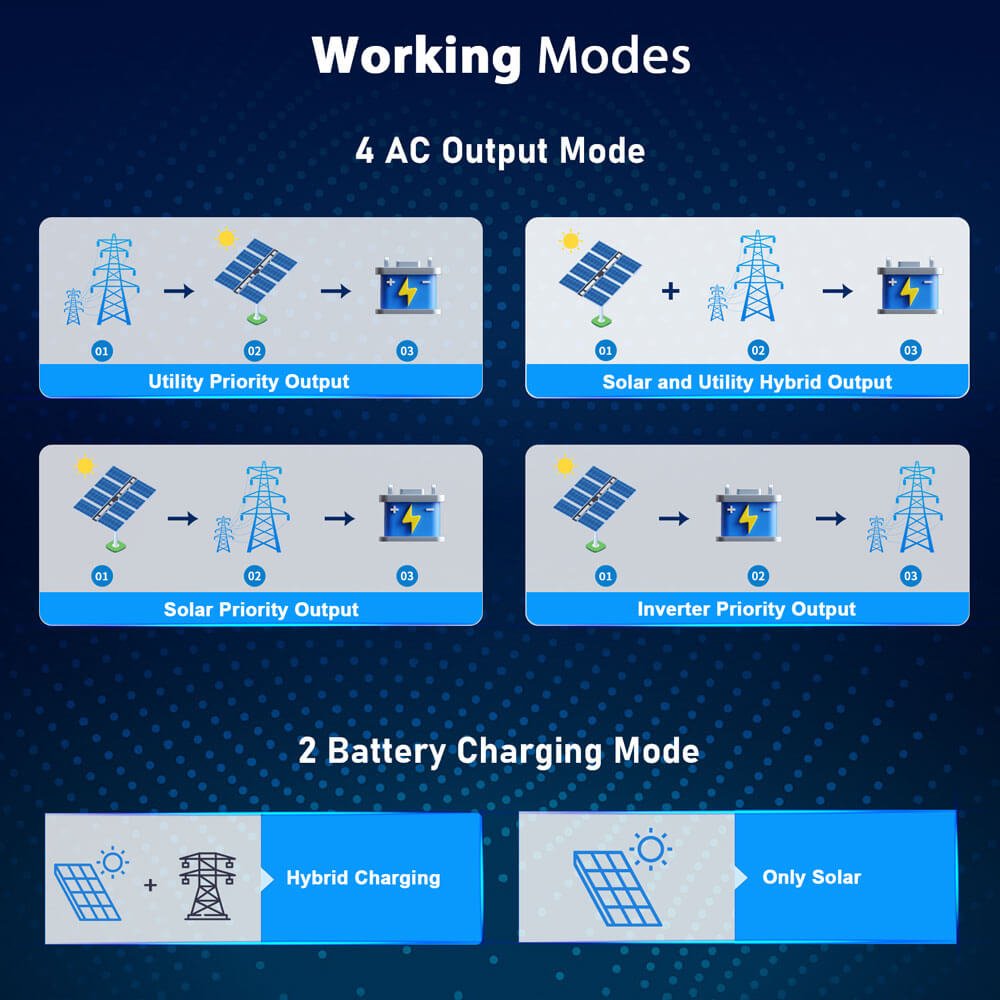

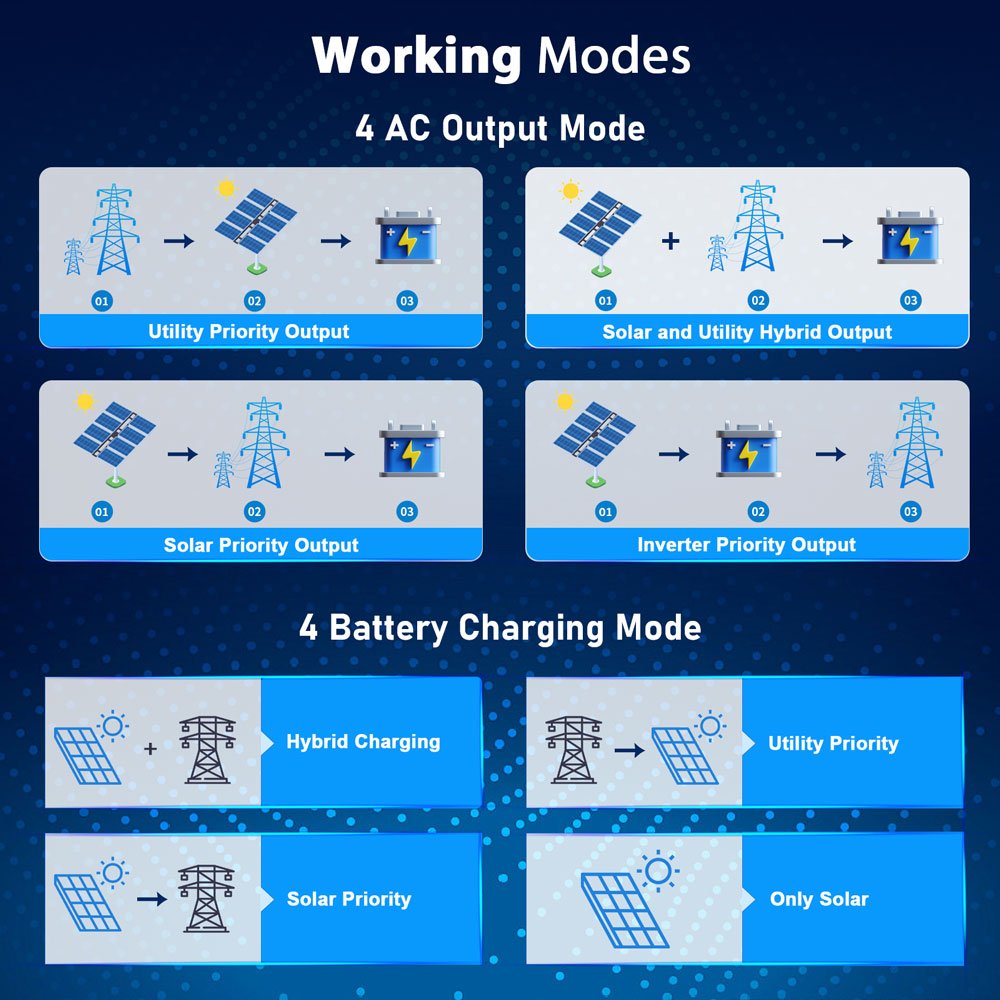

• Four versatile charging/output modes: Hybrid, Utility Priority, Solar Priority, and Only Solar Charging.

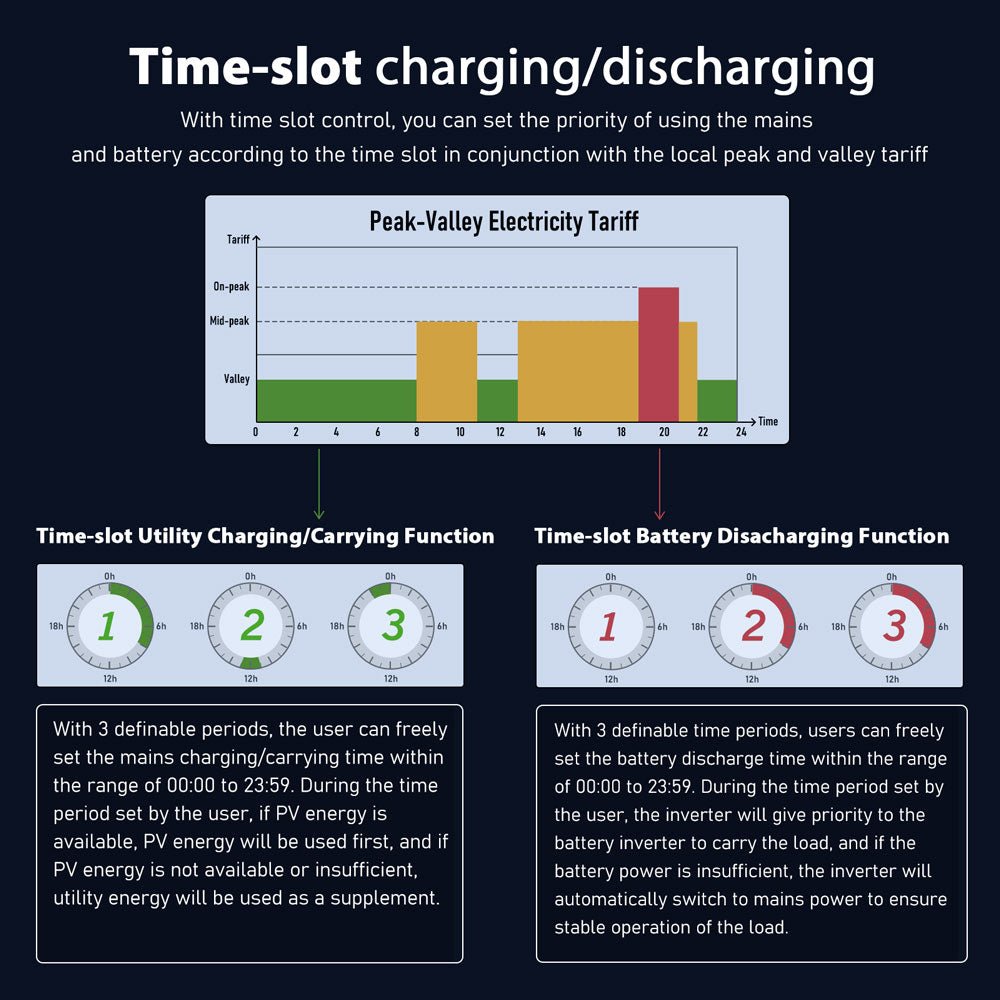

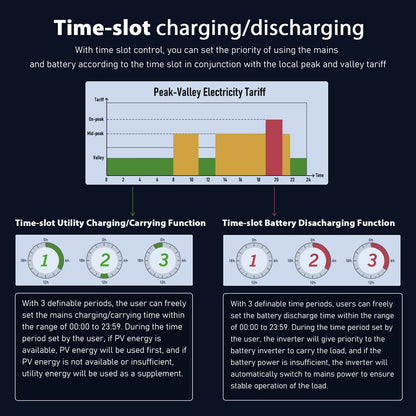

• Time-slot function allows for optimized charging and discharging based on electricity tariffs.

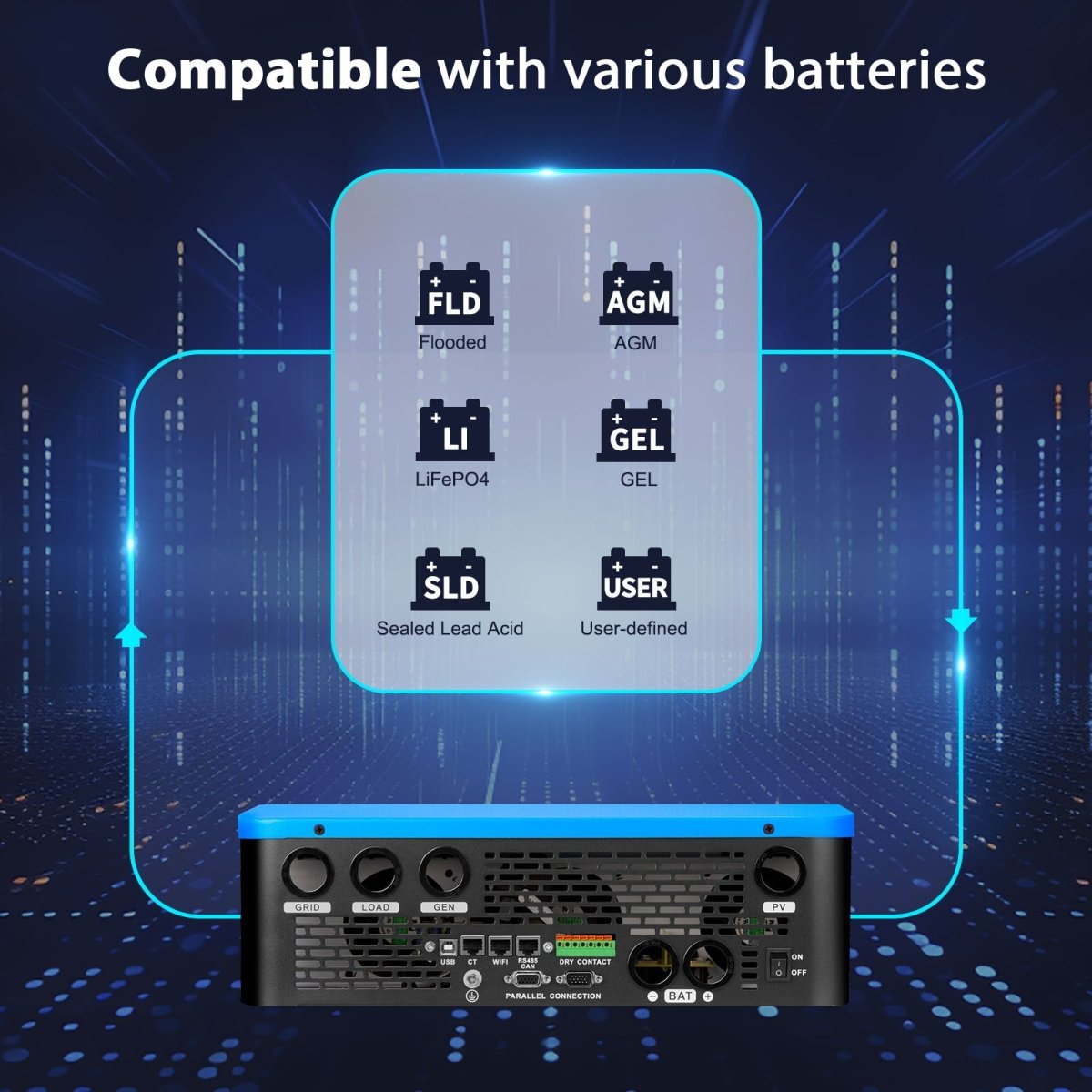

• Compatible with multiple battery types, including Lithium, AGM, Gel, and Flooded batteries.

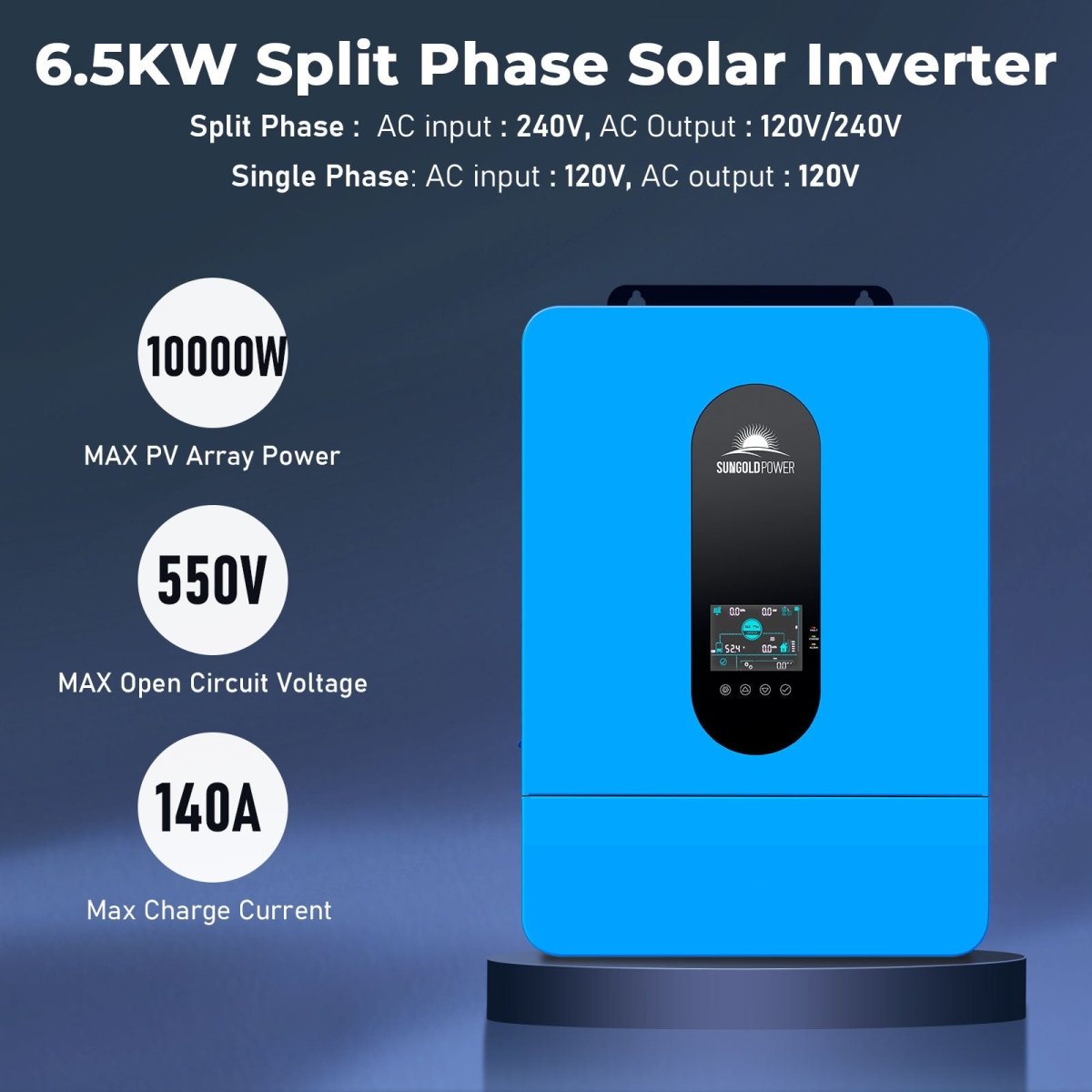

Specifications:

• Power Output: 6500W (Max Peak Power: 13,000VA)
• Max Battery Charging: 140A
• PV Input Voltage: Open Circuit Max. 550VDC
• Battery Type Compatibility: 48V AGM/Sealed, Gel, Flooded, Lithium
• Output Voltage: Split phase (120V/240V) or Single phase (120V)

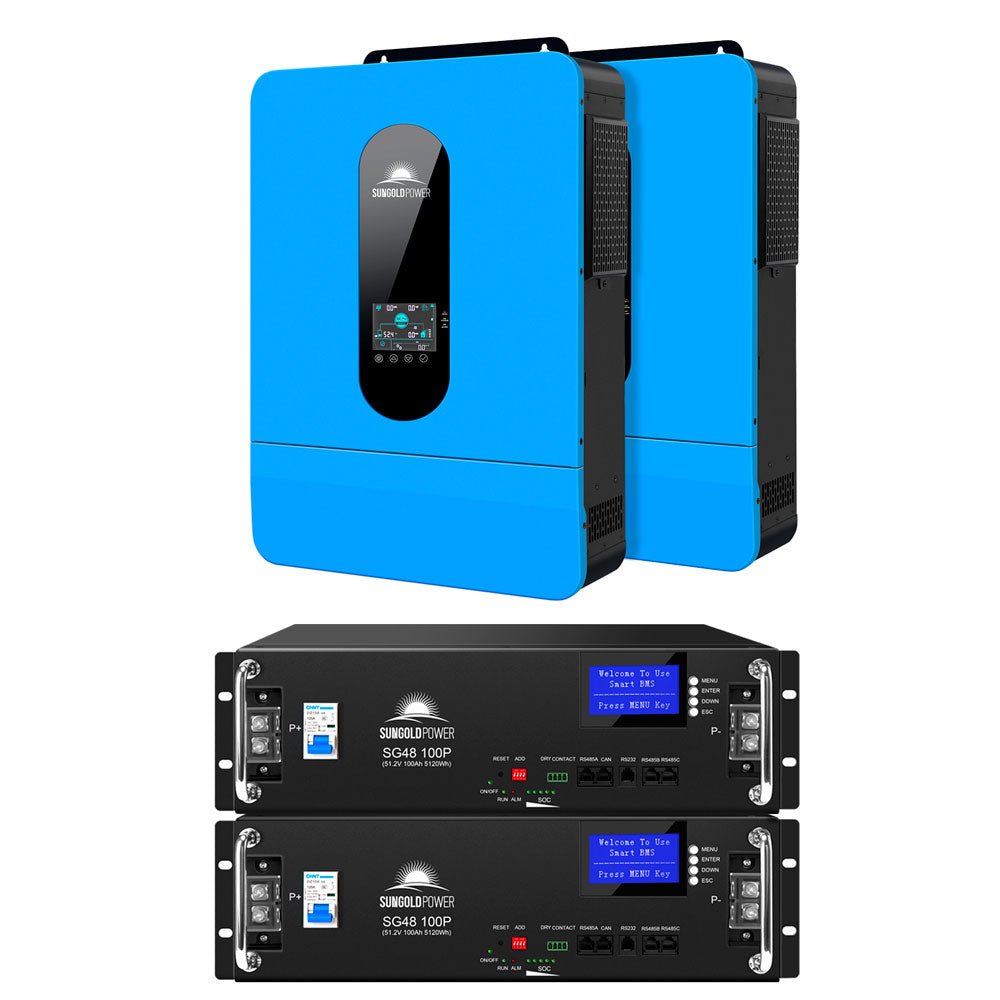

• Communication Support: CAN and RS485 for SunGoldPower batteries
• Certification: UL 1741 by ETL for Off Grid Solar System
