160W CIGS Flexible Solar Kit with 20A MPPT Controller

Overview

This versatile 160W CIGS flexible solar kit combines a lightweight solar panel with a powerful 20A MPPT charge controller, along with all essential pre-assembled cables for a straightforward and streamlined installation. With its adhesive mounting system, you can secure the panel without drilling, and the digital controller provides real-time insights into your system’s performance.

Benefits

• Streamline your installation process and avoid tedious setup with adhesive mounts that eliminate the need for drilling or special tools.
• Safeguard your roof from damage as the no-screw installation minimizes potential leaks or wear over time.
• Easily add or upgrade components with plug-and-play designs that allow for hassle-free modifications without complex rewiring.
• Stay informed with live data on volts, amps, and amp-hours displayed on the controller for instant visibility of your system's status.
• Protect your battery from overcharging and enhance longevity as the MPPT controller automatically manages charging for optimal performance.
• Reduce the risk of theft with a low-profile adhesive mount that minimizes visible hardware.

Features

• 160W CIGS flexible solar panel suitable for both curved and flat surfaces.
• 20A MPPT solar charge controller featuring a digital display for real-time monitoring of voltage, current, and amp-hours.
• Adhesive mounting system for rooftops that requires no drilling.
• Pre-assembled weather-resistant cabling designed to simplify installation and connection.
• Plug-and-play compatibility among components for easy upgrading or replacement.
• Integrated overcharge protection and MPPT tracking to enhance charging efficiency and battery health.

Specifications

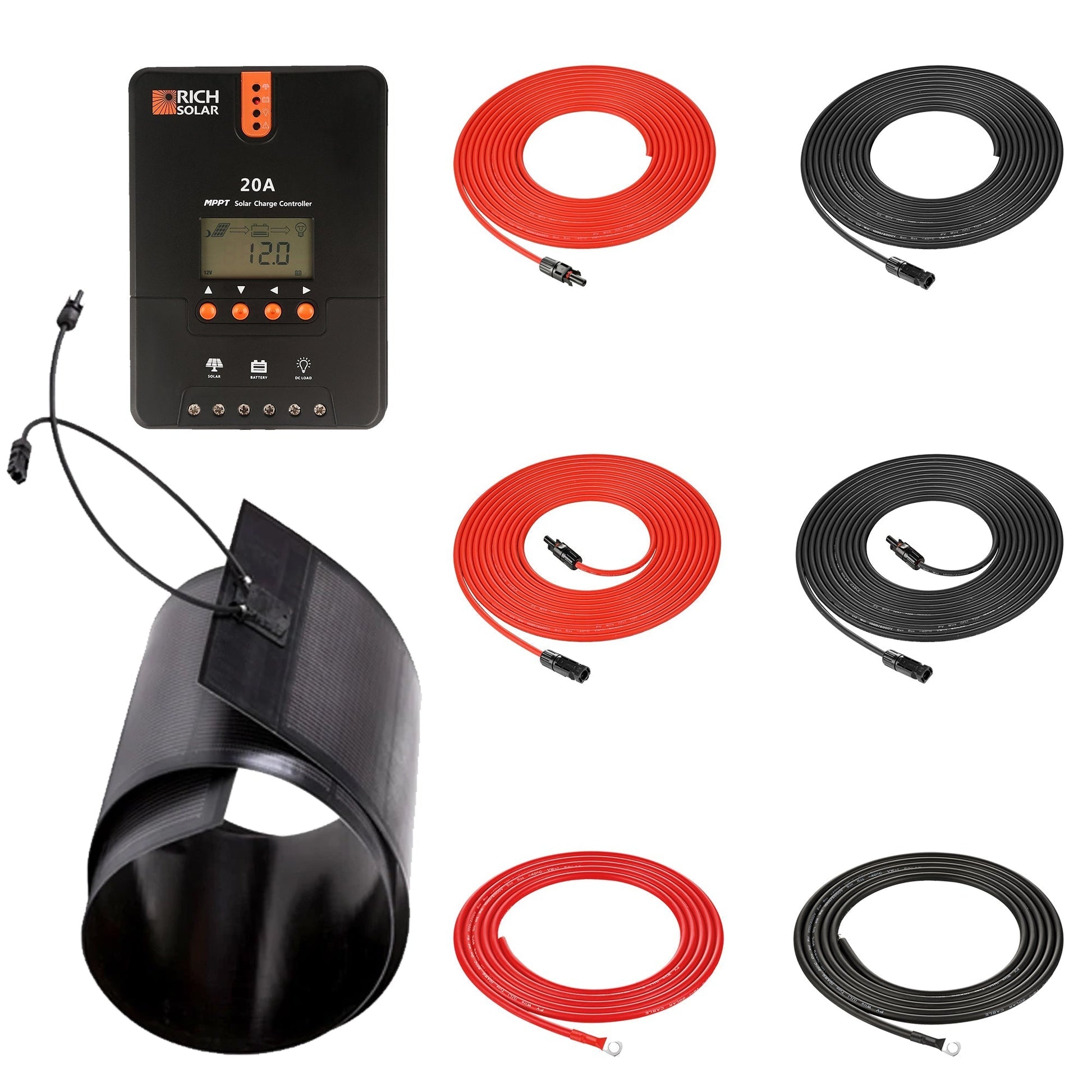

• Kit includes:
  • 1 × 160W CIGS flexible solar panel
  • 1 × 20A MPPT solar charge controller with digital display
  • 1 × 20' #10 gauge solar extension cable (red) with pre-assembled female connector
  • 1 × 20' #10 gauge solar extension cable (black) with pre-assembled male connector
  • 1 × 20' #10 gauge solar extension cable (red) with pre-assembled male and female connectors at both ends
  • 1 × 20' #10 gauge solar extension cable (black) with pre-assembled male and female connectors at both ends
  • 1 × 10' #10 gauge wire (red) with pre-assembled battery lug
  • 1 × 10' #10 gauge wire (black) with pre-assembled battery lug
• Maximum Power (Pmax): 160 W
• Maximum Power Voltage (Vmp): 18.9 V
• Maximum Power Current (Imp): 8.40 A
• Open Circuit Voltage (Voc): 23.4 V
• Short Circuit Current (Isc): 9.60 A
• Maximum System Voltage (Vmax): 1000 V DC
• Charge controller rating: 20 A MPPT with voltage, current, and amp-hour display
• Panel material: CIGS flexible solar cell construction
• Cable gauge: #10 AWG for all supplied cables and battery leads
• Weight: 7.1 lb
• Dimensions: 67.3 × 26.0 in
• Mounting method: Rooftop adhesive system requiring no screws
