Adjustable Rooftop Tilt Bracket for Solar Panels

Overview

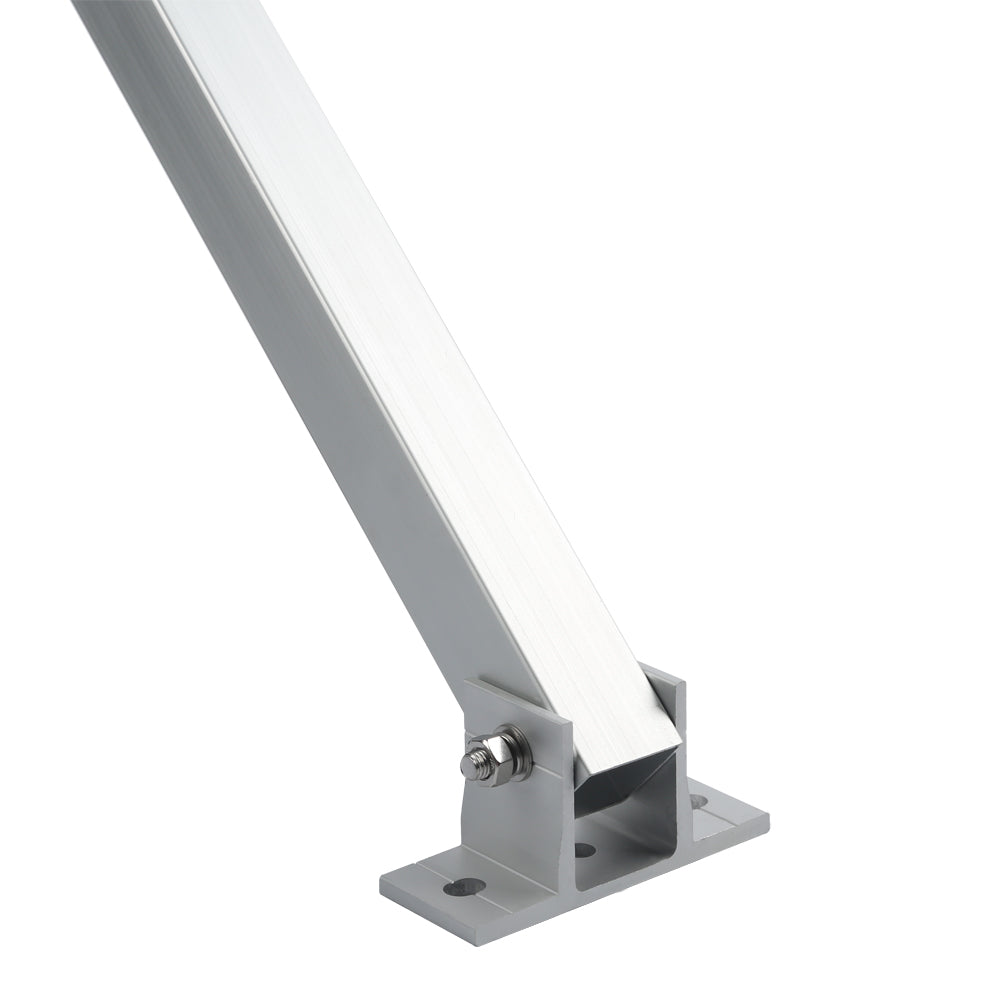

This lightweight aluminum alloy bracket is designed to optimize the angle of solar panels on flat roofs and similar surfaces. Its user-friendly installation and customizable tilt options enhance panel exposure efficiently without the need for complex mounting hardware.

Benefits

• Maximize energy production by positioning panels to receive optimal sunlight throughout the day.
• Streamline installation with simple steps and necessary hardware to save valuable time.
• Minimize roof load and installation effort due to the lightweight aluminum construction.
• Adapt to seasonal changes or different panel sizes with flexible tilt adjustments, eliminating the need for new brackets.

Features

• Engineered for easy use on flat rooftops and surfaces.
• Adjustable tilt angles accommodate various panel sizes and site conditions.
• Quick installation process using standard tools for convenience.
• Built with a corrosion-resistant aluminum alloy that features an anodized finish for durability.

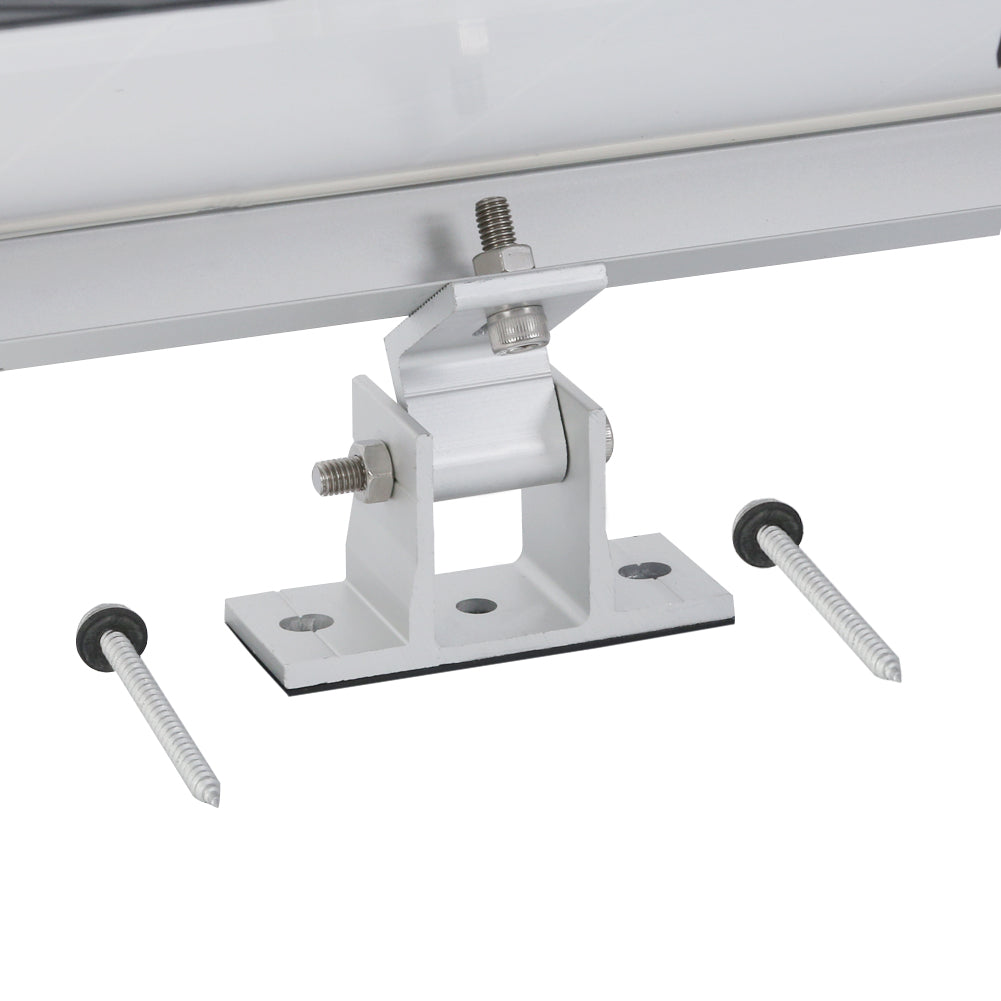

• Includes stainless steel fasteners for reliable and secure attachment.

Specifications

• Material: Aluminum alloy (6061-T6), anodized finish
• Weight: Approximately 1.2 kg per bracket

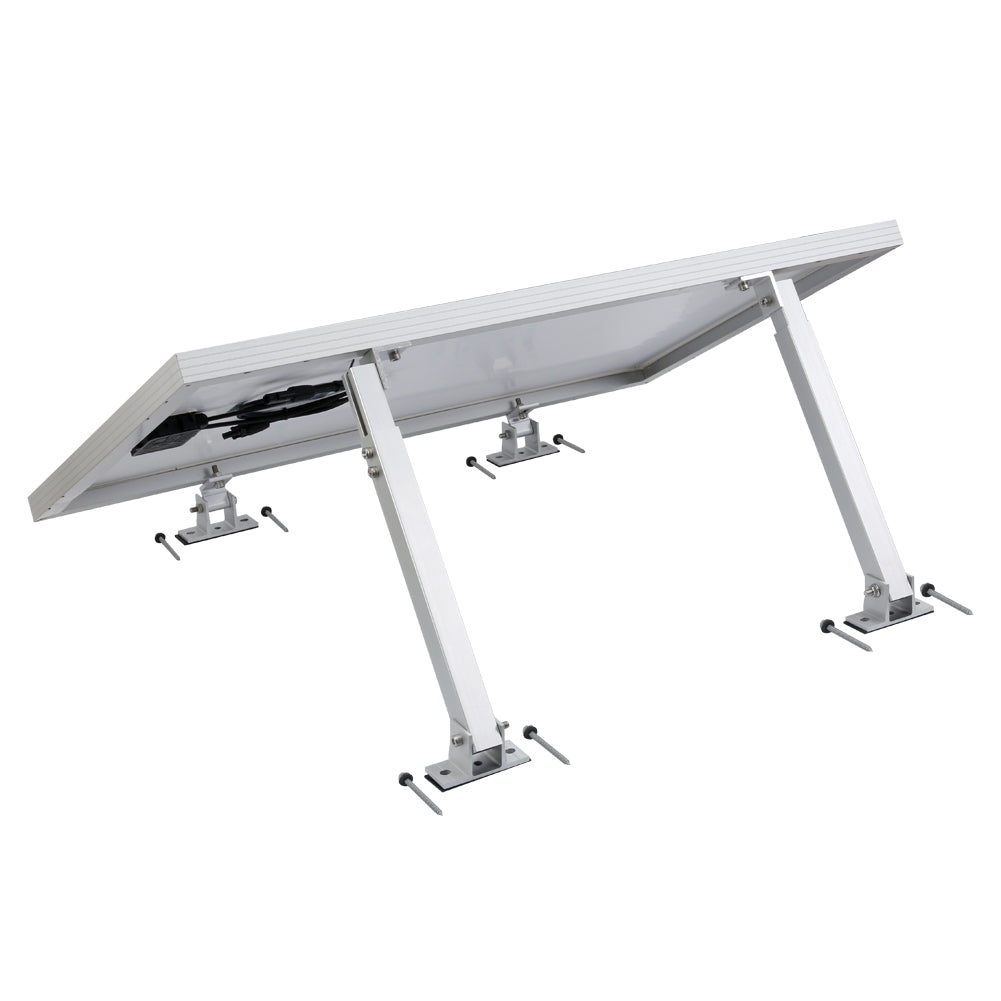

• Tilt angles: Selectable at 15°, 25°, and 35° based on panel size
• Compatible panel sizes: Standard 60–72 cell panels, maximum dimensions of 1700 x 1030 mm
• Base footprint: 300 mm x 120 mm

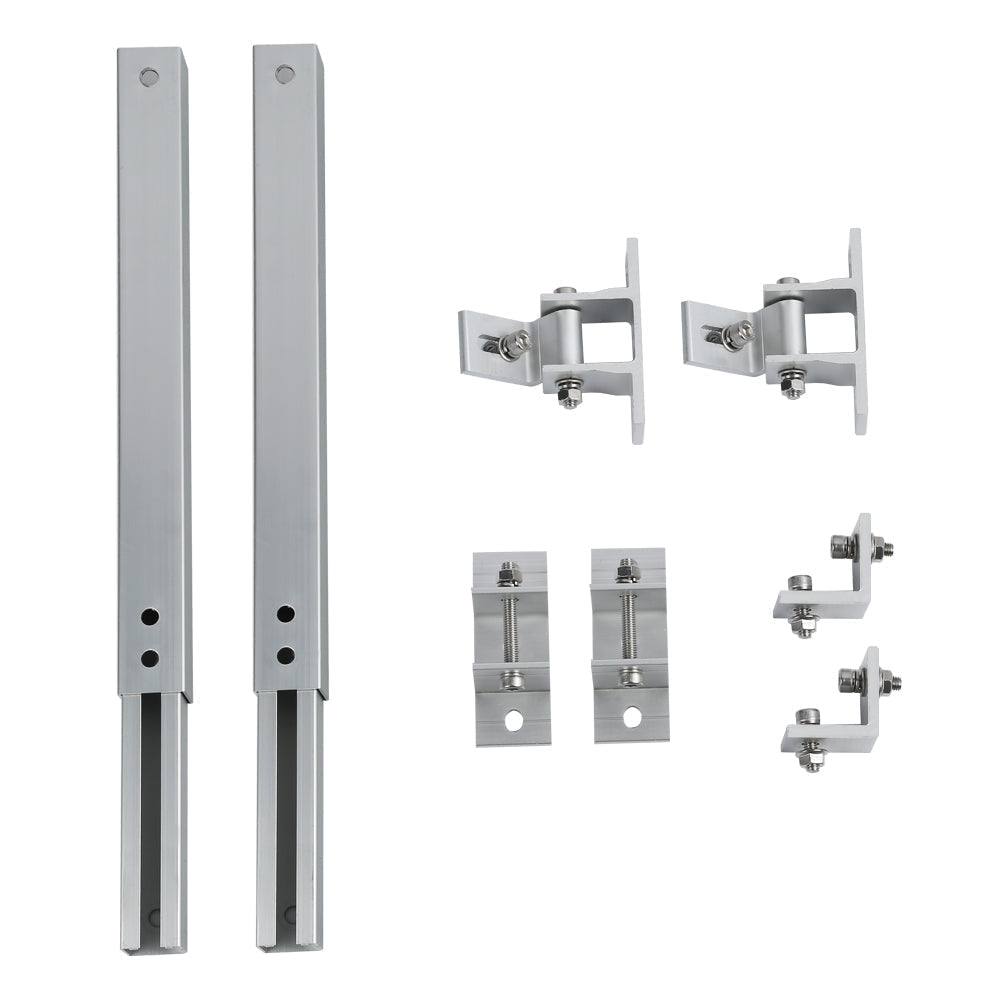

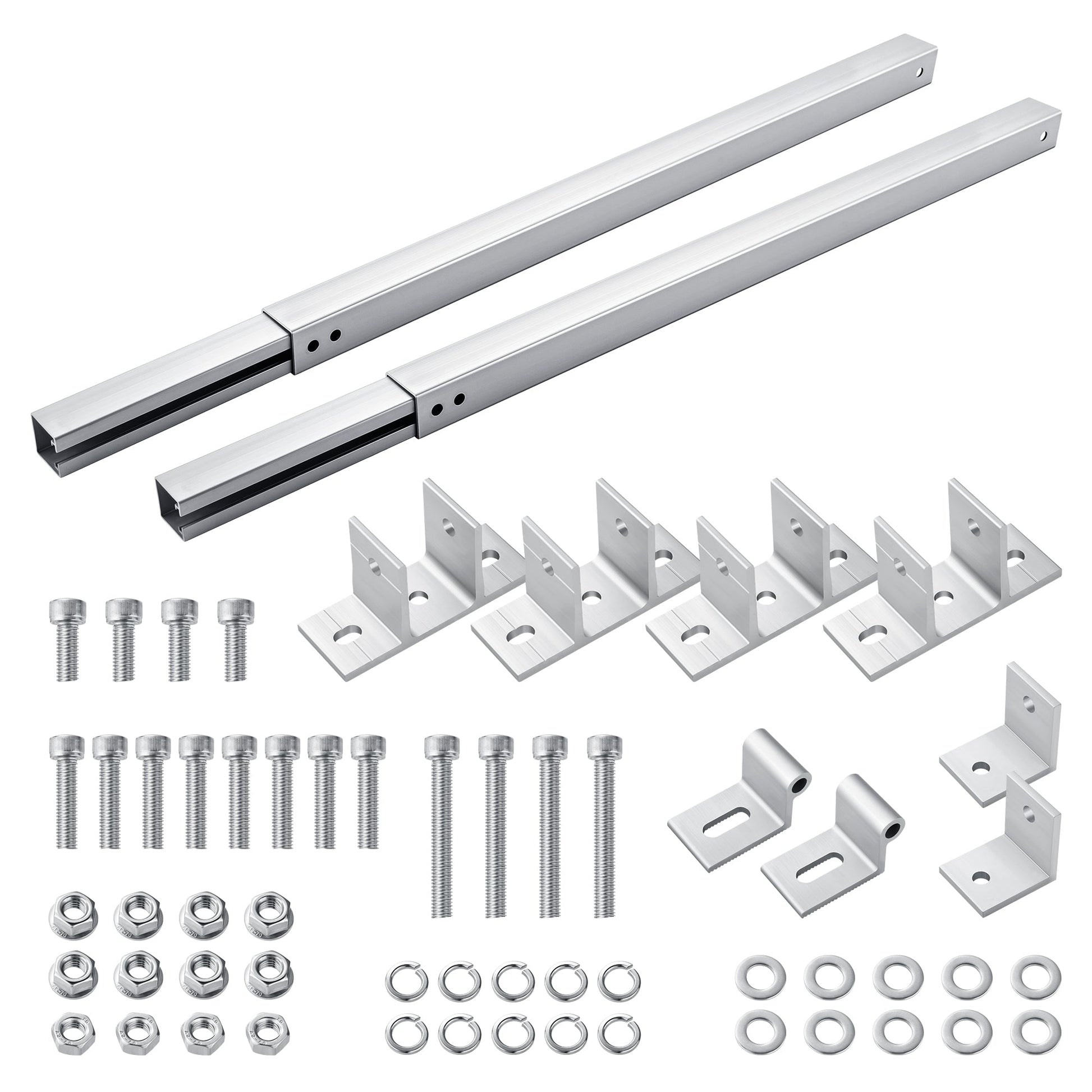

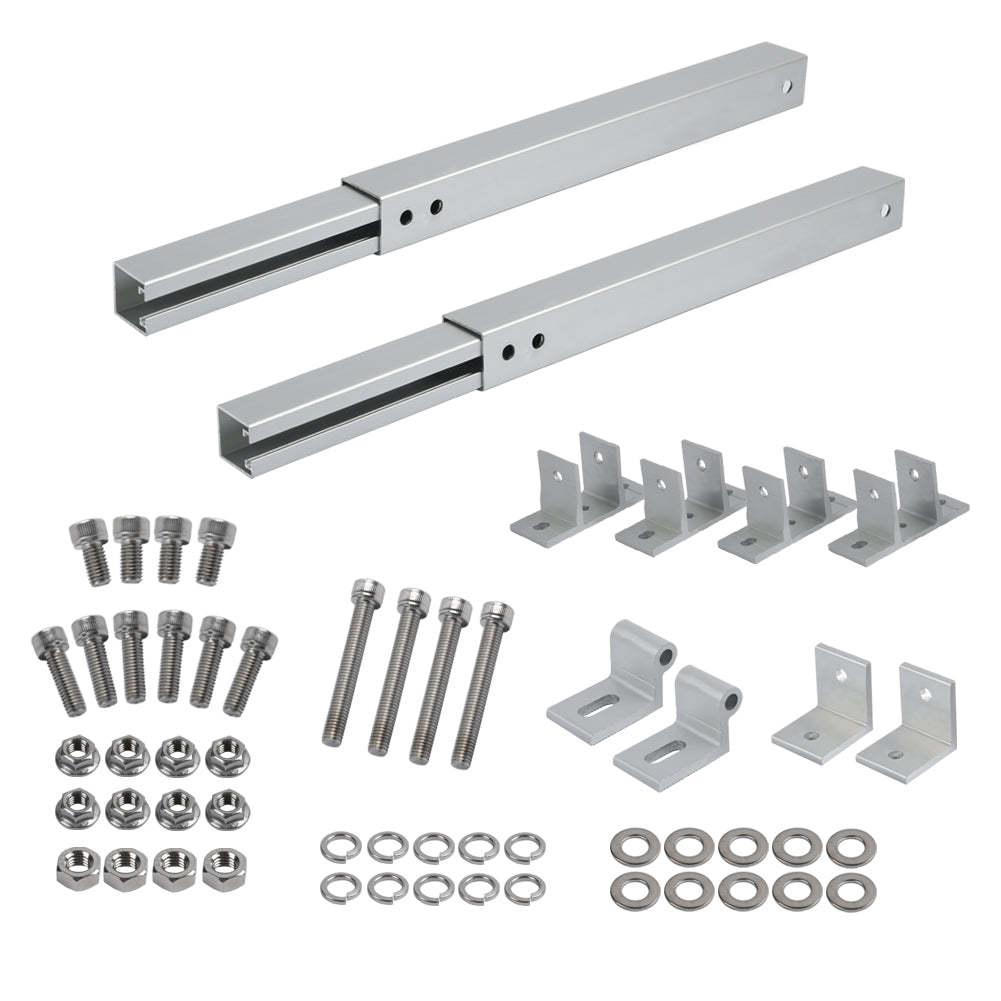

• Fasteners: M8 stainless steel bolts and washers included
• Estimated installation time: Around 15 minutes per bracket with two people
• Operating temperature range: -40 °C to 85 °C
