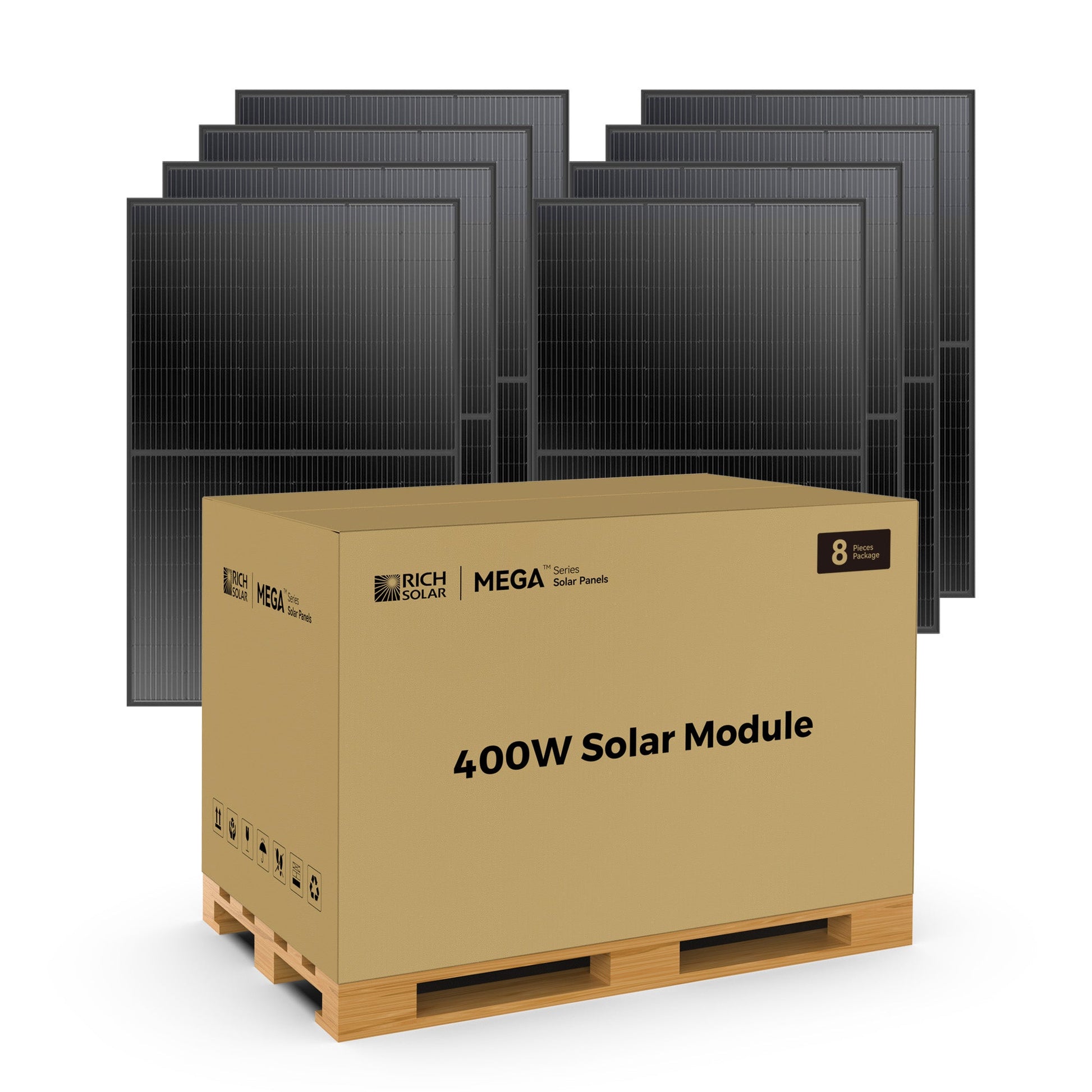

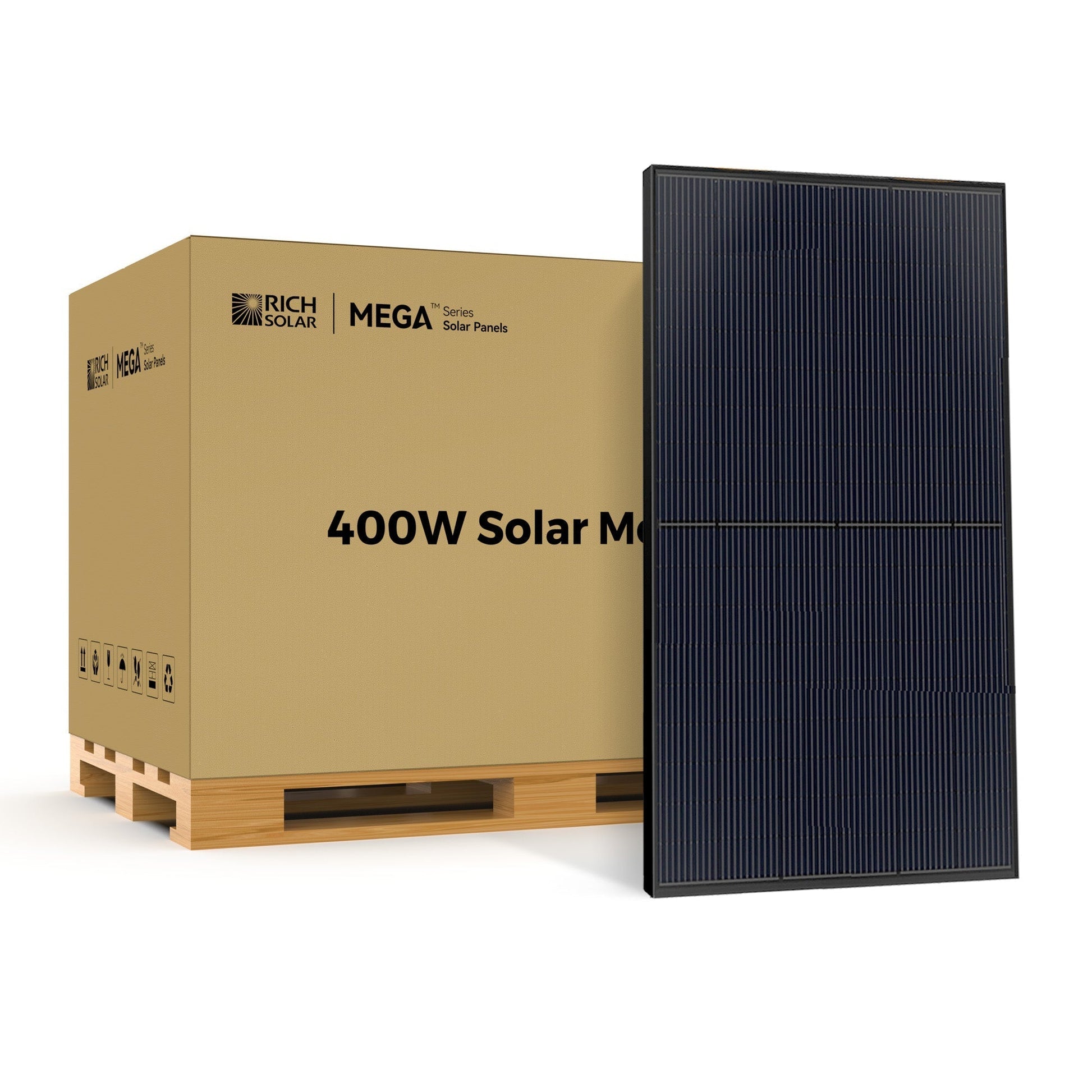

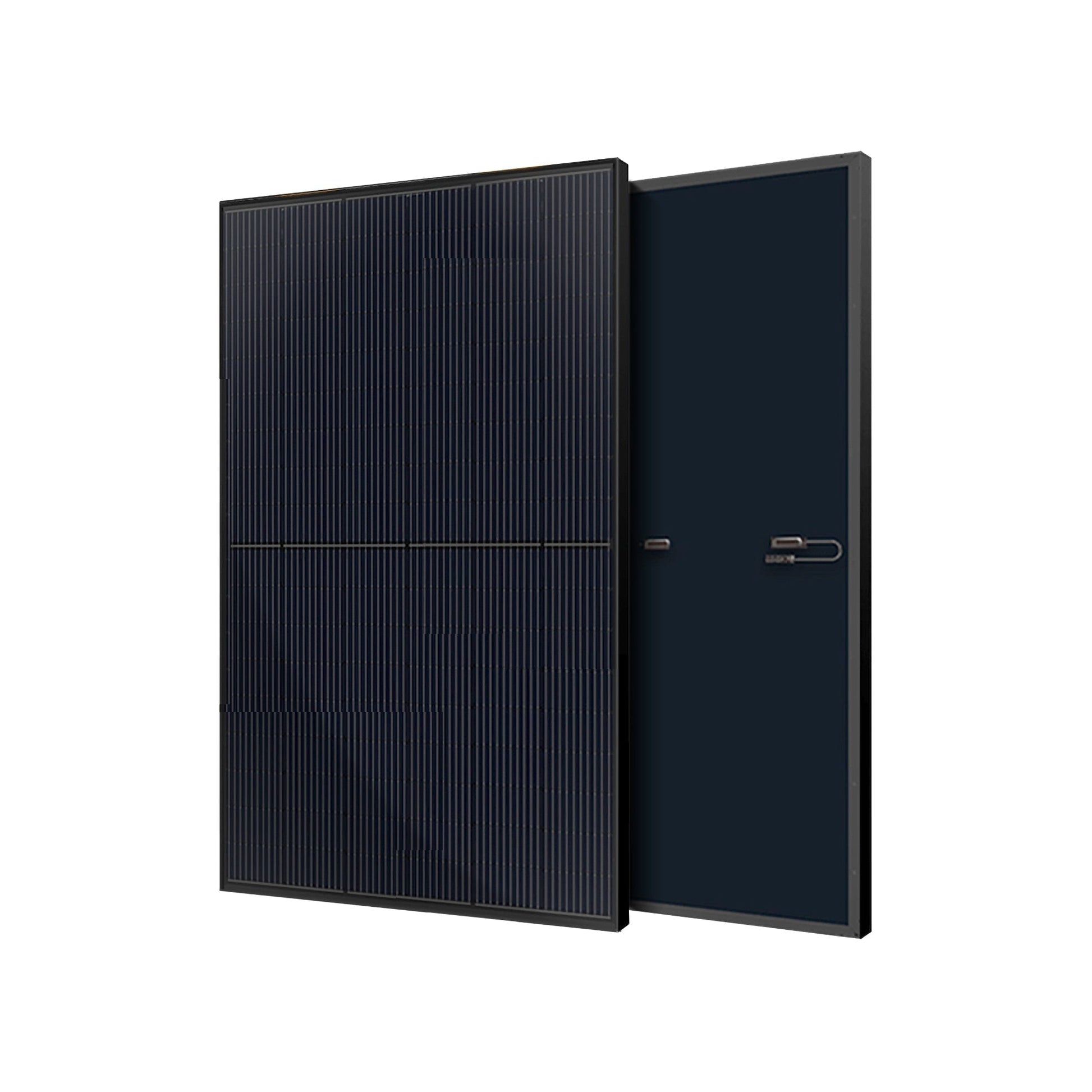

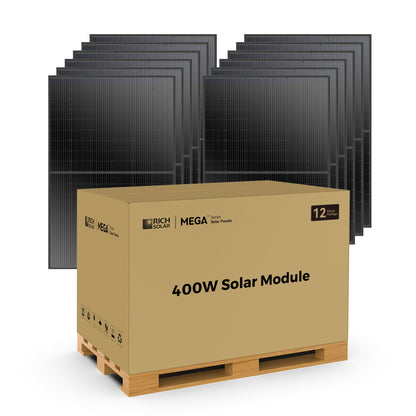

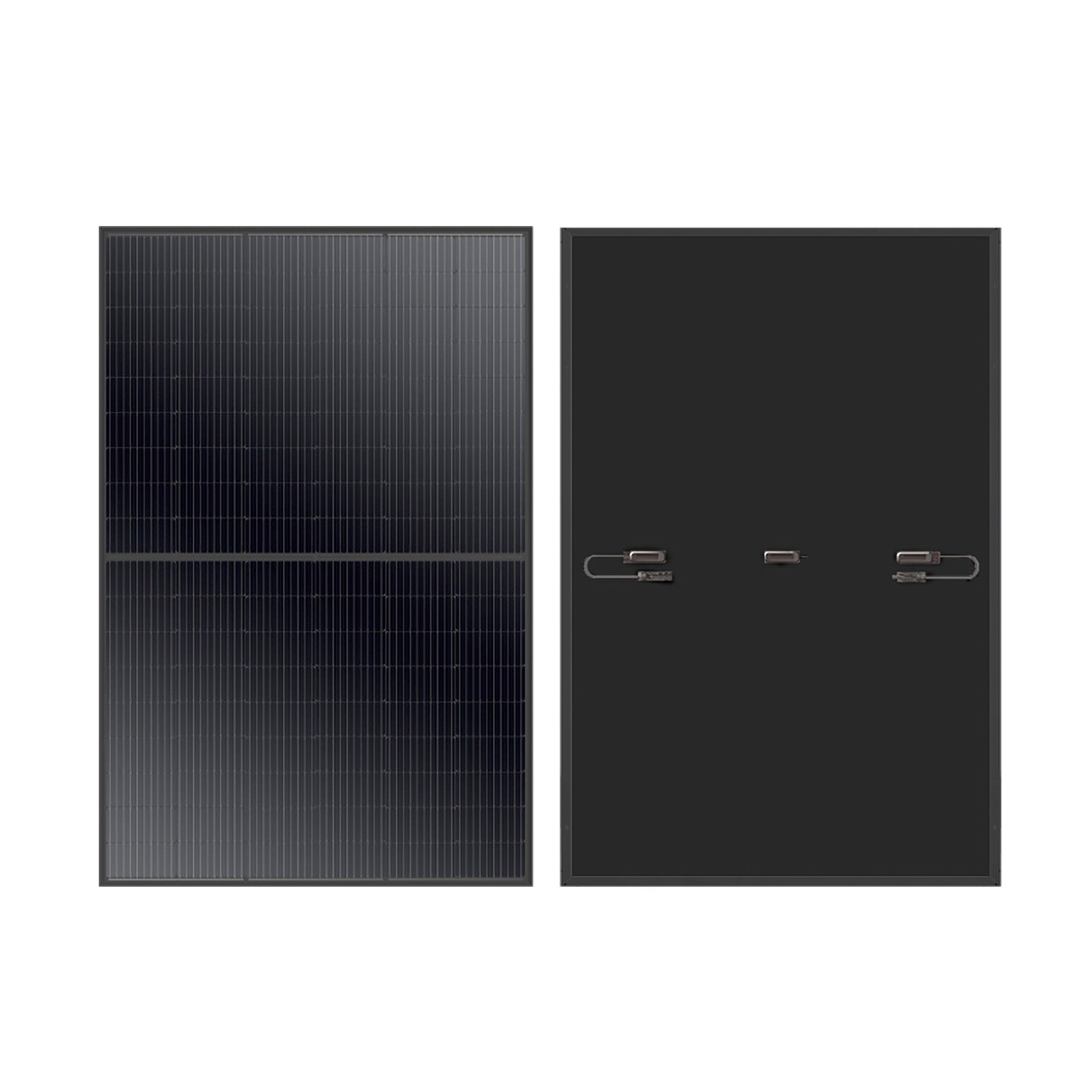

400W Monocrystalline Solar Panel - 10-Busbar Mono PERC

Overview

Discover the efficiency and reliability of our 400W monocrystalline solar panel, crafted with 10-busbar Mono PERC cells and high-transmission AR tempered glass. Its lightweight anodized aluminum frame makes it easy to handle and install while ensuring optimal performance even in challenging environmental conditions.

Benefits

• Enjoy consistent energy production throughout the day, even during cloudy weather, ensuring your systems operate smoothly when you need them most.
• Experience quick and straightforward installations with pre-drilled holes and plug-and-play connections, saving you valuable time on setup.
• Benefit from easier handling and transport due to the lightweight anodized aluminum frame, perfect for mobile and off-grid setups.
• Reduce downtime and eliminate concerns with a panel certified for extreme environments and supported by extensive warranties.
• Get flexible system design options as it integrates effortlessly with standard mounts and both on-grid and off-grid inverters, accommodating a variety of projects without additional parts.

Features

• 10-busbar solar cell configuration enhances efficient current collection.
• Mono PERC cell technology ensures improved performance across real-world conditions.
• Durable and lightweight anodized aluminum frame simplifies handling and installation.
• High-transmission, anti-reflective coated tempered glass optimizes light capture.
• Plug-and-play junction box with standard quick-connect cables makes series or parallel connections hassle-free.
• Pre-drilled holes accommodate various mounts including ground, Z brackets, pole, and tilt mounts for swift installation.
• Compatible with both on-grid and off-grid inverter systems for versatile setups.
• Engineered to withstand tough environmental conditions while ensuring dependable performance.

Specifications

• Maximum Power: 400W
• Maximum Power Voltage: 30.9V
• Maximum Power Current: 12.9A
• Open Circuit Voltage: 37.1V
• Short Circuit Current: 13.7A
• Maximum System Voltage: 1500V DC
• Dimensions: 67.9 x 44.6 x 1.2 in
• Weight: 49.4 lbs
• Panel Cable Length: 14 in
• Material: Tempered Glass, Aluminum, Monocrystalline Silicon
• Operating Temperature Range: -40 to +185 °F
• Warranty: 25-year limited power output warranty; 10-year workmanship warranty
