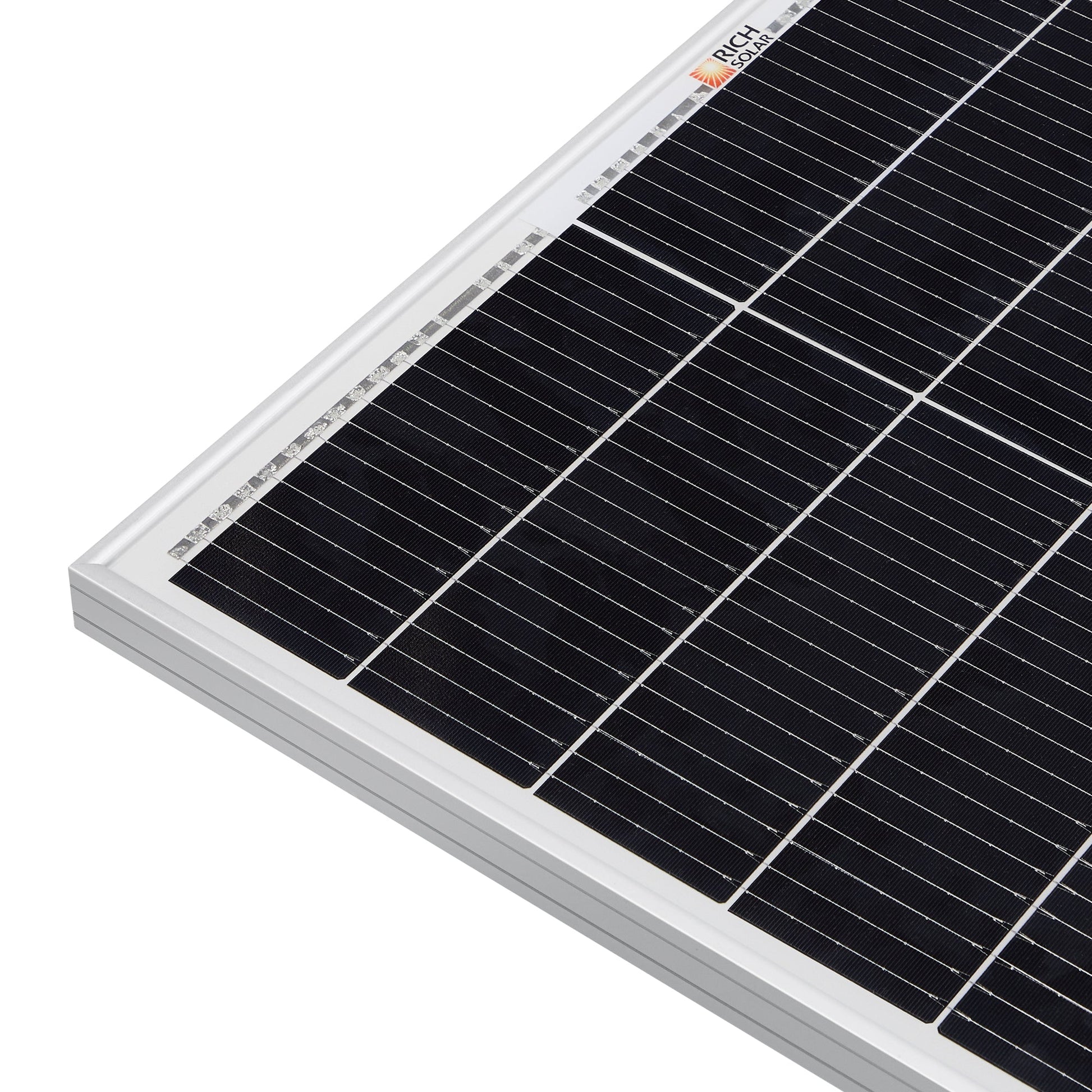

335W 24V Solar Panel - Reliable and Simple Installation

Overview

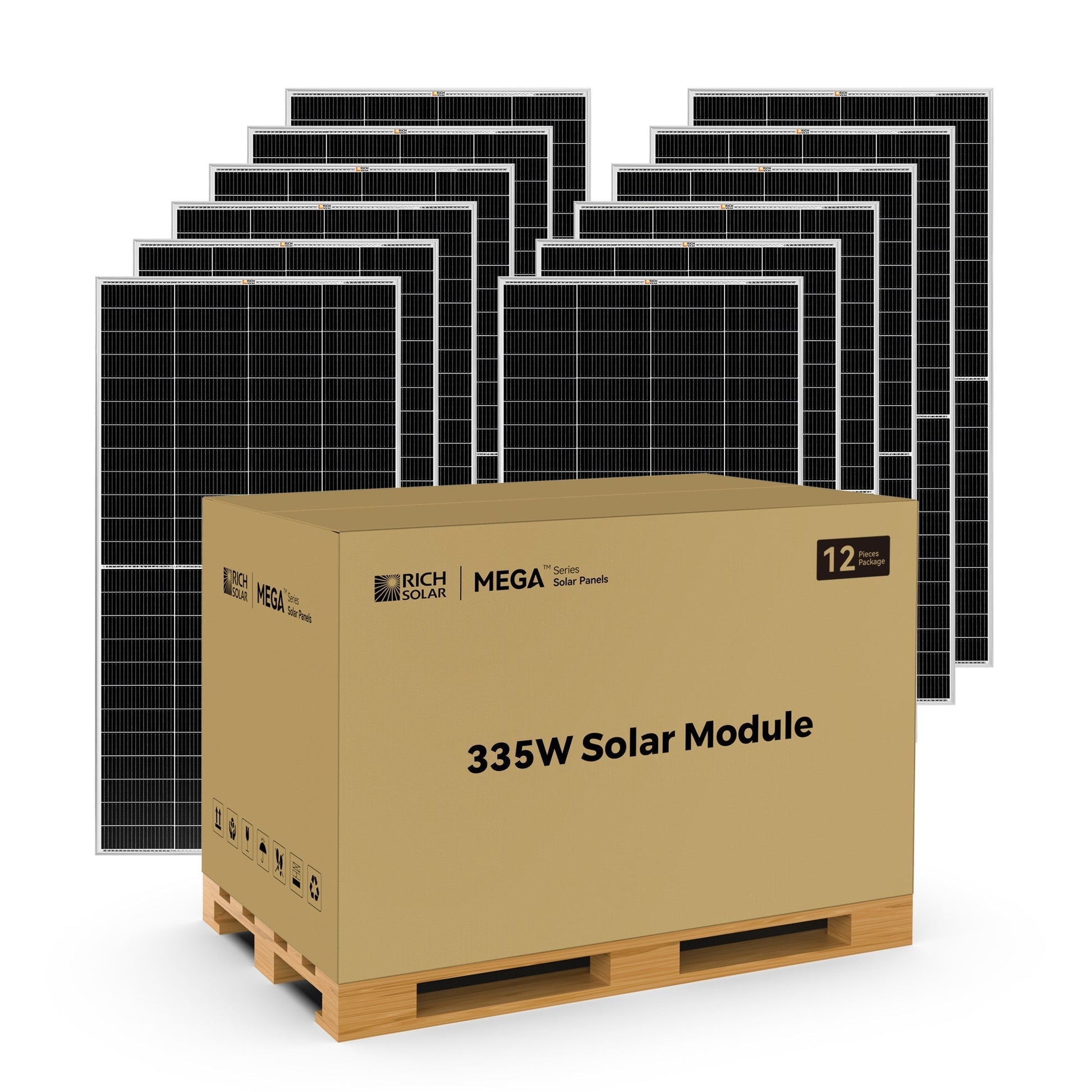

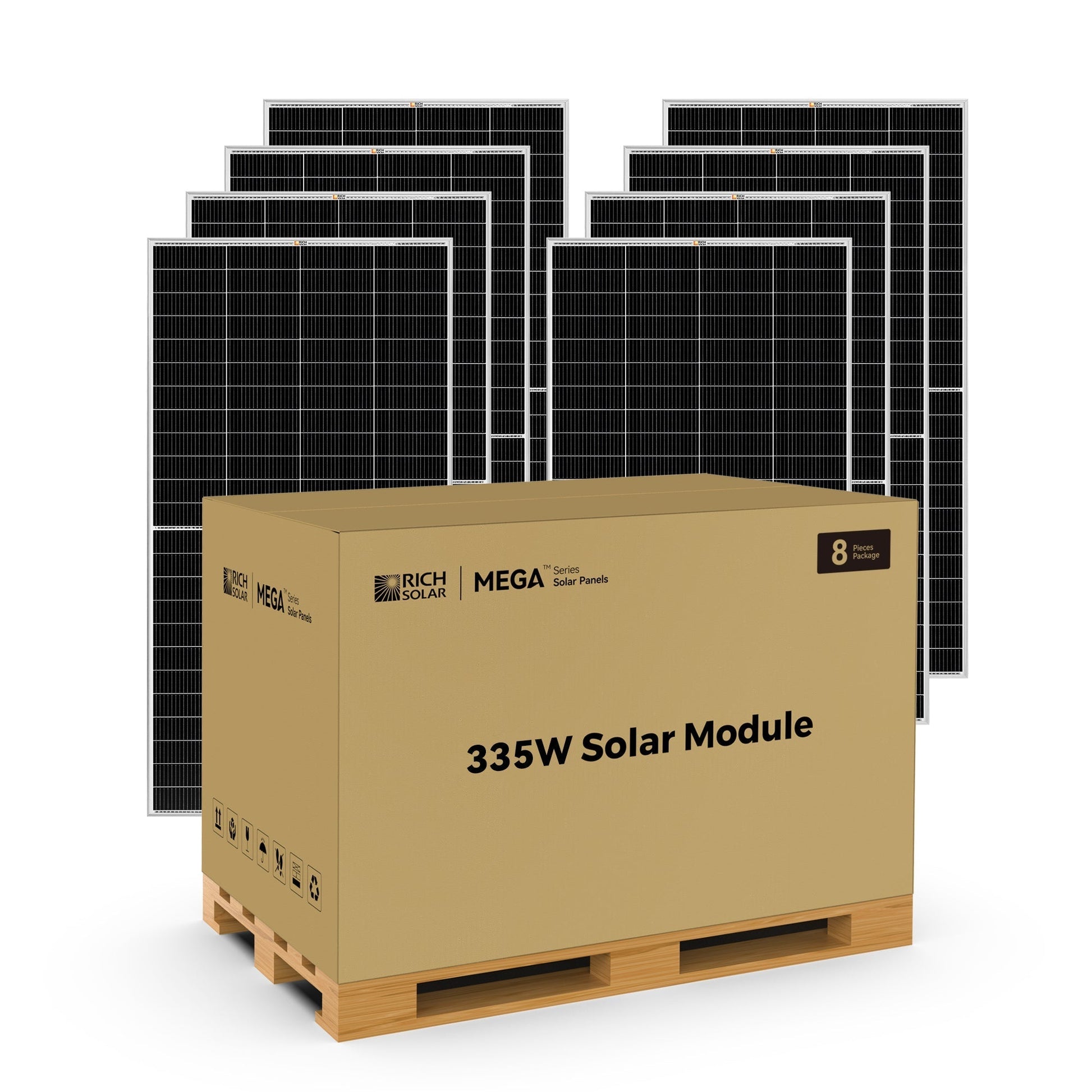

This powerful 335W solar panel offers up to 11.5A for 24V systems and is designed for dependable performance in various conditions including early mornings and overcast days. This panel is available for pallet shipping only; if you have smaller orders or need alternative shipping solutions, please call 1-800-831-9889 or email sales@richsolar.com.

Benefits

• Ensure consistent power for extended periods by charging 24V battery banks effectively, keeping your devices and equipment operational.
• Maximize energy capture throughout the day, with robust performance in low-light situations that harness power even in dim conditions.
• Save on installation time with 14 pre-drilled holes that are compatible with various mounting solutions, making setup a breeze.
• Enjoy peace of mind with lower maintenance needs due to IP67-rated components that minimize risk of water damage and hot spots.
• Achieve a flexible system design by connecting panels in series or parallel, and using them with either on-grid or off-grid inverters based on your needs.
• Benefit from long-term assurance with a 25-year power output warranty and a 10-year workmanship warranty for added confidence.

Features

• Maximum power output of 335W with an operating current of 11.5A suitable for 24V systems.

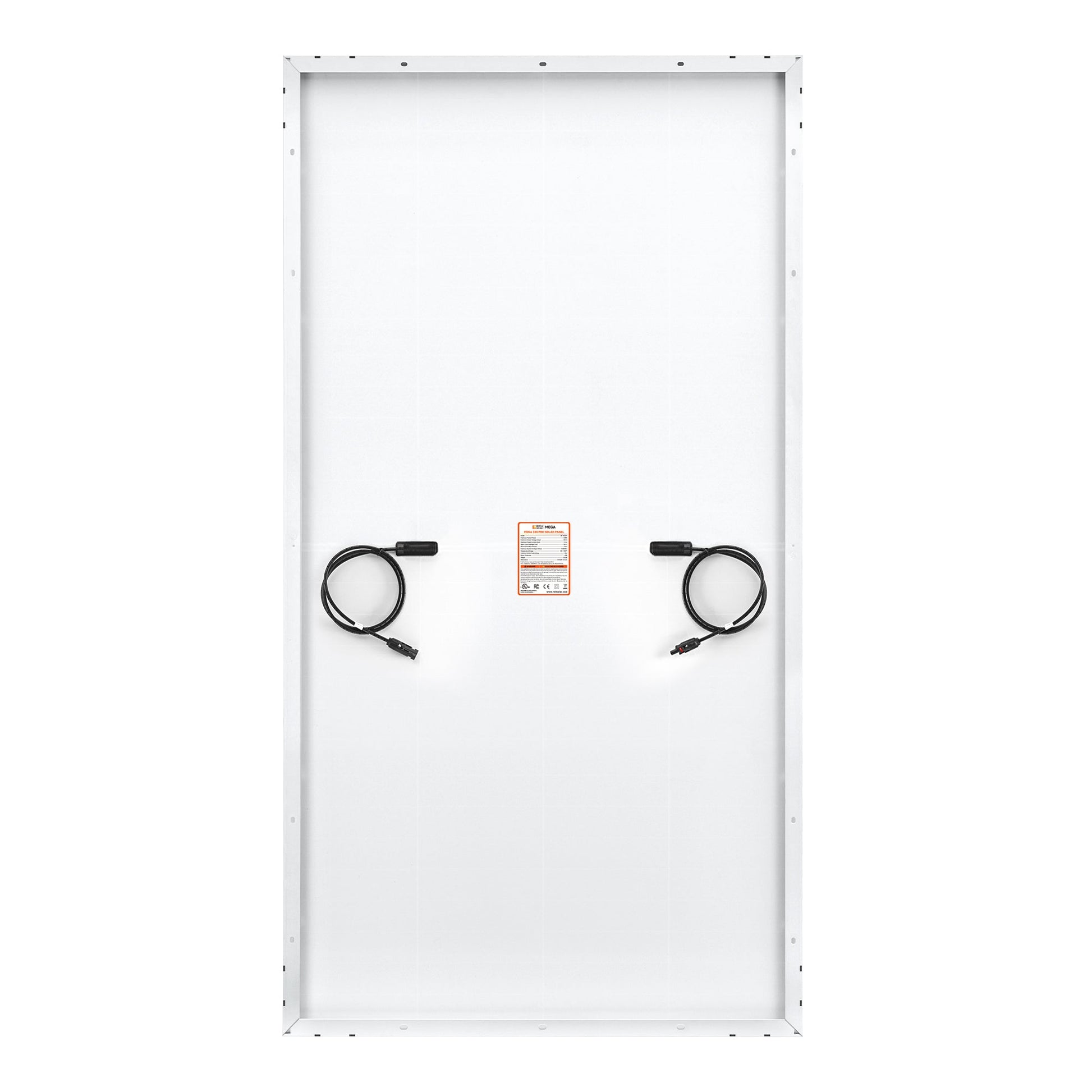

• Quick-connect panel leads of three feet for streamlined electrical connections.
• Can be configured in series or parallel to fit varied array and voltage needs.
• Exceptional low-light performance ensures effective energy capture during early mornings, evenings, and cloudy days.
• Constructed with high-transmission, anti-reflective tempered glass and a durable anodized aluminum frame.
• Includes 14 pre-drilled mounting holes that are compatible with Z-brackets, ground mounts, side pole mounts, and tilt mounts for easy installation.
• Features an IP67-rated waterproof junction box and connectors, ensuring reliability for outdoor use.
• Integrated bypass diodes are included in the junction box to help prevent shading losses.
• Compatible with both on-grid and off-grid inverter systems.
• Comes with a 25-year power output warranty and a 10-year workmanship warranty for solid backing.

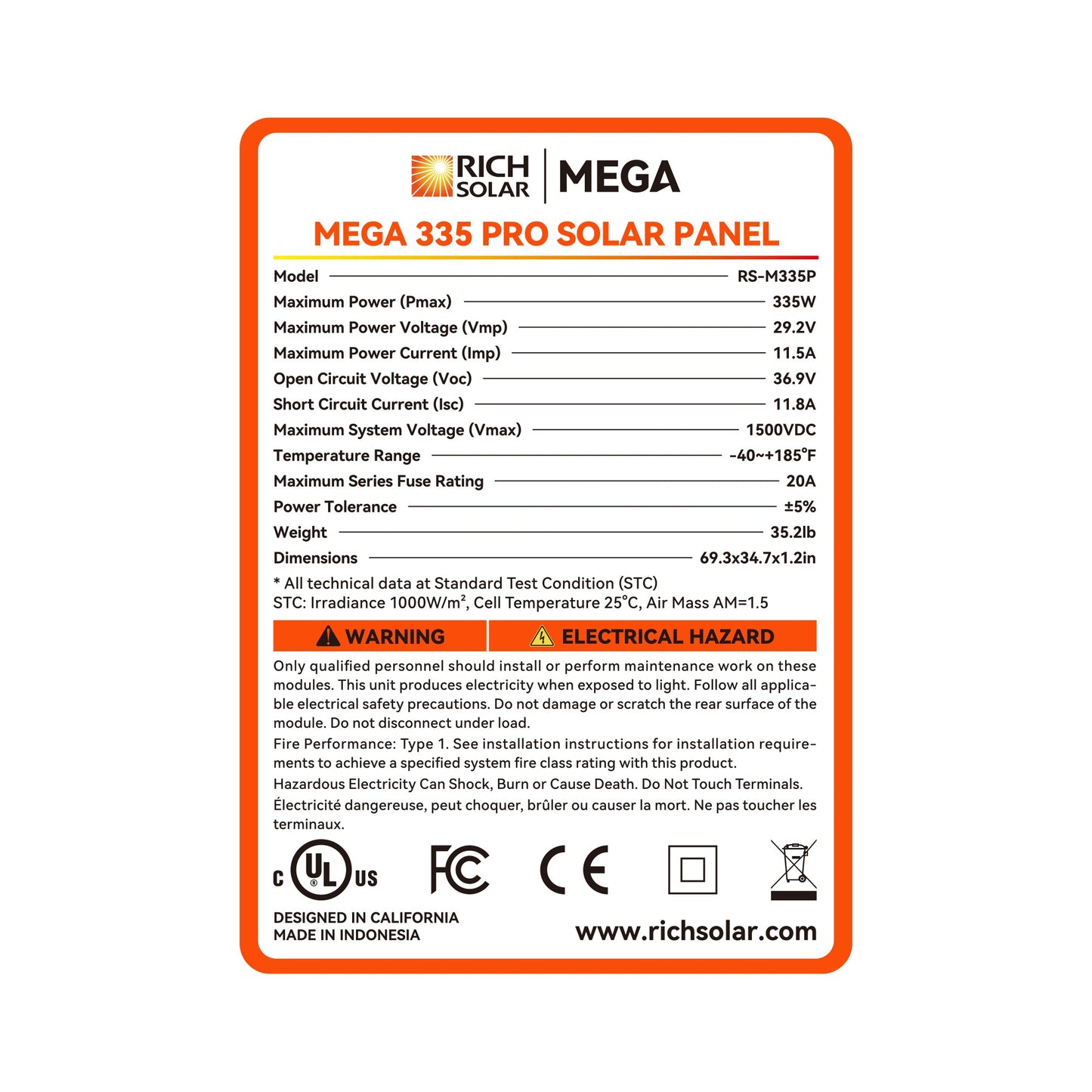

Specifications

• Maximum Power (Pmax): 335W
• Maximum Power Voltage (Vmp): 29.2V
• Maximum Power Current (Imp): 11.5A
• Open Circuit Voltage (Voc): 36.9V
• Short Circuit Current (Isc): 11.8A
• Maximum System Voltage (Vmax): 1500 VDC
• Temperature Range: -40°F to 185°F
• Max Series Fuse Rating: 20A

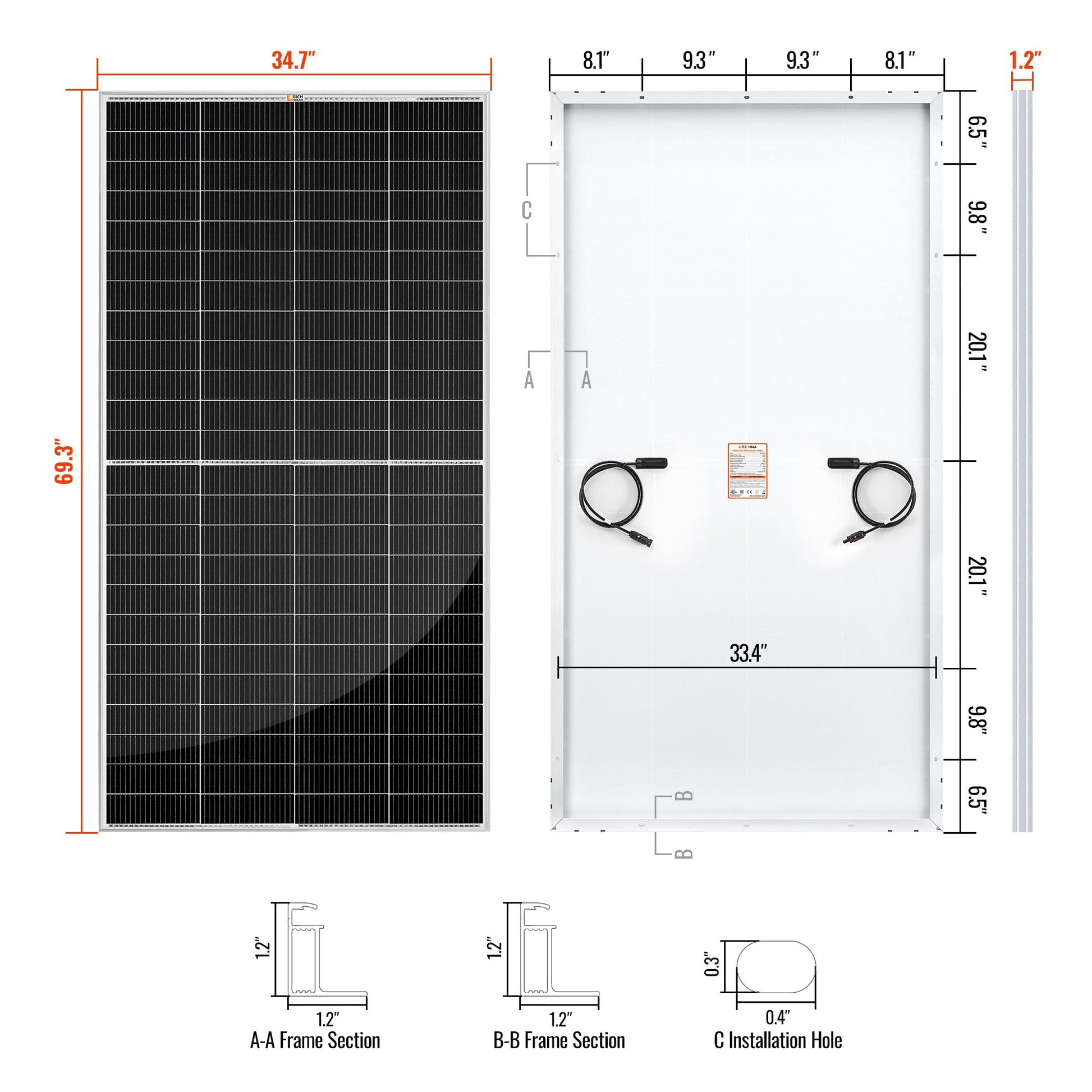

• Dimensions: 69.3 x 34.7 x 1.2 inches
• Weight: 35.2 pounds
• Panel leads (pair): 3 feet each (quick-connect)
• Junction box: IP67-rated waterproof
• Connectors: IP67-rated waterproof solar connectors
• Built-in bypass diodes located in junction box
• Warranty: 25-year power output warranty; 10-year workmanship warranty
