10AWG Solar Panel Cable – Durable and Reliable Connections

Overview

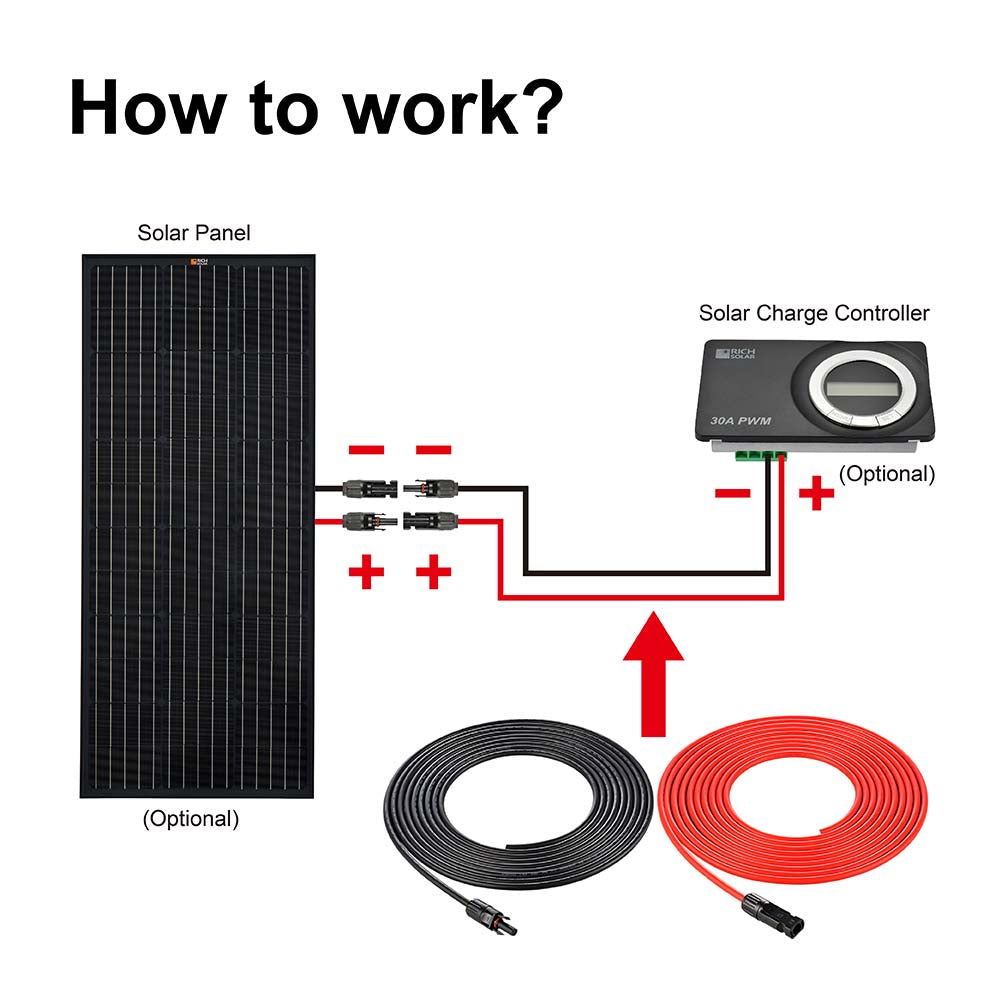

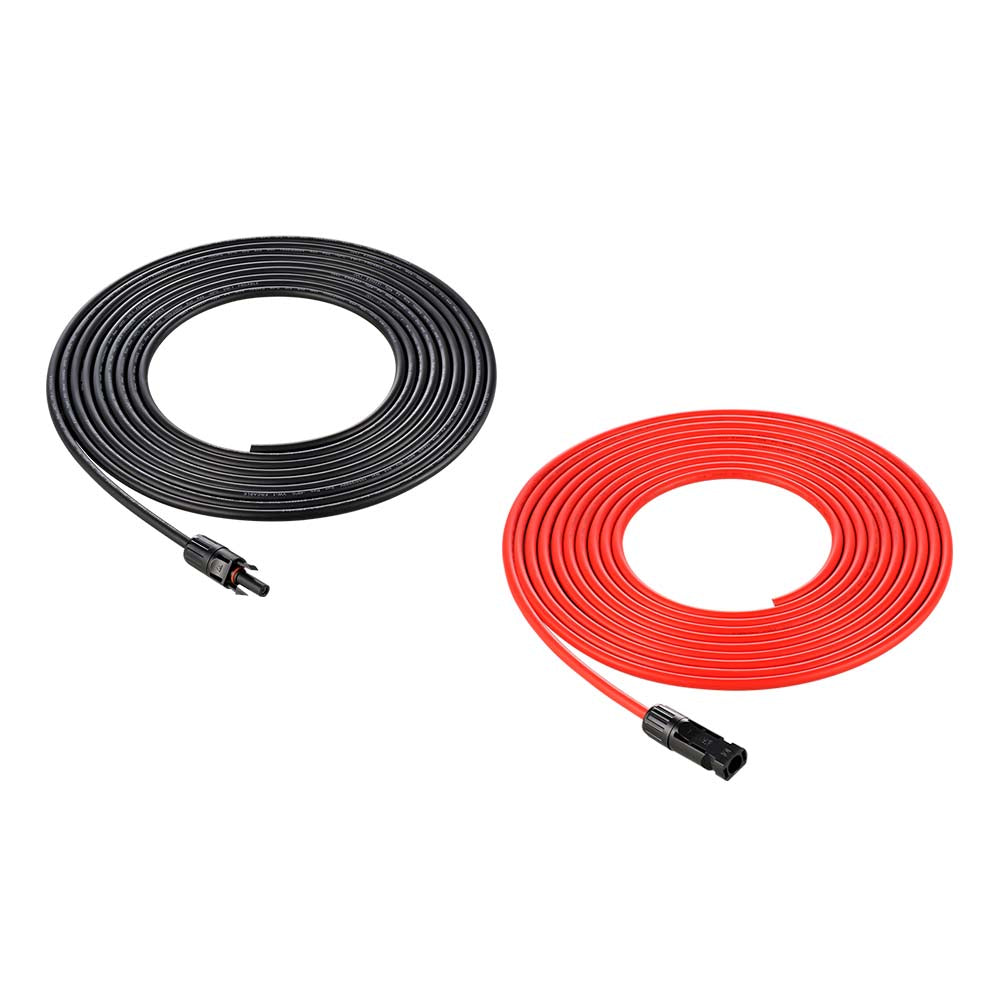

This high-quality, outdoor-rated UL 4703 solar cable is perfect for off-grid solar systems. Available in lengths of 20 ft or 30 ft, it features solar connectors on one end and stripped leads on the other, making it simple to connect your solar panels to charge controllers.

Benefits

• Streamline your installation with pre-attached connectors at the panel end and bare leads for easy connection to the controller.
• Minimize upkeep with outstanding UV, moisture, and corrosion resistance that extends cable longevity.
• Ensure consistent power delivery in all weather conditions, keeping your solar setup reliable year-round.
• Make off-grid wiring straightforward by providing an appropriate gauge with matched conductor pairs.
• Utilize this cable with most solar configurations, eliminating the need for custom splicing or extra adapting components.

Features

• Optimized for use in off-grid solar installations and designed for outdoor durability.
• Choose from conductor lengths of 20 ft or 30 ft, with each conductor in the pair maintaining the specified length.
• Equipped with solar connectors on one side and bare/stripped leads for connecting to charge controllers on the opposite end.

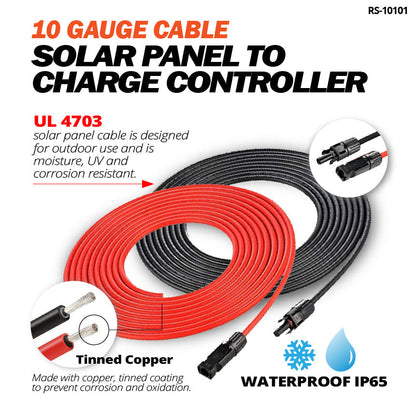

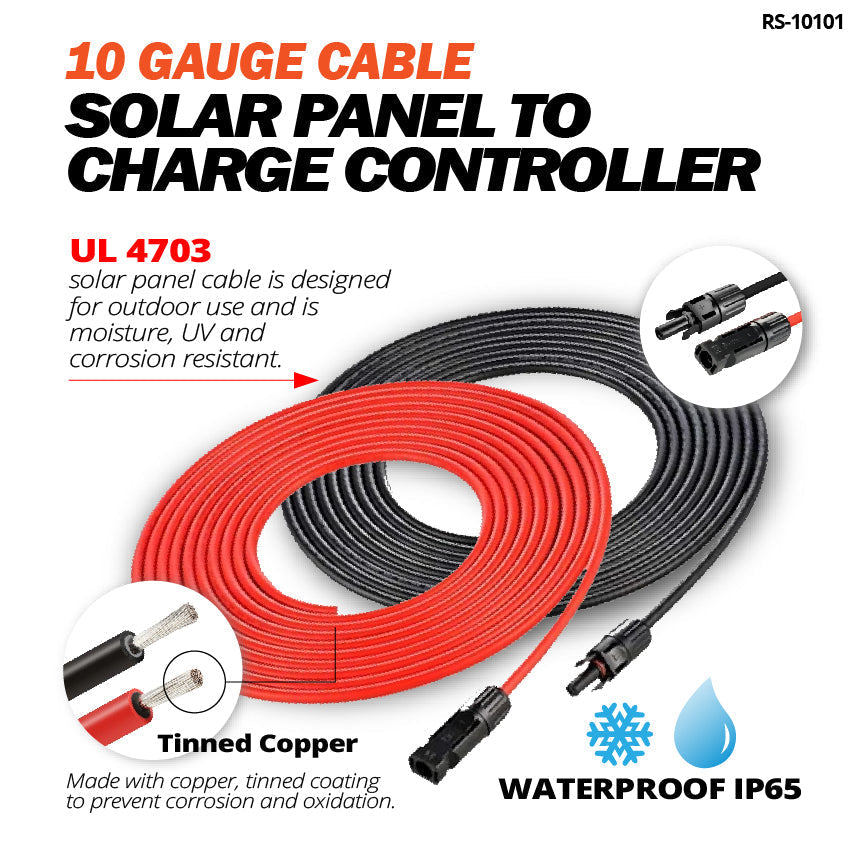

• Constructed from UL 4703-rated solar panel cable for excellent performance.
• Flexible TPE insulation offers weather resistance and durability in various conditions.
• Tinned copper conductors enhance corrosion resistance and electrical conductivity for reliable performance.
• Features IP65-grade waterproofing and is IEC 60332-1 fire rated for safety assurance.

Specifications

• Wire Gauge: 10 AWG
• Length Options: 20 ft or 30 ft per conductor (two-conductor pair sold)
• Configuration: Two-conductor pair with solar connectors at one end and bare/stripped leads at the other
• Rated Voltage: DC 1.8 kV / AC 0.6–1 kV
• Waterproof Rating: IP65
• Fire Rating: IEC 60332-1
• Insulation Material: TPE (Thermoplastic Elastomer)
• Conductor Material: Tinned Copper
• Temperature Range: -40°F to +194°F
• Expected Service Life: Over 25 years
• Compliance: UL 4703 outdoor solar cable standard
• Resistance Properties: Resistant to moisture, UV, and corrosion
