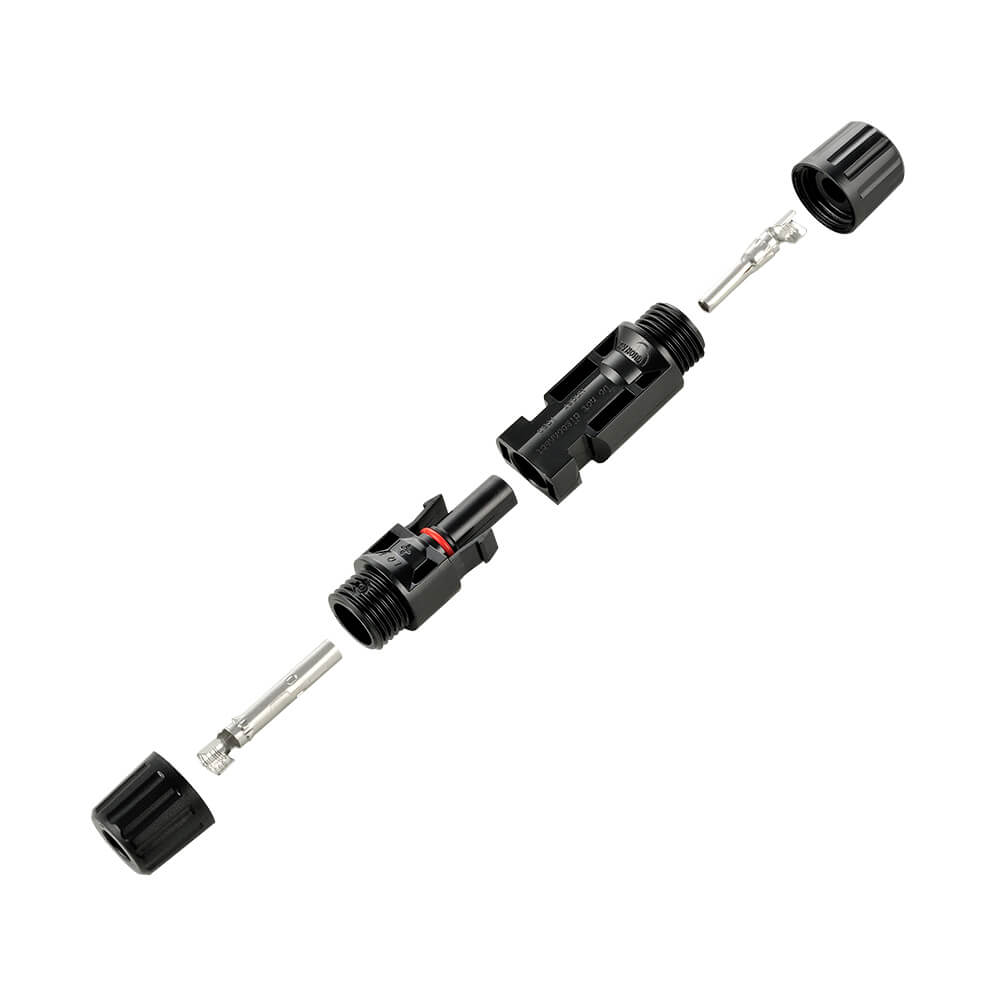

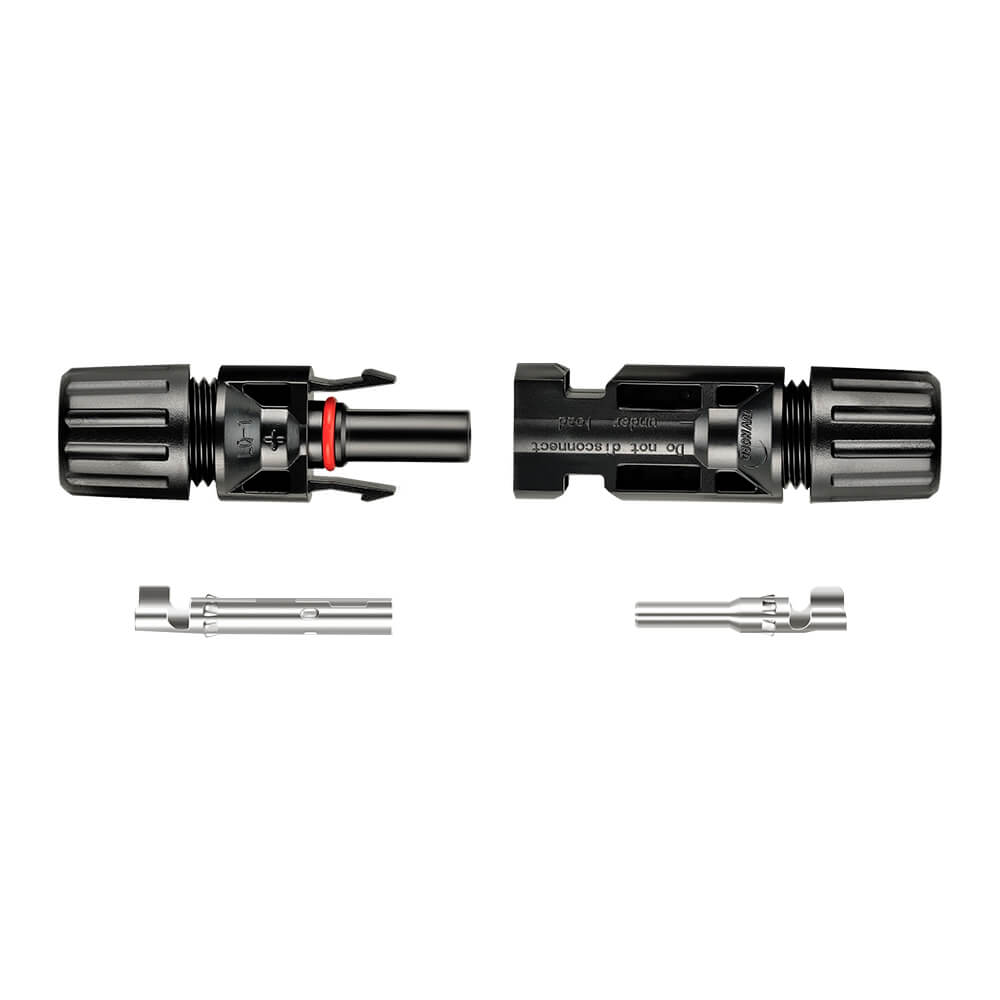

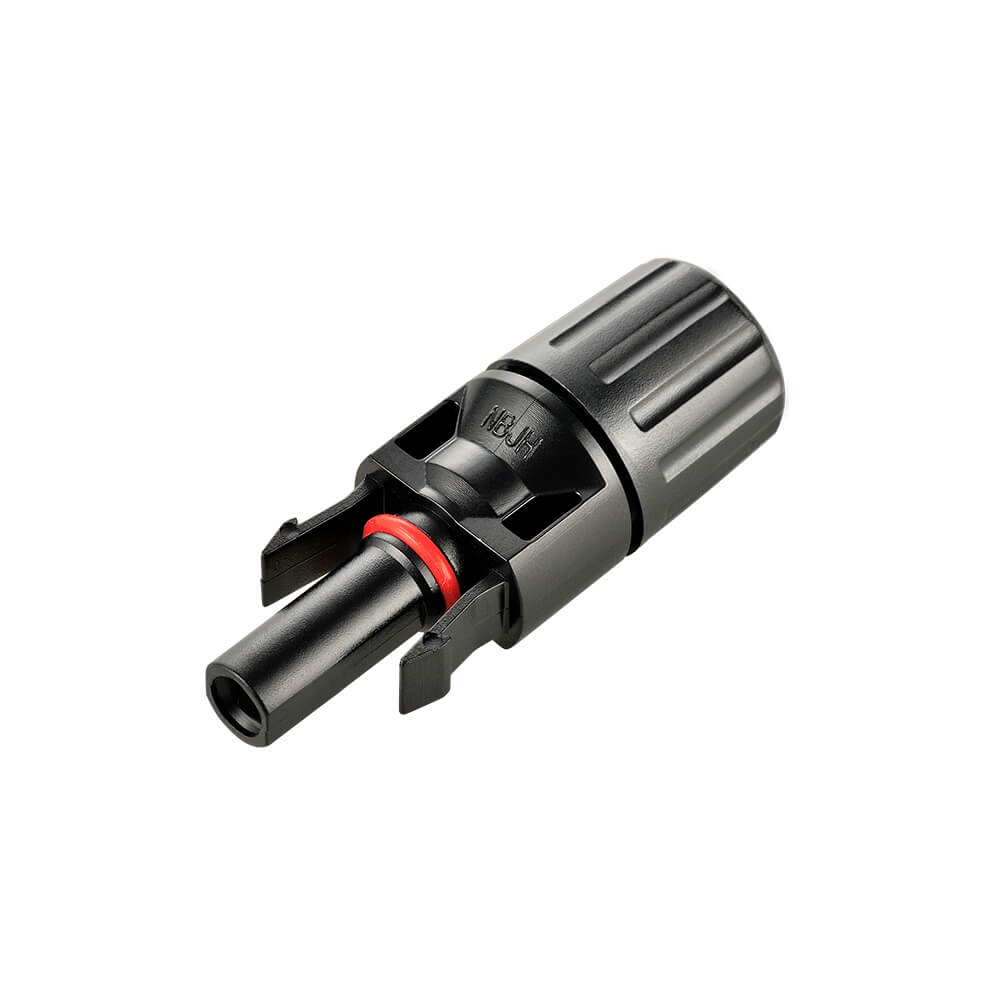

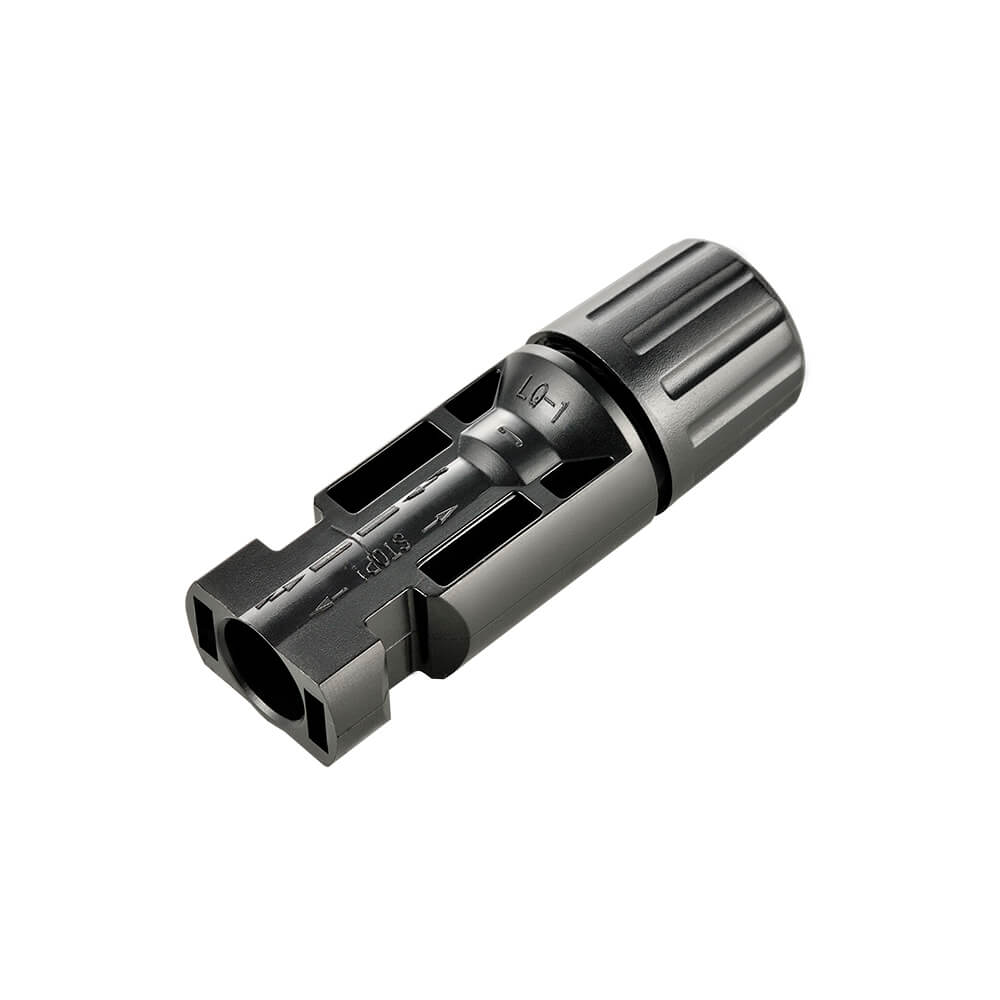

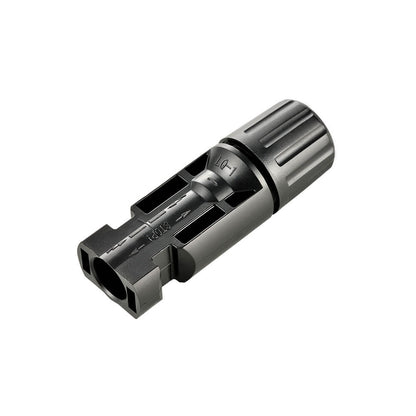

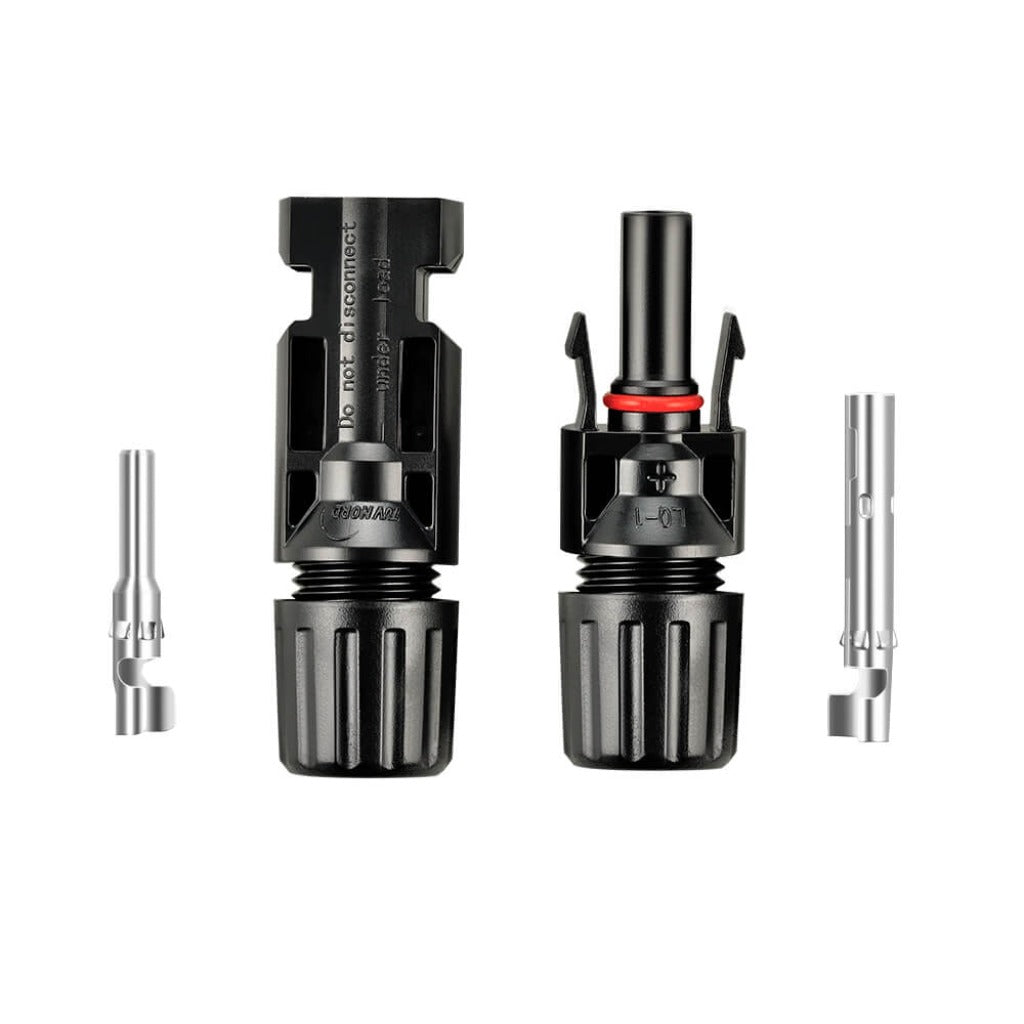

Solar MC4-Style Connector Kit - 5 Male & 5 Female

Overview

This compact connector kit is ideal for photovoltaic systems, featuring durable solar connectors that endure harsh weather conditions. With five male and five female connectors, they ensure reliable electrical connections and can be easily installed or removed without the need for special tools.

Benefits

• Streamline your installation process with easy, tool-free plug assembly and removal.
• Minimize maintenance requirements due to waterproof and dustproof functionality.
• Safeguard your system from environmental failures thanks to robust construction suitable for outdoor usage.
• Achieve seamless compatibility with various panels and equipment through standard solar connector interfaces.

Features

• Compatible with popular solar connector systems (MC4-style).
• Engineered for photovoltaic applications with demanding mechanical and environmental standards.
• Quick assembly process; plugs can be detached without additional tools.
• IP67-rated for waterproof and dustproof protection.
• Made from premium, weather-resistant materials.

Specifications

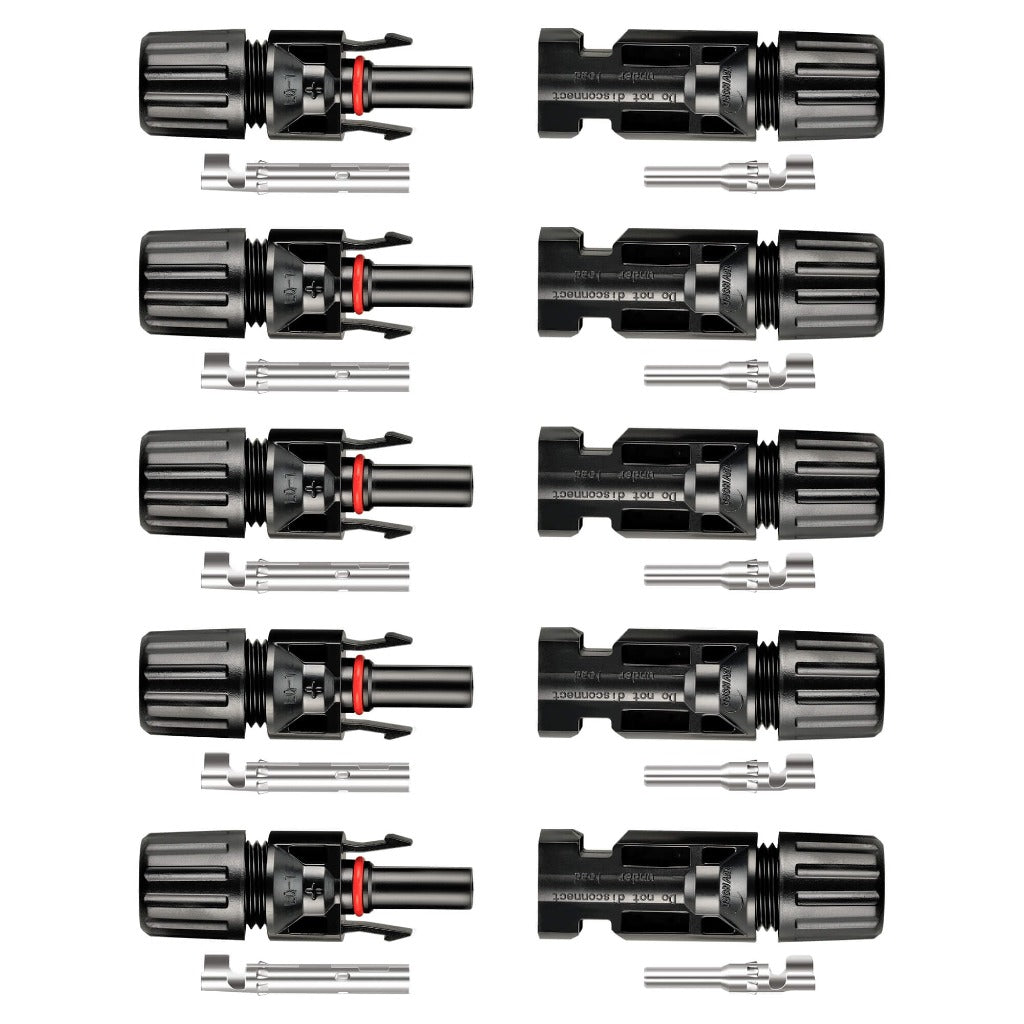

• Included in the package: 5 female connectors, 5 male connectors
• Rated current: 30 A
• Maximum voltage: 1000 V DC
• Ingress protection: IP67 (waterproof, dustproof)
• Wiring range: 10 AWG, 12 AWG
• Insulation materials: PA/PC (polyamide/polycarbonate)
• Contact material: Tinned copper
• Operating temperature range: -40 °C to +90 °C
