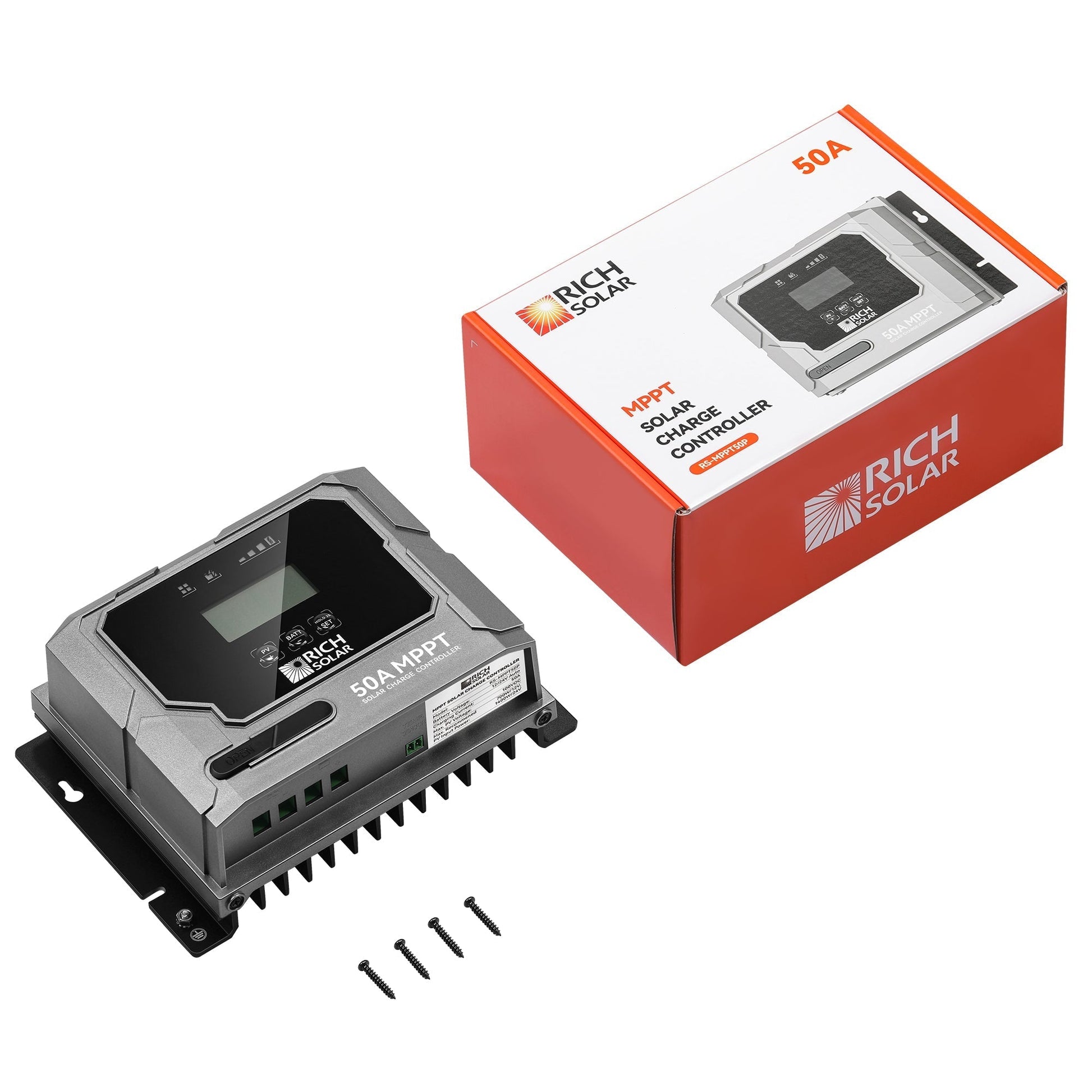

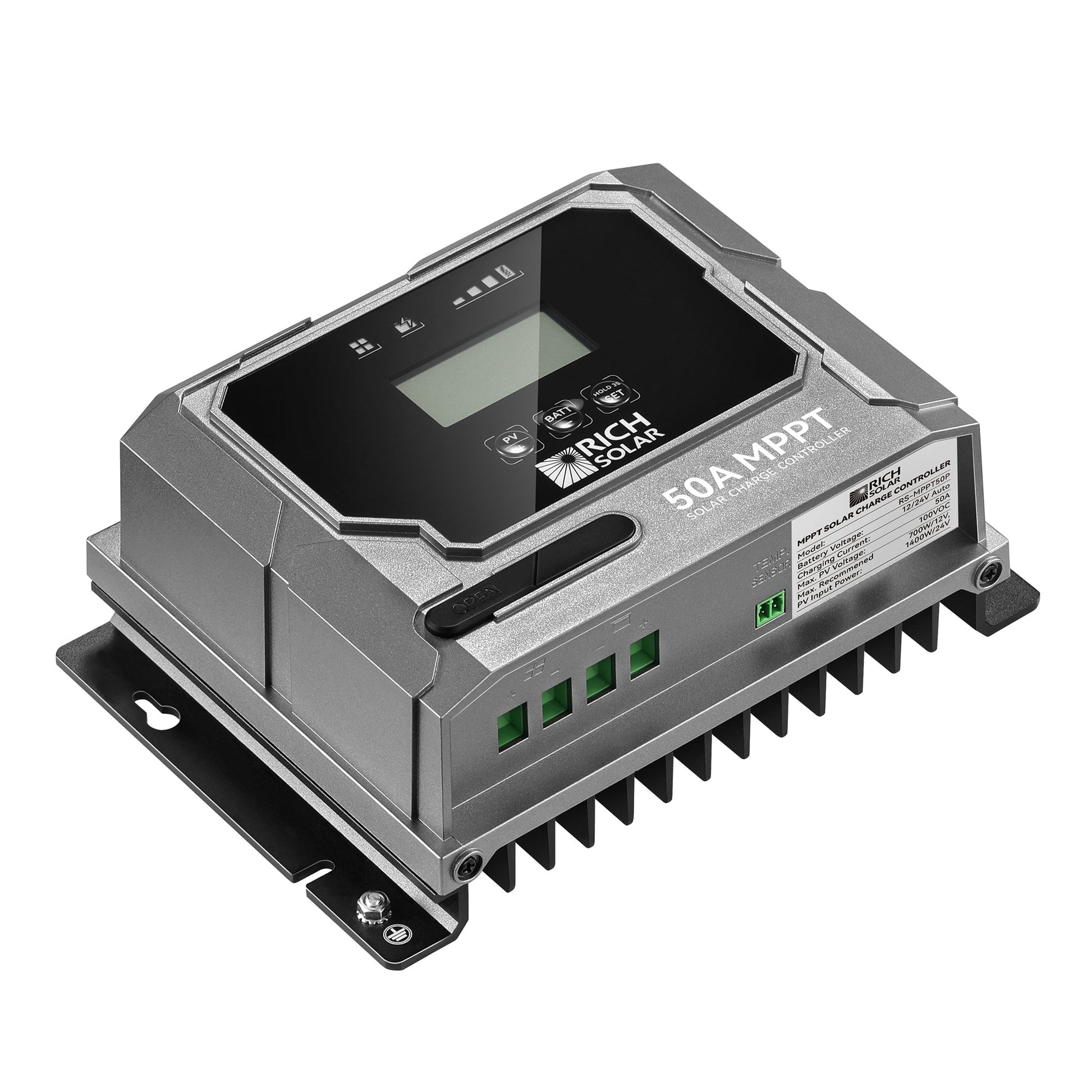

Efficient MPPT Solar Charge Controller

Overview

This efficient MPPT solar charge controller is designed for seamless charging of 12V or 24V systems. With its automatic voltage adaptation and charging data storage, it ensures reliable operation and optimal battery health for both lead-acid and lithium battery technologies.

Benefits

• Prolong battery life with precise MPPT tracking and high efficiency.
• Enhance your energy yield from solar panels for greater usable power.
• Simplify maintenance with built-in protections and logged charging data.
• Experience quick installation and versatile compatibility with automatic voltage adjustments and selectable battery types.
• Enjoy the safety of reverse discharge and overvoltage protection for worry-free operation.

Features

• Advanced MPPT charging technology for rapid and precise power tracking
• MPPT tracking efficiency exceeding 99.5%
• Charge conversion efficiency reaching up to 98%
• Automatic recognition of 12V and 24V systems
• Reverse discharge prevention for battery protection during nighttime
• Overvoltage protection for secure operation under varying conditions
• Common negative connection for easier wiring
• Storage of charging data for performance evaluation and troubleshooting
• Conformal coating on the internal PCB enhances durability
• Designed and manufactured in-house with comprehensive internal electronics
• Integrated protections and multiple safety measures included
• Preset options for lead-acid (Crystal, Gel, AGM, WET, Calcium) and lithium (LCO, LFP, LTO) battery types

Specifications

• System nominal voltage: 12/24V automatic
• Max PV open circuit voltage: 100 V DC
• Charging technology: MPPT
• Max PV charging current: 50 A
• Max recommended PV input power: 700 W at 12V / 1400 W at 24V
• Charge conversion efficiency: ?98%
• MPPT tracking efficiency: >99.5%
• Battery type presets: Crystal, Gel, AGM, WET, Calcium and LCO, LFP, LTO
• Housing case color: Black / Grey
• IP grade: IP43 for internal PCBA, IP22 for connection area
• Net weight: 1.40 kg / 3.09 lb
• Dimensions (L × W × H): 195 × 140 × 74 mm / 7.7 × 5.5 × 2.9 in
