ALPHA 4 LITE - 24V 100Ah LiFePO4 Battery

Overview

The ALPHA 4 LITE is a high-performance 24V, 100Ah lithium (LiFePO4) battery, crafted with superior cells and an intelligent BMS. It is the perfect solution for reliable off-grid and backup power applications where longevity, consistent voltage, and adaptability to varying temperatures are essential.

Benefits

• Ensures reliable backup power to keep your essential devices running during outages.
• Lightweight design and minimal maintenance compared to traditional lead-acid systems simplify installation and upkeep.
• Offers a long cycle life and predictable capacity, reducing the need for frequent battery replacements and saving costs over time.
• Operates effectively in a broad range of temperatures, minimizing the need for constant monitoring.
• Features integrated safety protections and per-cell fusing to lower the risk of failures and enhance overall system safety.
• Modular design allows for the easy expansion to multi-battery setups to meet larger energy demands.

Features

• Utilizes LiFePO4 chemistry for superior safety and longevity.
• Includes a built-in intelligent Battery Management System (BMS) with per-cell fuses for enhanced reliability.
• Provides protections against overcharging, over-discharging, overcurrent, short circuits, and excessive heat.
• Delivers high continuous discharge capabilities with a stable output voltage for reliable device operation.
• Low self-discharge rate enables extended storage durations without losing charge.
• Portable design with a removable carry handle enhances ease of transport.
• Designed for deep discharges and can handle over 4,000 cycles efficiently.
• Backed by a 5-year warranty and lifetime customer support for peace of mind.

Specifications

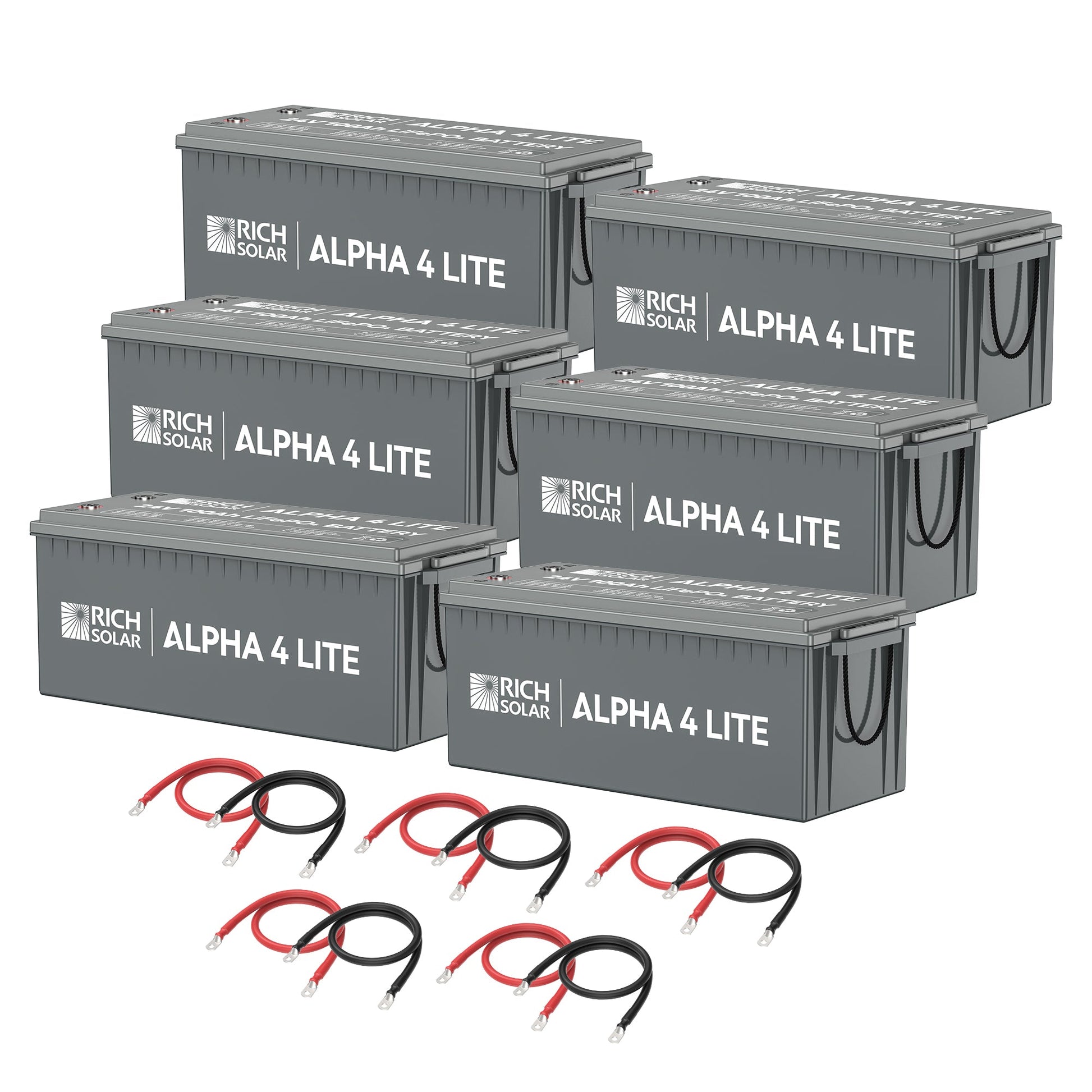

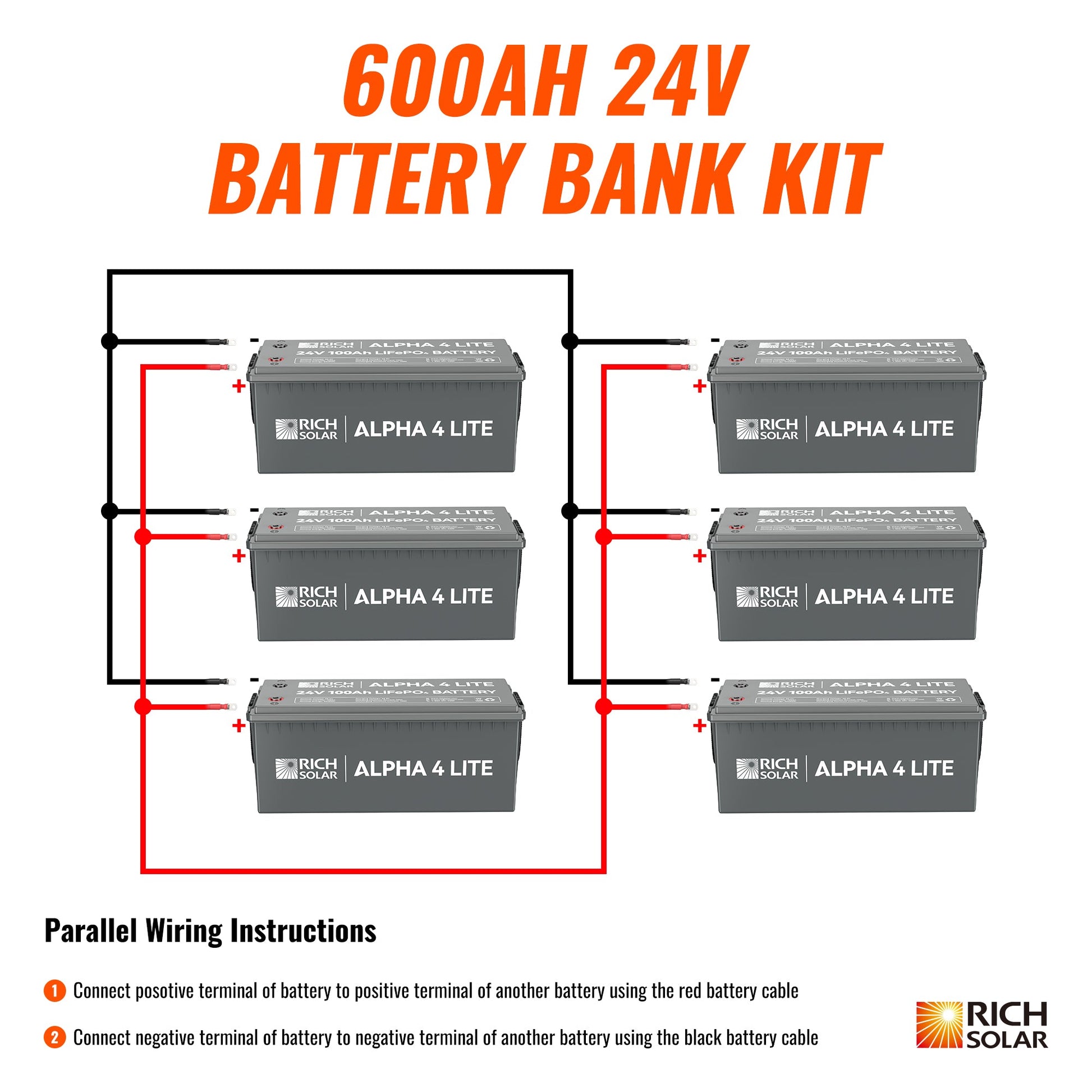

• Included package: 6 x 24V 100Ah ALPHA 4 LITE LiFePO4 batteries; 10 x 1 ft 2 AWG battery cables (total bank: 600Ah, 24V, approximately 10.2 kWh).
• Chemistry: LiFePO4 (lithium iron phosphate).
• Nominal voltage: 25.6 V.
• Nominal capacity: 100 Ah (minimum capacity: 99.5 Ah).
• Energy storage: 2,560 Wh.
• Cycle life: exceeds 4,000 cycles.
• Estimated lifespan: over 10 years with appropriate maintenance.
• Charge voltage: 28.8 V.
• Maximum charge current: 100 A.
• Maximum continuous discharge current: 100 A.
• Self-discharge rate: less than 5 percent per month.
• Charge temperature range: 32°F to 131°F (0°C to 55°C).
• Discharge temperature range: -4°F to 140°F (-20°C to 60°C).
• Storage temperature range: 14°F to 113°F (-10°C to 45°C), with a maximum of 90% RH for over three months.
• Physical dimensions: 20.9 x 8.1 x 8.5 in.
• Weight: 52.9 lb.
• BMS - overcharge detection voltage: 3.75 V ± 0.05 V per cell.
• BMS - overcharge detection delay: 1000 ms ± 500 ms.
• BMS - overcharge recovery voltage: 3.55 V ± 0.05 V per cell.
• BMS - over-discharge detection voltage: 2.20 V ± 0.08 V per cell.
• BMS - over-discharge detection delay: 1000 ms ± 500 ms.
• BMS - over-discharge recovery voltage: 2.70 V ± 0.10 V per cell.
• Short circuit protection: Yes.
• Warranty: 5 years.
• Note: This product is not intended for use as a vehicle starting battery.
