ALPHA 4 LITE – 24V 100Ah LiFePO4 Battery (4-Pack / 10.2 kWh)

Overview

The ALPHA 4 LITE is a sturdy and reliable 24V, 100Ah LiFePO4 battery featuring premium RICH SOLAR cells. This battery is designed for deep cycles and performs well across a variety of temperatures, making it ideal for off-grid applications, backup power needs, and stationary energy storage solutions. This package includes four batteries combined to provide a total capacity of 400Ah at 24V, offering an impressive 10.24 kWh of energy, along with six 1 ft 2 AWG battery cables for easy installation.

Benefits

• Consistent power delivery to enhance your off-grid lifestyle or backup energy needs, reducing downtime.
• Extended lifespan minimizes the frequency of battery replacements, providing peace of mind.
• Lightweight design and low maintenance requirements streamline installation and upkeep.
• Built-in Battery Management System safeguards against overcharging, over-discharging, short circuits, and overheating.
• Operates effectively in a broad temperature range, ensuring dependable performance in various climates.

Features

• Advanced LiFePO4 chemistry with individual cell fusing for optimal safety and durability.
• Integrated smart Battery Management System (BMS) that protects against overcharge, overdischarge, overcurrent, short circuits, and temperature fluctuations.
• Stable output voltage and minimal self-discharge rate for reliable storage and use over time.
• High cycle life is perfect for frequent deep discharge and recharge cycles.
• Compact and lightweight design, complete with a removable carry handle for easy transportation.

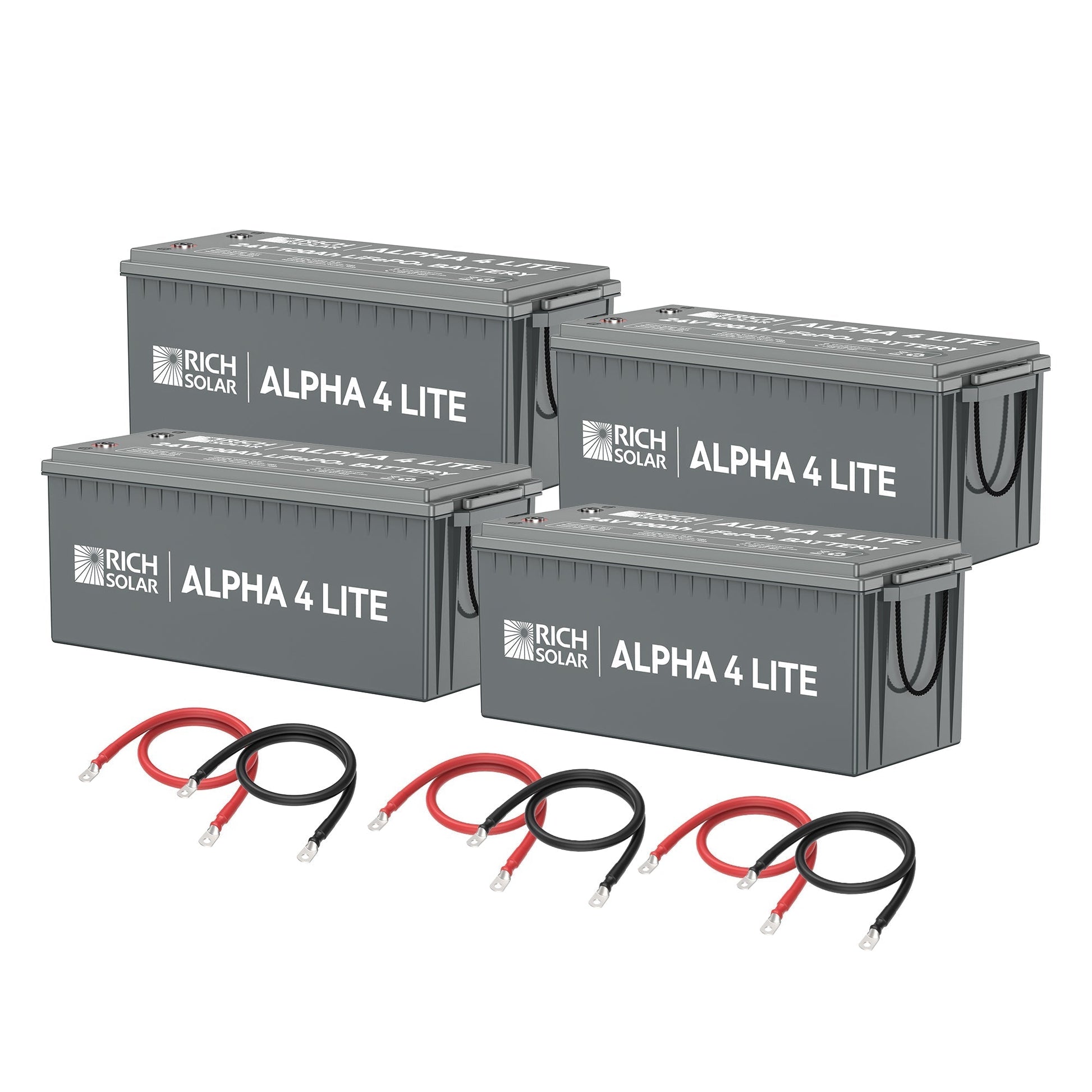

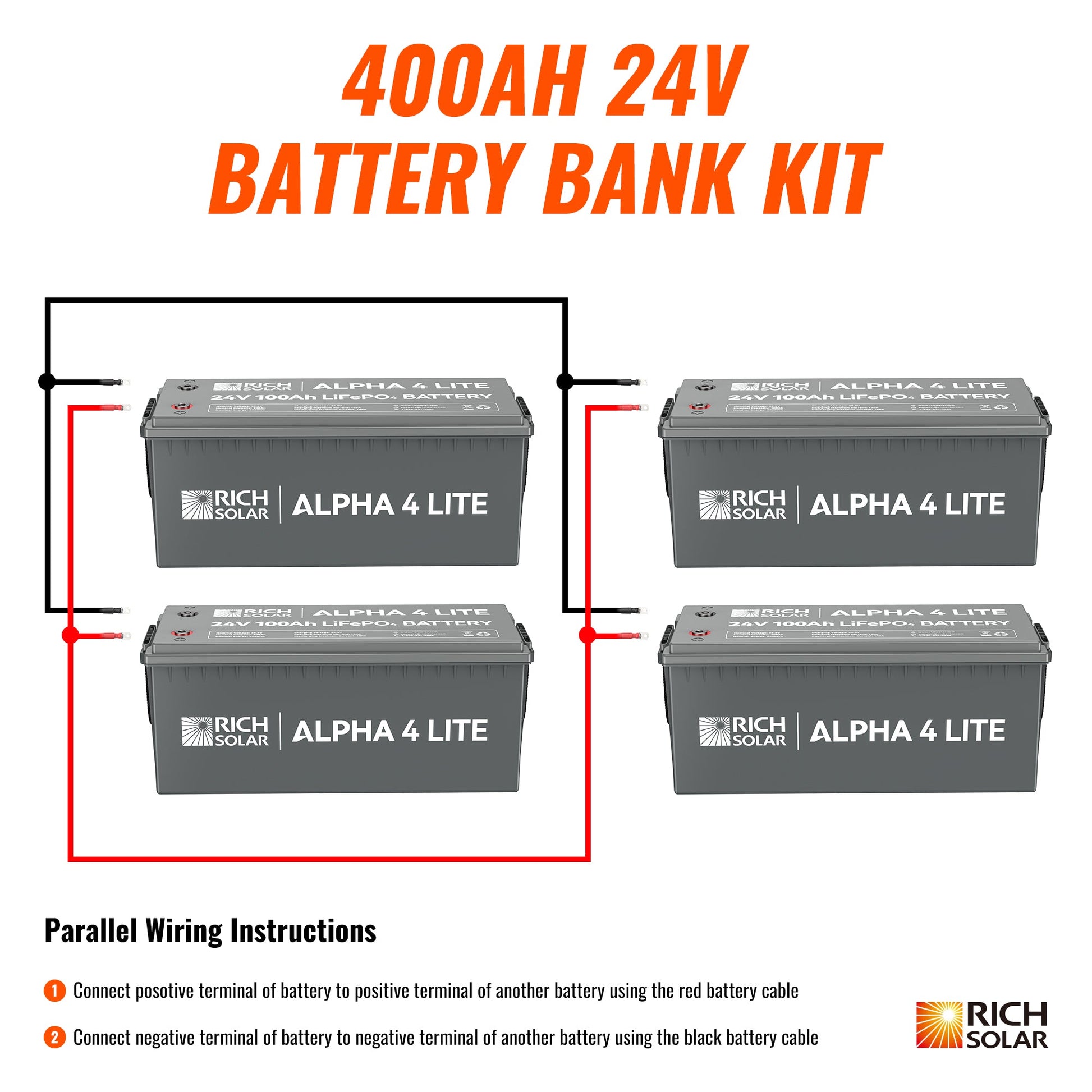

• Each package includes cables to create a 24V 400Ah battery bank (four batteries and six 1 ft 2 AWG cables).

Specifications

• Package includes 4 × ALPHA 4 LITE 24V 100Ah LiFePO4 batteries
• Included cables: 6 × 1 ft 2 AWG battery cables
• Total bank capacity: 400Ah at 24V, approximately 10.24 kWh
• Nominal voltage (per battery): 25.6 V
• Nominal capacity: 100 Ah
• Minimum capacity: 99.5 Ah
• Energy (per battery): 2560 Wh
• Cycle life: Over 4000 cycles
• Estimated service life: Over 10 years with proper maintenance
• Charge voltage (per battery): 28.8 V
• Maximum charge current: 100 A
• Maximum continuous discharge current: 100 A
• Self-discharge rate: Less than 5 percent per month
• Charge temperature range: 32°F to 131°F (0°C to 55°C)
• Discharge temperature range: -4°F to 140°F (-20°C to 60°C)
• Storage temperature for over 3 months: 14°F to 113°F (-10°C to 45°C), max 90% relative humidity
• Physical dimensions (per battery): 20.9 × 8.1 × 8.5 inches
• Weight (per battery): 52.9 lbs
• Battery Management System safety: Individual fused cells to isolate any faulty cell, protecting others.
• BMS protection details (per cell): Overcharge detection voltage 3.75 V ±0.05 V; overcharge recovery 3.55 V ±0.05 V; detection delay approximately 1000 ms ±500 ms.
• Overdischarge protection (per cell): Detection voltage 2.20 V ±0.08 V; recovery 2.70 V ±0.10 V; detection delay approximately 1000 ms ±500 ms.
• Short circuit protection: Yes
• Other protections: Overcurrent/short circuit protection, excessive heat protection, high and low temperature disconnects.
• Warranty: 5 years
• Note: Not designed for vehicle starting purposes.
