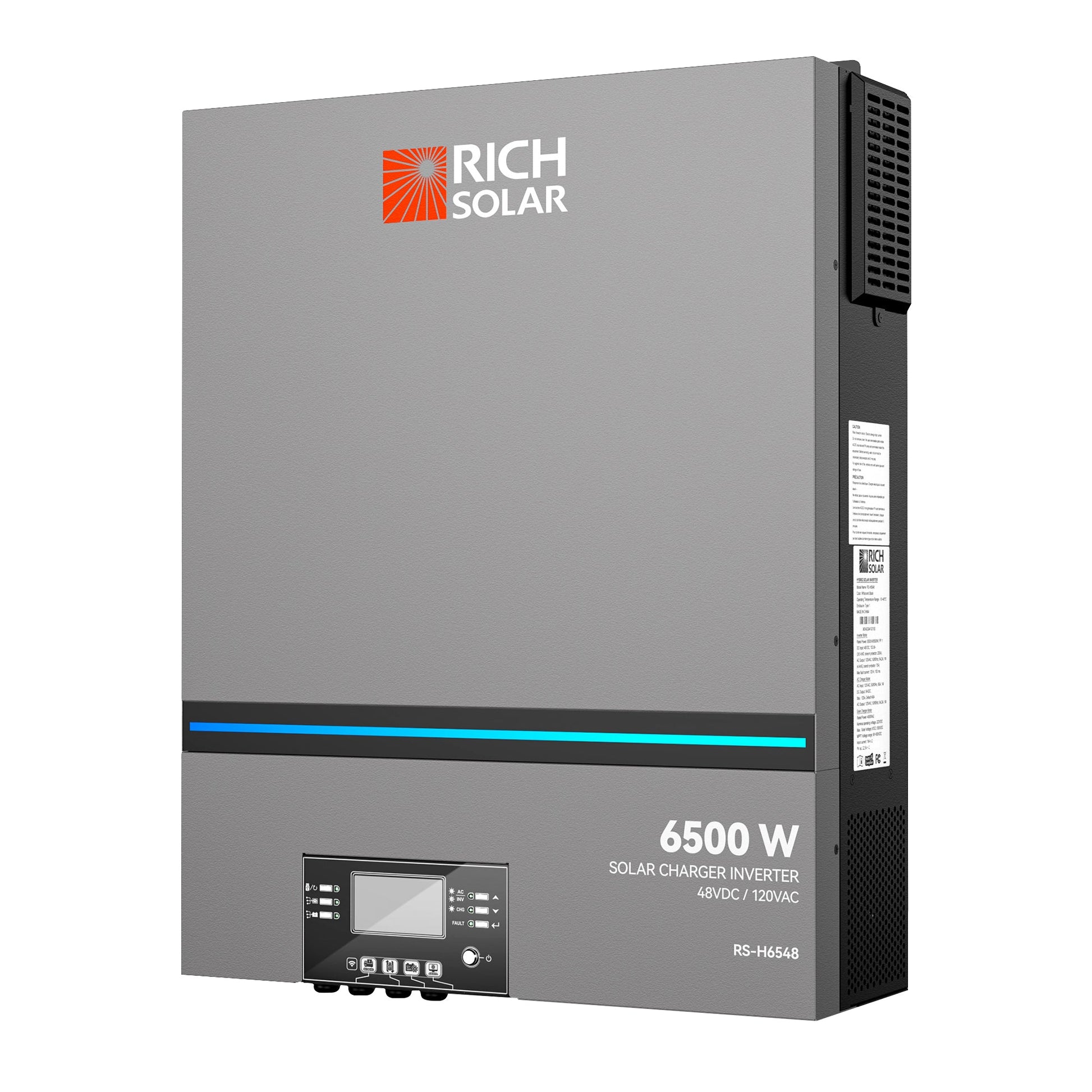

Dependable 6.5kW Pure Sine Wave Inverter with Intelligent Controls

Overview

Introducing a 6,500W pure sine wave inverter perfect for residential and small commercial applications. This inverter provides clean and stable power for sensitive electronics, allows easy monitoring and adjustments through a detachable LCD and integrated WiFi, and enables scalable operation by connecting up to six units for increased power capacity.

Benefits

• Safeguard sensitive electronics with pure sine wave output that ensures quieter and more reliable performance.
• Effortlessly manage and monitor settings from your smartphone or the detachable LCD, saving you time and minimizing the need for maintenance visits.
• Grow your power capacity by easily connecting up to six units to meet your evolving needs.
• Maximize uptime with features like auto-restart, cold-start capability, and compatibility with generator or utility power for swift recovery during outages.
• Enhance battery life with smart charging and customizable charge settings to protect your battery investment.
• Quickly check system status with an adjustable RGB LED bar and mobile device charging through on-the-go USB support.

Features

• Pure sine wave output for clean and safe power.
• Customizable RGB LED bar for visual status indicators.
• Integrated WiFi for monitoring from mobile devices (app required).
• USB On-The-Go (OTG) functionality for charging off-grid devices or for communication.
• Built-in anti-dusk kit for automatic lighting control.
• Detachable LCD control module with multiple communication ports such as RS485, CANBUS, and RS232.
• Adjustable input voltage settings via the LCD to better protect appliances and computers.
• Customizable AC/PV output usage timer and prioritization options.
• Select between AC or solar charger priority using the LCD interface.
• Adjustable charging current to suit specific applications.
• Compatible with both utility mains and generator input.
• Auto restart feature when AC power is restored.
• Safety protections against overload, overheating, and short circuits.
• Smart battery charger design for efficient charging and improved battery lifespan.
• Cold start capability for operation without AC power.
• Parallel connection support for up to 6 units to expand power capacity.

Specifications

• Model and Power
  • Model: RS-H6548V5
  • Rated output power: 6,500 W
  • Parallel capacity: Yes, up to 6 units
• Input
  • Input voltage: 120 VAC
  • Efficiency: Greater than 95 percent under rated resistive load with fully charged battery
  • Frequency range: 50 Hz or 60 Hz with automatic detection
• Output
  • Rated output power: 6,500 W
  • Output voltage waveform: Pure sine wave
  • Output voltage regulation: 120 VAC ±5 percent
  • Peak efficiency: 91 percent
  • Surge capacity: Double rated power for 5 seconds
  • Nominal DC input voltage: 48 VDC
  • Cold start voltage: 46.0 VDC
• Battery
  • Battery voltage: 48 VDC
  • Float charging voltage: 54 VDC
  • Overcharge protection: 66 VDC
• Operating Environment
  • Operating temperature range: 14 °F to 104 °F
  • Storage temperature range: 5 °F to 140 °F
  • Humidity: 5 percent to 95 percent relative humidity without condensation
• Physical
  • Dimensions: 5.8 x 17.0 x 22.66 inches, 24.43 inches with extension box
  • Net weight: 18.4 kg or 41 lb
