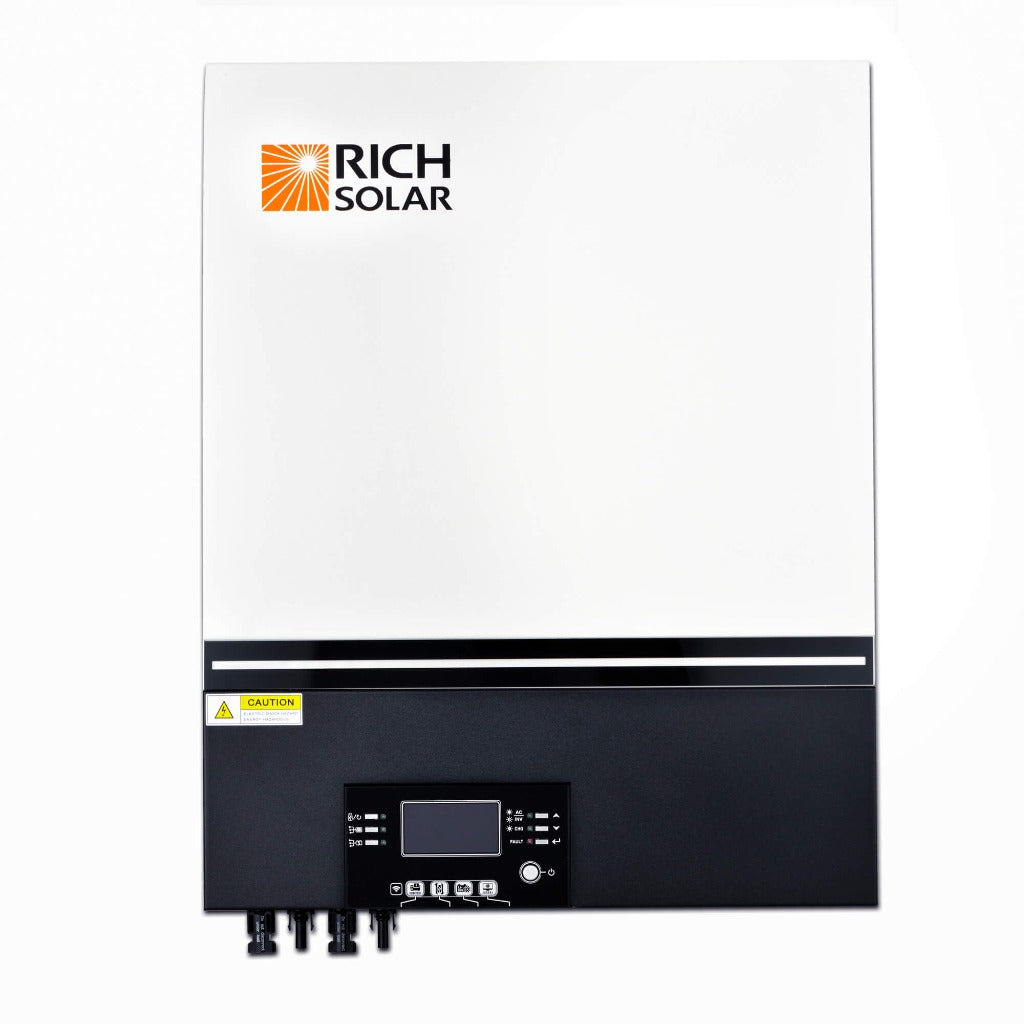

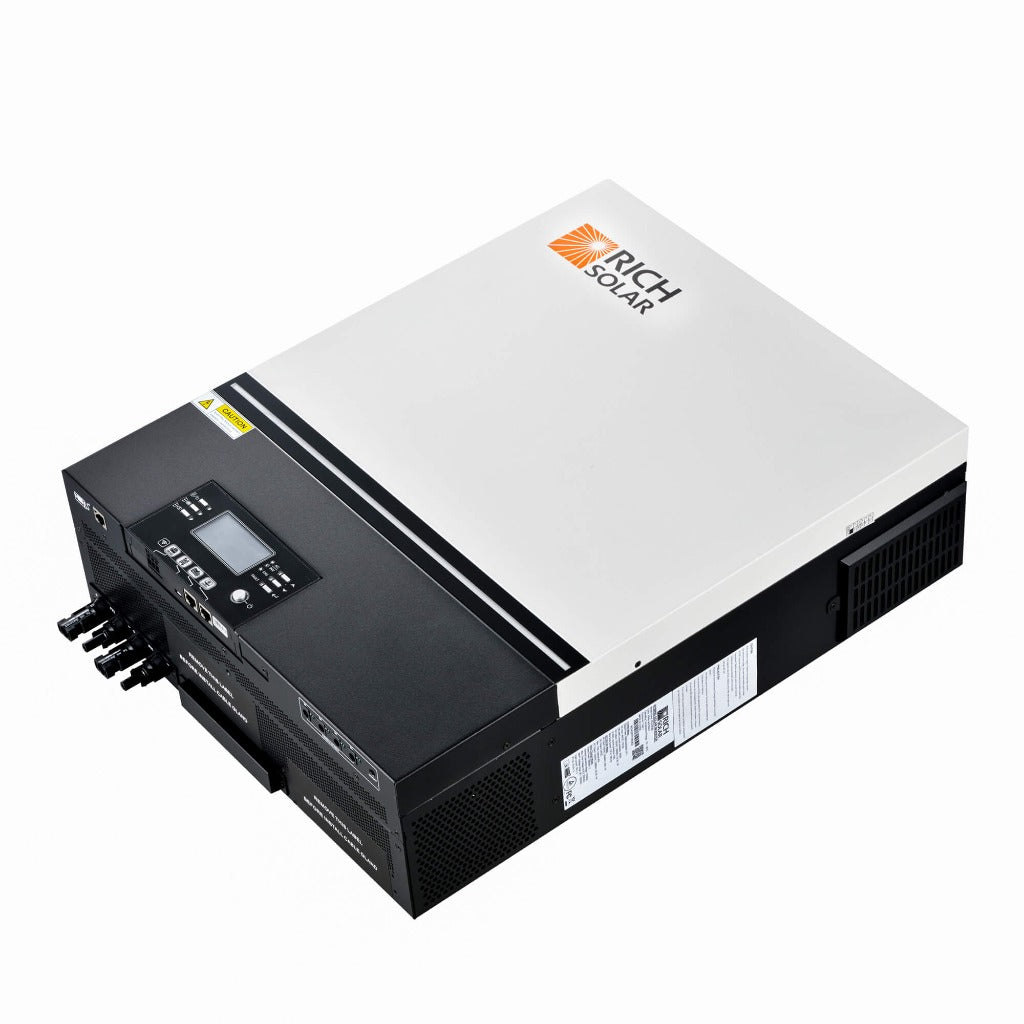

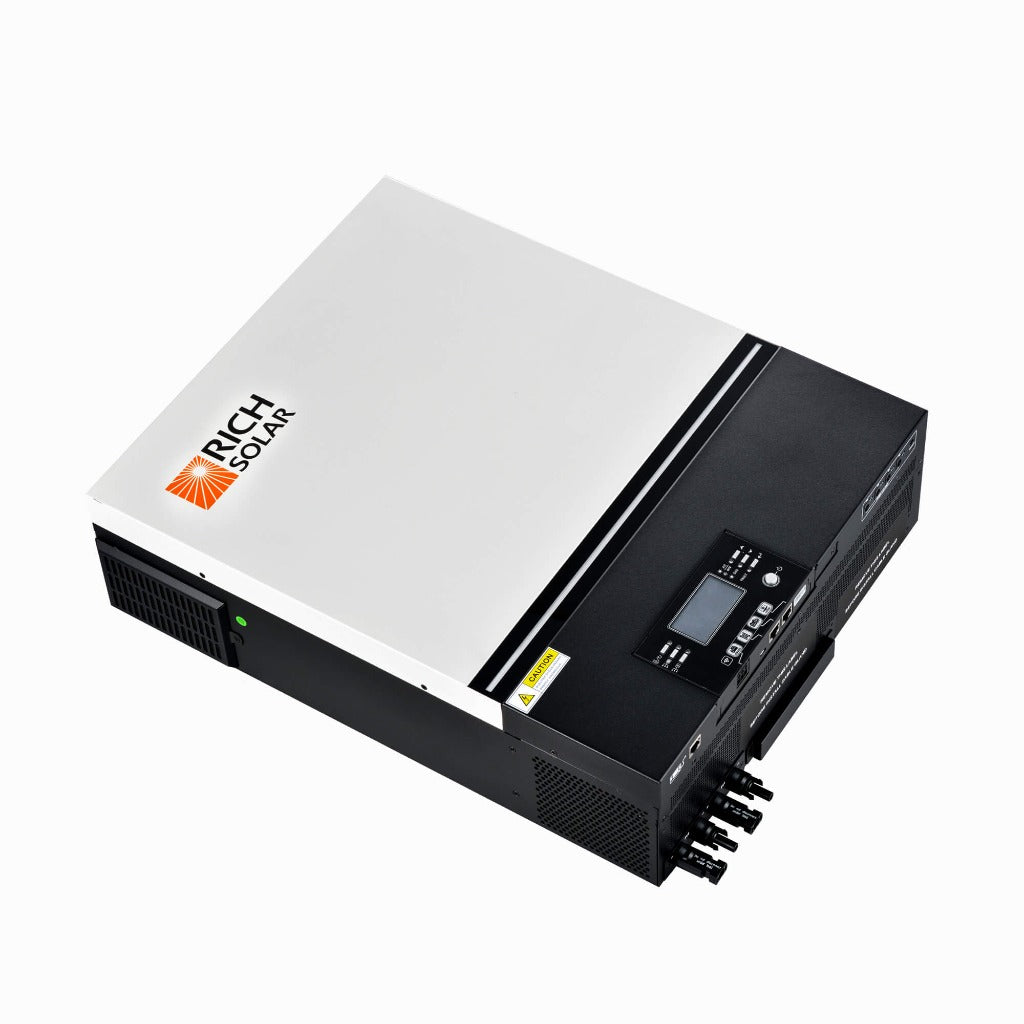

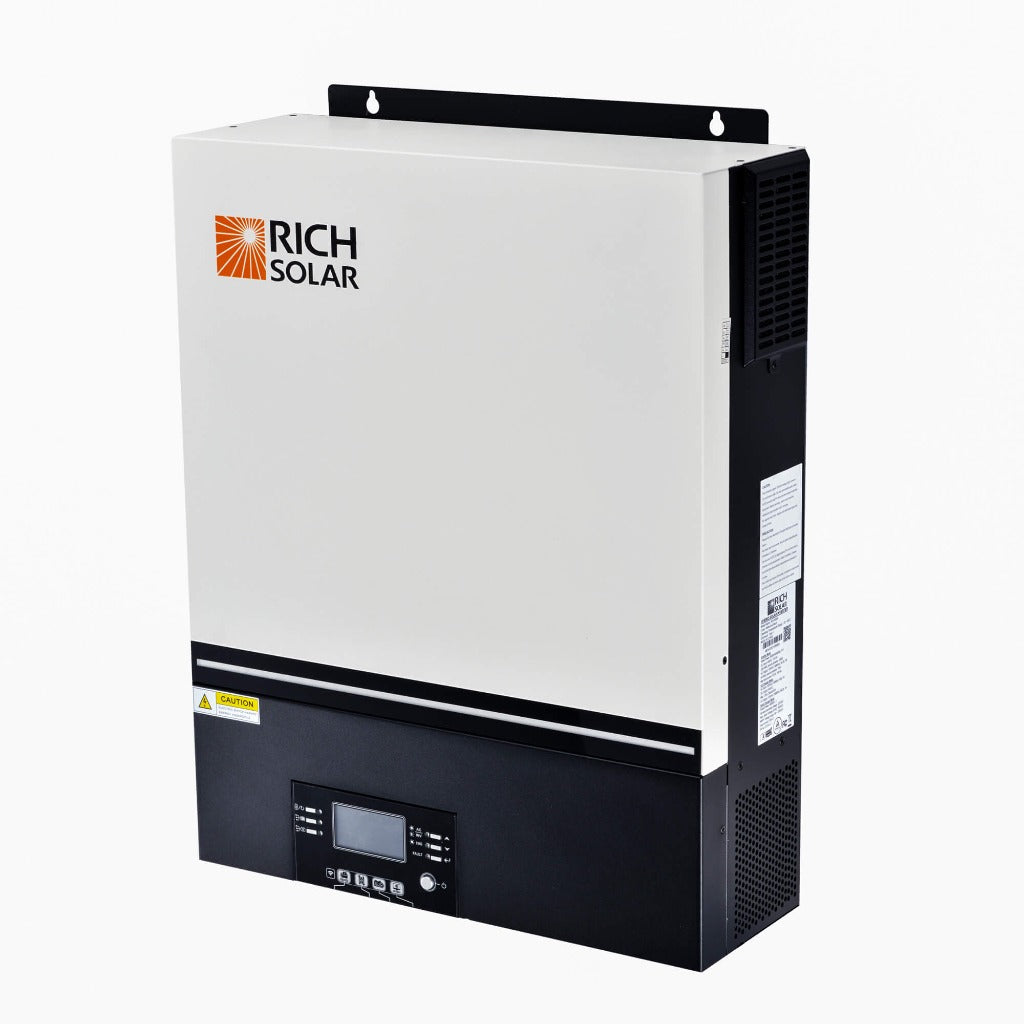

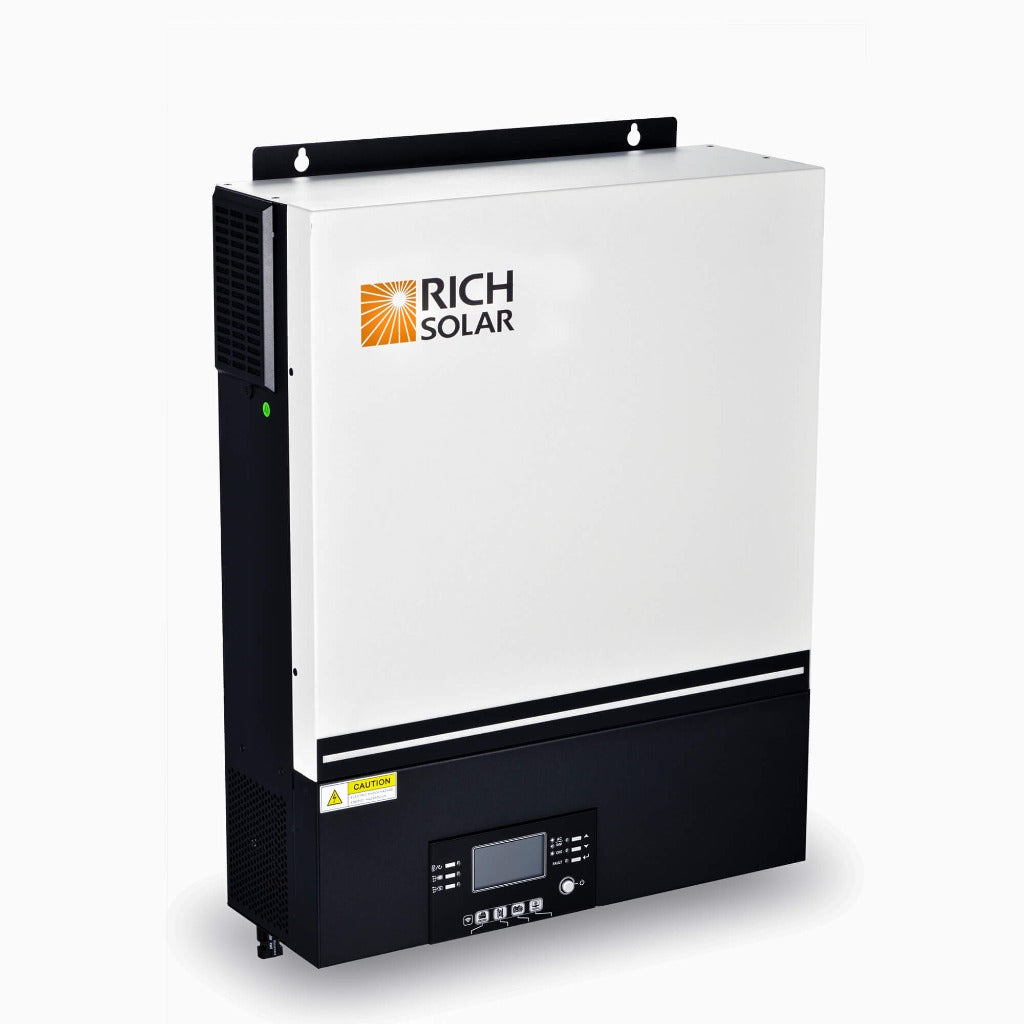

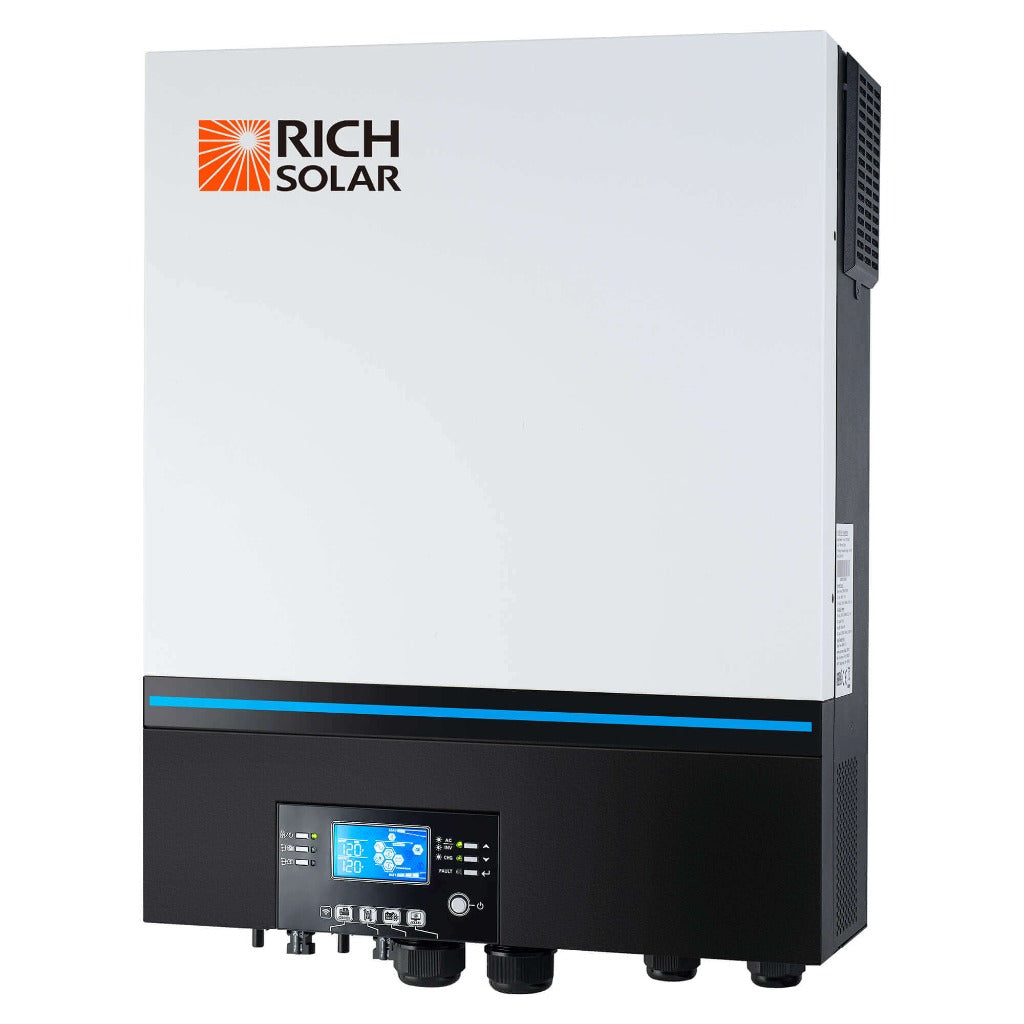

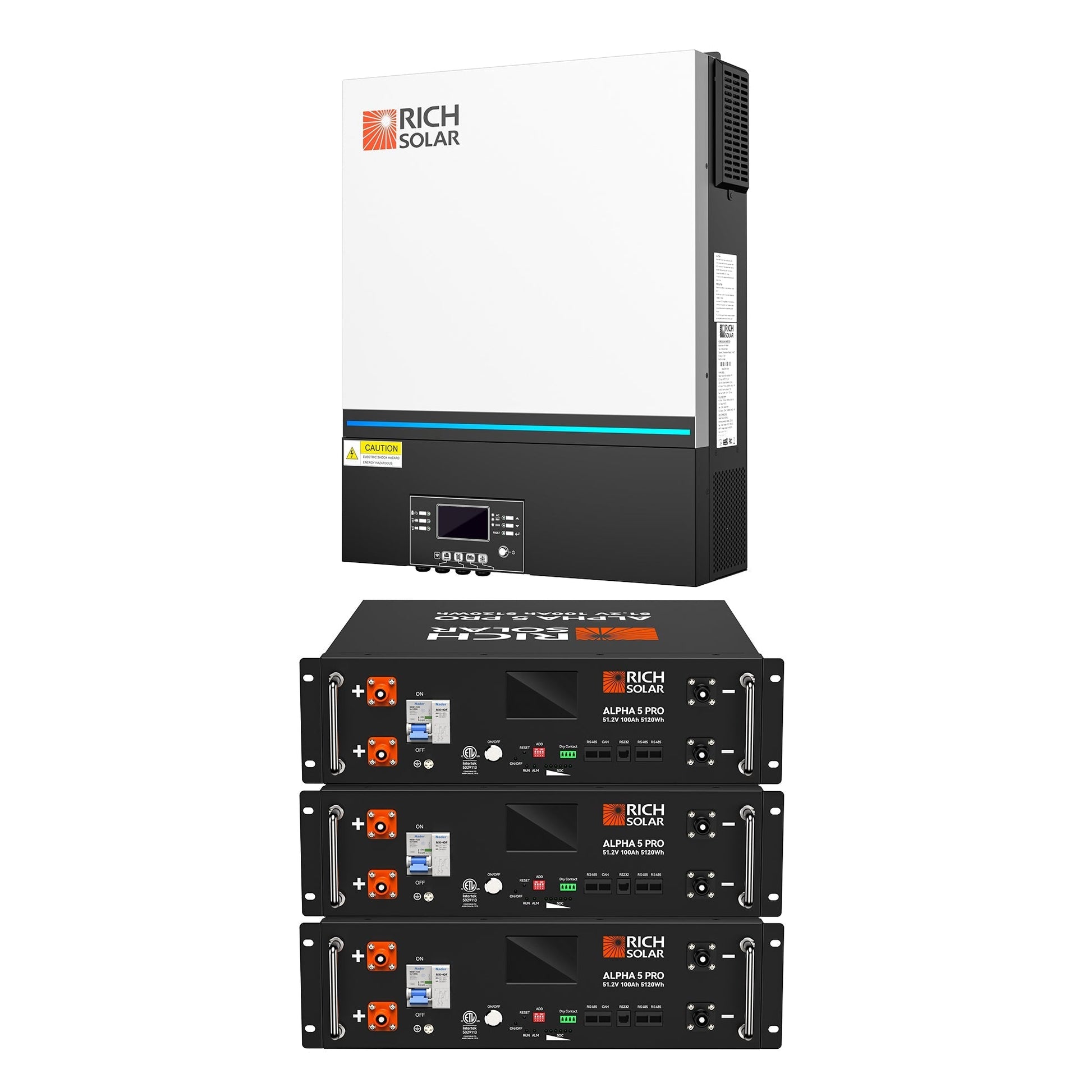

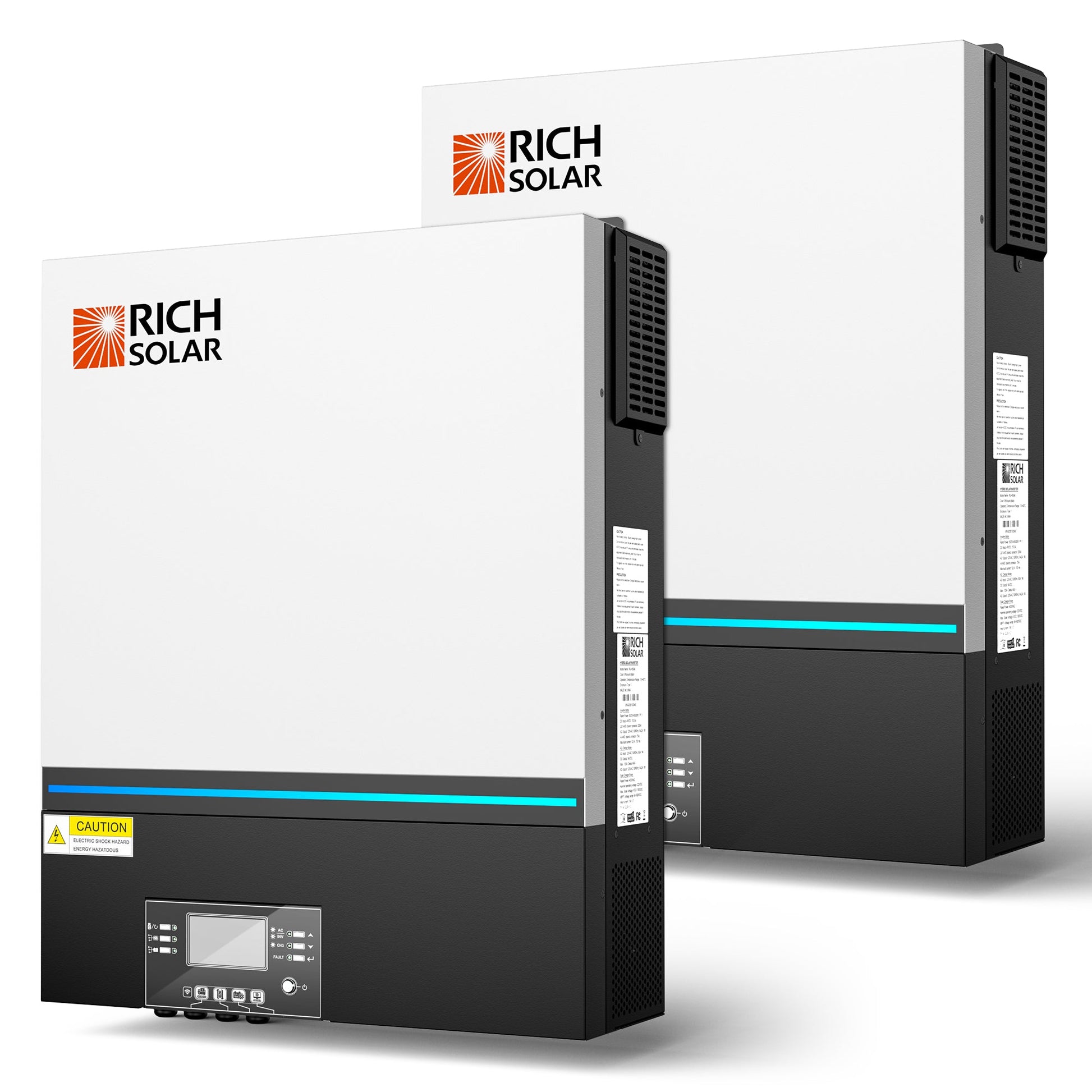

RS-H6548 6500W Pure Sine Wave Inverter - Smart Hybrid Power Solution

Overview

The RS-H6548 is a sophisticated 6500W pure sine wave inverter that combines hybrid functionality with advanced solar charging capabilities. Featuring integrated MPPT technology, WiFi monitoring, and a detachable LCD control module, this inverter is expertly designed to manage solar and AC charging while providing efficient power for sensitive electronics. It also allows for flexible configuration and can be expanded in parallel to accommodate larger systems.

Benefits

• Ensure continuous operation of lights and devices during power outages, keeping daily activities on track.
• Safeguard your sensitive equipment with a pure sine wave output that minimizes noise and extends the lifespan of your devices.
• Easily monitor and adjust your system settings through your mobile device, reducing the need for service calls.
• Enhance battery life and decrease generator usage with smart charging profiles and design.
• Expand your power capacity seamlessly by paralleling up to six units without needing a full system replacement.
• Simplify the integration of home or generator power, featuring an automatic restart once AC power is restored.

Features

• Provides pure sine wave inverter output for consistent and clean power.
• Customizable RGB LED bar for easy status indication and visual feedback.
• Integrated WiFi for mobile system monitoring (requires companion app).
• Supports USB On-The-Go (OTG) for versatile connectivity.
• Equipped with an anti-dusk kit to control lighting functions or nighttime behavior.
• Comes with a detachable LCD control module featuring multiple communication ports: RS232, RS485, CAN-BUS.
• Allows customization of input voltage ranges for various devices via the LCD interface.
• Configurable AC/PV output timers and load prioritization for managing power delivery.
• Adjustable AC vs. solar charger priority and battery charging current settings via the LCD display.
• Compatible with utility mains or generator inputs, automatically restarting when AC power returns.
• Includes protections against overload, over-temperature, and short circuits for reliable operation.
• Parallel operation capability for up to six units to achieve desired power levels.
• Features a smart battery charger design that enhances charging efficiency and battery health.
• Offers cold start capability to activate the inverter from the battery when AC power is unavailable.

Specifications

• Model: RS-H6548
• Rated inverter power: 6500 VA / 6500 W
• Parallel capability: Up to six units
• Input:
  • Nominal voltage: 120 VAC
  • Selectable voltage range: 90–140 VAC (for computers), 80–140 VAC (for home appliances)
  • Frequency: 50 Hz / 60 Hz (auto sensing)
• Output:
  • AC voltage regulation (battery mode): 120 VAC ± 5%
  • Surge power: 2 × rated power for 5 seconds
  • Peak efficiency: 91%
  • Transfer time: 10 ms (for personal computers), 20 ms (for home appliances)
  • Waveform: Pure sine wave
  • Optional DC output: 12 VDC ± 7%, 100 W
• Battery:
  • Battery voltage: 48 VDC
  • Float charging voltage: 54 VDC
  • Overcharge protection: 66 VDC
• Solar charger & AC charger:
  • Solar charger type: MPPT
  • Maximum PV array power: 8000 W (4000 W × 2)
  • MPPT operating voltage range: 90–230 VDC
  • Maximum PV array open-circuit voltage (Voc): 250 VDC
  • Maximum solar charge current: 120 A
  • Maximum AC charge current: 120 A
  • Maximum total charge current: 120 A
• Physical:
  • Dimensions (D × W × H): 5.8 × 17.0 × 21.8 in
  • Net weight: 40.6 lb
  • Communication interfaces: USB, RS232, RS485, WiFi, dry-contact
• Operating environment:
  • Humidity: 5% to 95% relative humidity (non-condensing)
  • Operating temperature: -14 °F to 104 °F
  • Storage temperature: 5 °F to 140 °F
• Standards and compliance: UL 1741 certified by TUV
