Dependable 3kVA Pure Sine Wave Inverter with MPPT

Overview

This 3000VA/3000W inverter features a pure sine wave output combined with a built-in MPPT solar charger and various input options, ensuring your home or off-grid system operates seamlessly. Designed for a 48V battery bank, it supports parallel expansion and provides multiple communication ports for easy monitoring and battery management.

Benefits

• Maintain power to essential devices during outages or off-grid scenarios for uninterrupted comfort and productivity.
• Minimize generator usage and fuel costs by automatically prioritizing solar energy.
• Easily increase capacity by paralleling up to six units, avoiding the need for new equipment.
• Optionally monitor and manage the system remotely with WiFi/GPRS for hassle-free maintenance and surprise-free operation.
• Safeguard batteries and equipment with integrated safety features, prolonging lifespan and reducing downtime.

Features

• Pure sine wave output ensures clean power for sensitive electronics.
• Built-in MPPT solar charge controller offers high tracking efficiency.

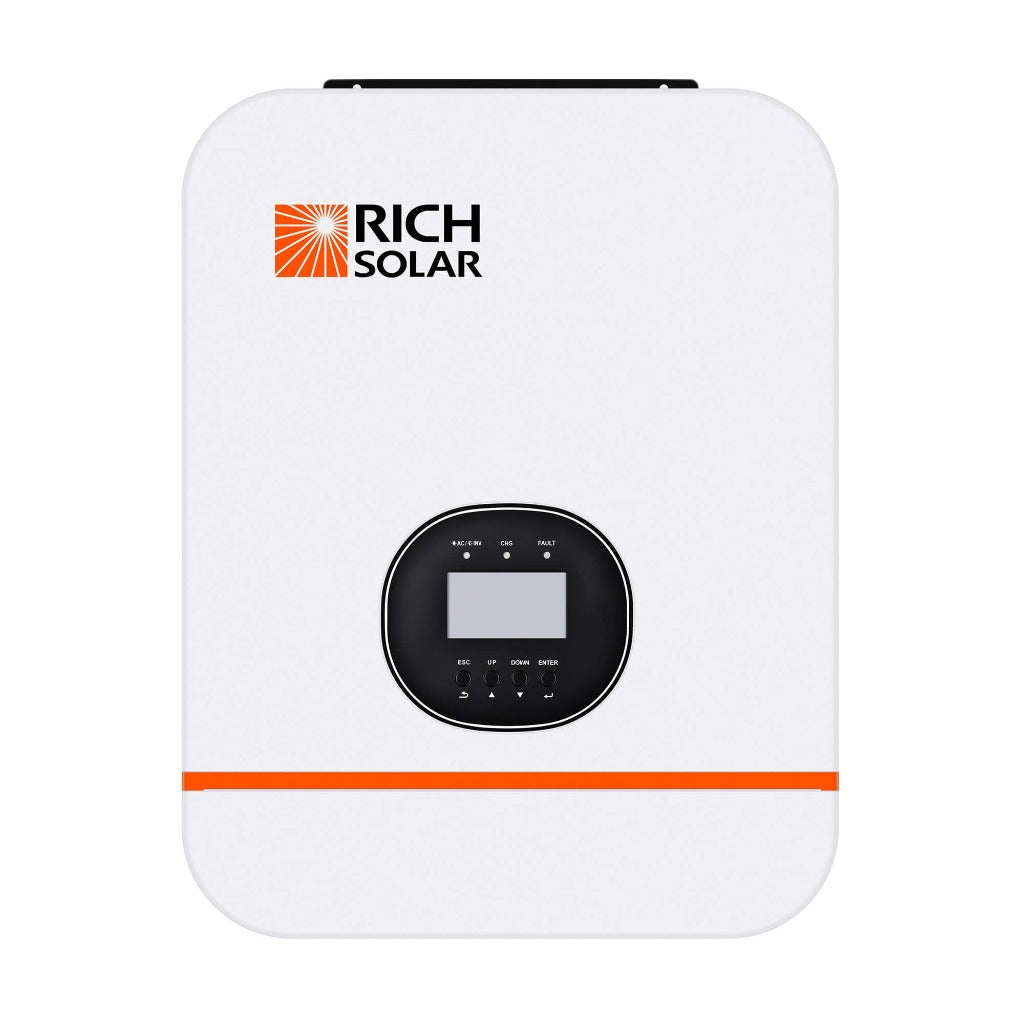

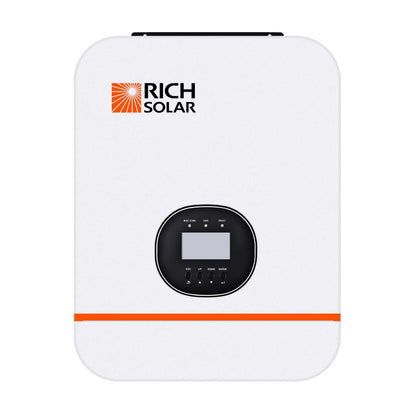

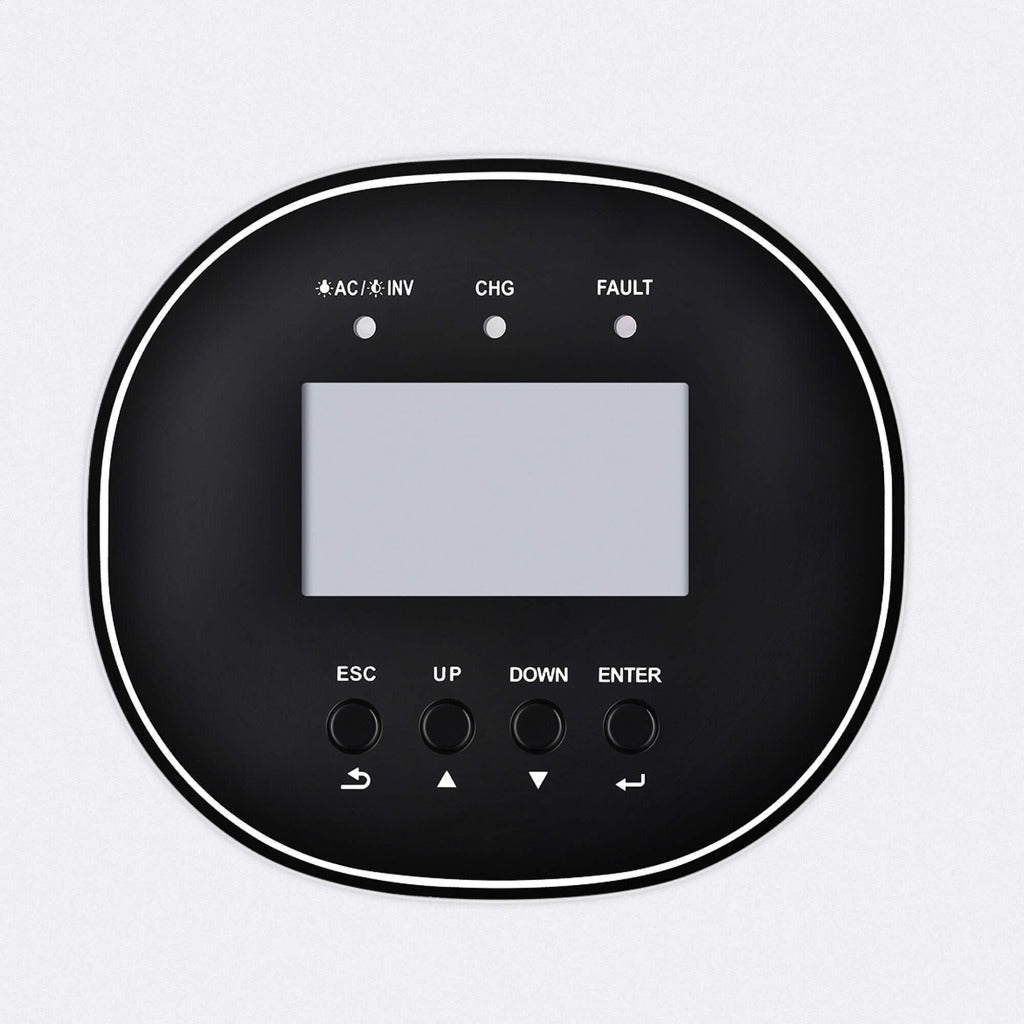

• LED display provides real-time status for simple local monitoring.
• Optional WiFi/GPRS remote monitoring allows off-site access.

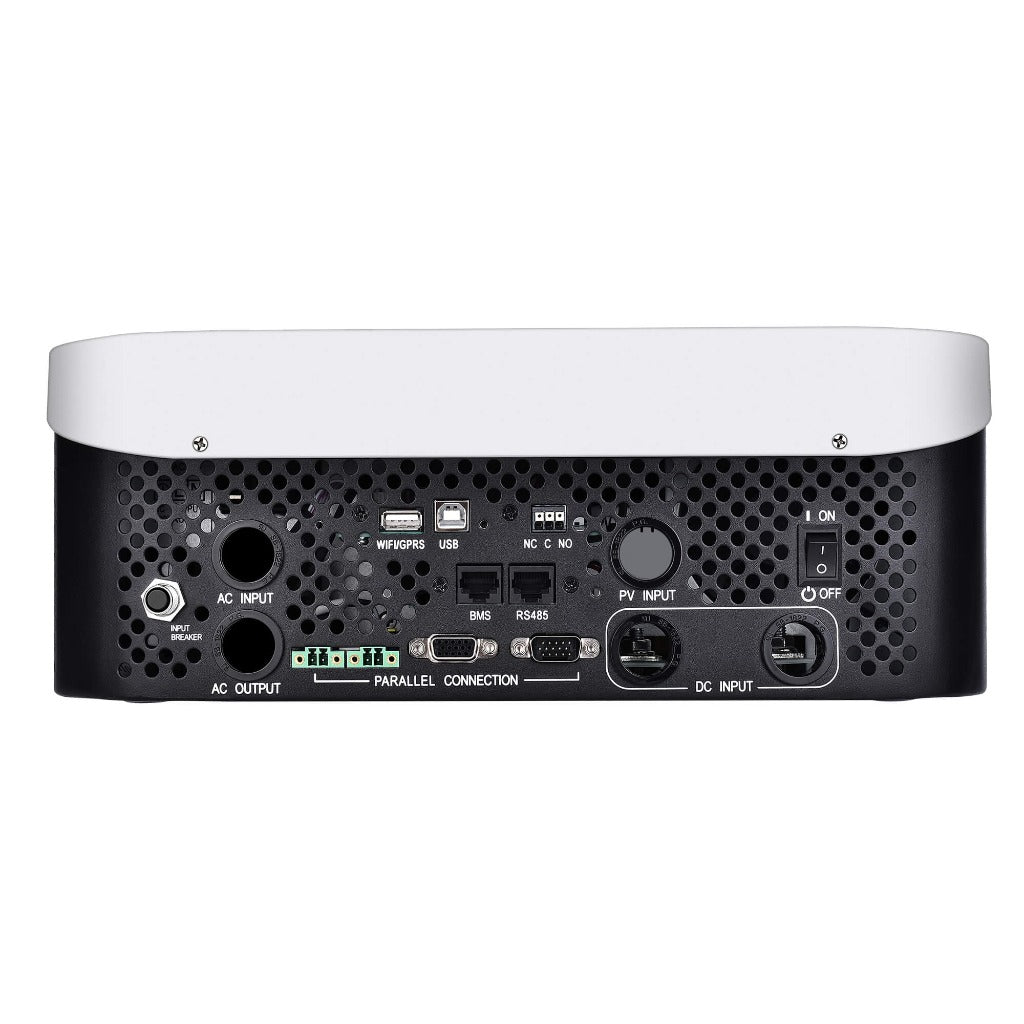

• Includes CAN and RS485 ports for Battery Management System communication.
• Configurable input priority between grid and solar enhances energy usage.
• Compatible with municipal power or generator systems.
• Compact, high-frequency design for reduced space requirements and lighter weight.
• Protection features include overload, short circuit, and deep discharge prevention.
• Allows for parallel operation, expanding up to 6 units for increased power or reliability.
• Designed specifically for a 48V battery system.

Specifications

• Rated Power: 3000VA / 3000W
• Parallel Capability: Yes, up to 6 units
• AC Voltage Regulation (Battery Mode): 120 VAC
• Peak Efficiency: 90%
• Waveform: Pure Sine Wave
• Transfer Time: 10 ms typical; 20 ms max (single); <30 ms (parallel)
• Weight: 25.4 lb
• Dimensions: 13.8" L x 5.1" W x 17.9" H
• Battery System Voltage: 48 V
• Solar Charger MPPT Voltage Range: 60 V DC to 115 V DC
• Solar Charger Maximum PV Open-Circuit Voltage: 145 V DC
• Solar Charger Maximum Solar Charge Current: 80 A
• Solar Charger Maximum Efficiency: 98%
• Solar Charger Standby Power Consumption: <50 W
• AC Outlet Charger Default Charge Current: 30 A; Maximum: 40 A
• AC Input Voltage: 120 VAC
• Selectable AC Voltage Range: 95–140 VAC (PC mode); 65–140 VAC (Appliance mode)
• Frequency Range: 50 Hz / 60 Hz (auto-sensing)
• Operating Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -15°C to 60°C
