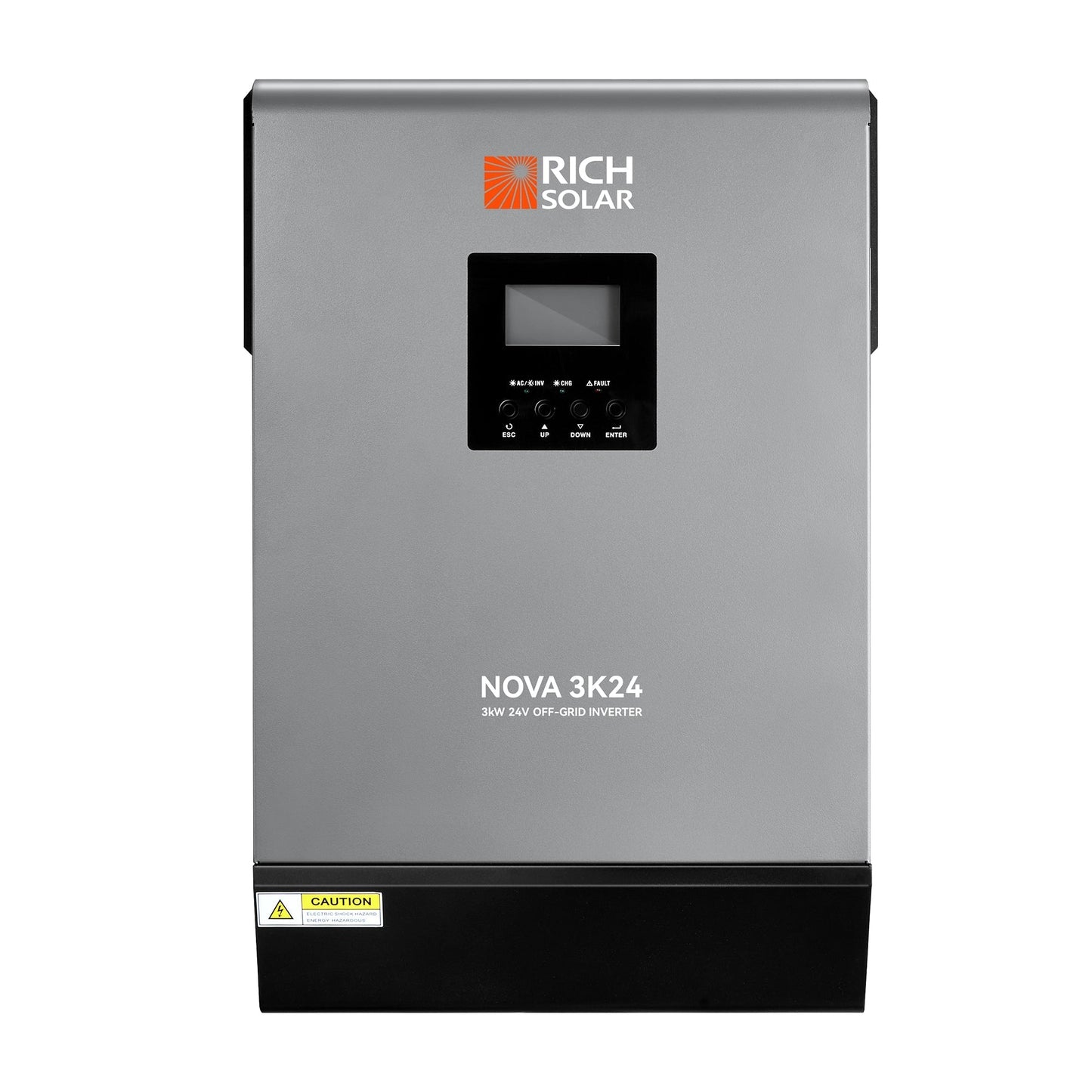

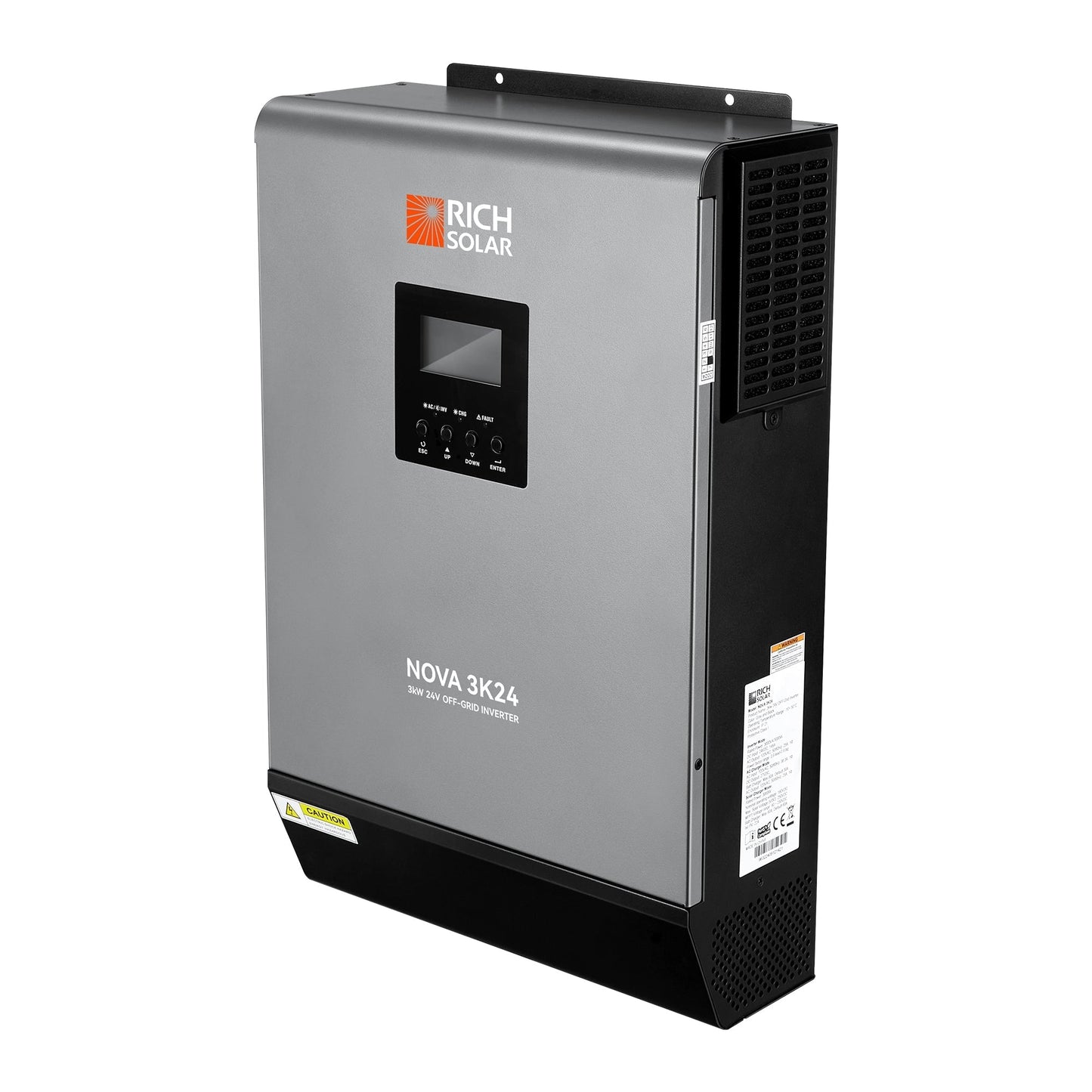

NOVA 3K24 Pure Sine Wave Inverter with MPPT

Overview

The NOVA 3K24 is a dependable pure sine wave inverter that seamlessly integrates an MPPT solar charge controller. Perfect for homes and small offices, it provides configurable power solutions that keep your electronic devices running smoothly.

Benefits

• Ensure sensitive electronics operate without interruption using clean and stable power for PCs and home appliances.
• Decrease reliance on grid electricity by harnessing solar energy, with the option to prioritize solar or AC charging based on your needs.
• Prolong battery life and lessen maintenance with an intelligent charging system that adjusts to your specific applications.
• Avoid downtime with an auto-restart feature when AC power is restored and cold-start capability for straightforward system reboots after outages.
• Utilize flexible backup options by connecting to a generator or mains power as needed.
• Experience straightforward on-site setup and adjustments through the LCD menu that aligns with your appliances and charging requirements.

Features

• Pure sine wave output for clear and distortion-free power.
• Built-in MPPT solar charge controller enhances solar energy efficiency.
• LCD-configurable input voltage range to accommodate various home appliances and computers.
• Adjustable battery charging current via LCD to fit different battery types and applications.
• Customizable AC or solar charger priority using LCD settings.
• Compatible with both mains and generator power sources for versatile usage.
• Automatic restart capability upon restoration of AC power.
• Protection features against overload, overheating, and short circuits.
• Smart battery charging algorithm enhances battery efficiency and lifespan.
• Cold start feature enables operation without an external AC source.

Specifications

• Inverter:
  • Model: NOVA 3K24
  • Rated Output Power: 3 kVA / 3 kW
  • Output Voltage Waveform: Pure sine wave
  • Output Voltage Regulation: 120 VAC ±5%
  • Output Frequency: 60 Hz / 50 Hz
  • Peak Efficiency: 91%
  • Surge Capacity: 2× rated power for 5 seconds
  • Nominal DC Voltage: 24 VDC
• Solar Input:
  • Maximum PV Array Open-Circuit Voltage: 250 VDC
  • MPPT Operating Voltage Range: 90 VDC – 230 VDC
  • Maximum Input Current: 18 A
• Physical Specifications:
  • Operating Temperature Range: 14°F – 104°F
  • Dimensions (D × W × H): 5.6 × 12.1 × 18.8 in (142.4 × 307.8 × 477.6 mm)
  • Net Weight: 26.5 lb (12 kg)
