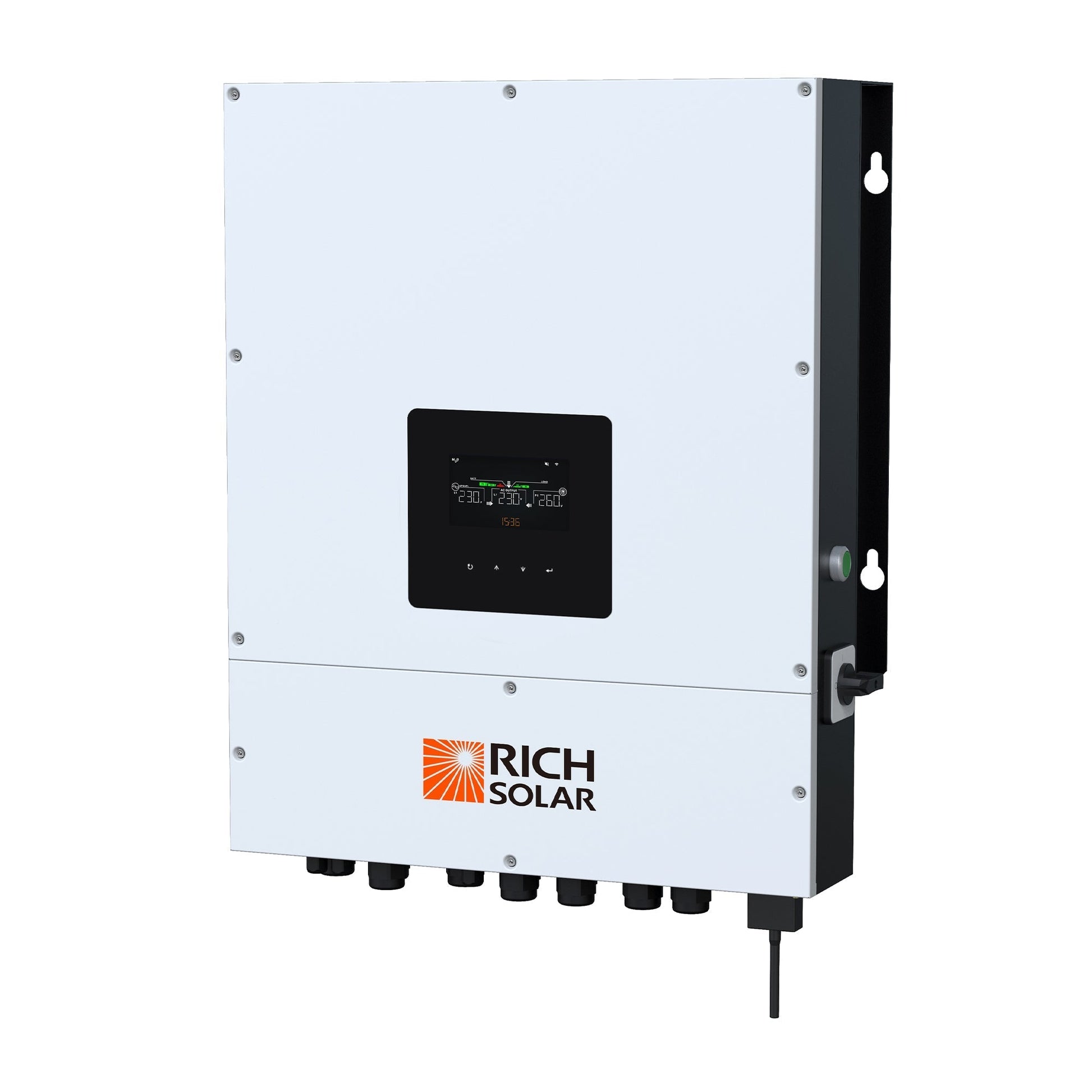

6 kW Hybrid Solar Inverter - IP65, Wi-Fi, RGB

Overview

Experience reliable power with our robust 6 kW Hybrid Solar Inverter designed for both residential and light commercial applications. This versatile unit integrates solar MPPT, battery charging, and grid support, all housed in a compact, waterproof enclosure. Whether indoors or outdoors, enjoy seamless control and monitoring of your energy system.

Benefits

• Keep essential devices running during outages while minimizing reliance on the grid by prioritizing solar and battery energy.
• Install comfortably in outdoor or dusty locations with the added protection of IP65 waterproofing.
• Access performance data and make adjustments conveniently from your smartphone with the integrated Wi-Fi feature.
• Expand your system's capacity by linking up to six units for greater power and backup support.
• Lower your electricity costs while maximizing solar usage with an optional CT sensor and customizable energy supply priorities.
• Easily connect to battery systems and manage their charging to enhance longevity with adjustable settings and BMS communication.

Features

• Durable IP65-rated enclosure ensures protection from water and dust for diverse installation environments.
• Built-in RGB LED indicator provides clear status updates with customizable colors.
• Mobile monitoring and control through integrated Wi-Fi (requires mobile app).
• Alternative port available for connecting a generator or emergency load.
• Support for an external CT sensor allows for optimized self-consumption priorities.
• User-selectable supply priorities: choose between PV (solar), battery, or grid options.
• Includes a built-in RS485 communication port for BMS integration.
• Adjustable charging current and voltage to meet your specific needs.
• Capability to operate up to six units in parallel for greater efficiency and backup options.

Specifications

• Maximum PV Input Power: 7500 W
• Rated Output Power: 6000 VA / 6000 W
• Parallel Capability: Yes - up to 6 units
• Maximum DC Voltage: 600 VDC
• Start-up Voltage / Initial Feeding Voltage: 120 VDC / 160 VDC
• MPPT Voltage Range: 120 VDC - 550 VDC
• Frequency Range: 50 Hz / 60 Hz (auto detection)
• Output Voltage Waveform: Pure sine wave
• Nominal Output Voltage: 120 VAC (P-N) / 208 VAC (P-P) / 240 VAC (P-P)
• Output Voltage Range: 105.5 - 132 VAC per phase
• Nominal Output Current: 25 A per phase
• Battery Voltage: 40 - 62 VDC
• Maximum Charging Current: 120 A
• Efficiency (DC to AC): 91%
• Operating Temperature Range: -13 °F to 140 °F (derate >113 °F)
• Dimensions: 8.5 x 20.3 x 27.6 in / 215.5 x 515 x 700 mm
• Net Weight: 90.4 lb / 41 kg
• Ingress Protection: IP65
