10 kW All-in-One Hybrid Solar Inverter

Overview

Experience the power of renewable energy with our compact hybrid solar inverter. Designed for seamless integration with your grid and generator, this device enhances energy management, ensures dependable backup power, and accommodates system growth with ease.

Benefits

• Lower your energy costs by harnessing solar energy for household needs and charging batteries during peak production hours.
• Maintain power to crucial circuits during outages through a flawless switch between grid, generator, and battery sources.
• Gain remote access to monitor and manage your system, enabling you to troubleshoot and optimize usage, thus minimizing downtime.
• Expand your system’s capacity without the need to replace core components, allowing you to add up to five additional units as your energy needs grow.
• Safeguard your home and equipment with built-in safety features that streamline installation and adherence to regulations.

Features

• Power flexibility:
  • Compatible with 120/240V split-phase or 120/208V split-phase systems.
  • Accepts generator input and AC-coupling for versatile hybrid setups.

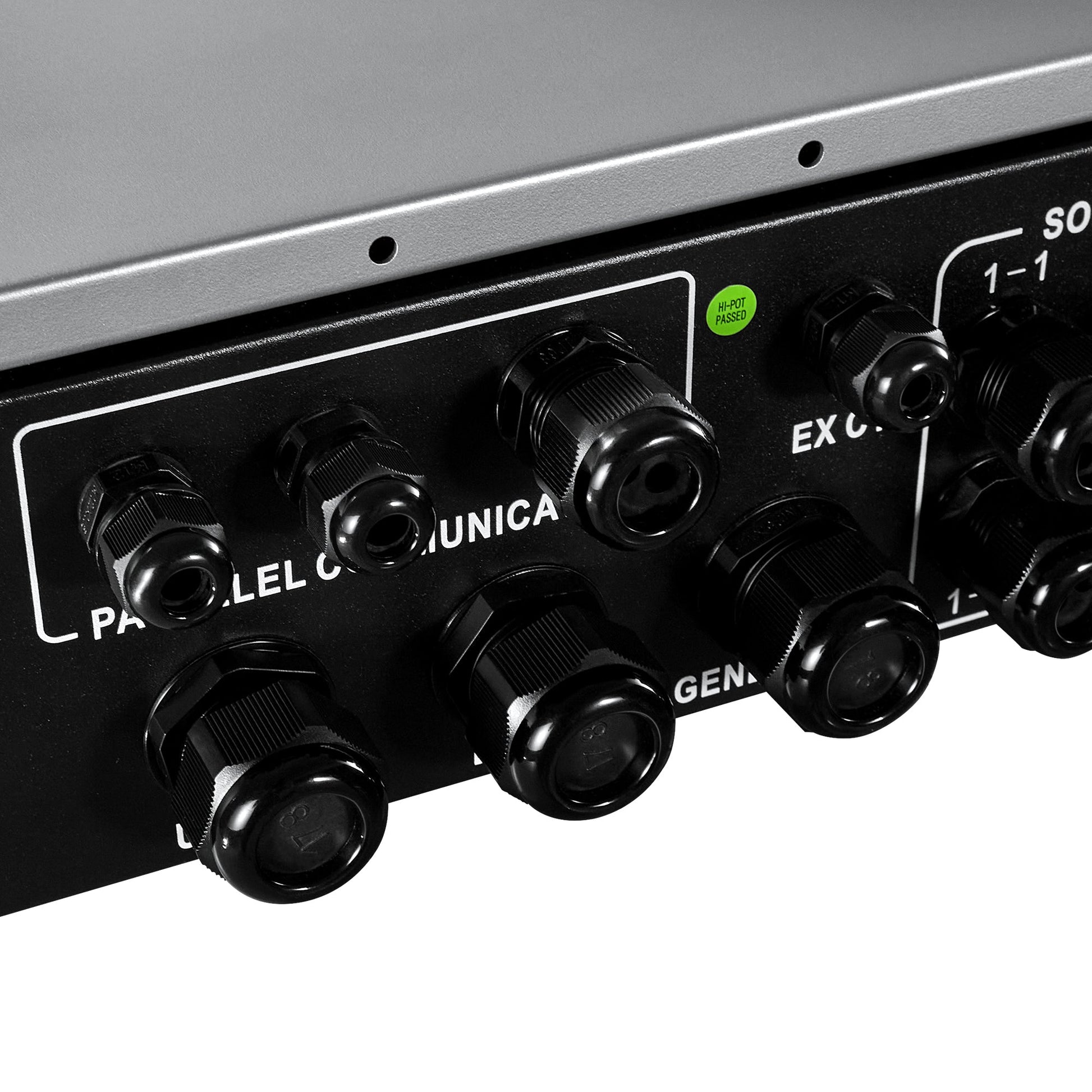

  • Supports parallel operation to connect up to 6 units for increased power capacity.
• Advanced control and monitoring:
  • Monitor in real-time using WiFi and a mobile app for user-friendly oversight.
  • Integrates with Battery Management Systems through RS485 for effective battery coordination.
  • Supports external current transformer sensors for enhanced self-consumption and load-adjusted charging.
• Safety and protection:

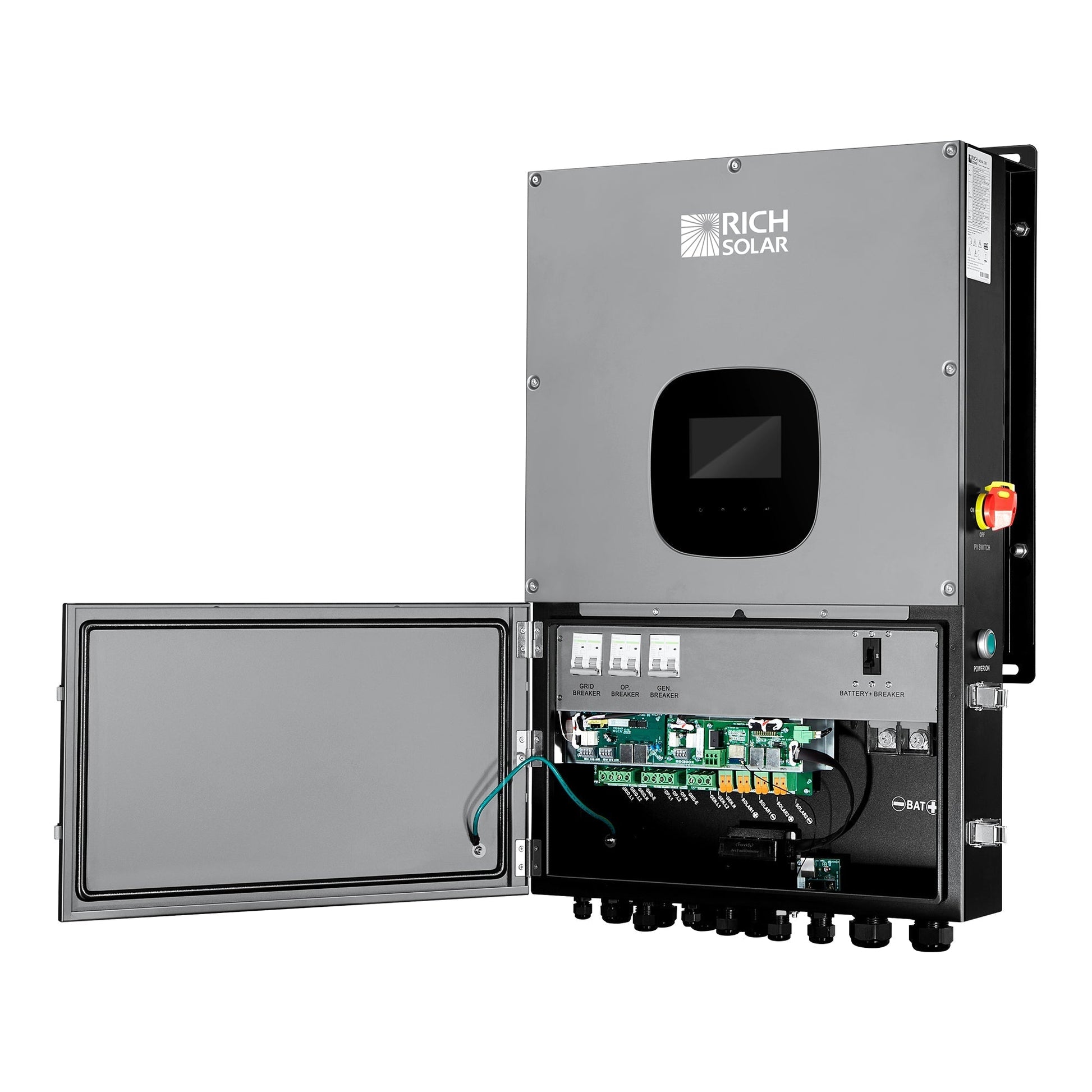

  • Includes a 300A DC breaker and 60A AC breaker for comprehensive protection.
  • Features anti-islanding and rapid shutdown protections in accordance with NEC standards.
  • Equipped with ground-fault detection and lightning protection for PV inputs.
• Performance:
  • Delivers pure sine wave output with up to 91 percent efficiency from DC to AC conversion.
  • Operates in multiple modes including grid-tie, off-grid, and hybrid configurations.

Specifications

• Rated output power: 10,000 VA / 10,000 W
• Maximum PV input power: 12,000 W
• Parallel capability: Up to 6 units
• Input
  • Maximum PV input power: 12,000 W
  • PV voltage range: 120 to 550 VDC
  • Startup voltage: 125 V
  • MPPT: Dual inputs with 2 x 18 A (30 A peak)
• Output
  • Nominal output voltage: 120 VAC (P-N) / 208 VAC (P-P) / 240 VAC (P-P)
  • Output voltage range: 105.5 to 132 VAC per phase
  • Nominal output current: 41.7 A per phase
• Battery
  • Battery DC voltage range: 40 to 62 VDC (nominal 48 VDC)
  • Maximum solar charging current: 200 A
  • Maximum AC charging current: 200 A
  • Maximum total charging current: 200 A
• Operating environment
  • Operating temperature: -13 F to 140 F (with derating above 113 F)
  • Protection degree: IP65

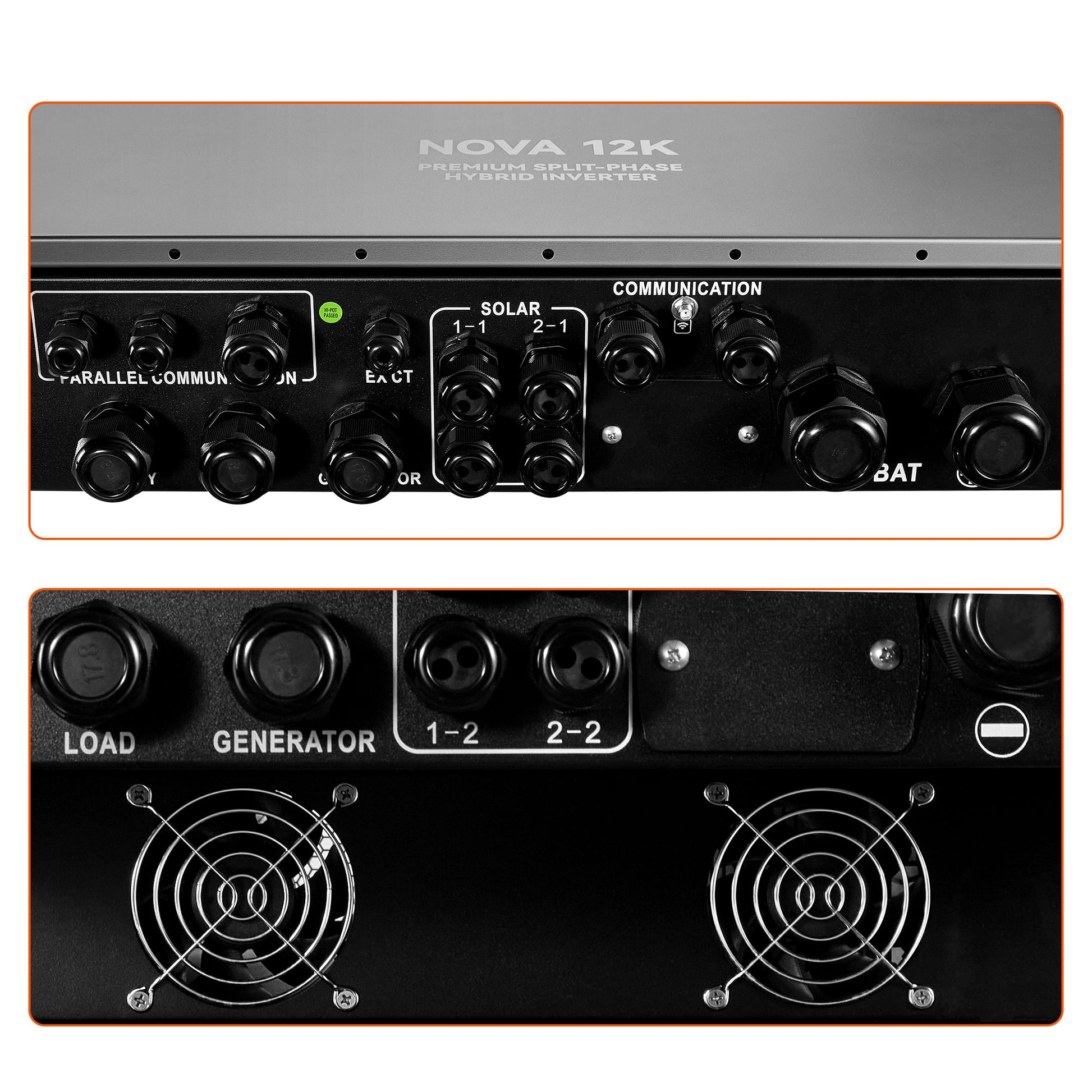

  • Communication ports: RS232, RS485, WiFi, USB
• Physical

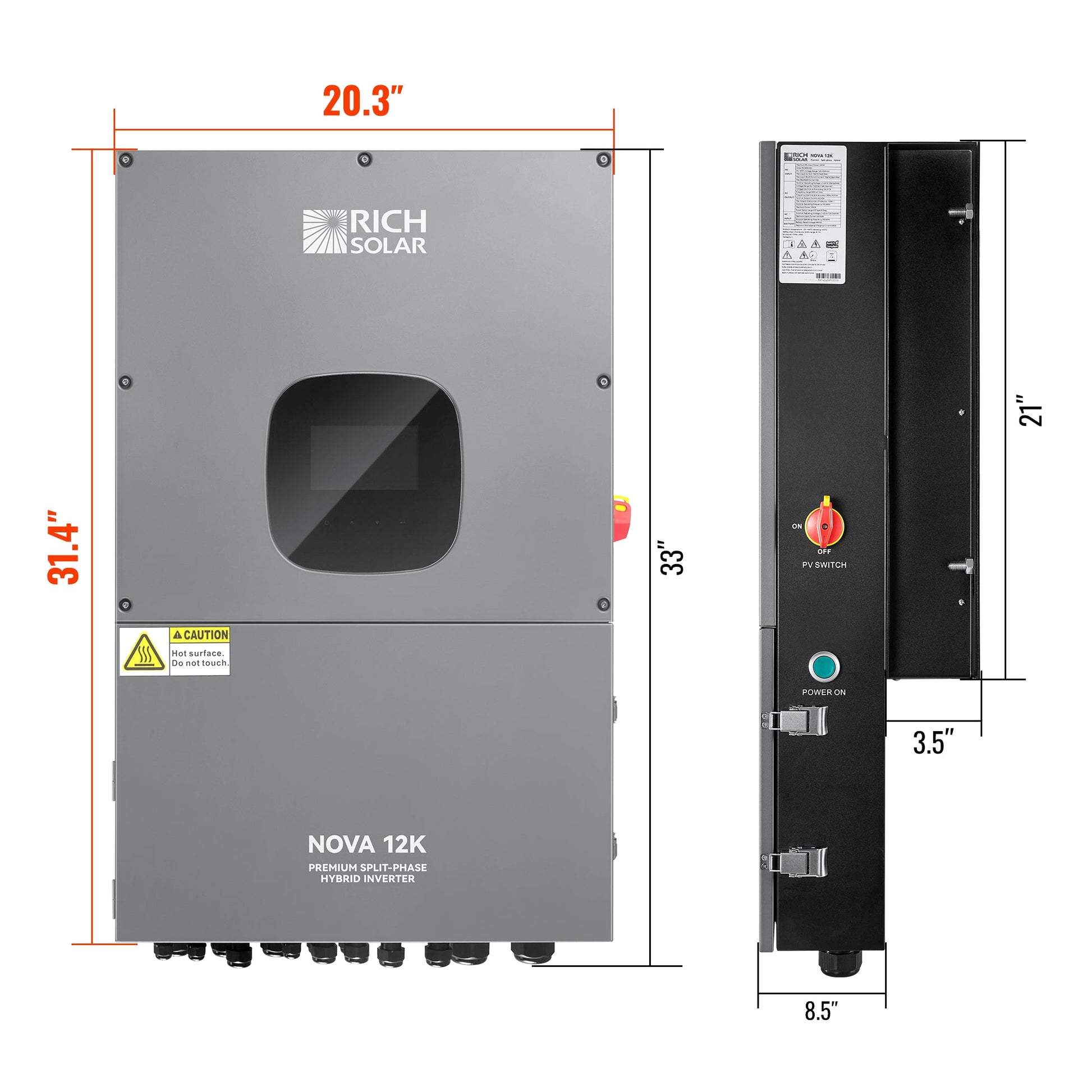

  • Dimensions (L x W x H): 8.5 x 20.3 x 28.1 in (215 x 516 x 714 mm)
  • Net weight: 112 lb (51 kg)
• Certifications
  • UL 1741 SA/SB, CSA C22.2 No. 107.1, IEEE 1547
  • CEC-listed, FCC Part 15 Class B
  • Compliant with California Rule 21 and HECO Rule 14H
