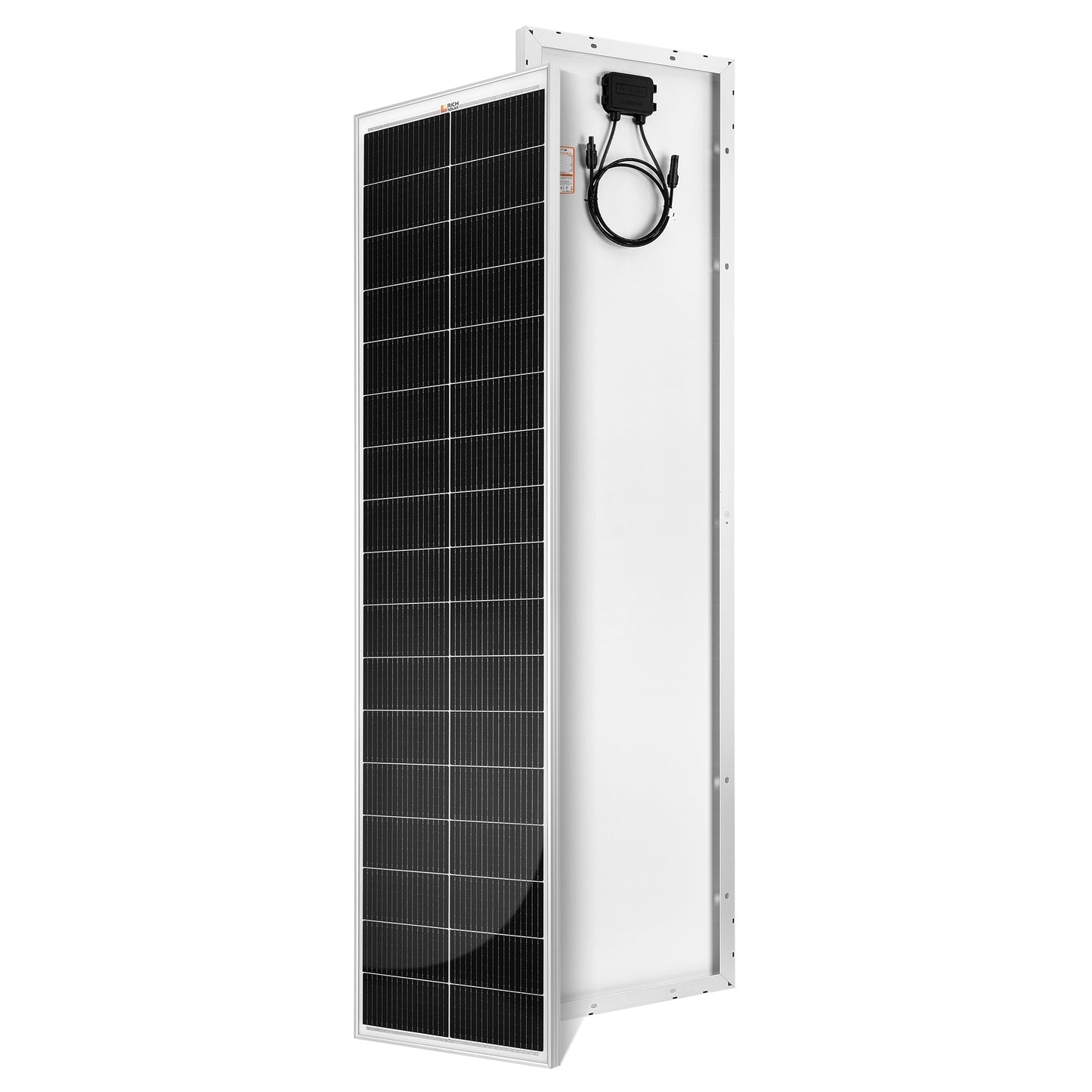

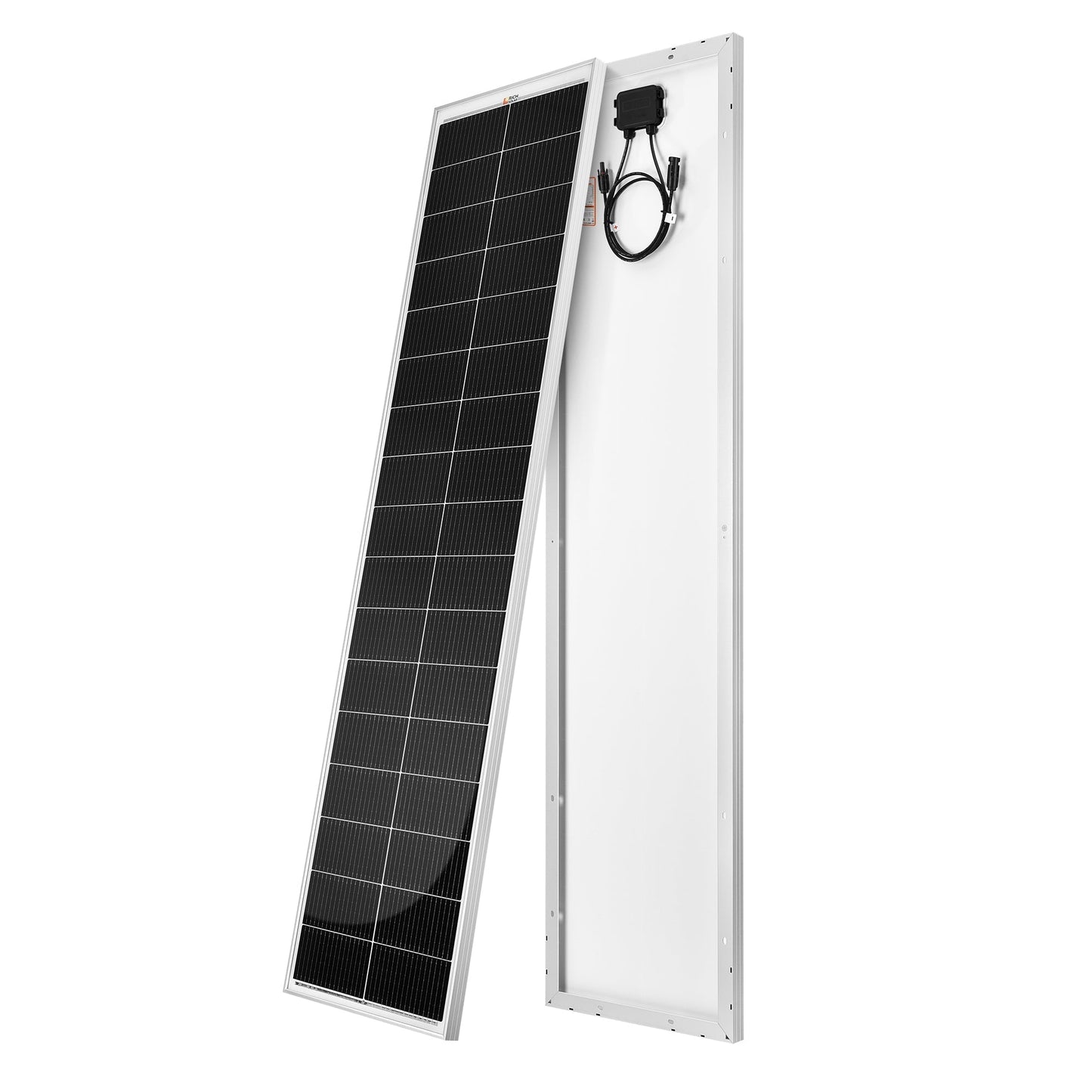

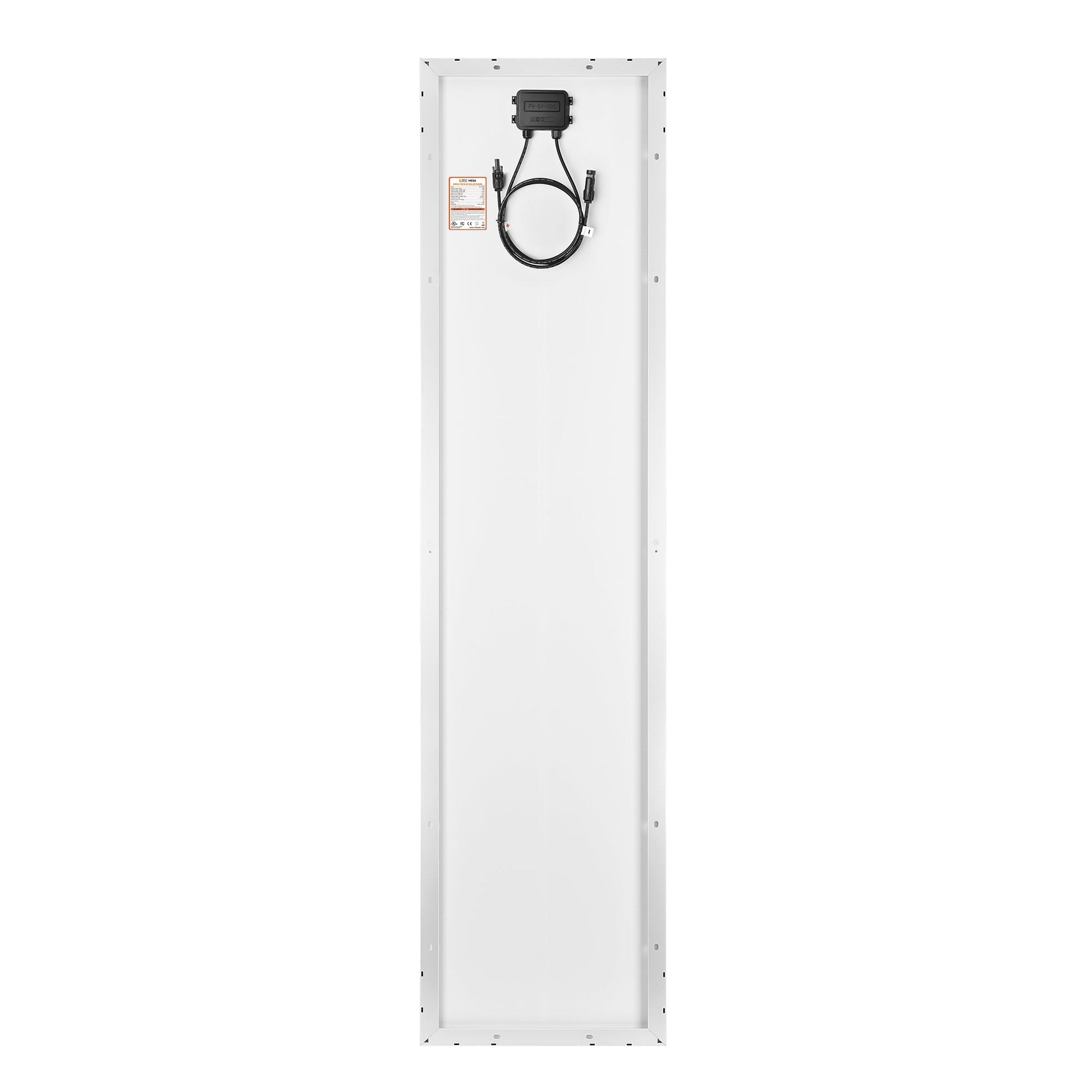

130W N-Type Solar Panel for Off-Grid and Mobile Power Solutions

Overview

This versatile 130W solar panel provides reliable energy for RVs, boats, and off-grid installations. Built with advanced N-Type TOPCon cell technology and robust materials, it ensures dependable performance while being easy to install and backed by durable warranties.

Benefits

• Enjoy uninterrupted power for your devices, keeping your appliances and batteries charged during journeys or unexpected outages
• Utilize more daylight hours with enhanced performance in low-light conditions, maximizing energy capture at dawn, dusk, or overcast days
• Benefit from a long-lasting design that minimizes maintenance and replacement needs, providing you with reliable energy
• Experience quick setup with pre-attached cables and a variety of mounting options that simplify the installation process
• Have peace of mind with extensive warranties covering output and workmanship over the long term

Features

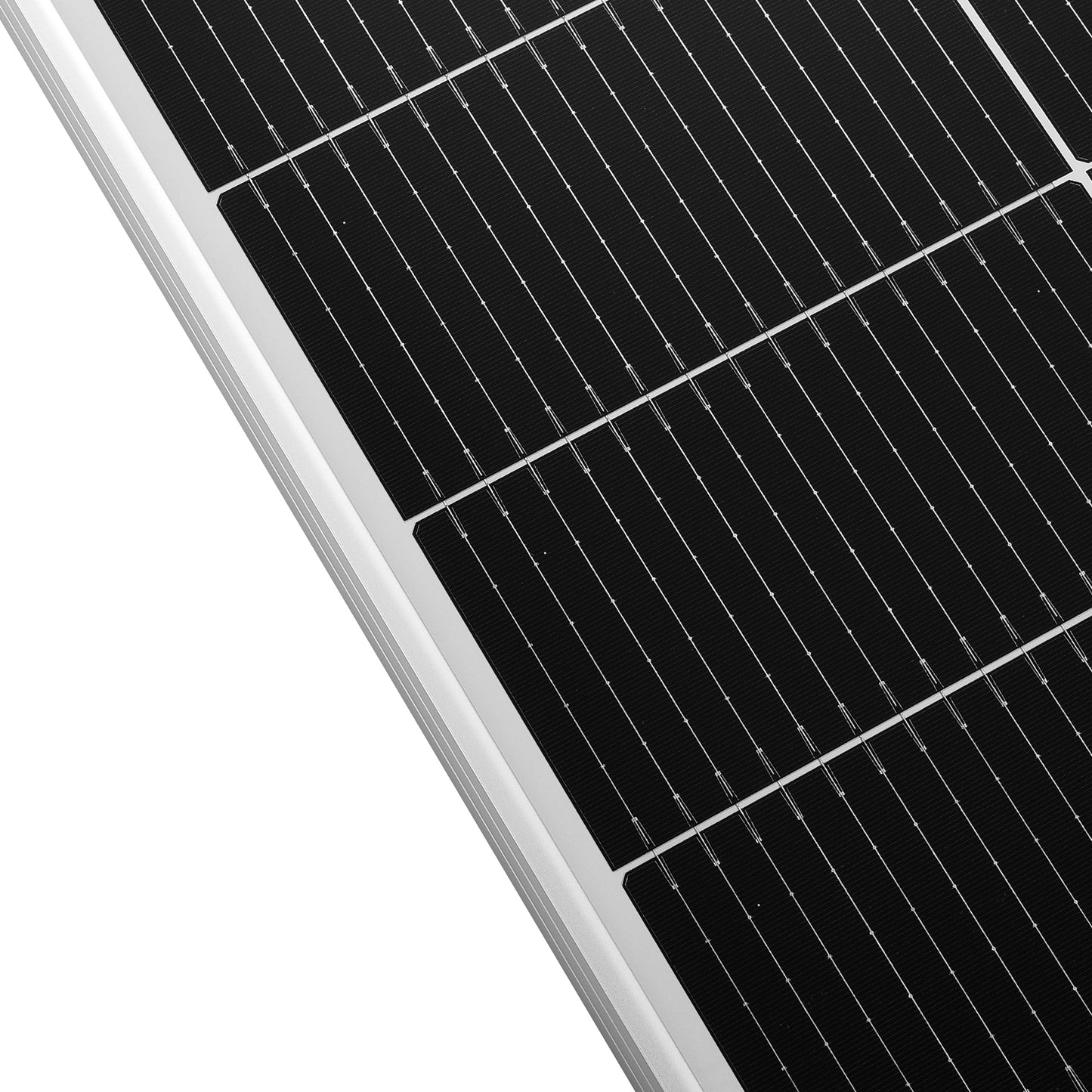

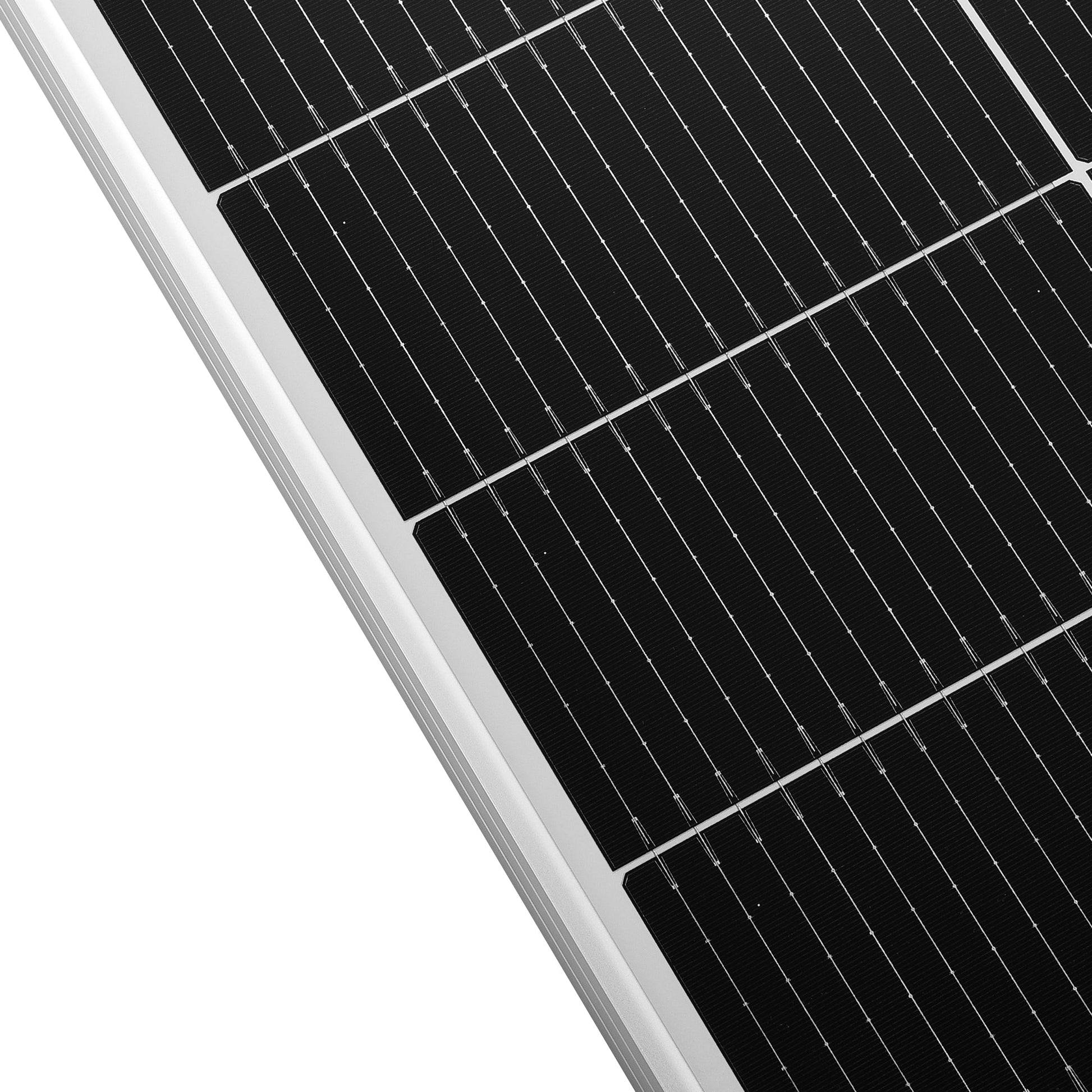

• Equipped with 16-busbar N-Type TOPCon monocrystalline cells offering cell efficiency of up to 25.1%
• Configured with 34 cells delivering a consistent 130W nominal power output
• Constructed with 3.2 mm anti-reflective (AR) coated tempered glass for enhanced light absorption and durability against impacts
• Includes positive power tolerance (0 to +5W) for guaranteed power output
• Engineered to perform well in low-light situations for better energy collection during less favorable weather
• Stringently tested for UV exposure, thermal cycling, and humidity resistance to ensure reliability
• Designed to prevent degradation with PID-resistant features and double EL inspections
• Built to endure rigorous wind loads of 2400 Pa and snow loads of 5400 Pa
• Ideal for various mobile applications, including off-grid systems, RVs, and boats

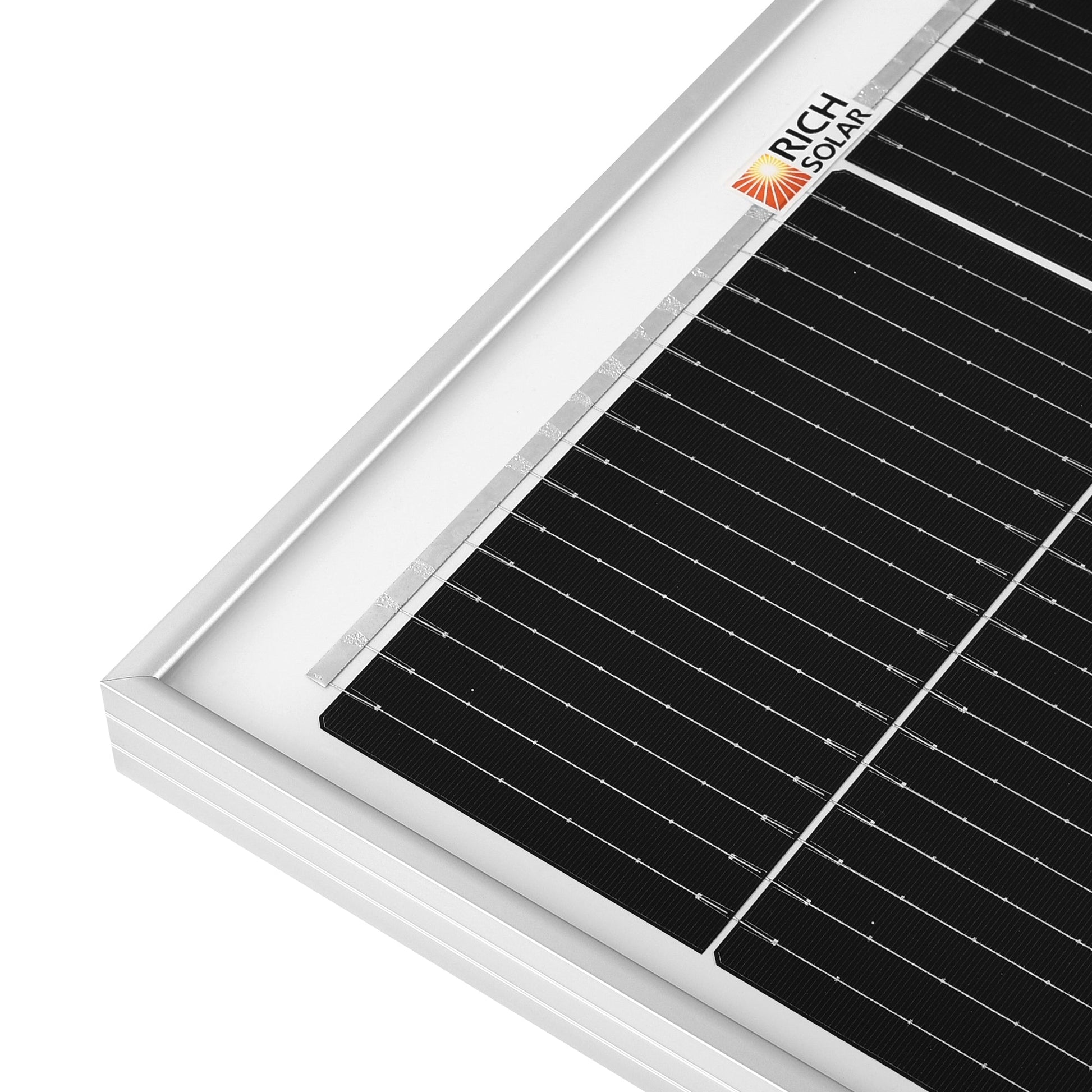

• Lightweight and strong anodized aluminum frame that resists corrosion
• Includes 12 pre-drilled mounting holes compatible with Z brackets, tilt mounts, or ground setups
• Comes with pre-attached 3 ft solar cables and connectors for rapid installation
• Compatible with both grid-tie and off-grid inverter systems

Specifications

• Model: RS-M130SL
• Maximum Power (Pmax): 130 W
• Maximum Power Voltage (Vmp): 19.6 V
• Maximum Power Current (Imp): 6.63 A
• Open Circuit Voltage (Voc): 23.6 V
• Short Circuit Current (Isc): 6.92 A
• Maximum System Voltage (Vmax): 1000 VDC
• Maximum Series Fuse Rating: 15 A
• Module Efficiency: 19.8%
• Cell Type: 16-busbar N-Type TOPCon monocrystalline (cell efficiency up to 25.1%)
• Power Tolerance: 0 to +5 W
• Glass: 3.2 mm AR-coated tempered glass
• Frame: Anodized aluminum

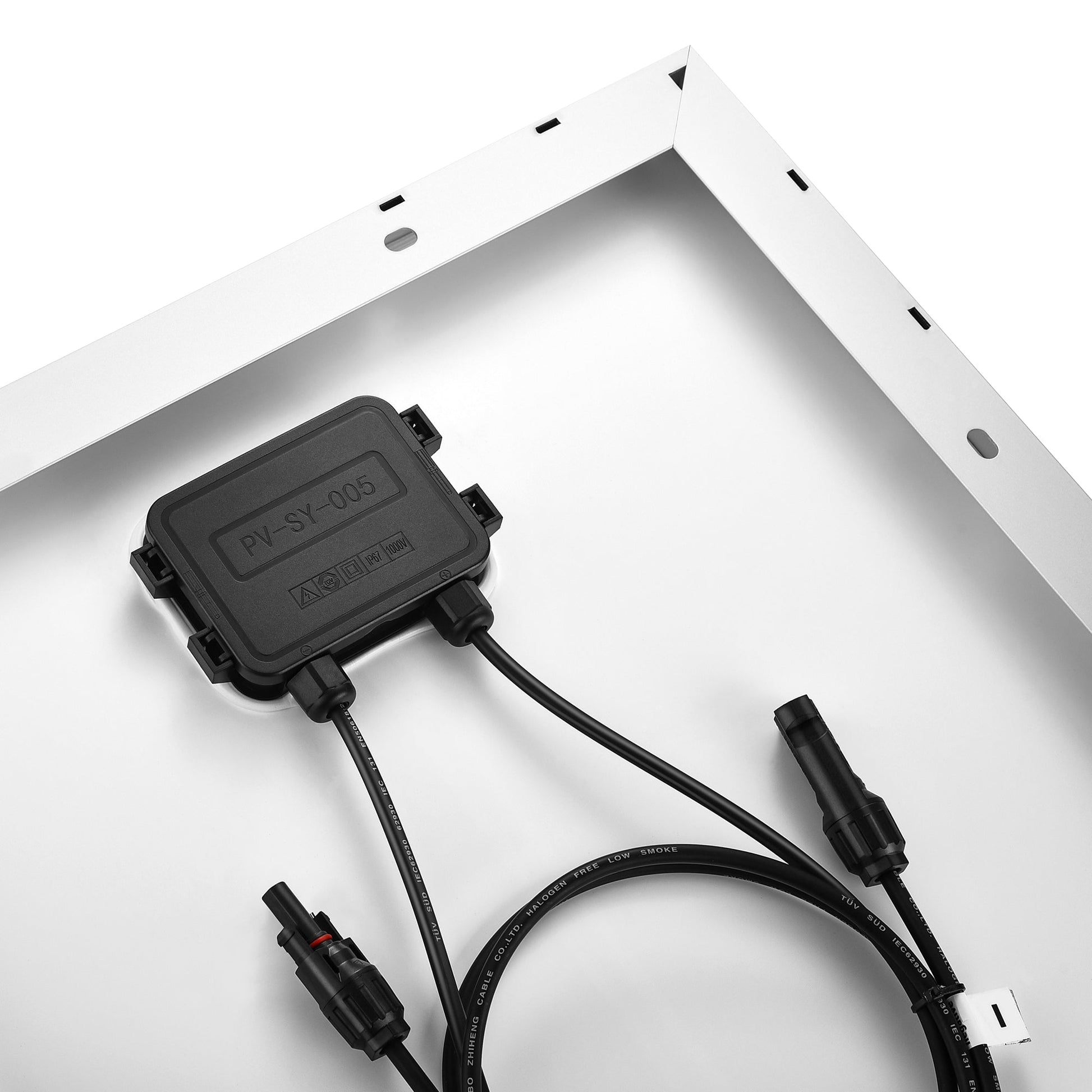

• Built-in Components: IP67 waterproof junction box, IP67 waterproof solar connectors, bypass diodes in junction box
• Panel Leads (pair): 3 ft each
• Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Weight: 13.9 lb (6.3 kg)
• Dimensions: 65.0 in x 15.8 in x 1.2 in (1650 mm x 400 mm x 30 mm)
• Mechanical Load Ratings: 2400 Pa wind / 5400 Pa snow
• Warranty: 25-year output warranty; 10-year workmanship warranty
