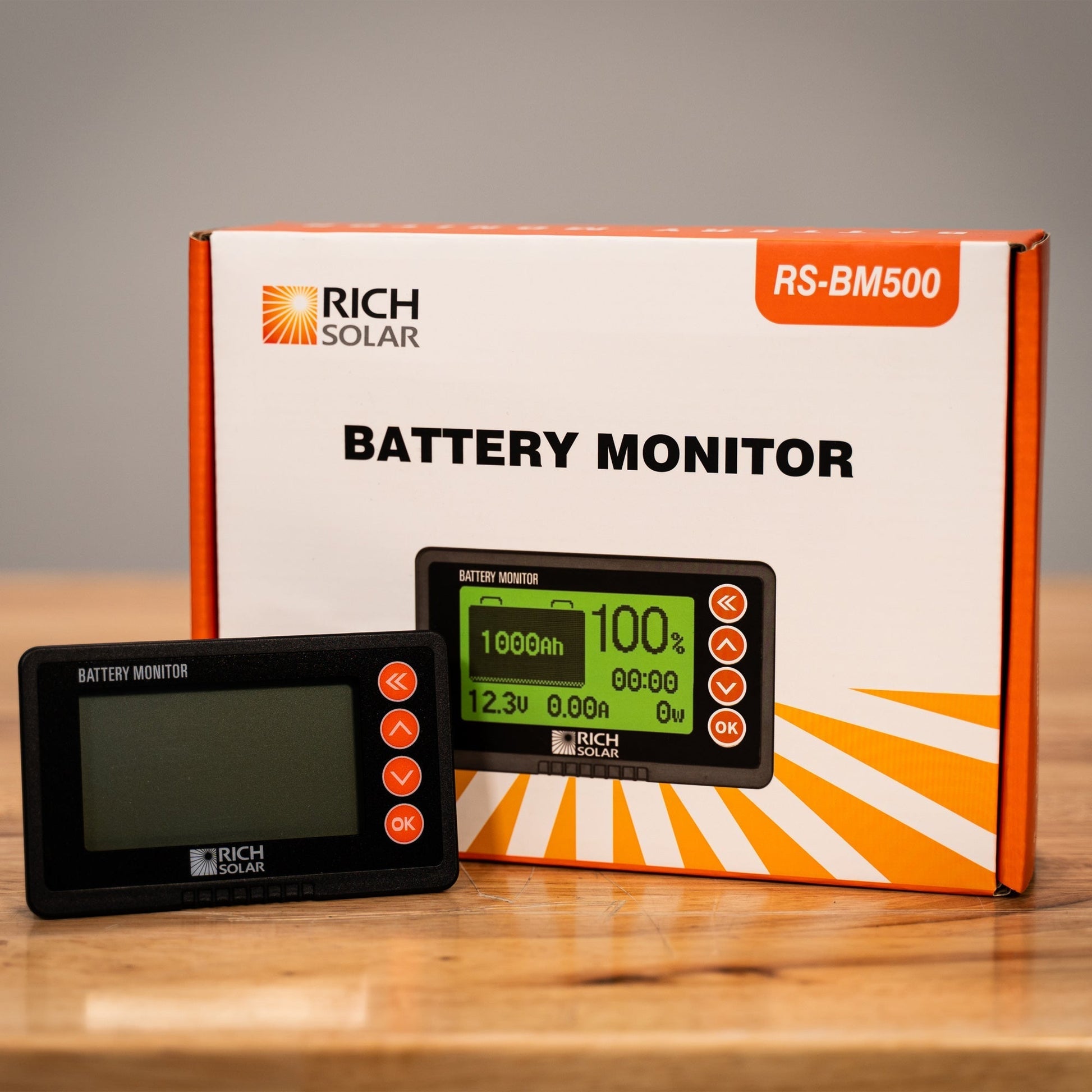

RS-BM500 Battery Monitor with Remote Display

Overview

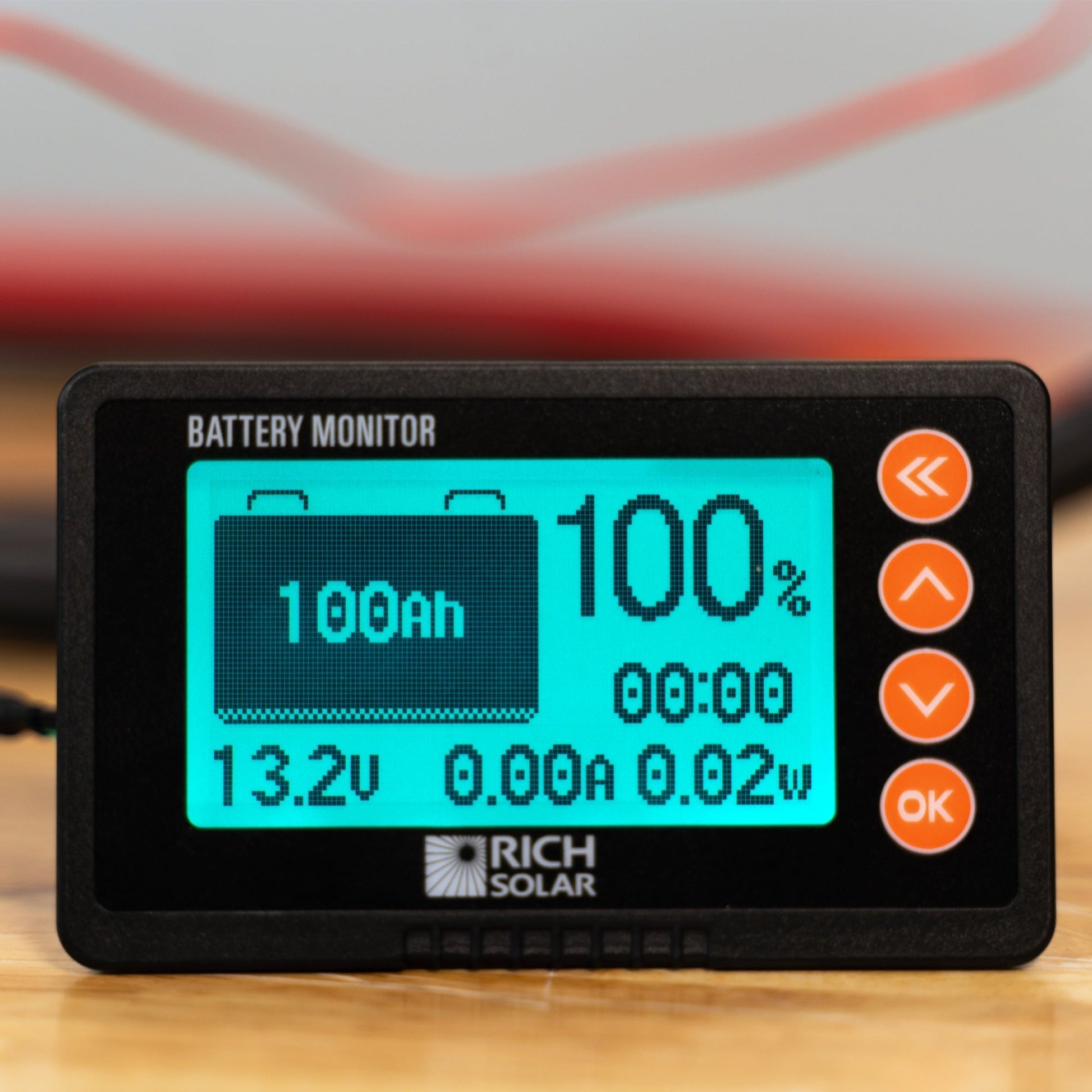

The RS-BM500 is an advanced battery shunt and remote monitoring system that provides real-time data on battery voltage, current, and remaining capacity. With its wall-mounted remote display and close proximity installation near the battery, you can effectively oversee and maintain your battery's health effortlessly.

Benefits

• Quickly check battery status to prevent unexpected failures and efficiently plan charging or usage.
• Eliminate guesswork in troubleshooting with precise current and capacity readings.
• Extend battery life by closely monitoring charge and discharge actions before deep discharge occurs.
• Conveniently position the remote display for easy viewing without needing to access the battery bank.
• Streamline installation and upkeep with included wiring components and a straightforward wiring layout.

Features

• High-precision shunt that accurately measures current and tracks capacity (Ah).

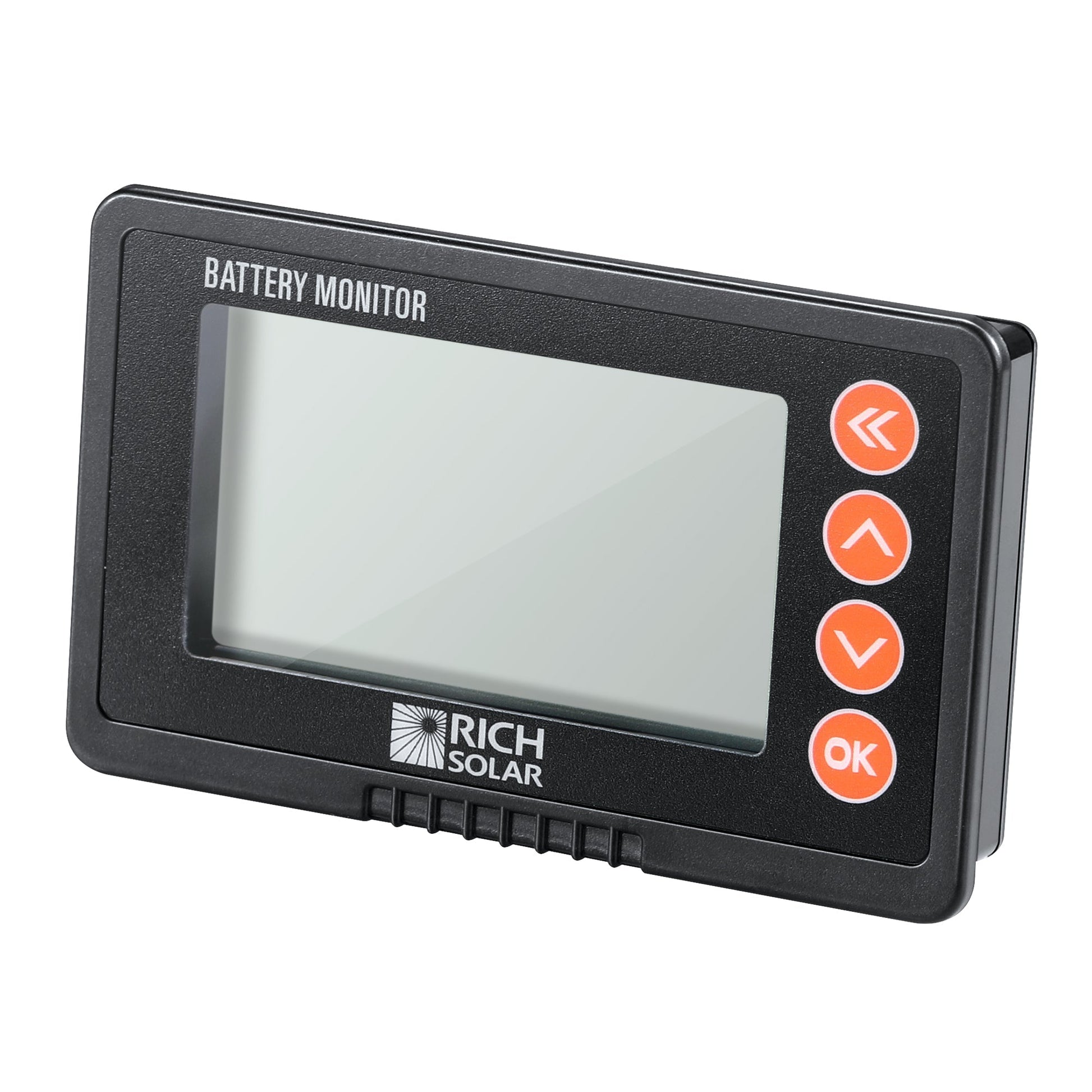

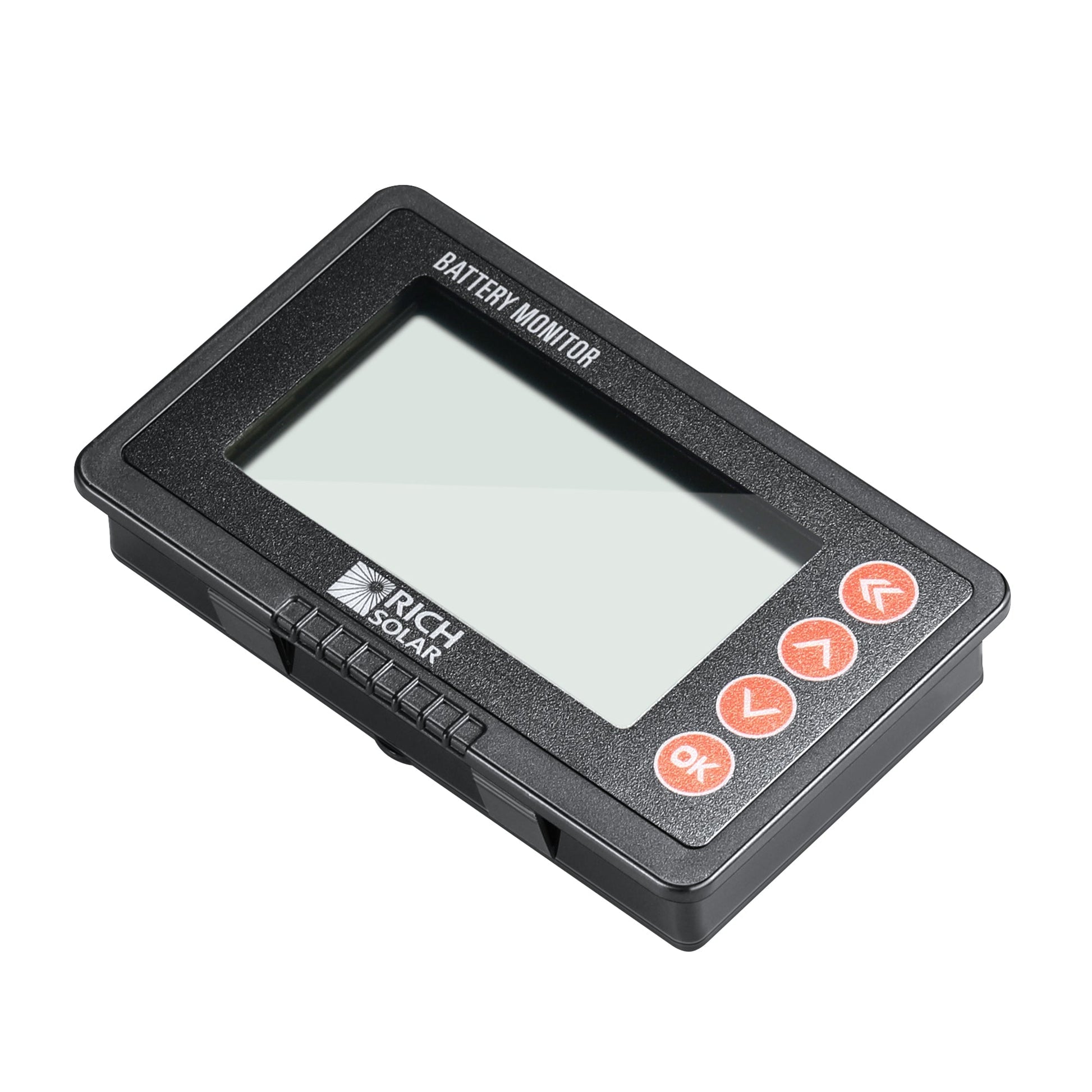

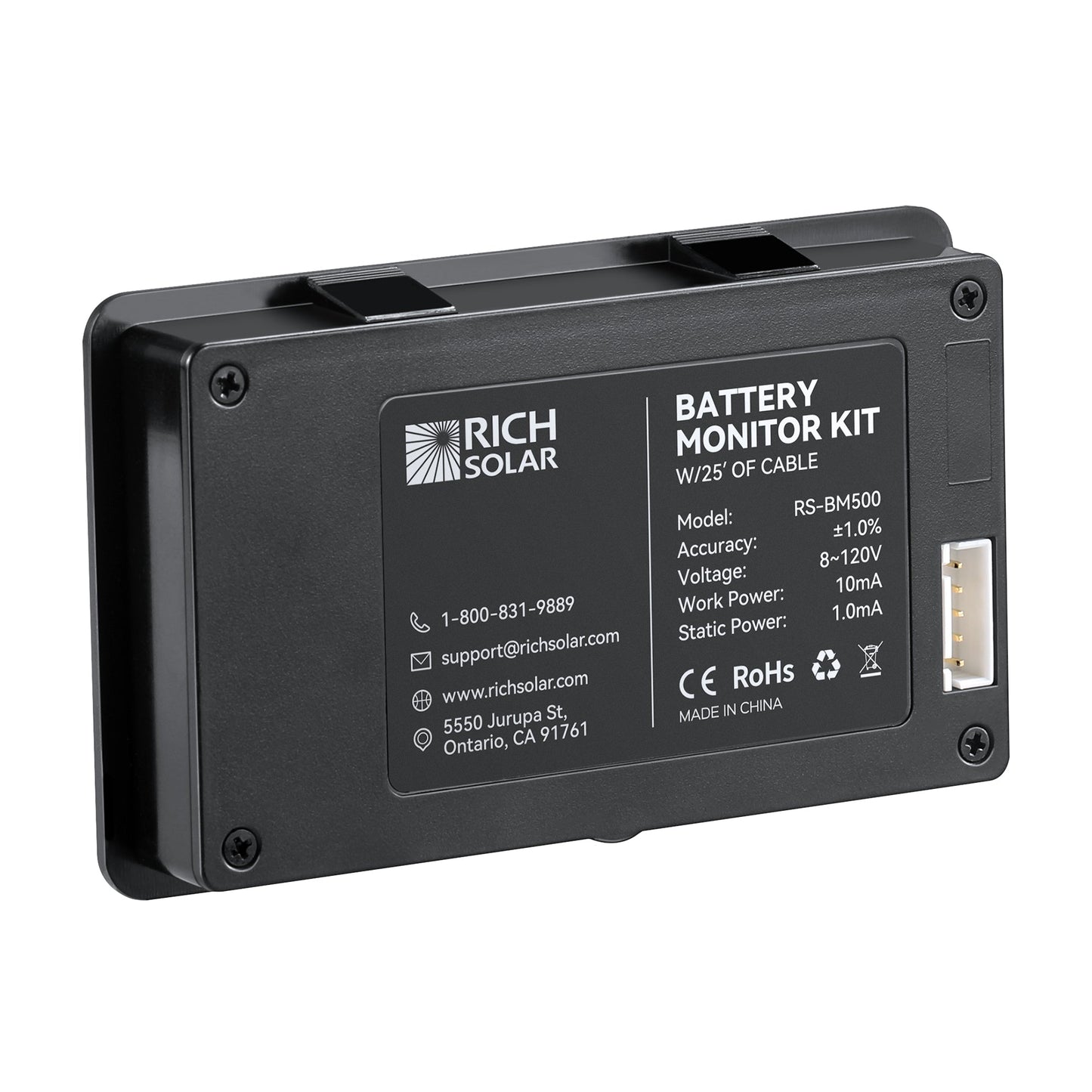

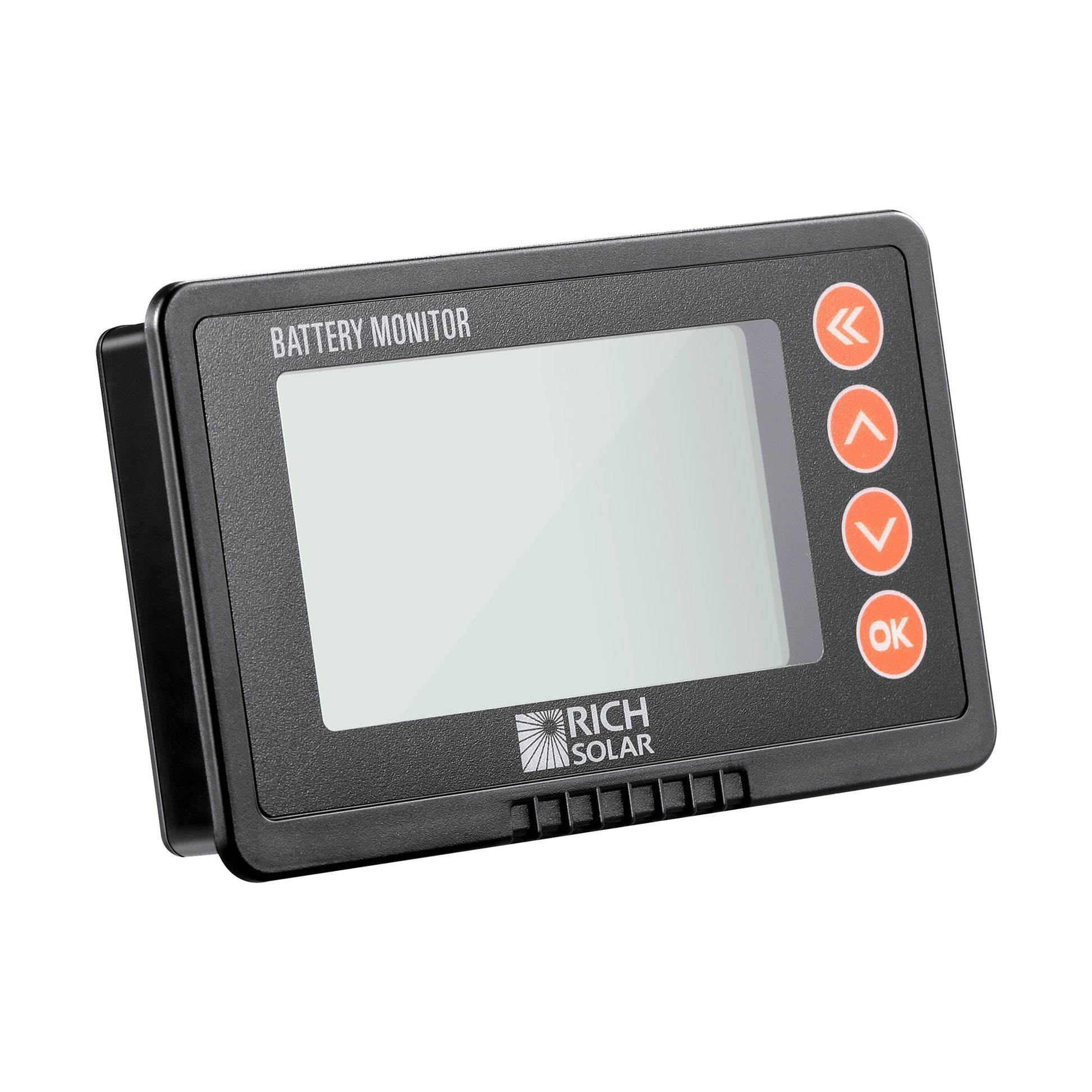

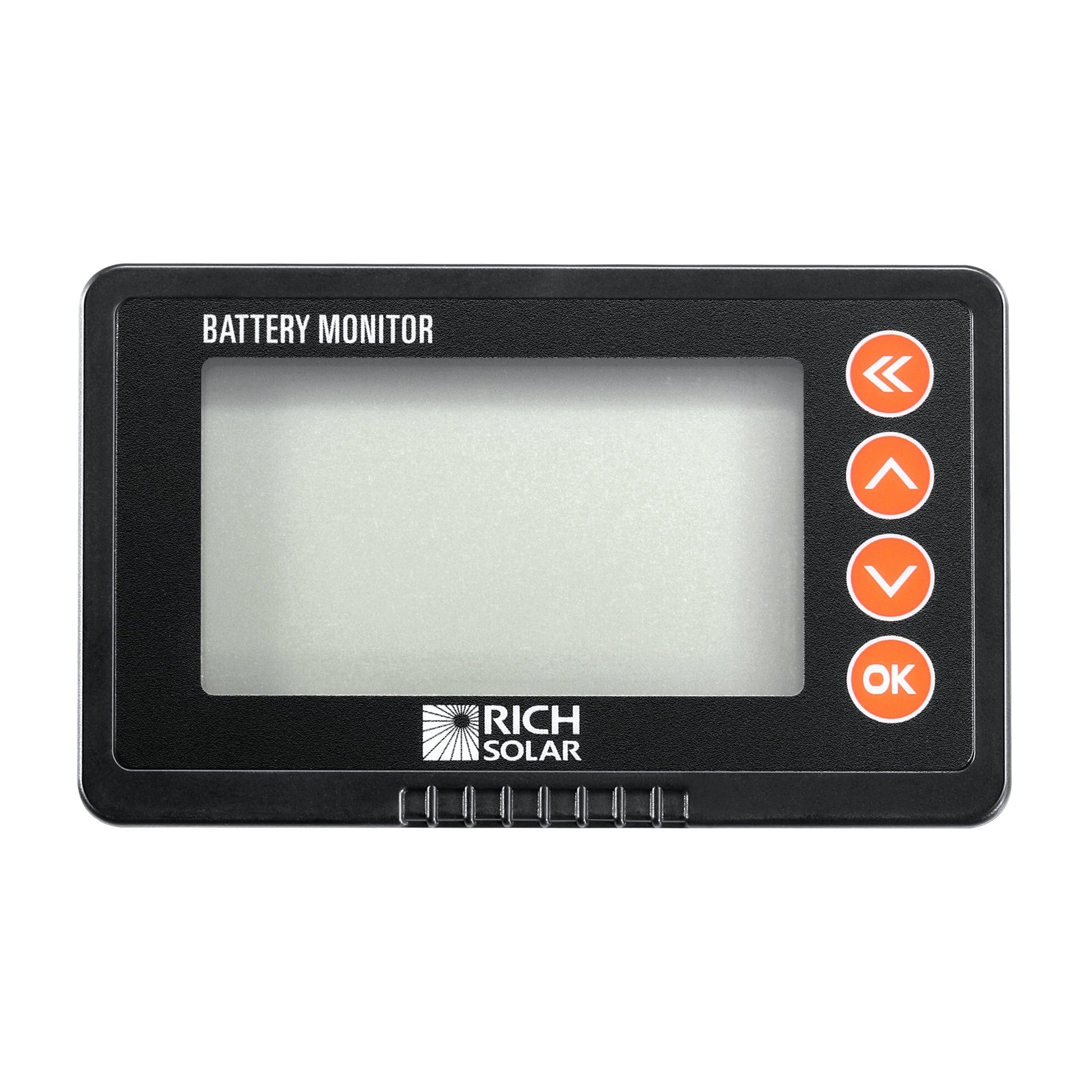

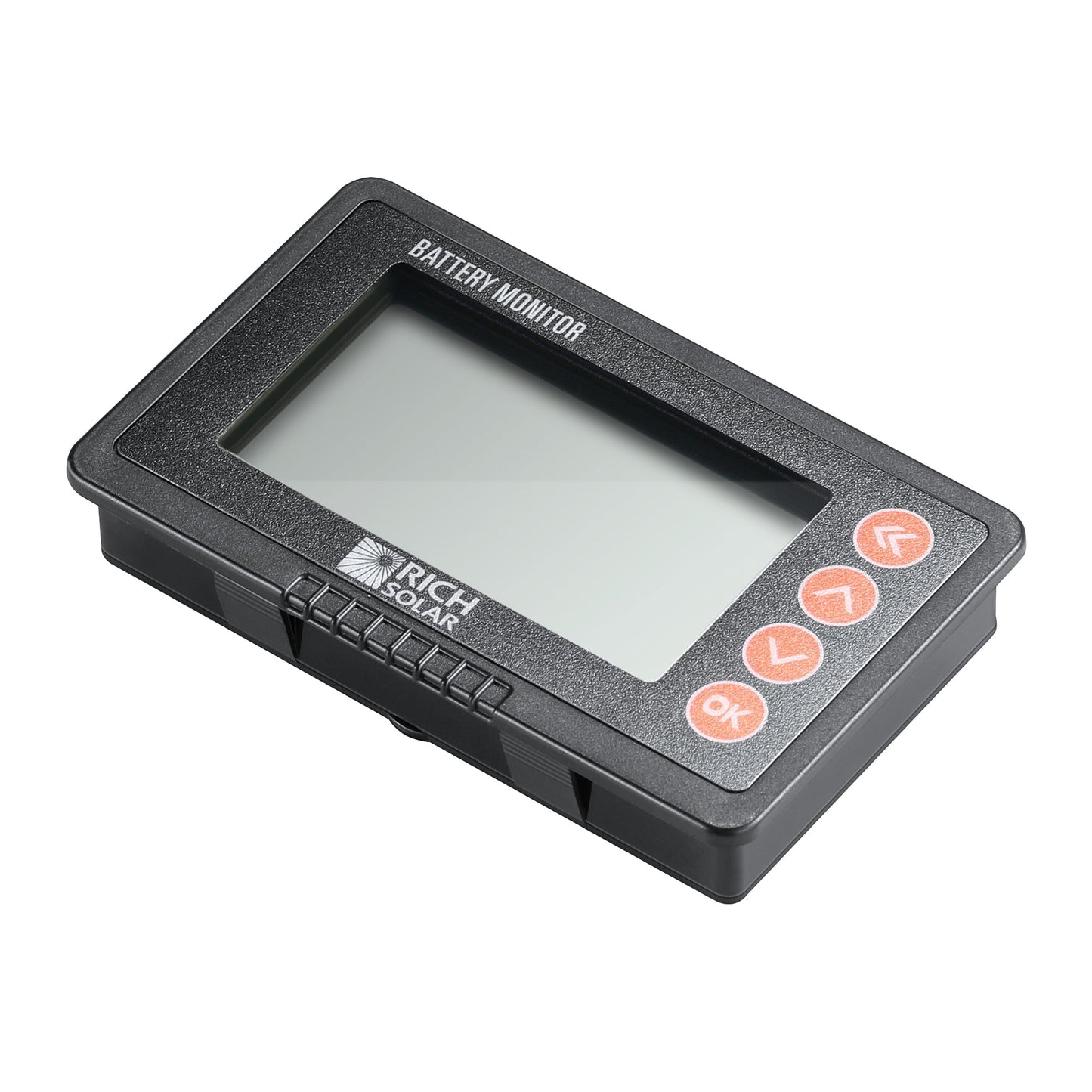

• Remote display designed for wall mounting, connected via a shielded cable for dependable data transmission.
• Includes B+ connection lead for powering the shunt directly from the battery.
• Optimally installed close to the battery with the B- side of the shunt as the sole negative connection for precise measurements.
• Capacity configuration options allow customization to match your battery bank size.
• Low quiescent power consumption to minimize battery drain during idle periods.

Specifications

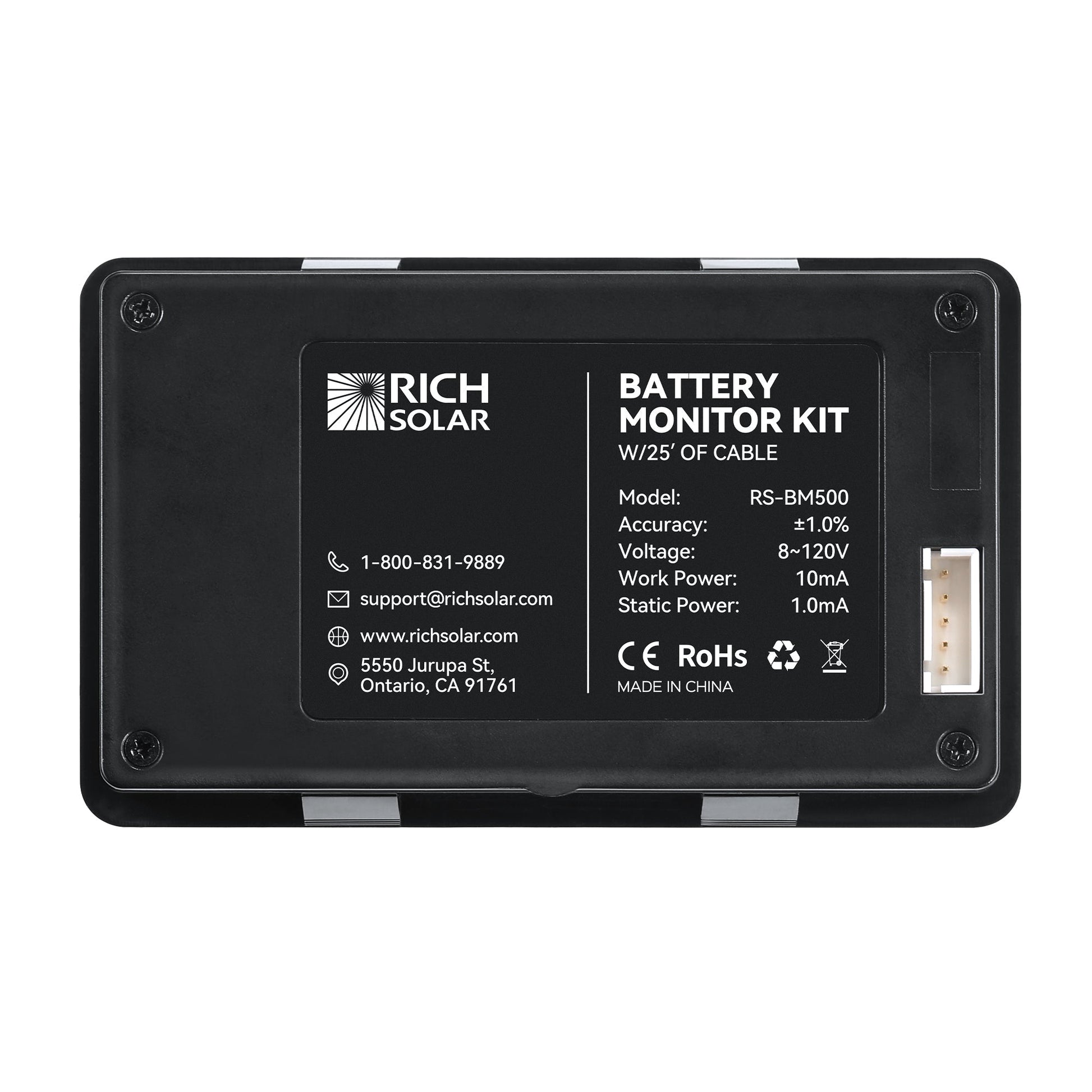

• Model: RS-BM500
• Battery voltage range: 8–120 V
• Working dissipation: 10 mA
• Standby dissipation: 1 mA
• Capacity accuracy: ±1.0%
• Voltage accuracy: ±1.0%
• Current accuracy: ±1.0%
• Backlight on current: 80 mA
• Capacity setting value: 0–500 A
• Capacity/current range: 0.1–9999 Ah

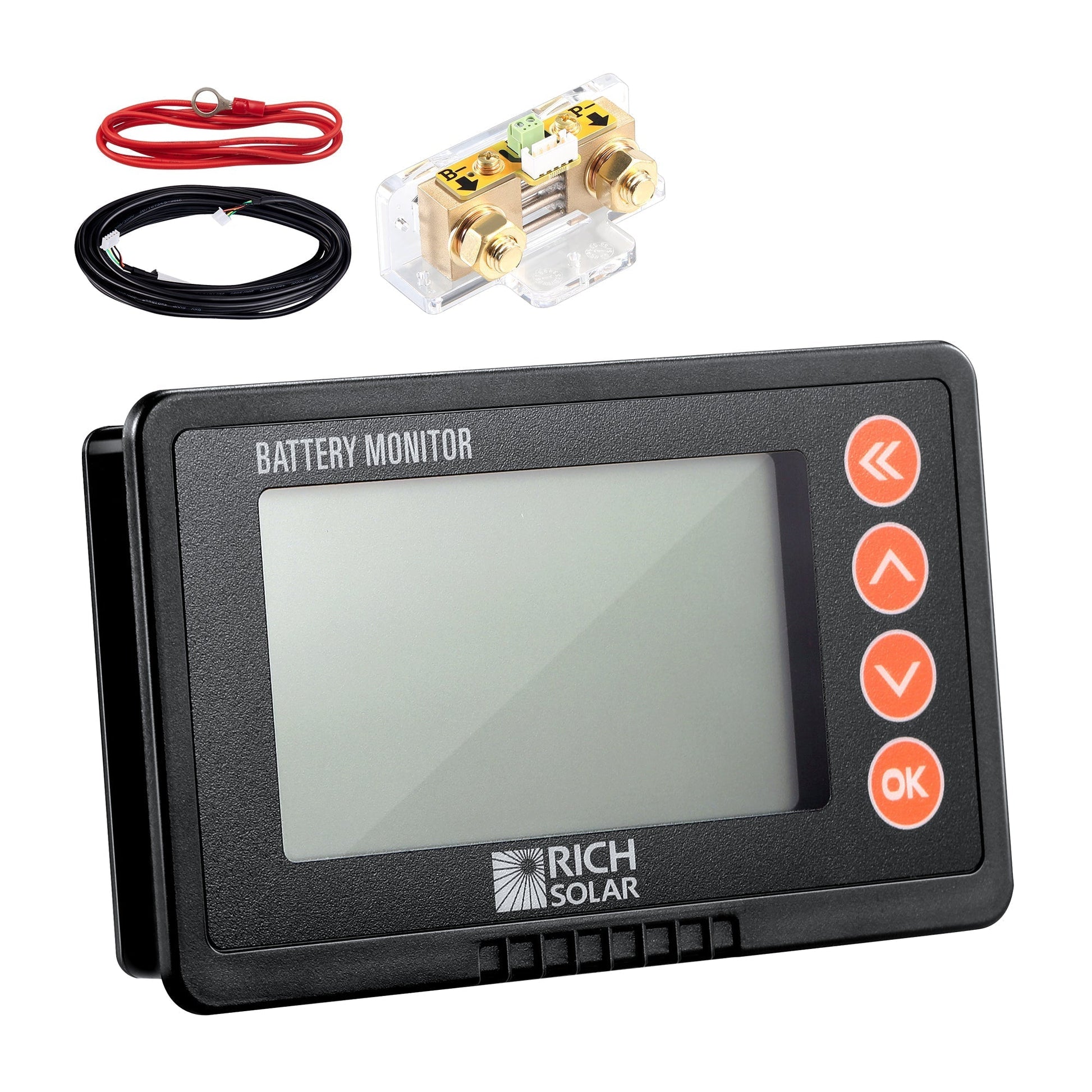

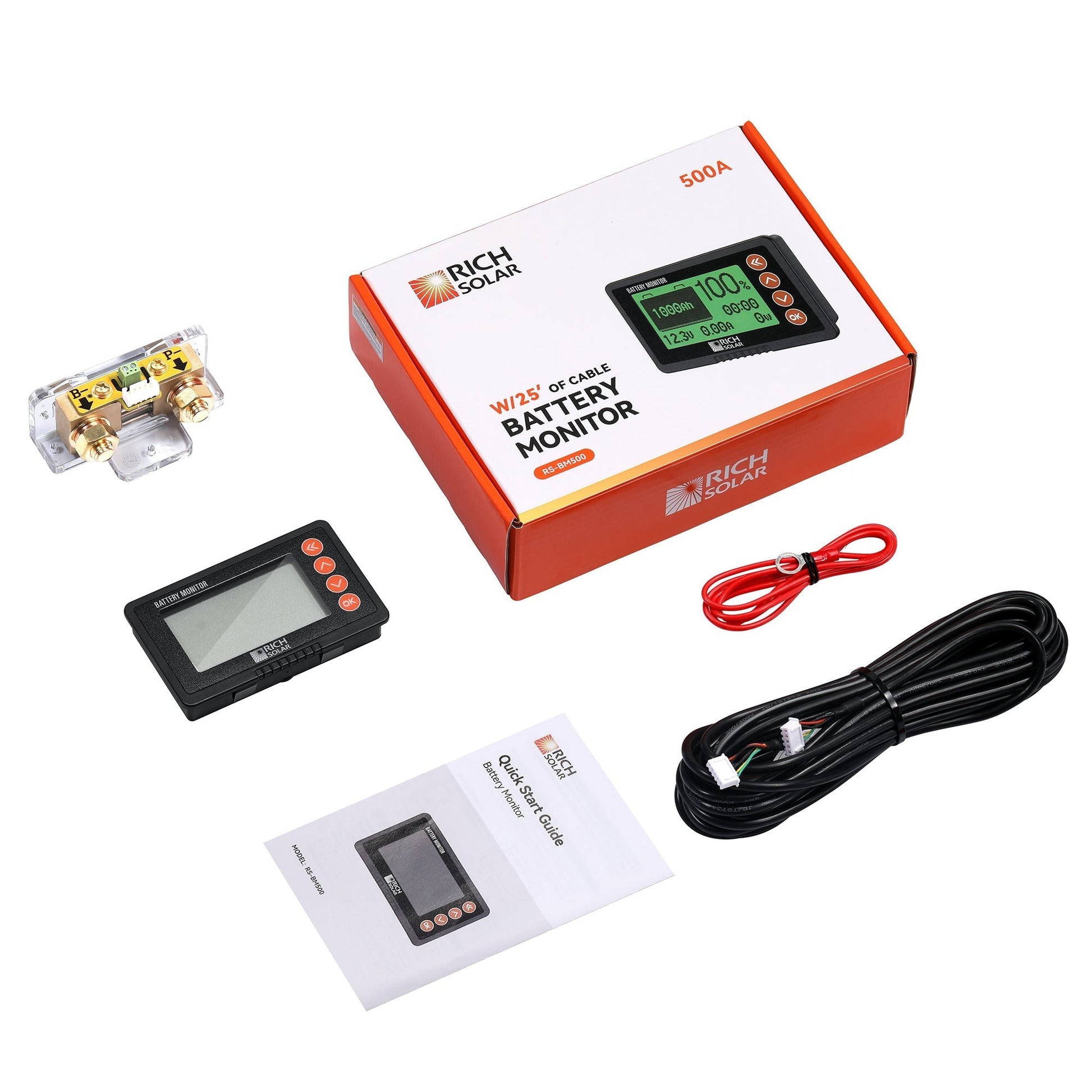

• Included items: shunt, remote display, shielded communication cable, B+ connection wire

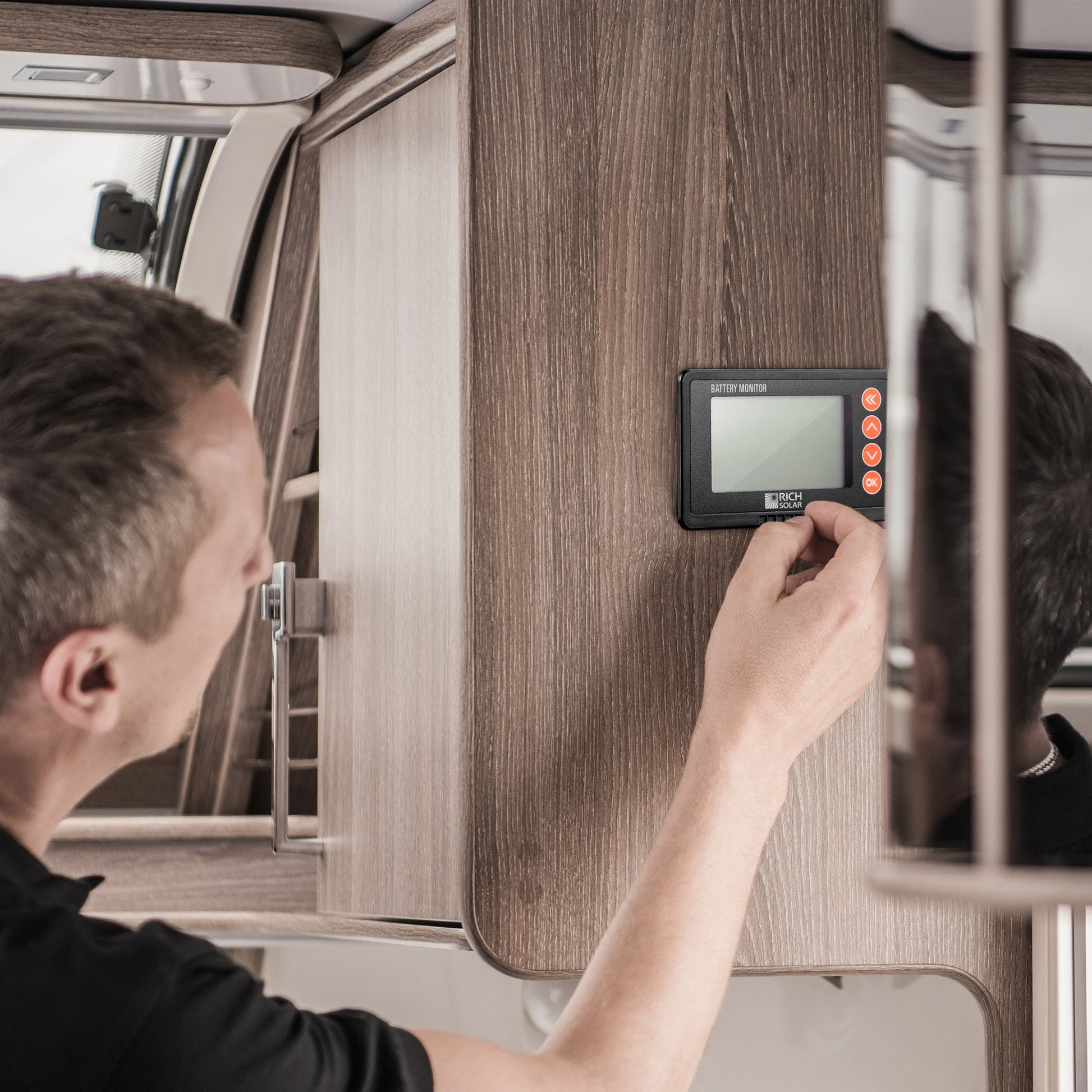

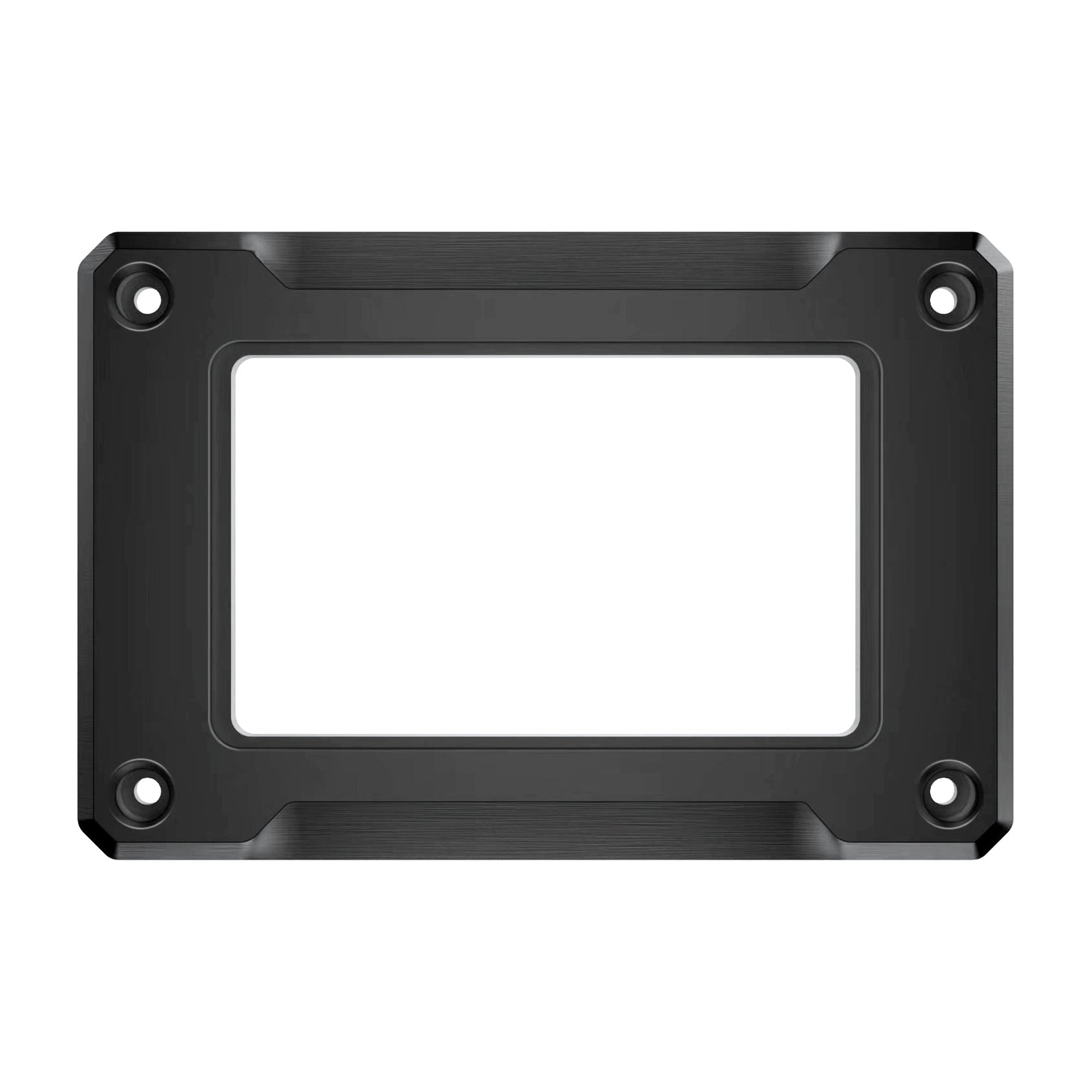

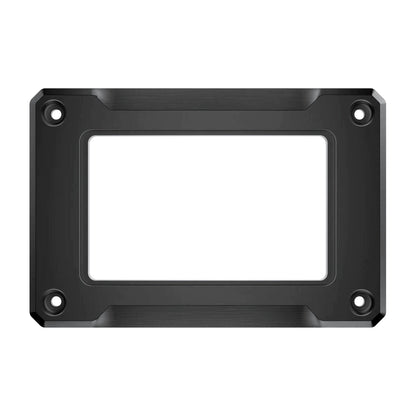

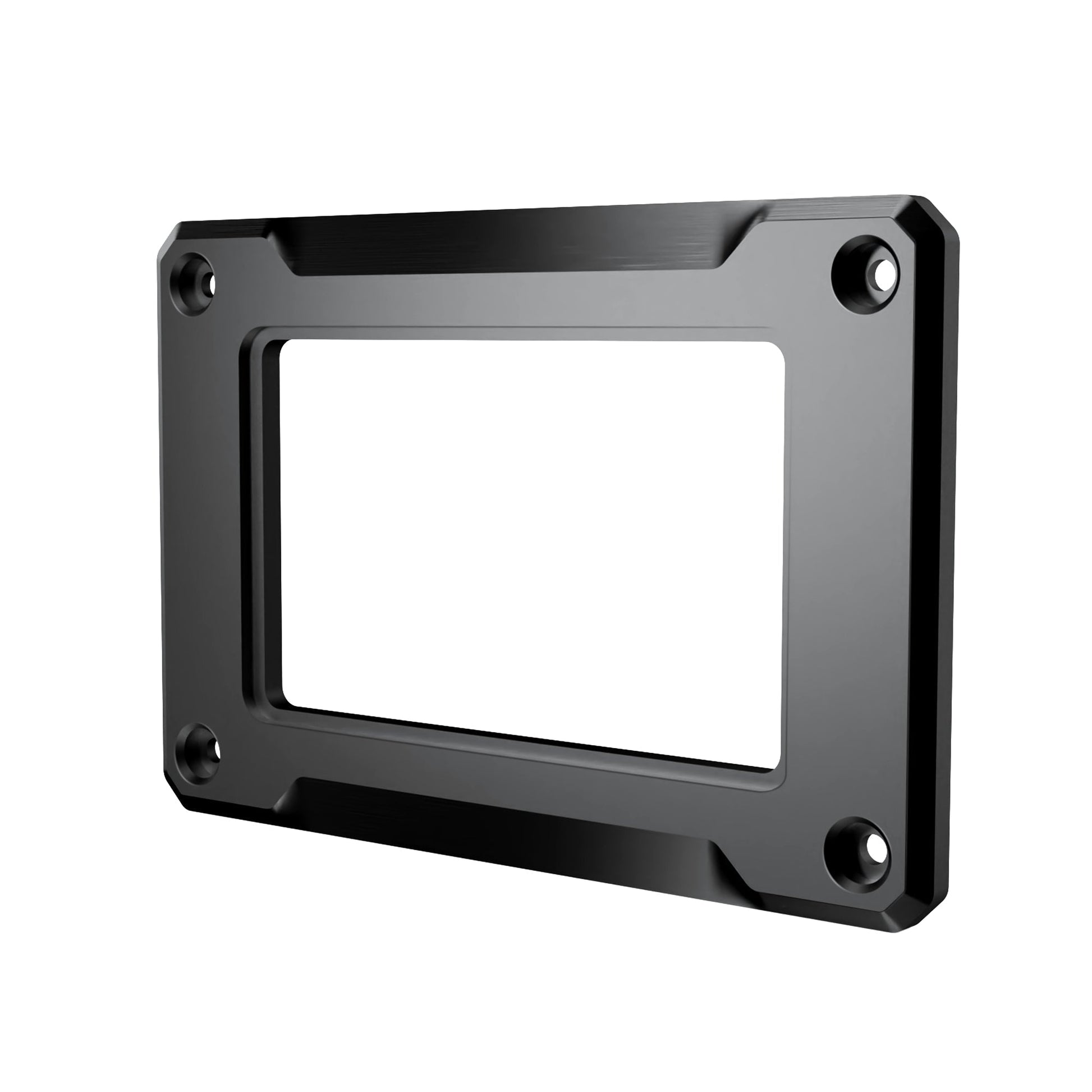

• Mounting: shunt should be installed close to the battery; remote display is designed for wall mounting (panel cutout required)
• Recommended tools for installation: wrench, drill, jigsaw, crimp tool, and appropriately sized ring terminals for battery cabling
