14.4V, 10A BMS-Safe Lithium Charger and Jump Starter

Overview

Experience reliable power with this compact and sturdy 14.4V/10A charger and jump starter designed for BMS-protected lithium batteries. It easily connects to any 100–240V AC outlet and boasts a weatherproof casing, clear status LEDs, and built-in safety features that streamline charging and jump-starting, whether you are in the garage or on the go.

Benefits

• Recharge and jump-start quickly, minimizing downtime caused by dead batteries.
• Stay informed with LED indicators that display the battery’s status at a glance.
• Utilize it outdoors with confidence thanks to its rugged and weatherproof design.
• Safeguard your battery and equipment with advanced protection against faults.
• Enjoy hassle-free connections with M8 terminals and a 30A Anderson connector for easy setup.

Features

• Delivers 14.4V DC output at a maximum of 10A for efficient charging and jump-starting.
• Compatible with a wide input range of 100–240V AC (47–63Hz).
• Employs a three-stage charging process: pre-charge, constant current (CC), and constant voltage (CV).

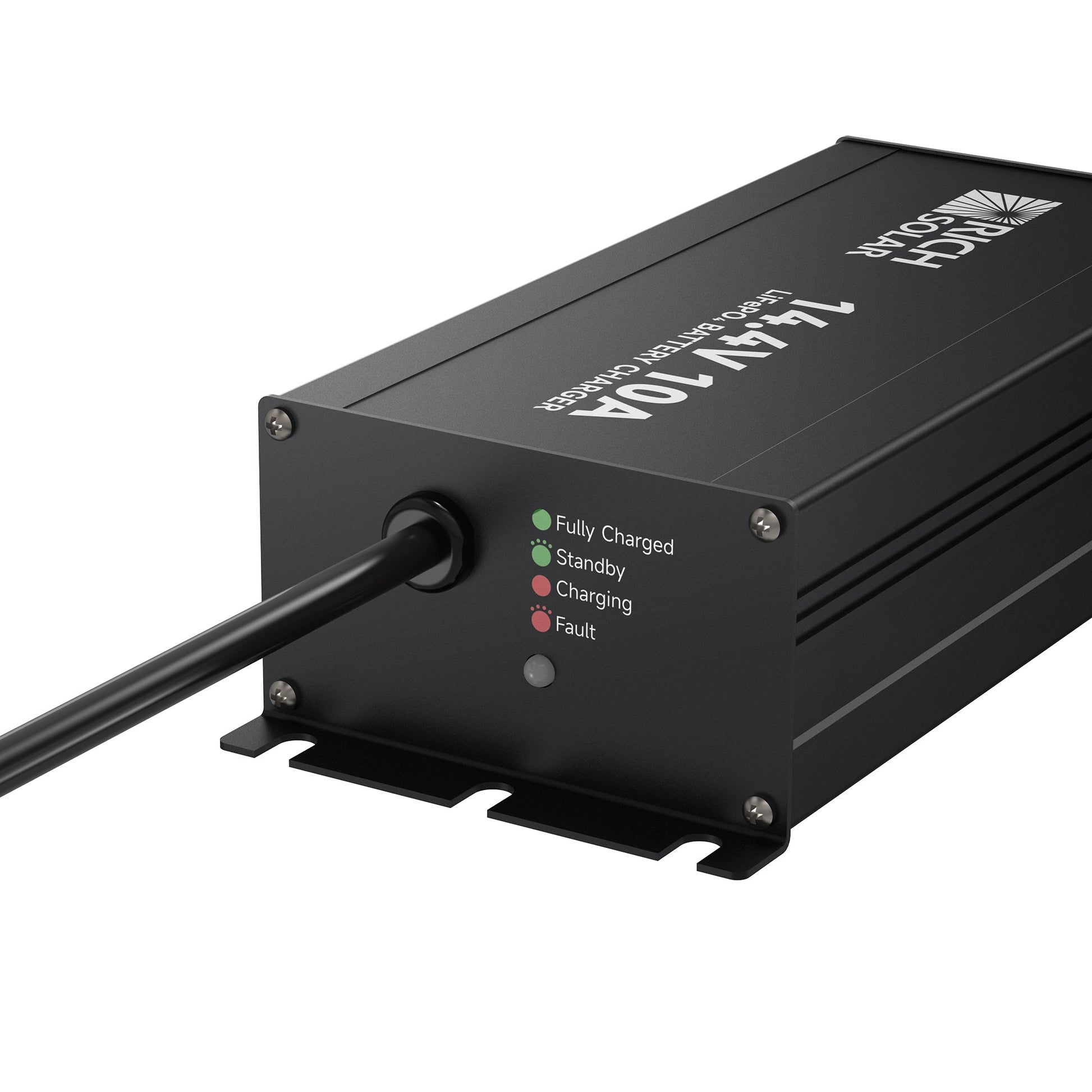

• Offers LED indicators for standby, charging, fully charged, and error conditions.
• Includes M8 output terminals and a 30A Anderson connector for versatile connections.
• Constructed with a durable aluminum enclosure and features a low-noise cooling fan.
• Equipped with comprehensive safety protections against overheating, reverse polarity, short circuits, and over-voltage.
• Built to an IP65 rating for dust and water resistance.

Specifications

• Input Voltage: 100V to 240V AC; 47Hz to 63Hz
• Max Input Current: 2 A
• Output Voltage: 14.4 V ±0.2 V DC
• Output Current: 10 A
• Protection Class: IP65
• Operating Temperature: -20°C to 40°C / -4°F to 104°F
• Storage Temperature: -40°C to 70°C / -40°F to 158°F

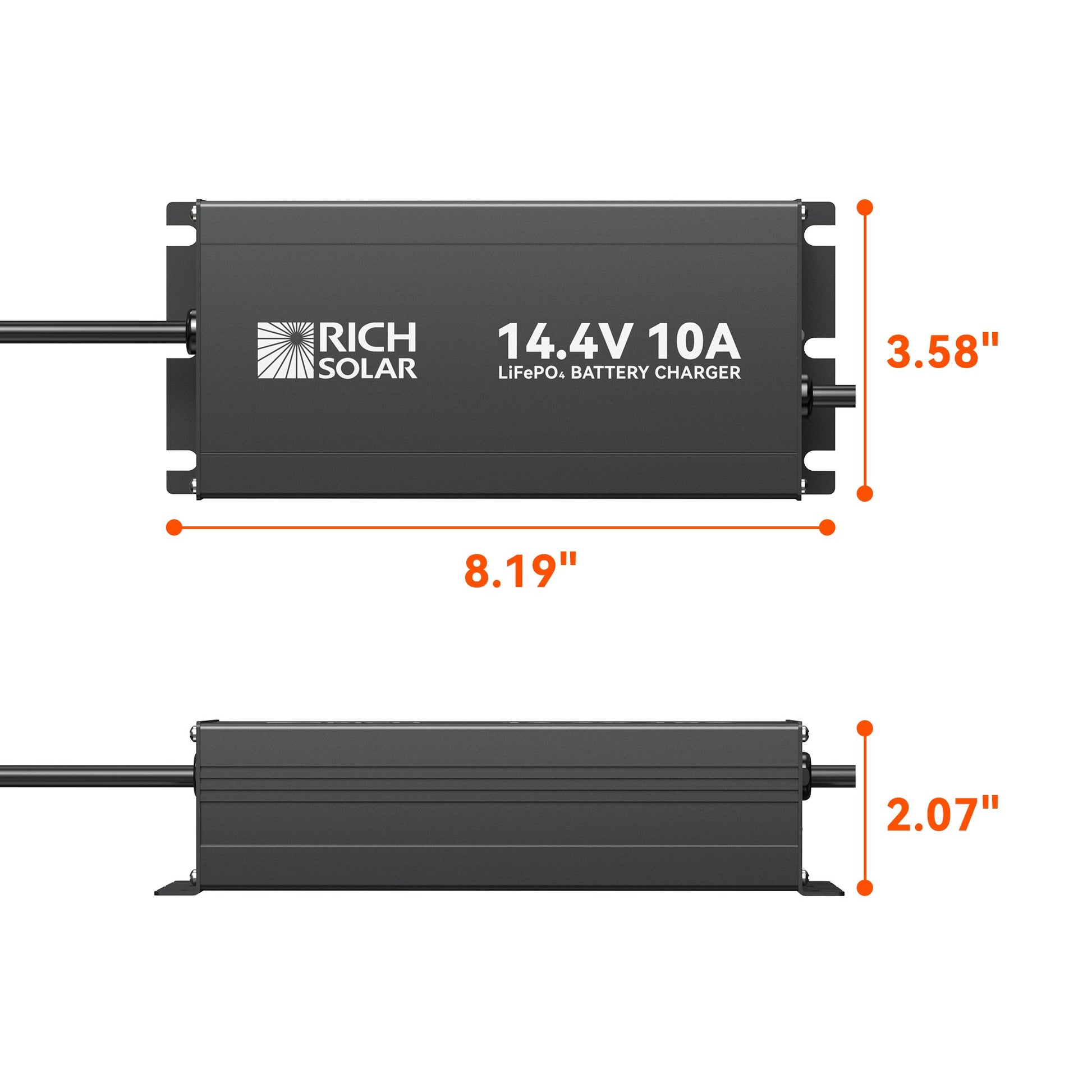

• Dimensions: 8.19 x 3.58 x 2.07 in / 208 x 91 x 52.5 mm
• Net Weight: 3.86 lb / 1.75 kg
• Connectors: M8 terminals and 30A Anderson connector
• Housing Material: Aluminum
