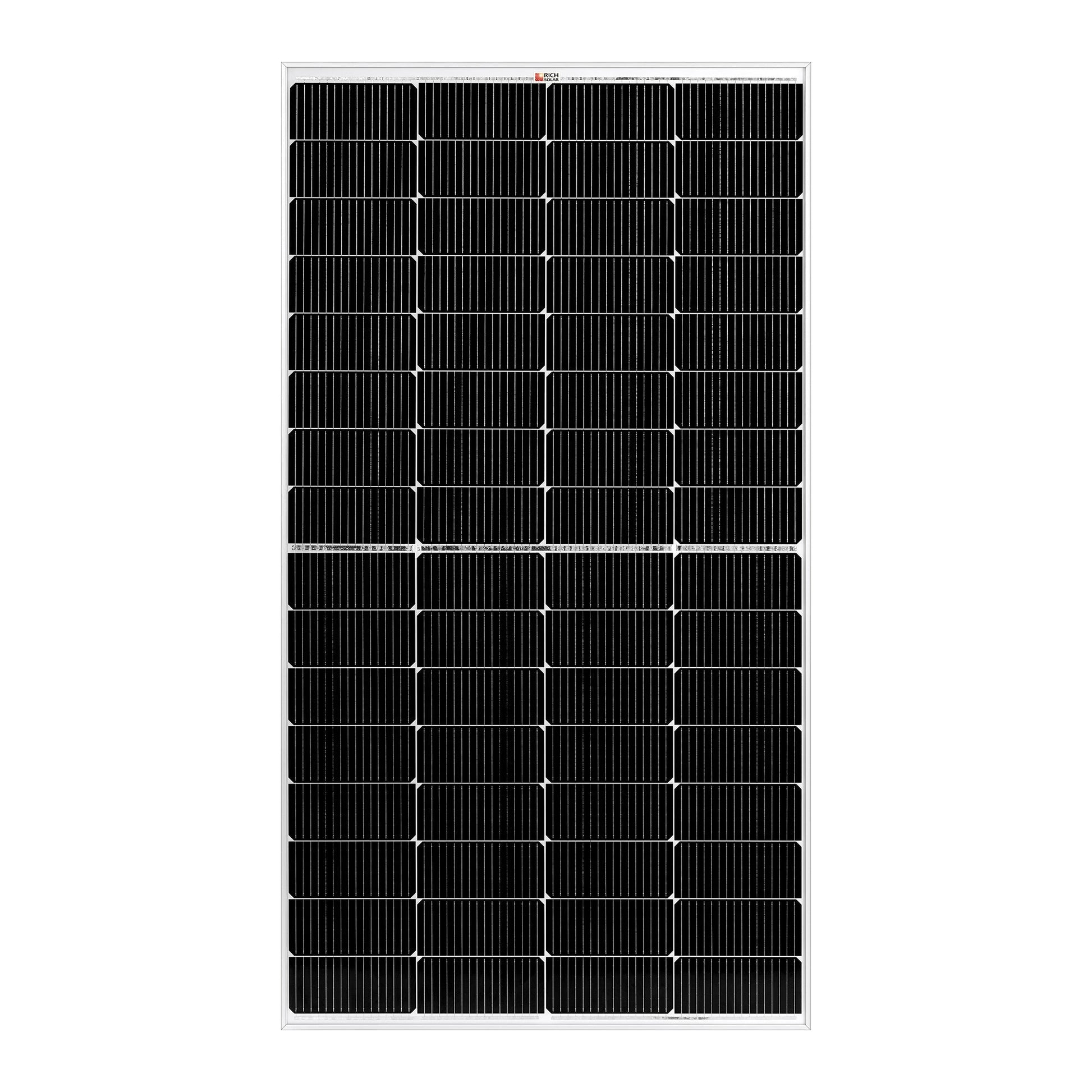

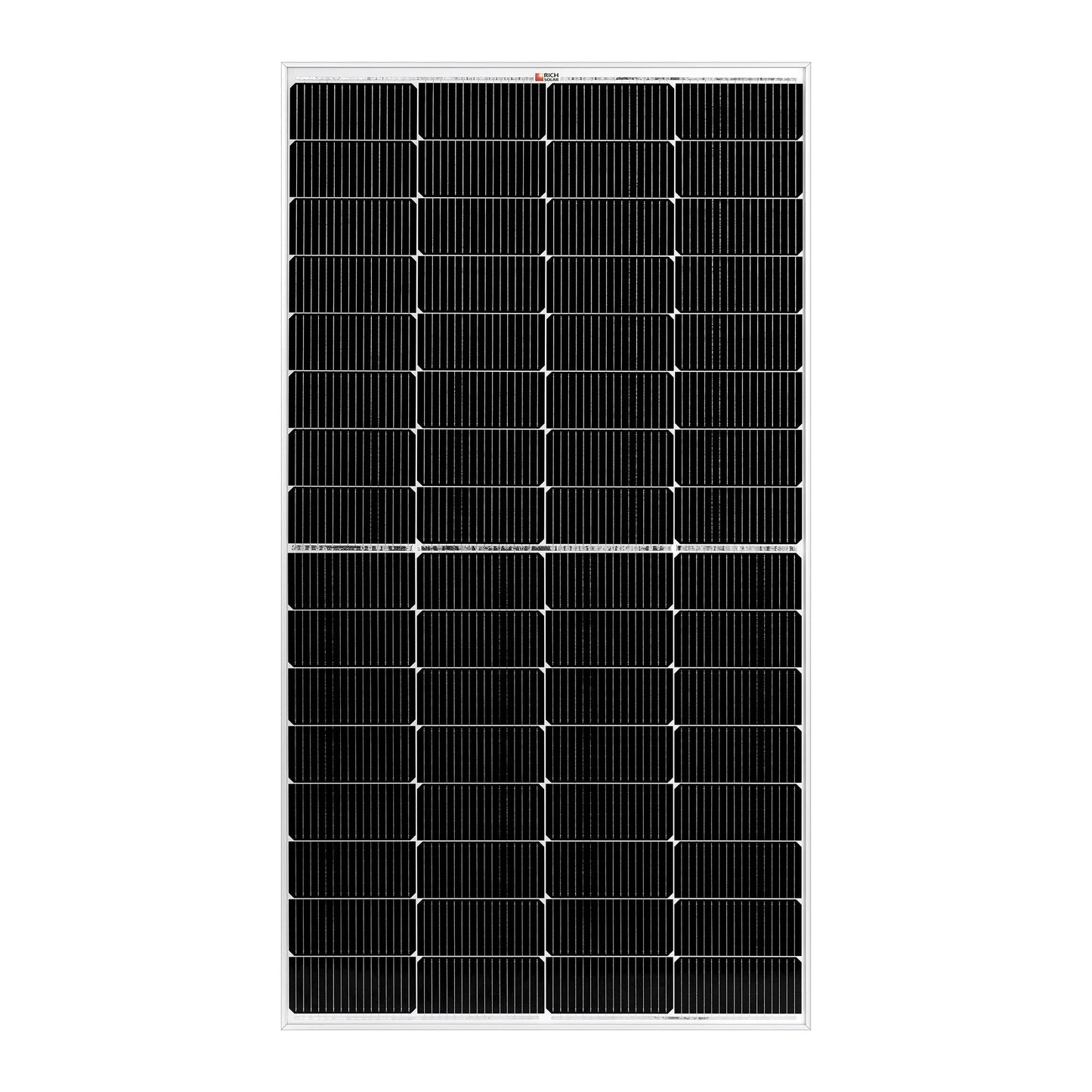

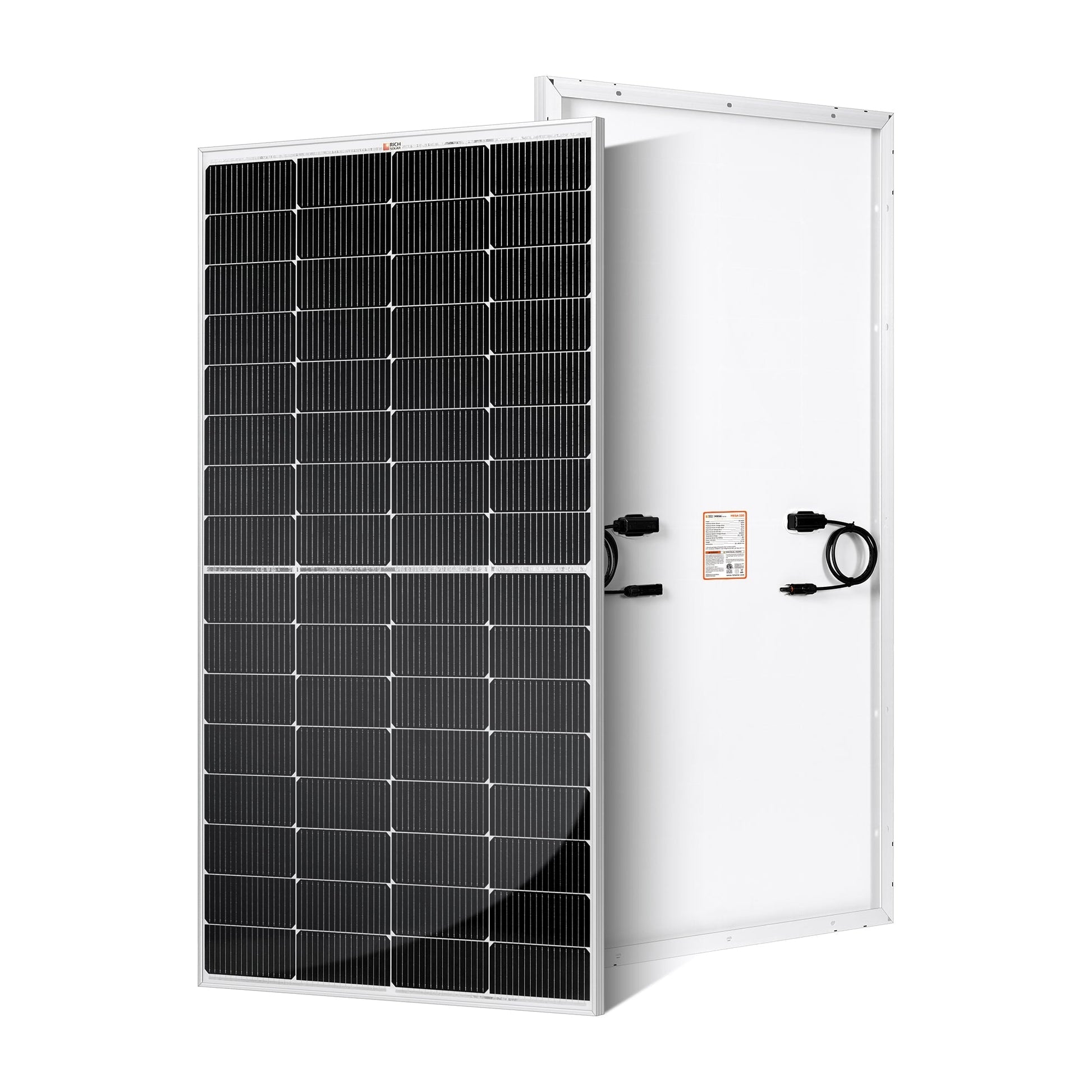

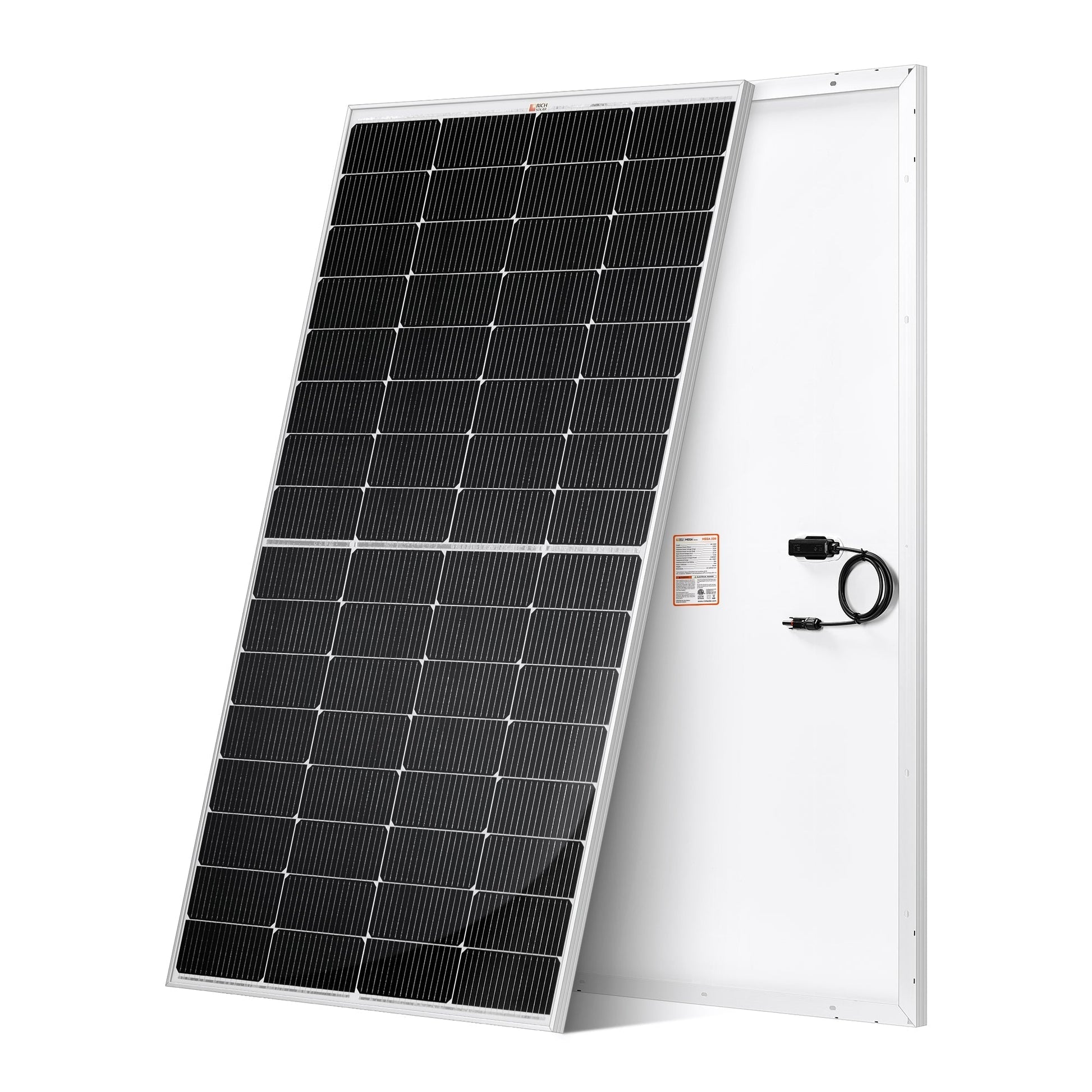

220W Solar Panel: Lightweight, Durable, and Easy to Install

Overview

This compact solar panel is engineered to provide reliable power for both on-grid and off-grid systems. Its robust anodized aluminum frame, coupled with AR-coated tempered glass, ensures durability while user-friendly connectors and pre-drilled mounting holes simplify installation, transportation, and maintenance.

Benefits

• Enjoy uninterrupted power supply even during cloudy conditions, enhancing energy generation during mornings and evenings
• Experience effortless installation and handling due to its lightweight design and pre-drilled holes
• Reduce maintenance concerns with strong weather resistance and rigorous quality testing
• Customize your system setup with quick-connect cables and standard connectors that allow configurations in series or parallel
• Gain peace of mind with a 25-year output warranty and 10-year workmanship warranty

Features

• 16-busbar solar cell design for optimal power collection
• High-transmission, anti-reflective tempered glass for enhanced light absorption
• Lightweight anodized aluminum frame for easier handling and superior corrosion resistance
• IP67-rated waterproof junction box and connectors, equipped with bypass diodes
• Plug-and-play junction box and industry-standard connectors compatible for series or parallel configurations
• Pre-drilled holes accommodate ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with both on-grid and off-grid inverters for versatile functionality
• Designed and rigorously tested to withstand extreme weather conditions, including strong winds, heavy snow, and hail

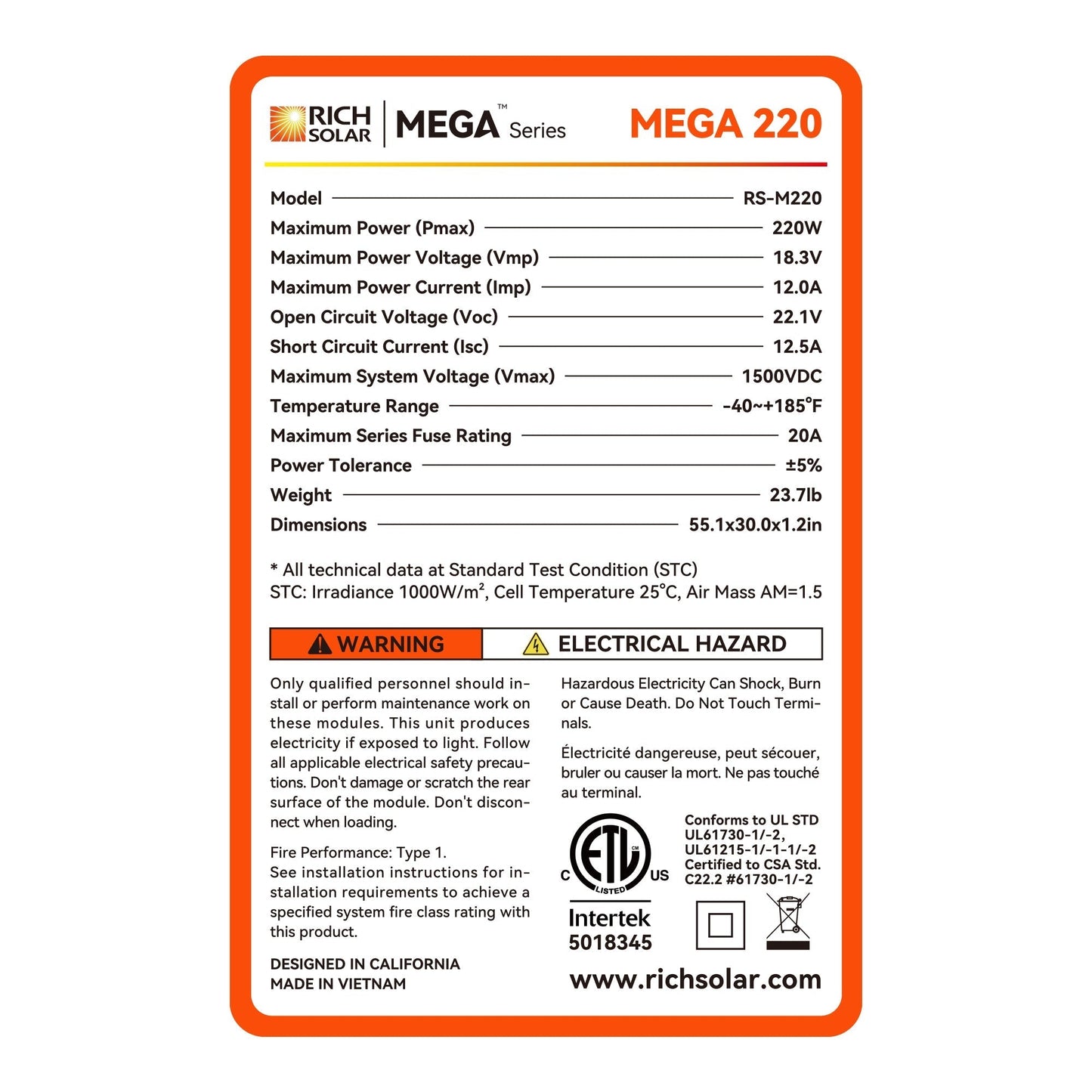

Specifications

• Model: RS-M220
• Maximum Power (Pmax): 220 W
• Maximum Power Voltage (Vmp): 18.3 V
• Maximum Power Current (Imp): 12.0 A
• Open Circuit Voltage (Voc): 22.1 V
• Short Circuit Current (Isc): 12.5 A
• Maximum System Voltage (Vmax): 1500 VDC
• Temperature Range: -40 to +185 °F (-40 to +85 °C)
• Weight: 23.7 lb (10.7 kg)

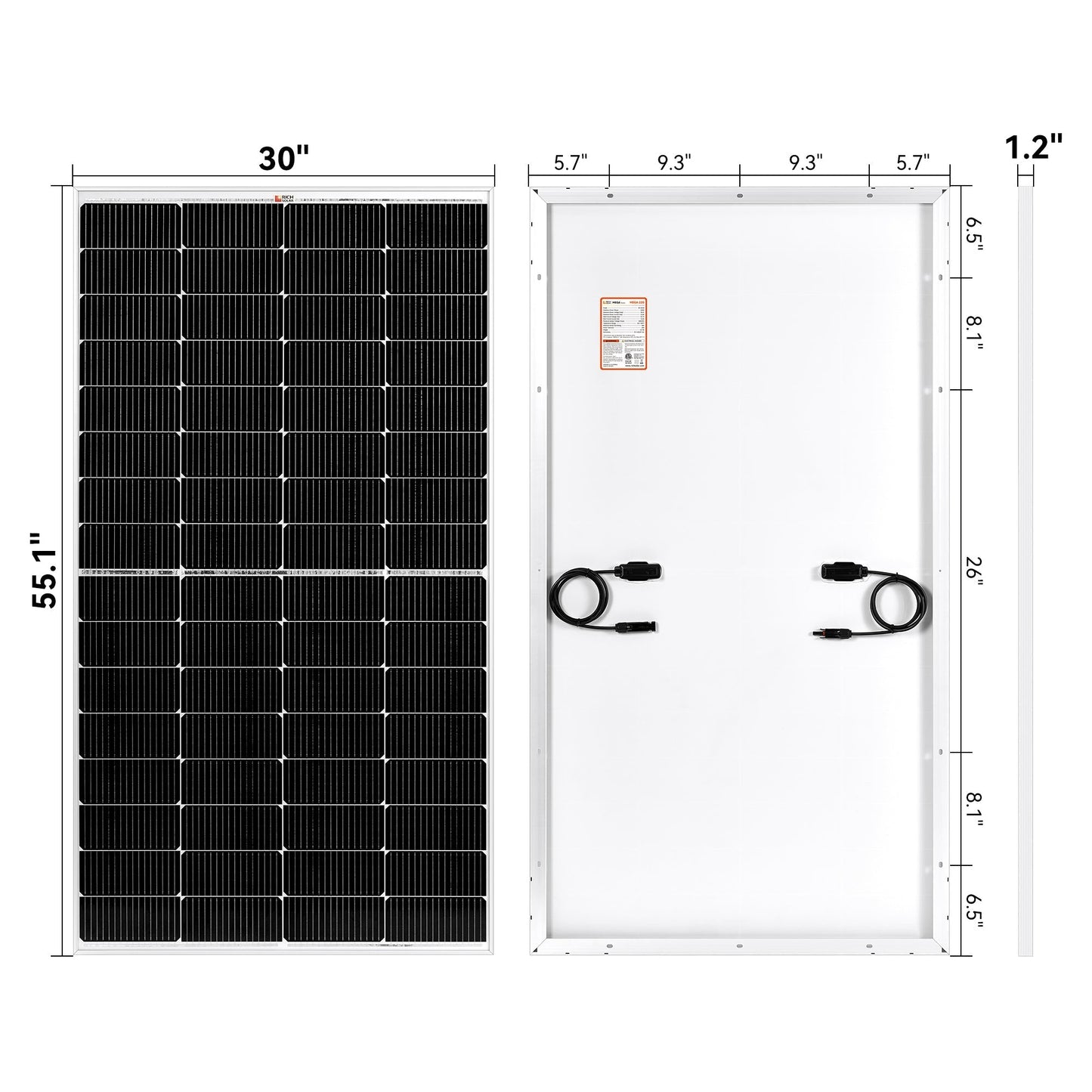

• Dimensions: 55.1 × 30.0 × 1.2 in (1400 × 760 × 30 mm)

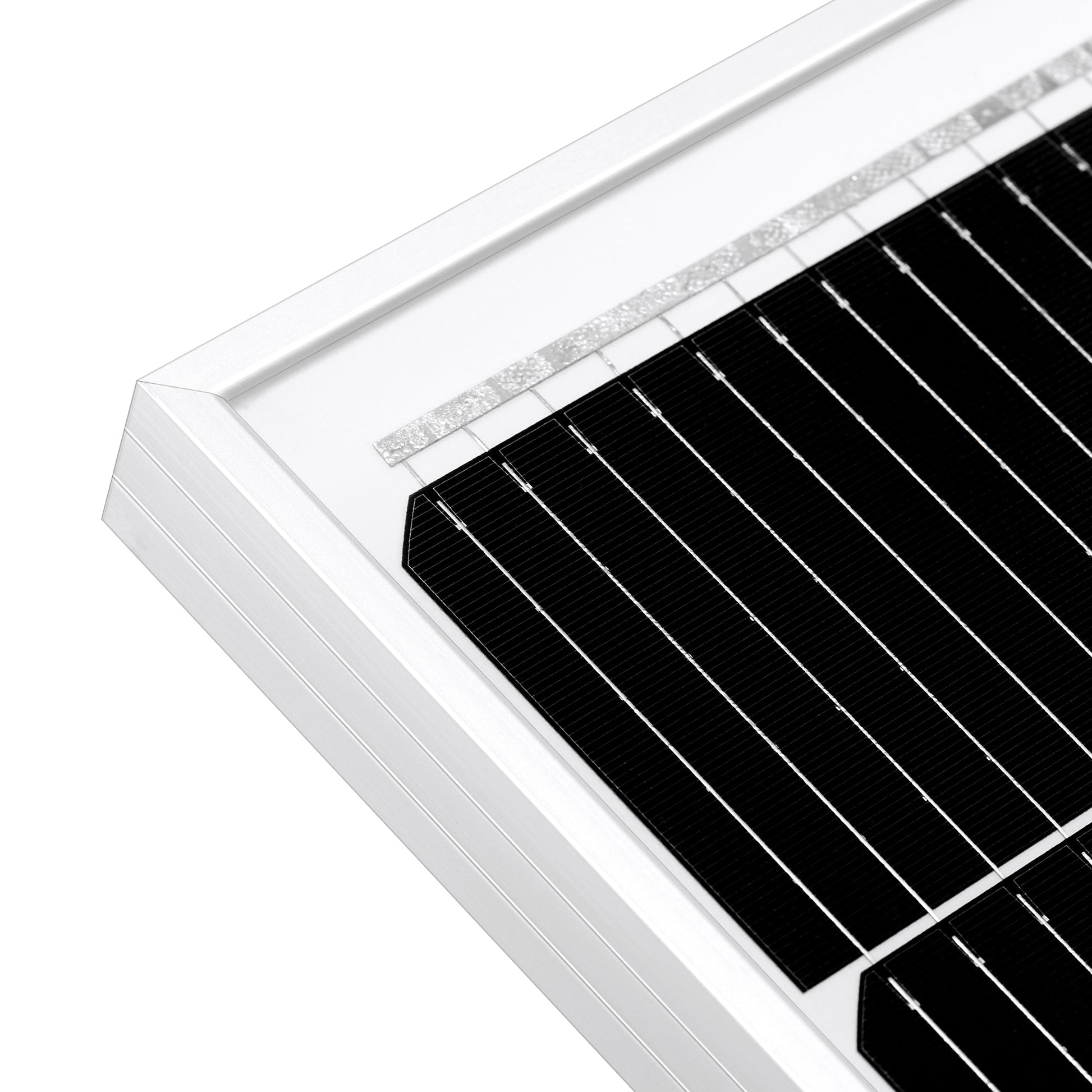

• Frame Material: Anodized aluminum
• Glass: High-transmission AR-coated tempered glass
• Panel leads: Pair of 3 ft (0.9 m) cables

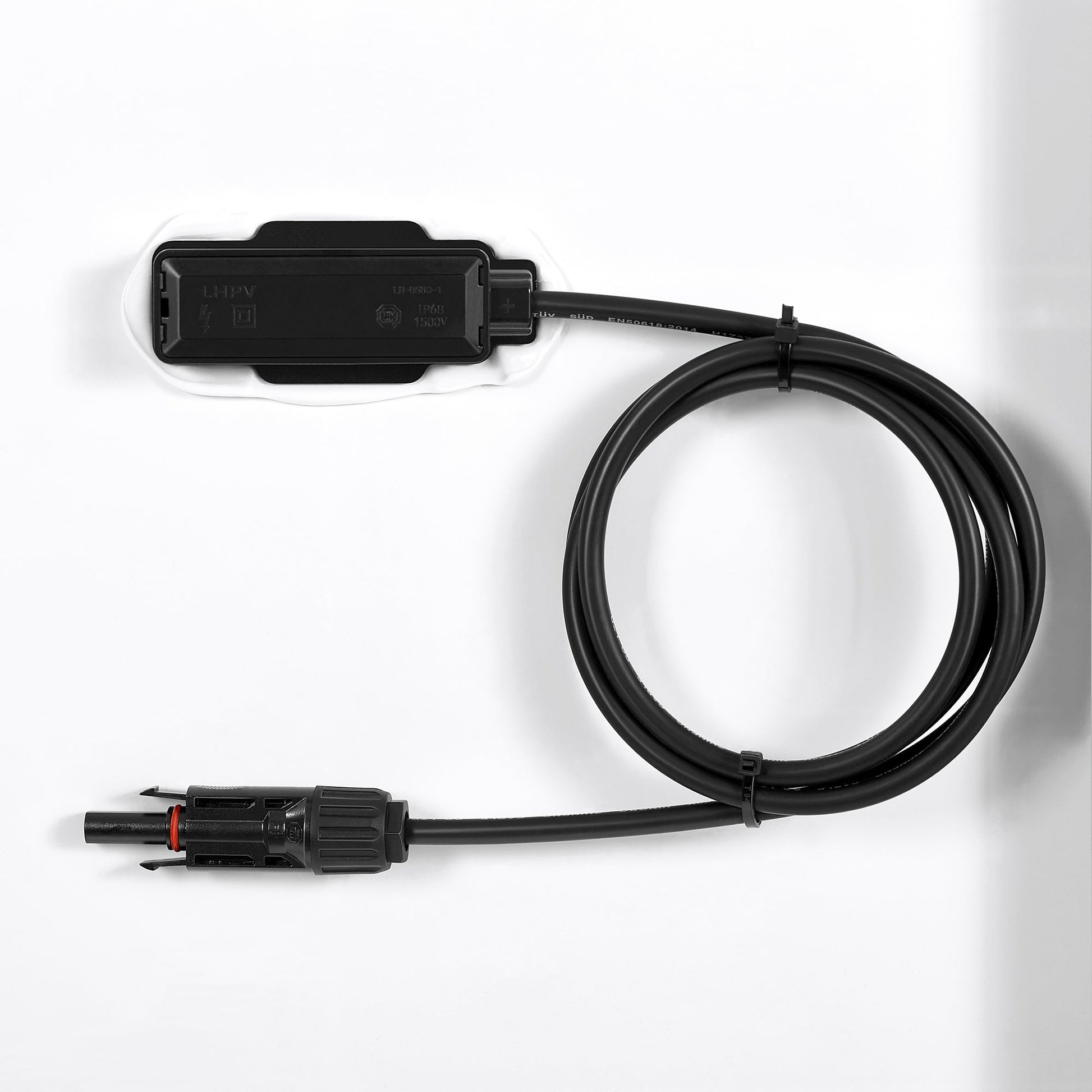

• Built-in Components: IP67 waterproof junction box, IP67 waterproof solar connectors, bypass diodes in junction box
• Durability Ratings: 2400 Pa wind load, 5400 Pa snow load, withstands 35 mm hailstones at 97 km/h
• Quality & Reliability: Over 30 in-house tests, including UV, thermal cycling, and humidity freeze; PID resistant; 100% EL double inspection
• Warranty: 25-year output warranty; 10-year workmanship warranty
