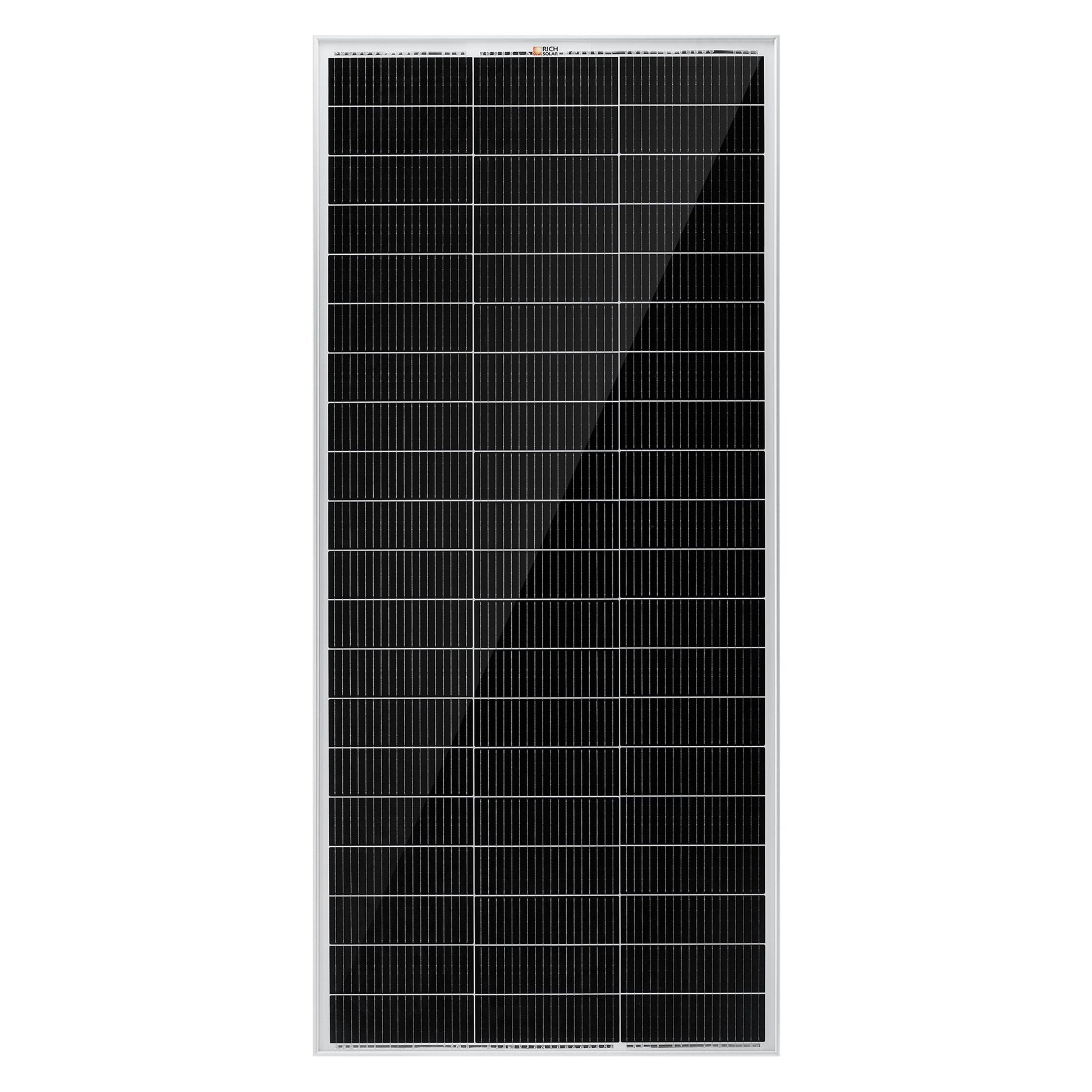

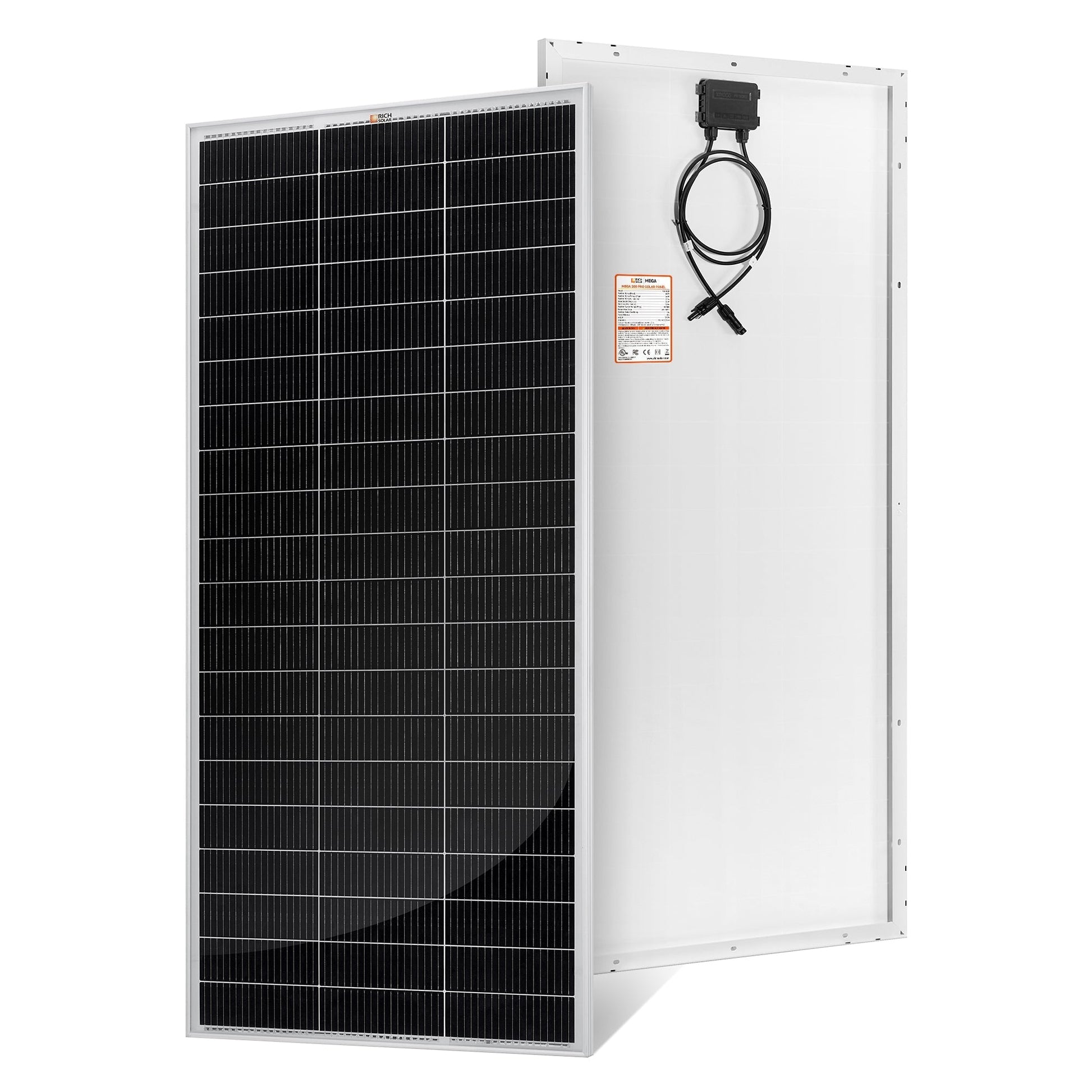

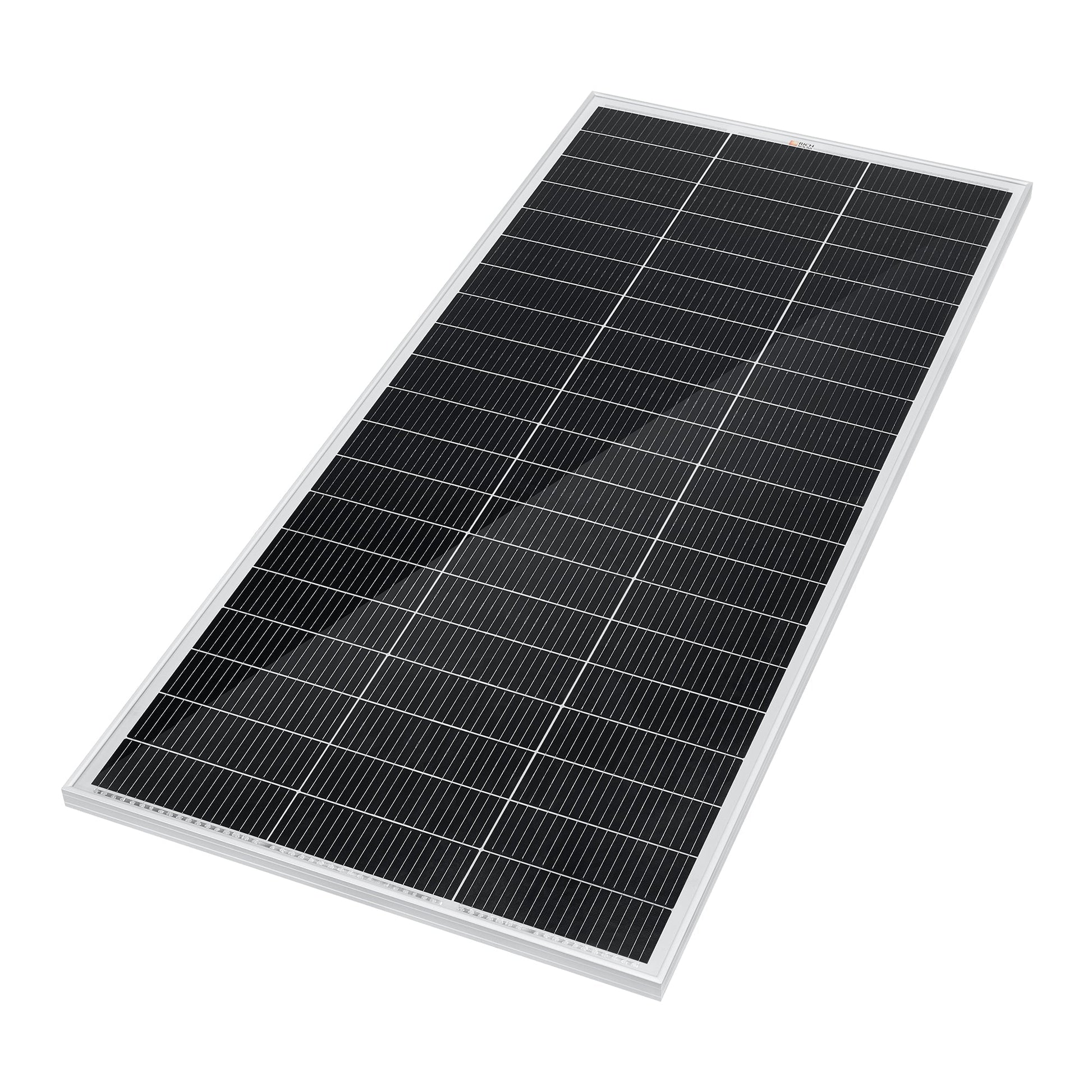

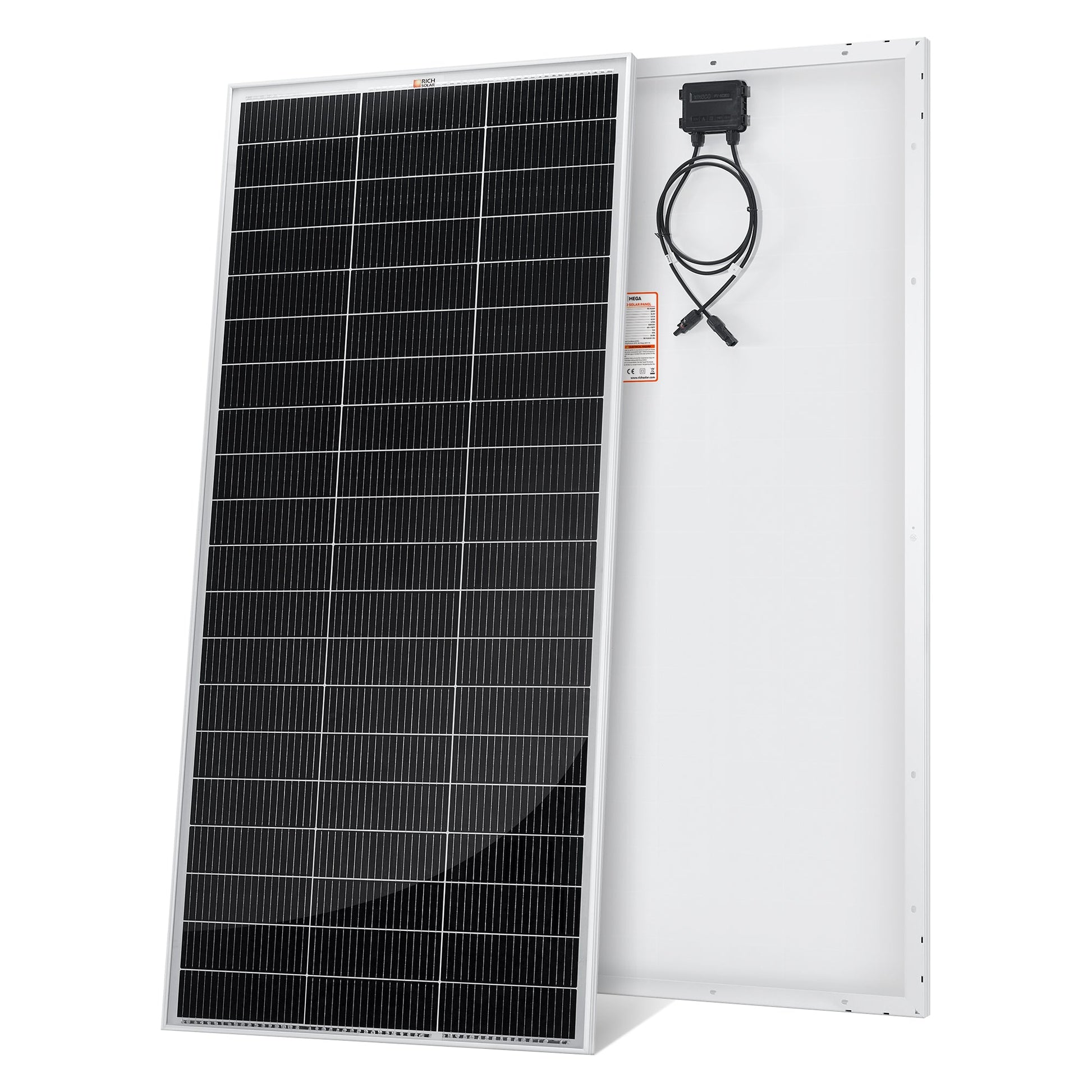

RICH SOLAR MEGA 200 Pro - 200W (24V) Solar Panel

Overview

The MEGA 200 Pro is a robust 200-watt solar panel designed to provide dependable off-grid energy for your RV, boat, cabin, or mobile system. With its tempered, anti-reflective glass and strong anodized aluminum frame, this panel ensures reliable performance, simple installation, and durability, supported by a 25-year power output warranty and UL certification.

Benefits

• Enjoy uninterrupted power for your 24-volt battery systems, keeping lights, appliances, and devices operational when you need them.
• Utilize energy well into the evening and during cloudy days, thanks to its excellent low-light sensitivity.
• Experience a simpler installation process with pre-drilled holes and standard mounting options, minimizing setup time.
• Rest assured with a long warranty and UL certification, ensuring reliability and safety for the long term.
• Adapt your system flexibly, as it works well in both series or parallel configurations with on-grid or off-grid inverters.

Features

• 200 W maximum power output ideal for charging 24-volt batteries.
• Maximum power current of 5.51 A and maximum power voltage of 36.3 V.

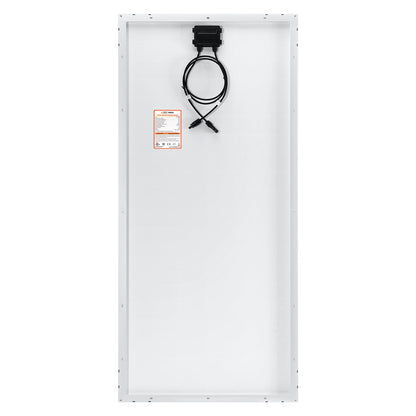

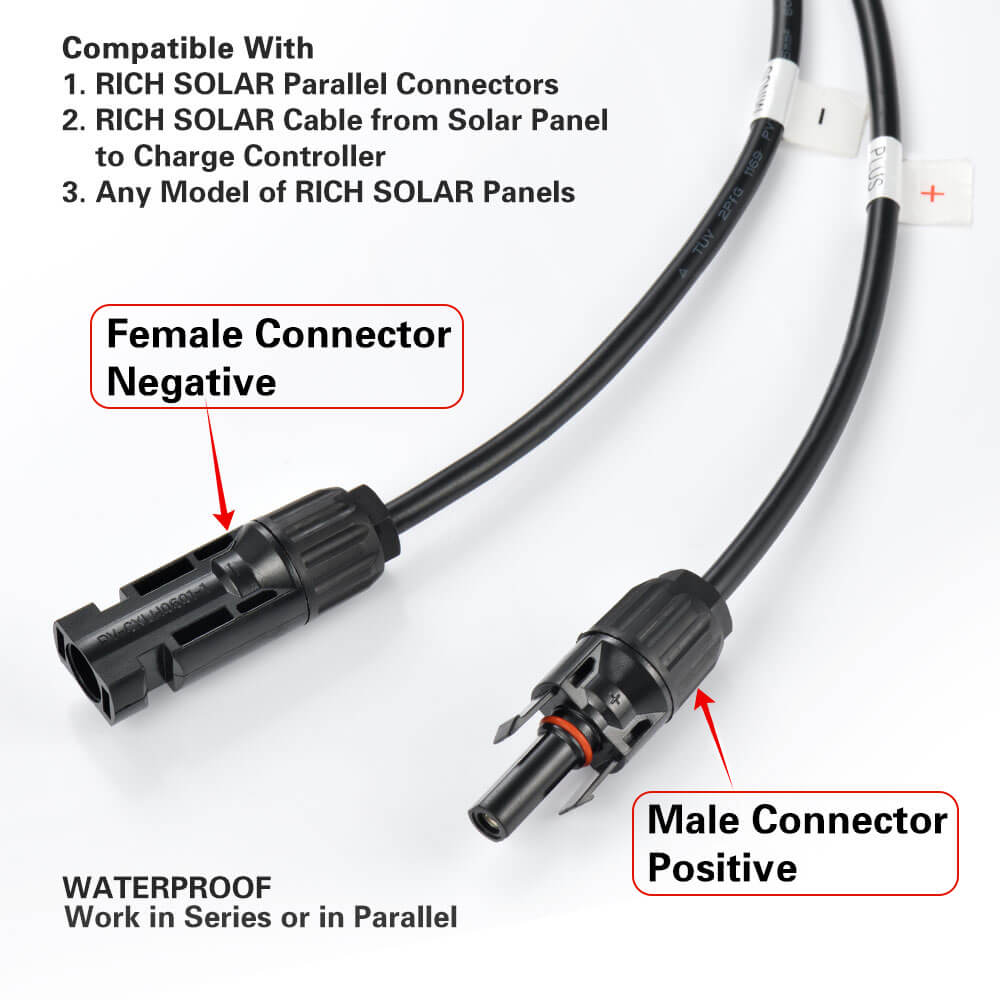

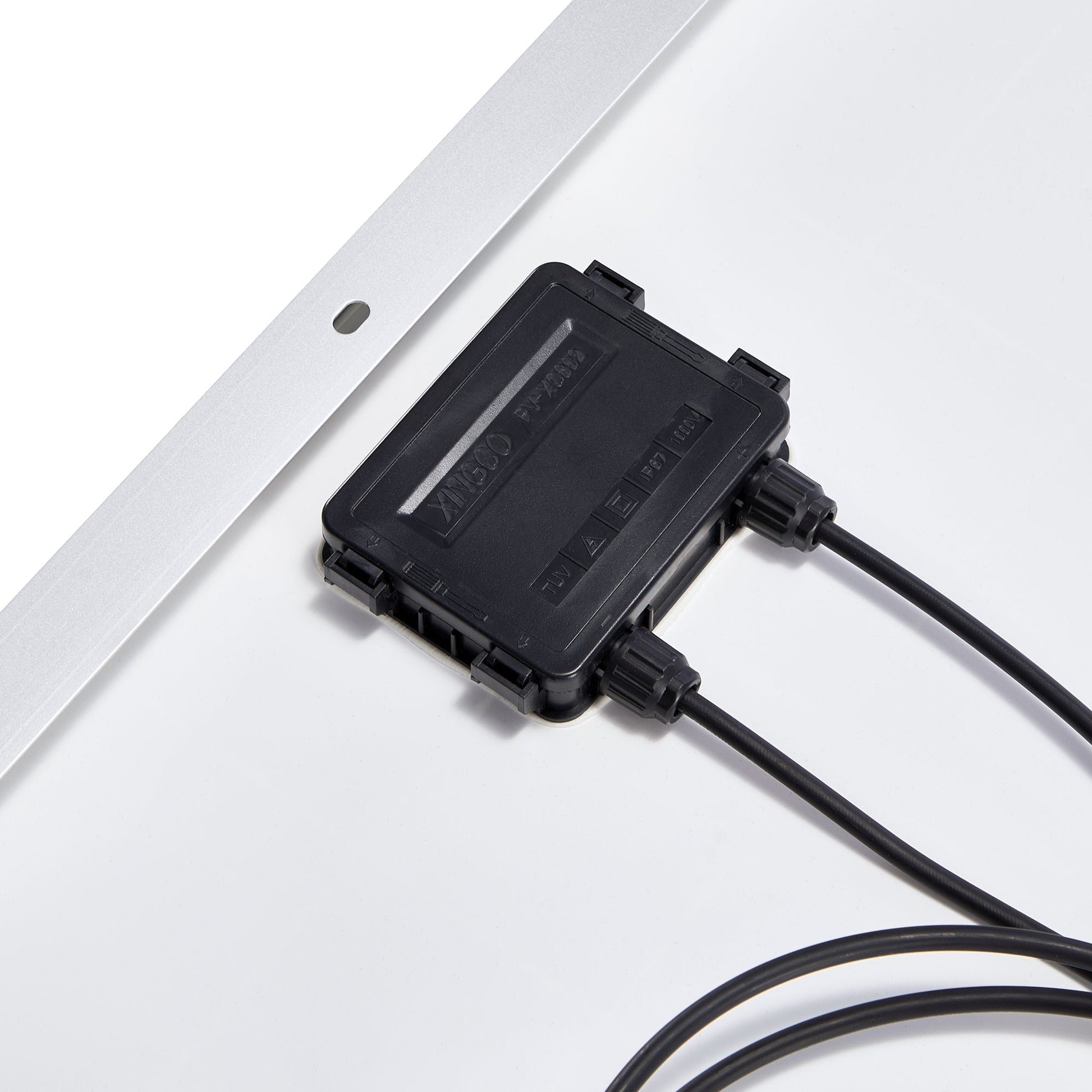

• Includes 3' quick-connect cables for swift electrical connections.
• Supports both series and parallel configurations for versatile array design.

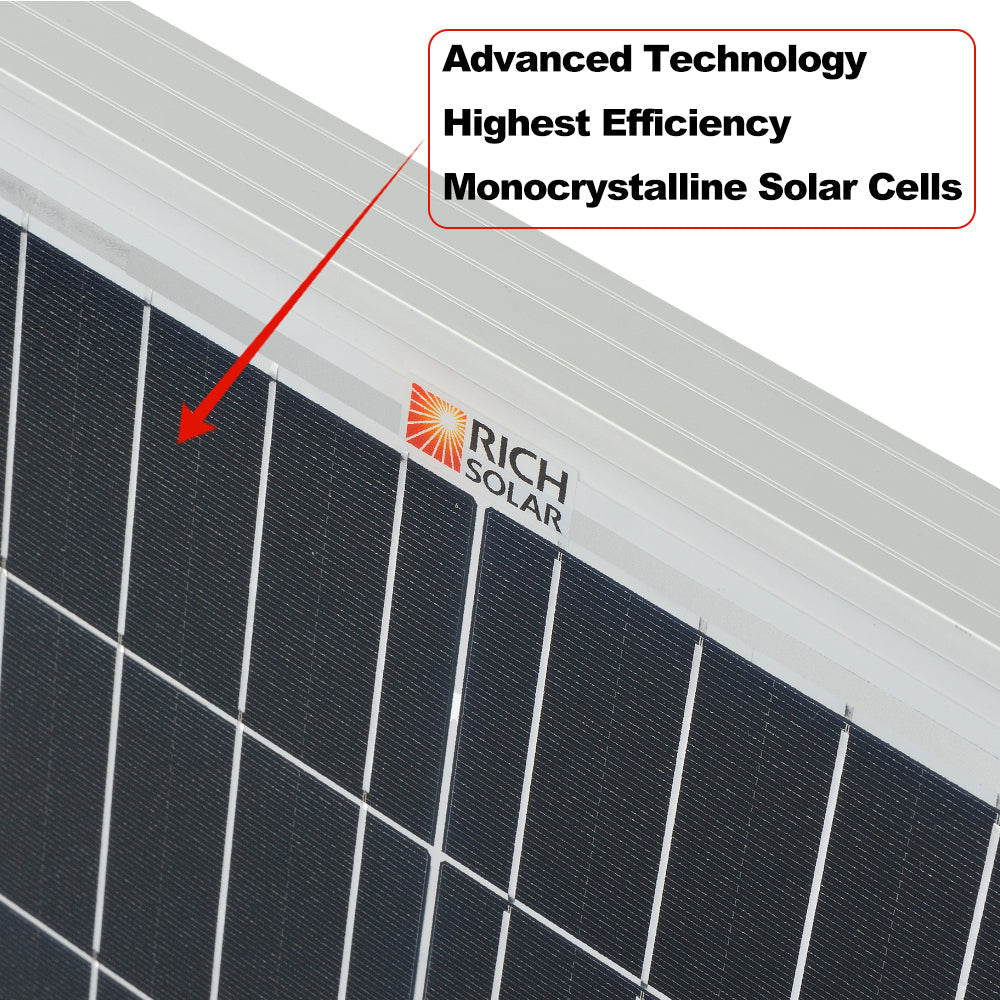

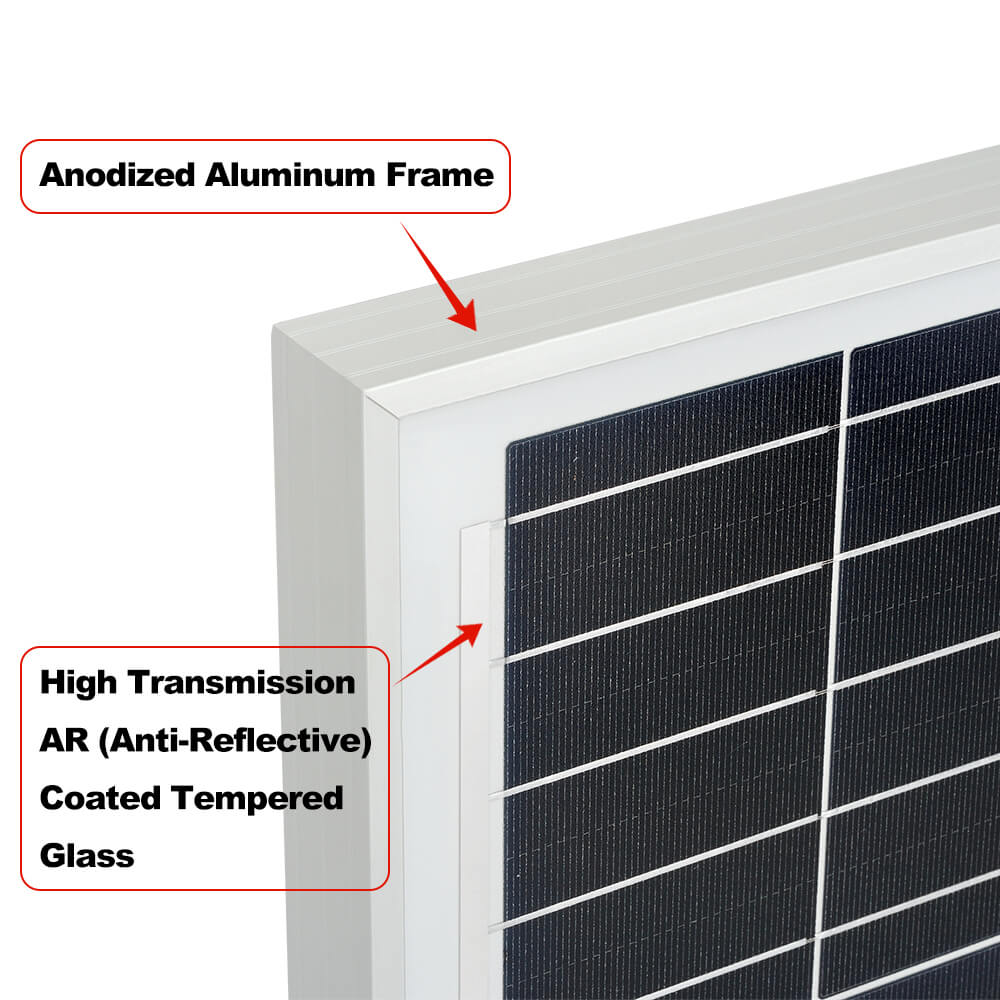

• Durable tempered glass with high transmission anti-reflective coating maximizes light capture.

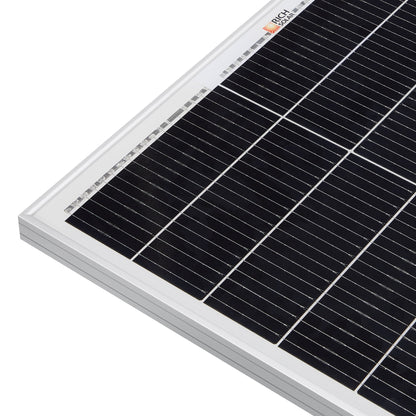

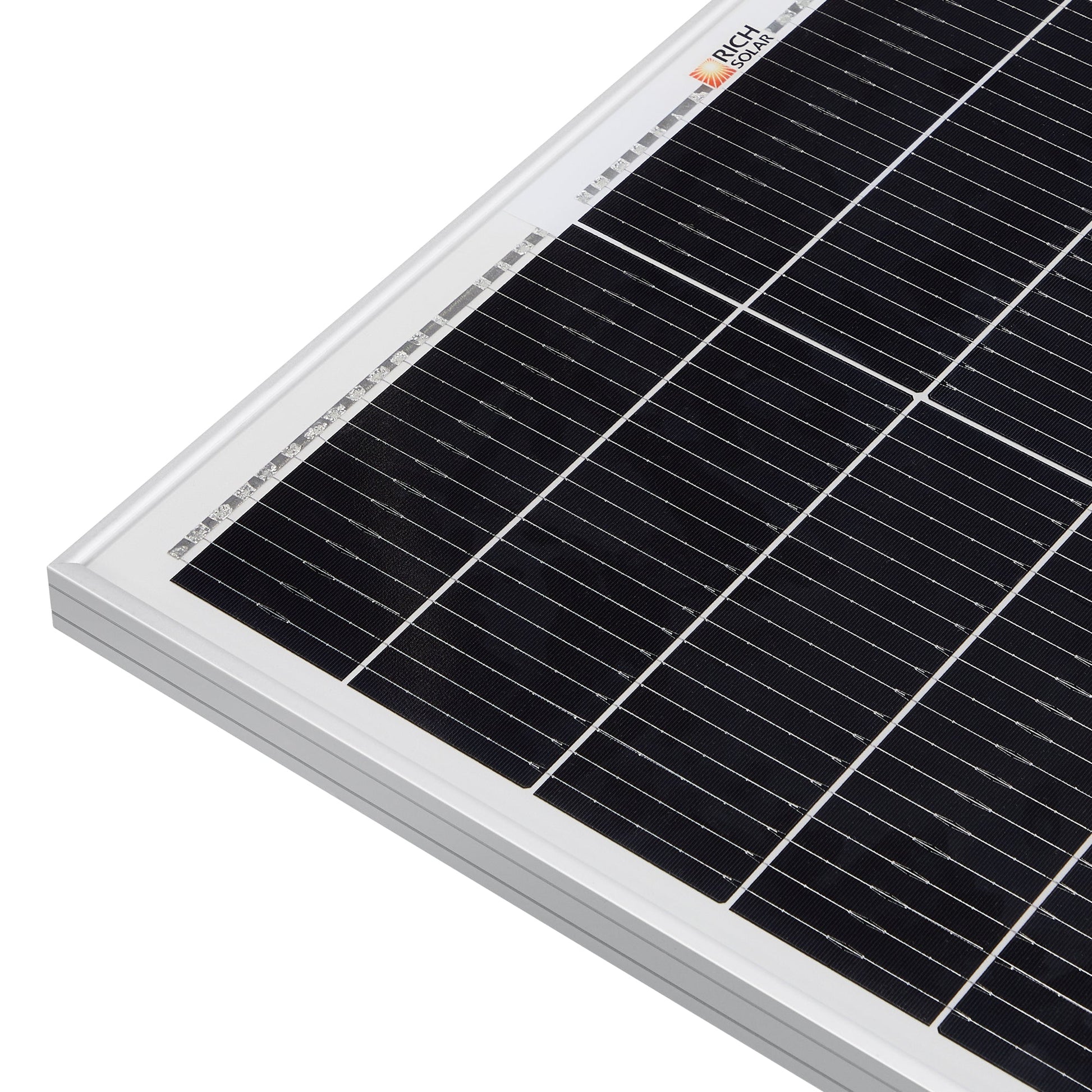

• Corrosion-resistant anodized aluminum frame enhances structural strength.
• Performs effectively in low-light conditions for earlier and later energy capture.

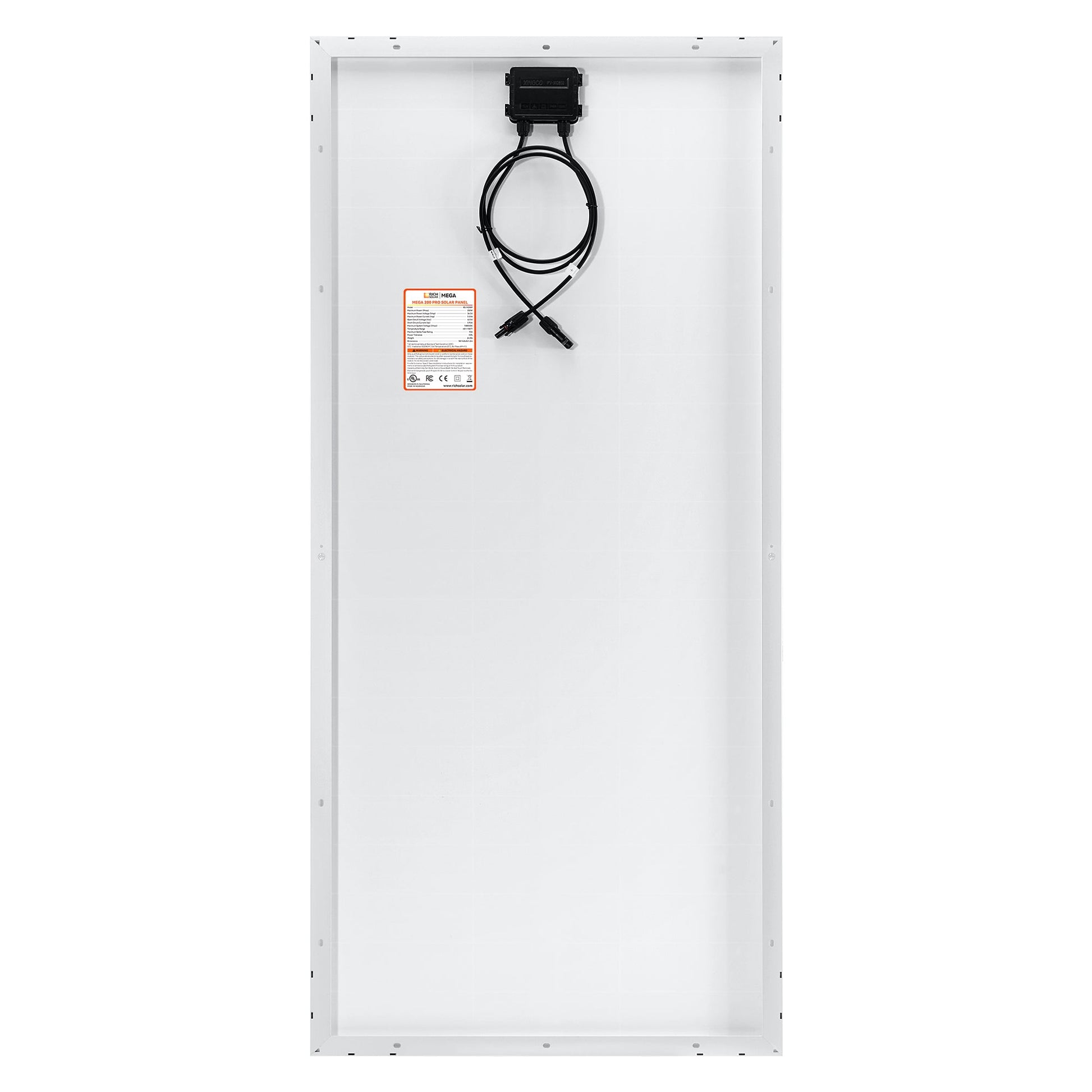

• Features 14 pre-drilled mounting holes; compatible with various mounting systems.
• UL certified for your safety and trust.
• Backed by a 25-year limited power output warranty and 10-year workmanship warranty.
• Compatible with both on-grid and off-grid inverters for diverse applications.

Specifications

• Maximum Power (Pmax): 200 W
• Maximum Power Voltage (Vmp): 36.3 V
• Maximum Power Current (Imp): 5.51 A
• Open Circuit Voltage (Voc): 43.5 V
• Short Circuit Current (Isc): 5.93 A
• Maximum System Voltage: 1000 VDC
• Maximum Series Fuse Rating: 15 A
• Temperature Range: -40 to +185 F
• Weight: 24.0 lb

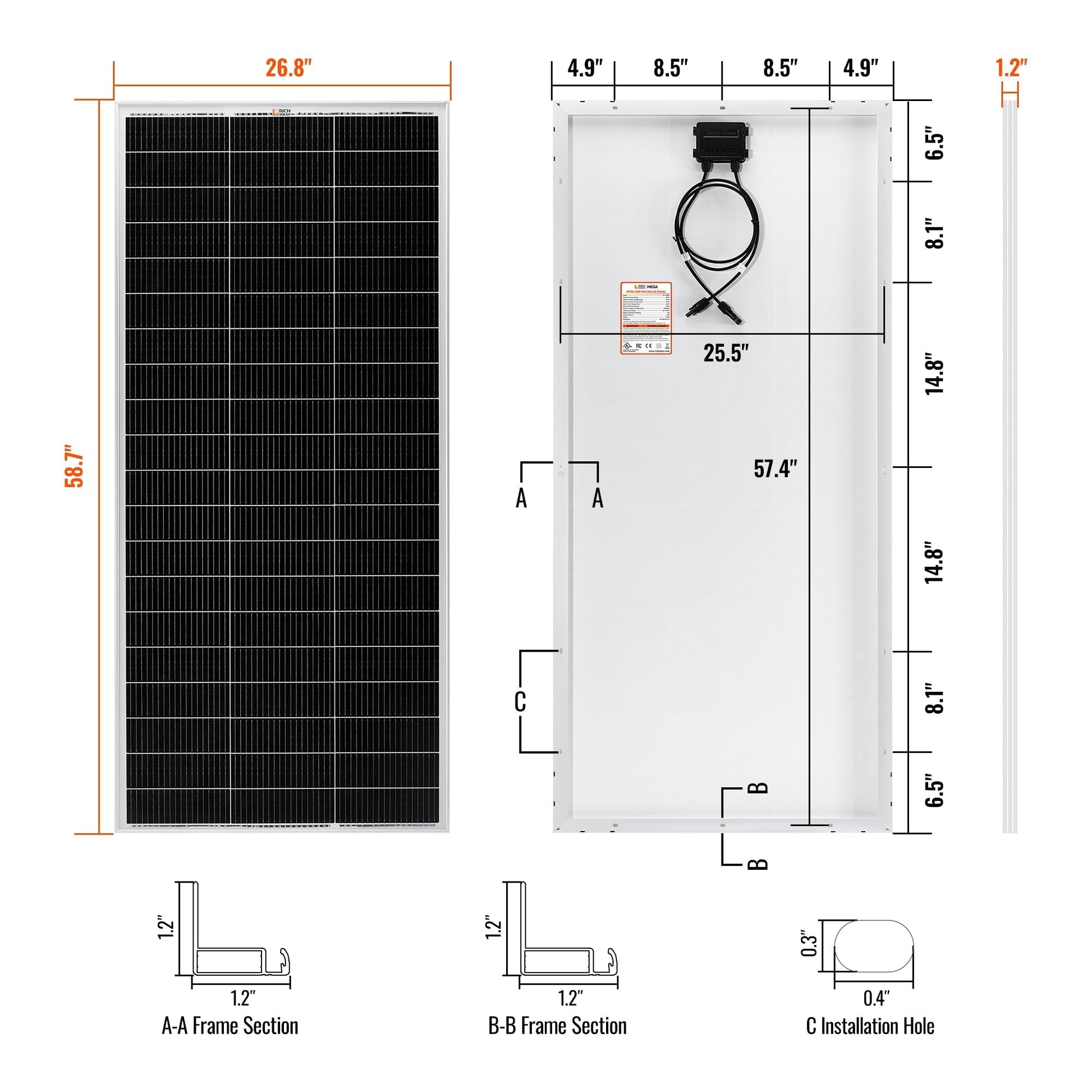

• Dimensions: 58.7 x 26.8 x 1.2 in
• Cables: 3' quick-connect cables included
• Mounting: 14 pre-drilled holes compatible with various mounting systems
• Certifications & Warranty: UL certified; 25-year limited power output warranty; 10-year workmanship warranty
