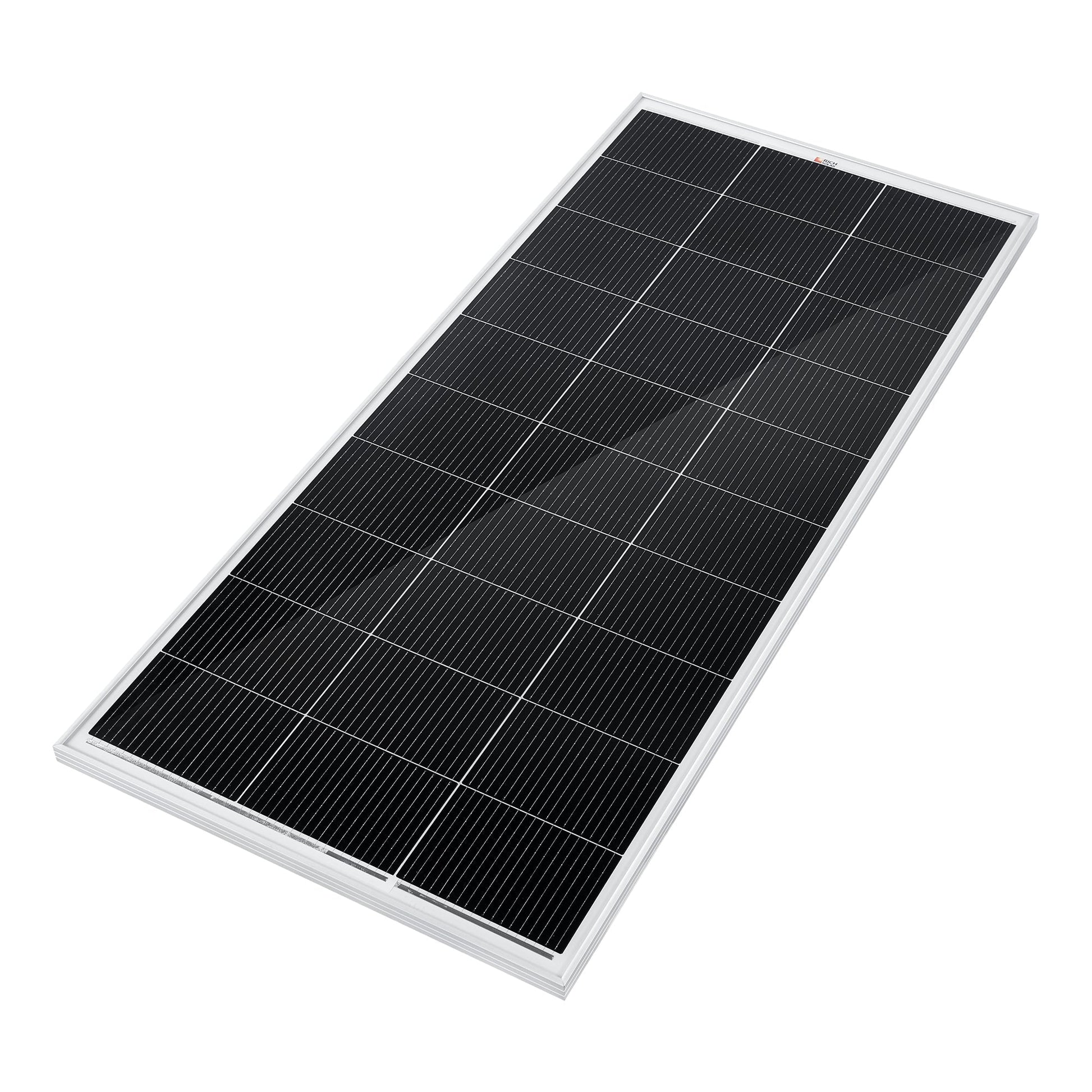

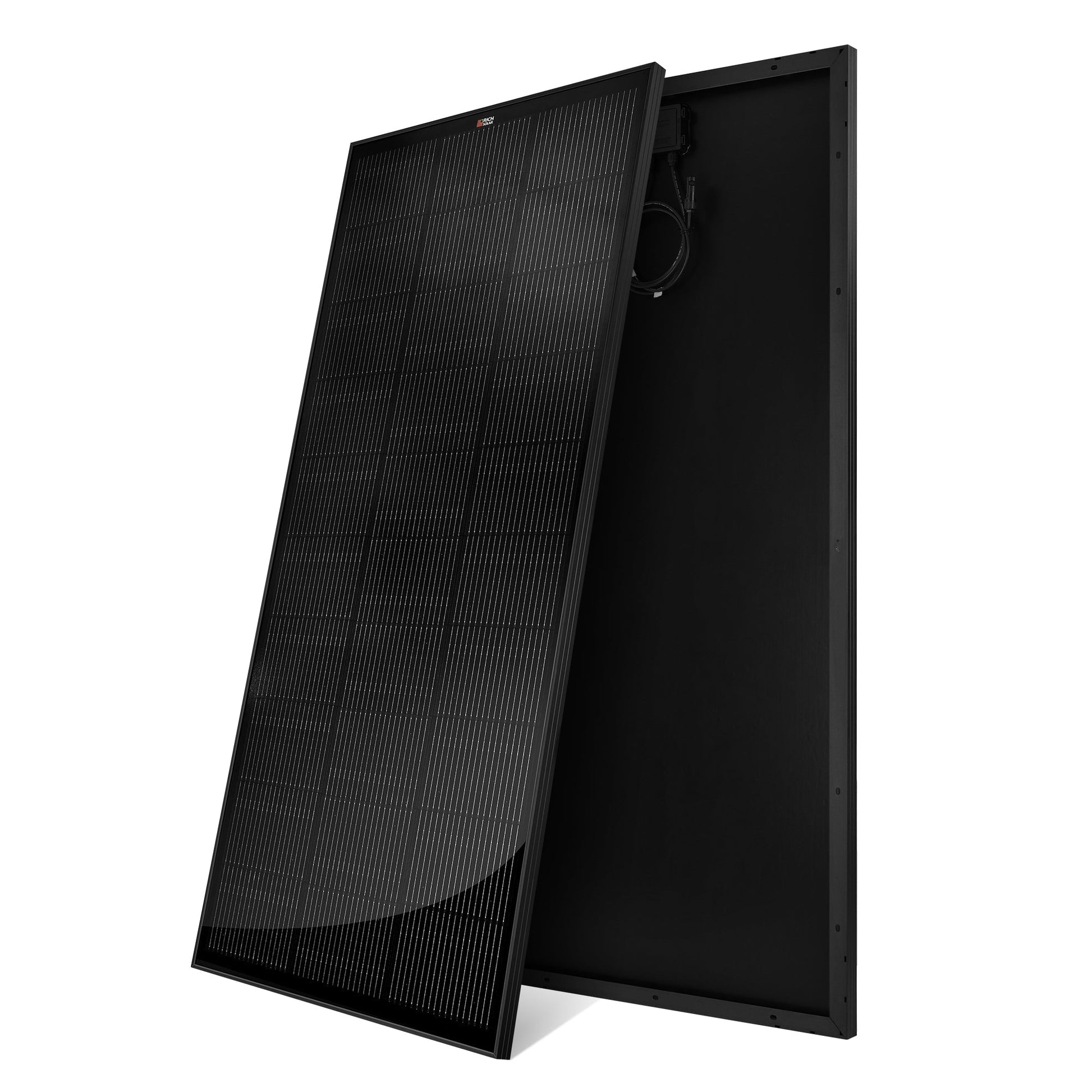

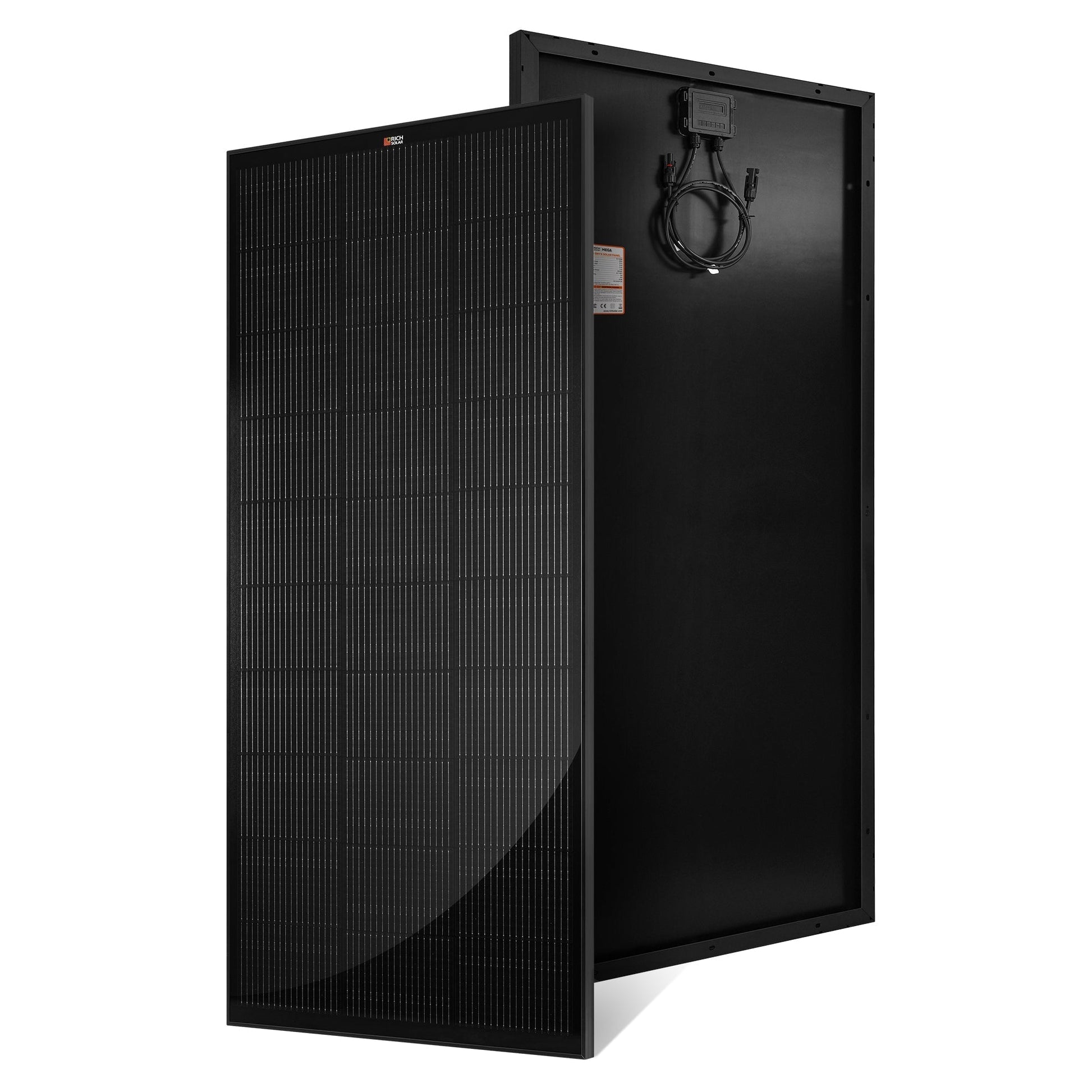

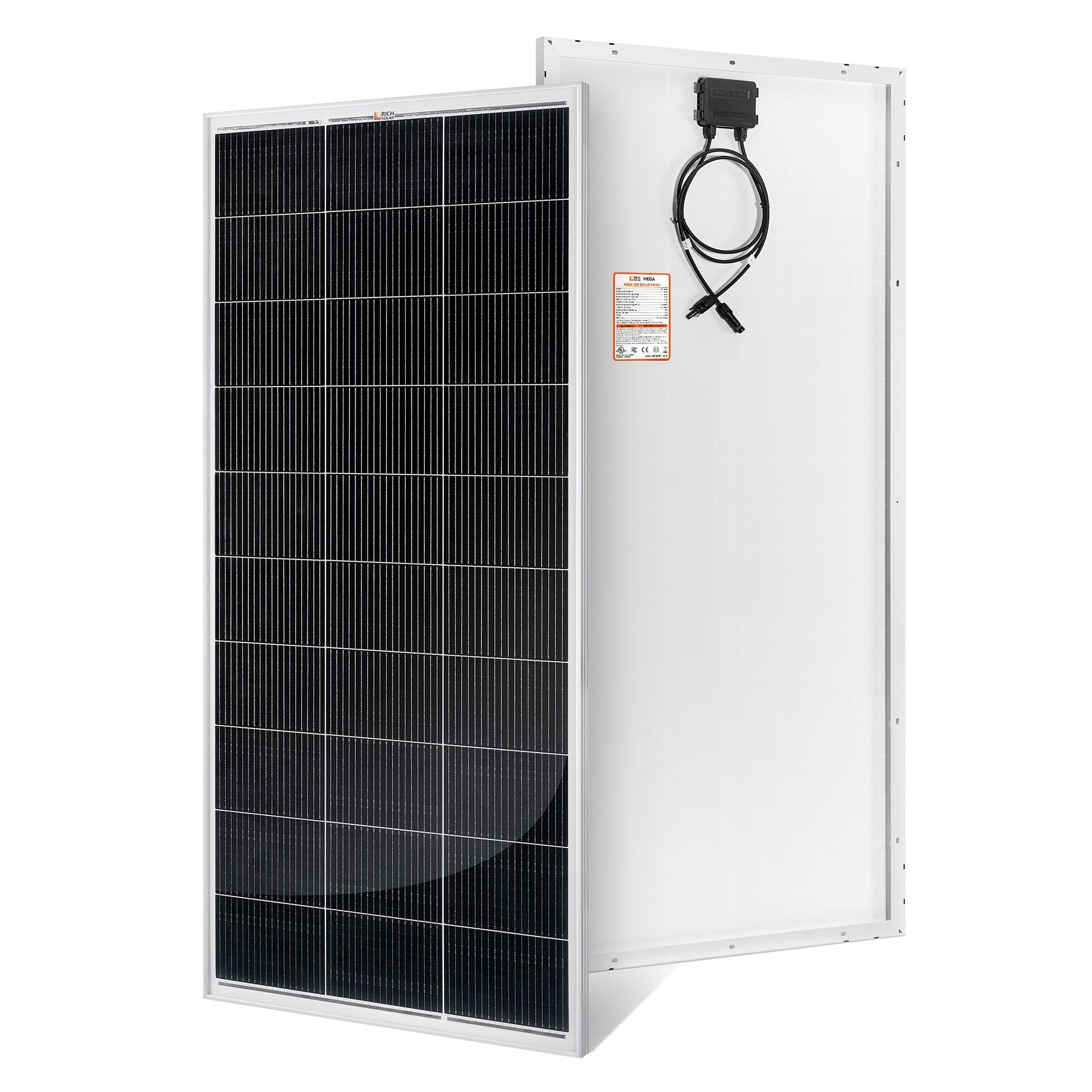

MEGA 200 Solar Panel — 200W 12V Rugged Solar Module

Overview

The MEGA 200 by RICH SOLAR is a robust 200-watt, 12-volt solar panel designed for RVs, boats, cabins, and various off-grid or mobile setups. Its dependable performance and hassle-free installation make it an ideal choice for those seeking reliable solar energy without complications.

Benefits

• Maintain device and battery charge for longer durations, allowing you to enjoy off-grid living without the need for generators.
• Utilize power effectively earlier and later in the day with impressive low-light performance, decreasing your reliance on shore power or backups.
• Easily install and expand your system with pre-drilled mounting holes and compatibility for series or parallel connections.
• Minimize troubleshooting efforts; UL certification and extended warranties offer assurance and safety.
• Adapt the panel's mounting options to suit various settings, including roofs, poles, or tilt installations, ensuring quick and easy setup.

Features

• Maximum power output of 200 watts for 12-volt systems.
• Delivers 10.9 A at maximum power (Imp), suitable for charging 12-volt batteries.
• Flexible configuration for series or parallel connections, enabling future system expansion.

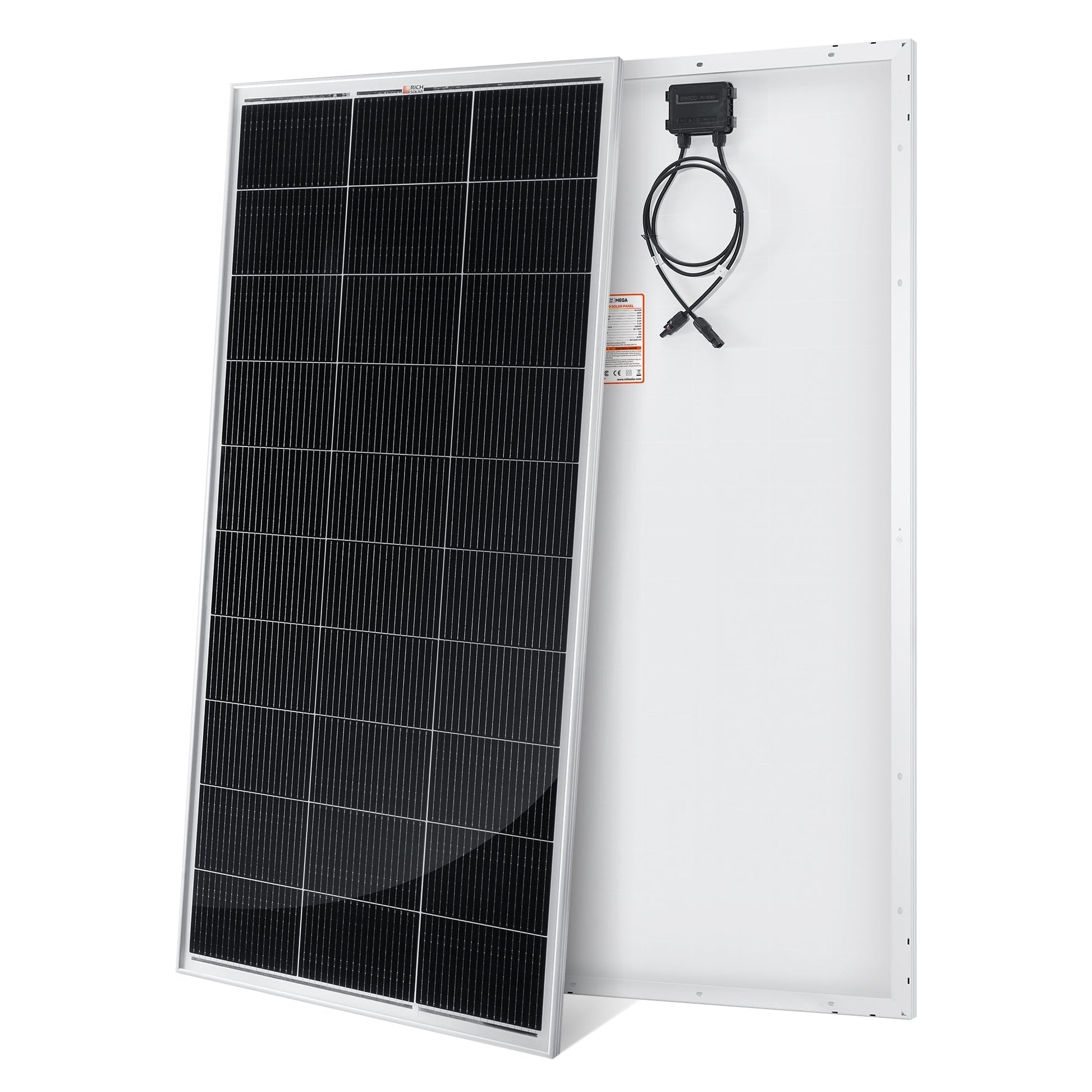

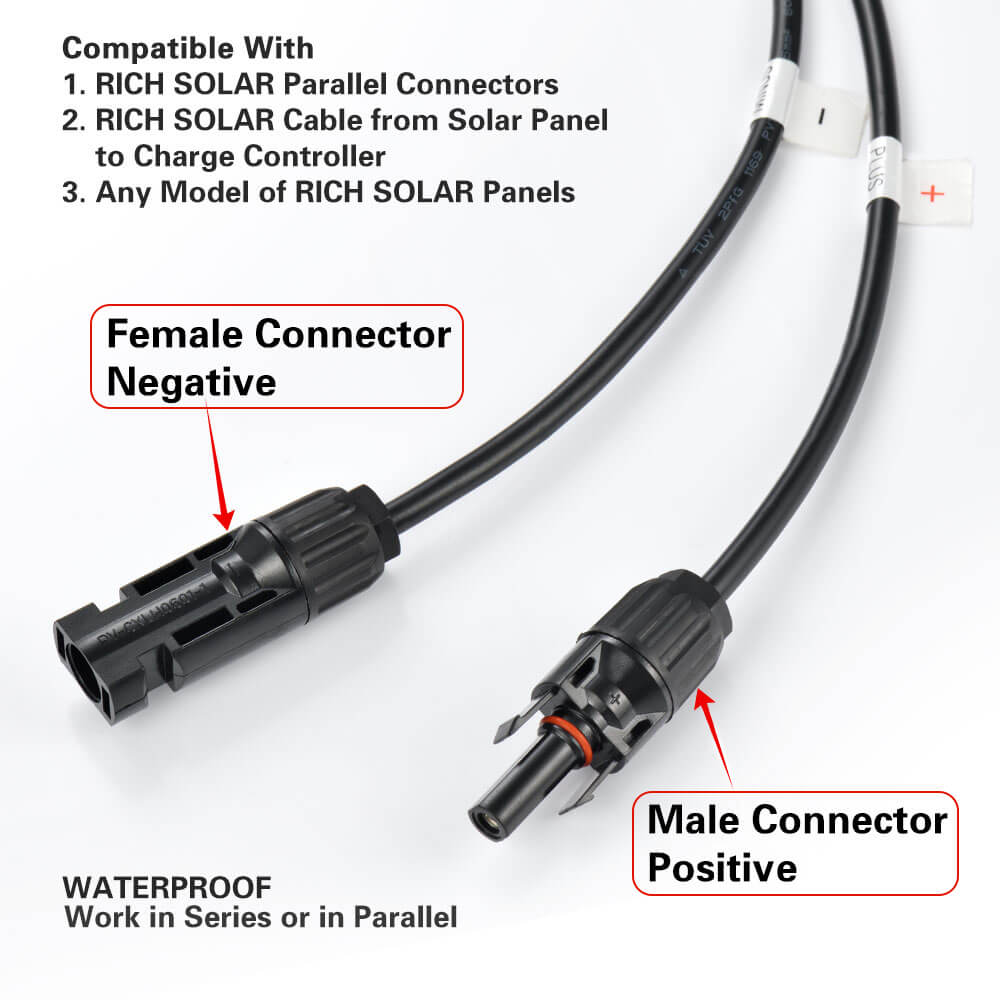

• Comes with 3-foot quick-connect cables and connectors for rapid electrical connections.
• Exceptional low-light performance, making it efficient during mornings, evenings, and cloudy days.

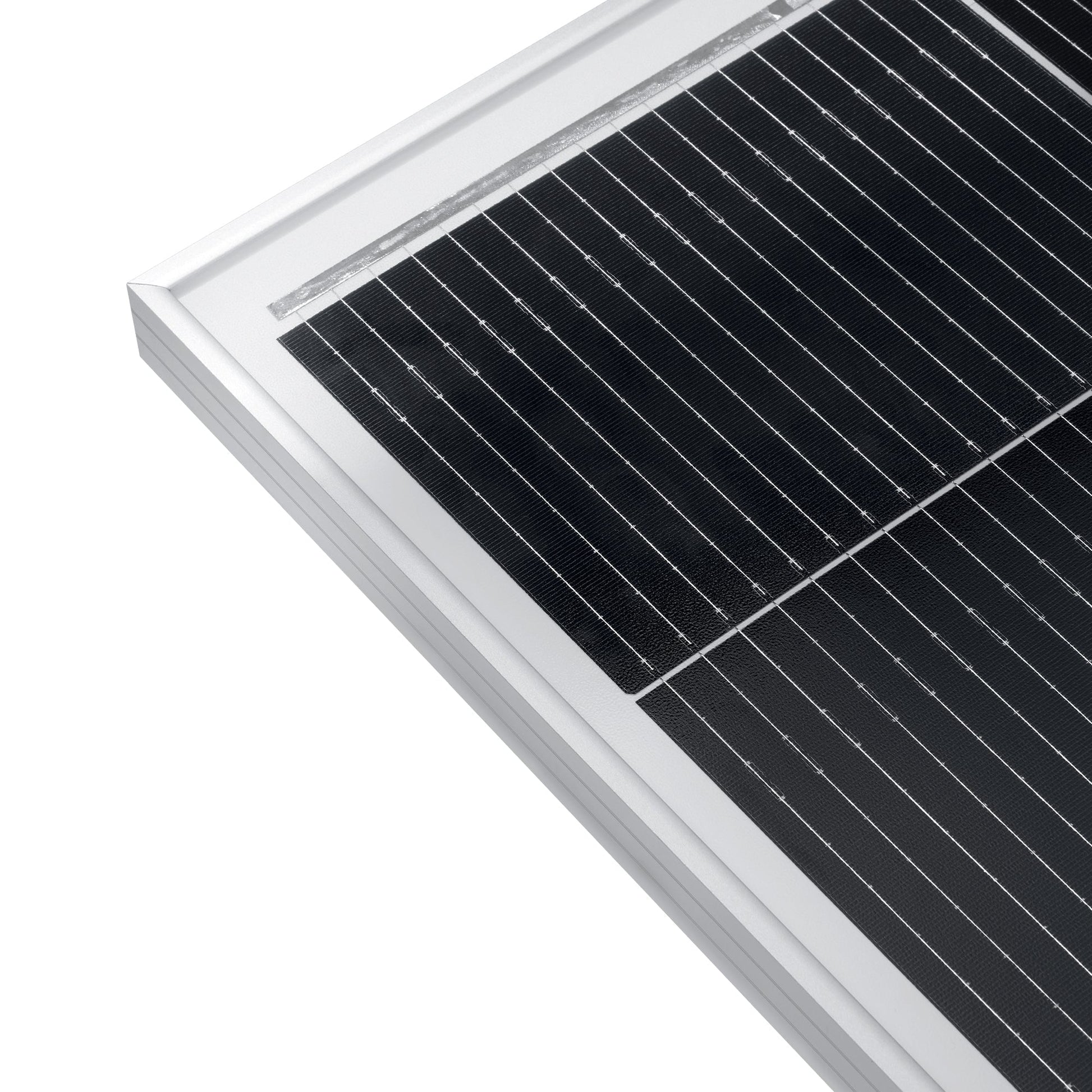

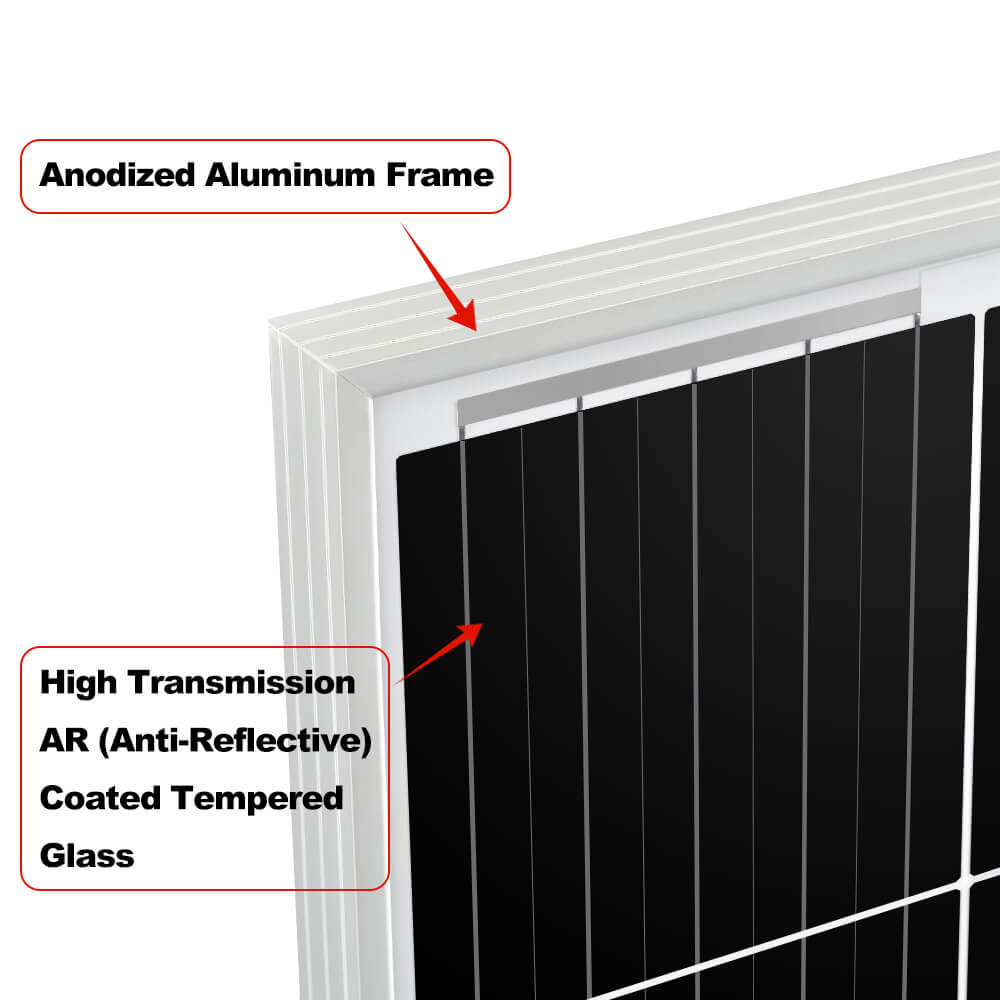

• Rugged design featuring high-transmission anti-reflective coated tempered glass and an anodized aluminum frame.

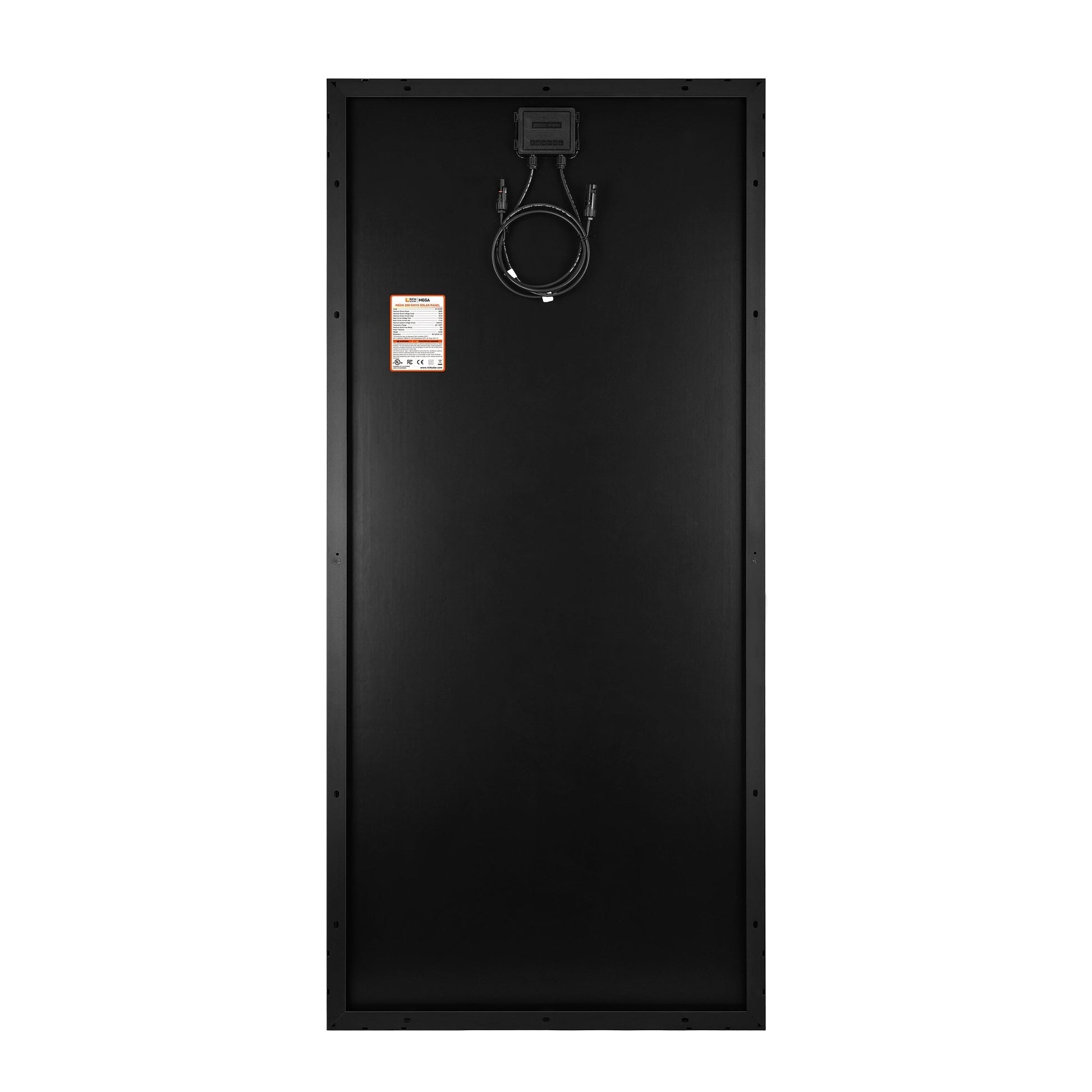

• Equipped with 14 pre-drilled holes for straightforward mounting and compatibility with various mount types including Z-brackets, ground mounts, and pole mounts.
• UL certified, ensuring safety and reliability.

Specifications

• Model: MEGA 200
• Manufacturer: RICH SOLAR
• Maximum Power (Pmax): 200 W
• Nominal System Voltage: 12 V
• Maximum Power Voltage (Vmp): 18.4 V
• Maximum Power Current (Imp): 10.9 A
• Open Circuit Voltage (Voc): 21.8 V
• Short Circuit Current (Isc): 11.6 A
• Maximum Series Fuse Rating: 15 A
• Temperature Range: -40°F to +185°F
• Weight: 24 lb

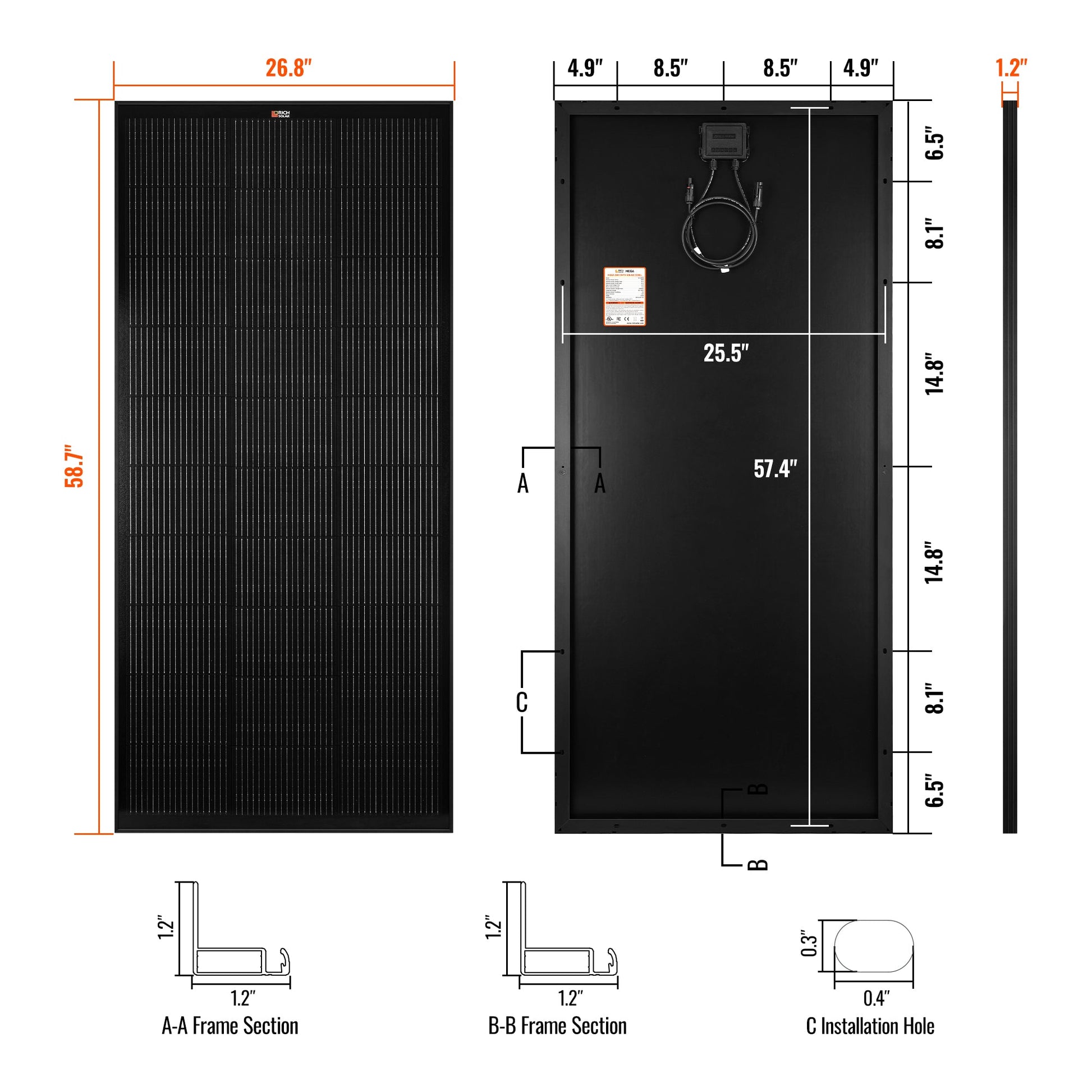

• Dimensions: 58.7 x 26.8 x 1.2 in
• Glass Material: Tempered, anti-reflective coated

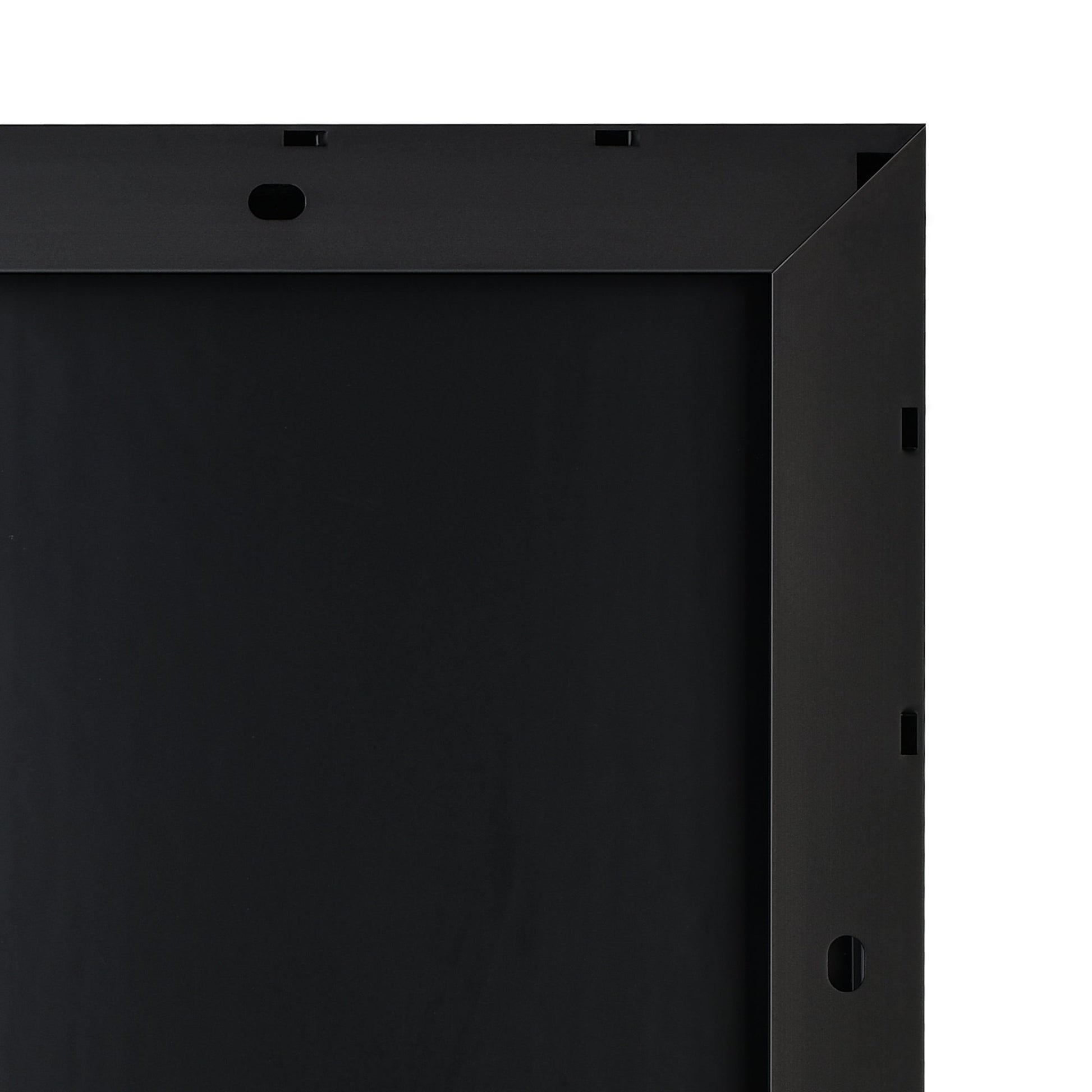

• Frame Material: Anodized aluminum
• Cabling: 3' quick-connect cables with connectors
• Mounting: 14 pre-drilled holes; compatible with Z-brackets, ground mounts, pole mounts, and tilt mounts
• Certifications: UL certified
• Warranty: 25-year limited power output warranty; 10-year workmanship warranty
