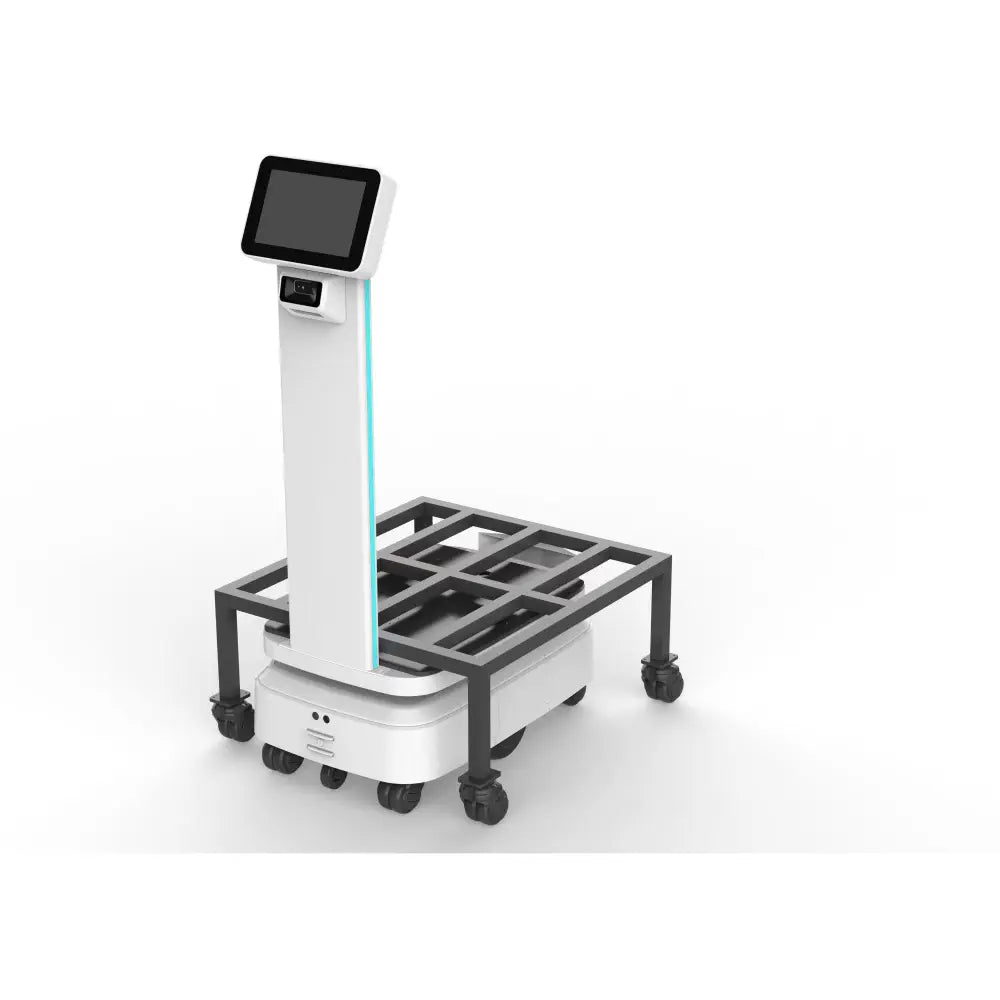

ATEAGO S8-150 – Versatile Delivery Robot for Indoor and Outdoor Use

Special Order

This item is available for special order. Processing time is estimated to be between 2-6 weeks.

Overview

Introducing the ATEAGO S8-150, a robust delivery robot designed for seamless operations in warehouses, factories, and logistics centers. With an impressive 150 kg payload capacity and advanced navigation capabilities, it streamlines material handling tasks while enhancing efficiency in your workspace.

Benefits

• Reduce labor costs by automating routine material transfers across various areas.
• Minimize the risk of workplace injuries by allowing the robot to carry heavy loads.
• Enhance productivity in both indoor and outdoor settings with its sturdy, weather-resistant design.
• Achieve greater efficiency through accurate navigation and automatic charging features.
• Enjoy continuous support with remote monitoring and 24/7 technical assistance.

Features

• Hands-free loading and unloading with an automatic lift platform that offers a 50 mm lift height and 5 mm/s speed.
• Equipped with dual LiDAR technology and an RGB camera for reliable navigation in complex spaces.
• Durably constructed with an IP43-rated robot body and IP66 battery for outdoor use.
• Capable of handling heavy shipments with a maximum payload of 150 kg.
• Compact design with LED indicators requires only 70 cm of width for navigation.
• Obstacle handling features include climbing capabilities for obstacles up to 20 mm, passing gaps of 35 mm, and navigating slopes of up to 8°.
• Comes with wireless features such as 4G and optional 5G connectivity, dual-band WiFi, and Bluetooth 5.0 BLE.
• Control and monitor remotely via cloud, PC, mobile, or tablet without an onboard screen.
• Includes an automated charging station for uninterrupted operation.
• Package includes user manual, power adapter, one-year warranty, and 24/7 online technical support.

Specifications

• Size: 740 × 500 × 310 mm
• Weight: 72 kg
• Exterior Material: ABS and sheet metal
• Shelf Dimensions: 660 × 700 × 325 mm (customizable options available)
• Payload Capacity: 150 kg
• Lifting Height: 50 mm
• Lifting Speed: 5 mm/s
• Ingress Protection: Body IP43; Battery IP66
• Operating Temperature Range: -10°C to 65°C (UV and corrosion resistant)
• Storage Temperature Range: -20°C to 65°C
• Charging Temperature Range (indoor): 5°C to 40°C
• Control Options: Cloud, PC, mobile, tablet (no on-board screen)
• 4G Connectivity: FDD B1/B3/B5/B8; TDD B38/B39/B30/B41
• 5G Connectivity: Available with additional accessories
• WiFi Module: AP6256, supporting 2.4 GHz & 5 GHz, 802.11 a/b/g/n/ac
• Bluetooth Version: 5.0 (BLE)
• Operating System: Linux (Ubuntu)
• LiDAR Detection 1: 360° range 0.02–40 m
• LiDAR Detection 2: 140° range 0.02–12 m
• RGB Camera: 215° field of view, resolution 1280 × 720
• Minimum Passage Width: 70 cm with LED indicator guidance
• Climbing Capabilities: Handles 20 mm obstacles, 35 mm gaps, and slopes up to 8°
• Included Items: 1× Robot, 1× User Manual, 1× Power Adapter, 1× Auto-Charging Station, 1× One-Year Warranty, 24/7 Technical Support
