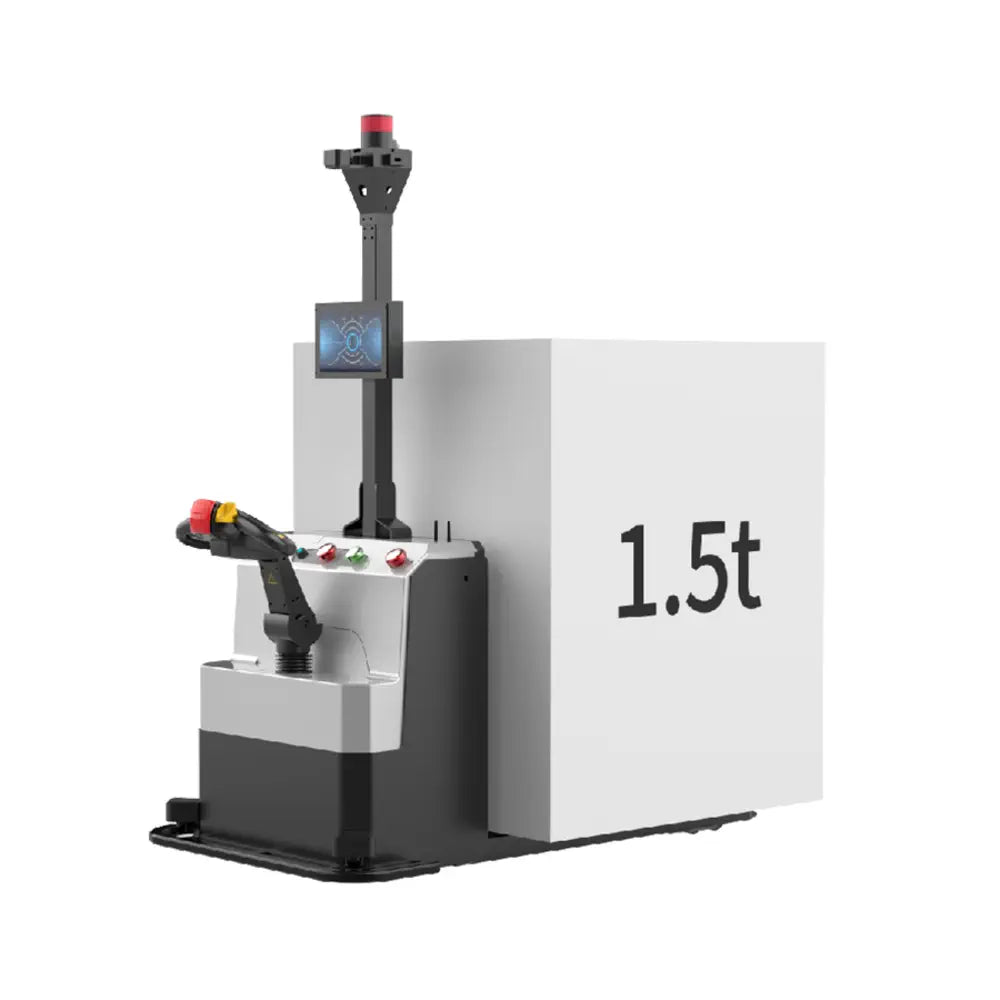

ATEAGO L0 Autonomous Forklift — 1.5T Self-Driving Pallet Mover

Overview

The ATEAGO L0 is an innovative, self-driving forklift engineered for efficient pallet handling and material transport in industrial settings. Featuring laser SLAM navigation and advanced obstacle avoidance technology, it operates smoothly in tight spaces while supporting collaborative tasks with minimal effort.

Benefits

• Automate pallet movement to reduce physical strain and repetitive labor.
• Boost productivity through coordinated machine operations and automated task prioritization.
• Operate safely in busy environments with complete 360-degree obstacle detection.
• Optimize space usage with its compact design and agile turning capabilities.
• Experience quicker setup with reflector-free SLAM navigation.
• Maximize operating time with swift charging solutions and a durable industrial design.

Features

• Load capacity of 1.5 tonnes (1500 kg).
• Reflector-free laser SLAM navigation for improved mapping and positioning.
• Automatic pallet recognition for precise fork placement.
• Comprehensive 3D obstacle detection and safety touch edges.
• High-performance LiDAR for accurate surroundings sensing.
• Bi-directional driving system delivering excellent traction.
• Reliable X86 industrial host for efficient operation management.
• Integrated autonymous dispatch for optimized routing based on task demands.
• Compact chassis measuring just 94 cm in width for narrow aisle maneuverability.
• Variety of fork styles with low engagement heights for easy pallet handling.
• Quick-change battery options to minimize downtime.
• Includes standard accessories: 1x robot, 1x user manual, 1x wire adapter, 1x auto-charging pile, plus a 1-year warranty.

Specifications

• Rated load: 1500 kg
• Load center distance: 600 mm
• Vehicle weight including battery: 380 kg
• Dimensions (L × W × H): 1715 mm × 940 mm × 2080 mm
• Fork dimensions (L × W × T): 1150 mm × 182 mm × 55 mm
• Fork spread: 685 mm
• Max lifting height: 120 mm
• Minimum fork height from ground: 84 mm
• Ground clearance: 50 mm
• Wheelbase: 1115 mm
• Tight turning radius: 1350 mm
• Wheel configuration: 4 driving wheels with auxiliary support
• Wheelbase (drive side): 518 mm
• Wheelbase (load-bearing side): 515 mm
• Navigation technology: Laser SLAM (no reflectors needed)
• Available sensors: 3D obstacle avoidance, safety touch edges, LiDAR
• Computing power: Standard X86 industrial host
• Included items: 1 Robot, 1 User Manual, 1 Wire Adapter, 1 Auto-Charging Pile, and a 1-year warranty
