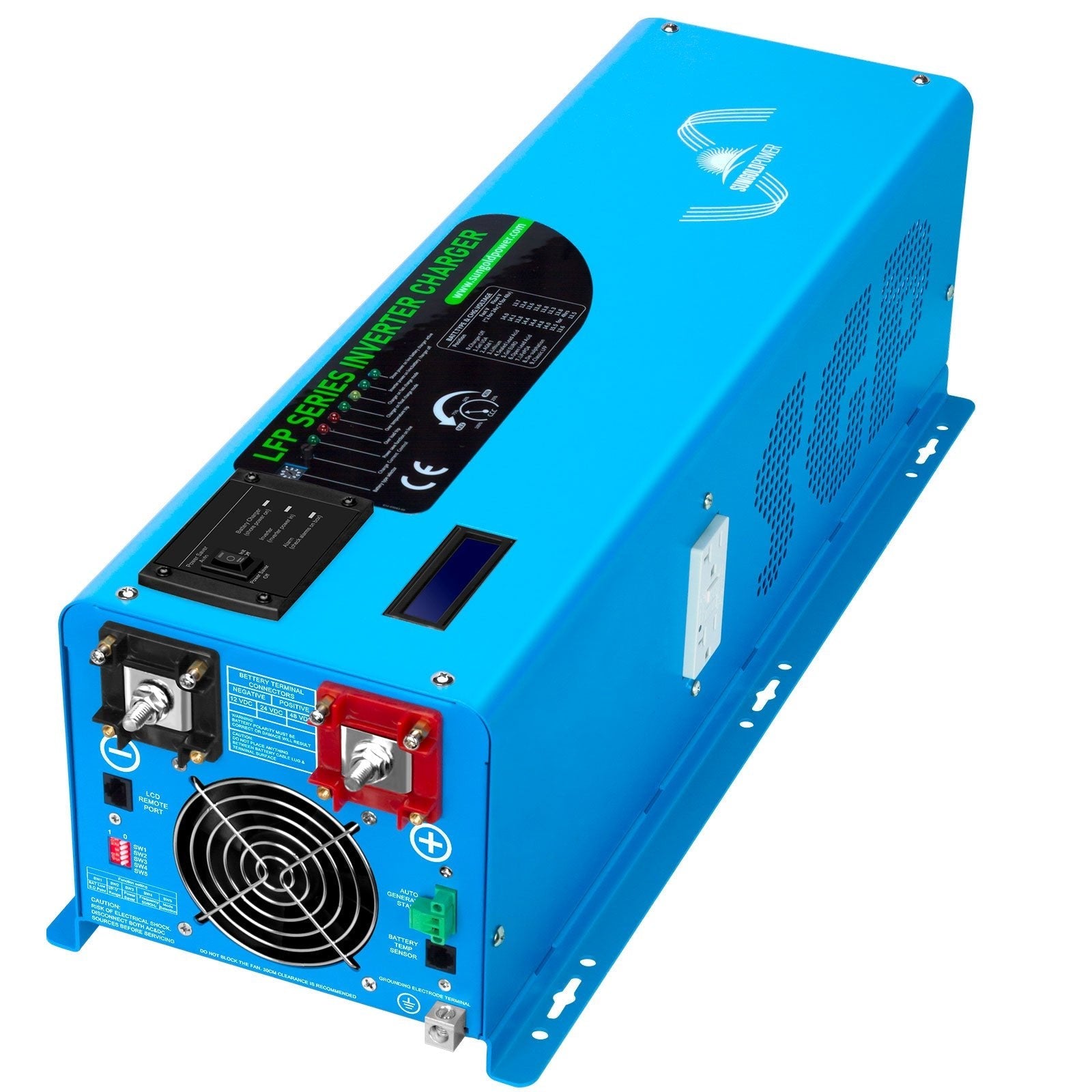

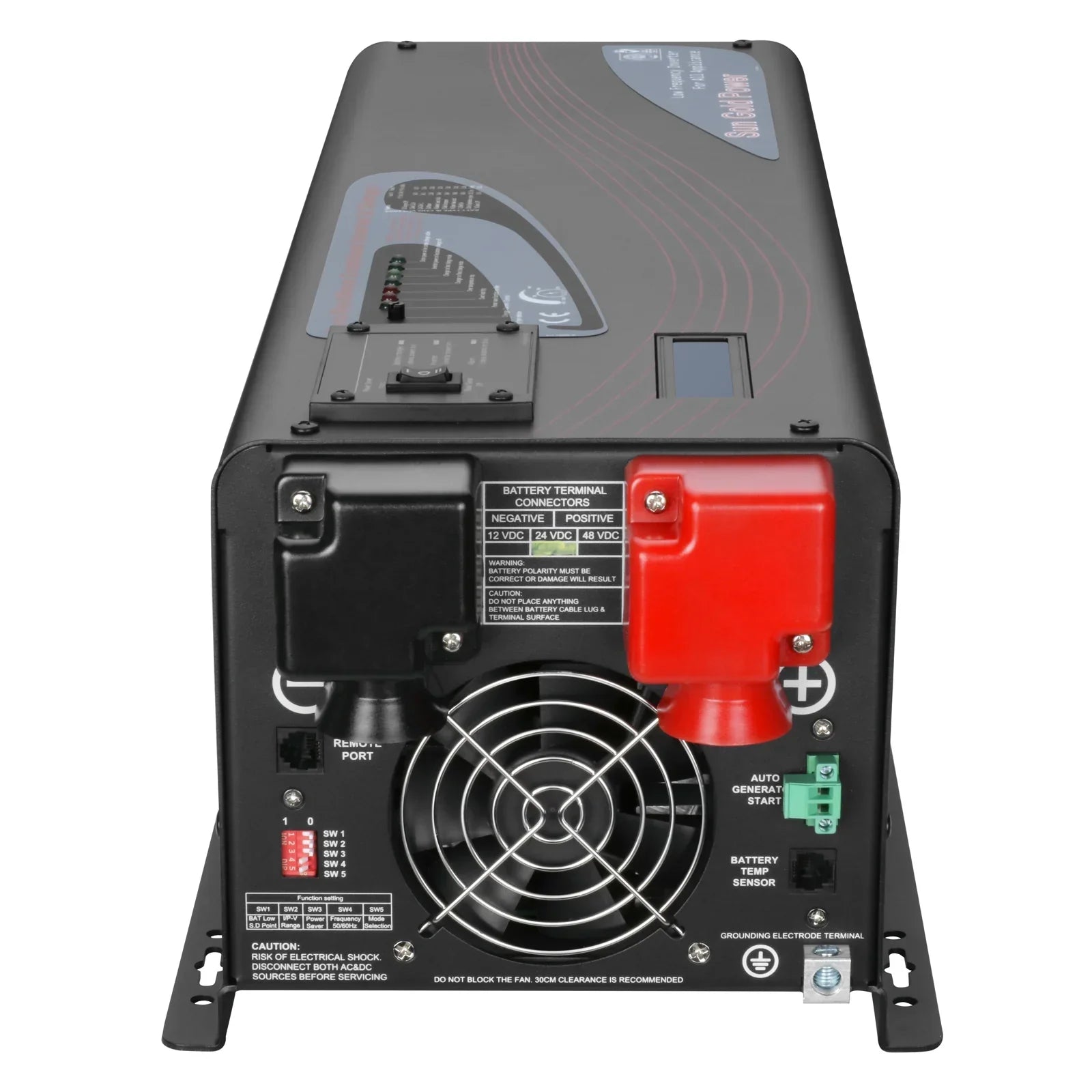

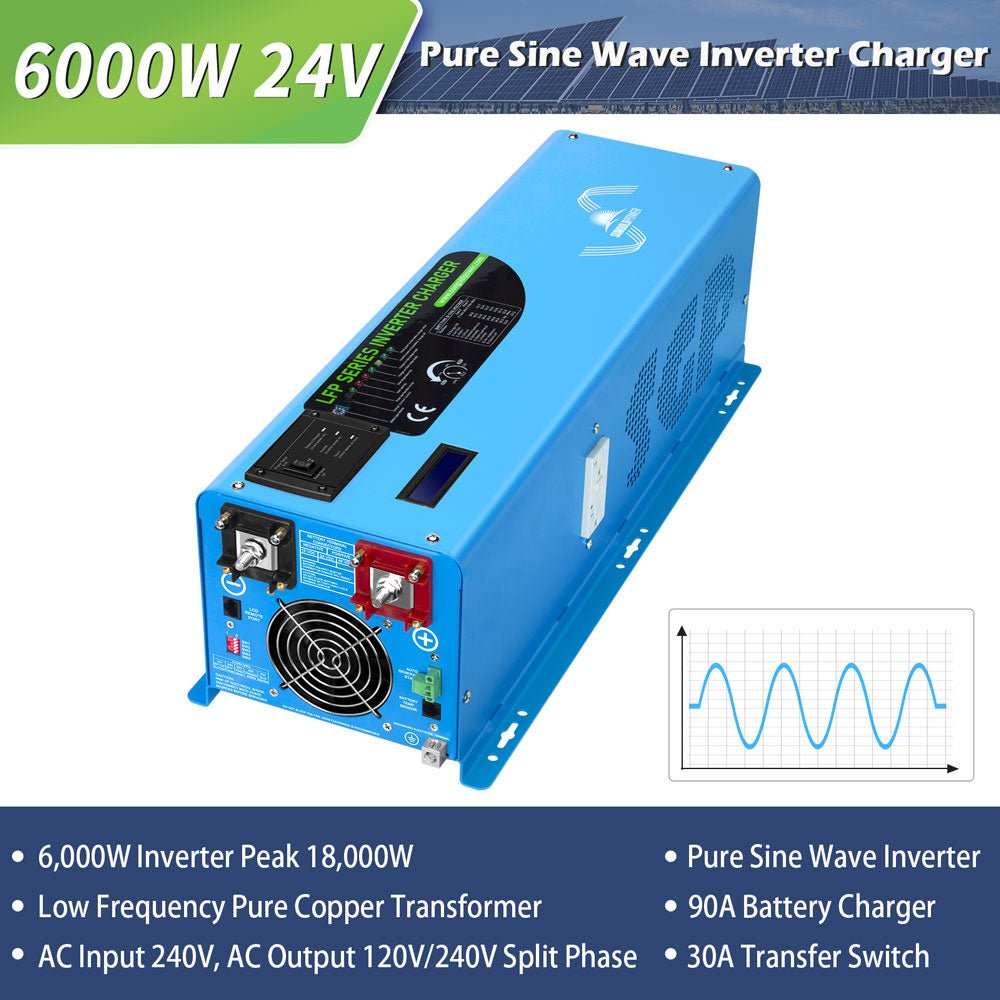

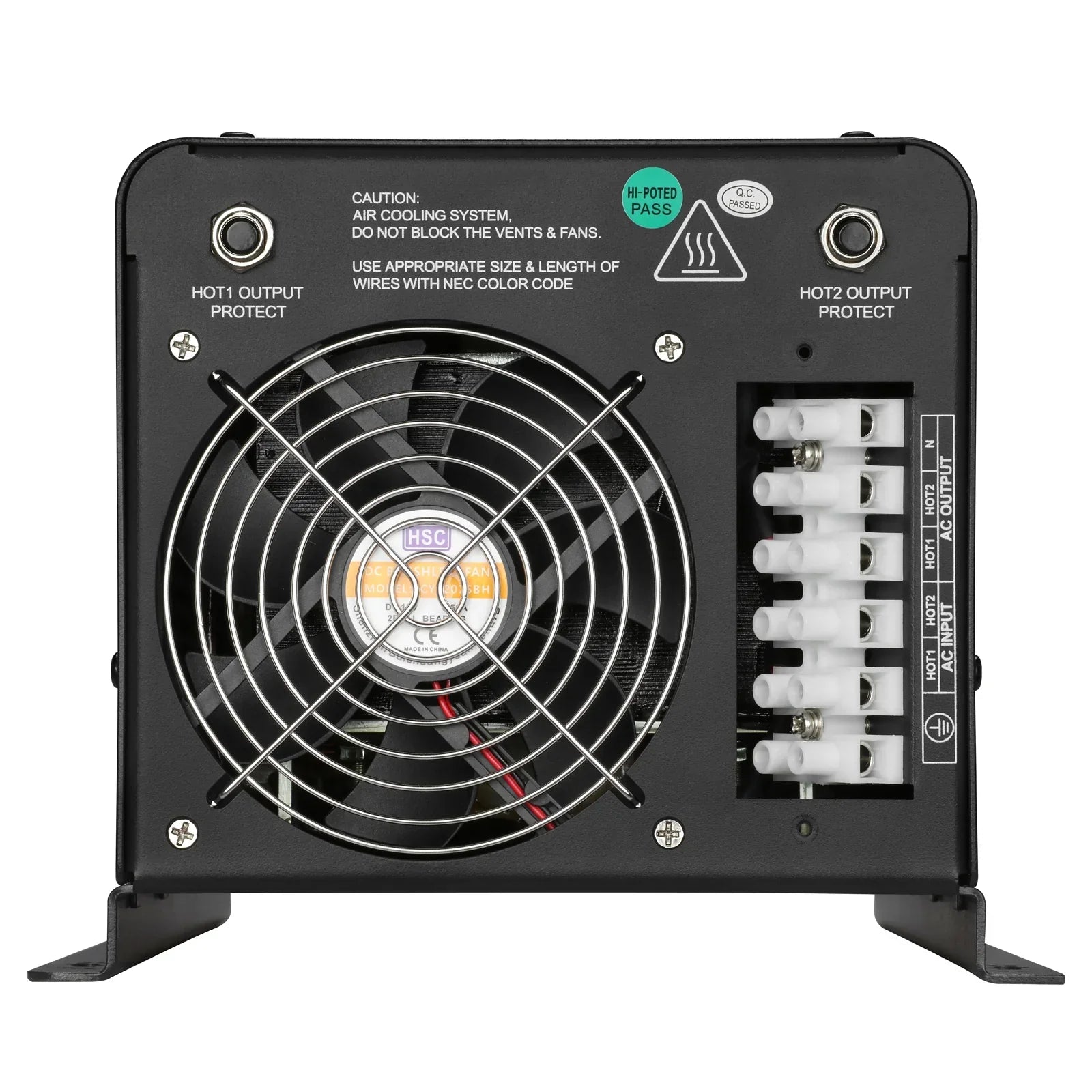

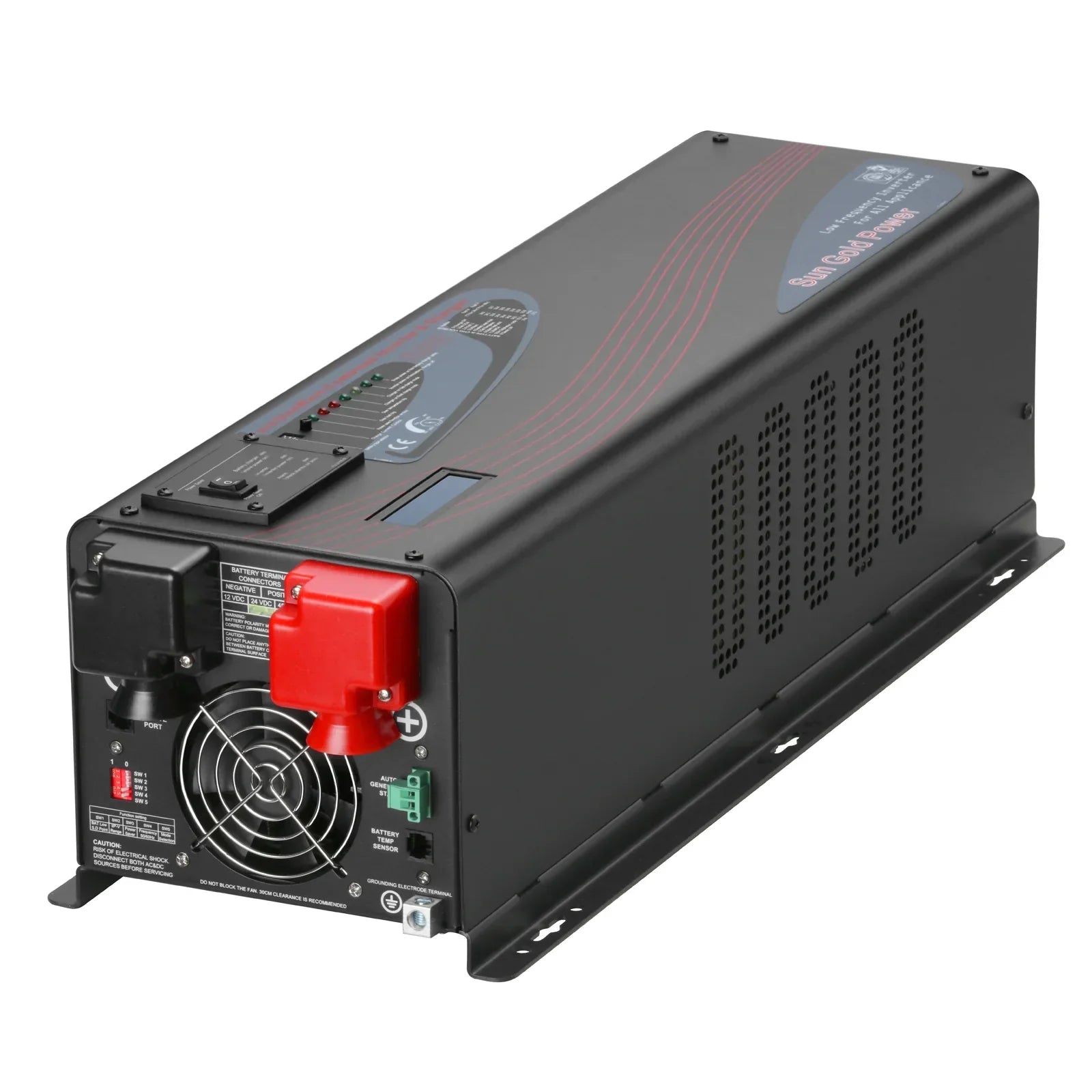

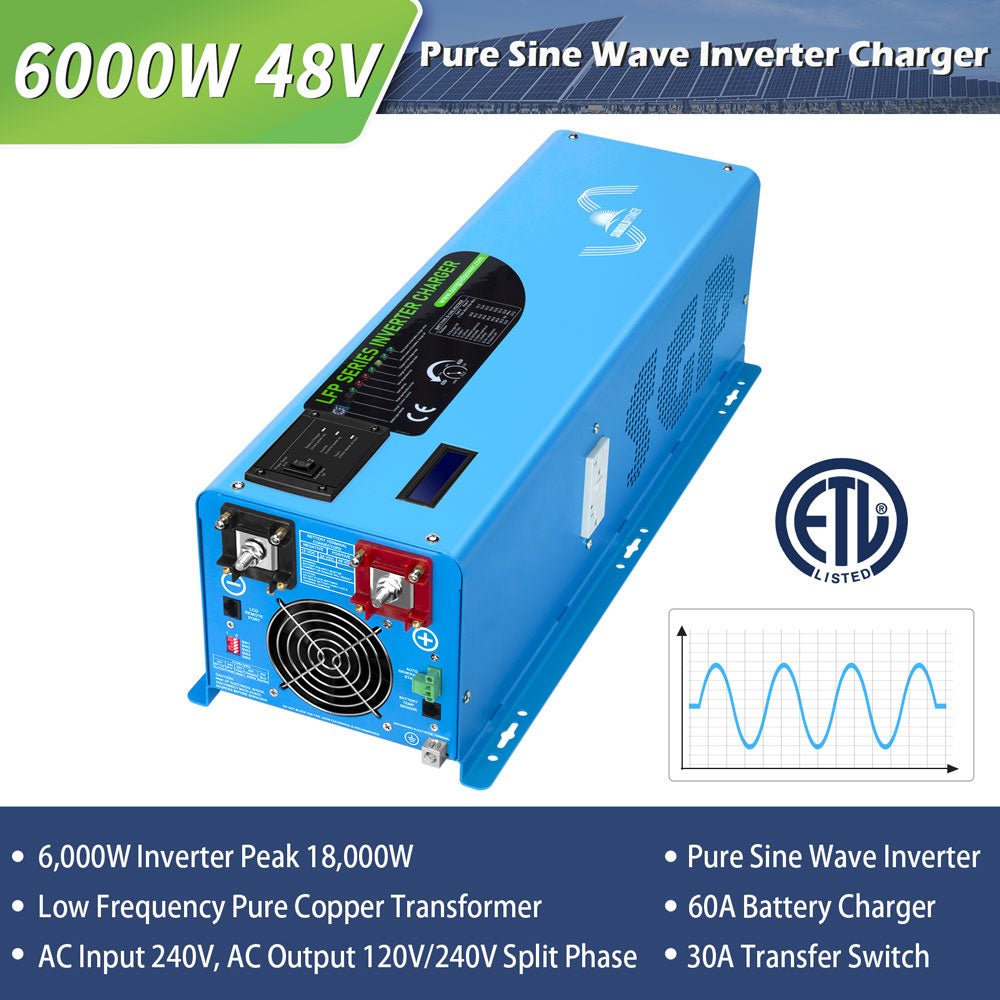

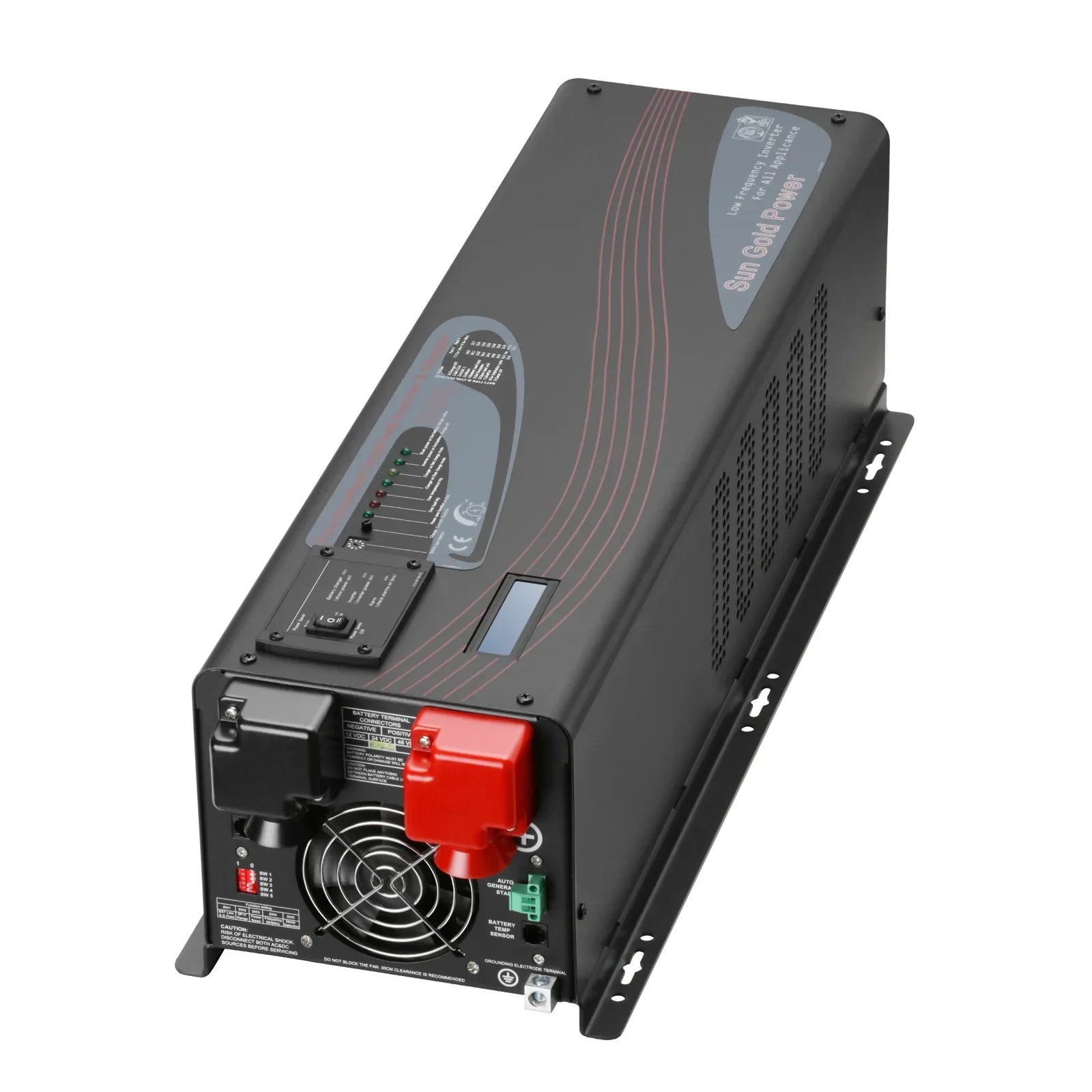

LFP Series 6000W UL1741 Standard Pure Sine Wave Inverter with Charger

Overview

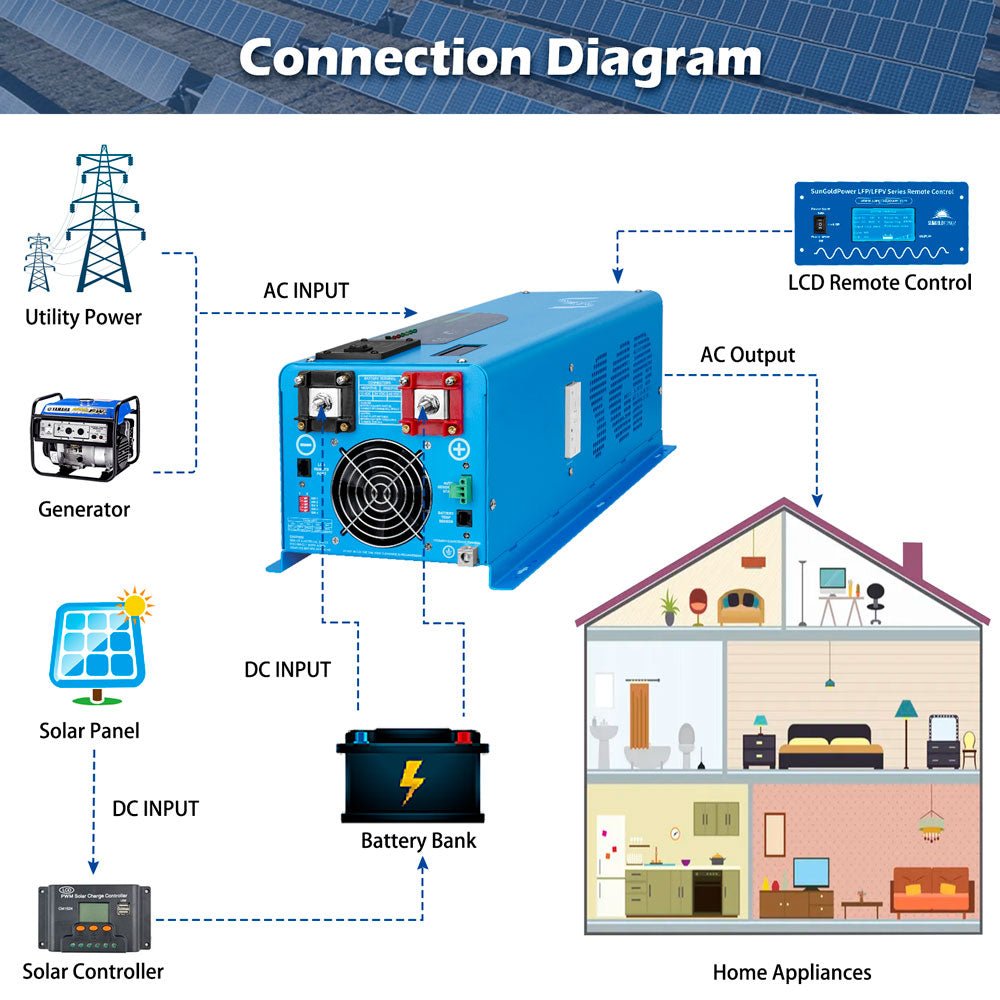

The LFP Series 6000W Pure Sine Wave Inverter is a high-performance power solution combining a split-phase inverter, battery charger, and AC auto-transfer switch in one unit. Designed for 24V or 48V systems, it supports 120V and 240V appliances, features low idle consumption, adjustable charging, and automatic generator start, making it ideal for homes, RVs, or off-grid systems requiring reliable, continuous power.

Benefits

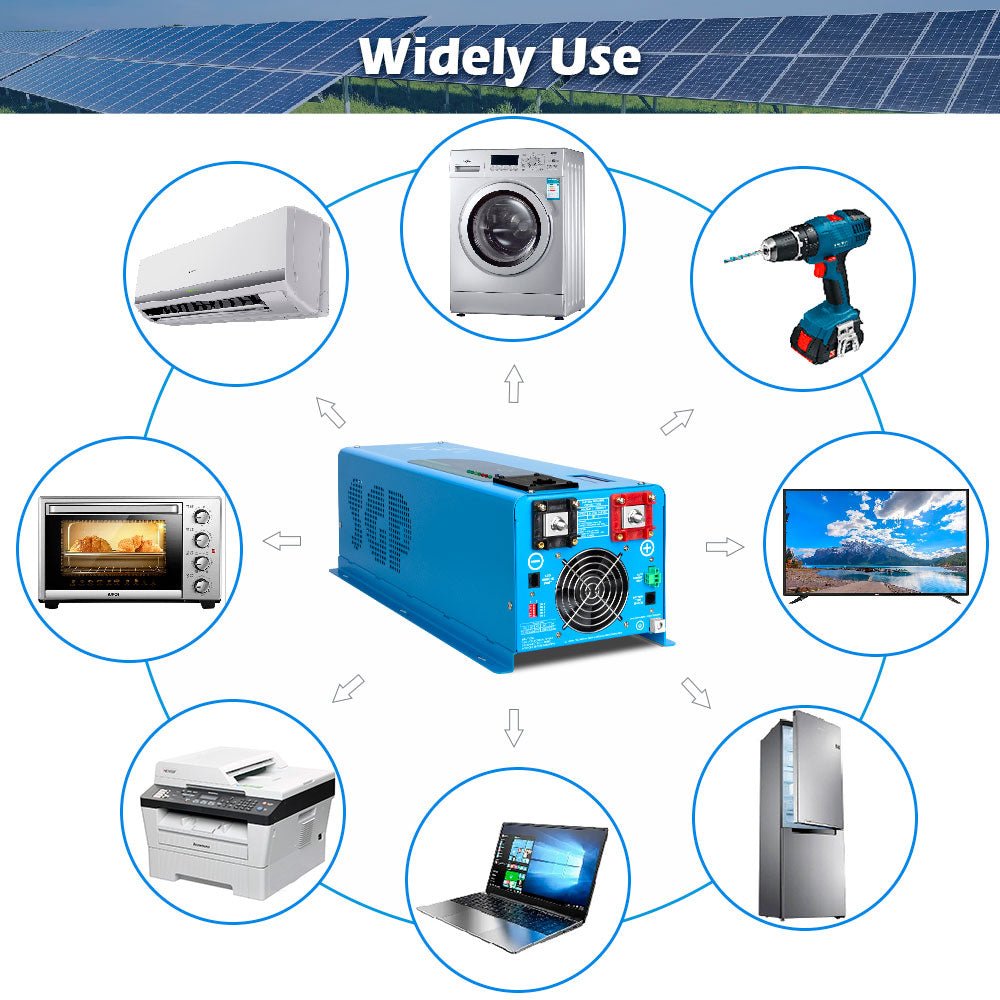

• Power a wide range of appliances with 120V or 240V split-phase output.
• Automatic AC/Battery priority ensures seamless power switching.
• Adjustable charging protects and extends battery life.
• Automatic generator start guarantees uninterrupted power supply.
• Low idle consumption reduces energy costs and enhances efficiency.

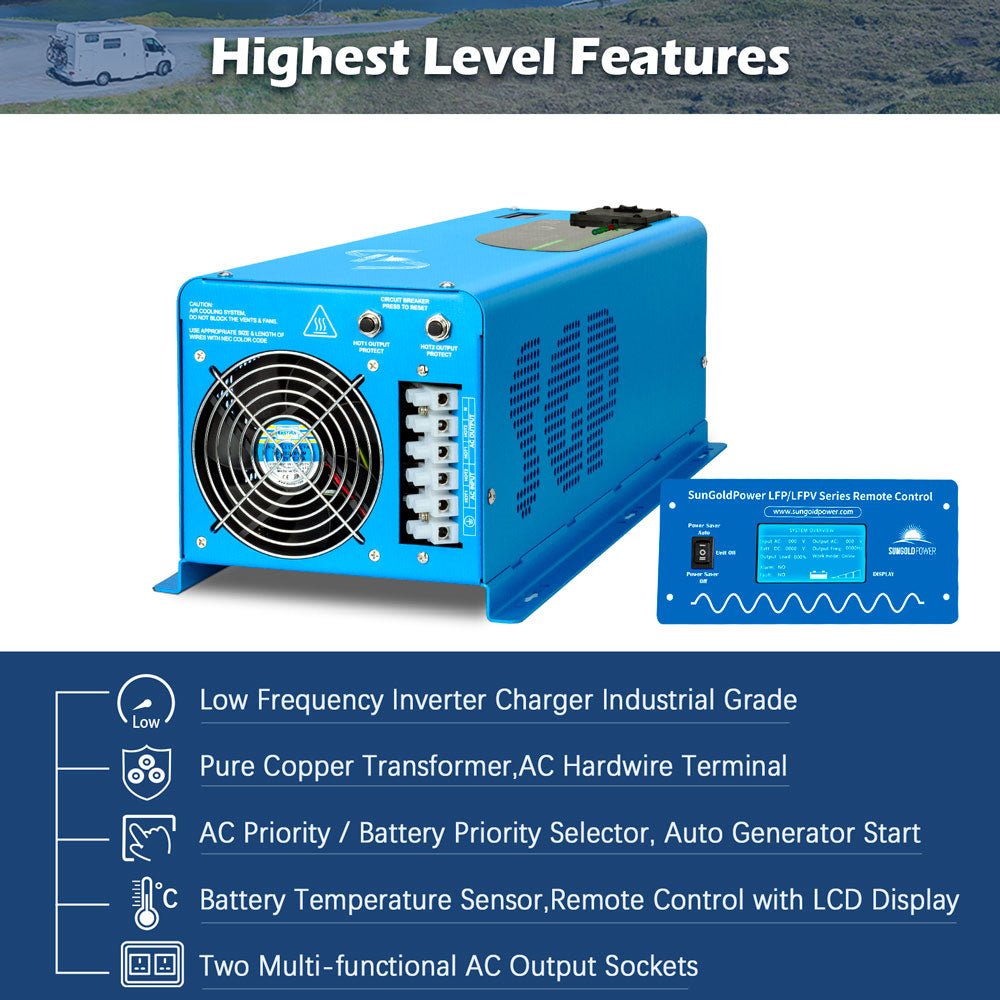

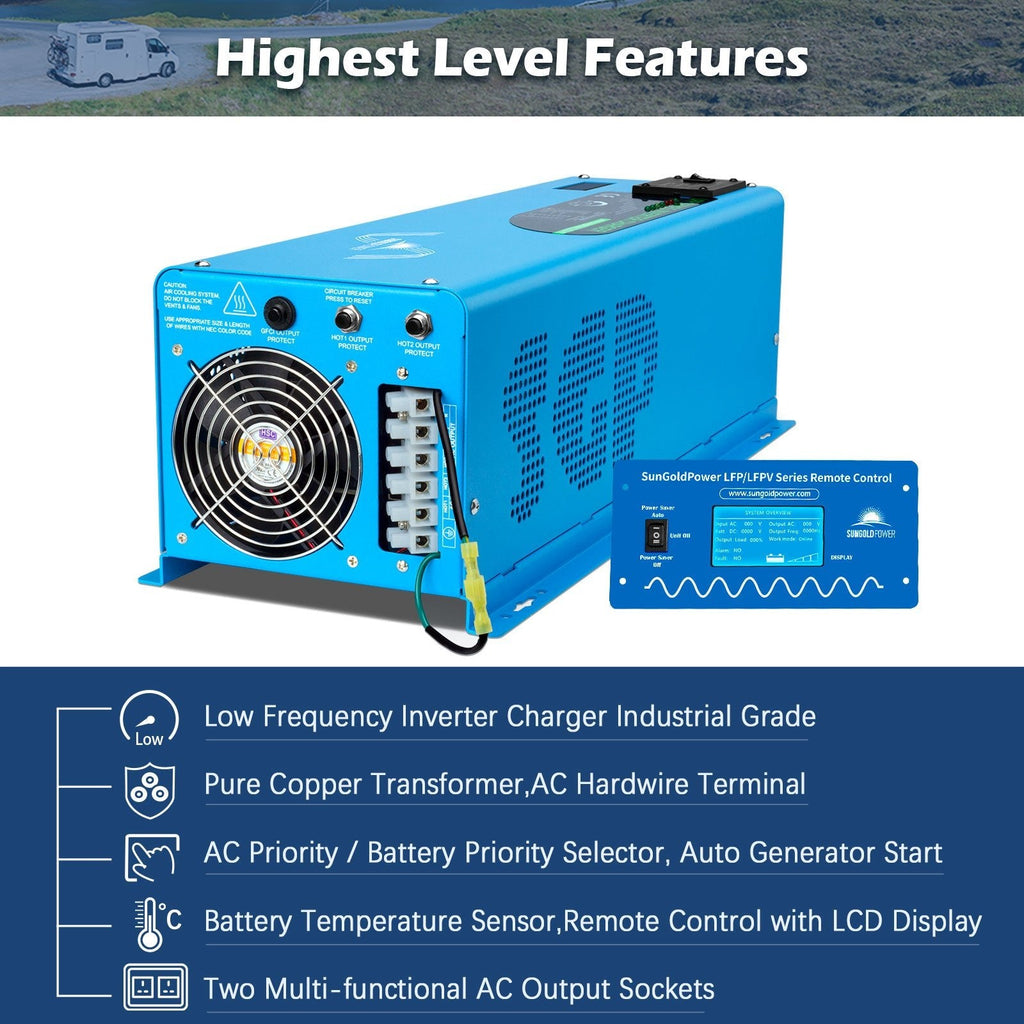

Features

• 6000W Low-Frequency Split-Phase Pure Sine Inverter with Built-in Charger.
• AC/Battery Priority Selector for flexible power management.
• Automatic Generator Start for reliable backup power.
• Supports a wide range of appliances with low-frequency output.
• LCD Display and Remote Control included for easy monitoring.
• Low Idle Consumption for energy-efficient operation.
• 7 Battery Type Settings for optimal charging.
• Multi-Stage Smart Charger adjustable from 0%–100%, with disable option.
• 10ms typical transfer time for smooth power transitions.
• UL1741 certified for safety and compliance.

Specifications

Inverter Output

• Continuous Output Power: 6000W
• Surge Rating: 18000W (20 Seconds)
• AC Output Voltage: 120V / 240V
• AC Input: 240V
• Output Waveform: Pure Sine Wave (Bypass Mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input

• Nominal Input Voltage: 24V or 48V
• Minimum Start Voltage: 20V / 40V
• Low Battery Alarm: 21–22V / 42–44V
• Low Battery Trip: 20–21V / 40–42V (selectable via SW1)
• High Voltage Alarm: 32V / 64V
• Low Battery Restart Voltage: 26V / 52V
• Idle Consumption: 48W
• Power Saver Mode Idle Consumption: 19W

AC Charger

• Max Charging Current: 150±5A
• AC Input Range (Grid or Generator): 90–135VAC / 100–135VAC / 140–270VAC / 184–253VAC (selectable via SW2)
• Overcharge Protection Shutdown: 31.4V / 62.8V
• Adjustable Charge Current: 0%–100%
• Multi-Stage Intelligent Battery Charger

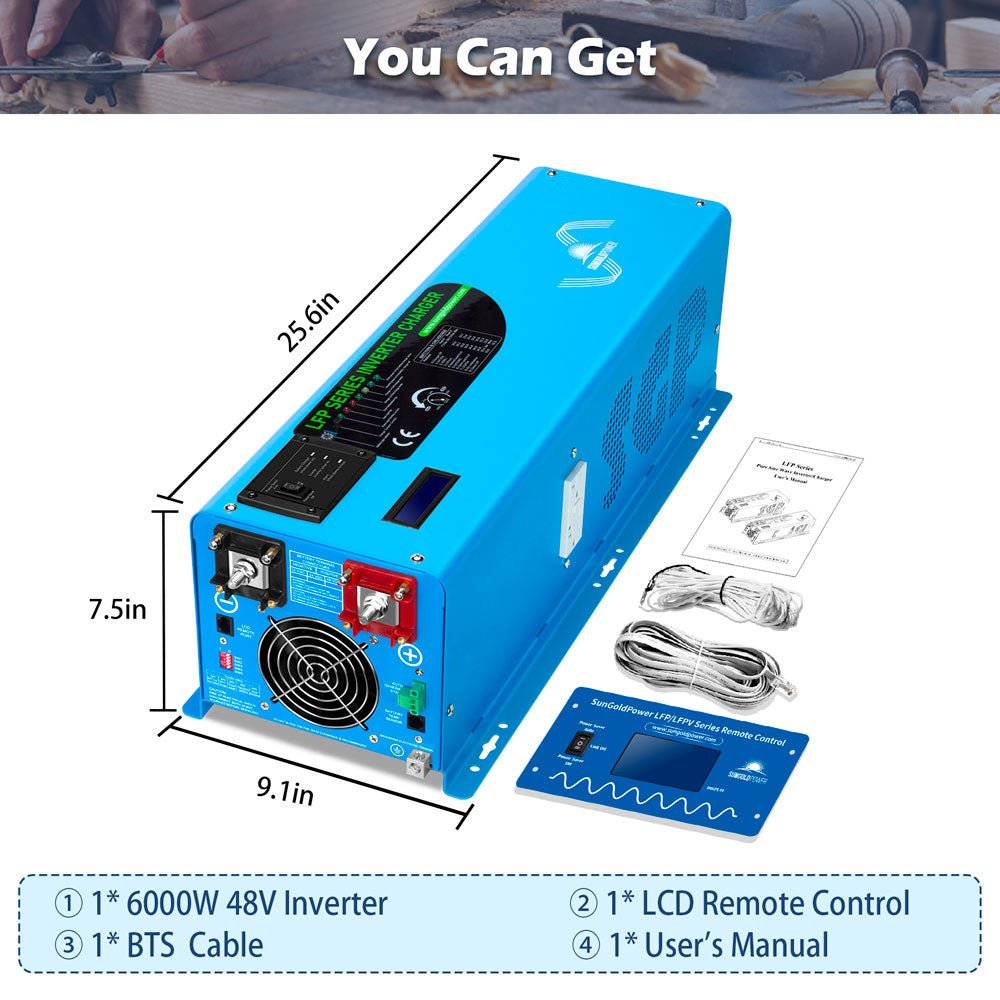

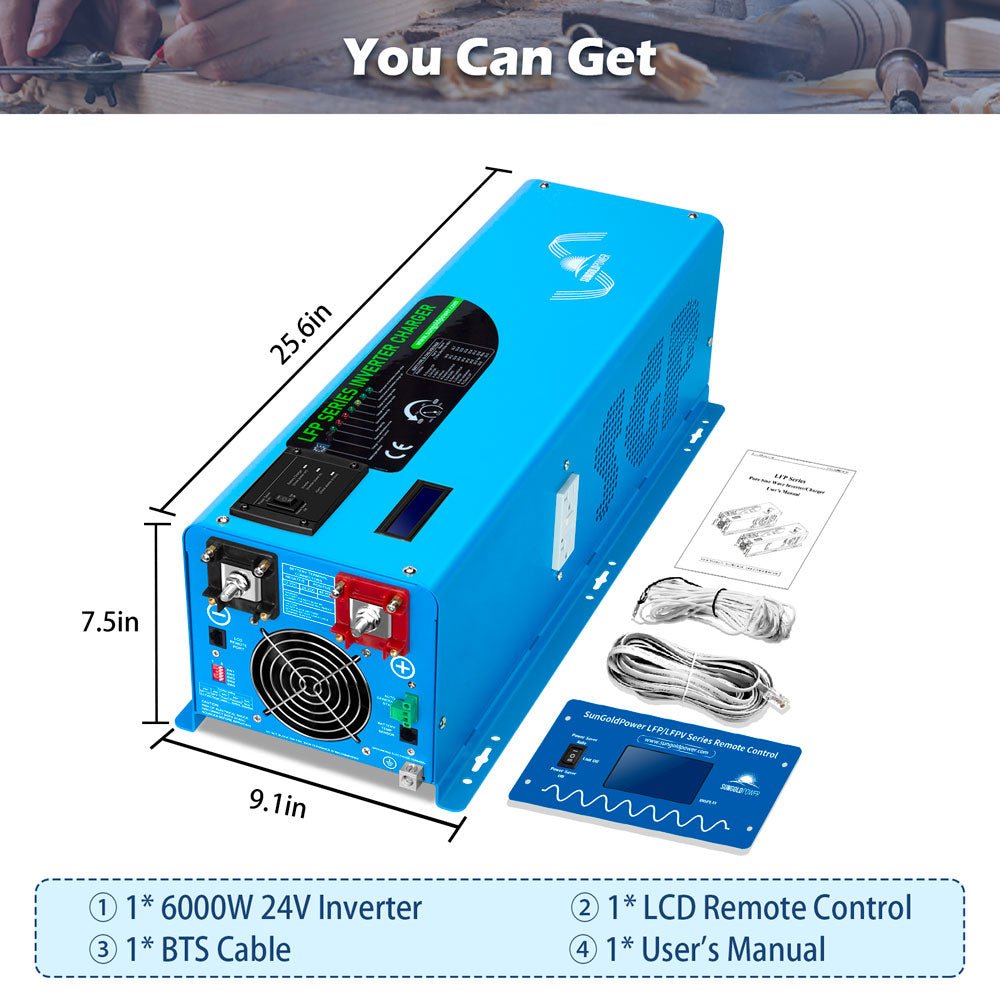

Packaging

• 6000W 24V/48V Low-Frequency Pure Sine Inverter
• Remote Control
• BTS Cable
• English Manual
• Unit Weight: 70LB
• Unit Size: 20 × 10 × 8 inches
• Shipping Weight: 75LB
• Shipping Size: 28 × 14 × 14 inches

FAQ

• Does the inverter automatically switch to generator when the battery is low?
  Yes, the automatic generator start engages when battery voltage drops below the set threshold and shuts off when charging is complete.

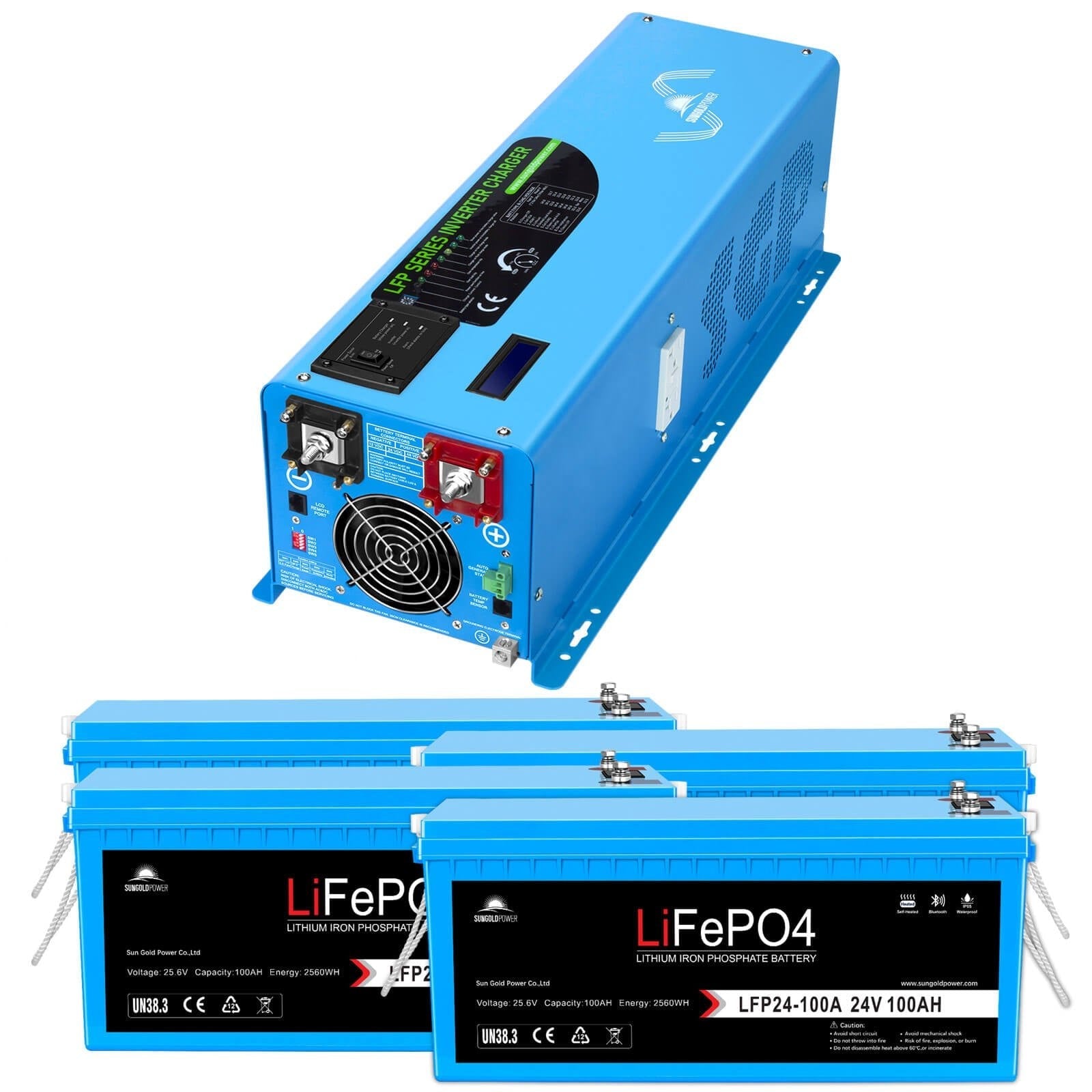

• Can it work with lithium batteries?
  Yes, it works with 24V or 48V lithium batteries; ensure your battery management system is compatible.
• What is the idle power consumption?
  Idle consumption is 48W in normal mode and 19W in power saver mode.
• Is this inverter UL1741 certified?
  Yes, the 6000W 48V model meets the UL1741 standard for safety and compliance.
• Can this inverter be stacked with other inverters on the same grid?
  No, it cannot be stacked or run in parallel with other inverters on the same grid.
