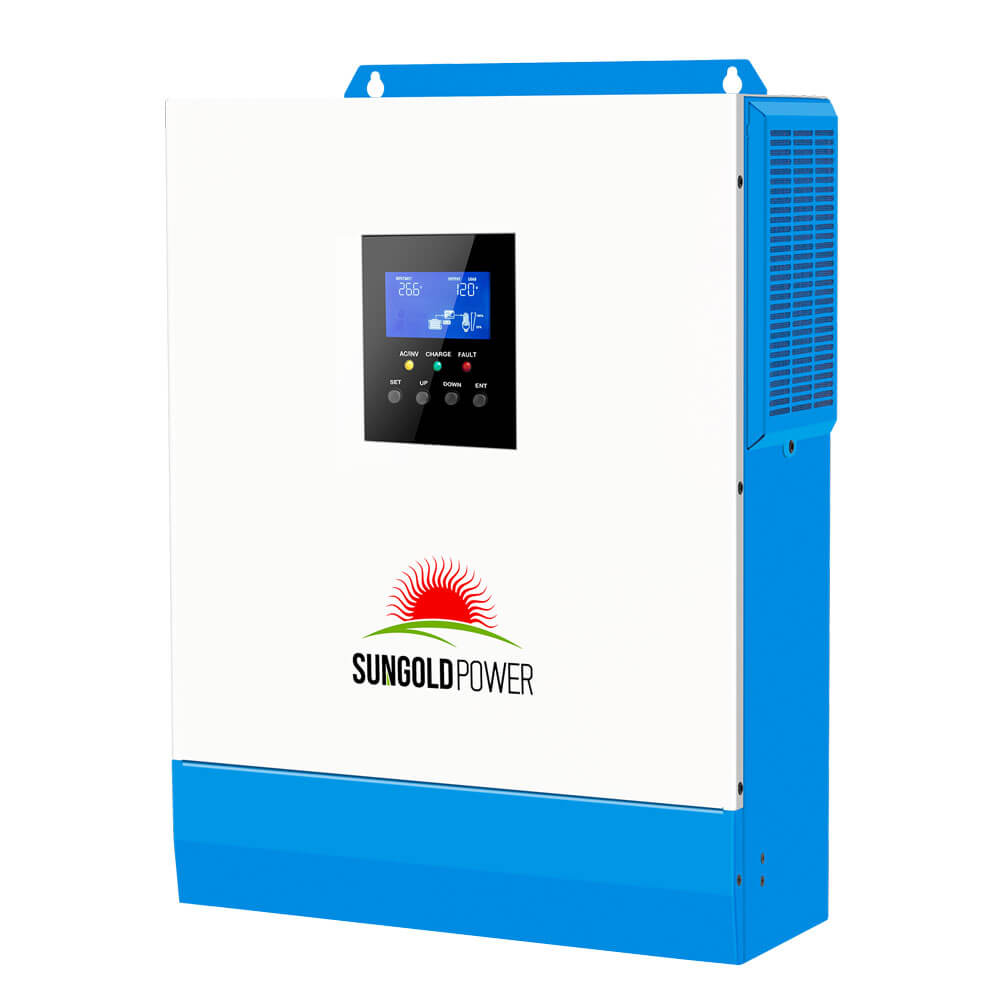

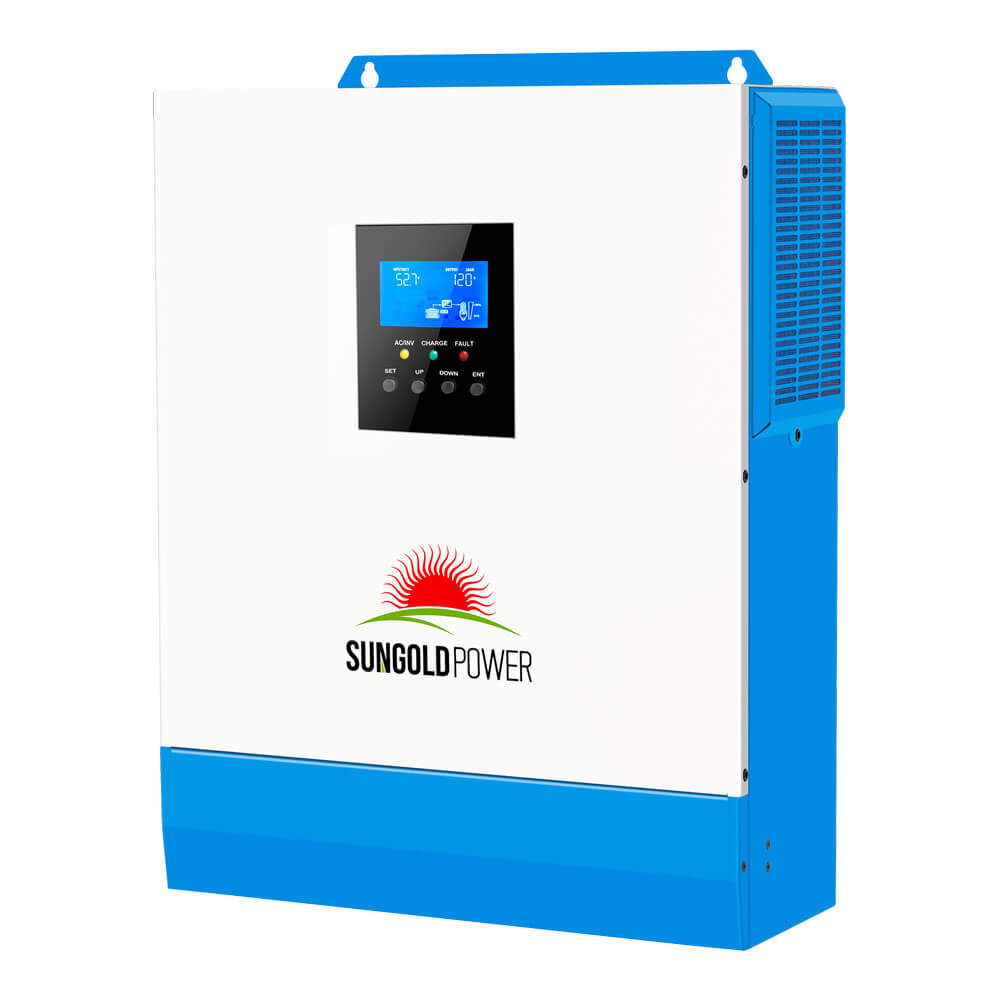

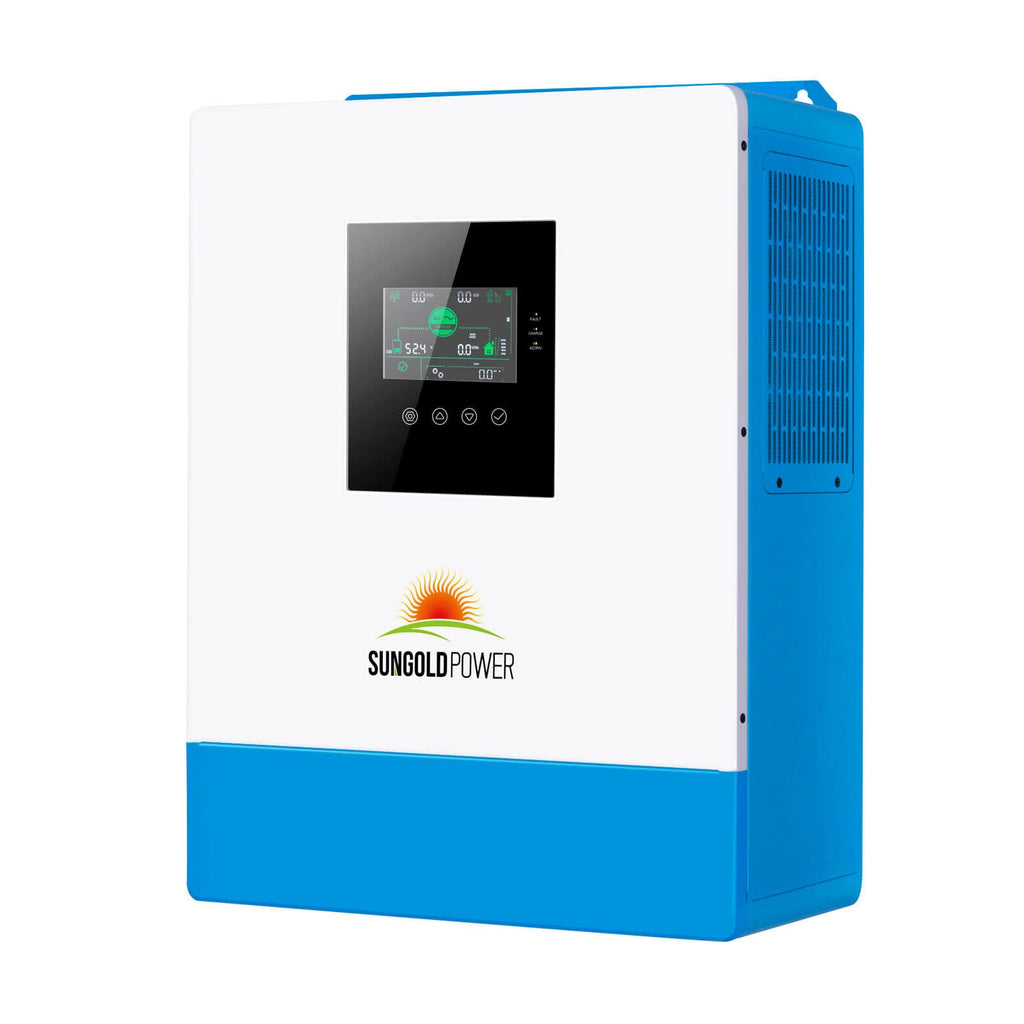

5000W All-in-One Solar Hybrid Inverter with MPPT

Overview

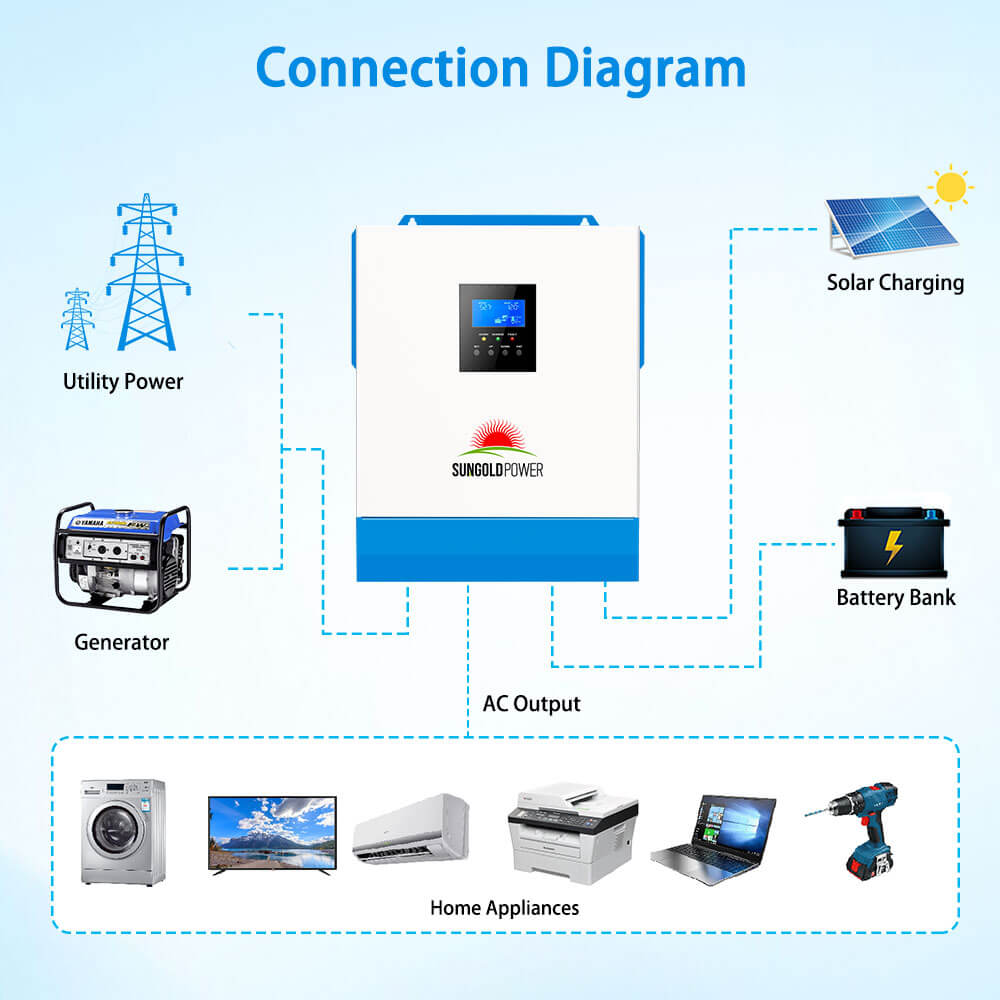

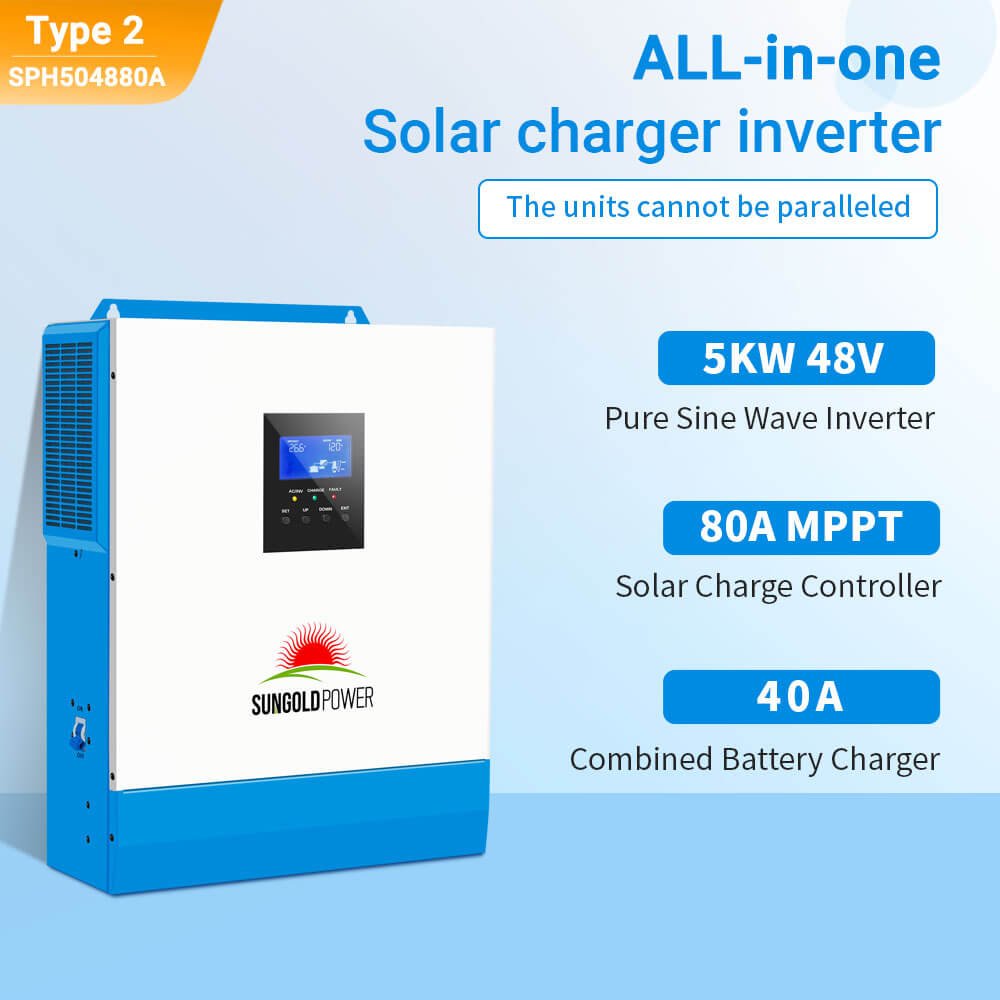

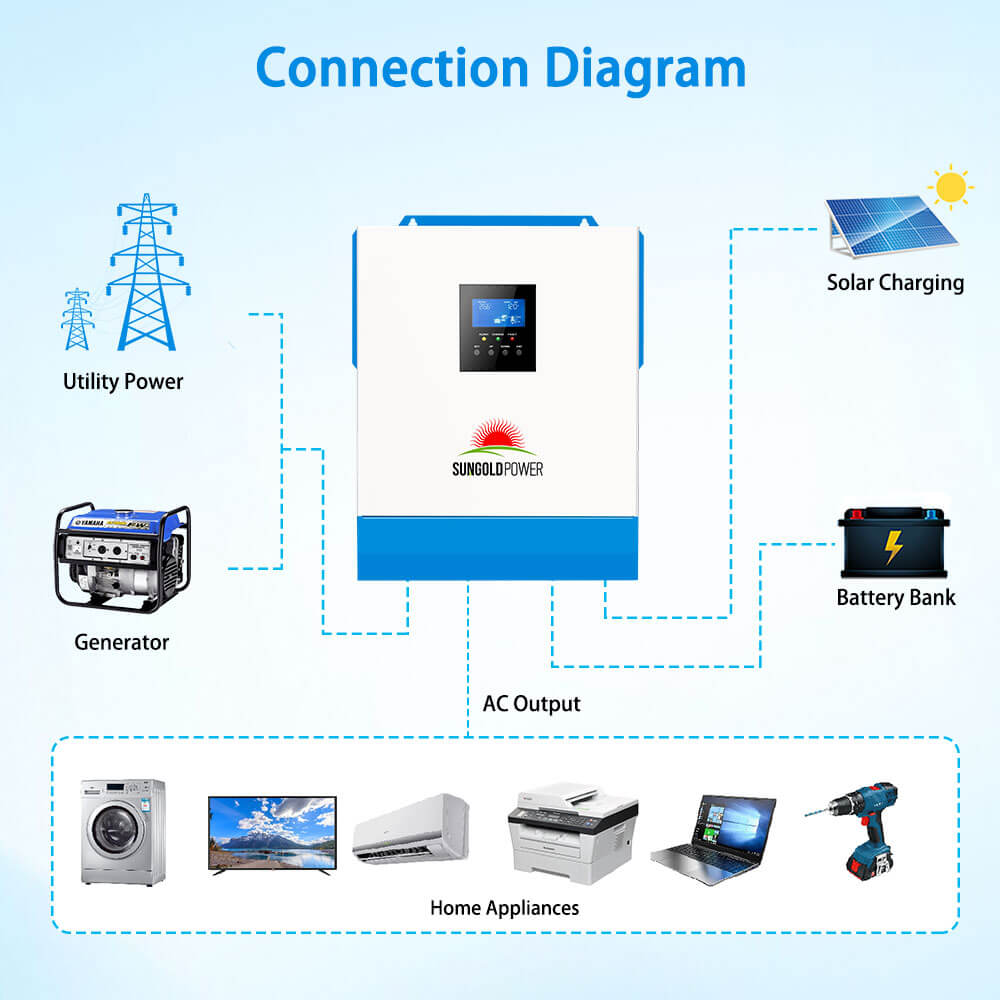

This 5000W Pure Sine Wave Inverter is an all-in-one solar hybrid solution combining high-capacity solar charging (up to 100A MPPT or 80A MPPT) with AC battery charging. Designed to handle both grid-tied and off-grid applications, it provides stable power for all your home and office appliances while offering flexible system expansion with parallel capability.

Benefits

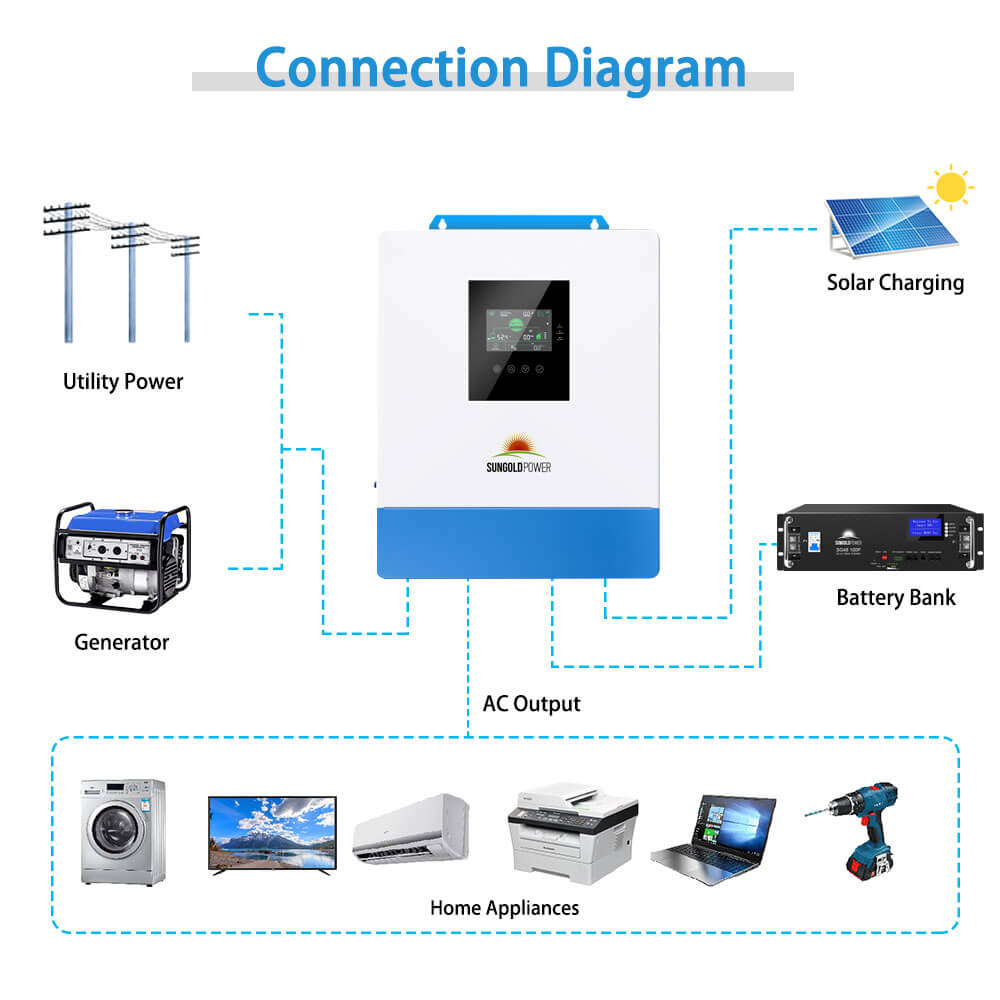

• Reliable, uninterrupted power supply for home or office loads, including refrigerators, computers, ovens, and air conditioners.
• Flexible charging with four modes: AC Priority, Solar Priority, Only Solar, and Hybrid (Mains & Solar).
• Expandable power capacity with the SPH5048P Parallel Kit (up to 6 units for 30kW output).
• Supports virtually all 48V battery types with a user-customizable mode.
• Stable AC output with overload protection ensures safe operation for sensitive devices.

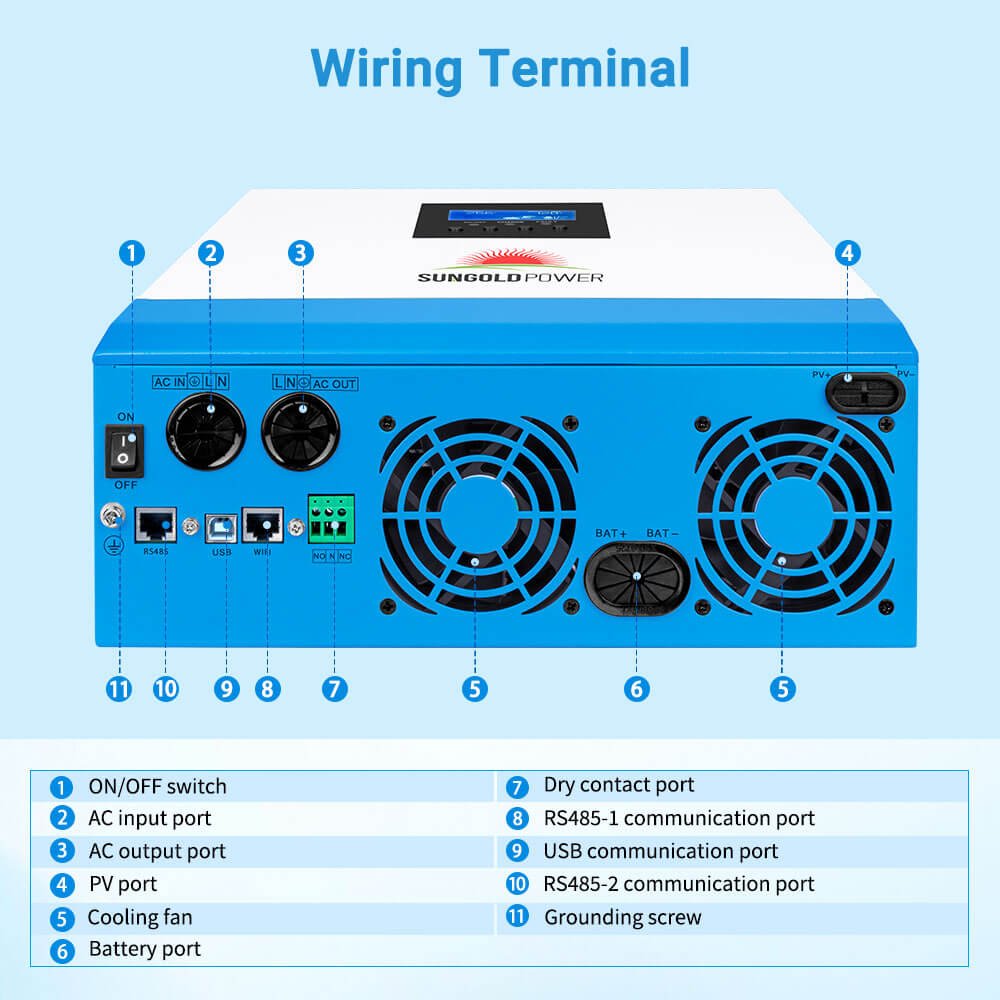

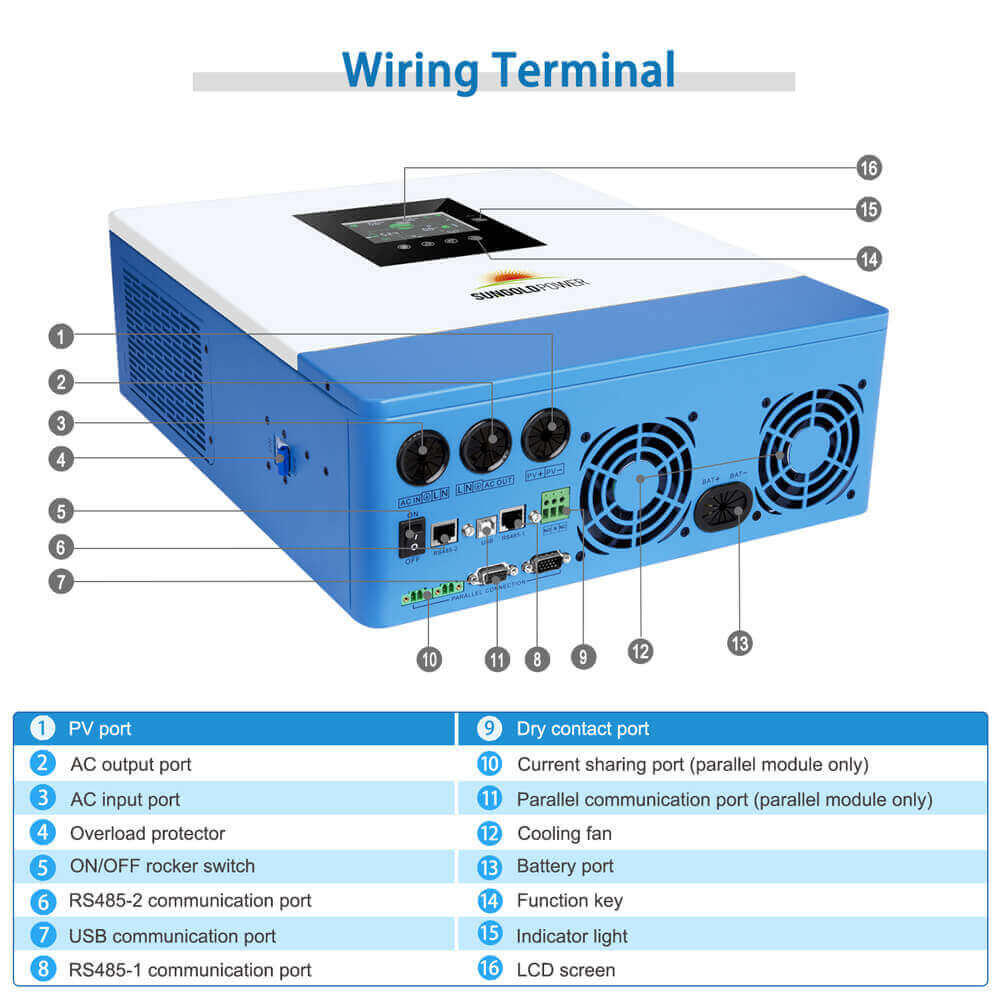

• Smart connectivity via RS485 port for BMS communication and system monitoring.

Features

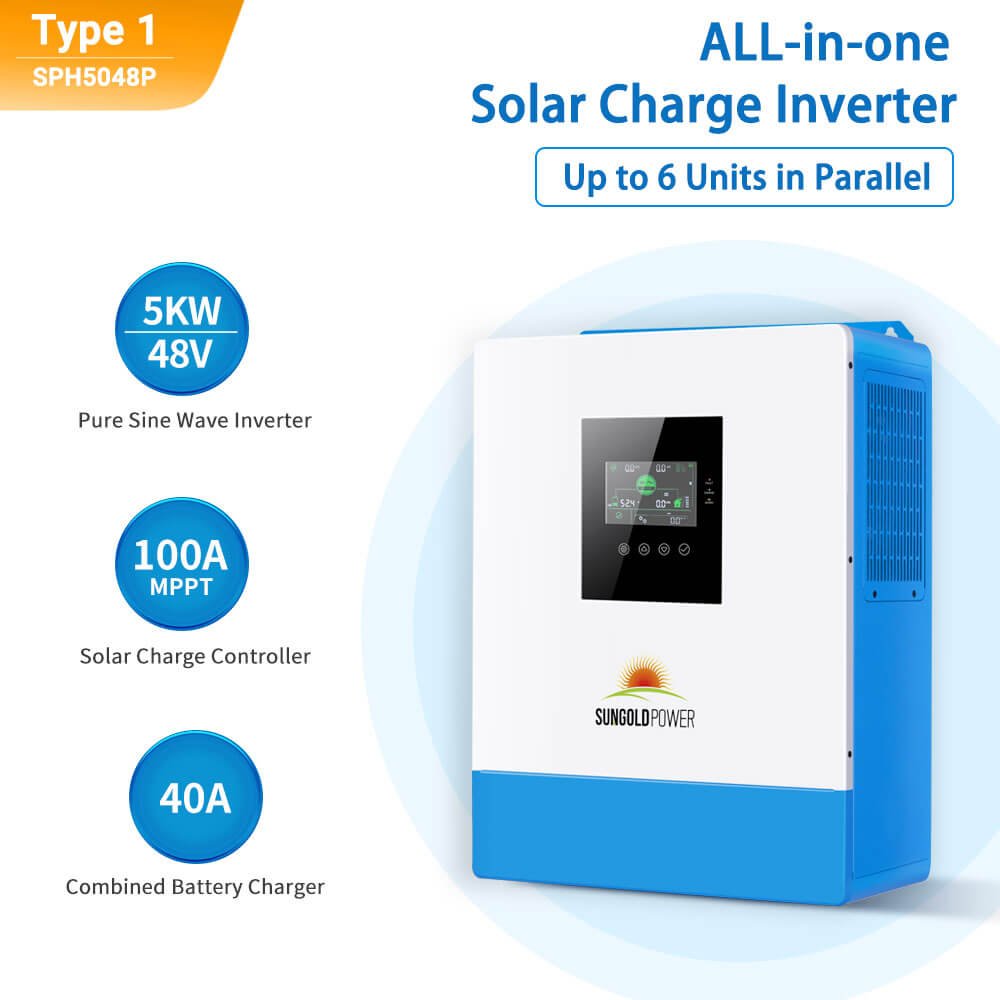

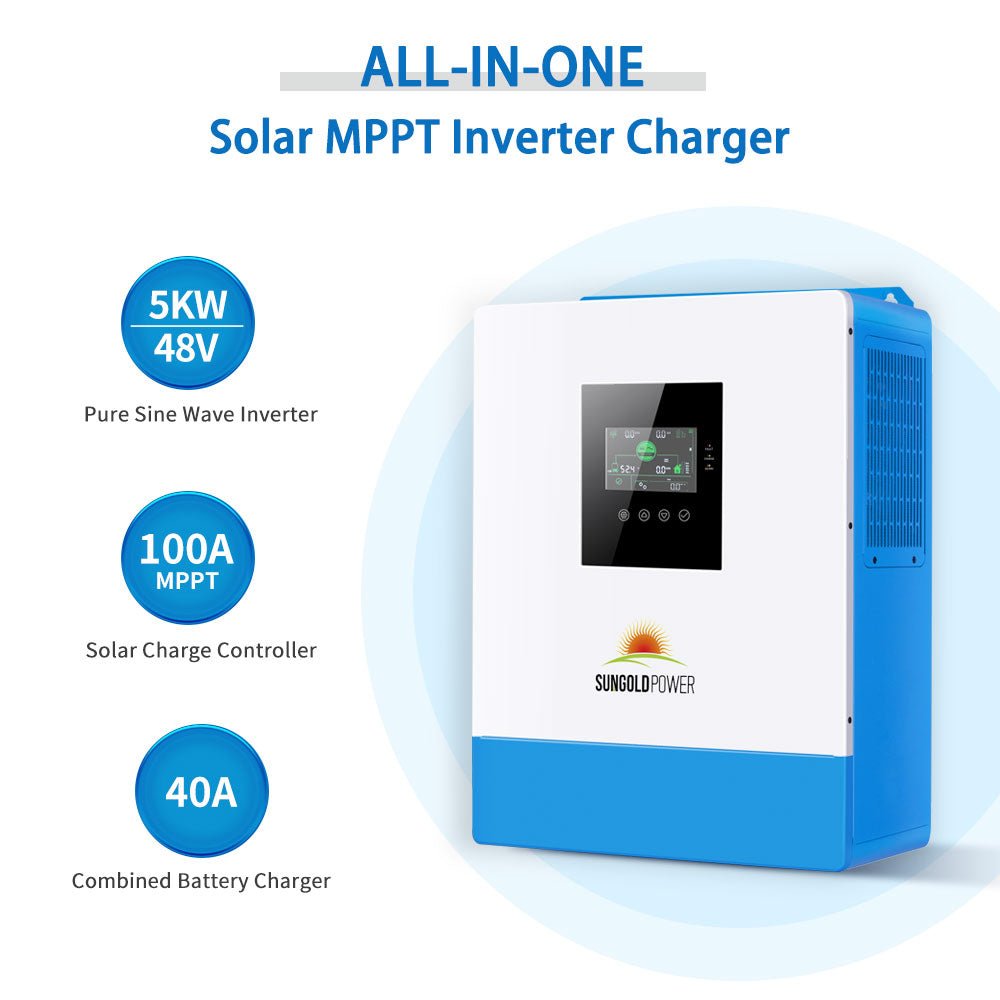

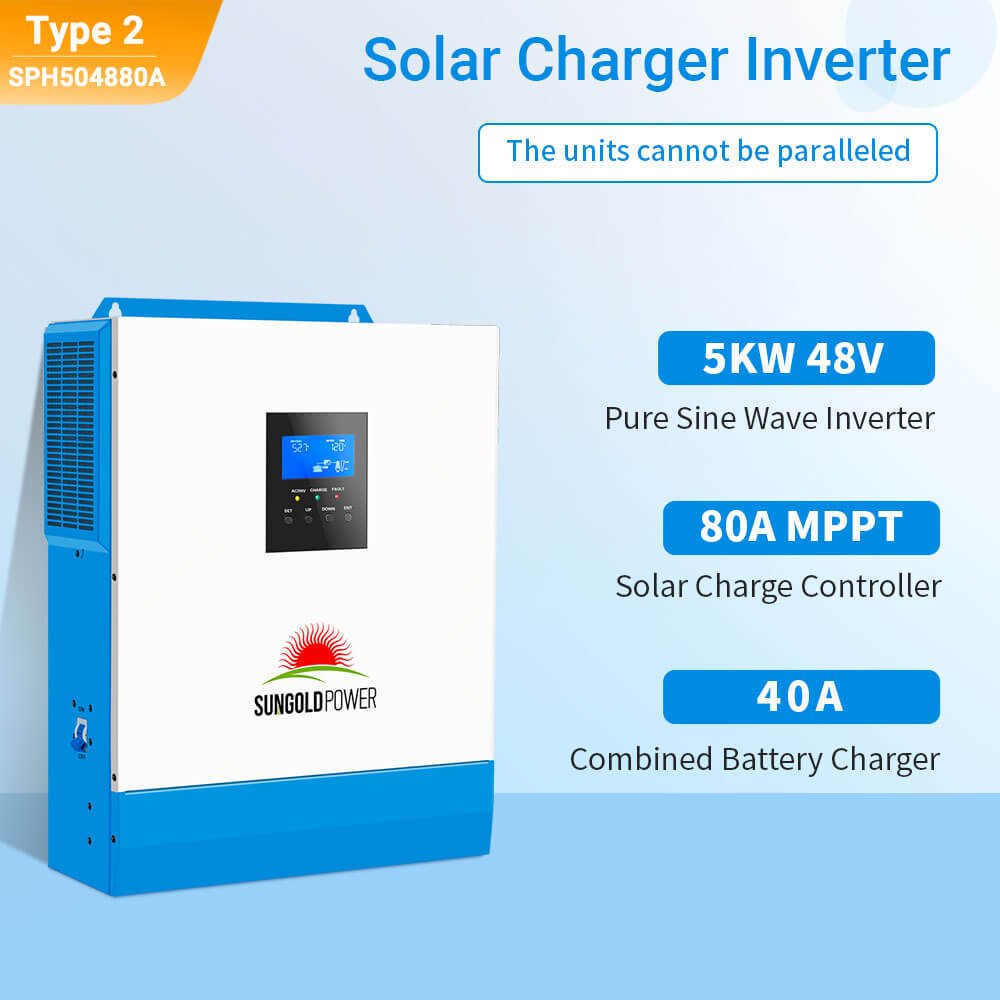

• 5000W Pure Sine Wave Inverter with integrated solar charger (100A or 80A MPPT).

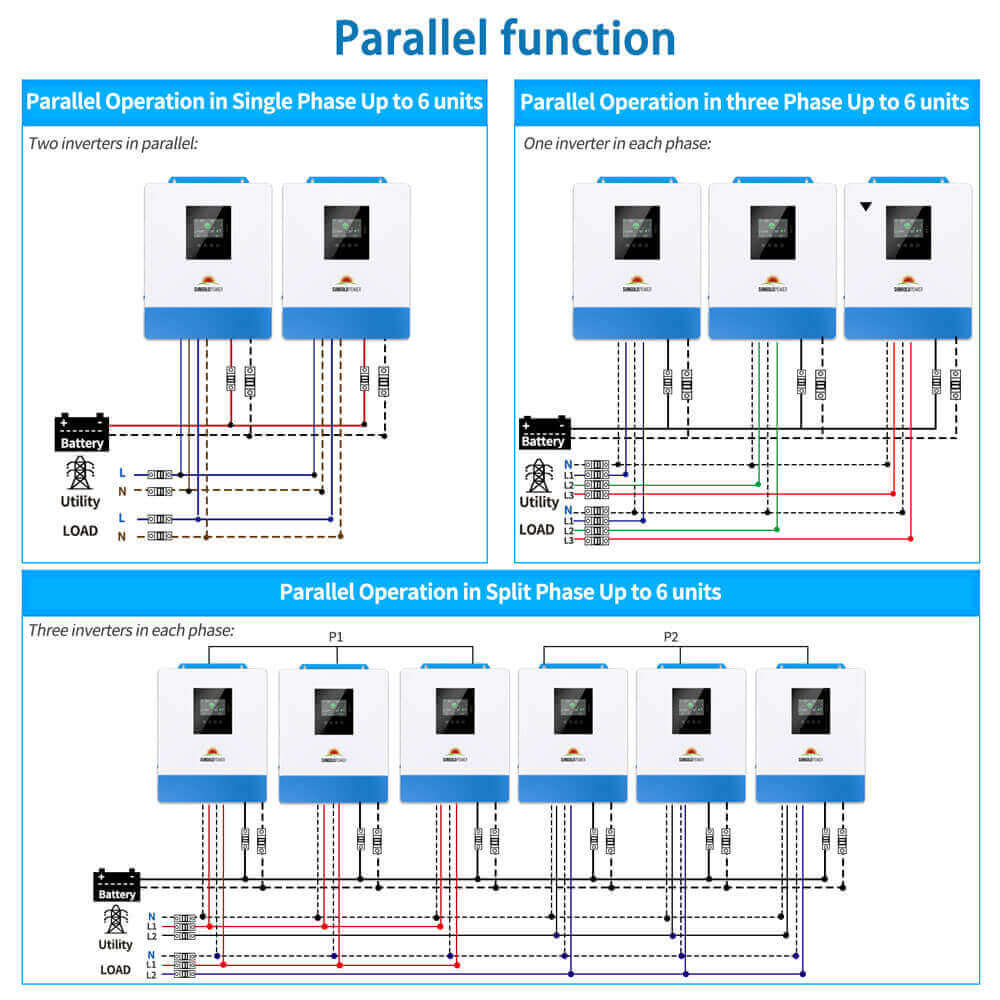

• Parallel Kit support: up to 6 units, enabling 120V single phase, 120V/240V split phase, and 208V 3-phase outputs.

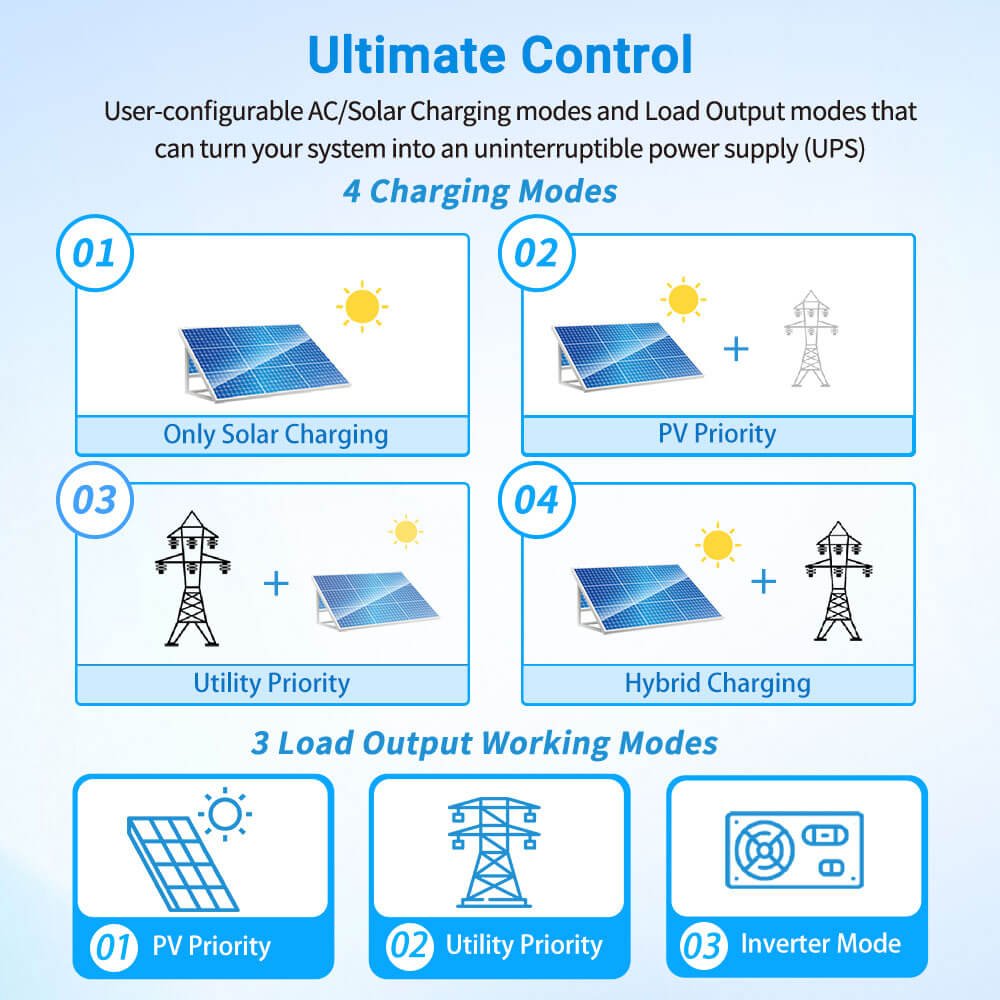

• Four charging modes: AC Priority, Solar Priority, Only Solar, Hybrid.
• Four output modes: PV priority, Utility priority, Inverter priority, Hybrid output.

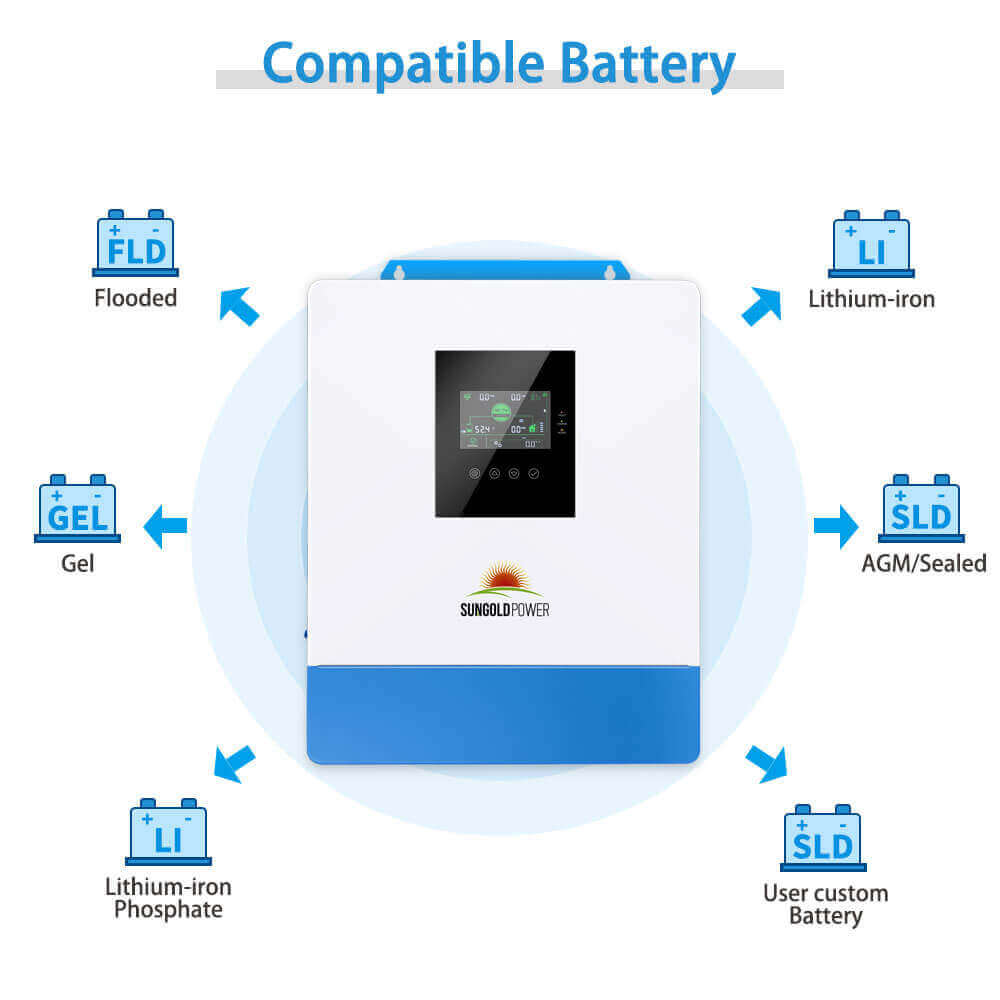

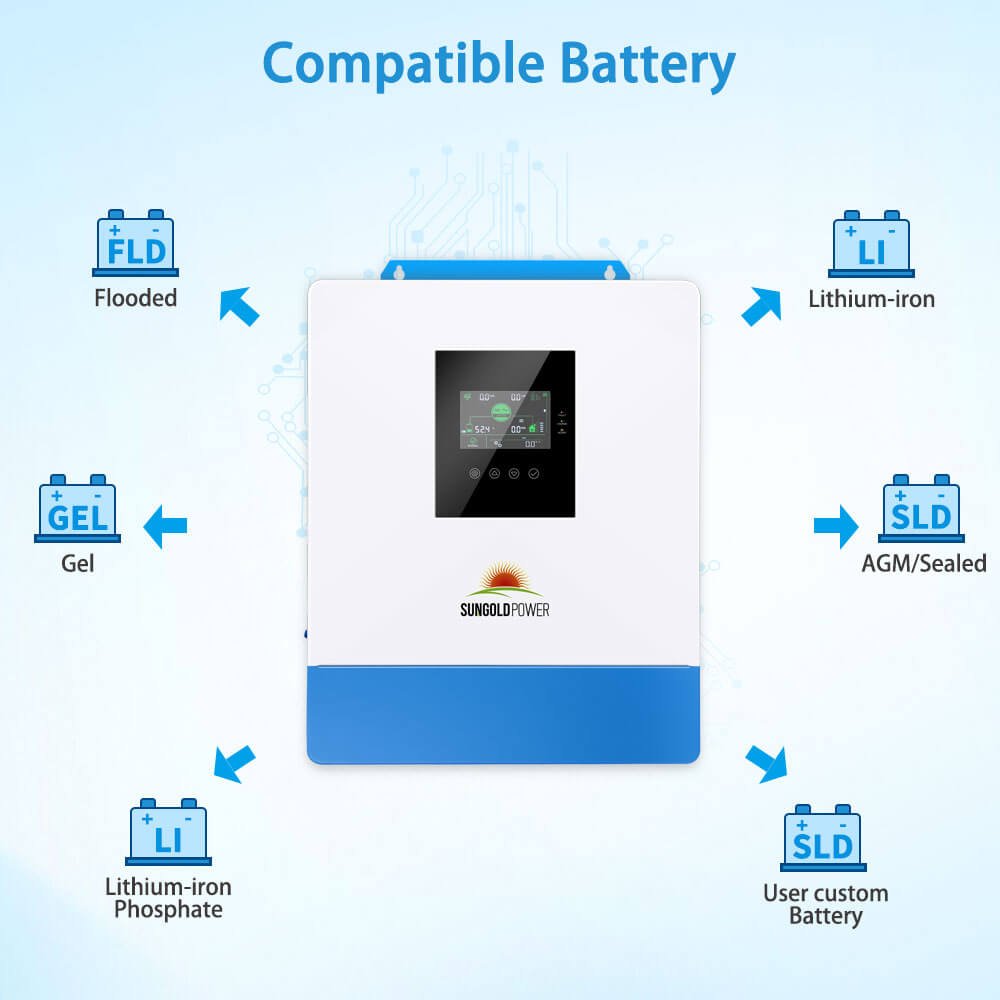

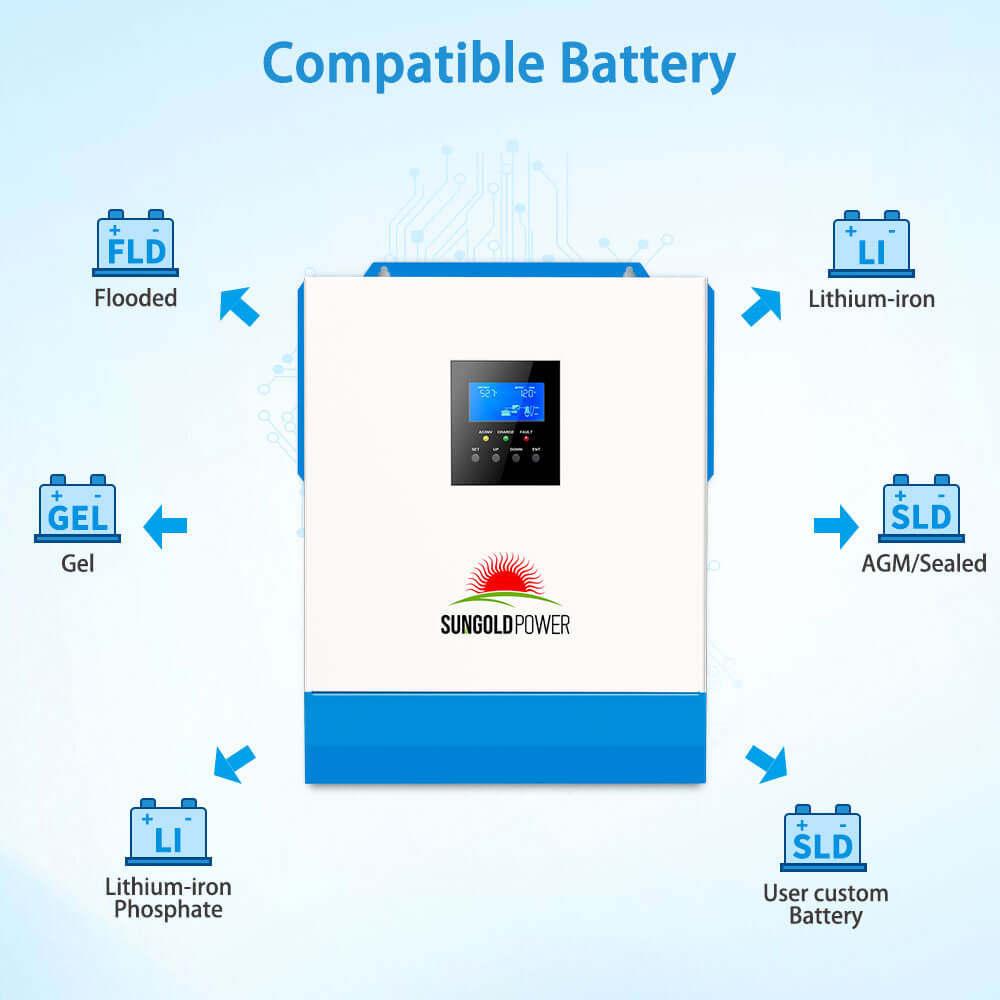

• Battery type compatibility: 48V AGM, Sealed, Gel, Flooded, Lithium, User Mode.
• Battery charging voltage range: 40–60V.
• RS485 port for BMS communication.
• High overload capacity: can handle 4HP motors and heavy appliance loads.

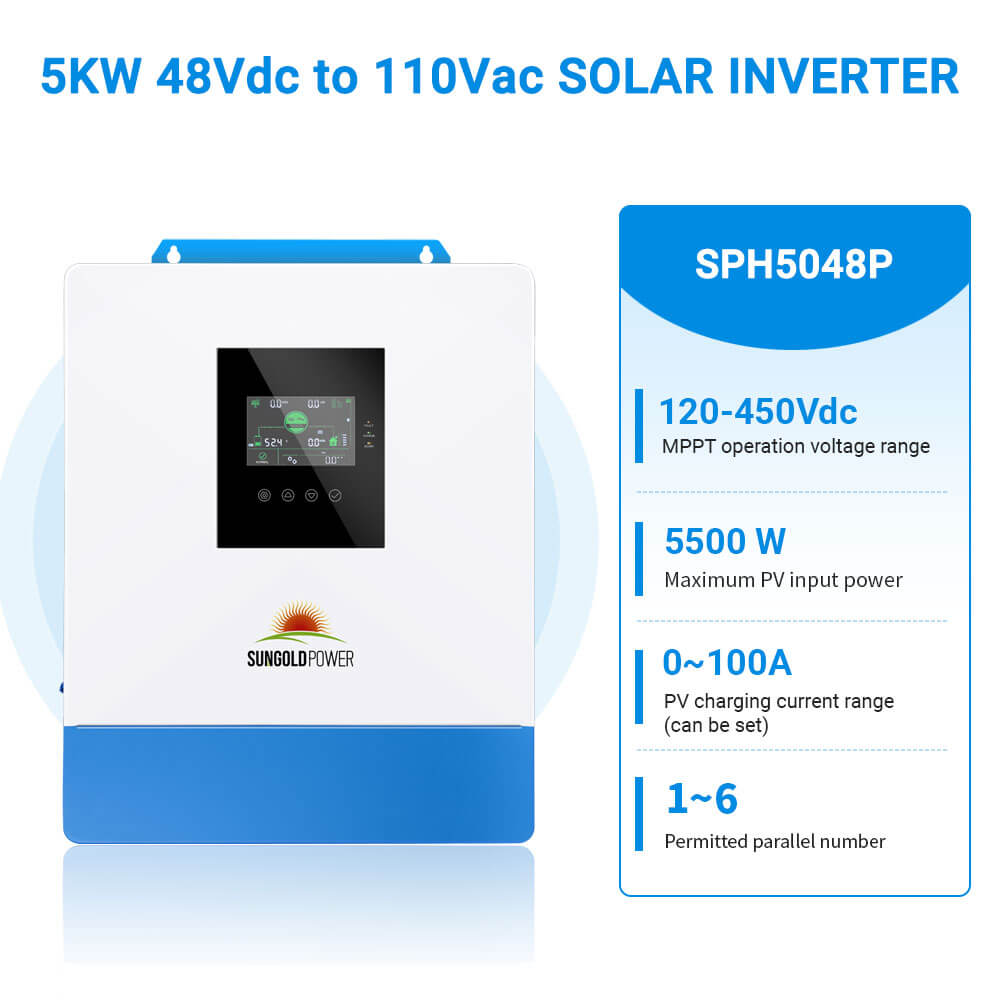

Specifications

• Continuous Output Power: 5000W
• Surge Capacity: Up to 10,000W (depending on load and configuration)
• Output Voltage: 110V AC (single phase), Split Phase 120V/240V, 208V 3-Phase (parallel)
• Output Waveform: Pure Sine Wave
• Transfer Time (UPS mode): < 10ms
• Supported Battery Voltage: 48V

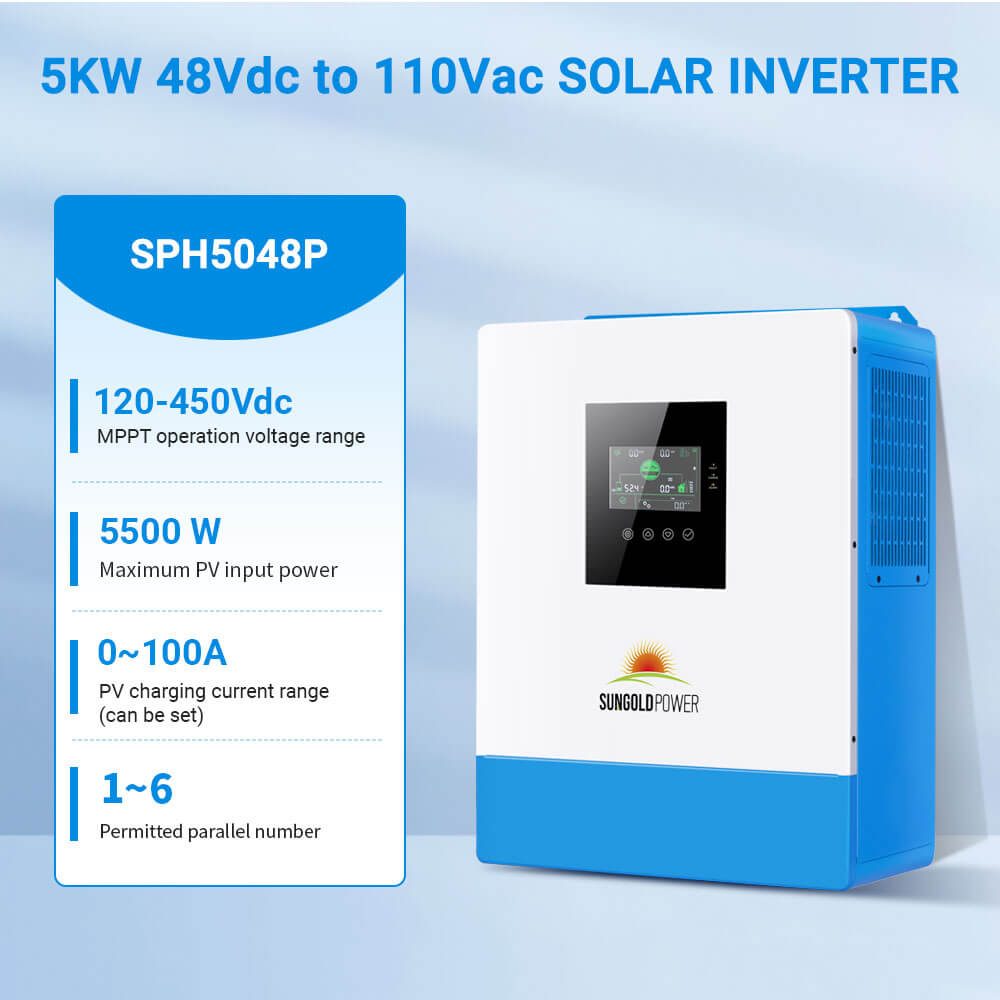

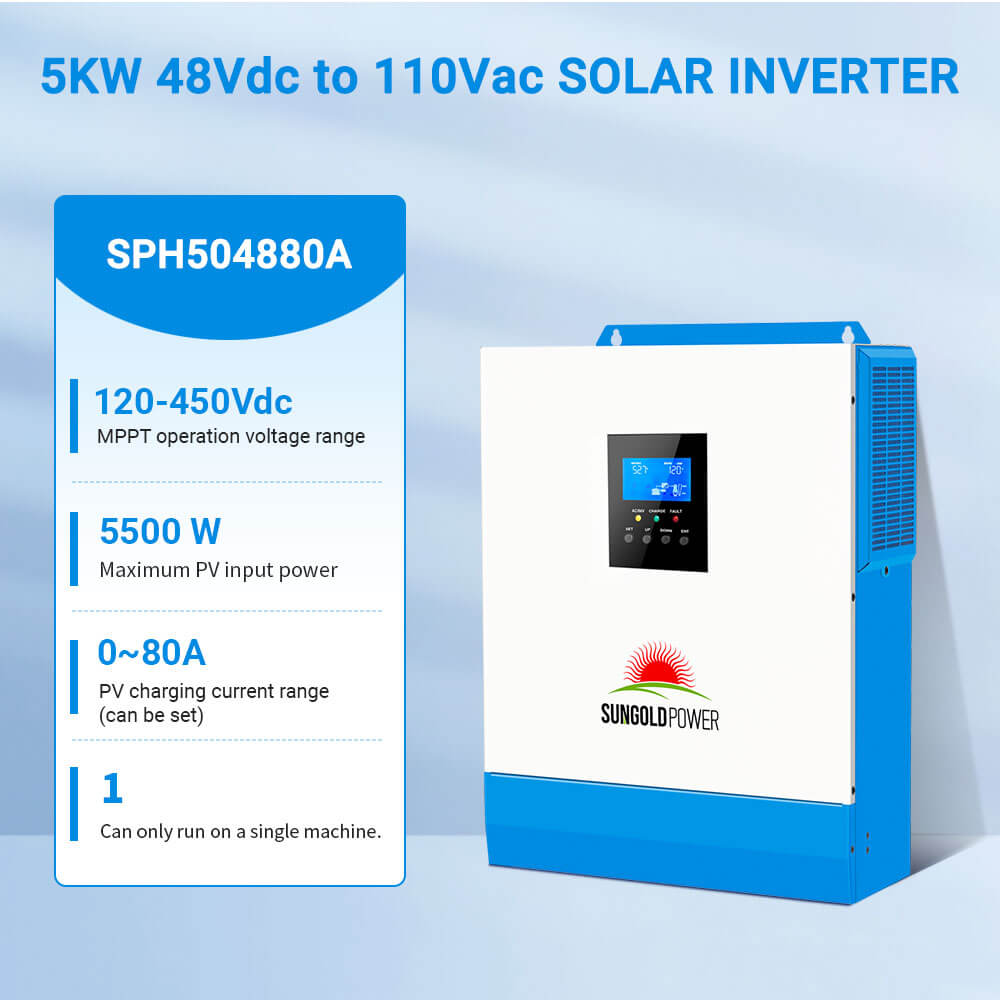

• PV Charging Input: Max 5500W, 500V PV Array
• Battery Types: AGM, Sealed, Gel, Flooded, Lithium, Custom User Mode
• Communication: RS485 for BMS

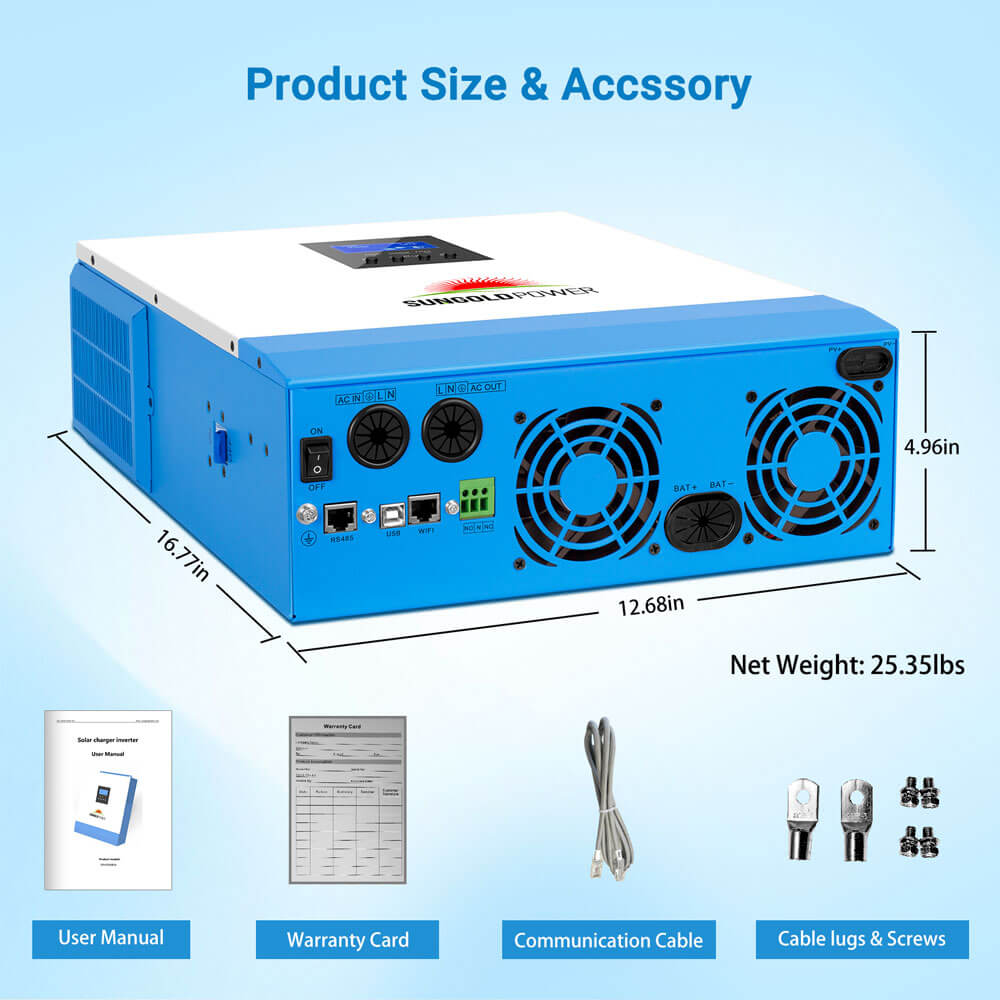

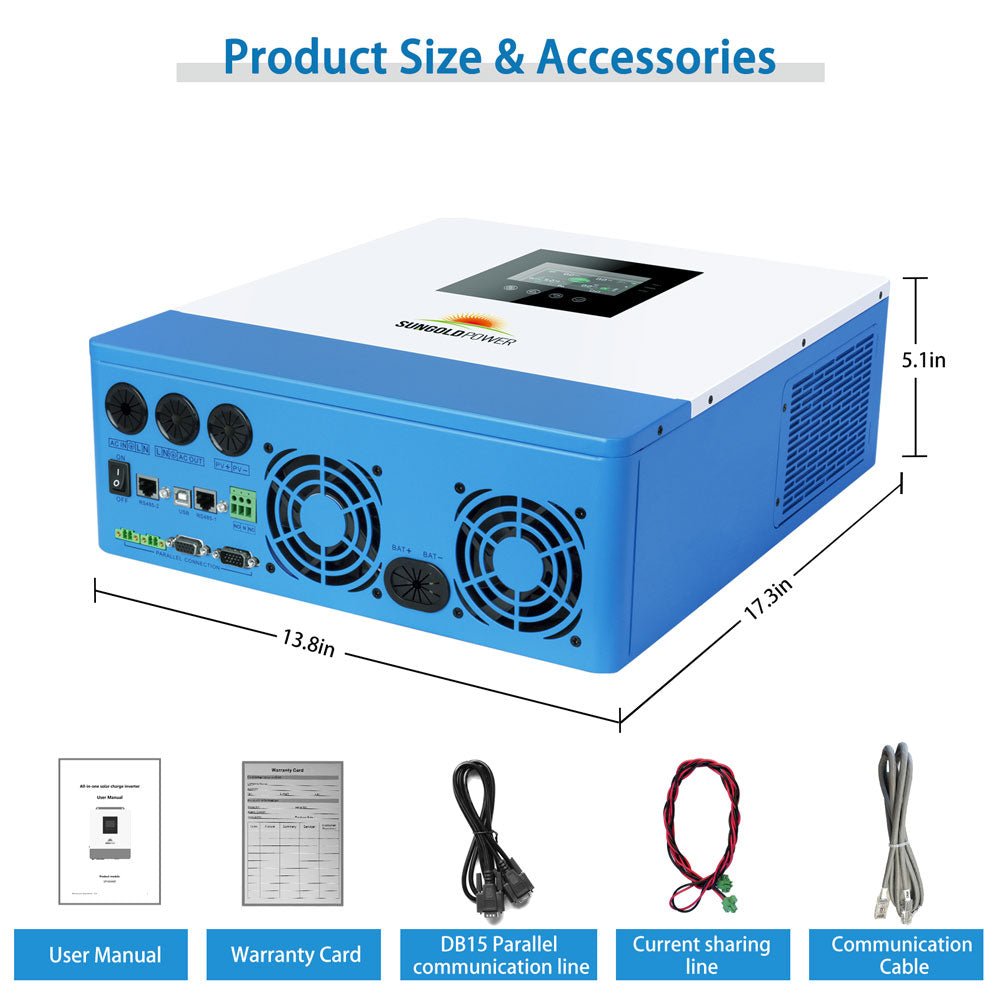

Packaging

• 5000W Solar Hybrid Inverter
• MPPT Solar Controller (100A or 80A)
• Parallel Kit Option (sold separately)
• Remote Control
• User Manual and Installation Guide
