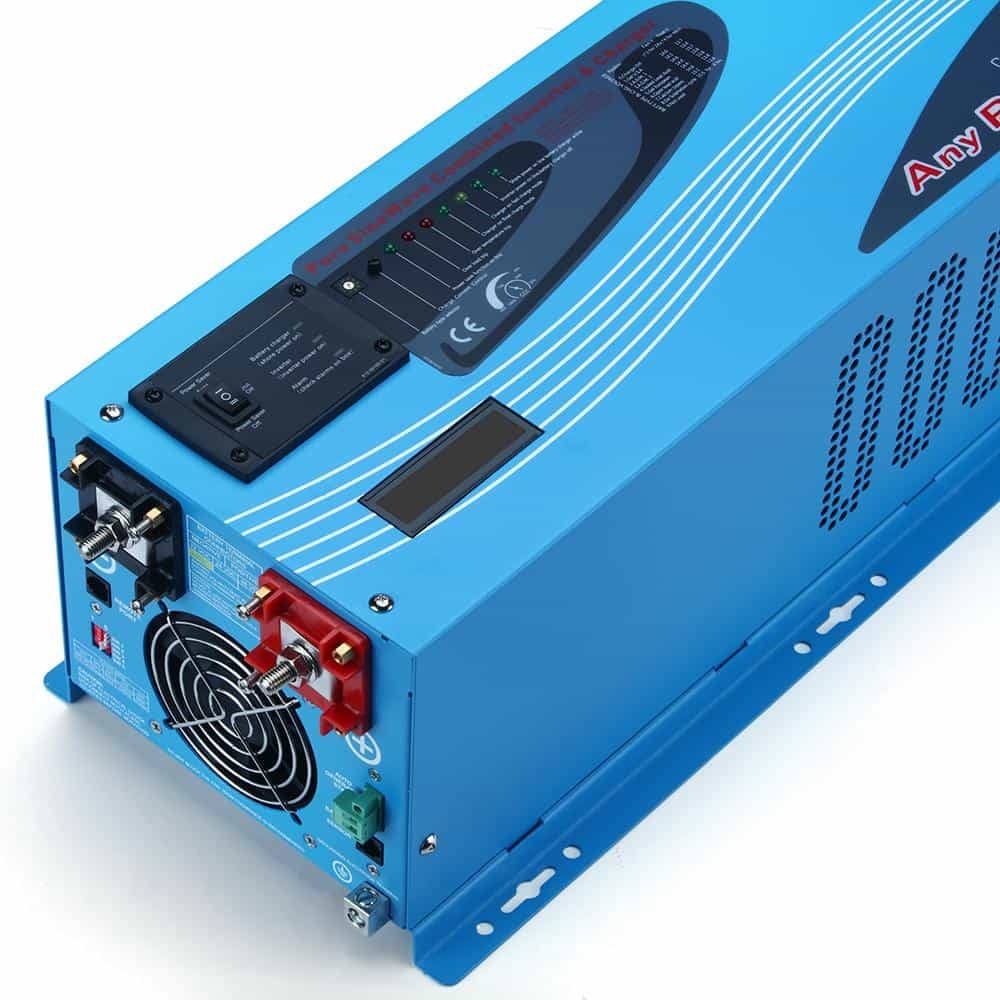

LFP Series 2000W 12V Pure Sine Wave Inverter with Charger

Overview

The LFP Series 2000W Pure Sine Wave Inverter combines a reliable inverter, AC charger, and auto-transfer switch into one efficient system. With low-frequency design and low idle current, it ensures steady 120VAC power for all your appliances while offering remote control and smart functionality.

Benefits

• Keep household appliances running smoothly with stable 120V power.
• Automatic AC/Battery priority ensures uninterrupted power supply.
• Remote control access allows convenient monitoring and operation.
• Adjustable charging current provides flexible battery management.
• Automatic generator start prevents downtime when battery voltage is low.

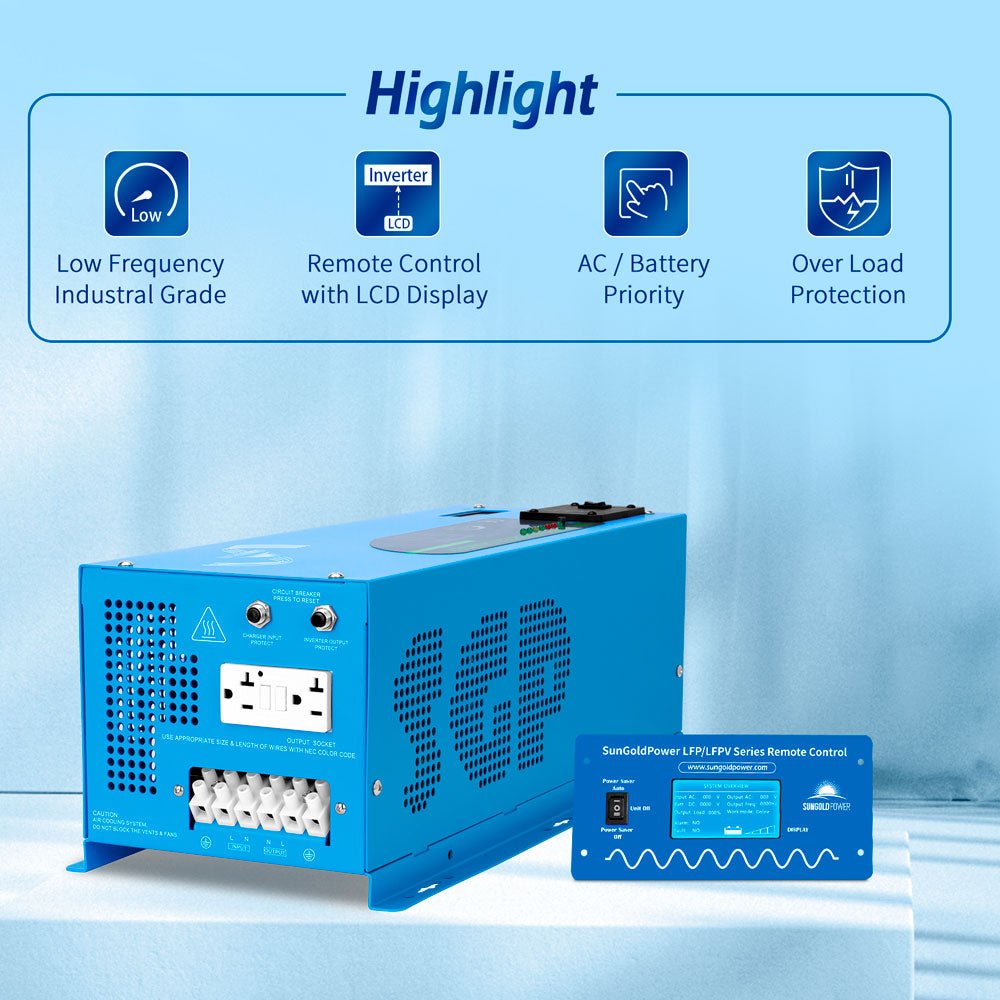

Features

• 2000W Low-Frequency Pure Sine Inverter with integrated charger.
• AC/Battery Priority Selector for flexible energy management.
• Automatic Generator Start for seamless backup operation.
• GFCI socket for safety and convenience.
• Supports all kinds of household appliances.
• LCD display, remote control, and BTS cable included.
• Low idle consumption to save energy.

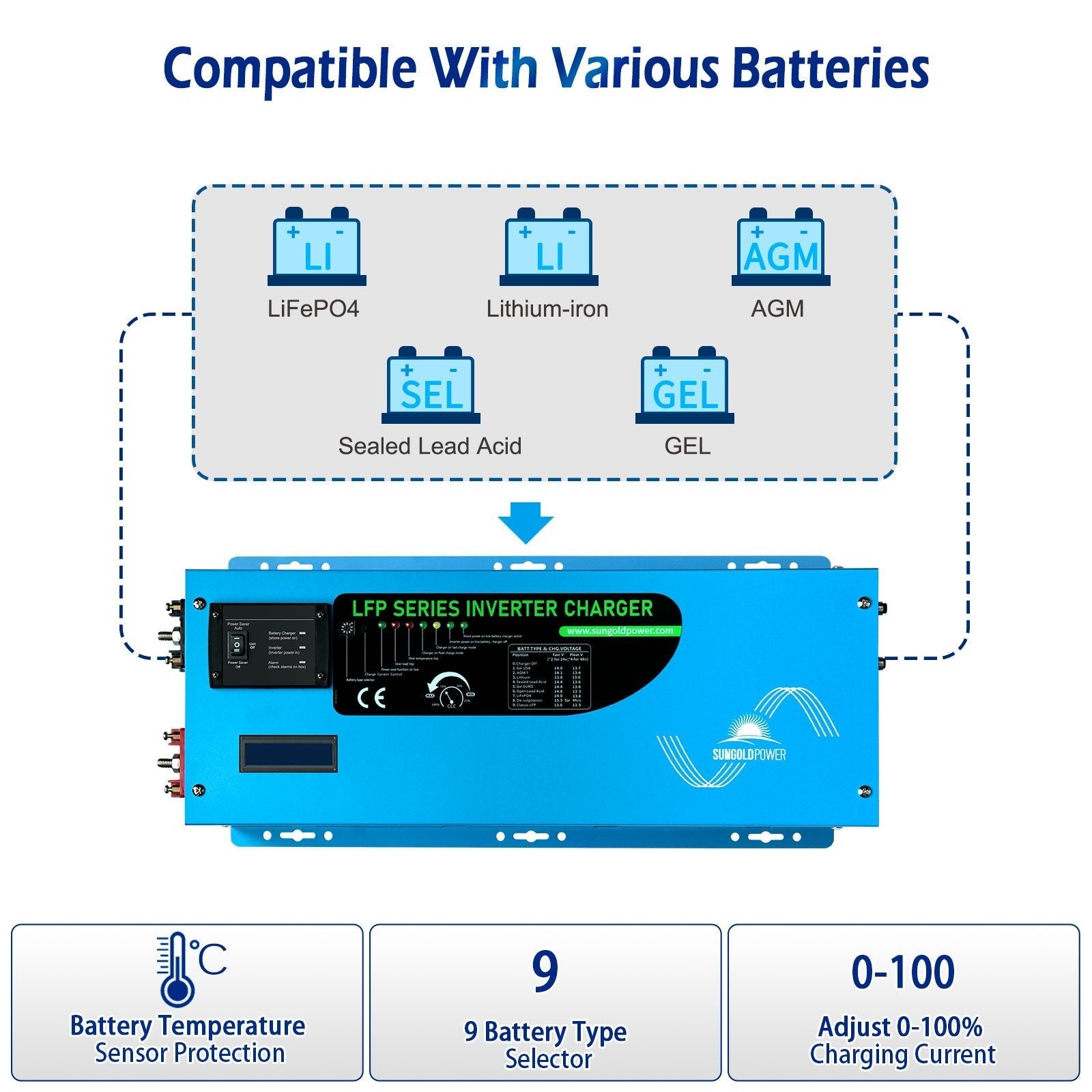

• 7 battery type settings for customized charging.
• Multi-stage smart charger with 70±5A output, can be disabled.
• 10ms typical transfer time ensures quick switching.

Specifications

Inverter Output

• Continuous Output Power: 2000W
• Surge Rating: 6000W (20 Seconds)
• Output Voltage: 120VAC, 60Hz
• Output Waveform: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%

DC Input

• Nominal Input Voltage: 12Vdc
• Minimum Start Voltage: 10Vdc
• Low Battery Alarm: 10.5–11.0Vdc
• Low Battery Trip: 10–10.5Vdc (selectable via SW1)
• High Voltage Alarm: 16Vdc
• Low Battery Voltage Restart: 13Vdc
• Idle Consumption: 25W
• Power Saver Mode Idle Consumption: 12W

AC Charger

• Charger Rate: 70±5A
• AC Input Range (Grid or Generator): 90–135VAC / 100–135VAC (selectable via SW2)
• Overcharge Protection Shutdown: 15.7V
• Selectable Charge Setting: 0–100% adjustable
• 3-step intelligent battery charger

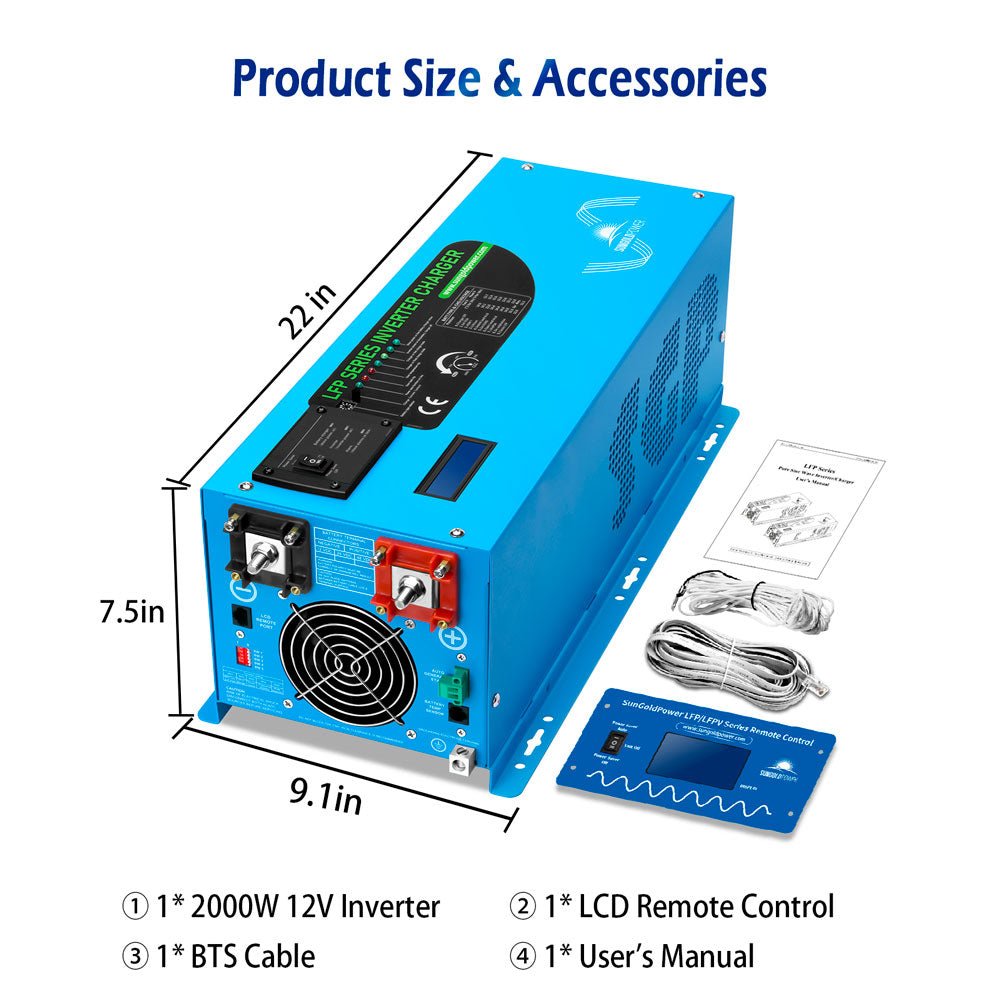

Packaging

• 2000W 12V Low-Frequency Pure Sine Inverter
• English Manual
• Remote Control
• BTS Cable
• Unit Weight: 53LB
• Unit Size: 17.4 × 9.5 × 7.8 inch
• Shipping Weight: 57LB
• Shipping Size: 23 × 12.6 × 12.0 inch

FAQ

• What is the standby/idle current draw on 12V?
  2A in normal mode, 12W in power saver mode.
• What gauge wire should be used for the chassis ground?
  AWG 1/0 wire is recommended.
• In battery priority mode, does it switch to AC/charger when battery is depleted?
  Yes, it switches to AC/charger and returns to battery/inverter mode once charged.
