Rich Solar Rich Solar MEGA Series Tilt Mount Easy Roof Installation

Adjustable Rooftop Tilt Bracket for Solar Panels

Overview

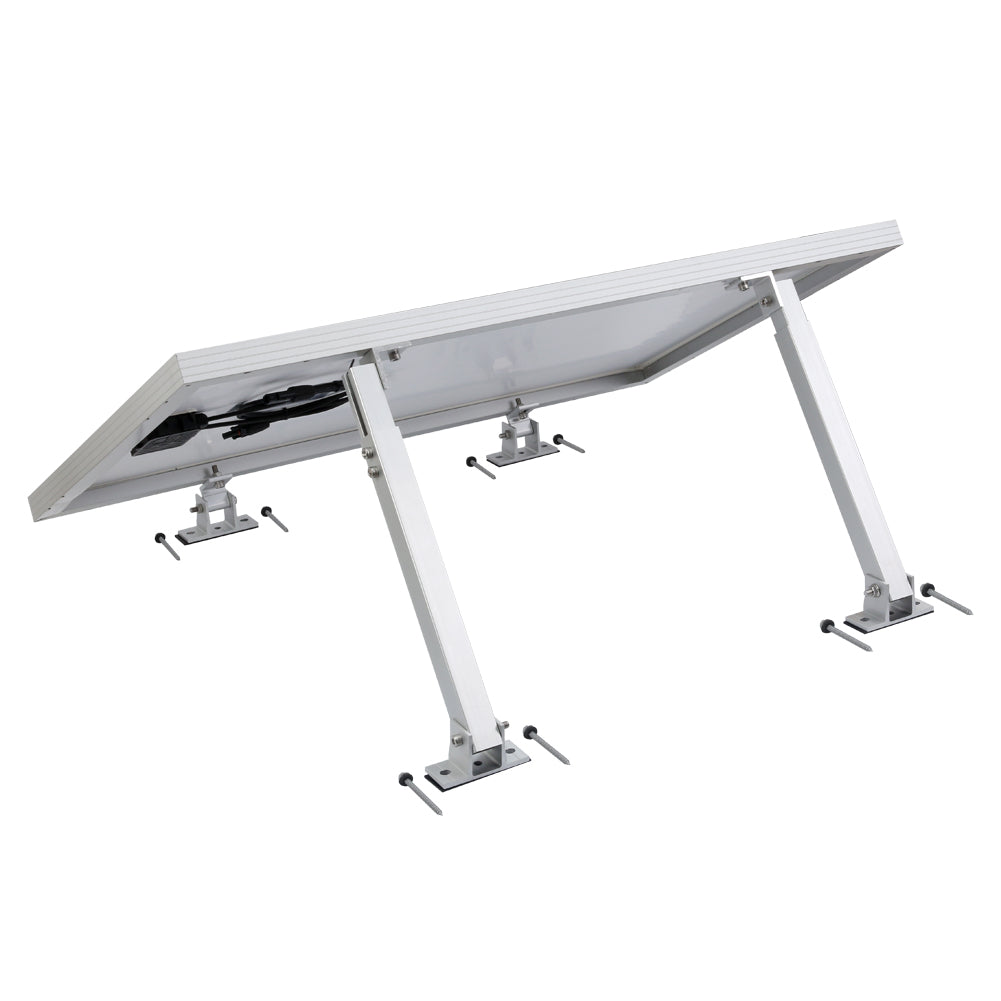

A lightweight, aluminum alloy bracket that positions solar panels at an optimized angle on flat roofs and other flat surfaces. It’s built for straightforward installation and configurable tilt settings so you can improve panel exposure without complicated mounting hardware.

Benefits

• Improve energy yield by angling panels toward the sun for better daily production.
• Save time during installation with simple mounting steps and included hardware.
• Reduce roof load and handling effort thanks to a lightweight aluminum design.
• Flexible tilt options let you adapt to different seasons or panel sizes without swapping brackets.

Features

• Designed specifically for flat surfaces and flat rooftop installations.
• Adjustable tilt settings to suit different panel sizes and site conditions.
• Quick, straightforward installation with standard tools.
• Corrosion-resistant aluminum alloy construction with anodized finish.

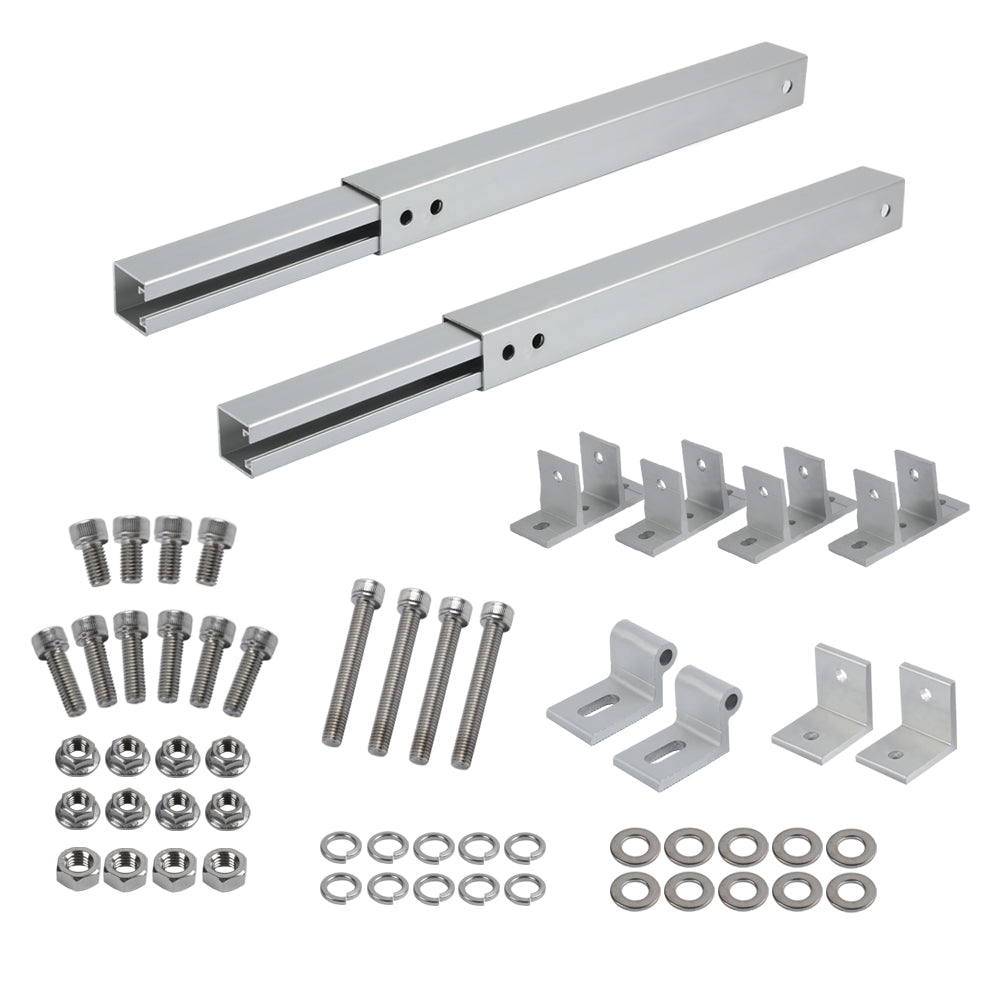

• Supplied with stainless steel fasteners for secure attachment.

Specifications

• Material: Aluminum alloy (6061-T6), anodized finish
• Weight: 1.2 kg per bracket (approx.)
• Tilt angles: selectable 15°, 25°, 35° (maximum depends on panel size)
• Compatible panel sizes: typical 60–72 cell panels (up to 1700 x 1030 mm)
• Base footprint: 300 mm × 120 mm
• Fasteners: M8 stainless steel bolts and washers included
• Estimated install time: ~15 minutes per bracket with two people
• Operating temperature range: -40 °C to 85 °C
