Rich Solar Renogy 500A Battery Monitor with Shunt Easy Installation

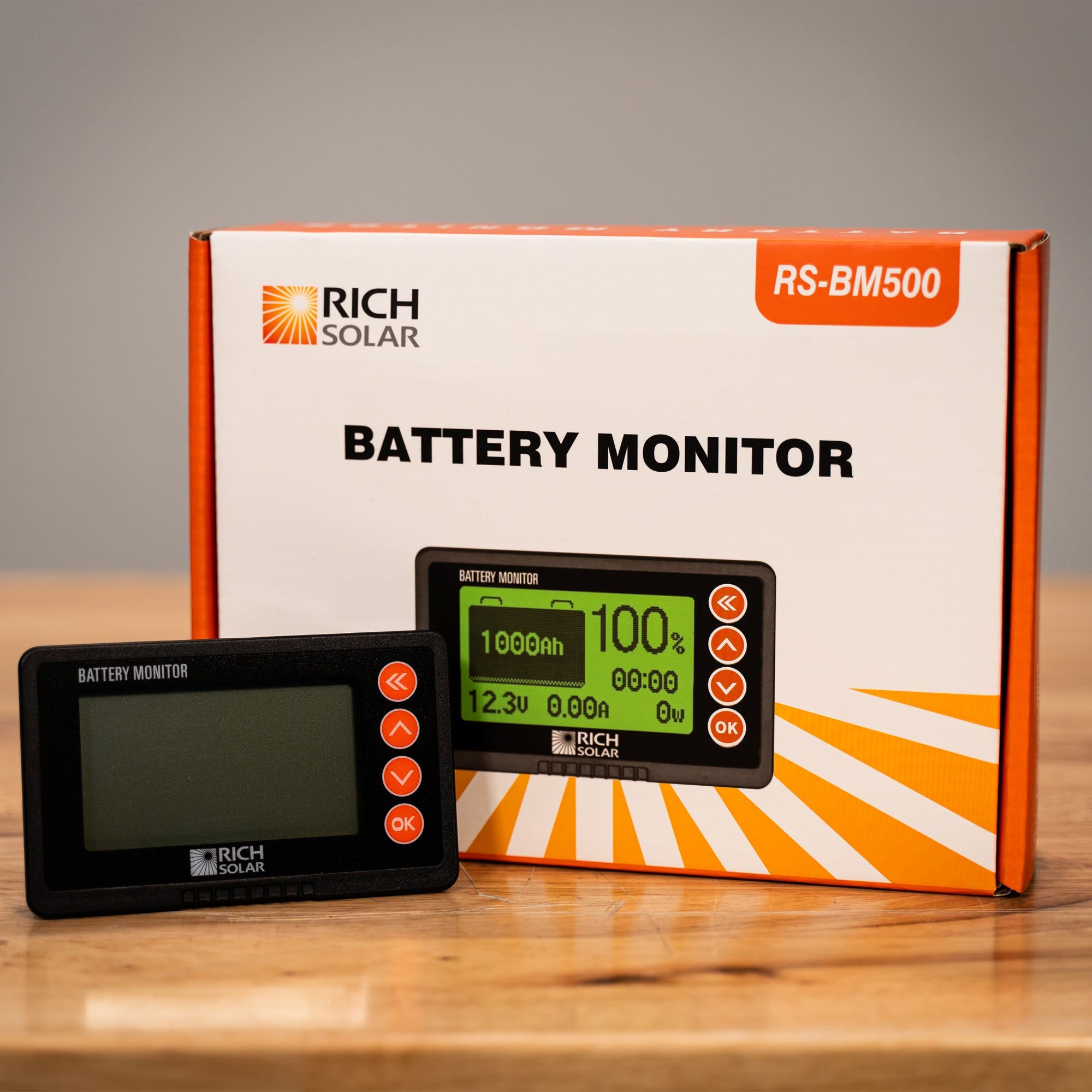

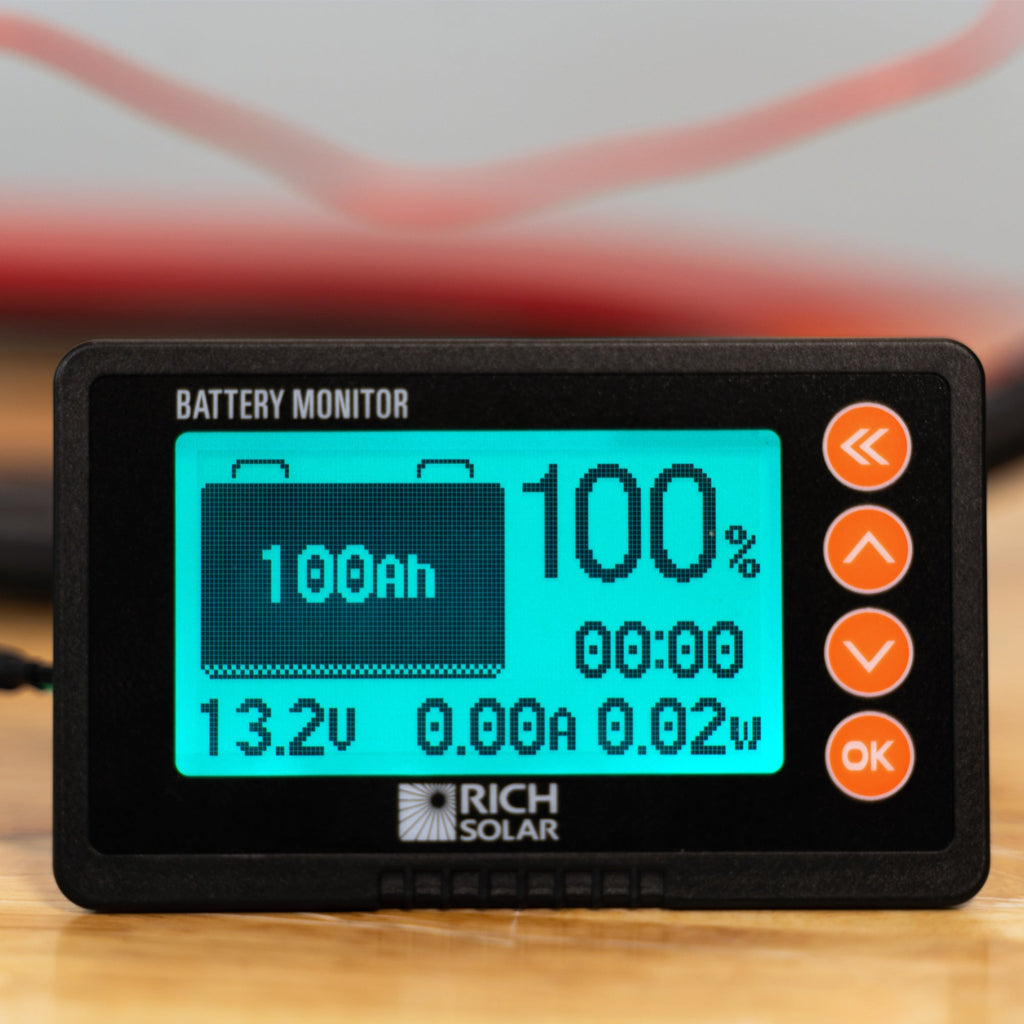

RS-BM500 Battery Monitor with Remote Display

The RS-BM500 is a precision battery shunt and remote display system that gives you clear, real-time insight into battery voltage, current and remaining capacity. Designed to be installed close to the battery with a wall-mounted remote, it helps you monitor and manage battery health without guesswork.

Benefits

• Know battery status at a glance so you can avoid unexpected failures and plan charging or load use.
• Save time troubleshooting by getting accurate current and capacity readings instead of estimating usage.
• Reduce wear on batteries by monitoring charge/discharge behavior and acting before deep discharge occurs.

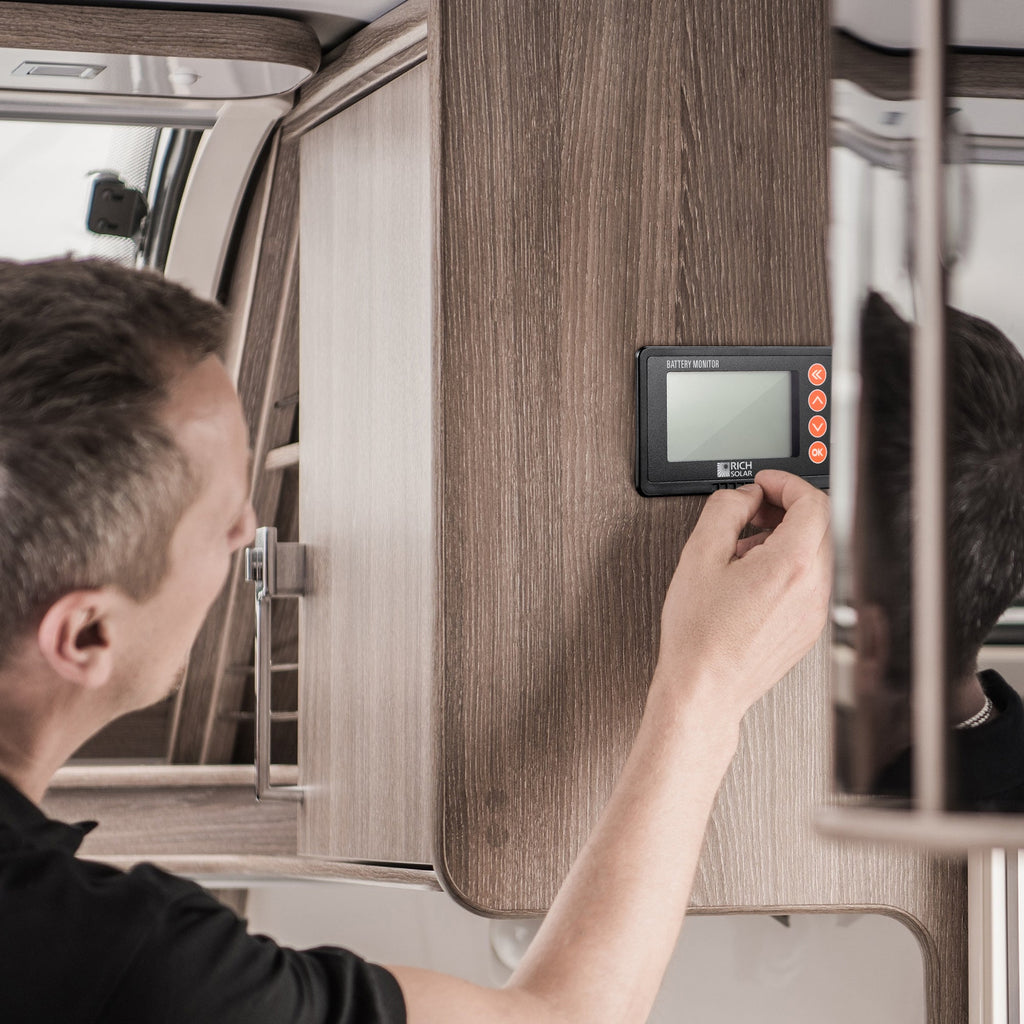

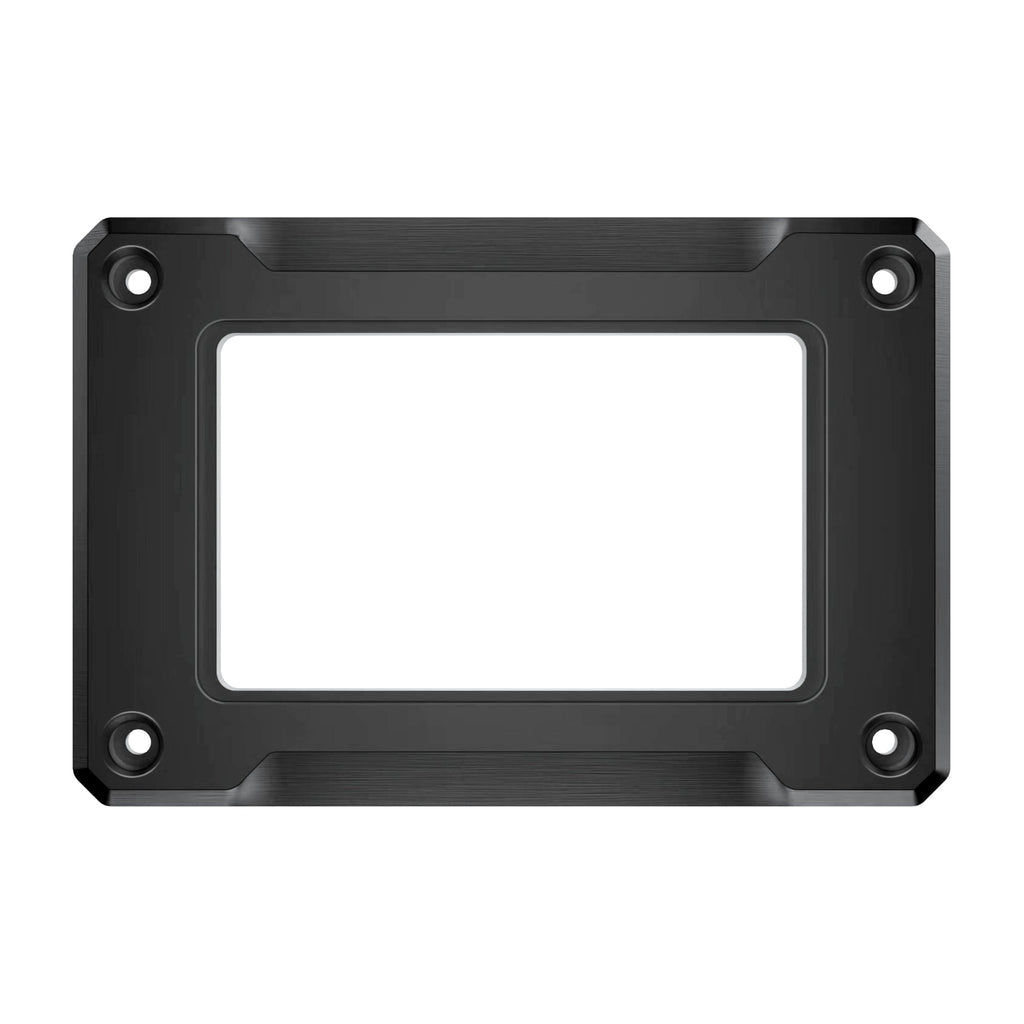

• Keep the display where it’s convenient—mount the remote on a wall for easy viewing without visiting the battery bank.
• Simplify installation and maintenance with included wiring components and a clear wiring layout.

Features

• High-precision shunt that measures current and integrates capacity (Ah) tracking.

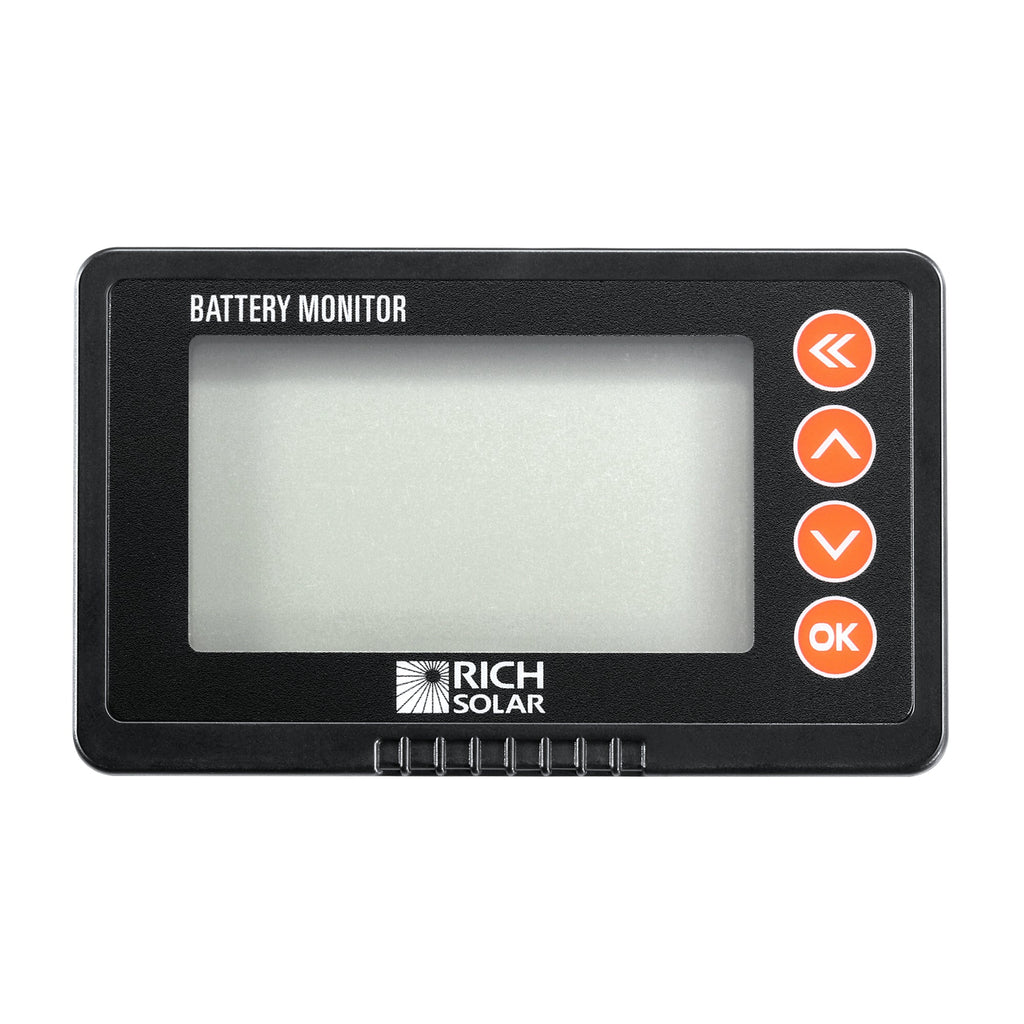

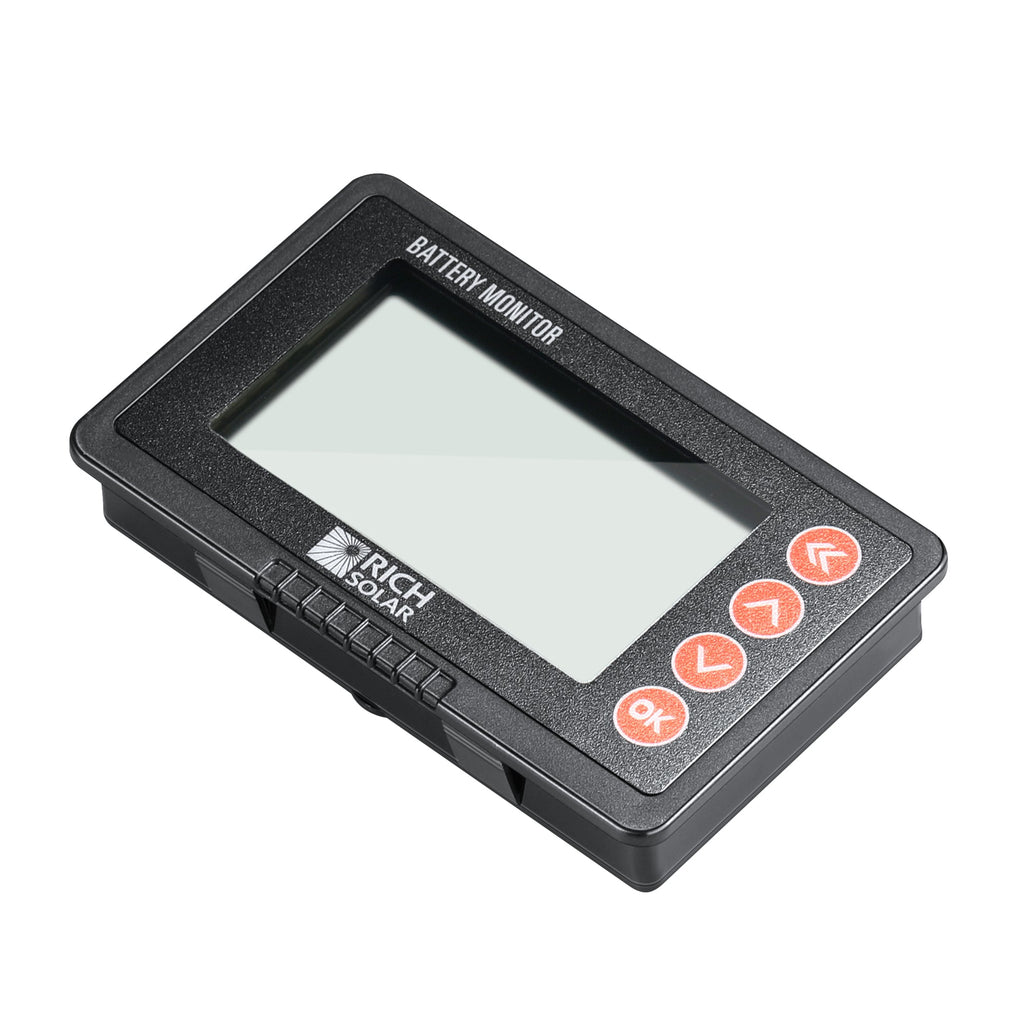

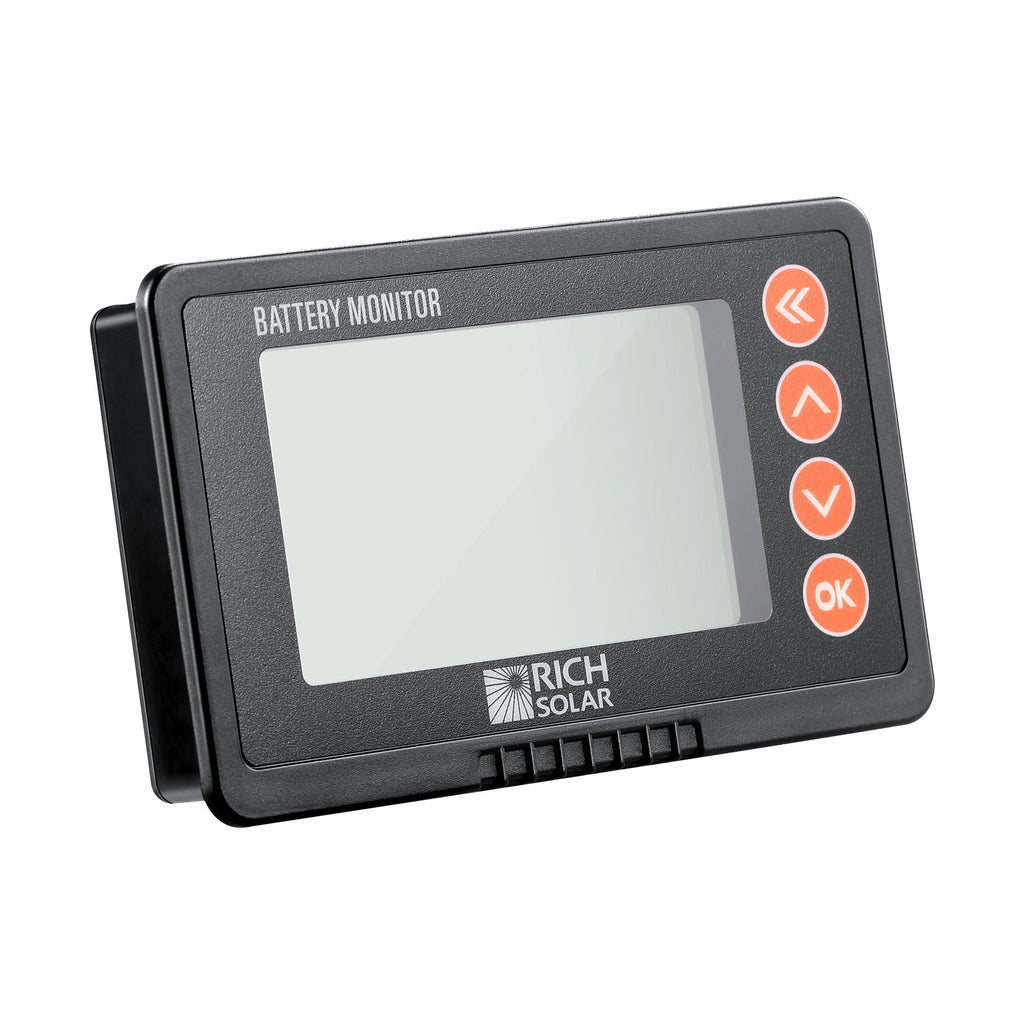

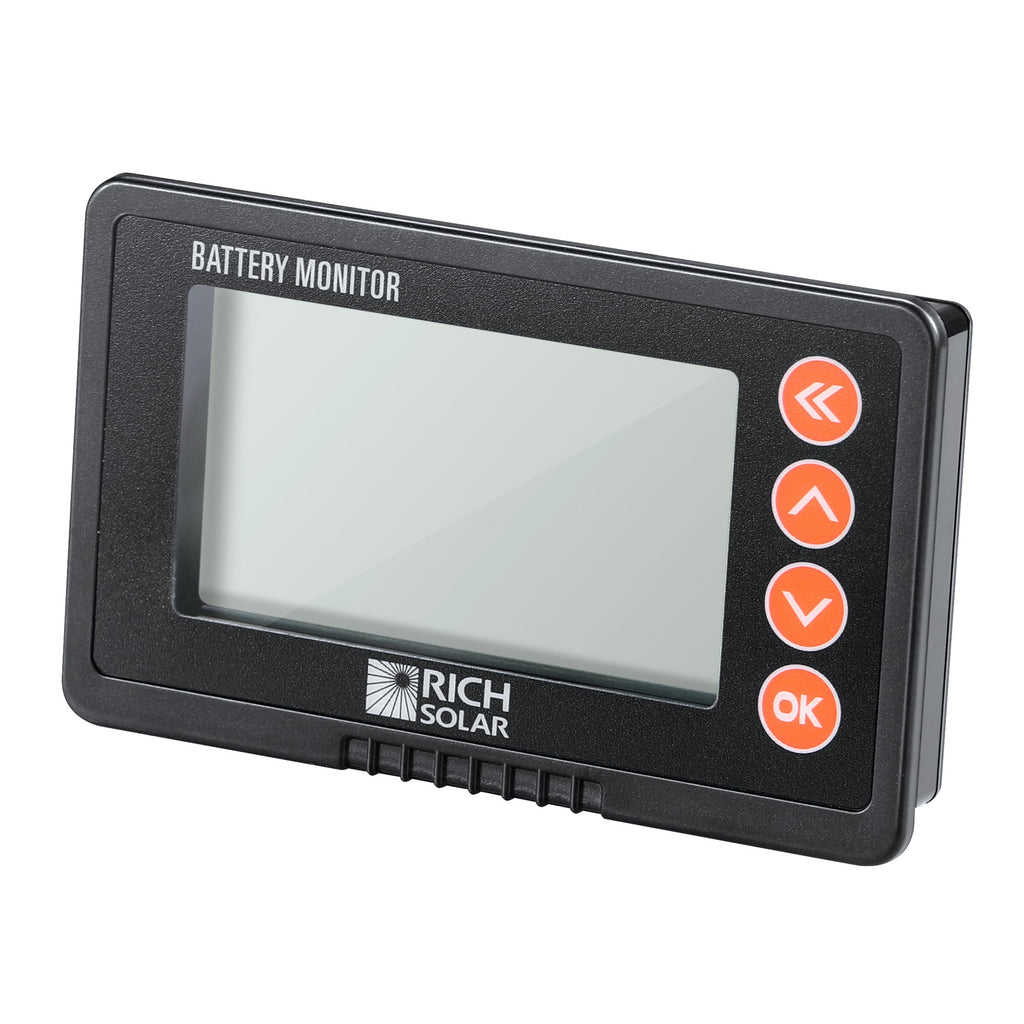

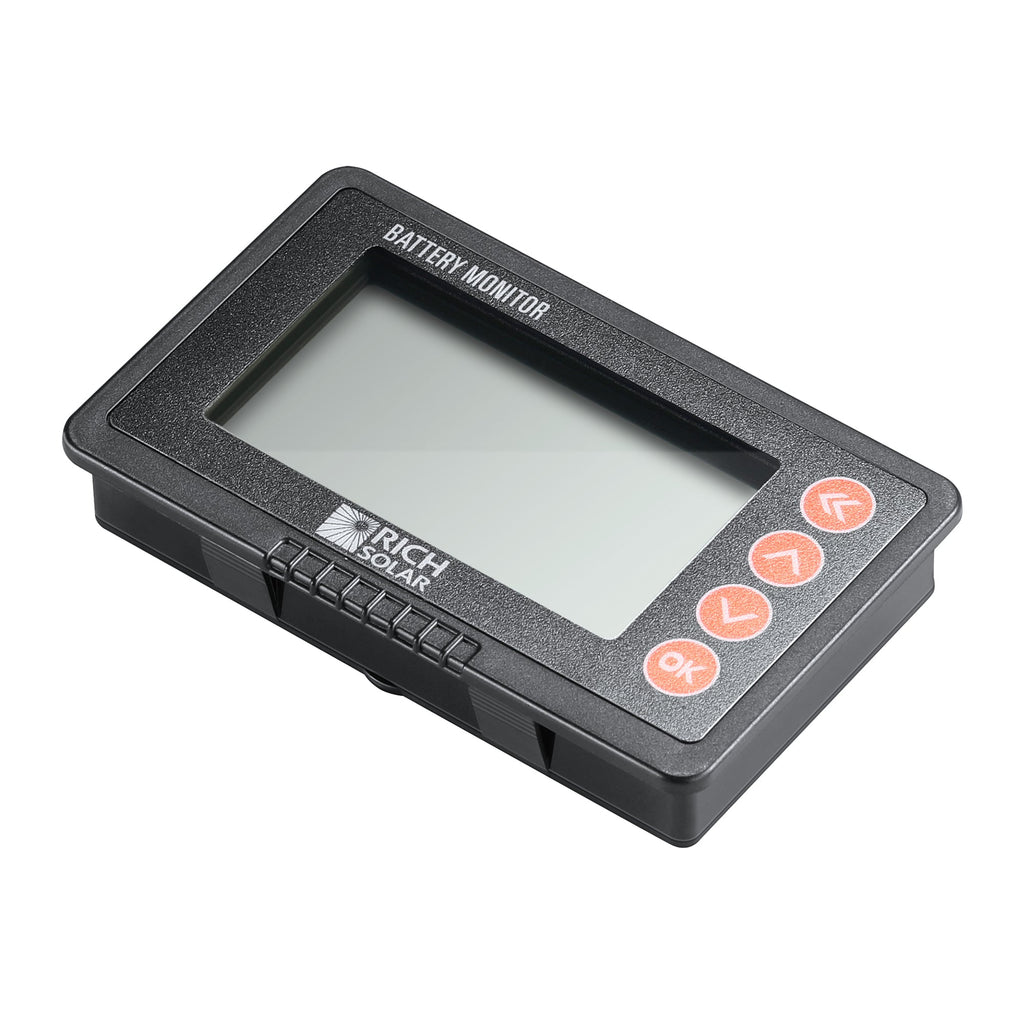

• Remote, wall-mountable display connected via included shielded cable for reliable data transmission.
• B+ connection lead included to power the shunt from the battery positive.
• Designed for installation close to the battery; the B- side of the shunt must be the sole negative connection for accurate measurement.
• Supports capacity configuration so you can set the system to match your battery bank size.
• Low quiescent power draw to minimize impact on battery during long idle periods.

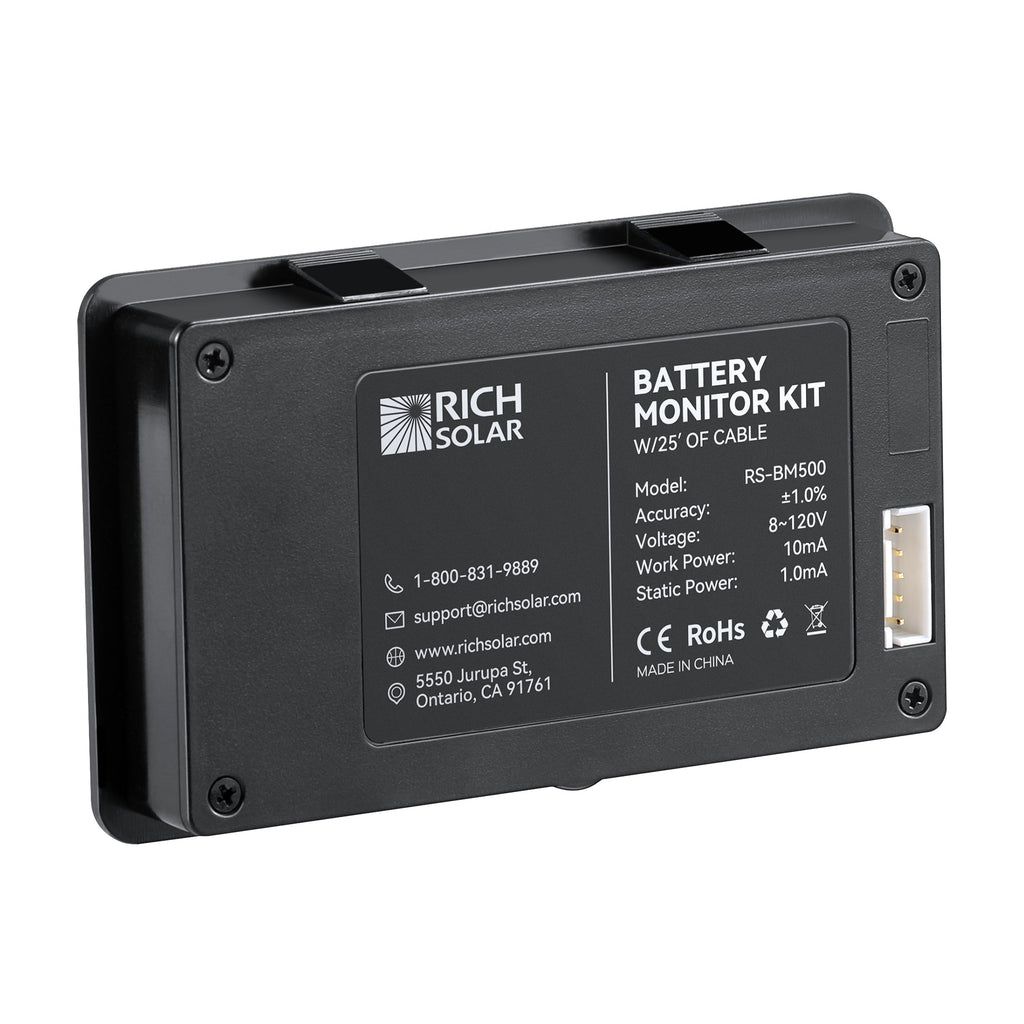

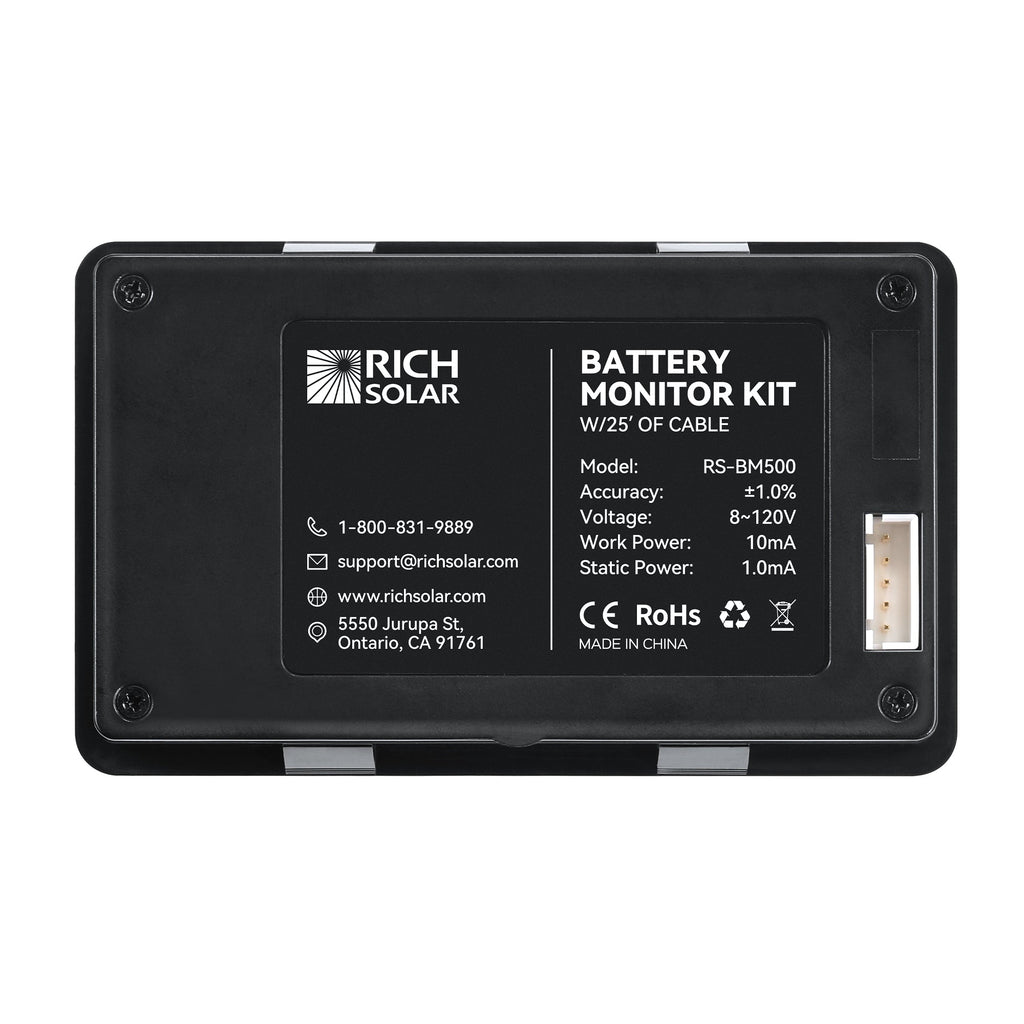

Specifications

• Model: RS-BM500
• Battery voltage range: 8–120 V
• Working dissipation: 10 mA
• Standby dissipation: 1 mA
• Capacity accuracy: ±1.0%
• Voltage accuracy: ±1.0%
• Current accuracy: ±1.0%
• Backlight on current: 80 mA
• Capacity setting value: 0–500 A
• Capacity/current range: 0.1–9999 Ah

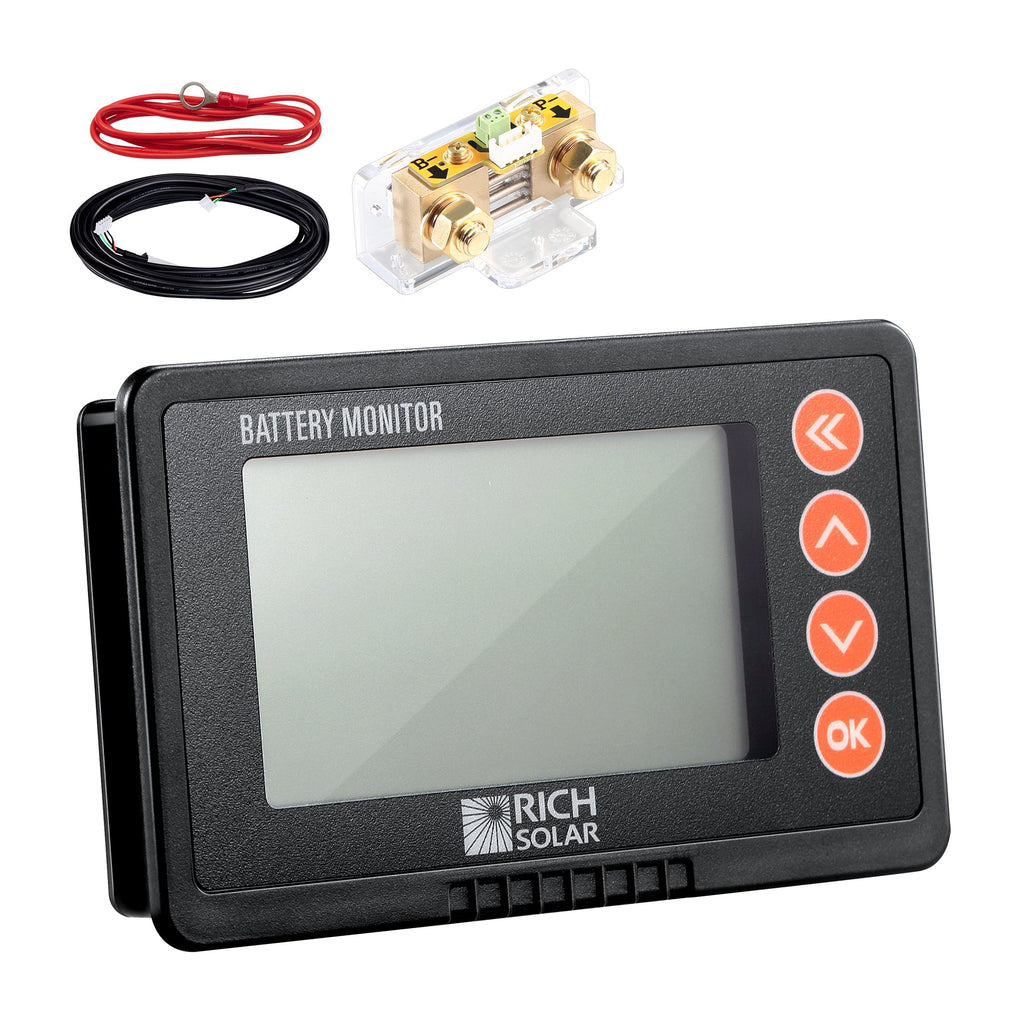

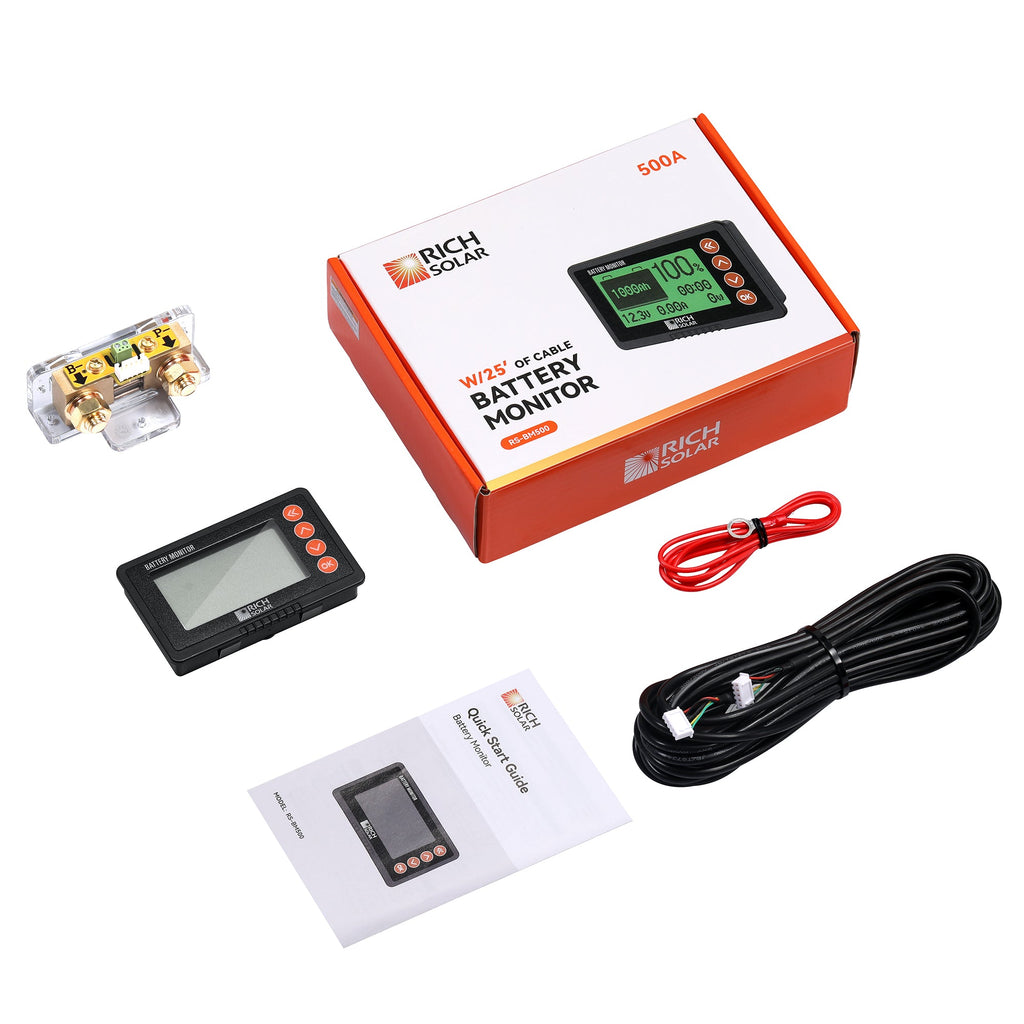

• Included items: shunt, remote display, shielded communication cable, B+ connection wire

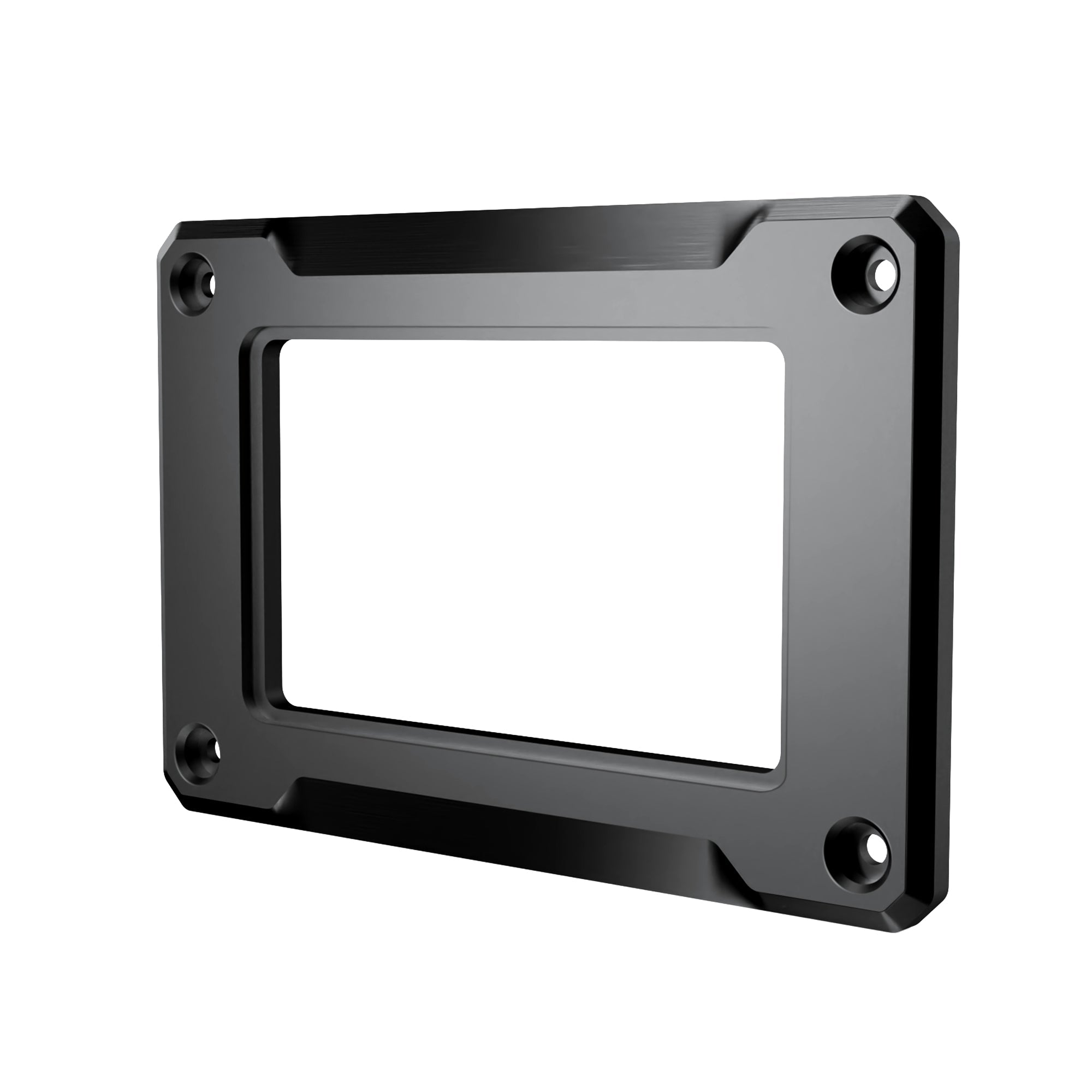

• Mounting: shunt should be mounted close to the battery; remote display is intended for wall mounting (panel cutout required)
• Recommended tools for installation: wrench, drill, jigsaw, crimp tool and appropriately sized ring terminals for battery cabling
