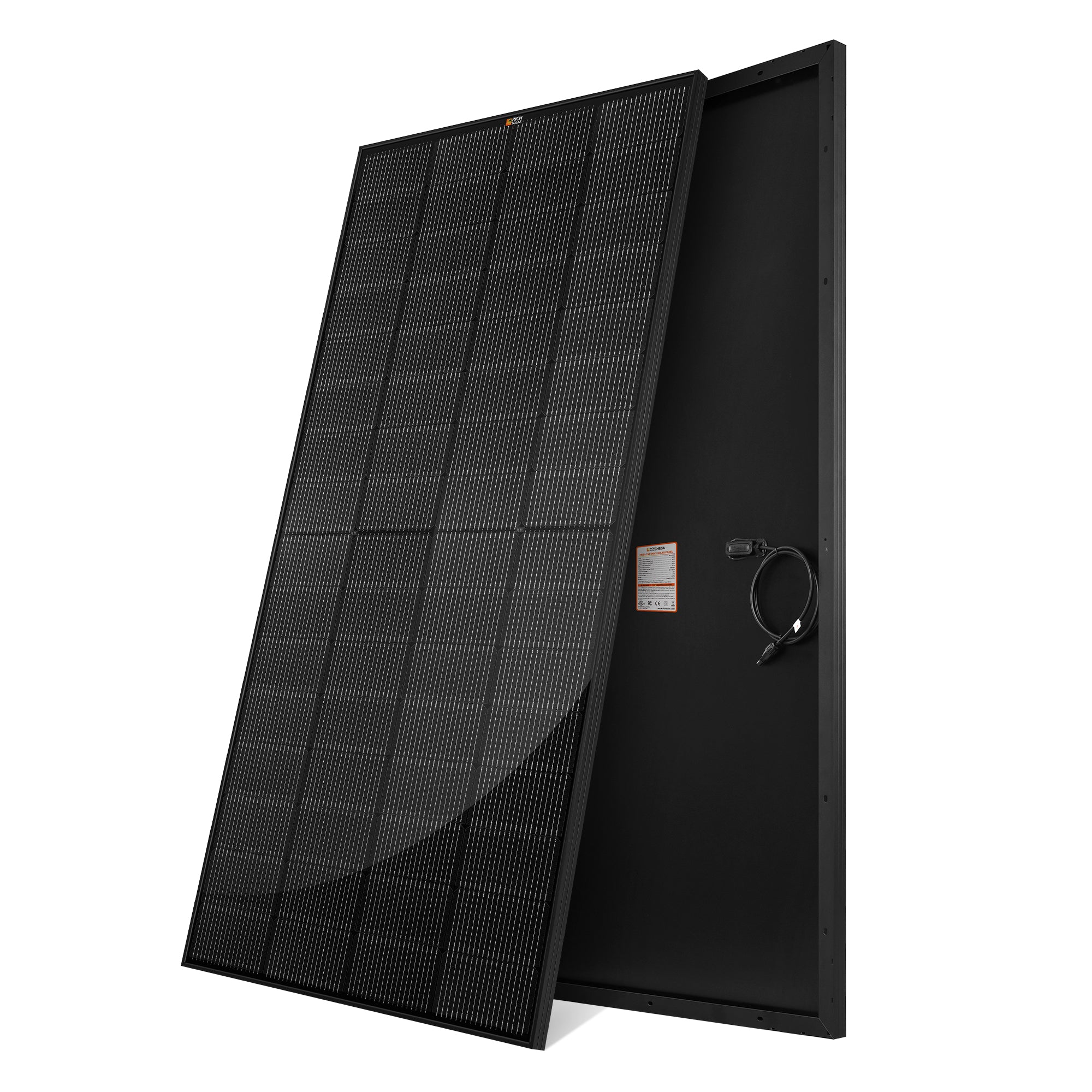

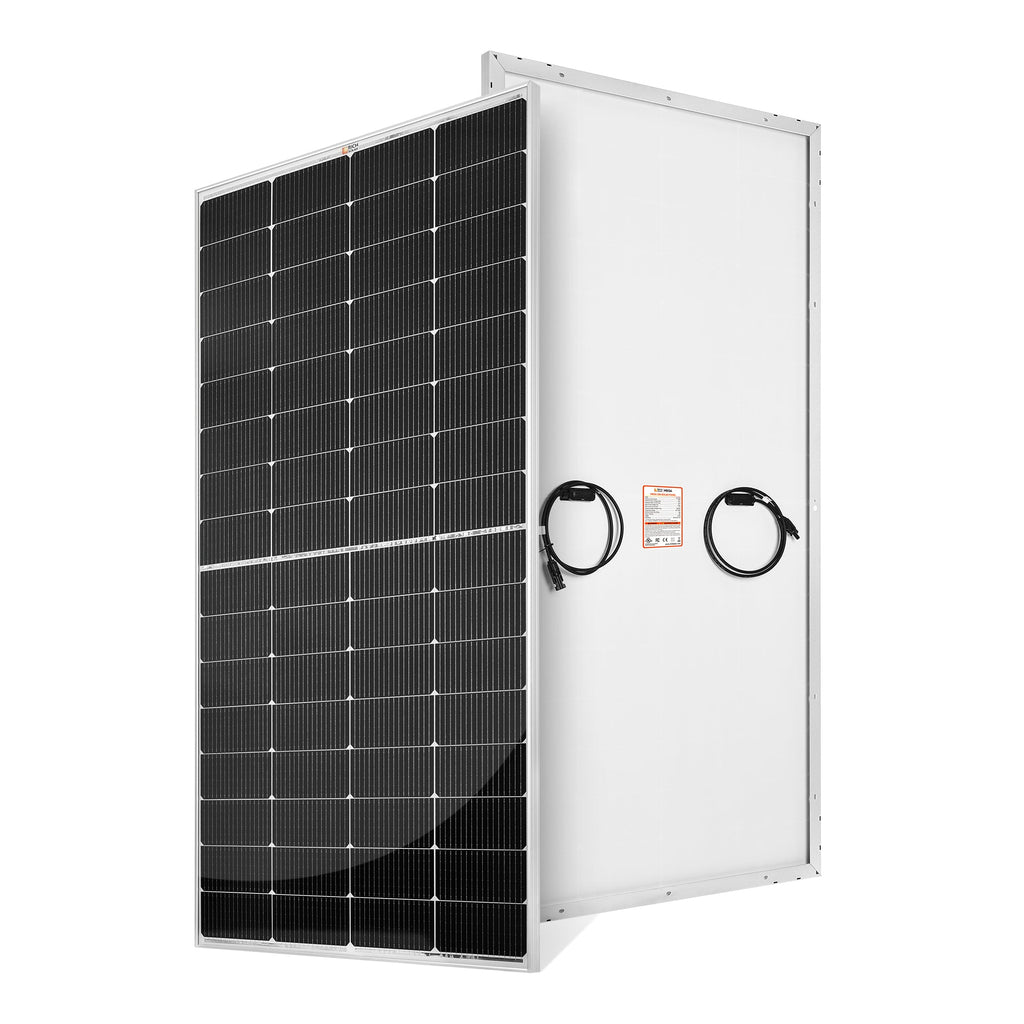

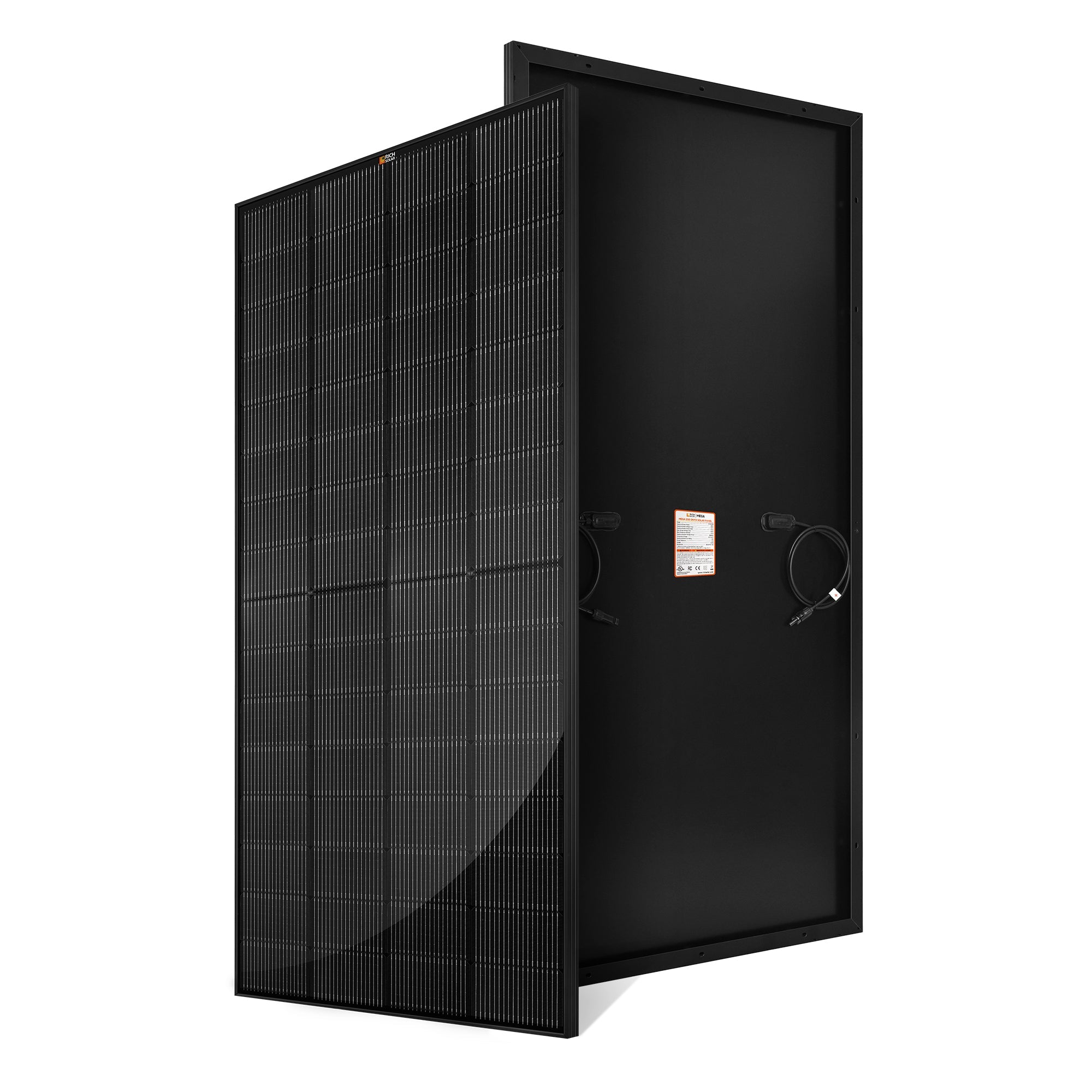

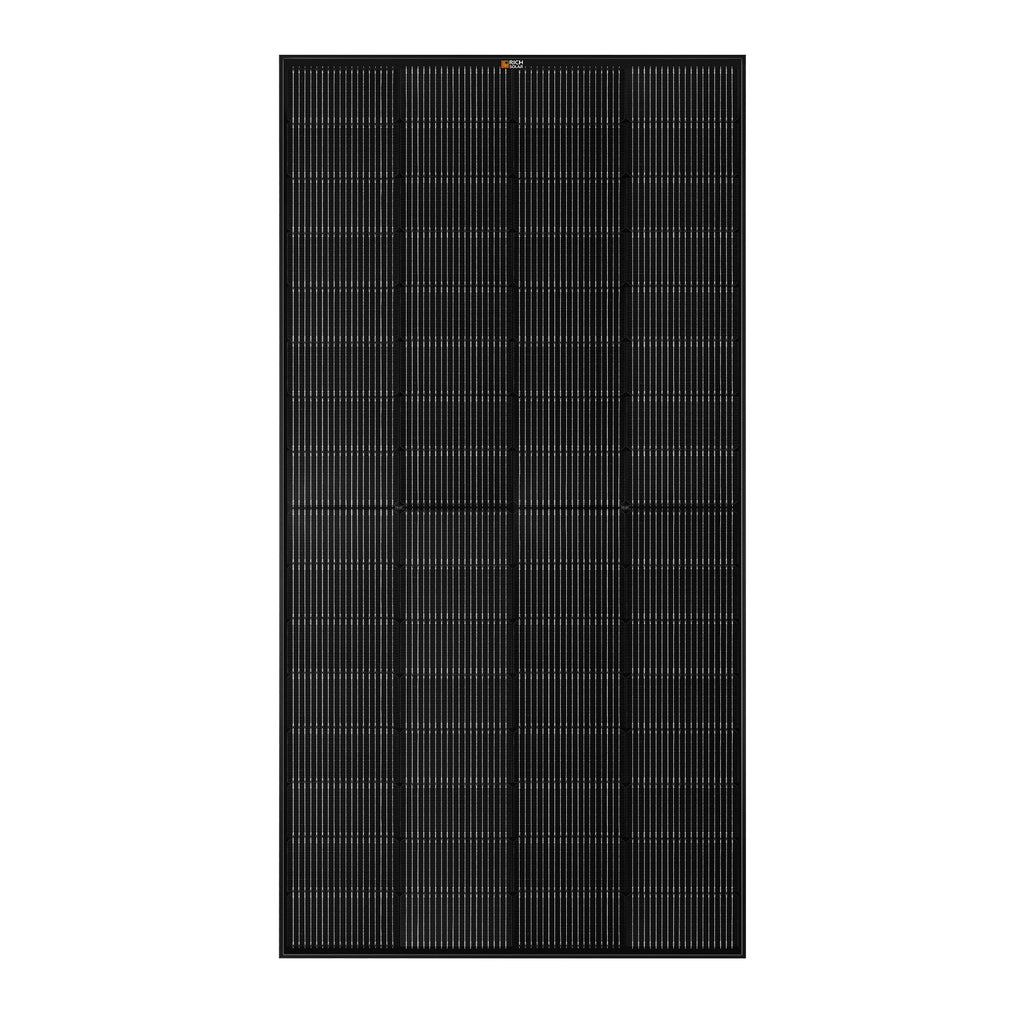

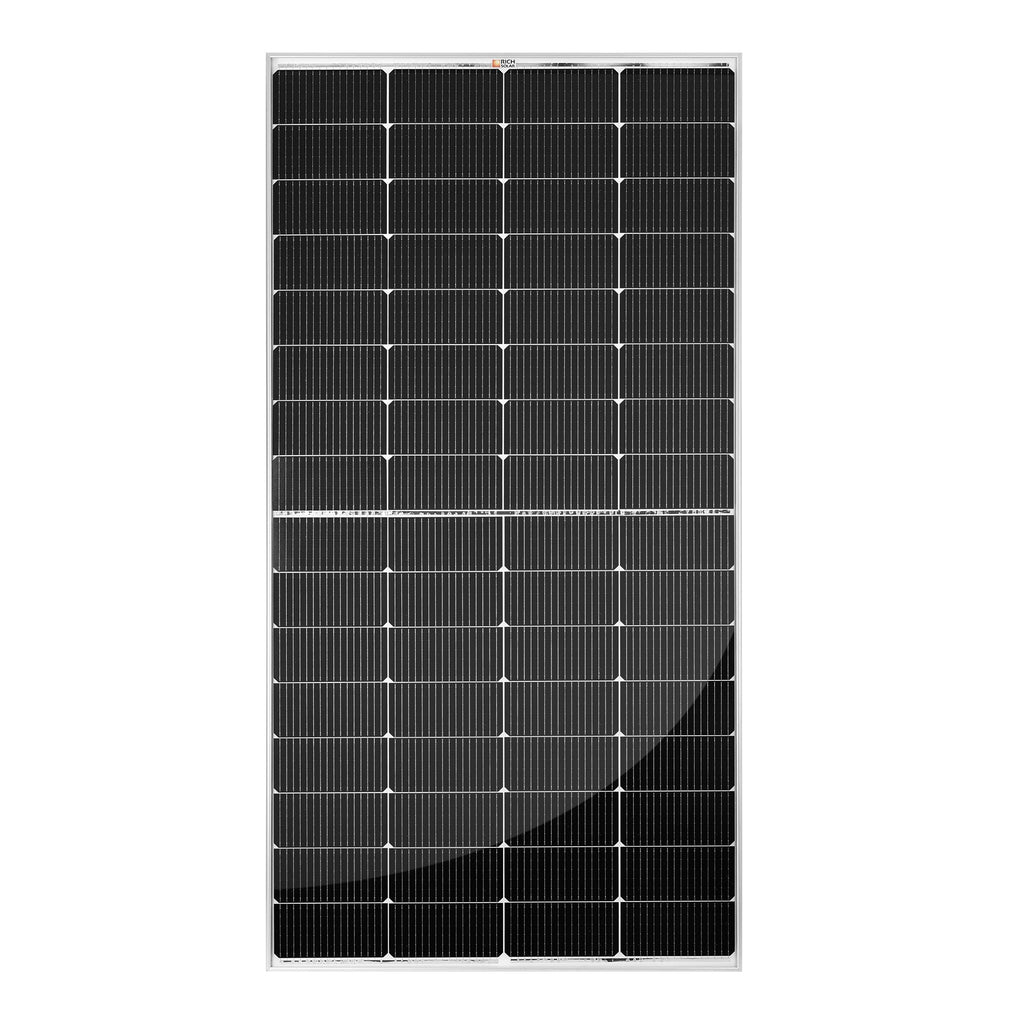

RS-M250 250W Solar Panel — Reliable, Lightweight Power for On- and Off-Grid Use

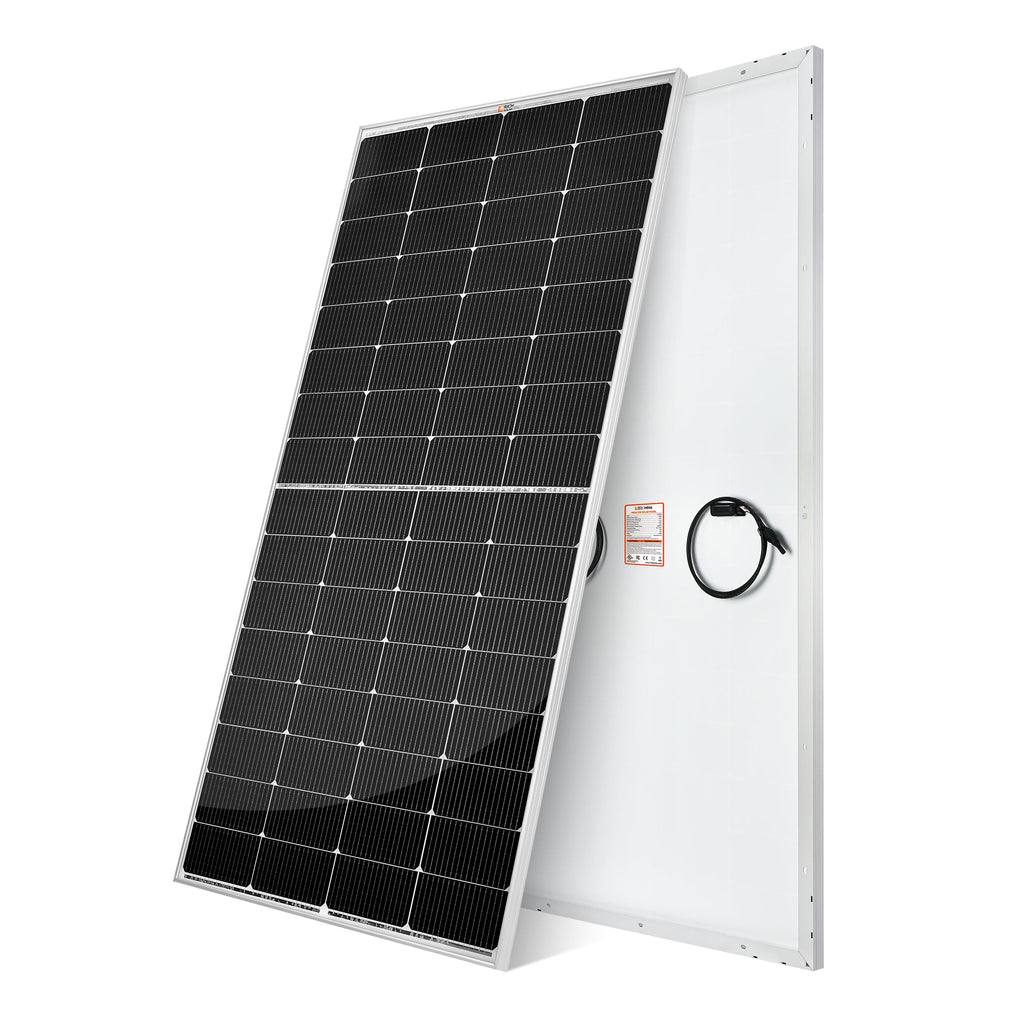

The RS-M250 is a 250W solar module designed for mobile, off-grid and high-end installations. It combines a lightweight anodized aluminum frame, high-transmission AR tempered glass and a 16-busbar cell layout to deliver dependable energy production, easy handling, and solid low-light performance.

Benefits

• Get consistent power when you need it — performs well in mornings, evenings and cloudy conditions.
• Spend less time installing and handling panels thanks to a lighter frame and pre-drilled mounting holes.
• Reduce downtime and maintenance worries with IP67-rated components and built-in bypass diodes.
• Protect your investment with long-term coverage: a 25-year output warranty and 10-year workmanship warranty.
• Scale systems easily — use industry-standard quick-connect cables for series or parallel configurations.

Features

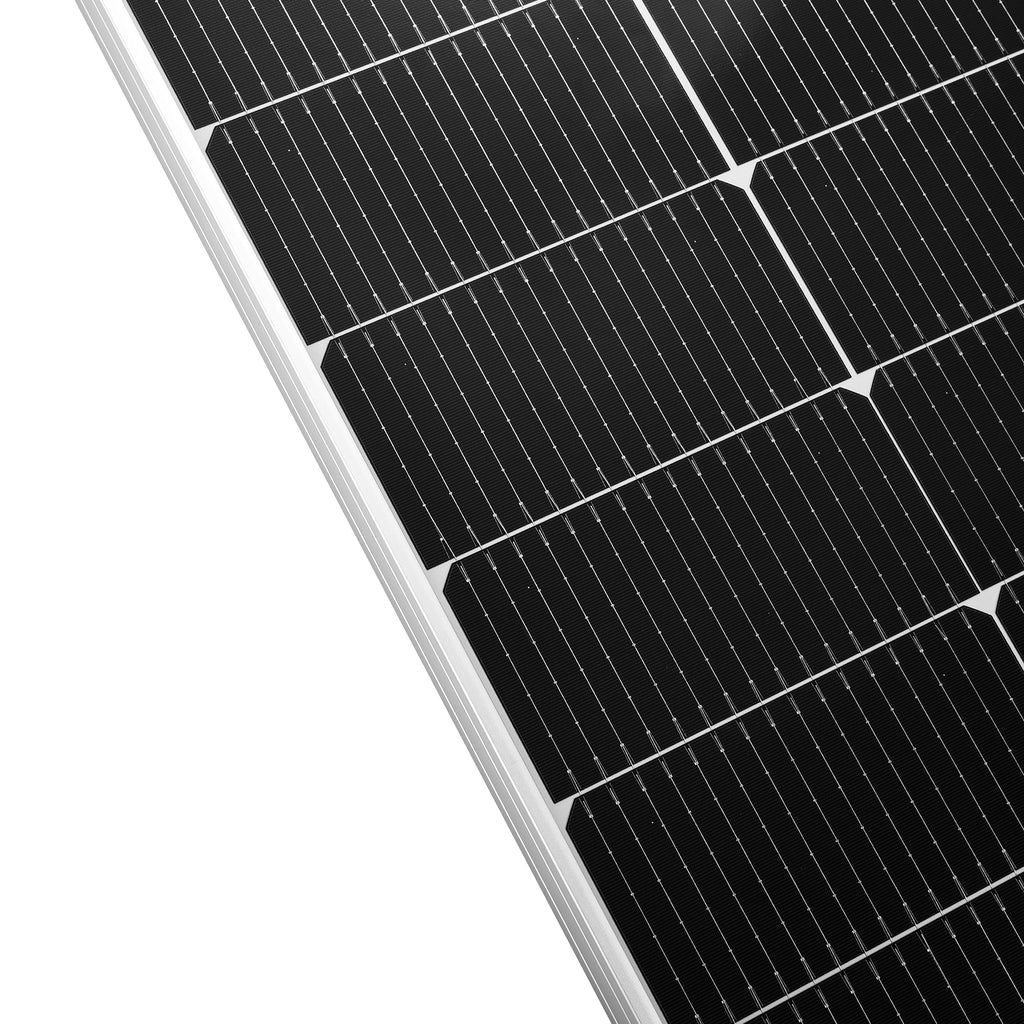

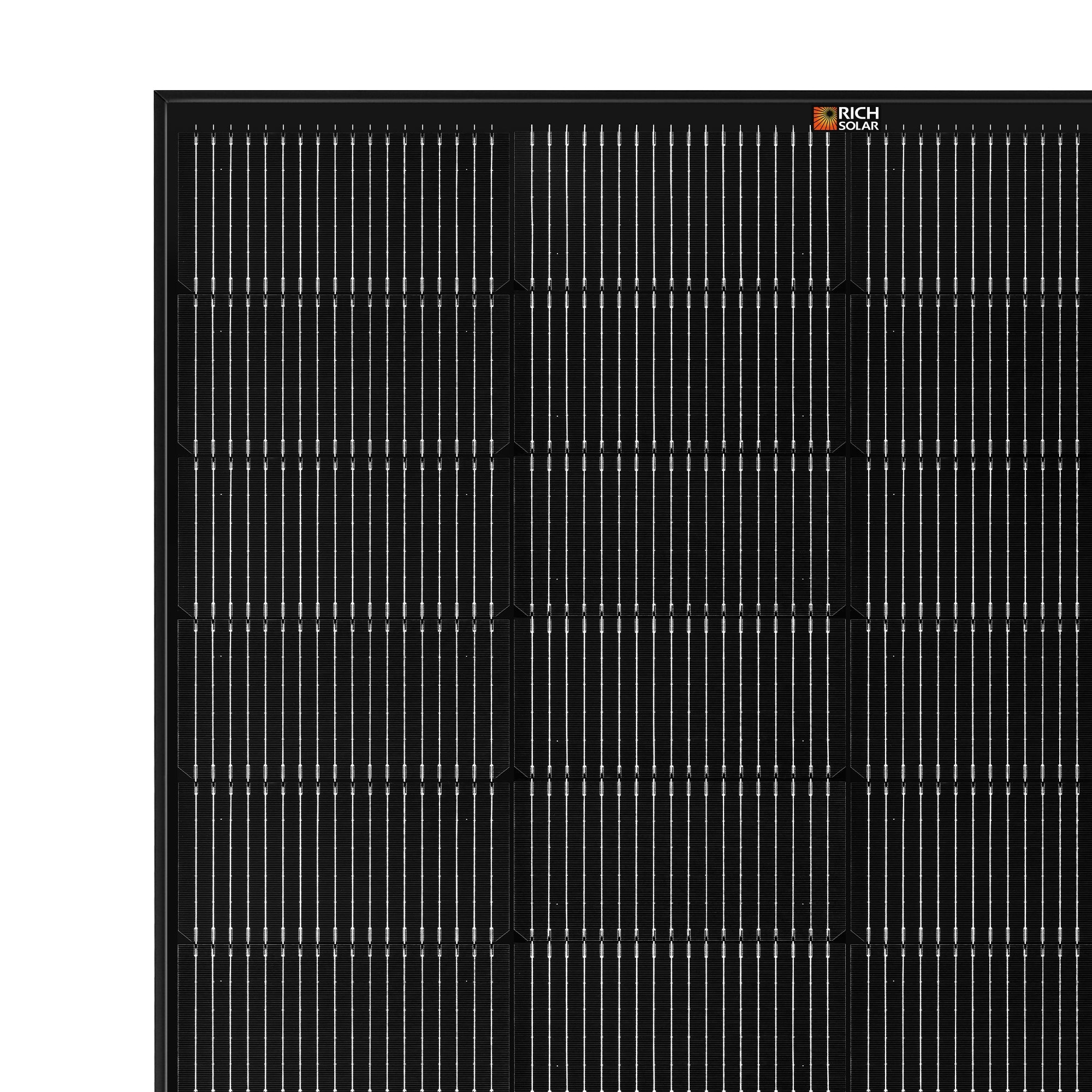

• 16-busbar solar cell configuration for improved current collection and durability

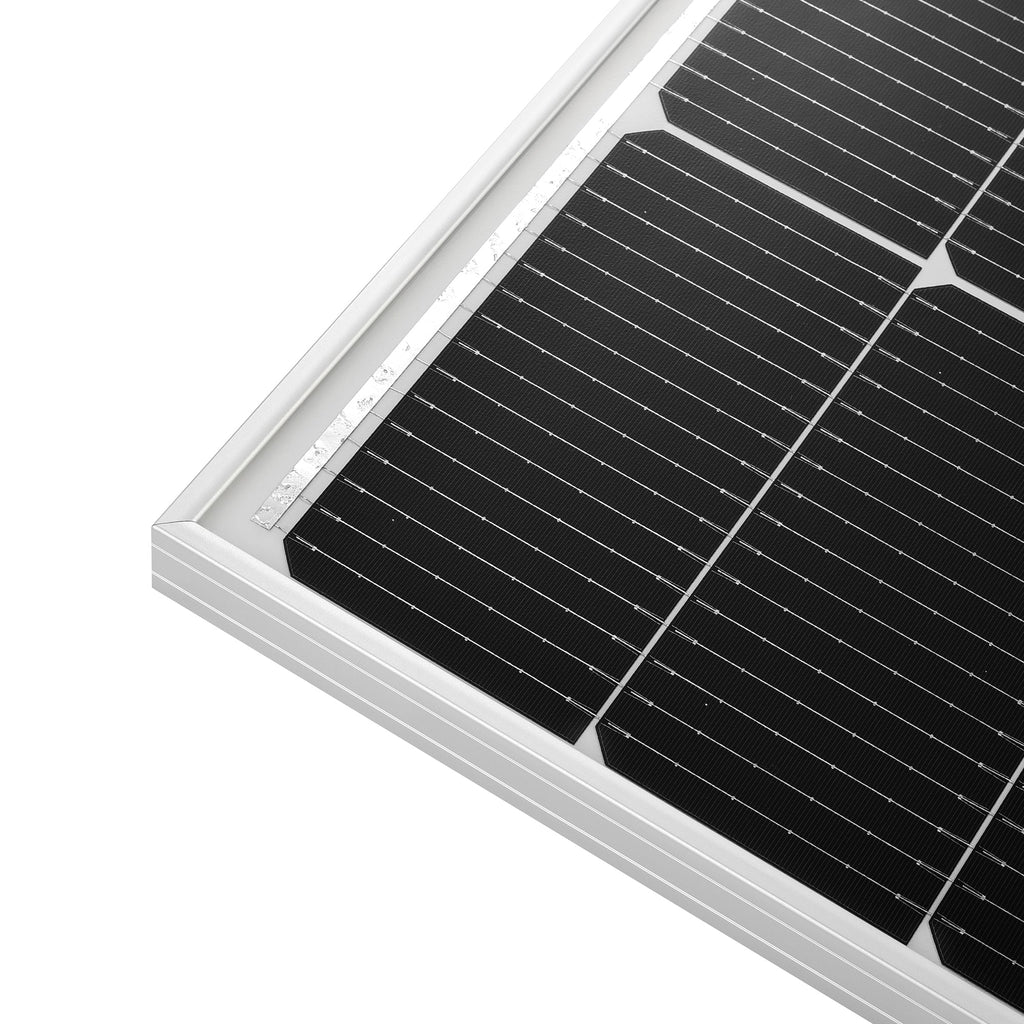

• Lightweight anodized aluminum frame for easier handling and corrosion resistance
• High-transmission, anti-reflective (AR) coated tempered glass for better light capture

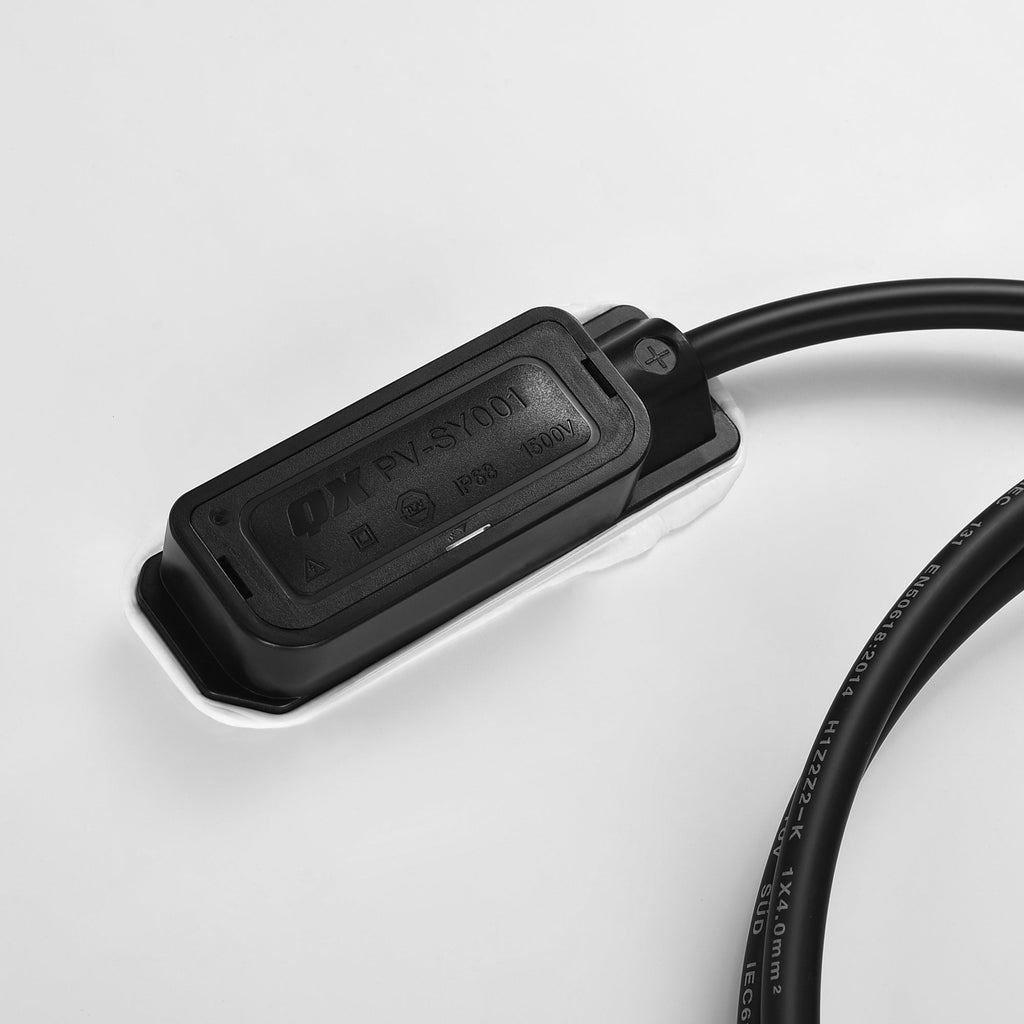

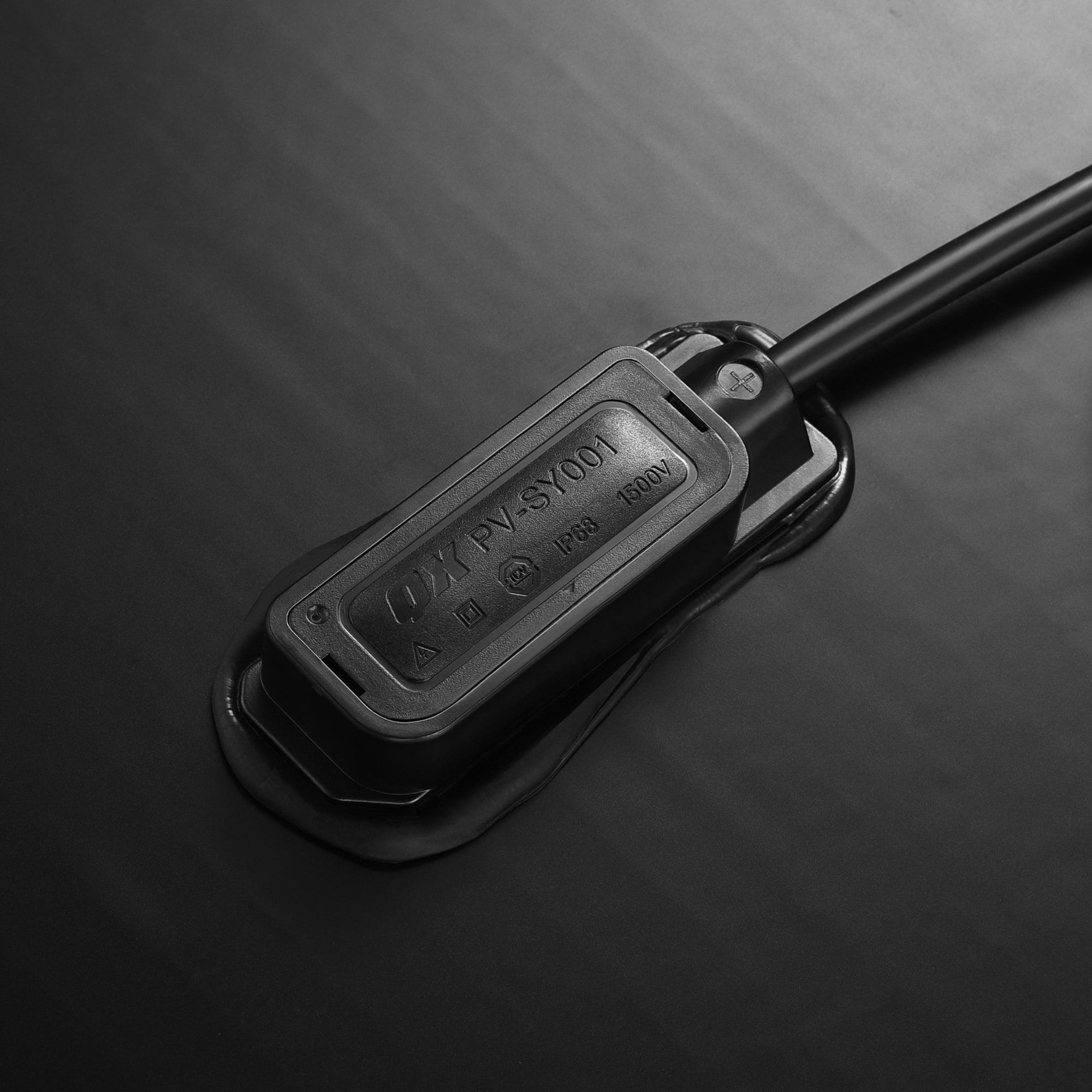

• Plug-and-play IP67-rated waterproof junction box with built-in bypass diodes

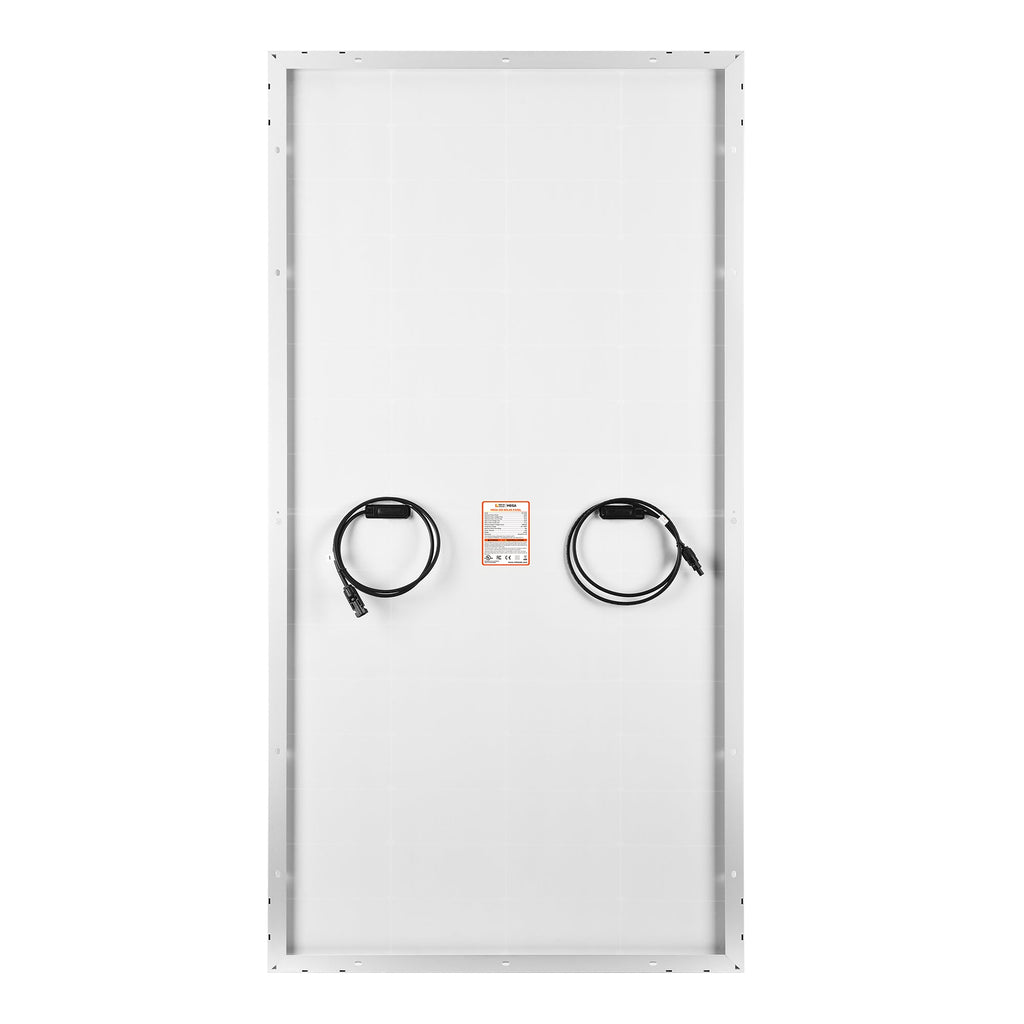

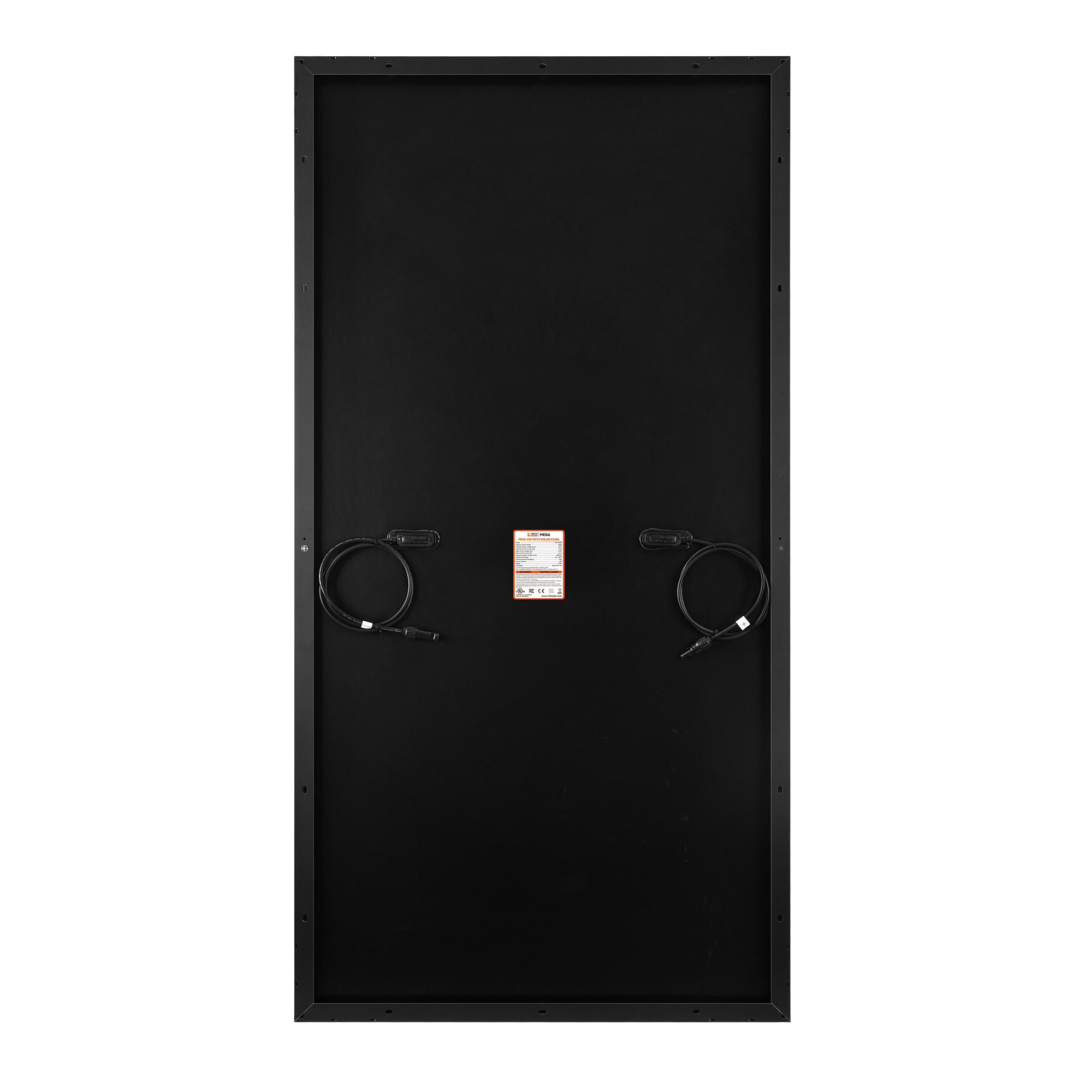

• IP67-rated waterproof solar connectors and panel leads (pair): 3 ft each
• Industry-standard quick-connect cables compatible with series or parallel connections

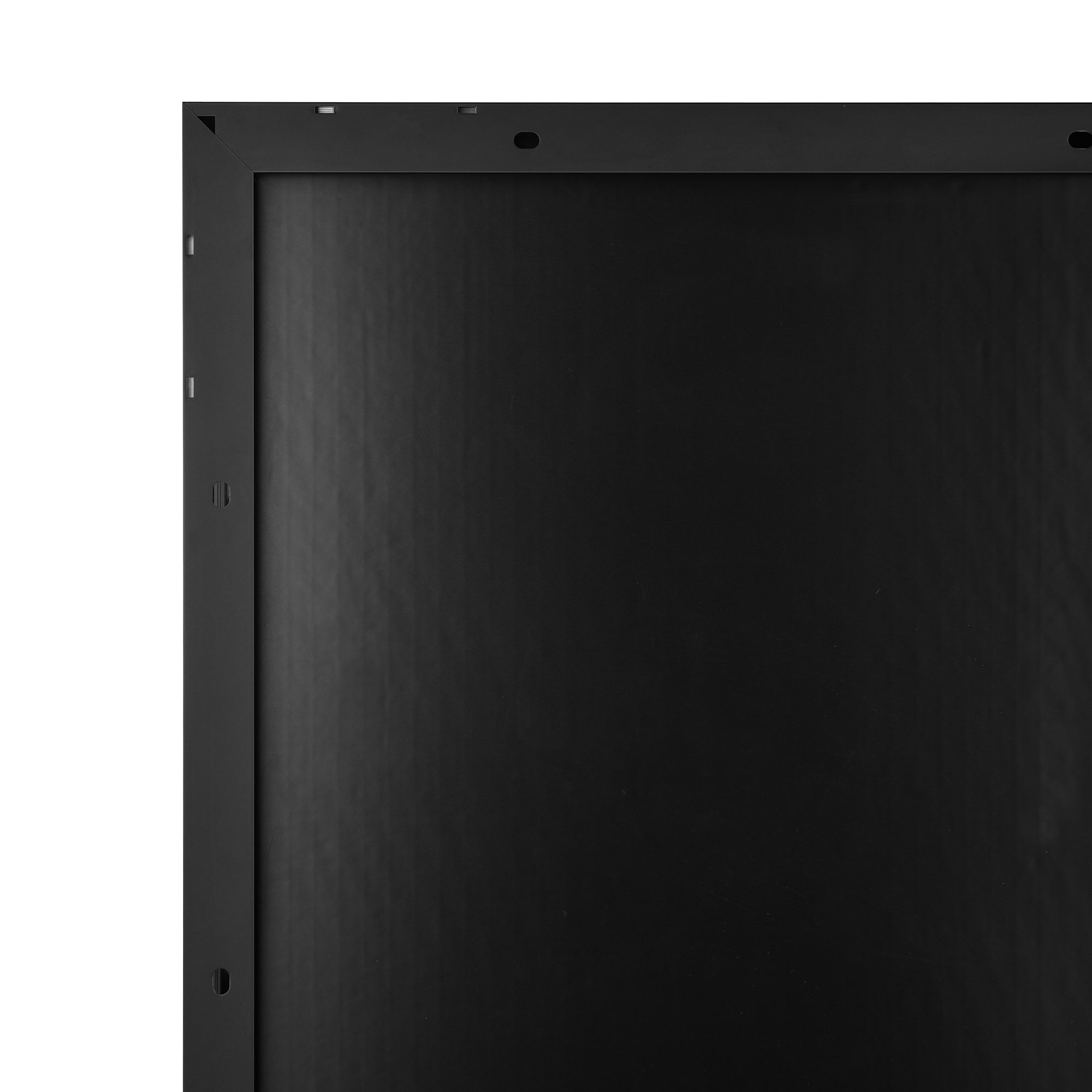

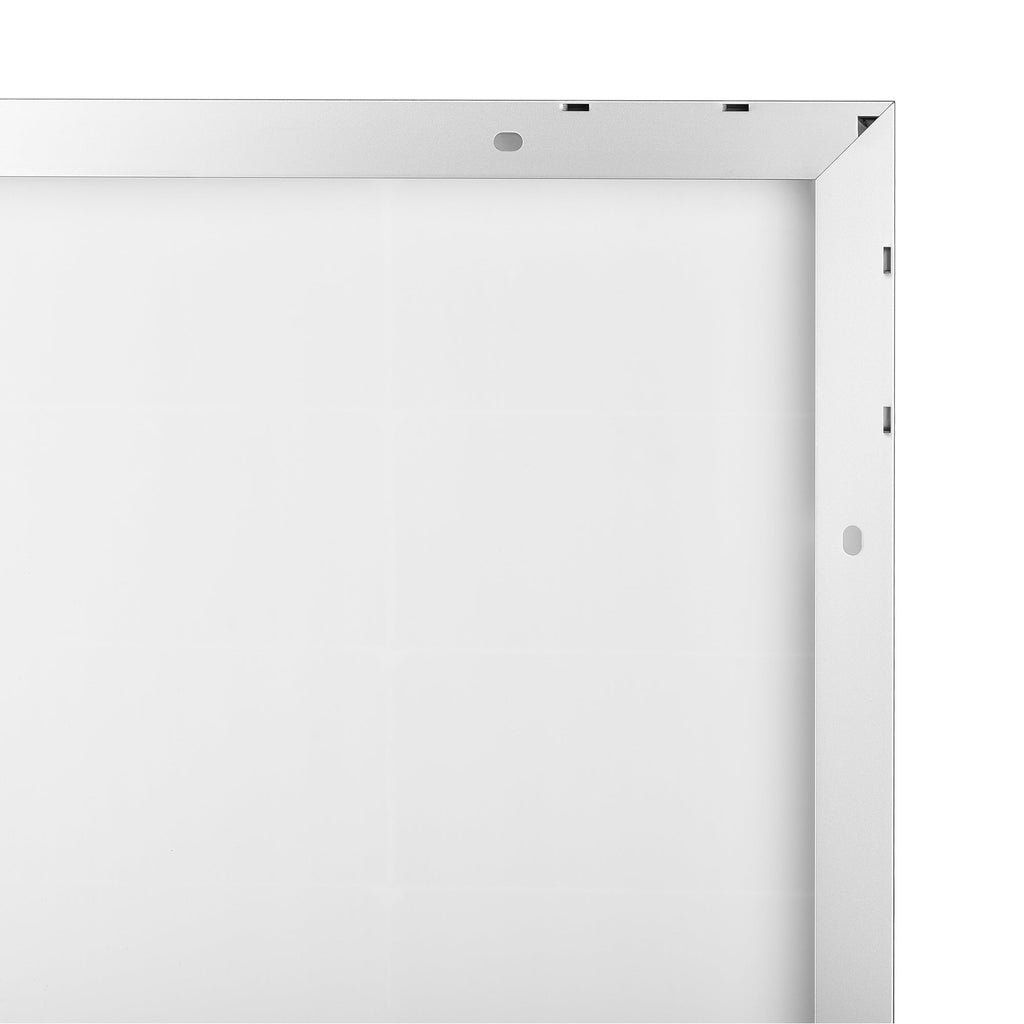

• Pre-drilled holes for ground mounts, Z brackets, pole mounts and tilt mounts
• Certified to withstand challenging environmental conditions
• Compatible with on-grid and off-grid inverters

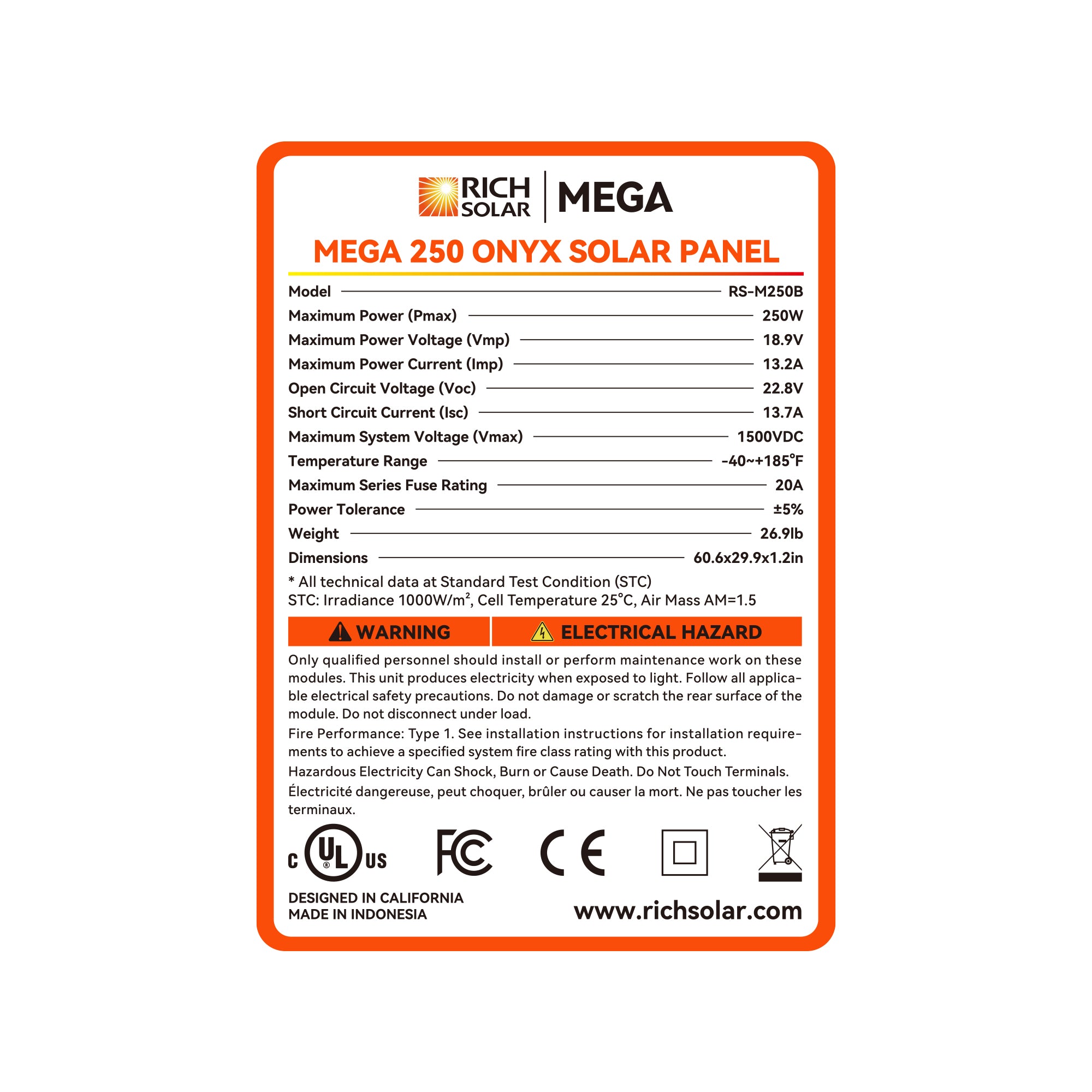

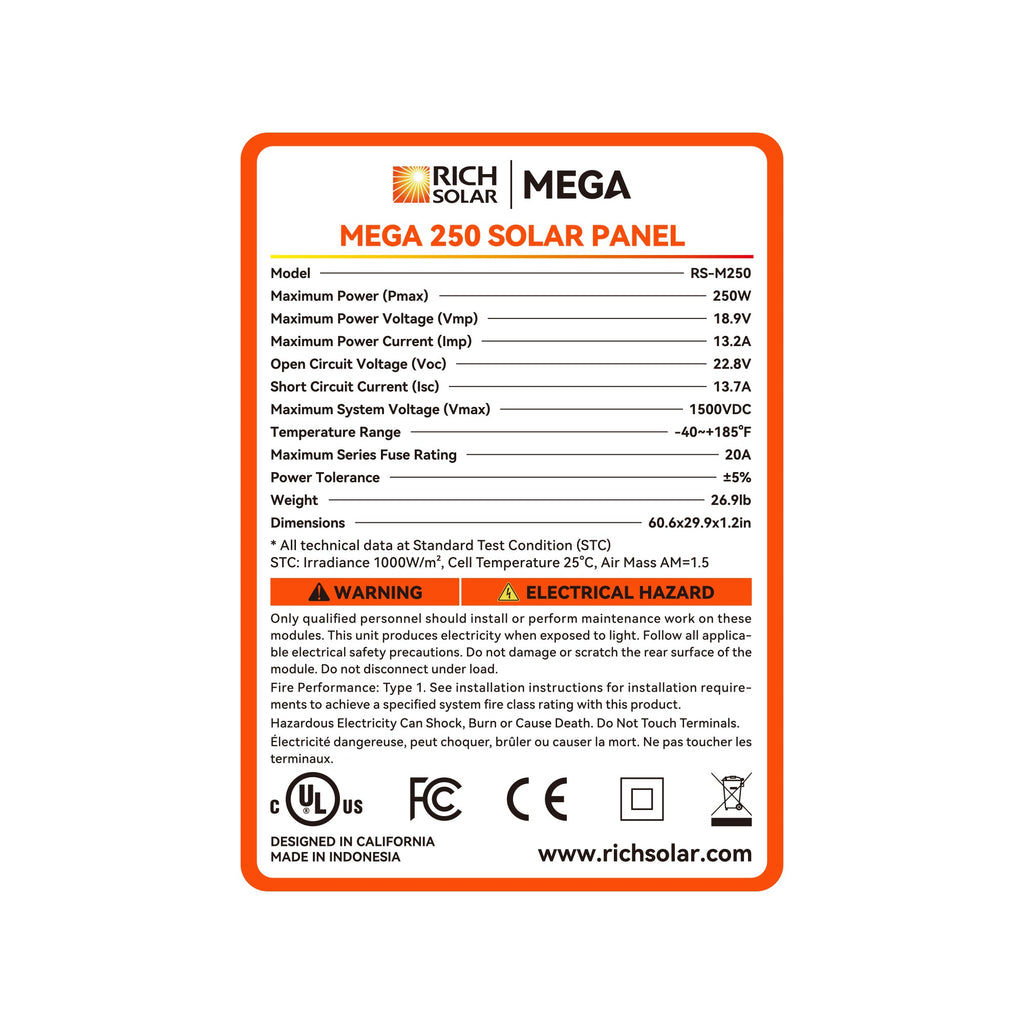

Specifications

• Model: RS-M250
• Maximum Power (Pmax): 250 W
• Maximum Power Voltage (Vmp): 18.9 V
• Maximum Power Current (Imp): 13.2 A
• Open Circuit Voltage (Voc): 22.8 V
• Short Circuit Current (Isc): 13.7 A
• Maximum System Voltage (Vmax): 1500 V DC
• Temperature Range: -40 to +185 °F (approximately -40 to +85 °C)
• Weight: 26.9 lb

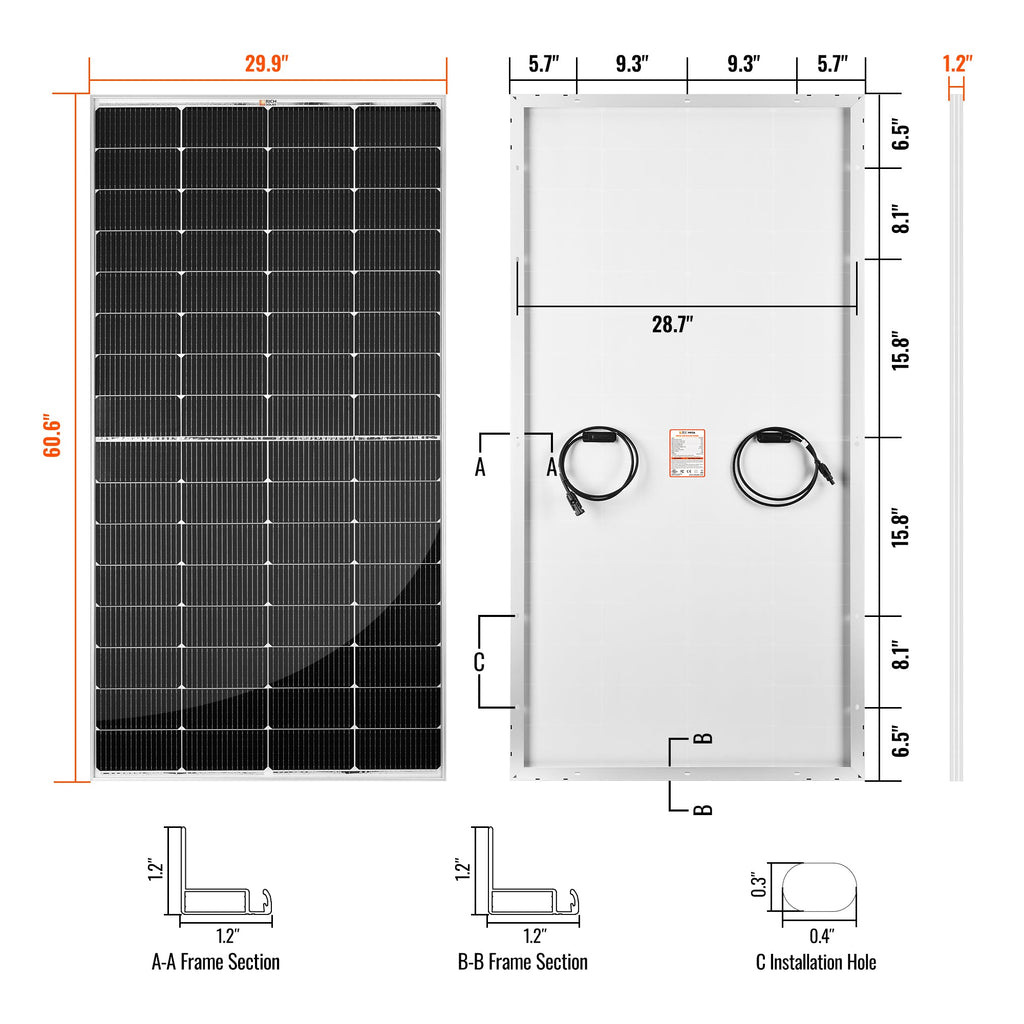

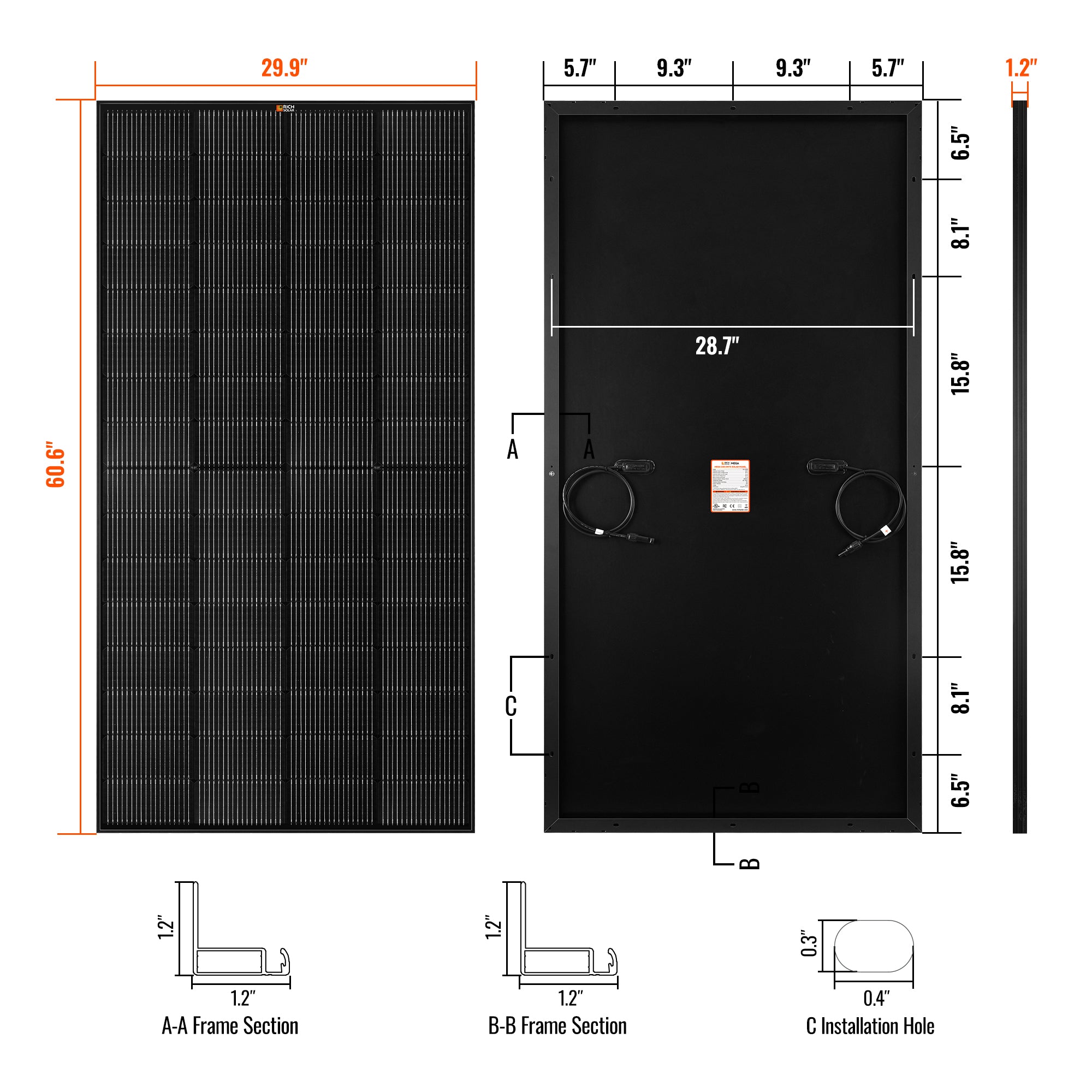

• Dimensions: 60.6 x 29.9 x 1.2 in
• Panel leads (pair): 3 ft each
• IP67-rated waterproof junction box and solar connectors
• Bypass diodes: integrated in junction box
• Warranty: 25-year power output warranty; 10-year workmanship warranty
