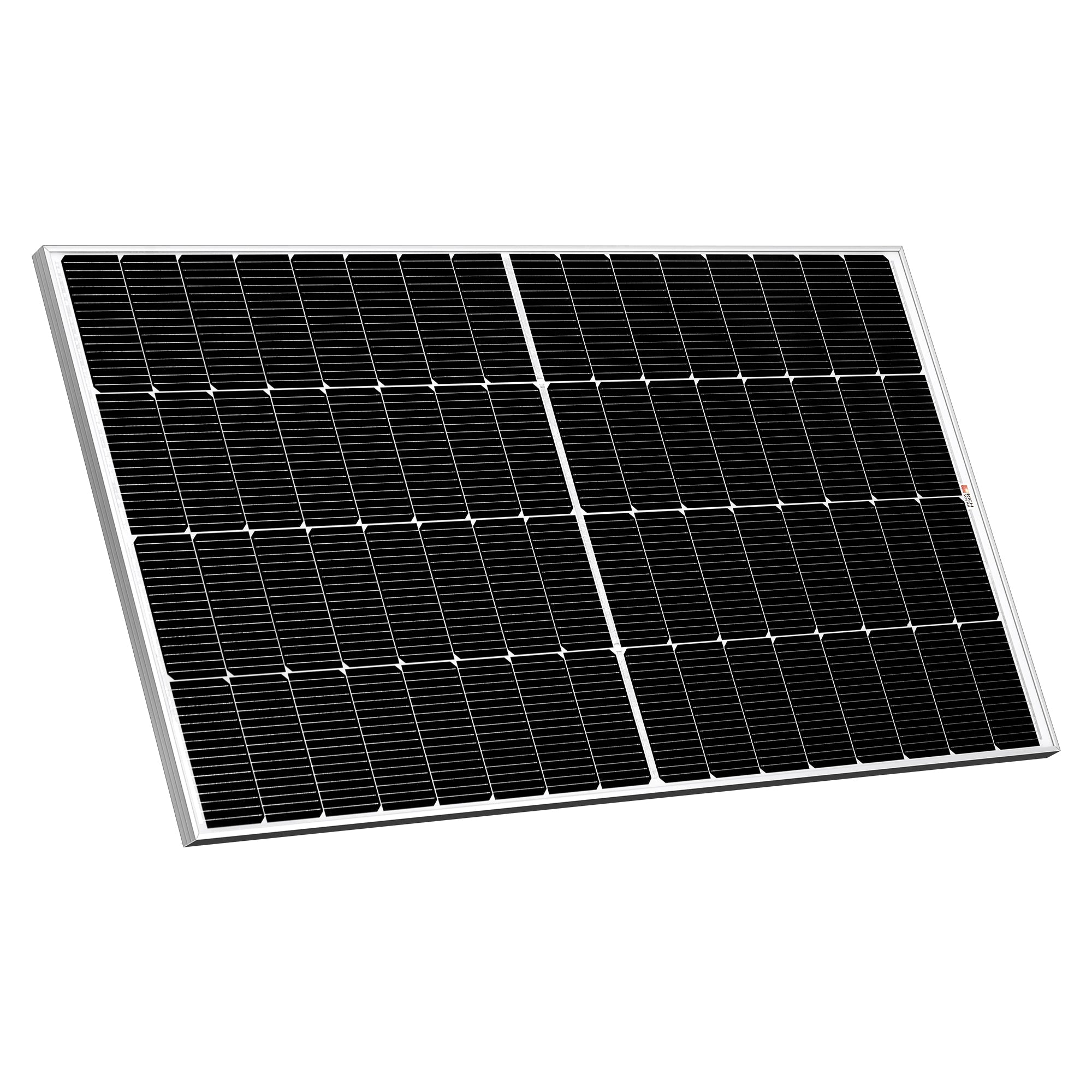

Rich Solar Renogy 220 Watt Solar Panel UL Certified For RV Off Grid

Reliable 220W Solar Panel — Lightweight, Durable, and Easy to Install

This compact solar panel delivers steady, dependable power for on-grid and off-grid systems. It combines a durable anodized aluminum frame and AR-coated tempered glass with user-friendly connectors and pre-drilled mounting holes so you can install, transport, and maintain it with minimal hassle.

Benefits

• Get consistent power even in low light—better energy yield on cloudy days, mornings and evenings.
• Spend less time installing and handling panels thanks to lightweight construction and pre-drilled mounting holes.
• Reduce maintenance worries with robust weather resistance and extensive quality testing.
• Flexible system design: quick-connect cables and standard connectors let you wire panels in series or parallel to suit your needs.
• Long-term confidence from a 25-year output warranty and 10-year workmanship coverage.

Features

• 16-busbar solar cell layout for efficient power capture.
• High-transmission, anti-reflective (AR) tempered glass for improved light absorption.
• Lightweight anodized aluminum frame for easier handling and corrosion resistance.

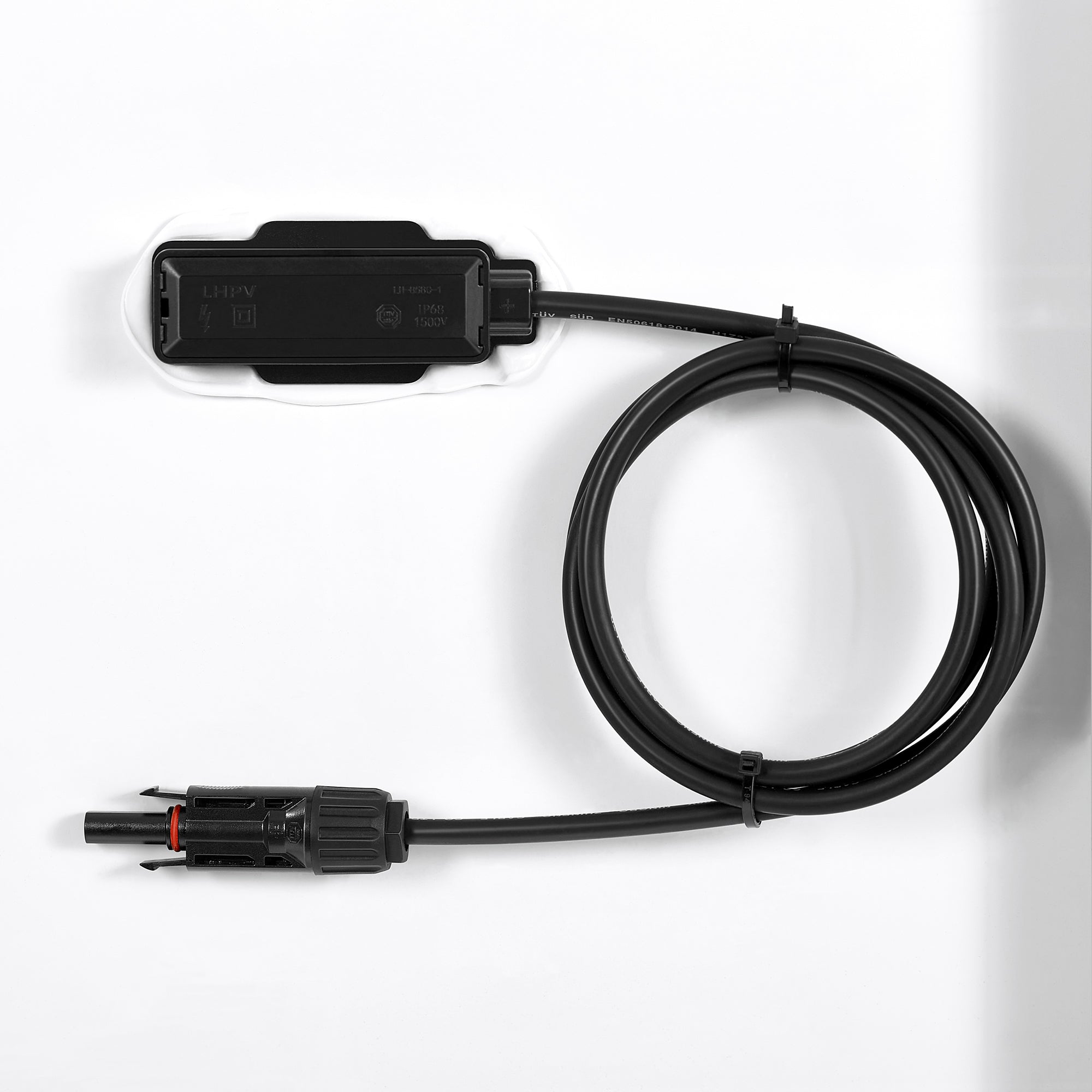

• IP67-rated waterproof junction box and connectors with built-in bypass diodes.
• Plug-and-play junction box and industry-standard quick-connect cables compatible in series or parallel.
• Pre-drilled holes for ground mounts, Z brackets, pole mounts and tilt mounts.
• Compatible with both on-grid and off-grid inverters for versatile applications.
• Designed and tested to endure harsh environmental conditions including wind, snow and hail.

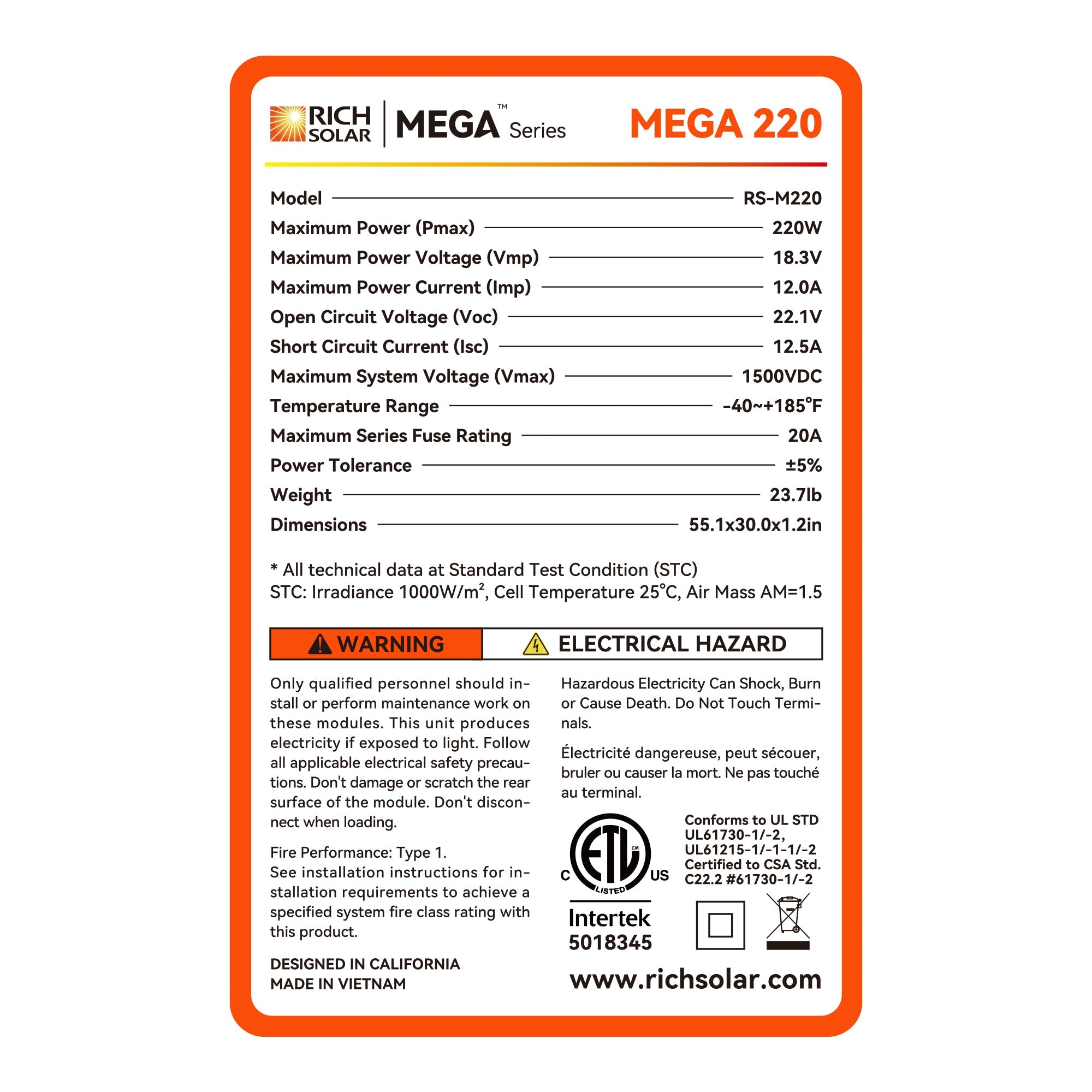

Specifications

• Model: RS-M220
• Maximum Power (Pmax): 220 W
• Maximum Power Voltage (Vmp): 18.3 V
• Maximum Power Current (Imp): 12.0 A
• Open Circuit Voltage (Voc): 22.1 V
• Short Circuit Current (Isc): 12.5 A
• Maximum System Voltage (Vmax): 1500 VDC
• Temperature Range: -40 to +185 °F (-40 to +85 °C)
• Weight: 23.7 lb (10.7 kg)
• Dimensions: 55.1 × 30.0 × 1.2 in (1400 × 760 × 30 mm)
• Frame Material: Anodized aluminum
• Glass: High-transmission AR-coated tempered glass
• Panel leads: Pair of 3 ft (0.9 m) cables
• Built-in Components: IP67 waterproof junction box, IP67 waterproof solar connectors, bypass diodes in junction box
• Durability Ratings: 2400 Pa wind load, 5400 Pa snow load, survives 35 mm hailstones at 97 km/h
• Quality & Reliability: Over 30 in-house tests (including UV, thermal cycling, humidity freeze), PID resistant, 100% EL double inspection
• Warranty: 25-year output warranty; 10-year workmanship warranty
