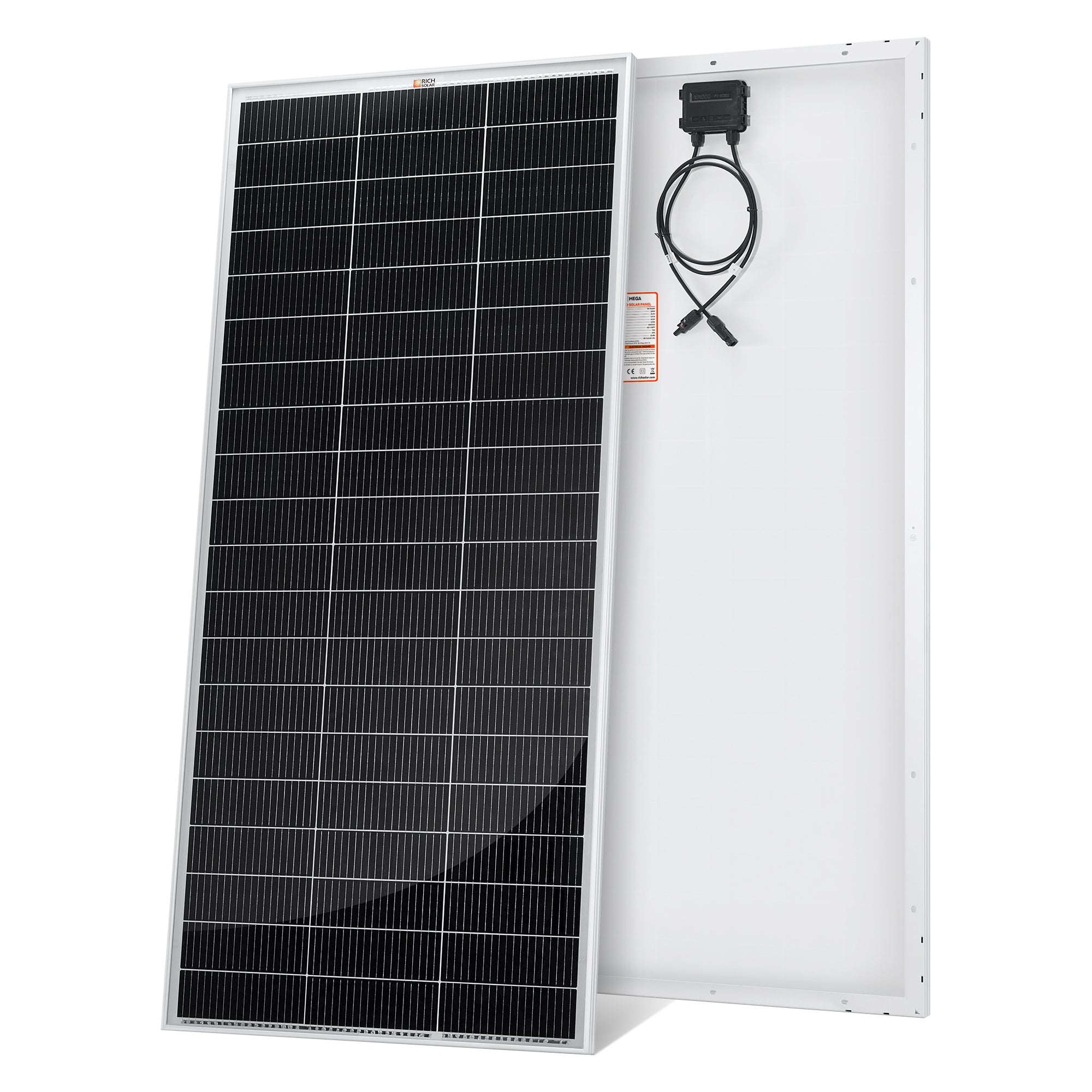

RICH SOLAR MEGA 200 Pro — 200W (24V) Solar Panel

The MEGA 200 Pro is a durable 200-watt solar panel engineered for reliable off-grid power on RVs, boats, cabins, and mobile systems. Built with tempered, anti-reflective glass and an anodized aluminum frame, it delivers consistent performance, easy installation, and long-term protection backed by a 25-year power output warranty and UL certification.

Benefits

• Stay powered longer: provides steady charging for 24?volt battery systems so lights, appliances, and devices run when you need them.
• More usable hours: good low-light sensitivity means usable energy earlier and later in the day and on cloudy conditions.
• Less hassle installing and maintaining: pre-drilled holes and standard mounting compatibility speed up setup and reduce labor.
• Peace of mind: long warranty and UL certification reduce worry about long-term performance and safety.
• Flexible system design: works in series or parallel and pairs with on-grid or off-grid inverters for scalable arrays.

Features

• 200 W maximum power output suitable for 24?volt battery charging.
• Maximum power current (Imp) of 5.51 A and maximum power voltage (Vmp) of 36.3 V.

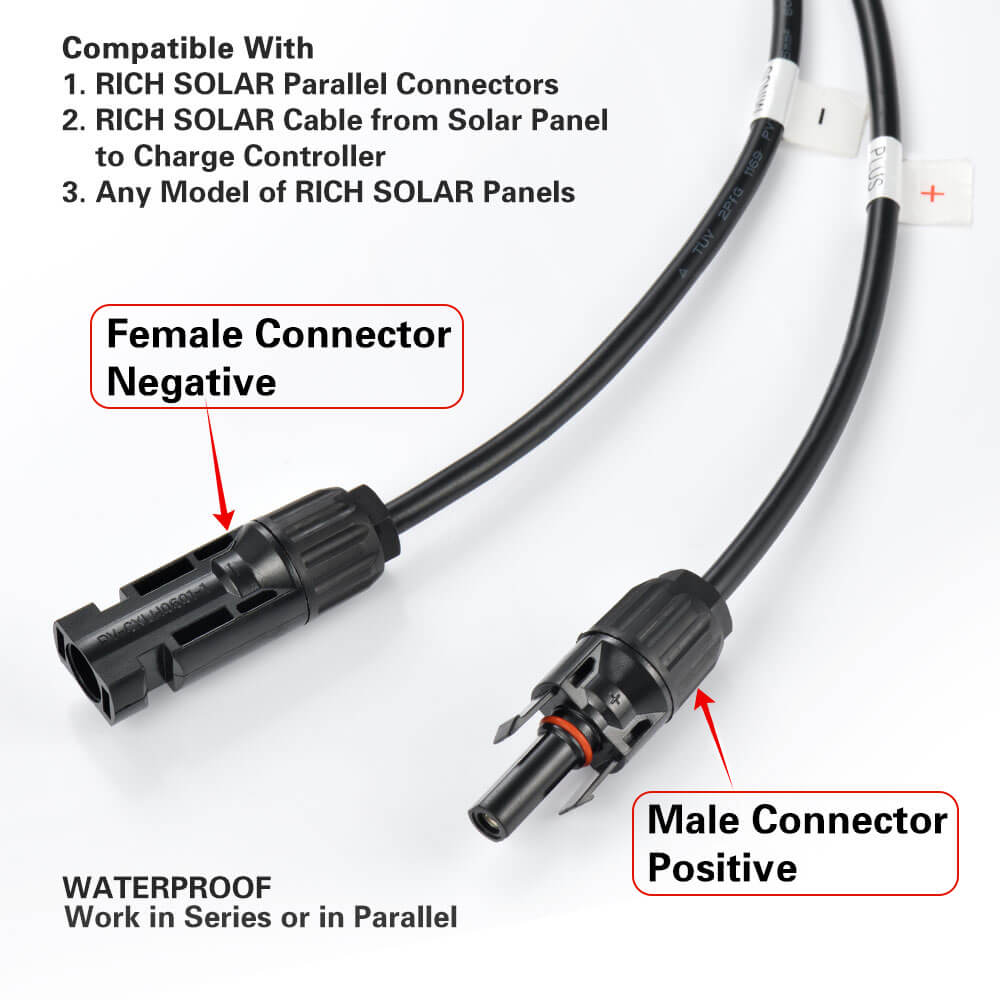

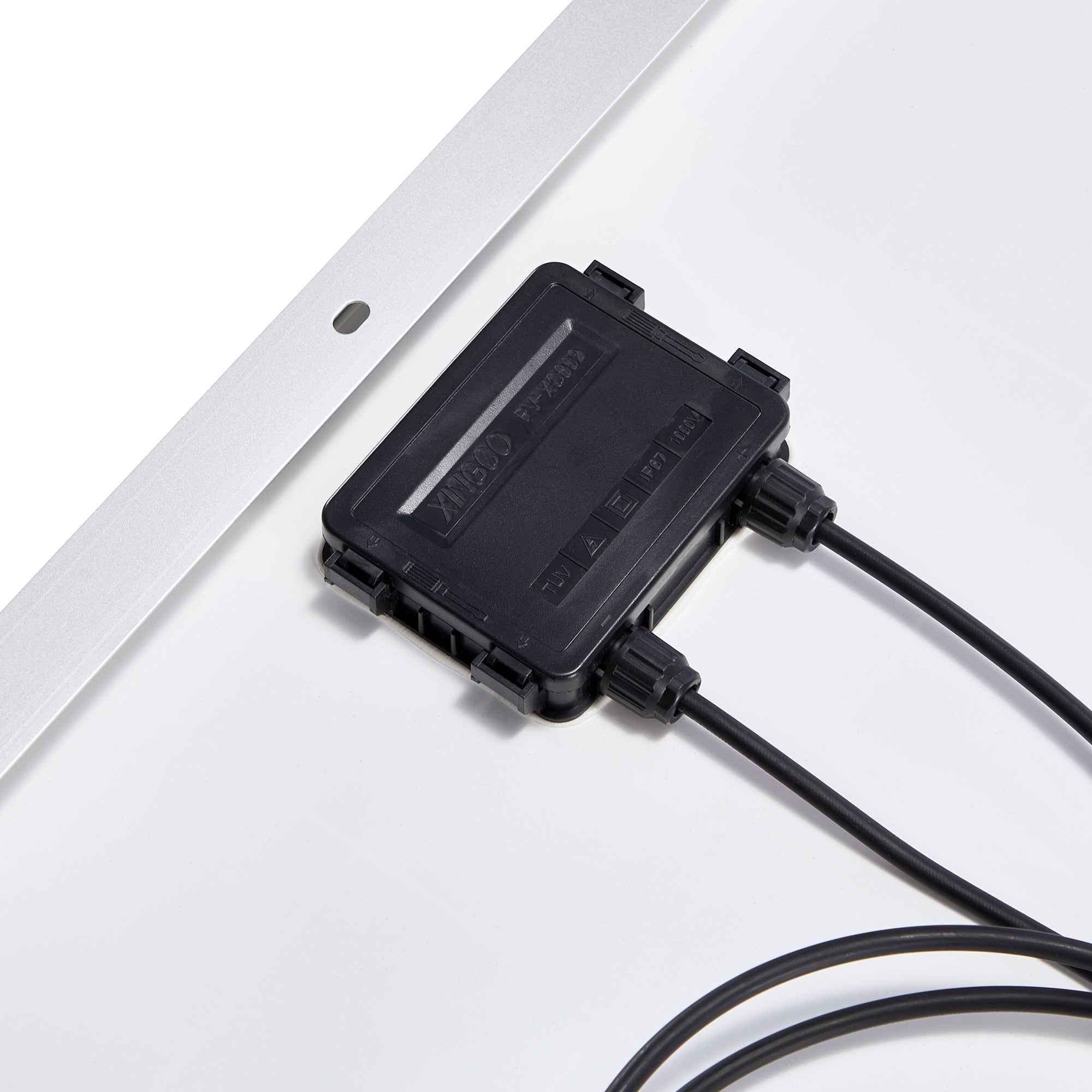

• Includes 3' quick-connect cables with connectors for fast electrical hookup.
• Operates in series or parallel for flexible array configurations.

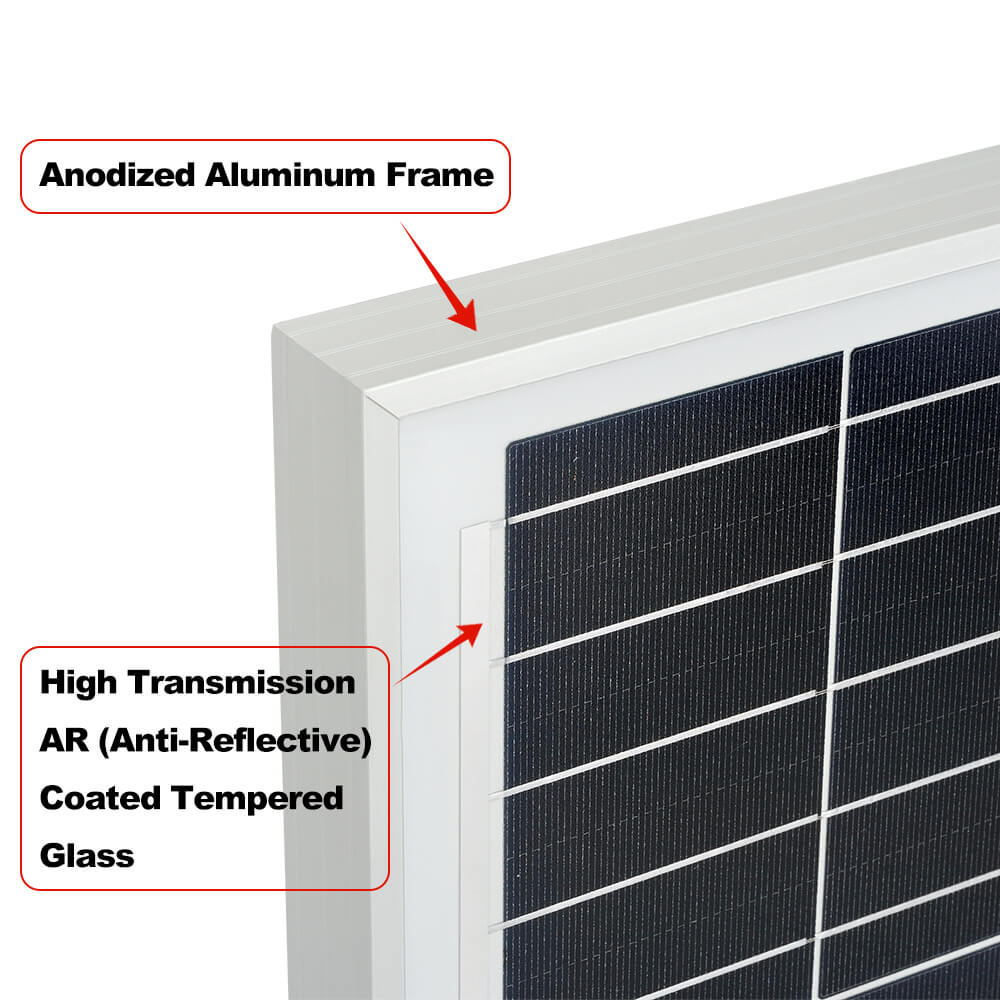

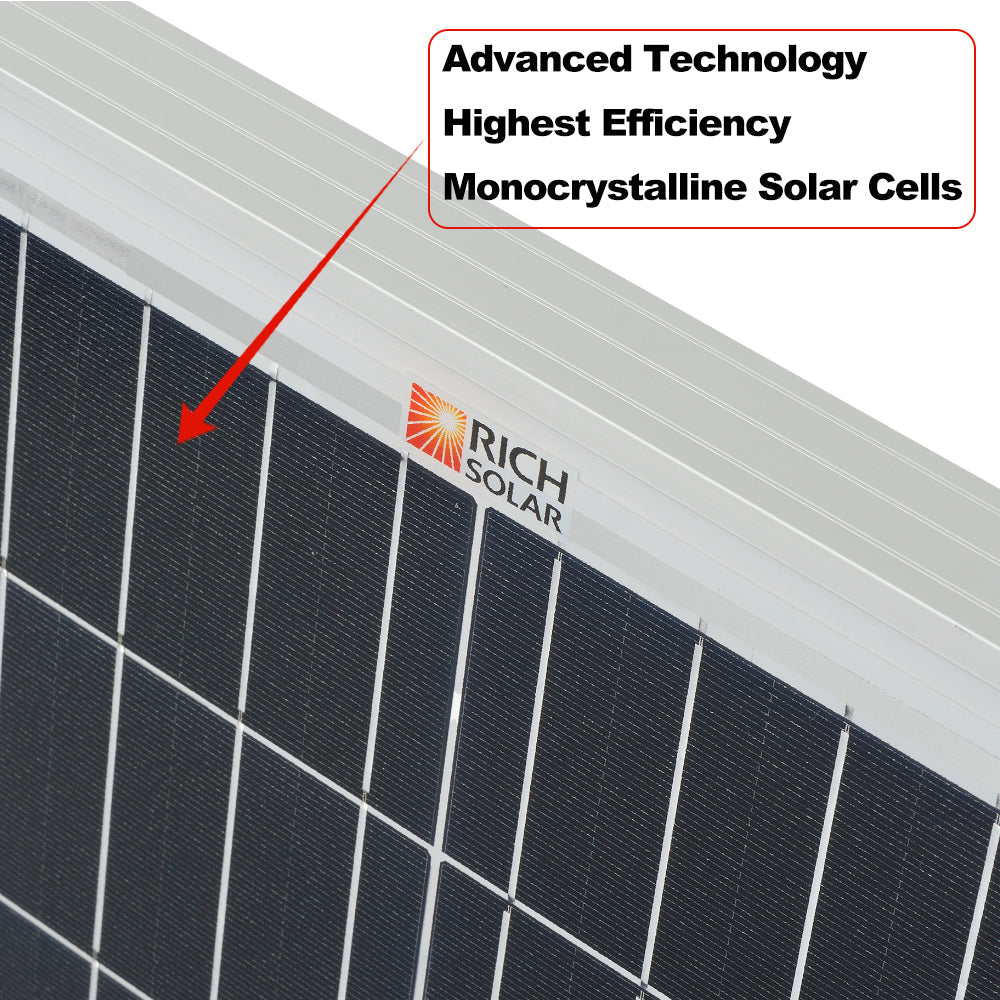

• Strong, high-transmission anti-reflective coated tempered glass for durability and improved light capture.
• Anodized aluminum frame for corrosion resistance and structural strength.
• Excellent low-light performance for early mornings, evenings, and cloudy days.

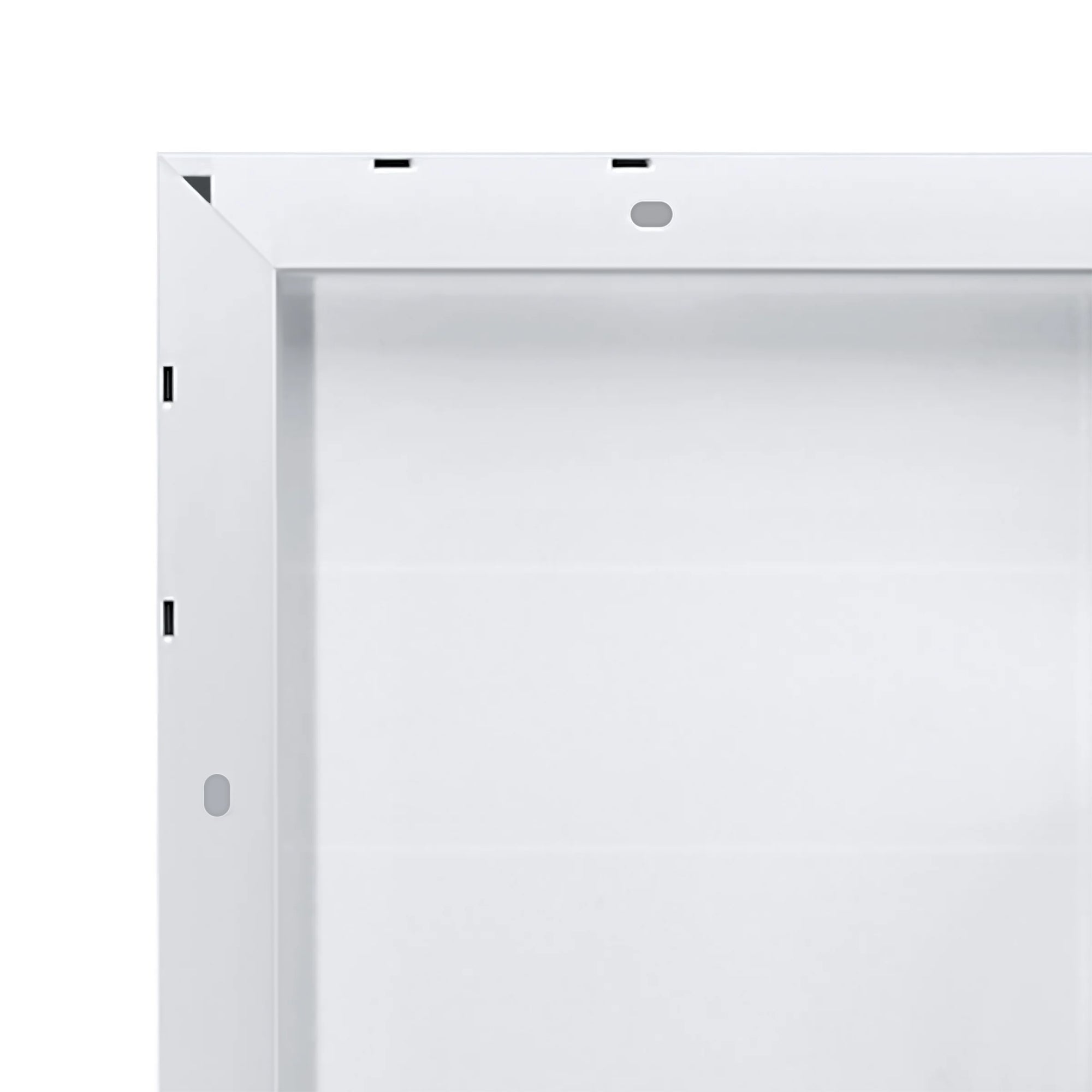

• 14 pre-drilled mounting holes; compatible with Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• UL certified for safety and reliability.
• 25-year limited power output warranty and 10-year workmanship warranty.
• Compatible with both on-grid and off-grid inverters.

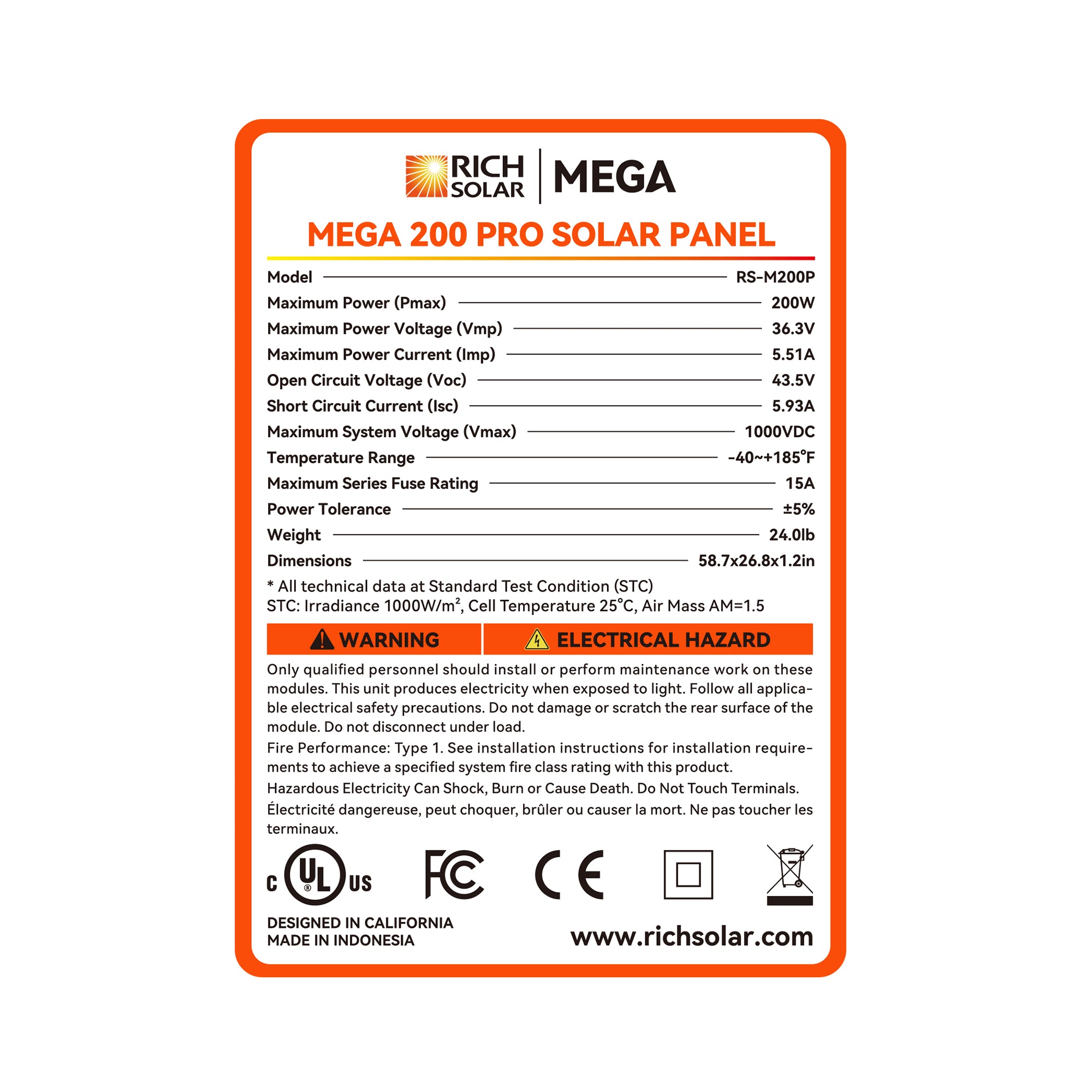

Specifications

• Maximum Power (Pmax): 200 W
• Maximum Power Voltage (Vmp): 36.3 V
• Maximum Power Current (Imp): 5.51 A
• Open Circuit Voltage (Voc): 43.5 V
• Short Circuit Current (Isc): 5.93 A
• Maximum System Voltage: 1000 VDC
• Maximum Series Fuse Rating: 15 A
• Temperature Range: -40 to +185 °F
• Weight: 24.0 lb
• Dimensions: 58.7 x 26.8 x 1.2 in
• Cables: 3' quick-connect cables with connectors
• Mounting: 14 pre-drilled holes; compatible with Z-brackets, ground mounts, pole mounts, and tilt mounts
• Certifications & Warranty: UL certified; 25-year limited power output warranty; 10-year workmanship warranty
