Rich Solar Power Queen 5.1kWh 24V LiFePO4 Battery Bank

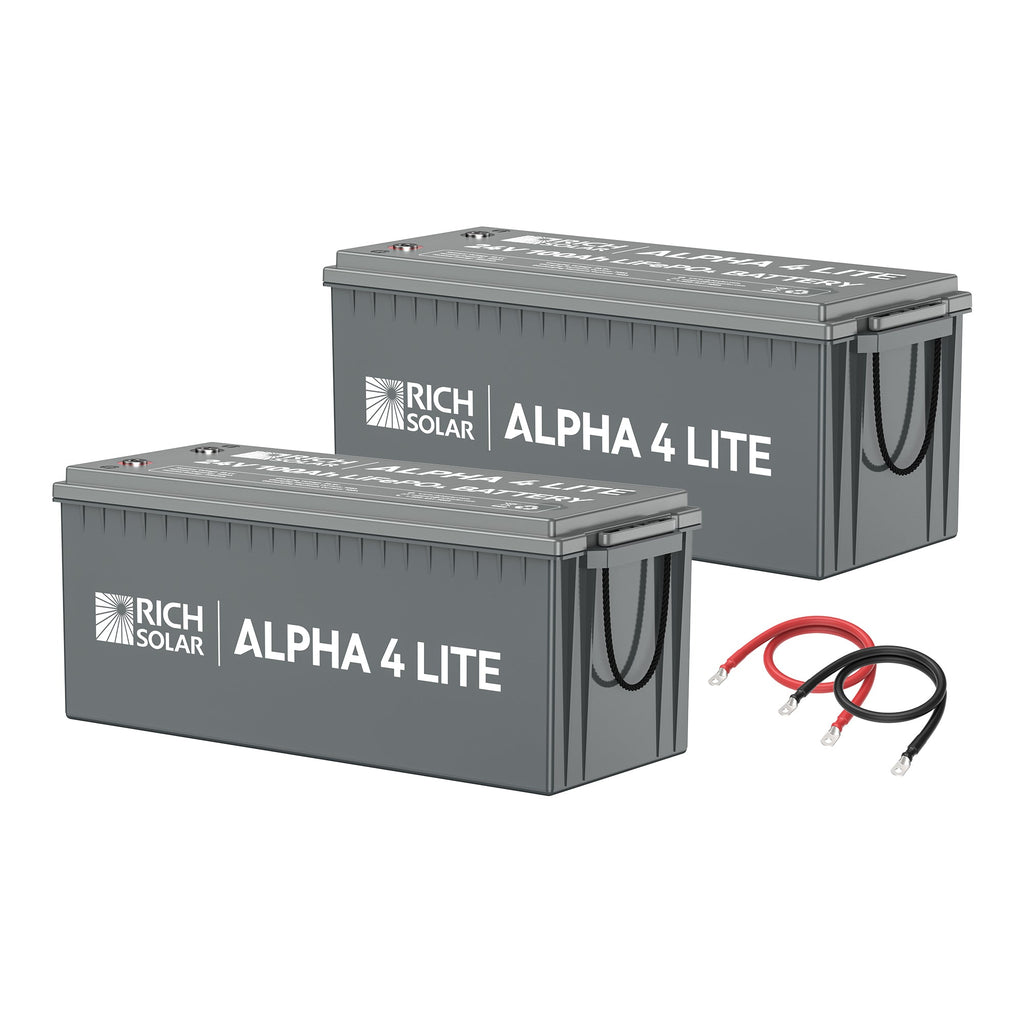

ALPHA 4 LITE — 24V 200Ah (2×100Ah) LiFePO4 Battery Bank

The ALPHA 4 LITE is a rugged LiFePO4 battery system built from RICH SOLAR cells. This 24V package (two 24V 100Ah modules) delivers reliable off-grid and backup power with low weight, a long cycle life, and a built-in battery management system for safe, long-term use.

Benefits

• Keep essential systems running during outages or while boondocking, so you have consistent power when you need it.
• Spend less time on maintenance and battery swaps thanks to long cycle life and low self-discharge.
• Carry and install batteries more easily because each module is lightweight and includes a removable handle.
• Reduce worry about overheating, overcharge, overdischarge, and short circuits with integrated BMS protections.
• Use a cleaner chemistry with LiFePO4 cells that avoid heavy metal contaminants.

Features

• Two 24V 100Ah ALPHA 4 LITE LiFePO4 batteries combined as a 24V 200Ah (?5.12 kWh) bank.
• Built-in smart Battery Management System (BMS) with individual cell fusing.
• BMS protections: over-charge, over-discharge, over-current, short-circuit, and high/low temperature disconnects.
• High cycle life: >4000 cycles per cell.
• Stable output voltage and low self-discharge (<5% per month).
• Wide operating temperature range for charging and discharging.
• High continuous charge and discharge capability (100A).

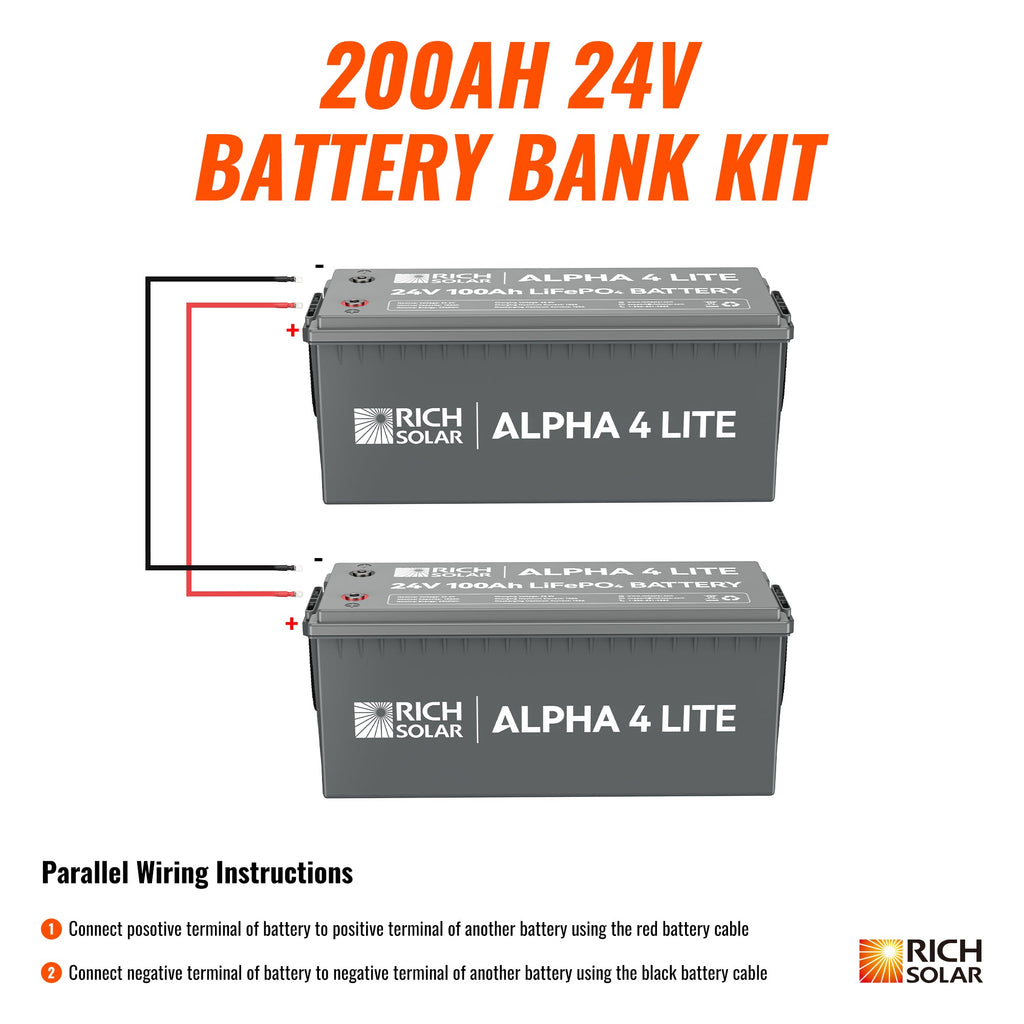

• Includes 2 × 1 ft 2 AWG battery cables for easy parallel/series configuration or installation.
• Removable carry handle for portability.
• Five-year manufacturer warranty.
• Not intended to replace engine starting batteries.

Specifications

• Package contents: 2 × 24V 100Ah ALPHA 4 LITE LiFePO4 batteries; 2 × 1 ft 2 AWG battery cables.
• Bank capacity (total): 200Ah at 24V (approx. 5.12 kWh / 5120 Wh).
• Per battery: Nominal Voltage: 25.6 V.
• Per battery: Nominal Capacity: 100 Ah; Minimum Capacity: 99.5 Ah.
• Per battery: Energy: 2560 Wh.
• Cycle Life: >4000 cycles.
• Charge Voltage: 28.8 V.
• Max Charge Current: 100 A.
• Max Continuous Discharge Current: 100 A.
• Self-discharge: < 5% per month.
• Charge Temperature: 0 °C to 55 °C (32 °F to 131 °F).
• Discharge Temperature: -20 °C to 60 °C (-4 °F to 140 °F).
• Storage Temperature (more than 3 months): -10 °C to 45 °C (14 °F to 113 °F), 90% RH max.
• Per battery Dimensions (L × W × H): 20.9 × 8.1 × 8.5 in.
• Per battery Weight: 52.9 lb.
• BMS cell-level safety: each LiFePO4 cell individually fused to isolate failures and maintain overall battery function.
• BMS Over Charge Protection: detection voltage 3.75 V ±0.05 V; detection delay ~1000 ms ±500 ms; recovery voltage 3.55 V ±0.05 V (per cell).
• BMS Over Discharge Protection: detection voltage 2.20 V ±0.08 V; detection delay ~1000 ms ±500 ms; recovery voltage 2.70 V ±0.10 V (per cell).
• Short circuit protection: Yes.
• Other protections: over-current, excessive heat, high/low temperature disconnects, over-charge and over-discharge protection.
• Warranty: 5-year warranty.
