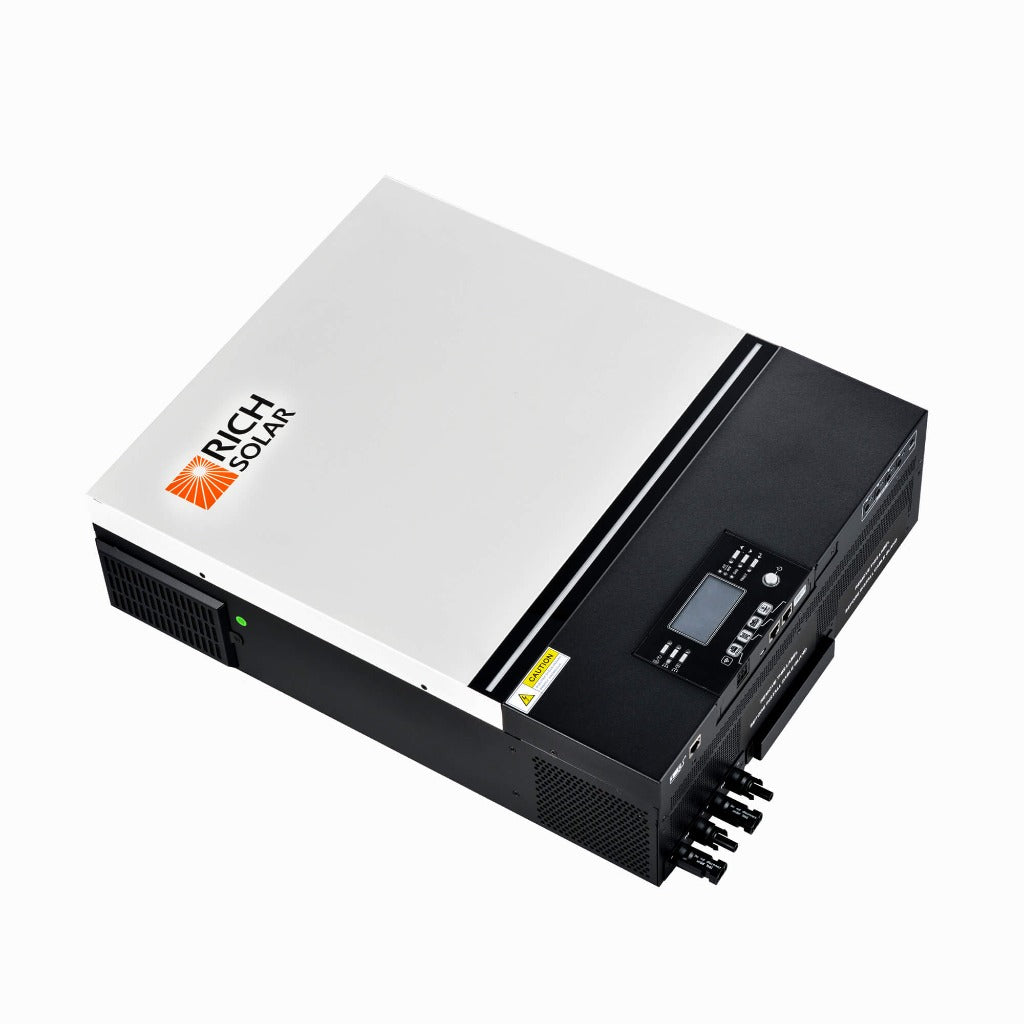

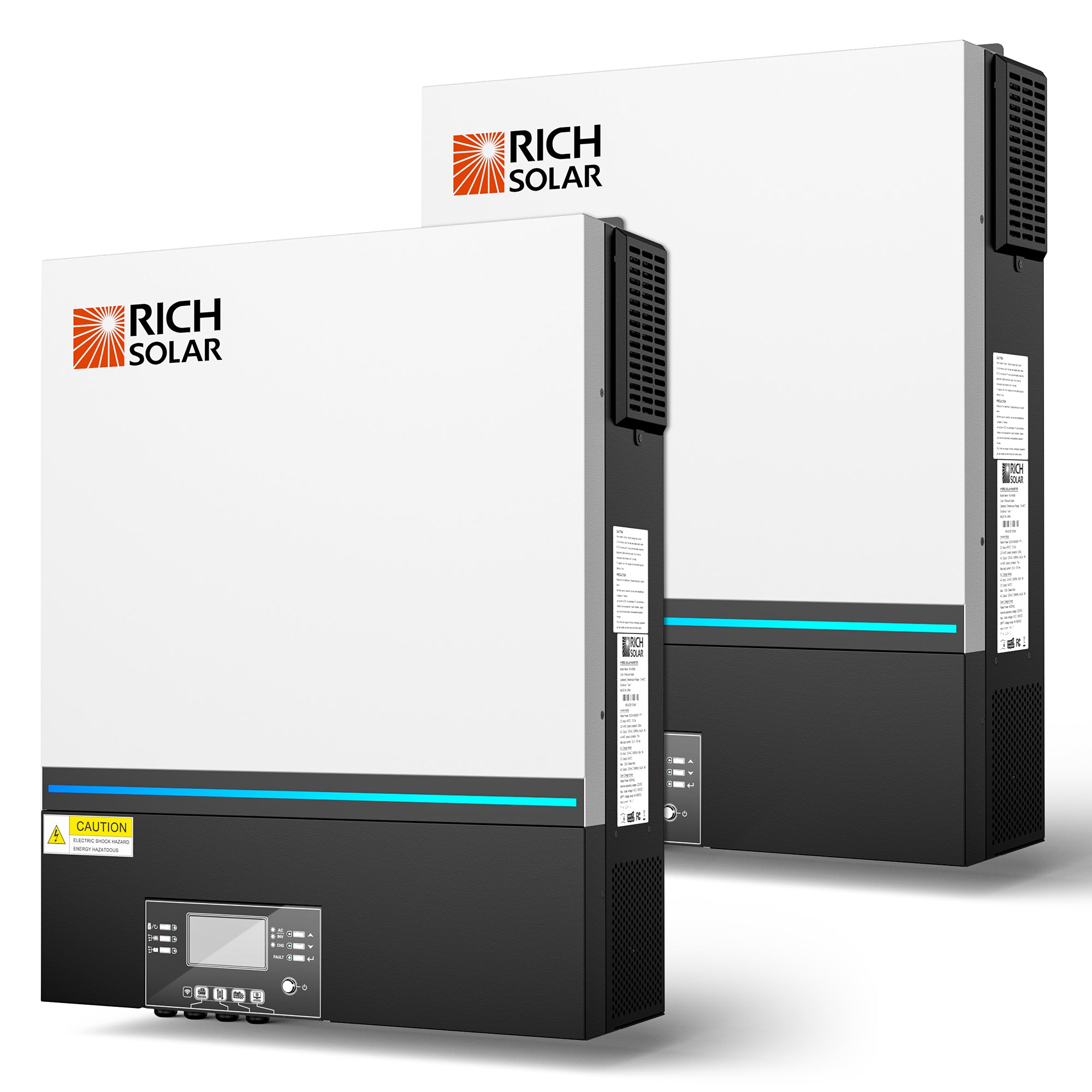

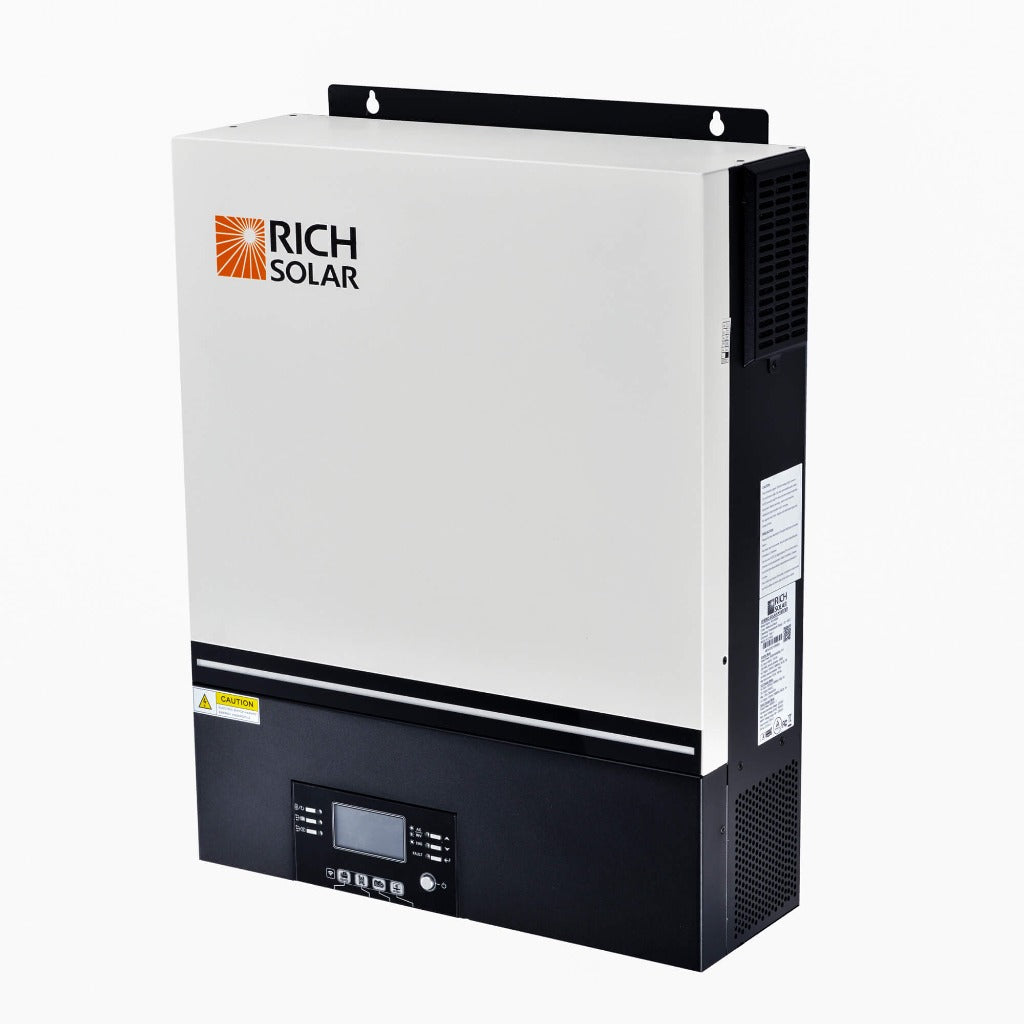

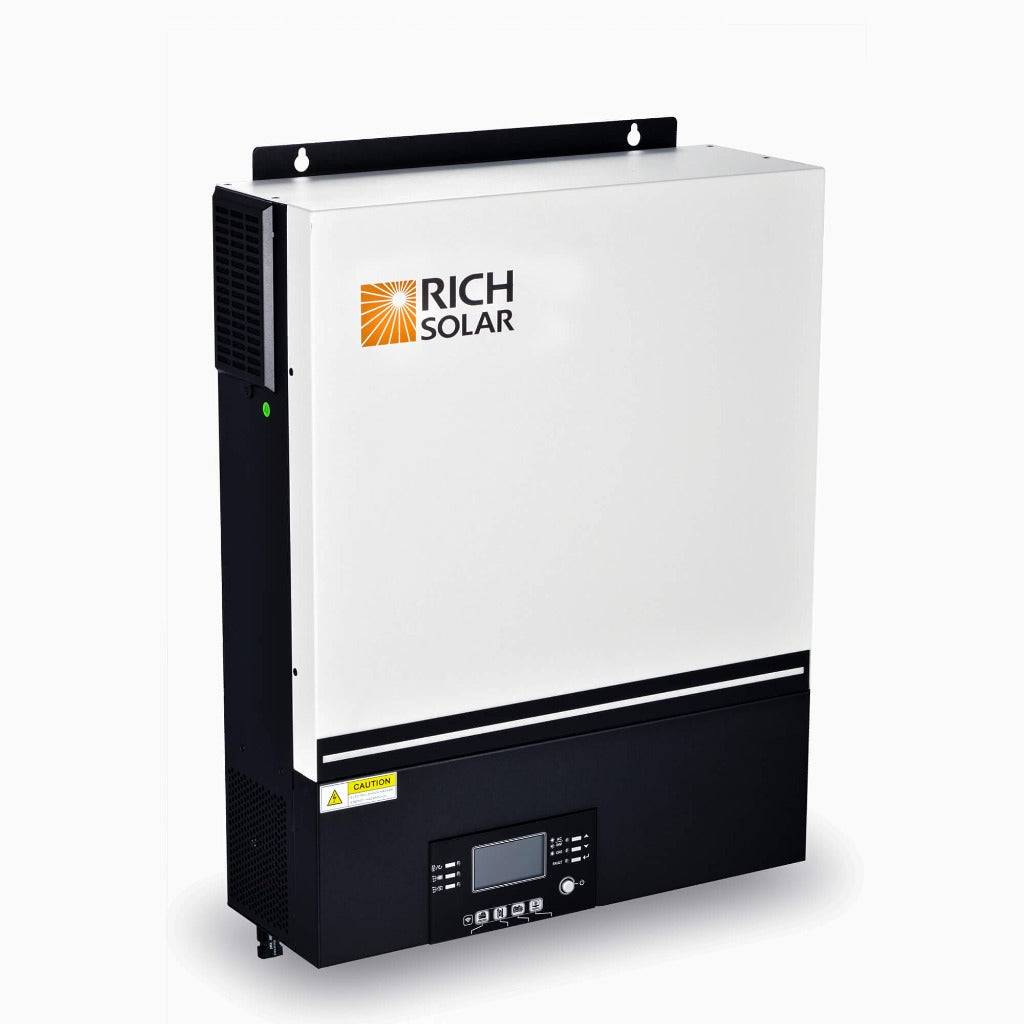

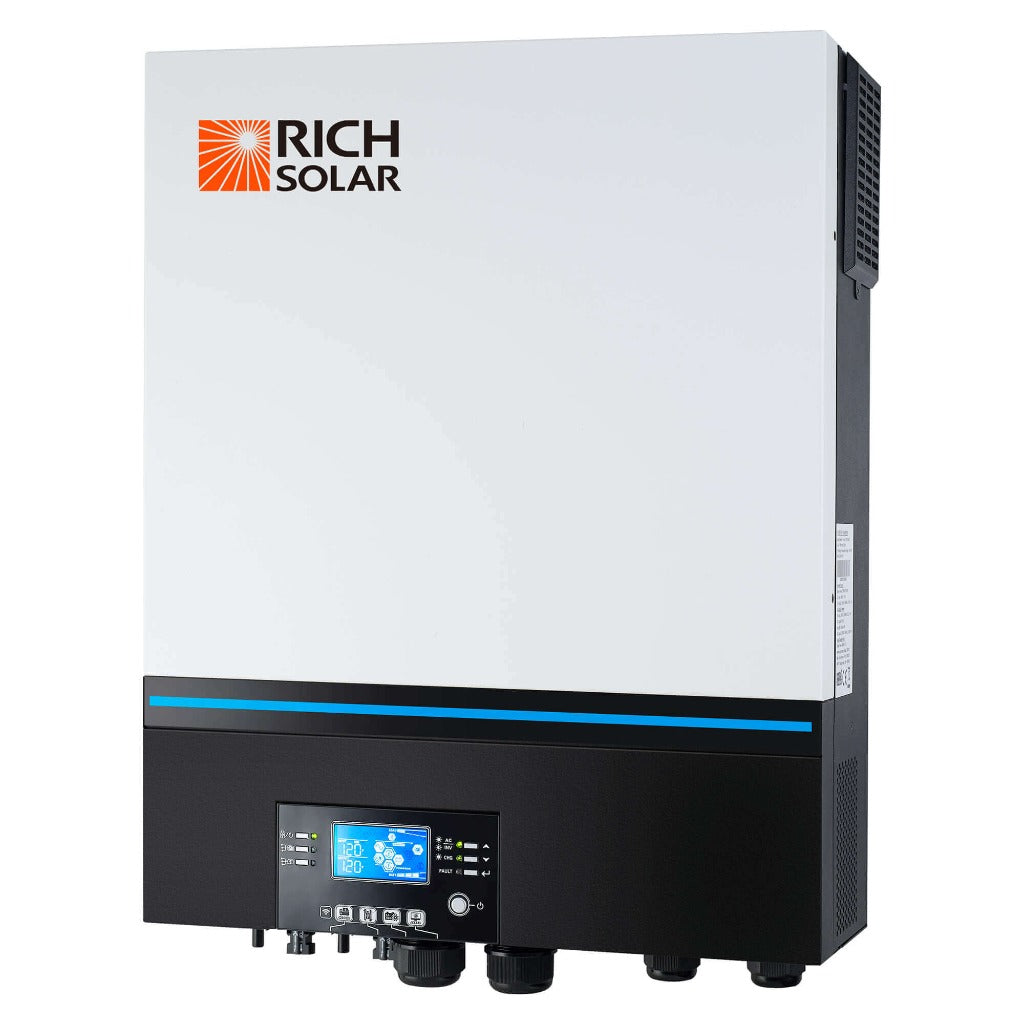

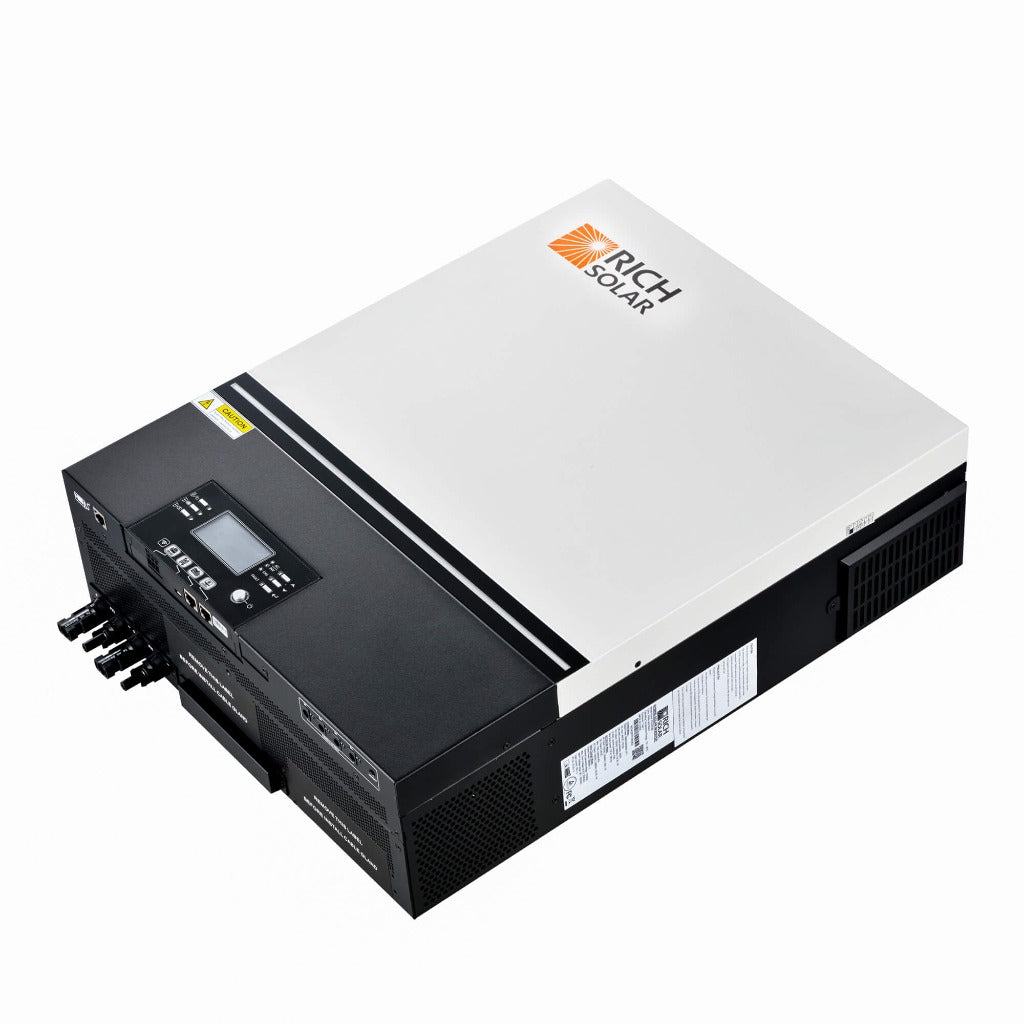

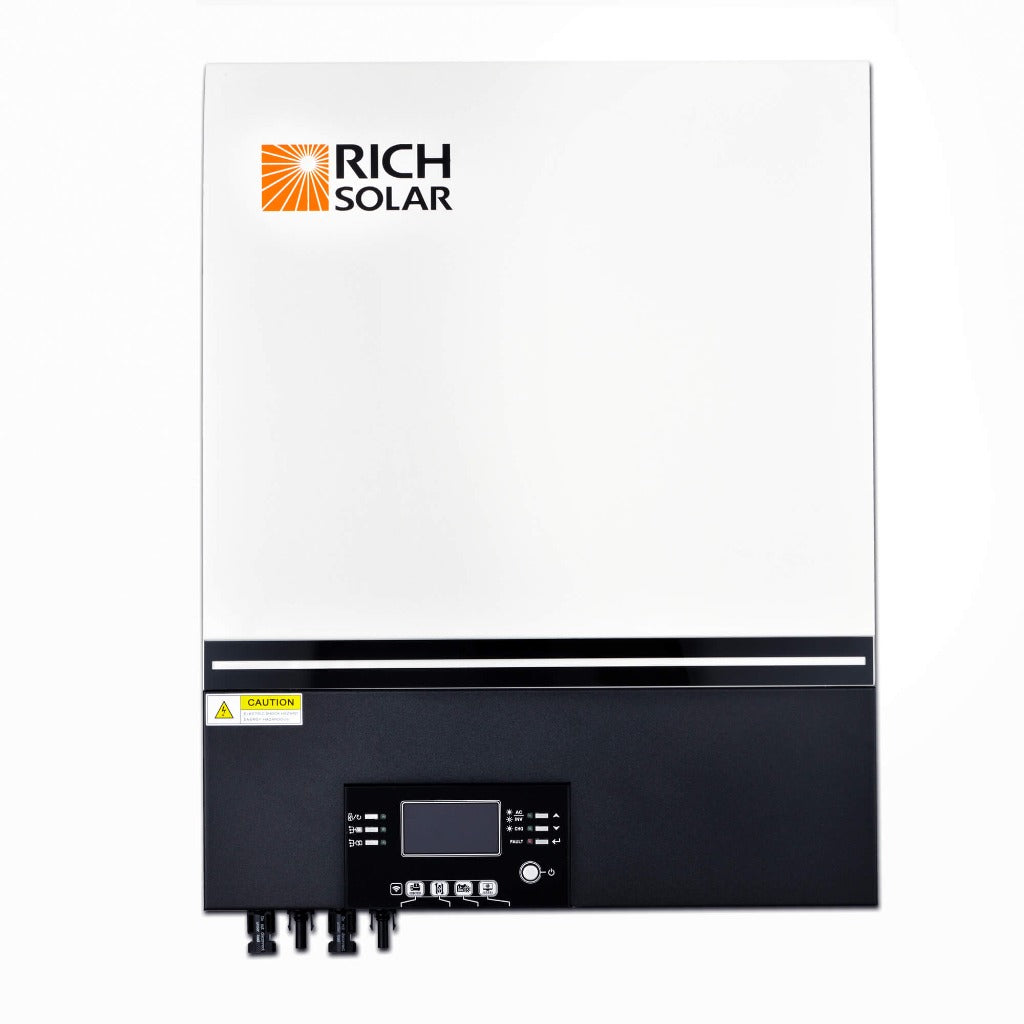

Rich Solar NOVA 6500W 48V UL Certified Hybrid Solar Inverter

RS-H6548 6500W Pure Sine Wave Inverter — Smart Hybrid Power

The RS-H6548 is a 6500W pure sine wave hybrid inverter with integrated MPPT solar charging, Wi?Fi monitoring, and a detachable LCD control module. It supports flexible configuration, cold-start capability, and parallel expansion up to six units for larger systems—designed to power sensitive electronics, manage solar and AC charging, and simplify system monitoring and control.

Benefits

• Keep lights and devices running during outages so work and daily routines continue uninterrupted.
• Protect sensitive equipment with a clean pure sine wave output that reduces noise and extends device life.
• Monitor and adjust settings from your phone for easier system oversight and fewer service visits.
• Optimize battery life and reduce generator runtime with configurable charging profiles and a smart charger design.
• Scale capacity by paralleling up to six units when you need more power without replacing the whole system.
• Simplify integration with home or generator power and automatic restart when AC returns.

Features

• Pure sine wave inverter output for stable, clean power.
• Customizable RGB LED bar for status indication and visual feedback.
• Built-in Wi?Fi for mobile monitoring (requires companion app).
• USB On?The?Go (OTG) support for flexible connectivity.
• Built-in anti-dusk kit to manage lighting or night-time behavior.
• Detachable LCD control module with multiple communication ports: RS232, RS485, CAN?BUS.
• Configurable input voltage ranges for computers and home appliances via the LCD panel.
• Set AC/PV output timers and prioritization to control when and how loads are powered.
• Selectable AC vs. solar charger priority and adjustable battery charging current through the LCD.
• Compatible with utility mains or generator input; auto-restarts when AC recovers.
• Protection against overload, over-temperature, and short circuit conditions.
• Parallel operation supported for up to 6 units to increase total power.
• Smart battery charger design to improve charging efficiency and battery performance.
• Cold start capability to power the inverter from the battery when AC is not available.

Specifications

• Model: RS-H6548
• Rated inverter power: 6500 VA / 6500 W
• Parallel capability: Up to 6 units
• Input:
  • Nominal voltage: 120 VAC
  • Selectable voltage range: 90–140 VAC (for computers), 80–140 VAC (for home appliances)
  • Frequency: 50 Hz / 60 Hz (auto sensing)
• Output:
  • AC voltage regulation (battery mode): 120 VAC ± 5%
  • Surge power: 2 × rated power for 5 seconds
  • Peak efficiency: 91%
  • Transfer time: 10 ms (for personal computers), 20 ms (for home appliances)
  • Waveform: Pure sine wave
  • Optional DC output: 12 VDC ± 7%, 100 W
• Battery:
  • Battery voltage: 48 VDC
  • Float charging voltage: 54 VDC
  • Overcharge protection: 66 VDC
• Solar charger & AC charger:
  • Solar charger type: MPPT
  • Maximum PV array power: 8000 W (4000 W × 2)
  • MPPT operating voltage range: 90–230 VDC
  • Maximum PV array open-circuit voltage (Voc): 250 VDC
  • Maximum solar charge current: 120 A
  • Maximum AC charge current: 120 A
  • Maximum total charge current: 120 A
• Physical:
  • Dimensions (D × W × H): 5.8 × 17.0 × 21.8 in
  • Net weight: 40.6 lb
  • Communication interfaces: USB, RS232, RS485, Wi?Fi, dry-contact
• Operating environment:
  • Humidity: 5% to 95% relative humidity (non?condensing)
  • Operating temperature: -14 °F to 104 °F
  • Storage temperature: 5 °F to 140 °F
• Standards and compliance: UL 1741 certified by TUV
