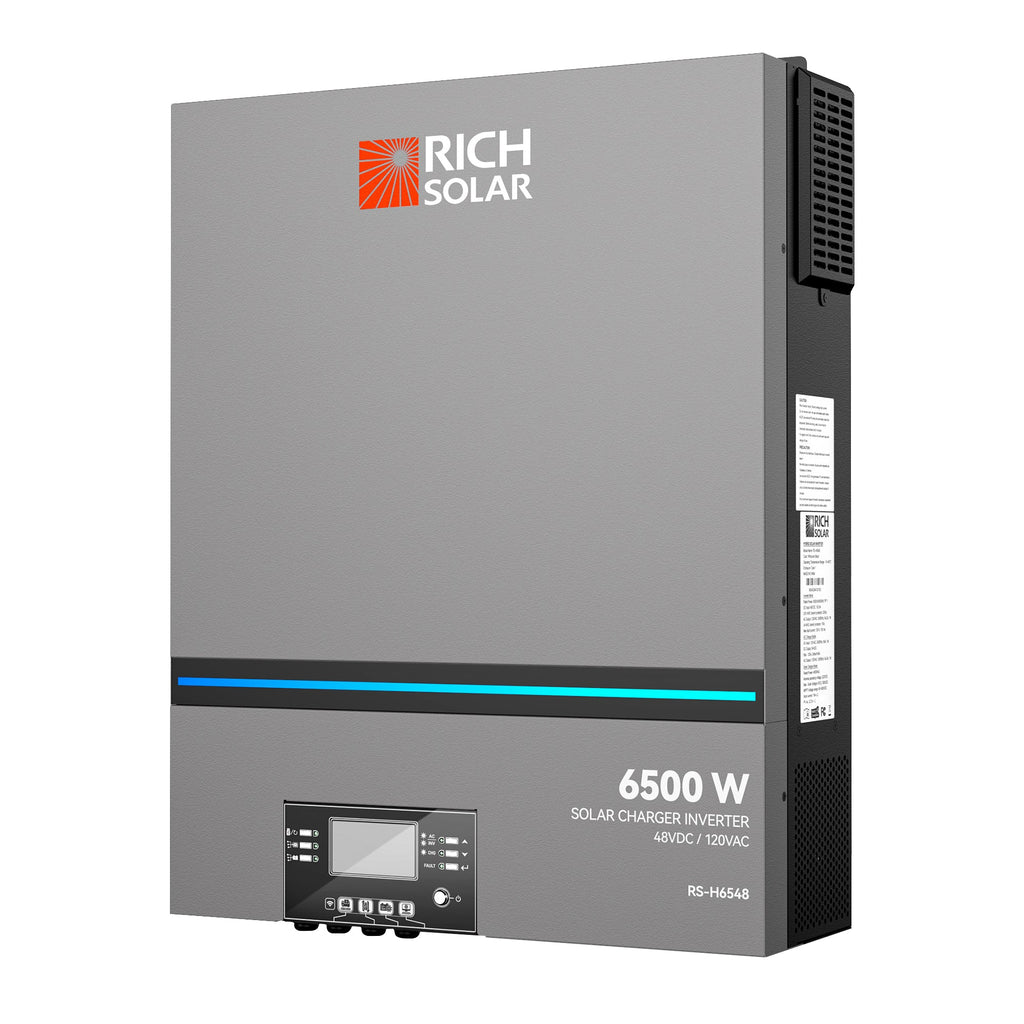

Rich Solar NOVA 6500W 48V Hybrid Solar Inverter UL Certified Off Grid Power

Reliable 6.5kW Pure Sine Wave Inverter with Smart Controls

Overview

A versatile 6,500W pure sine wave inverter designed for home and small commercial use. It delivers clean, stable power for sensitive electronics, offers flexible monitoring and configuration via a detachable LCD and built-in Wi?Fi, and can scale by paralleling up to six units.

Benefits

• Keep sensitive devices safe with clean, pure sine wave output for quieter, more reliable operation.
• Monitor and control system settings from your phone or the detachable LCD to save time and reduce maintenance visits.
• Scale capacity easily — parallel up to six units to grow with your power needs.
• Reduce downtime: auto-restart, cold-start capability, and compatibility with generator or utility power mean faster recovery after outages.
• Protect your battery investment with smart charging and configurable charge settings to extend battery life.
• Quickly identify system status with a configurable RGB LED bar and on-the-go USB support for mobile devices.

Features

• Pure sine wave inverter output for clean power delivery
• Configurable RGB LED bar for visual status and color coding
• Built-in Wi?Fi for mobile monitoring (app required)
• USB On-The-Go (OTG) support for off-grid device charging or communication
• Built-in anti-dusk kit for automatic lighting control
• Detachable LCD control module with multiple communication ports (RS485, CAN?BUS, RS232)
• Adjustable input voltage ranges via the LCD for appliance and PC protection
• Configurable AC/PV output usage timer and prioritization
• Selectable AC or solar charger priority through the LCD panel
• Adjustable battery charging current to match the application
• Compatible with utility mains or generator input
• Auto restart when AC power is restored
• Protection against overload, over-temperature, and short circuit
• Smart battery charger design for optimized charging and battery longevity
• Cold start function for starting without AC present
• Parallel capability: connect up to 6 units for increased capacity

Specifications

• Model and Power
  • Model: RS-H6548V5
  • Rated output power: 6,500 W
  • Parallel capability: Yes — up to 6 units
• Input
  • Input voltage: 120 VAC
  • Efficiency (input): >95% (rated resistive load, battery fully charged)
  • Frequency range: 50 Hz / 60 Hz (auto detection)
• Output
  • Rated output power: 6,500 W
  • Output voltage waveform: Pure sine wave
  • Output voltage regulation: 120 VAC ±5%
  • Peak efficiency: 91%
  • Surge capacity: 2× rated power for 5 seconds
  • Nominal DC input voltage: 48 VDC
  • Cold start voltage: 46.0 VDC
• Battery
  • Battery voltage: 48 VDC
  • Float charging voltage: 54 VDC
  • Overcharge protection: 66 VDC
• Operating environment
  • Operating temperature range: 14 °F to 104 °F
  • Storage temperature: 5 °F to 140 °F
  • Humidity: 5% to 95% relative humidity (non-condensing)
• Physical
  • Dimensions: 5.8 × 17.0 × 22.66 in (24.43 in with extension box)
  • Net weight: 18.4 kg / 41 lb
