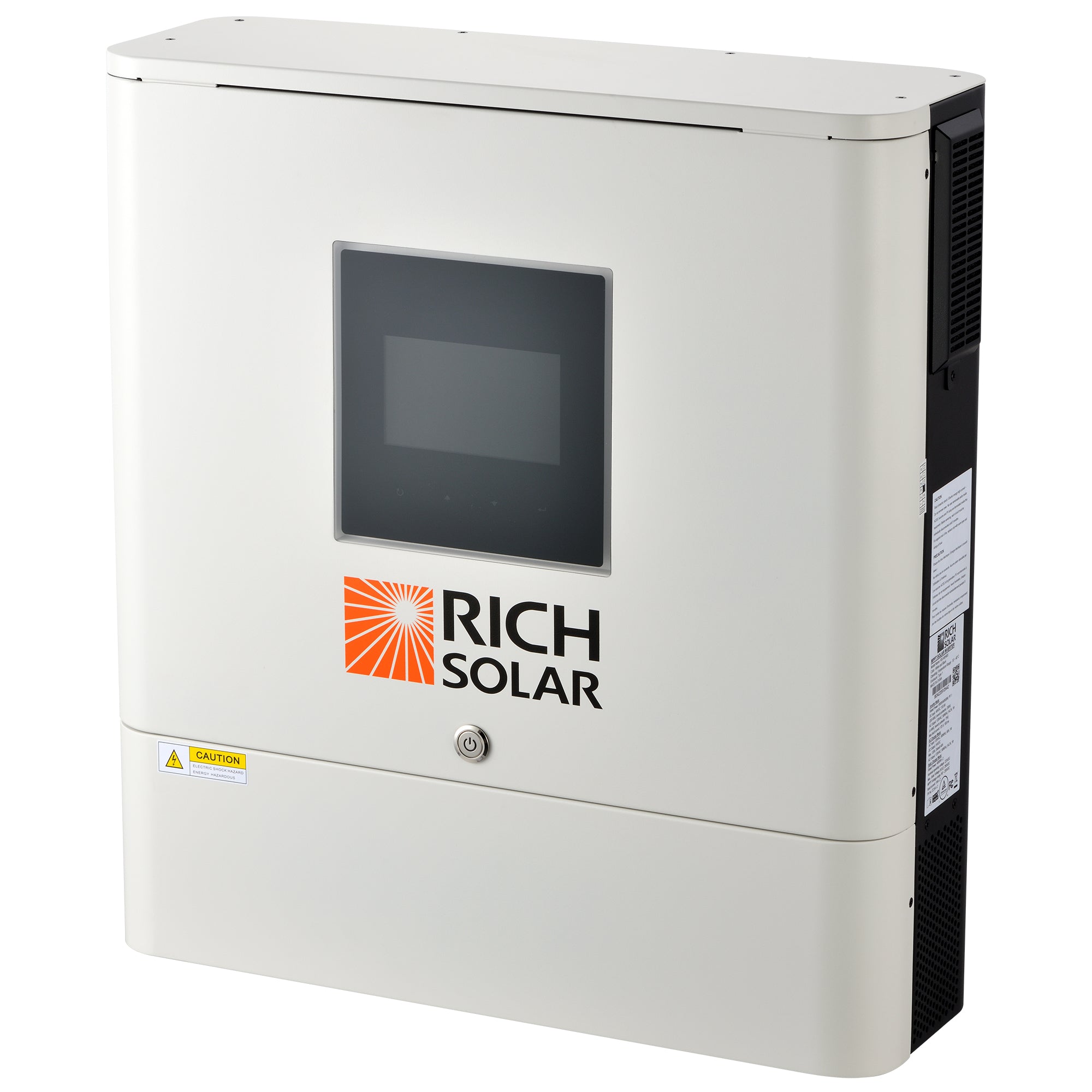

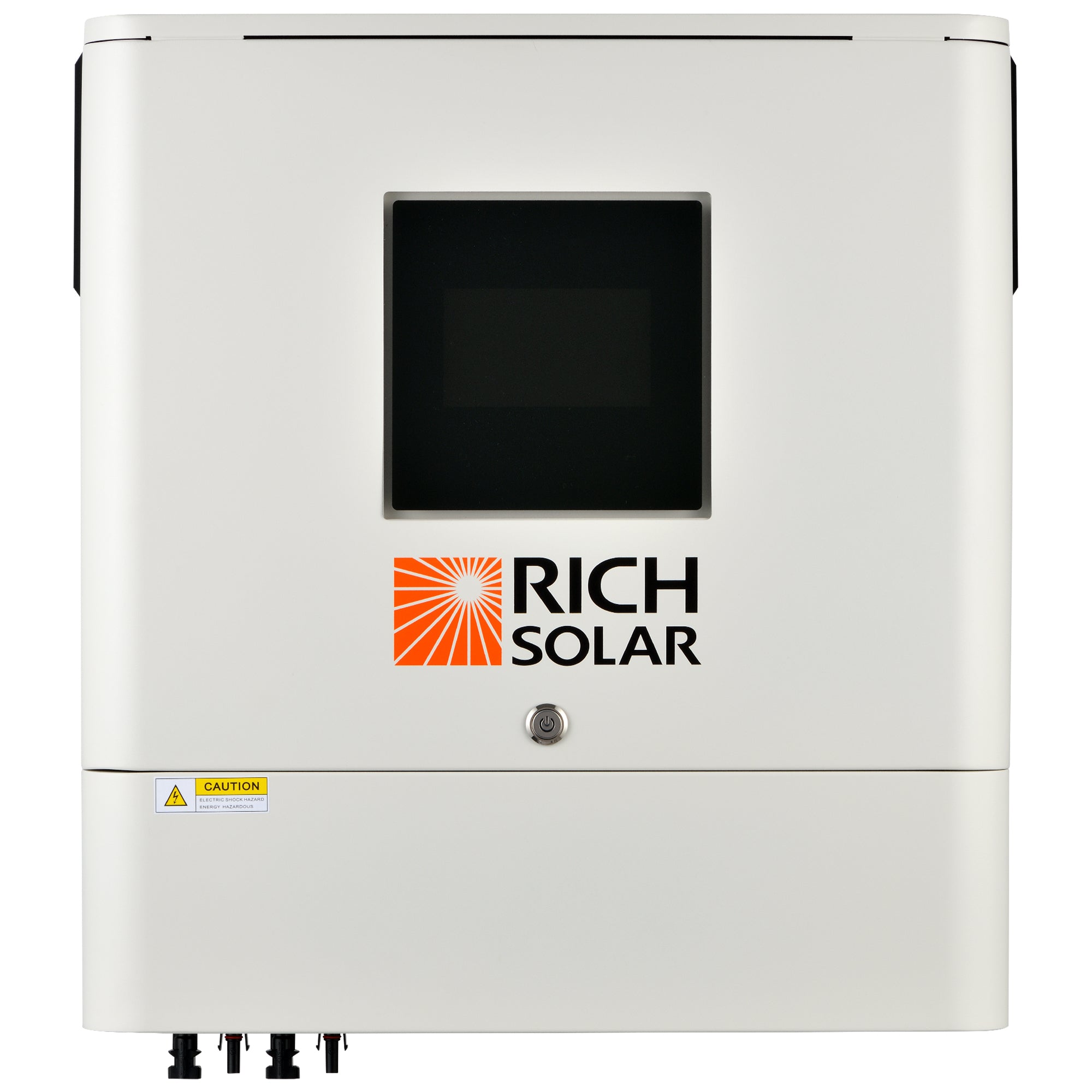

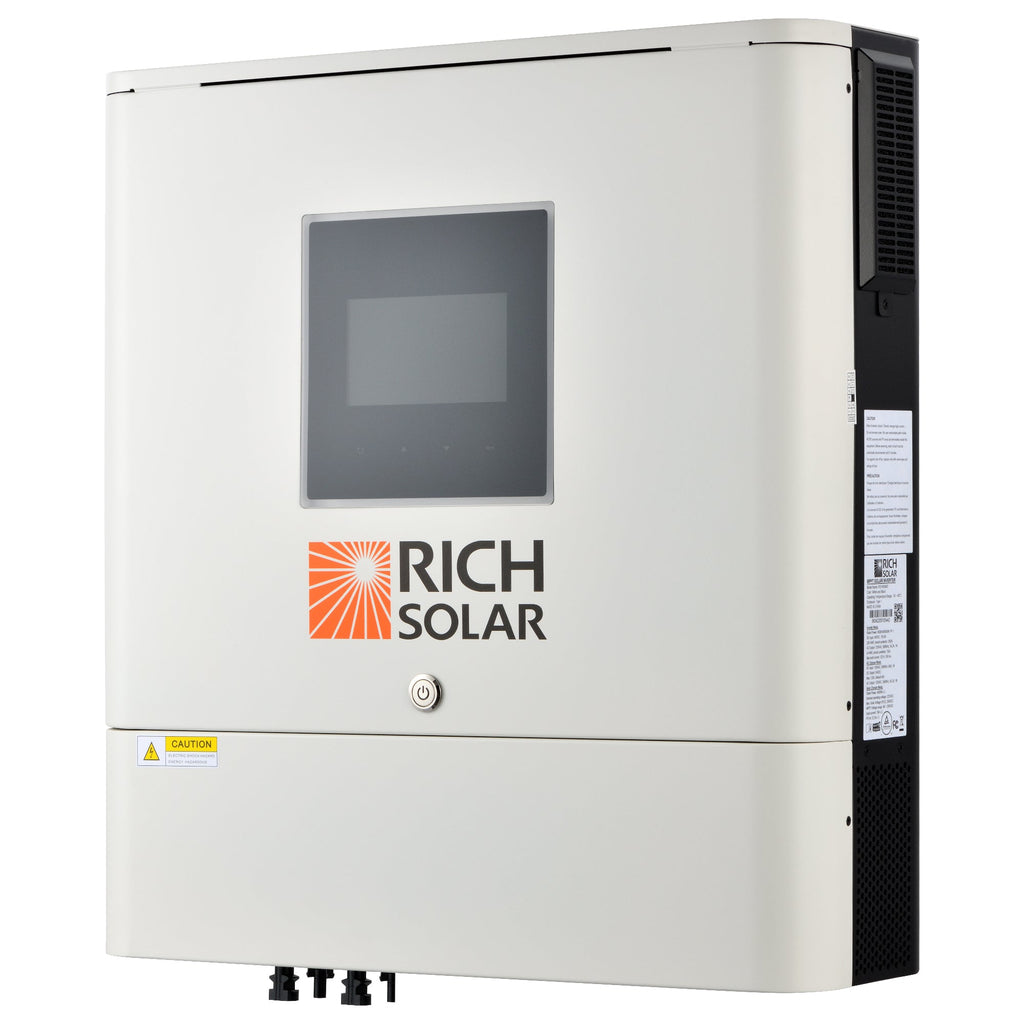

Rich Solar NOVA 6500S 6500W 48V Hybrid Solar Inverter With LCD Touchscreen

NOVA Series 6500S — 6500W Hybrid Solar Inverter

Overview

The NOVA Series 6500S is a flexible, high-capacity hybrid inverter that delivers 6500W continuous power with up to 13kW surge. It combines built-in Wi?Fi monitoring, MPPT solar charging, multiple charging and load modes, and optional battery support, so you can run heavy loads, monitor performance from your phone, and scale with up to six units in parallel.

Benefits

• Monitor system status and usage from your Android or iOS device to spot issues quickly and reduce maintenance time.
• Keep critical devices running during outages or when solar is low—suitable for heavy loads and sensitive electronics.
• Save on battery costs when loads and solar are stable, thanks to the battery?optional design.
• Customize charging and output priorities so the system works the way you need it — more solar use, grid backup, or combined charging.
• Scale capacity easily by paralleling up to six units for higher single?phase, split?phase, or 3?phase needs.
• Reduce downtime with a replaceable fan and accessible communication ports for simpler maintenance and upgrades.

Features

• UL certified for safety compliance.
• RGB status lights for quick local status checks.
• Built?in Wi?Fi with RICH SOLAR app support for Android and iOS monitoring and data logging.
• USB On?The?Go for easy data upload/download.
• Event data logging stored in the inverter for troubleshooting and review.

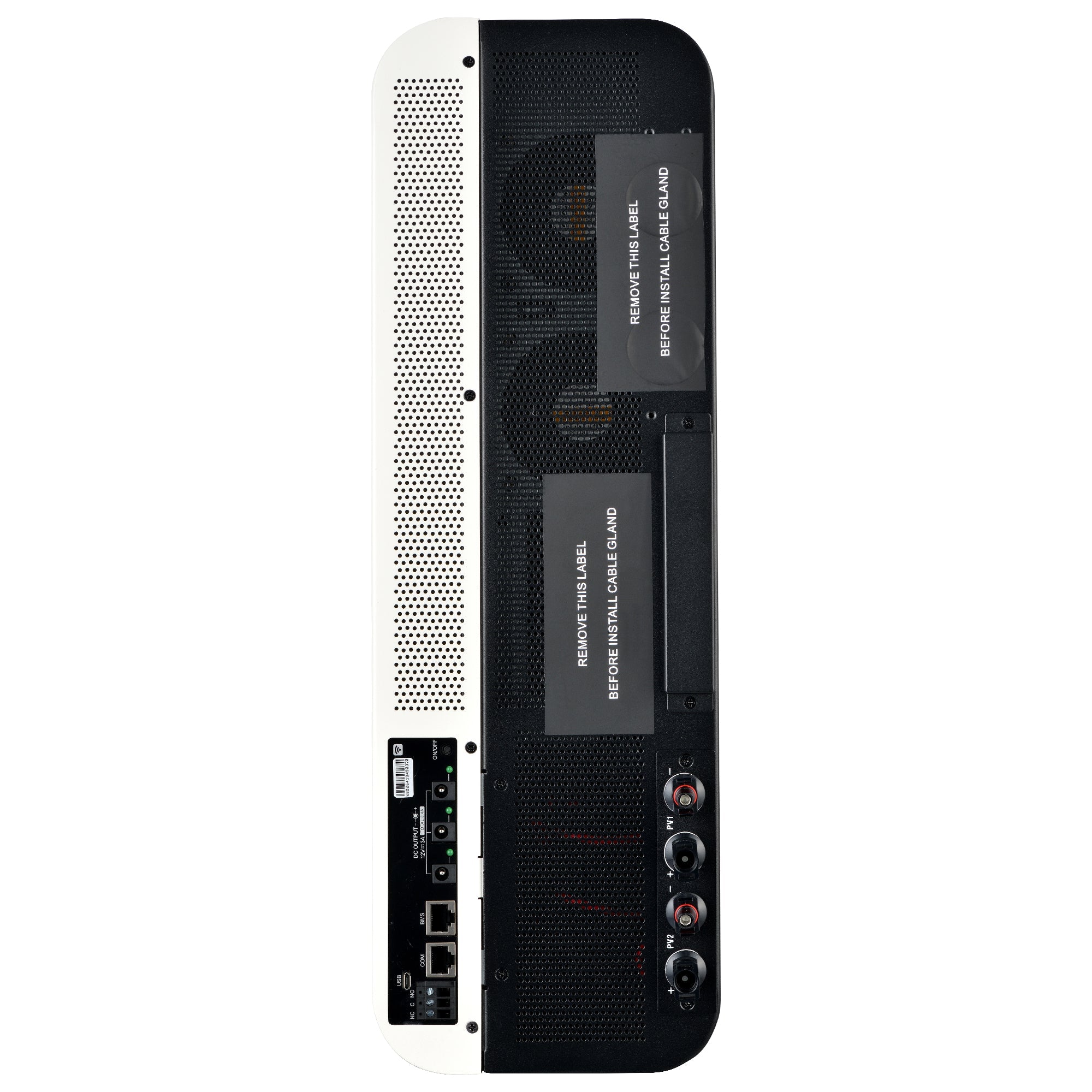

• Reserved communication port for BMS integration (RS485, CAN?BUS, or RS232).

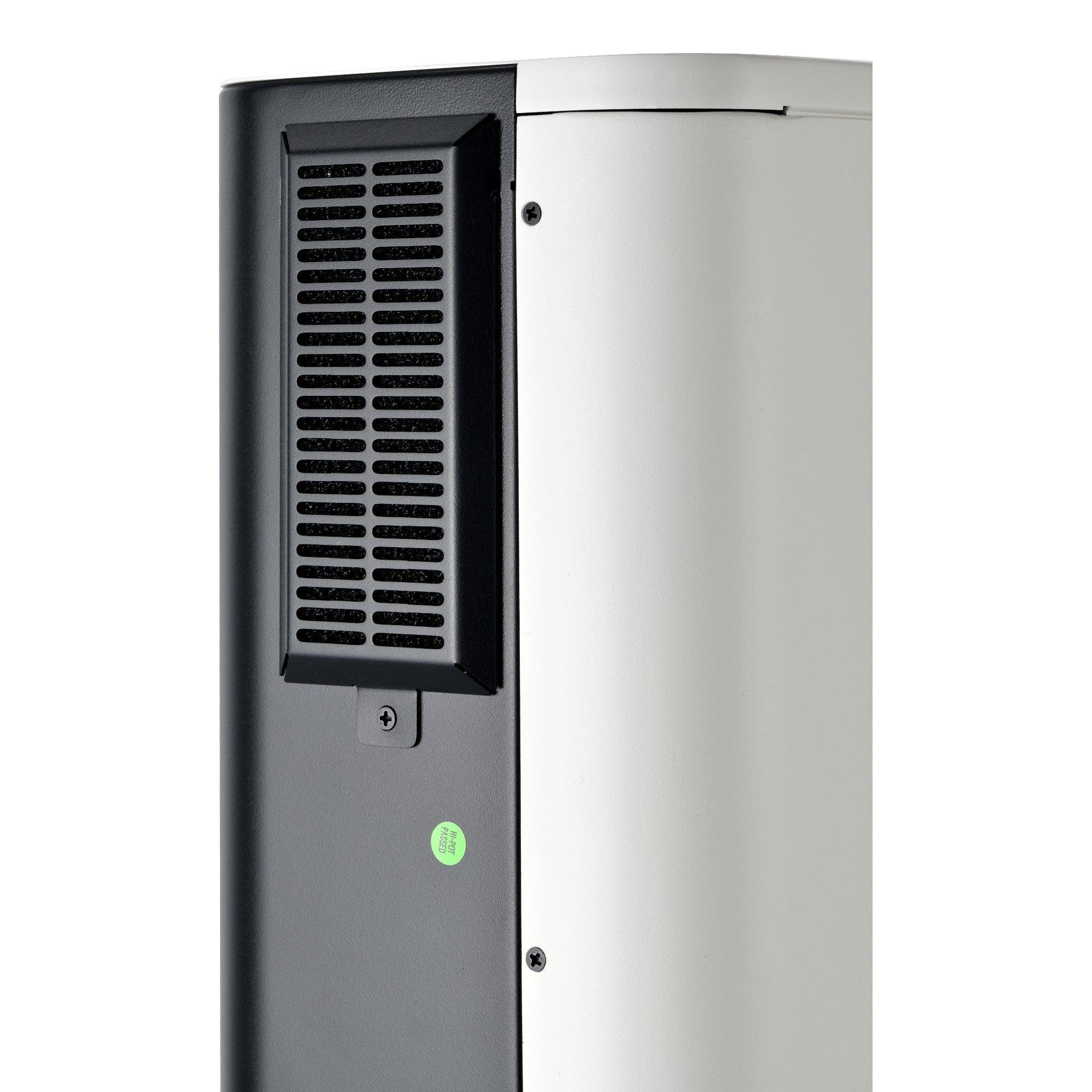

• Replaceable cooling fan for straightforward maintenance.
• Battery?independent operation—works with or without a battery connected.
• Configurable AC/PV output timers and prioritization to control how and when power is used.
• Adjustable high?power charging current (up to 120A).
• Adjustable input voltage ranges to support both computers and home appliances.
• Compatible with utility mains or generator input.
• Built?in anti?dust kit for improved reliability in dusty environments.
• Optional DC output to power low?voltage devices like DC fans, LED bulbs, or routers.
• Supports up to 6 units in parallel for increased output capacity and redundancy.

Specifications

• Model: RS-H6548S
• Rated inverter power: 6500 VA / 6500 W
• Parallel capability: Yes — up to 6 units
• Input
  • Nominal voltage: 120 VAC
  • Selectable voltage range: 90–140 VAC (for computers); 80–140 VAC (for home appliances)
  • Frequency: 50 Hz / 60 Hz (auto sensing)
• Output
  • AC voltage regulation (battery mode): 120 VAC ± 5%
  • Surge power: 13,000 VA
  • Peak efficiency: 91%
  • Transfer time: 10 ms (computers), 20 ms (home appliances)
  • Waveform: Pure sine wave
  • No?load power consumption: <75 W
  • DC output: 12 VDC ± 5%, 100 W (optional)
• Battery
  • Battery nominal voltage: 48 VDC
  • Float charging voltage: 54 VDC
  • Overcharge protection: 66 VDC
• Solar charger & AC charger
  • Solar charger type: MPPT

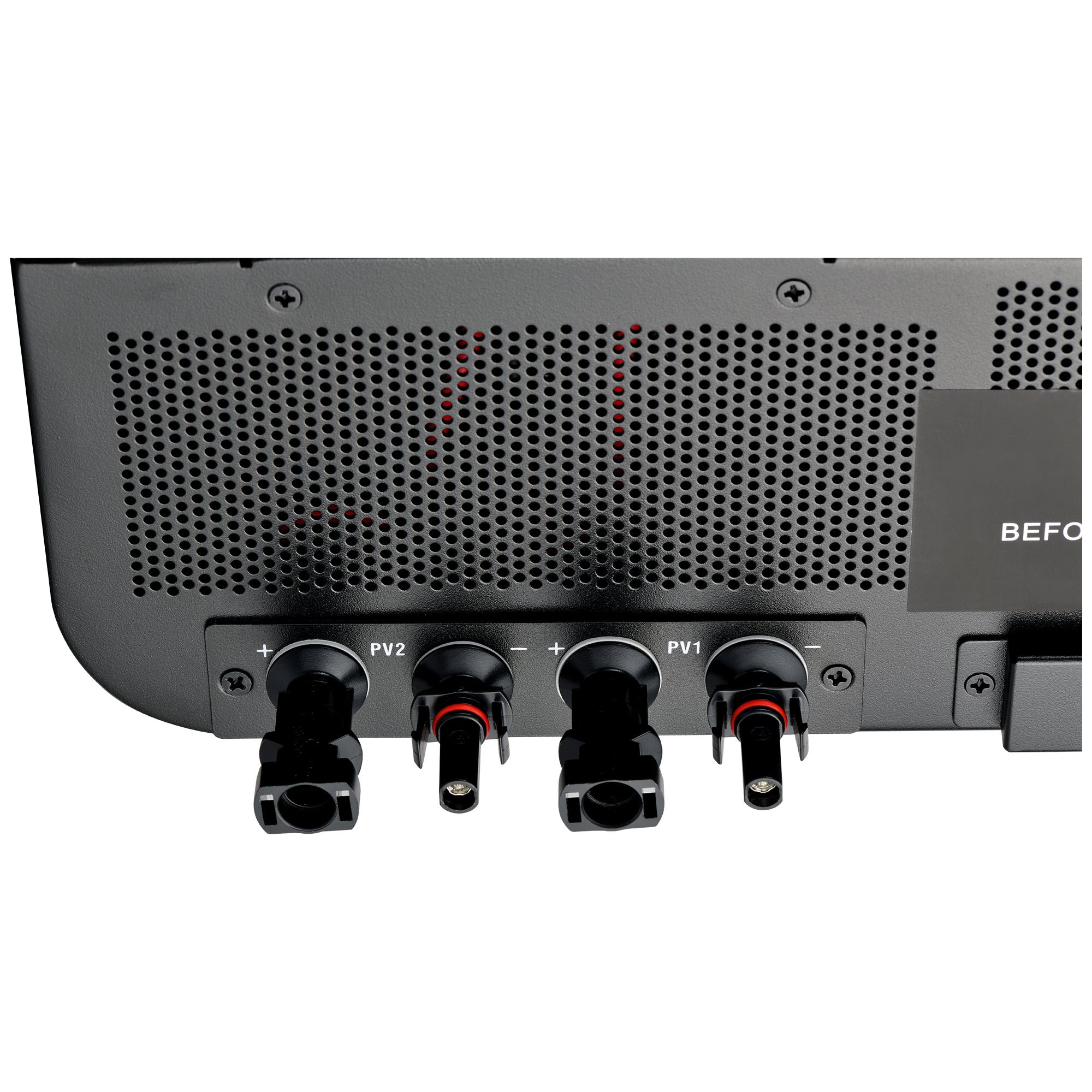

  • Maximum PV array power: 8,000 W (4,000 W x 2)
  • MPPT operating voltage range: 90–230 VDC
  • Maximum PV open?circuit voltage: 250 VDC
  • Maximum solar charge current: 120 A
  • Maximum AC charge current: 120 A
  • Maximum total charge current: 120 A
• Physical
  • Dimensions (D × W × H): 6.2 × 19.8 × 20.9 in
  • Net weight: 44 lb

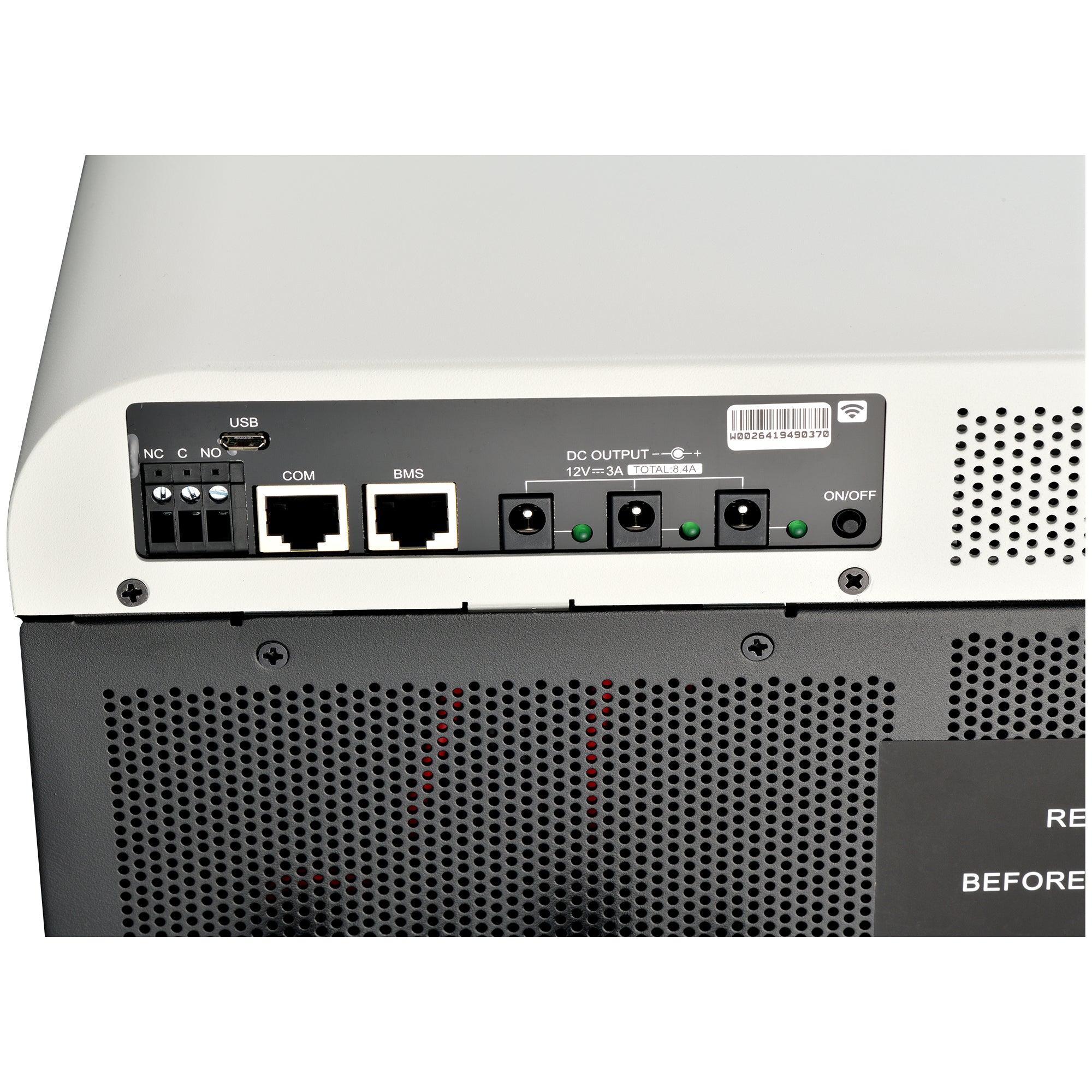

  • Communication interfaces: USB / RS232 / RS485 / Wi?Fi / Dry?contact
• Operating environment
  • Humidity: 5% to 95% RH (non?condensing)
  • Operating temperature: 14°F to 104°F
  • Storage temperature: 5°F to 140°F
• Standards and safety: UL compliance
• Charging and load modes
  • Charging modes: Solar First; Solar & Utility Grid; Only Solar
  • Load output modes: Utility Grid First; Solar First; SBU Priority (Solar > Battery > Utility)
• Protections: Overload, over?temperature, short circuit, and BMS integration support for safe operation
