Rich Solar Nova 3K 3000W 48V Hybrid Solar Inverter For Off Grid Power

Reliable 3kVA Pure Sine Wave Inverter with MPPT

Overview

This 3000VA/3000W inverter combines a pure sine wave output, built-in MPPT solar charging and flexible input options to keep your home or off-grid system running smoothly. It works with a 48V battery bank, supports parallel expansion, and offers multiple communication ports for monitoring and battery management.

Benefits

• Keep essential devices powered during outages or off-grid use so you stay comfortable and productive.
• Reduce generator runtime and fuel costs by prioritizing solar input automatically.
• Scale capacity easily by paralleling up to six units instead of replacing hardware.
• Monitor and manage the system remotely (optional Wi?Fi/GPRS) to avoid surprises and simplify maintenance.
• Protect batteries and equipment with built-in safety features, extending component life and reducing downtime.

Features

• Pure sine wave inverter output for clean power to sensitive electronics
• Integrated MPPT solar charge controller with high tracking efficiency

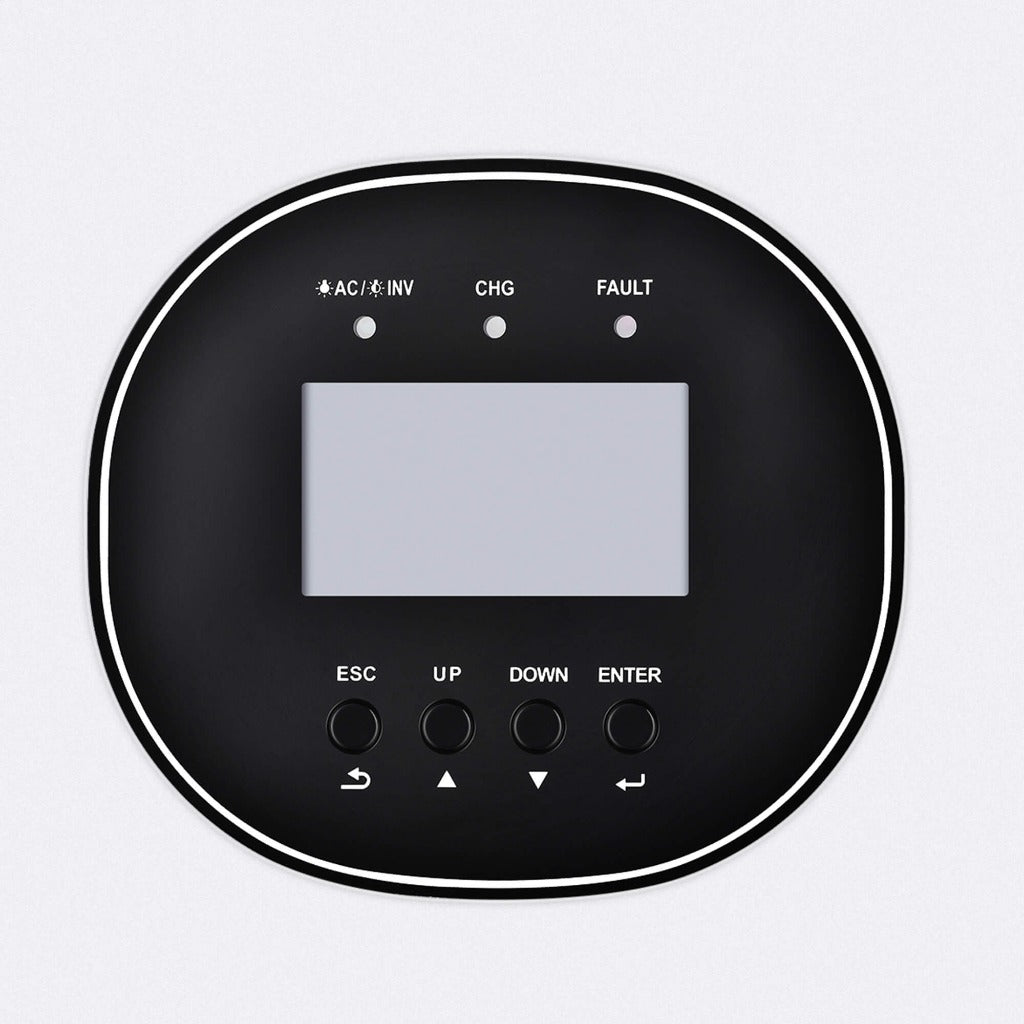

• LED display for real-time status and simple local monitoring
• Optional Wi?Fi/GPRS remote monitoring for off-site access

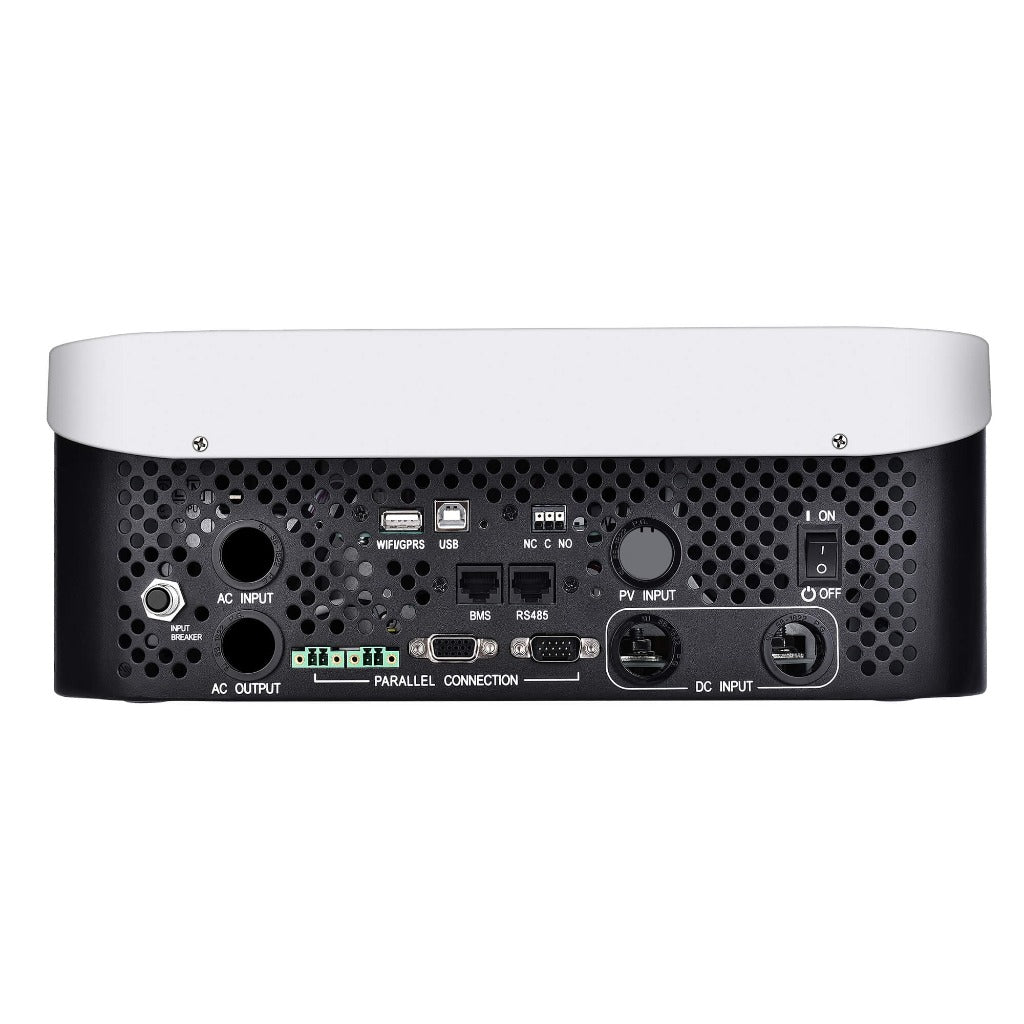

• CAN and RS485 ports for BMS communication and integration
• Configurable input priority between grid and solar to optimize usage
• Compatible with mains utility or generator power
• Compact, high-frequency design for smaller footprint and lighter weight
• Protections including overload, short circuit and deep discharge prevention
• Parallel operation capability — expand up to 6 units for higher power or redundancy
• Designed for a 48V battery system

Specifications

• Rated Power: 3000VA / 3000W
• Parallel Capability: Yes, up to 6 units
• AC Voltage Regulation (Battery Mode): 120 VAC
• Efficiency (Peak): 90%
• Waveform: Pure Sine Wave
• Transfer Time: 10 ms typical; 20 ms max (single); <30 ms (parallel)
• Weight: 25.4 lb
• Dimensions: 13.8" L × 5.1" W × 17.9" H
• Battery System Voltage: 48 V
• Solar Charger — MPPT Voltage Range: 60 V DC to 115 V DC
• Solar Charger — Maximum PV Open-Circuit Voltage: 145 V DC
• Solar Charger — Max Solar Charge Current: 80 A
• Solar Charger — Maximum Efficiency: 98%
• Solar Charger — Standby Power Consumption: <50 W
• AC Outlet Charger — Default Charge Current: 30 A; Maximum: 40 A
• AC Input Voltage: 120 VAC
• Selectable AC Voltage Range: 95–140 VAC (PC mode); 65–140 VAC (Appliance mode)
• Frequency Range: 50 Hz / 60 Hz (auto-sensing)
• Operating Humidity: 5% to 95% relative humidity (non-condensing)
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -15°C to 60°C
