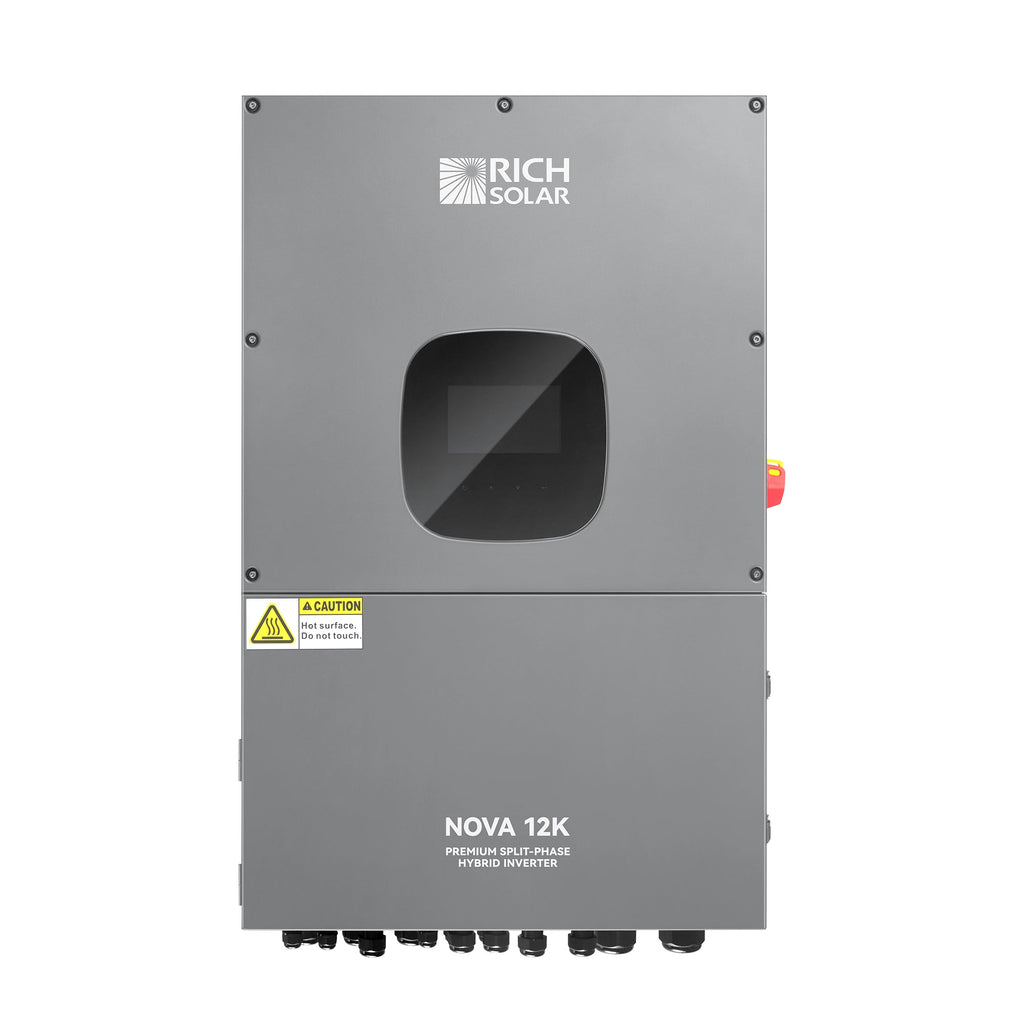

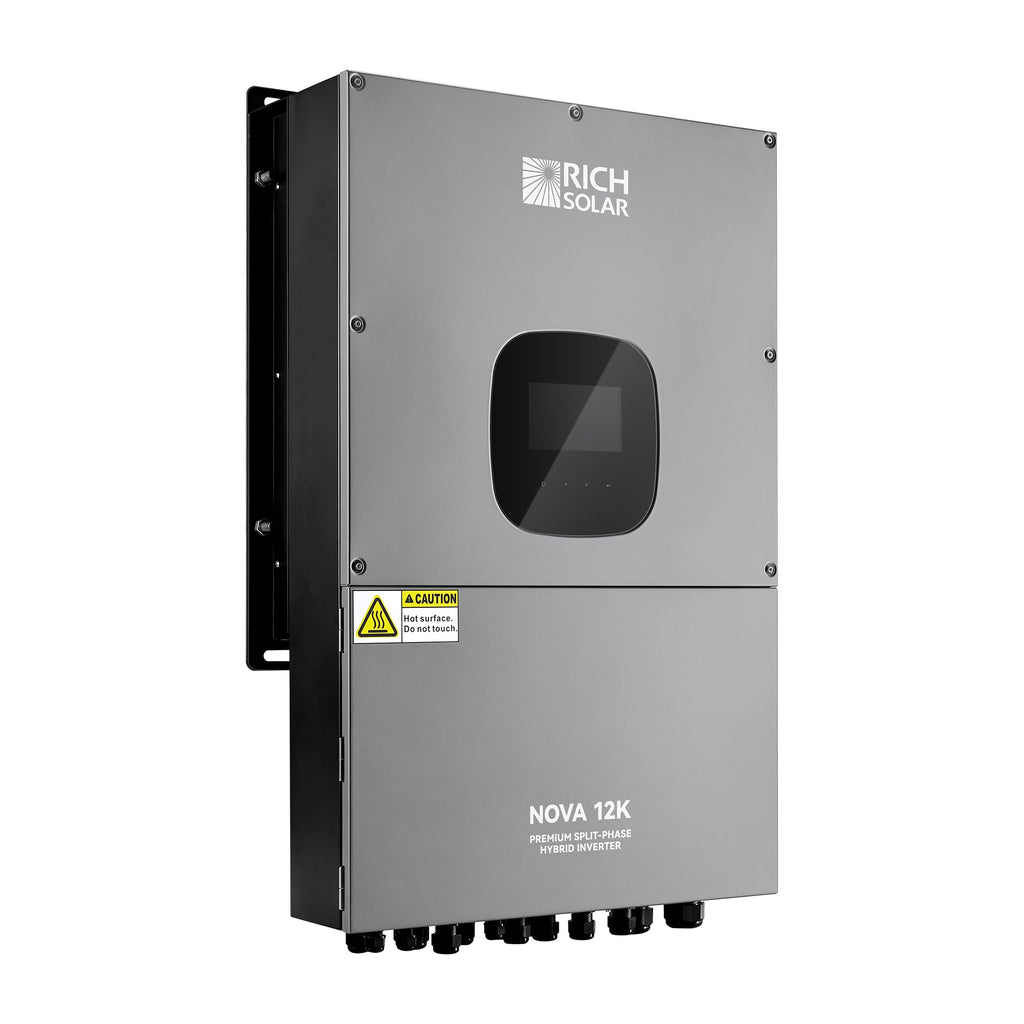

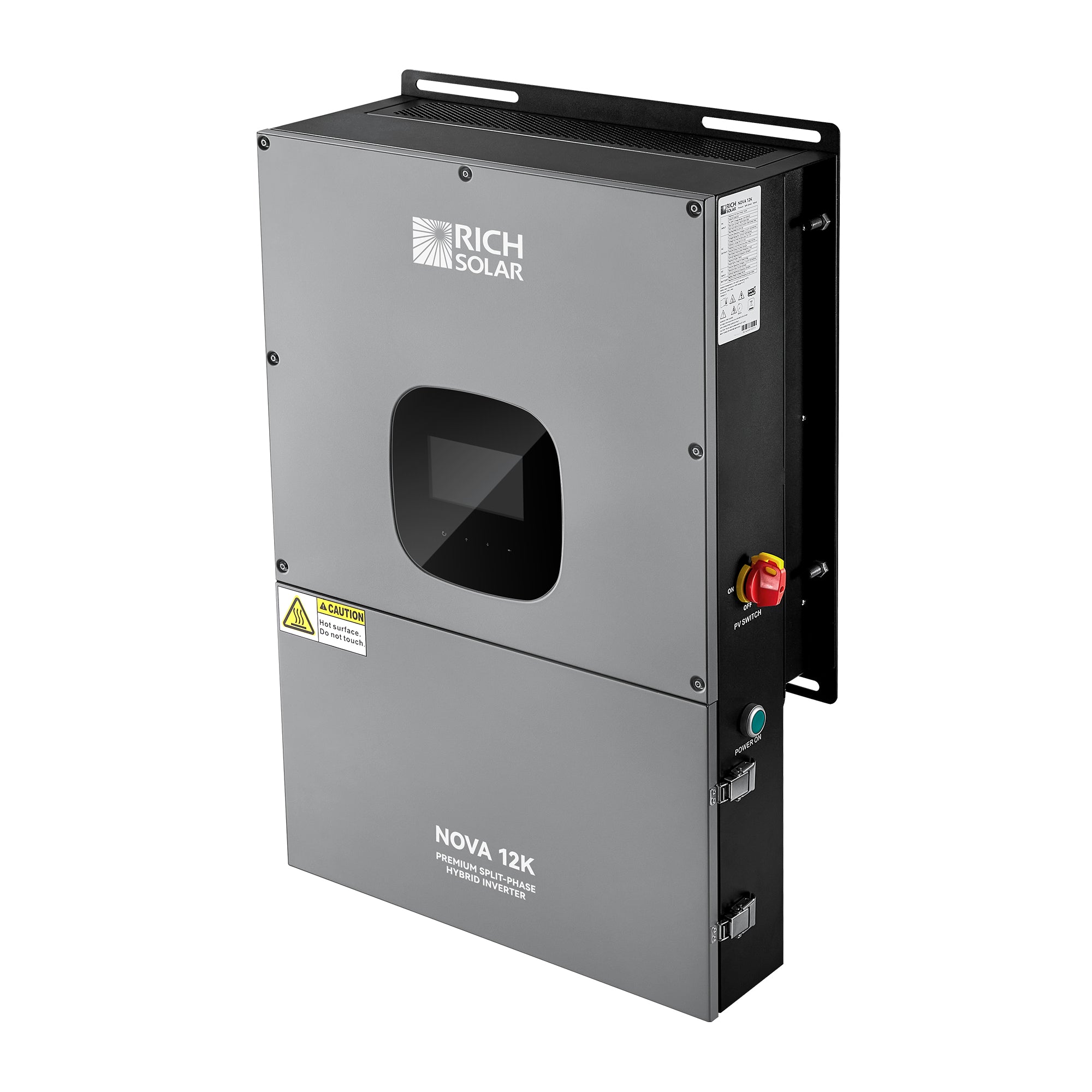

Rich Solar NOVA 12K 48V Hybrid Inverter 12000W Solar Input UL Certified

Hybrid Solar Inverter — 10 kW All-in-One

This compact hybrid inverter combines flexible grid and generator support, smart energy control, and robust safety features to deliver reliable backup power, maximize solar self-consumption, and scale easily for larger systems.

Benefits

• Reduce your electricity bills by prioritizing solar power for home loads and charging batteries when production is high.
• Keep essential circuits powered during outages with smooth transition between grid, generator, and battery sources.
• Monitor and manage your system remotely to troubleshoot, optimize usage, and avoid unexpected downtime.
• Scale capacity without replacing core equipment — add up to five more units to grow with your needs.
• Protect your home and system with integrated safety measures that simplify installation and compliance.

Features

• Power flexibility:
  • Compatible with 120/240V split-phase or 120/208V split-phase systems.
  • Supports generator input and AC-coupling for hybrid installations.
  • Parallel-capable — stack up to 6 units for higher capacity.
• Intelligent control and monitoring:
  • Real-time monitoring via Wi?Fi and mobile app.
  • BMS integration through RS485 for coordinated battery management.
  • External CT-sensor support to enable full self-consumption and load-based charging.
• Advanced safety and protection:

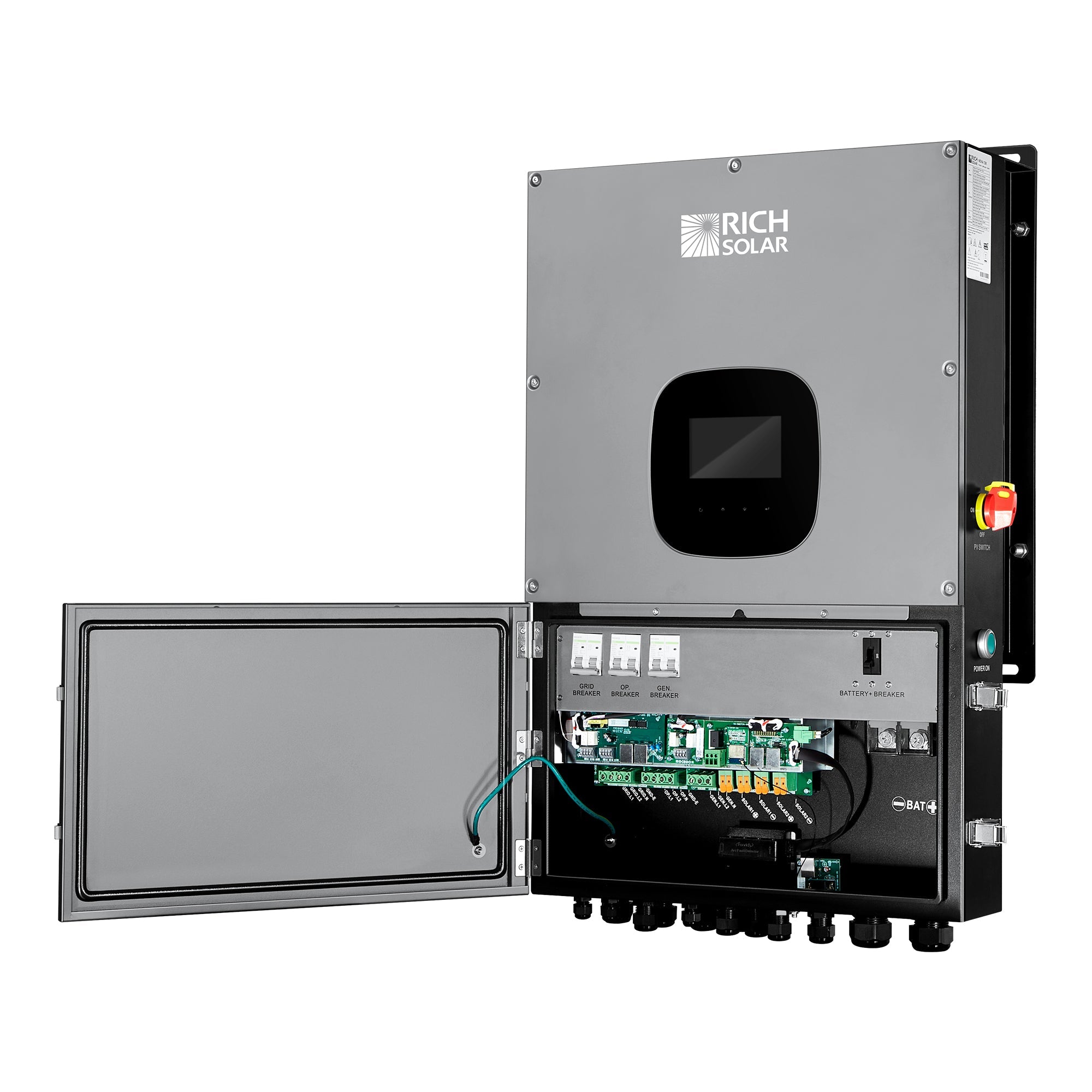

  • Integrated 300A DC and 60A AC breaker.
  • Anti-islanding and rapid shutdown protections (AFD/RSD per NEC 690.11/690.12).
  • Ground-fault detection (NEC 690.5) and PV input lightning protection.
• Performance:
  • Pure sine wave output with up to 91% DC-to-AC efficiency.
  • Multi-mode operation: grid-tie, off-grid, and hybrid modes.

Specifications

• Rated output power: 10,000 VA / 10,000 W
• Maximum PV input power: 12,000 W
• Parallel capability: Up to 6 units
• Input
  • Maximum PV input power: 12,000 W
  • PV voltage range: 120–550 VDC
  • Startup voltage: 125 V
  • MPPT: Dual inputs — 2 × 18 A (30 A peak)
• Output
  • Nominal output voltage: 120 VAC (P?N) / 208 VAC (P?P) / 240 VAC (P?P)
  • Output voltage range: 105.5–132 VAC per phase
  • Nominal output current: 41.7 A per phase
• Battery
  • Battery DC voltage range: 40–62 VDC (nominal 48 VDC)
  • Maximum solar charging current: 200 A
  • Maximum AC charging current: 200 A
  • Maximum total charging current: 200 A
• Operating environment
  • Operating temperature: -13 °F to 140 °F (derating > 113 °F)
  • Protection degree: IP65

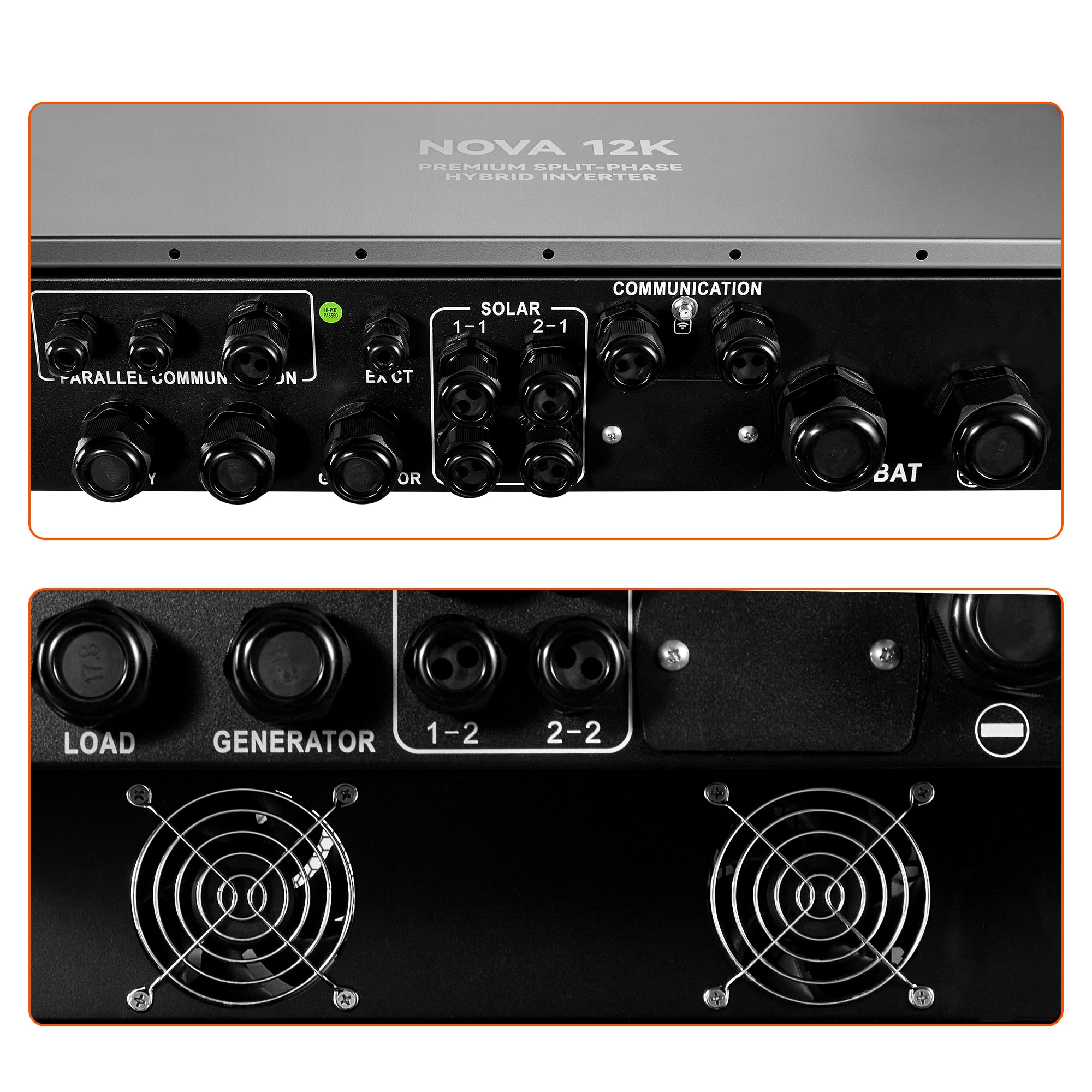

  • Communication ports: RS232, RS485, Wi?Fi, USB
• Physical

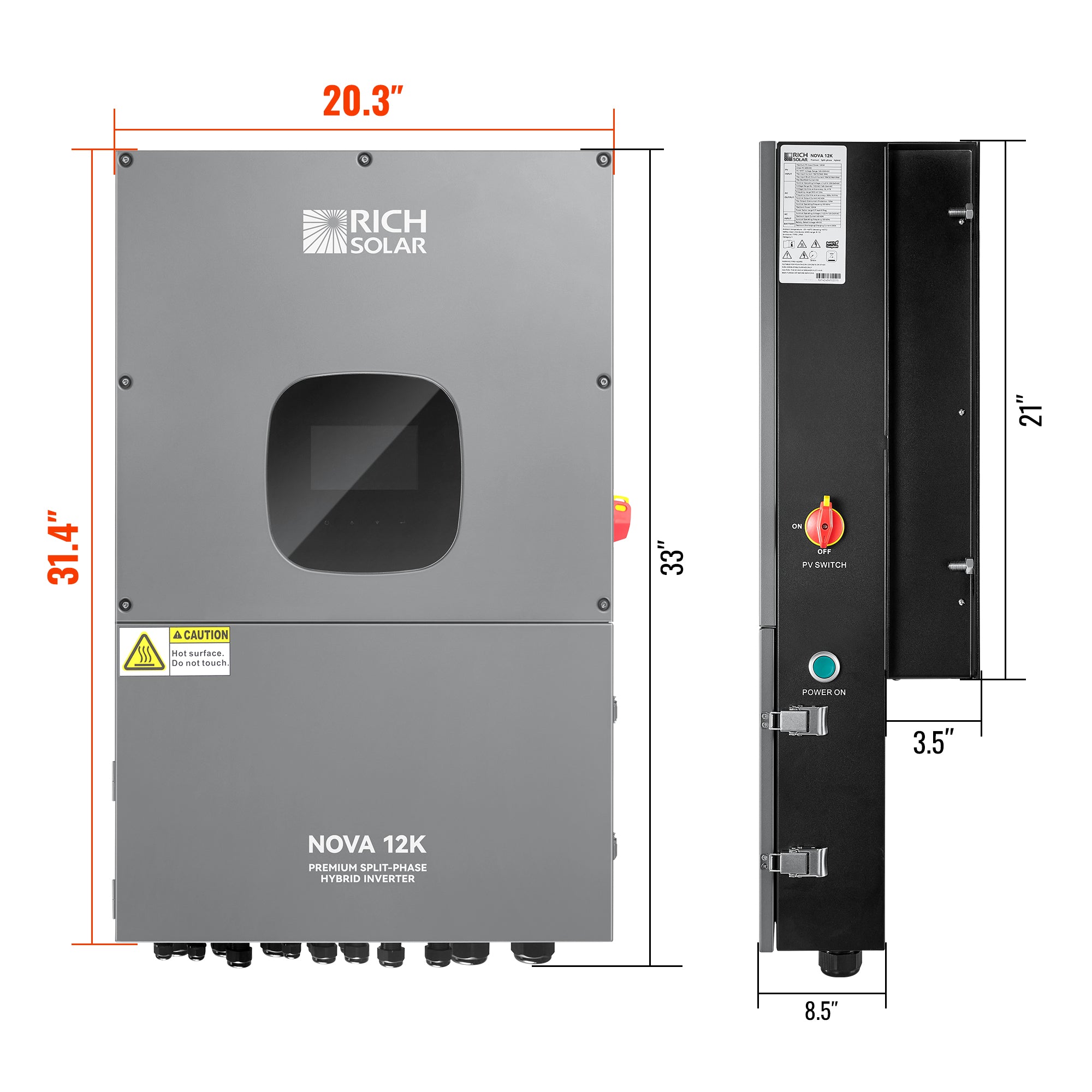

  • Dimensions (L×W×H): 8.5 × 20.3 × 28.1 in (215 × 516 × 714 mm)
  • Net weight: 112 lb (51 kg)
• Certifications
  • UL 1741 SA/SB, CSA C22.2 No. 107.1, IEEE 1547
  • CEC-listed, FCC Part 15 Class B
  • Compliant with California Rule 21 and HECO Rule 14H
