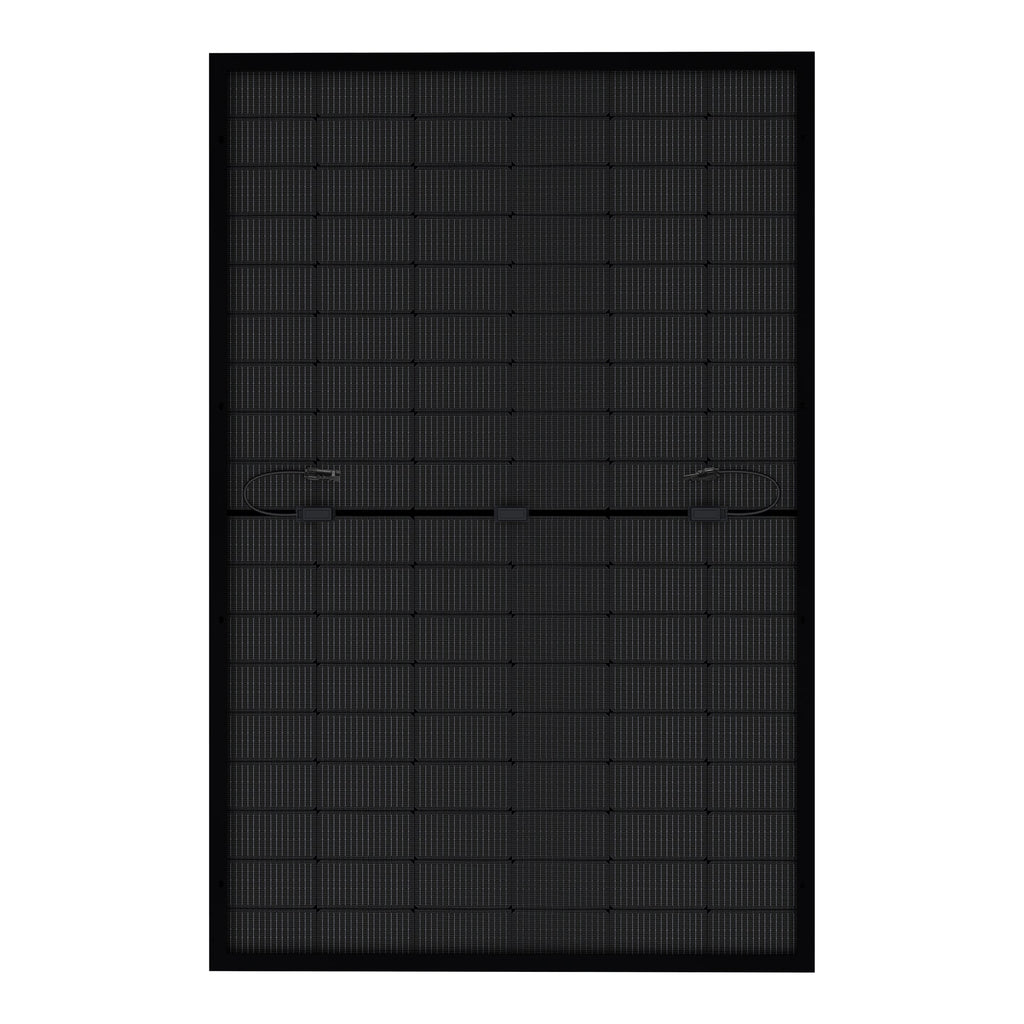

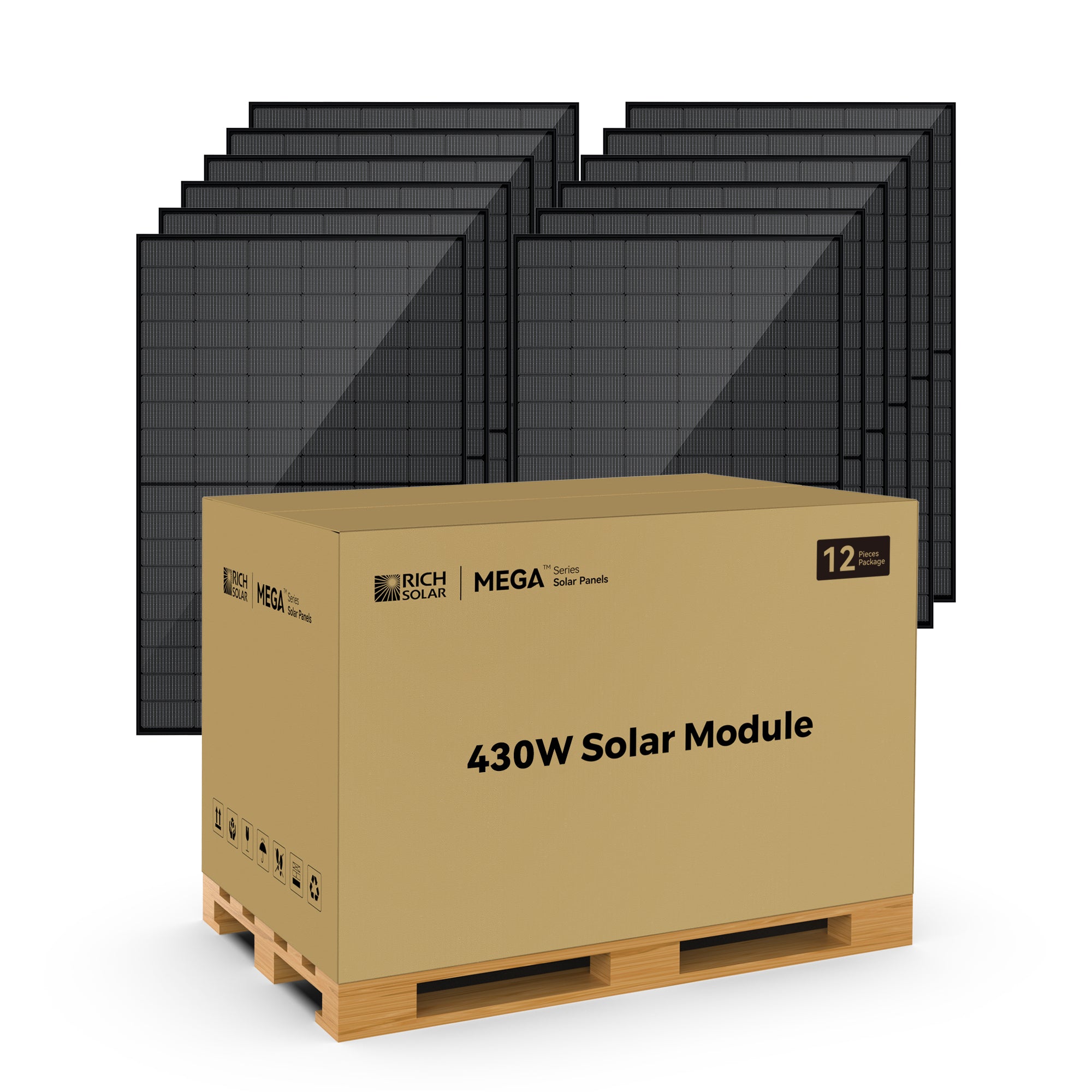

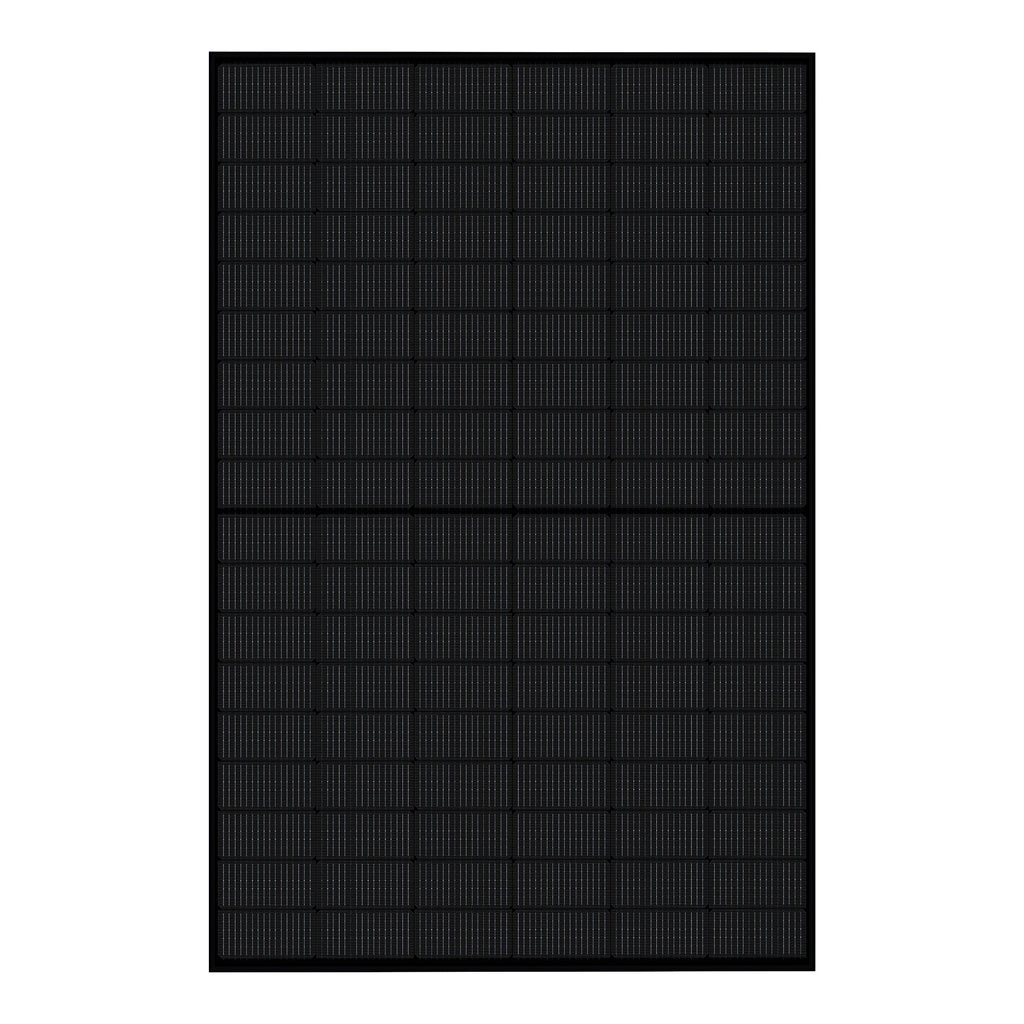

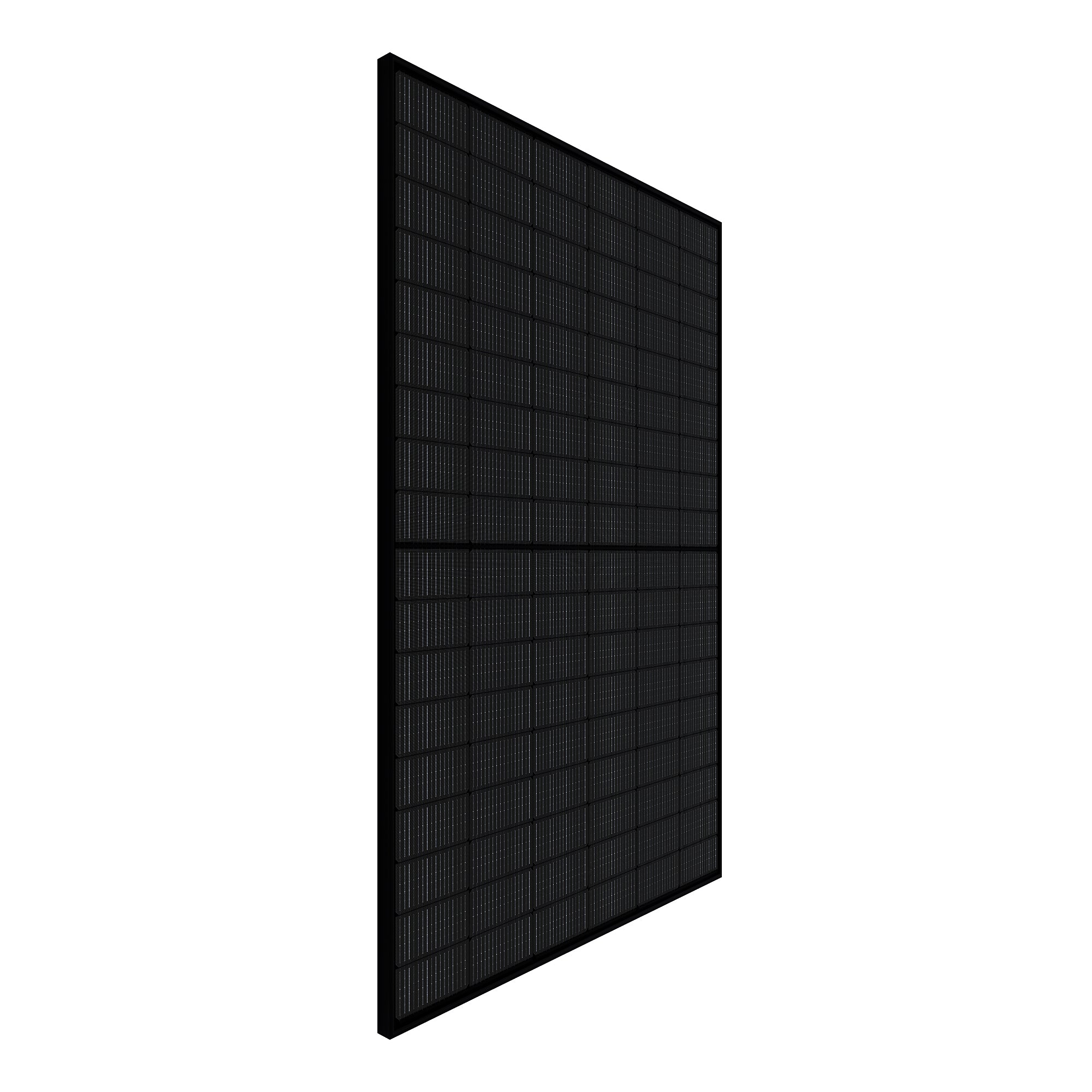

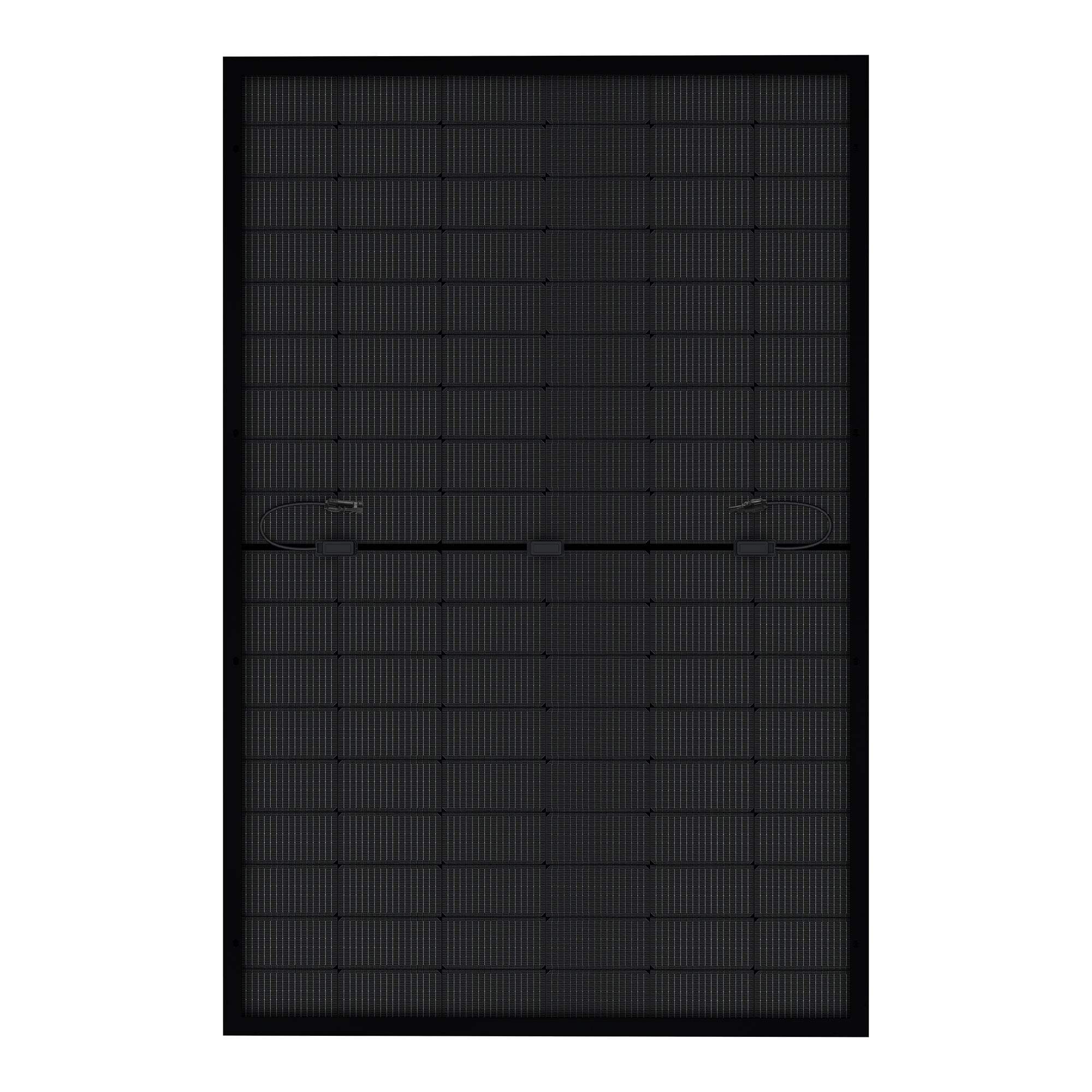

Rich Solar MEGACELL 430W N-Type Bifacial Solar Panel

RS?M430BF — 430W Bifacial Solar Module

Overview

A high?efficiency bifacial solar module that delivers strong energy yield, reliable performance in extreme temperatures, and long?term output stability. Built with N?TOPCon cells and a dual?glass design, it’s designed to reduce system costs and perform well in ground?mounted and building?integrated installations.

Benefits

• Lower energy bills and faster project payback thanks to high conversion efficiency and 430W peak output.
• More consistent energy production in hot climates because of a low Pmax temperature coefficient.
• Extra energy from reflected ground light with a high bifaciality factor—more yield without changing the inverter.
• Reduced balance?of?system and wiring costs with high power density and 1500V system compatibility.
• Long?term peace of mind from minimal early degradation and a 12?year product warranty plus 30?year output guarantee.
• Durable construction that withstands heavy snow, strong winds, and wet conditions—suitable for harsh environments.
• Simpler installation and compatibility with common field components (MC4 connectors, 30A fuse rating).

Features

• 22.0% module efficiency with +5W positive power tolerance.
• 430W maximum output for high power density.
• N?TOPCon monocrystalline cells for improved yield over conventional P?type modules.
• Zero LID design and passivated contact structure to minimize early and long?term degradation.
• 80%+ bifaciality factor and dual?glass construction with high light transmittance for enhanced rear?side generation.
• Dual?glass module construction for improved durability and albedo capture.
• High mechanical ratings: 5400 Pa front?side load and 2400 Pa wind load.
• IP68?rated junction box for water resistance and submersion protection.
• 1500 VDC system voltage ready to reduce string counts and wiring costs.
• MC4?compatible connectors and 30A maximum series fuse rating for broad system compatibility.
• Wide operating temperature range for use in extreme climates.

Specifications

• Model: RS?M430BF
• Peak Power: 430 W
• Module Efficiency: 22.0%
• Max Power Voltage (Vmp): 31.9 V
• Max Power Current (Imp): 13.5 A
• Open Circuit Voltage (Voc): 37.4 V
• Short Circuit Current (Isc): 14.7 A
• Max Series Fuse Rating: 30 A
• Maximum System Voltage: 1500 VDC
• Cell Type: Monocrystalline N?TOPCon
• Number of Cells: 108
• Front Glass: 2.0 mm tempered glass
• Frame Material: Anodized aluminium alloy
• Operating Temperature: -40 °F to 185 °F (-40 °C to +85 °C)
• Pmax Temperature Coefficient: -0.30% / °C
• Bifaciality Factor: ? 80%
• Expected Additional Rear?Side Yield: 15–25% (typical ground?mounted systems)
• Dual?Glass Light Transmittance: 94%
• Mechanical Load Rating: 5400 Pa (front), 2400 Pa (wind)
• Junction Box Protection: IP68
• Dimensions (L × W × H): 67.8" × 44.7" × 1.2" (1722 × 1134 × 30 mm)
• Weight: 50.9 lb (23.1 kg)
• Warranty: 12?year product warranty; 30?year linear power output guarantee (? 0.4% annual degradation)
