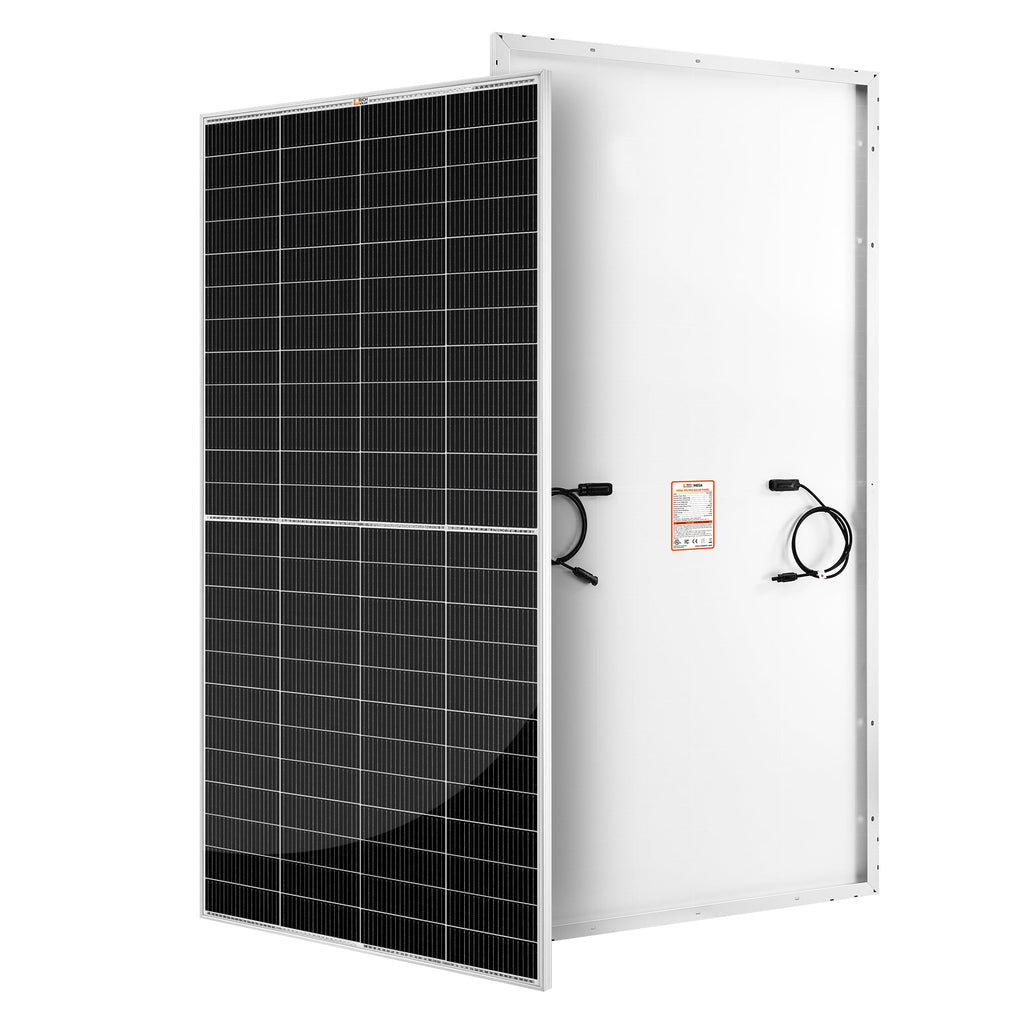

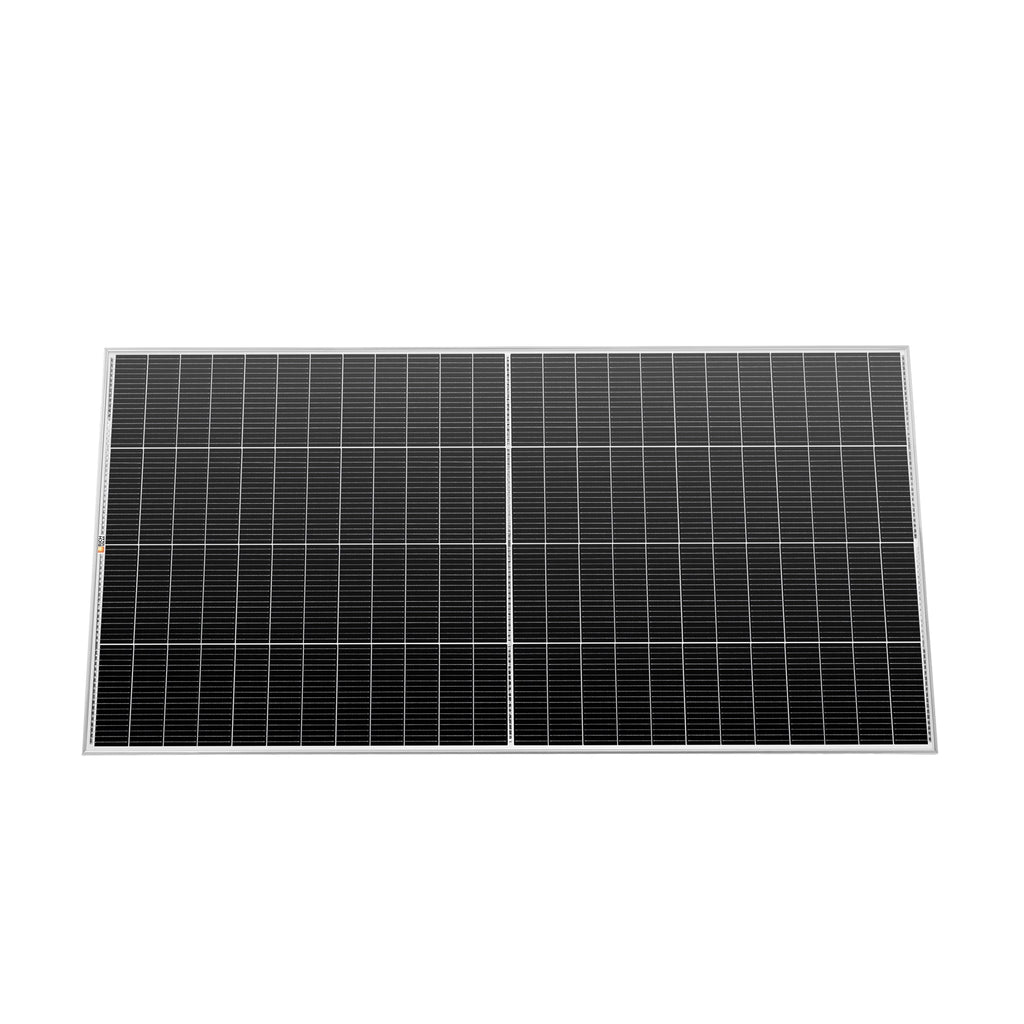

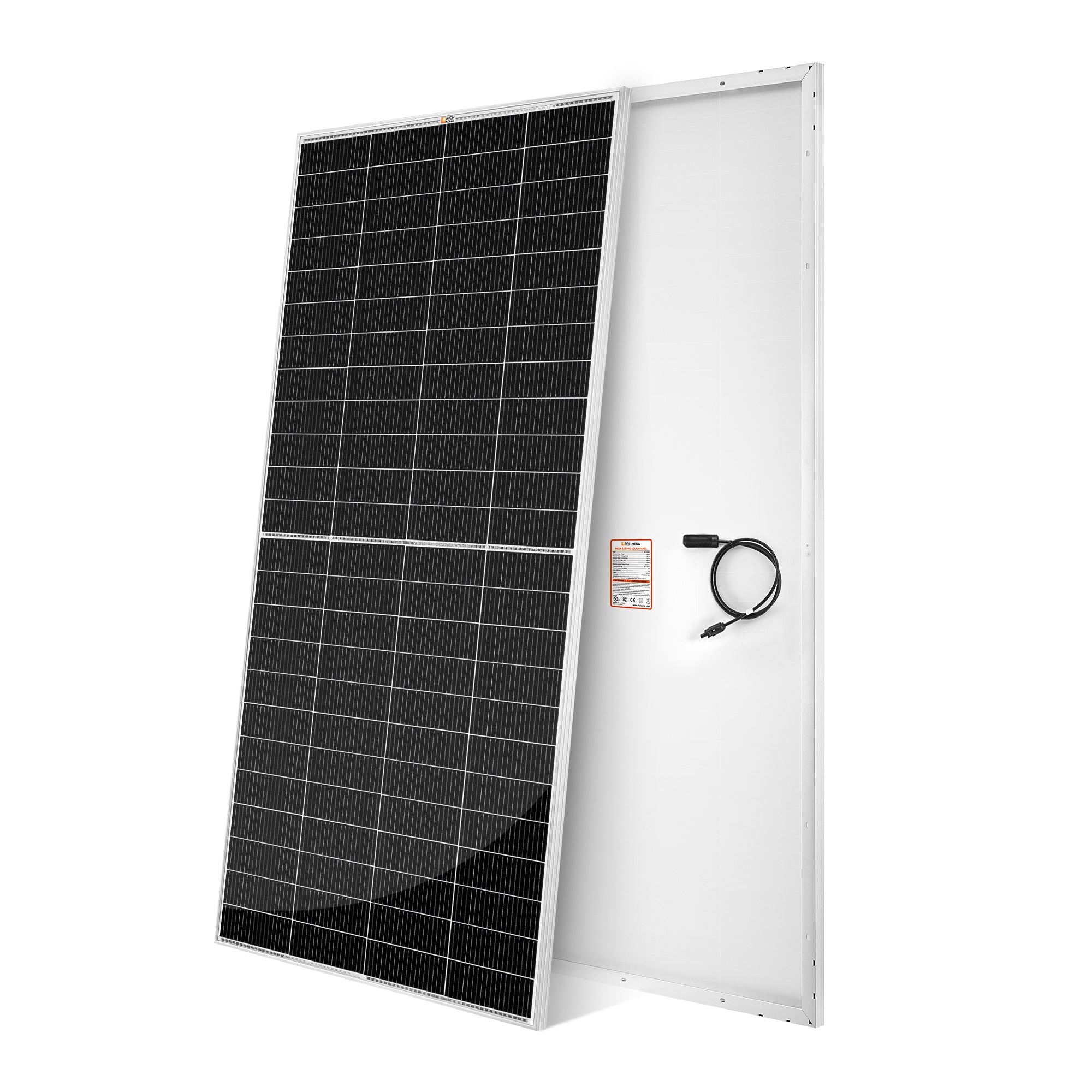

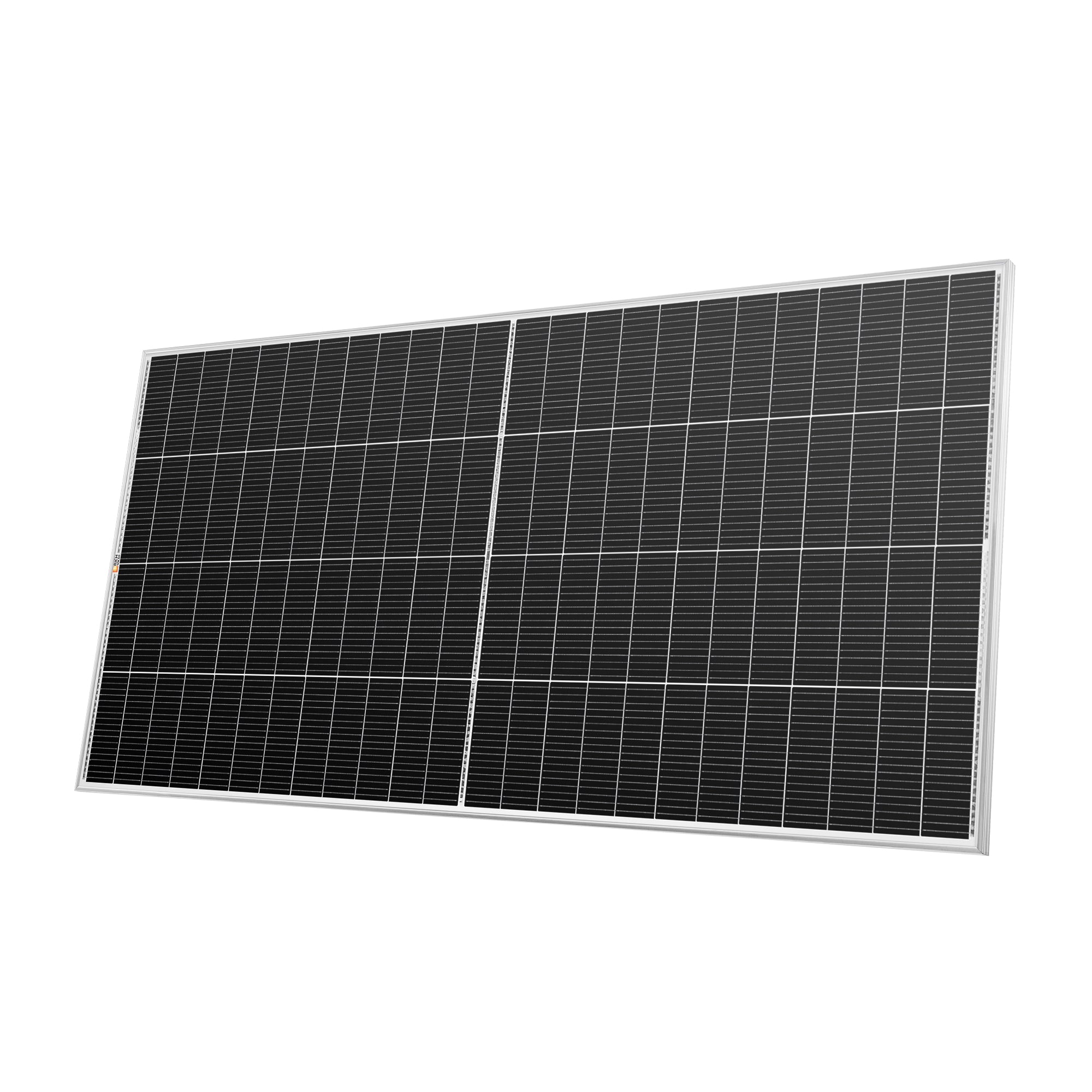

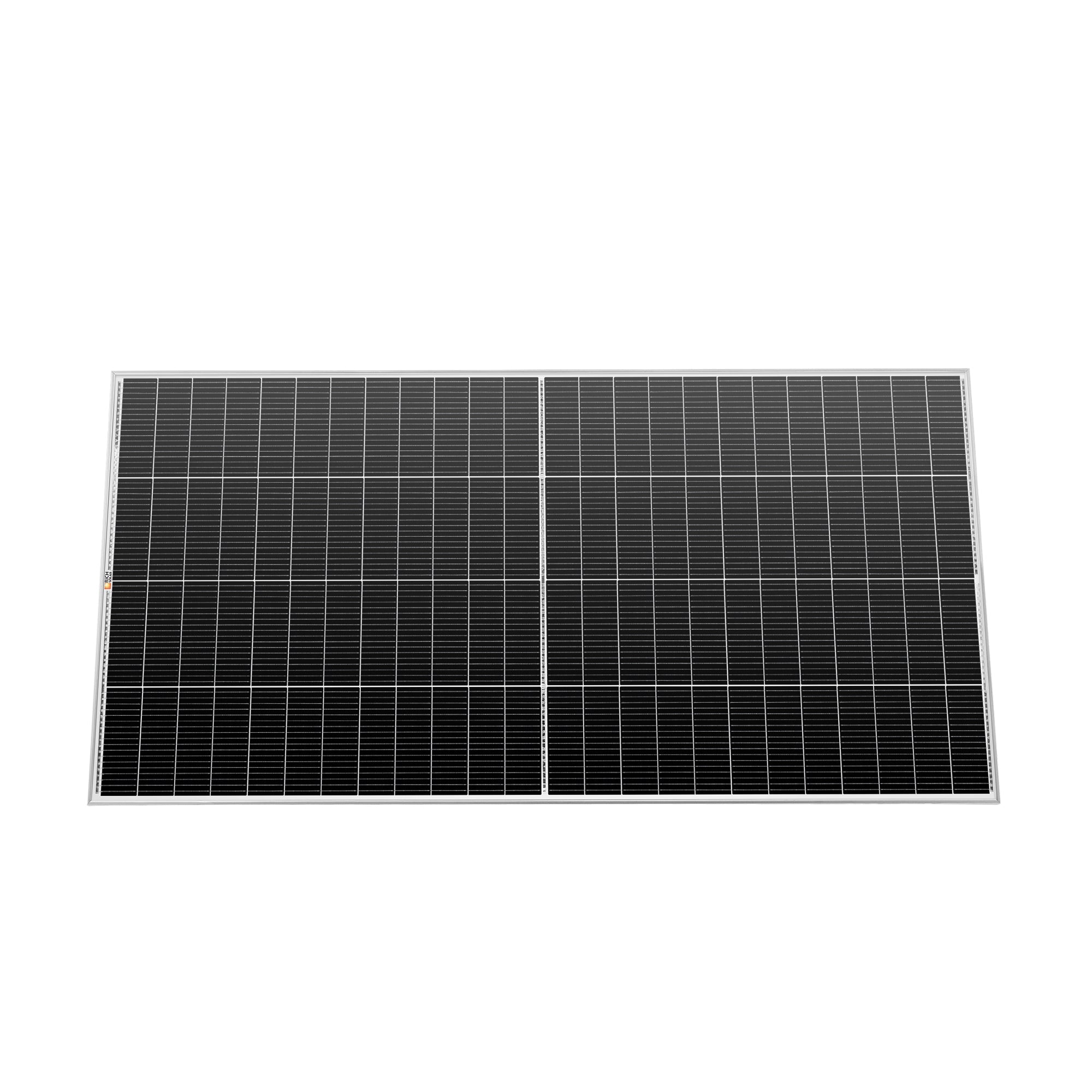

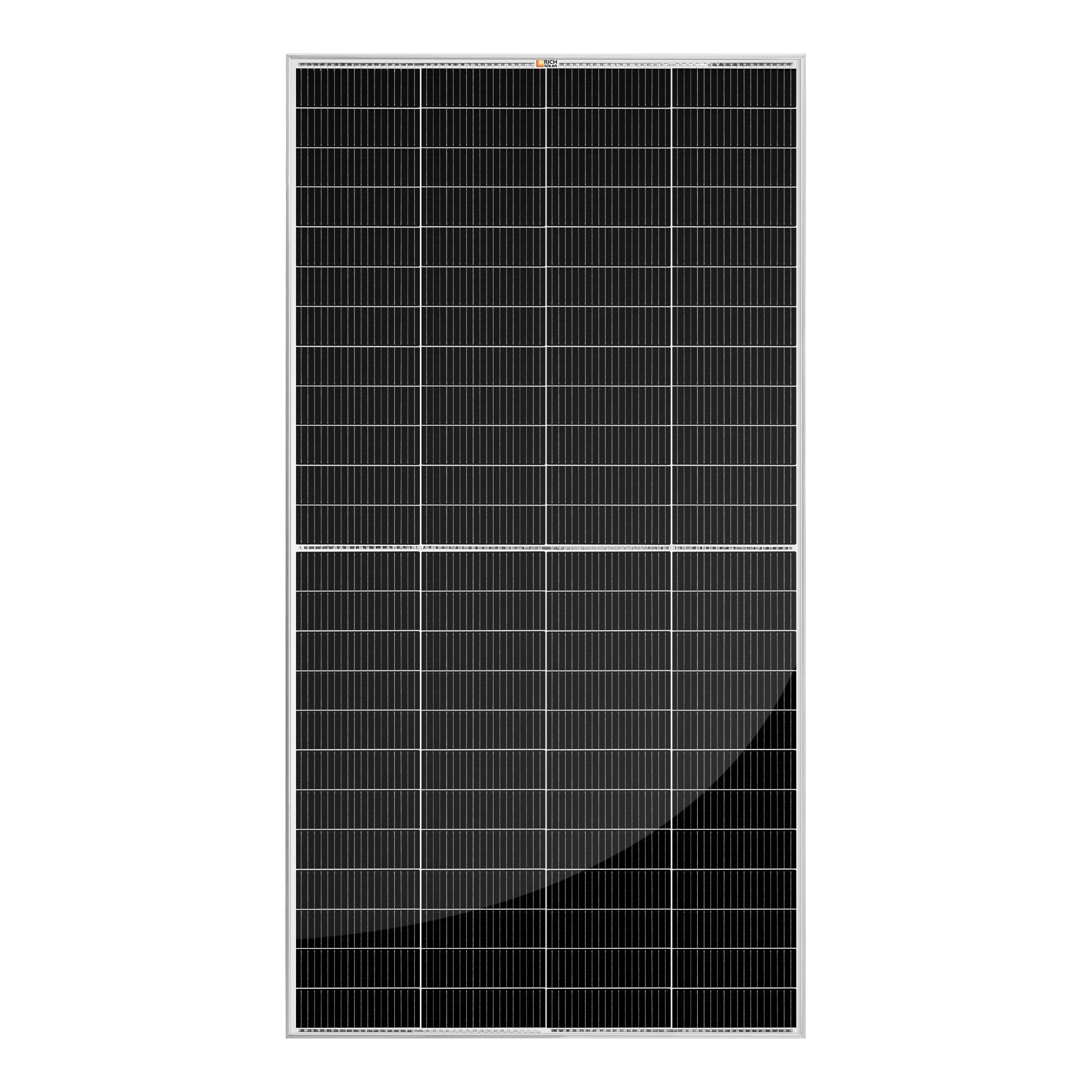

Rich Solar Mega 335 Pro 335 Watt Solar Panel With

335W 24V Solar Panel — Durable, Easy-to-Install

This 335W panel delivers up to 11.5A for 24?volt systems and is built for reliable daily use, including early mornings and cloudy conditions. It arrives pallet shipping only; for smaller orders or alternate shipping options call 1-800-831-9889 or email sales@richsolar.com.

Benefits

• Keep systems running longer — charges 24V battery banks with consistent current so devices and equipment stay powered.
• More usable energy throughout the day — strong low-light performance captures power in mornings, evenings, and overcast conditions.
• Save time on installation — 14 pre-drilled holes fit standard Z-brackets, ground mounts, pole mounts, and tilt mounts for quick mounting.
• Lower maintenance and worry — IP67 components and built-in bypass diodes reduce the risk of water damage and hot-spot issues.
• Flexible system design — use panels in series or parallel and pair with on-grid or off-grid inverters to match your setup.
• Long-term protection — 25-year power output warranty and 10-year workmanship warranty provide extended confidence in performance.

Features

• Maximum power output: 335W with 11.5A operating current for 24V systems.

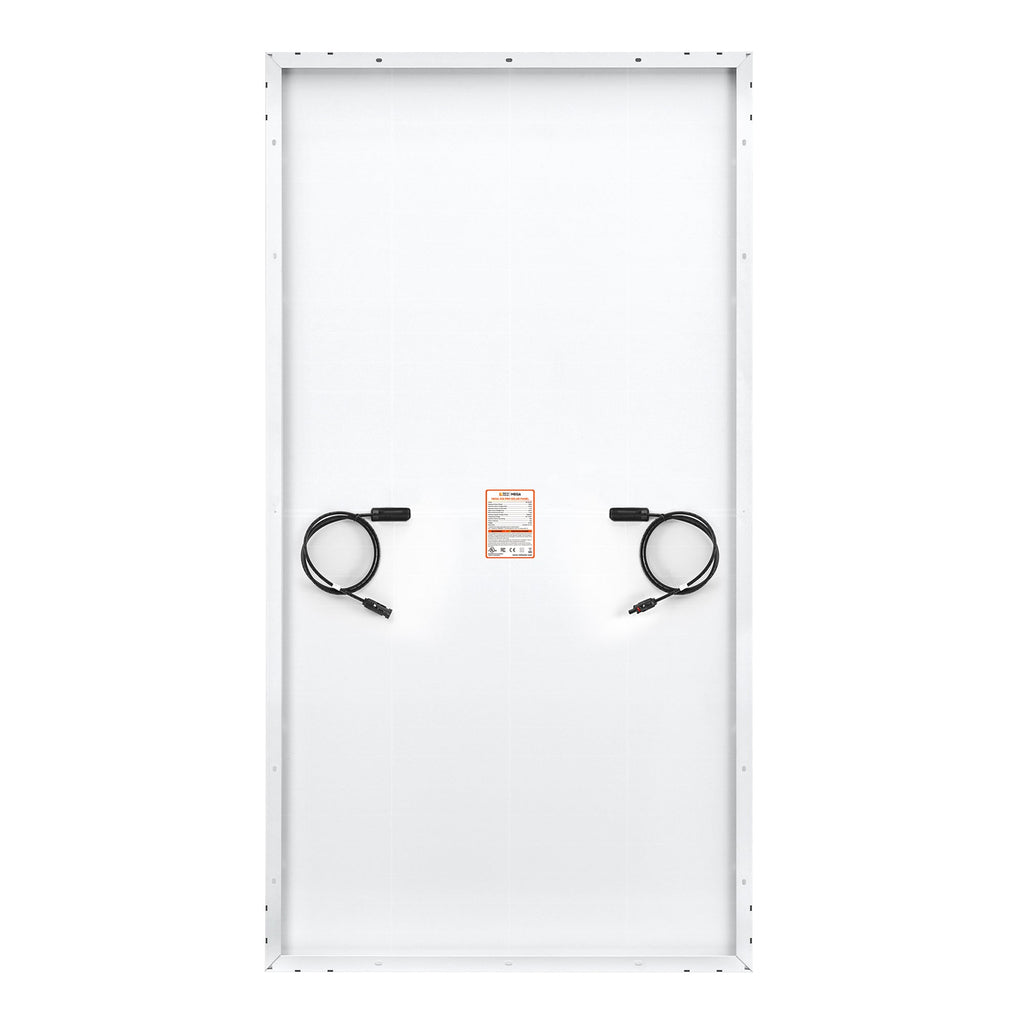

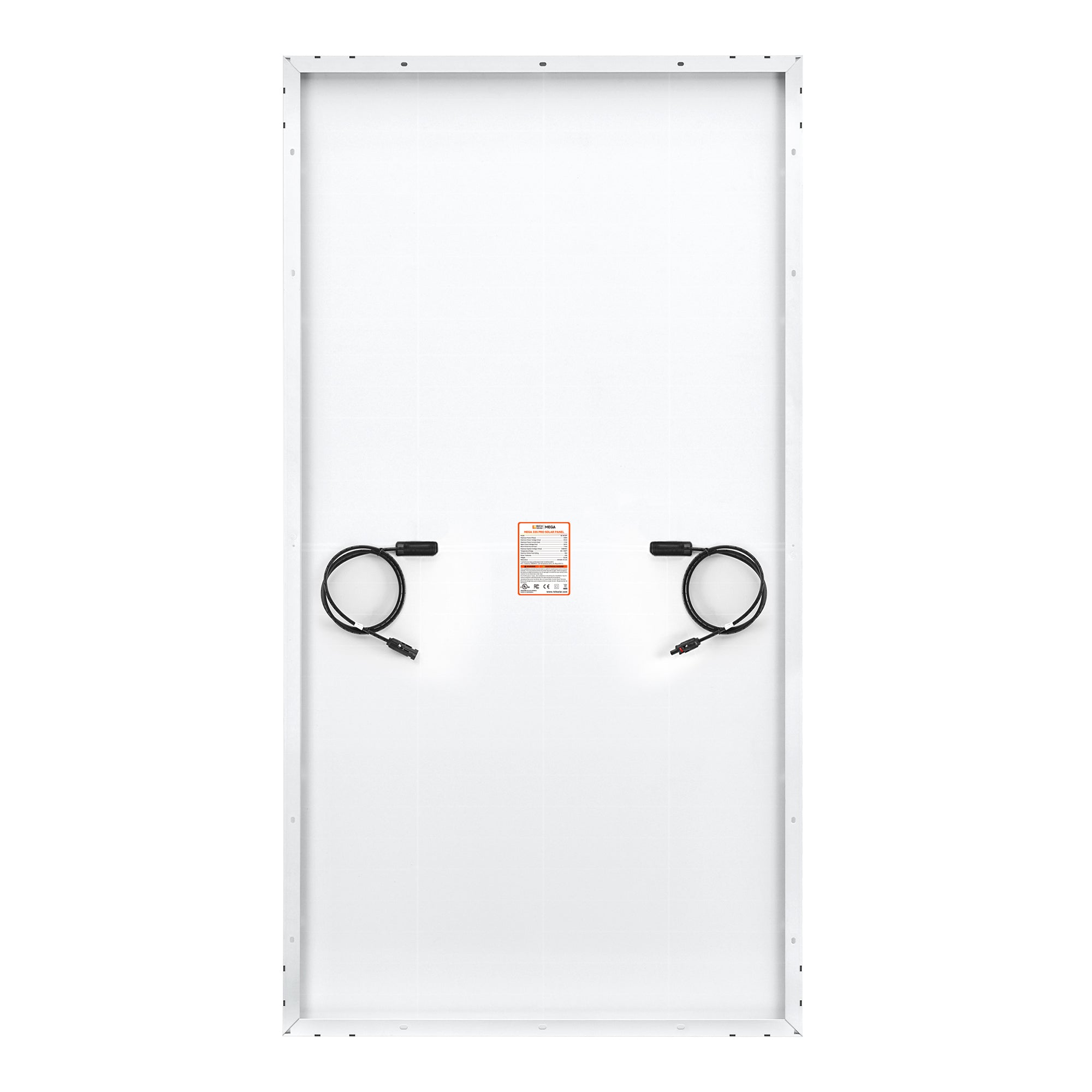

• Three-foot quick-connect panel leads (pair) for fast electrical hookup.
• Works in series or parallel to accommodate different array and voltage configurations.
• Excellent low-light performance for better energy capture during dawn, dusk, and cloudy days.

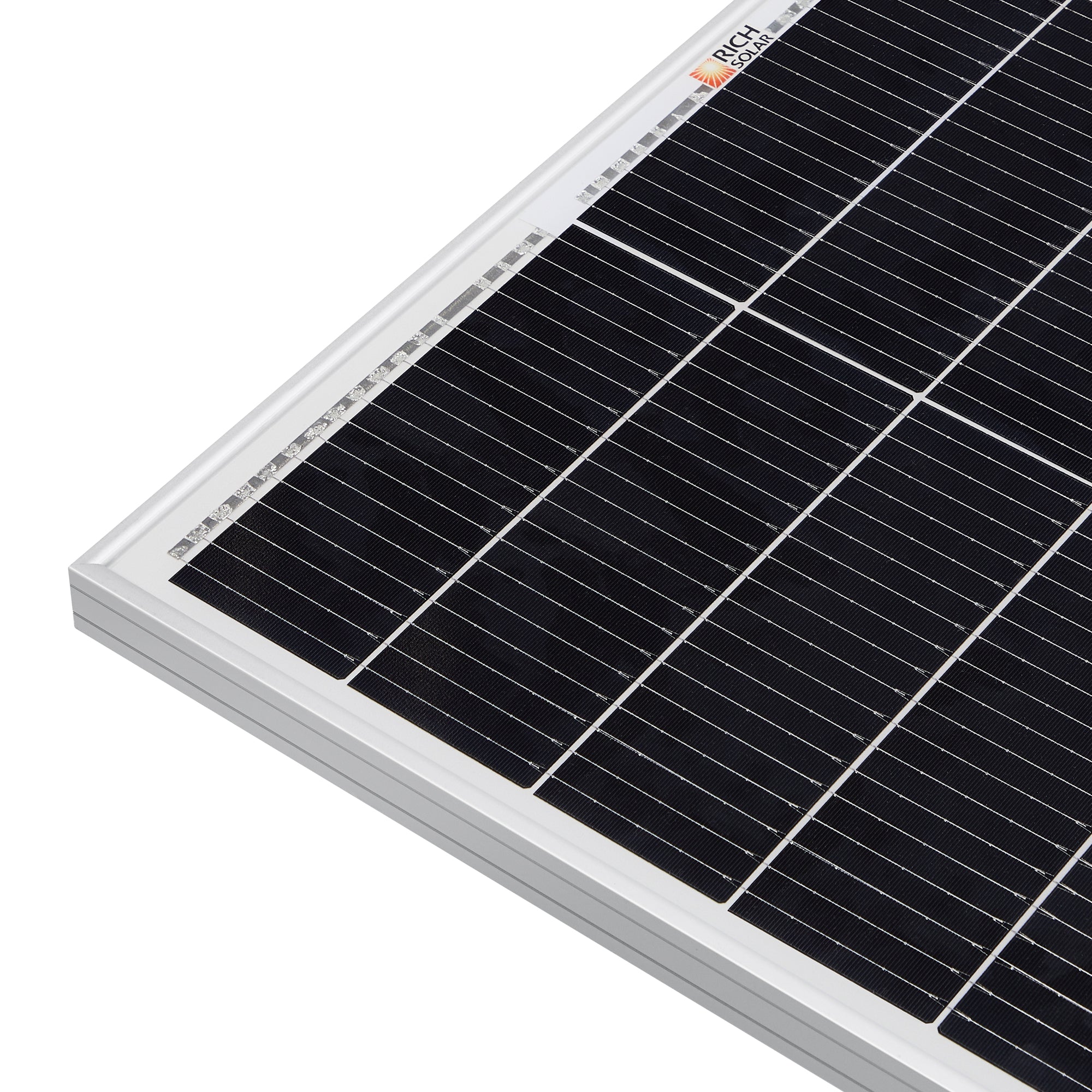

• High-transmission, anti-reflective tempered glass and an anodized aluminum frame for strength and durability.

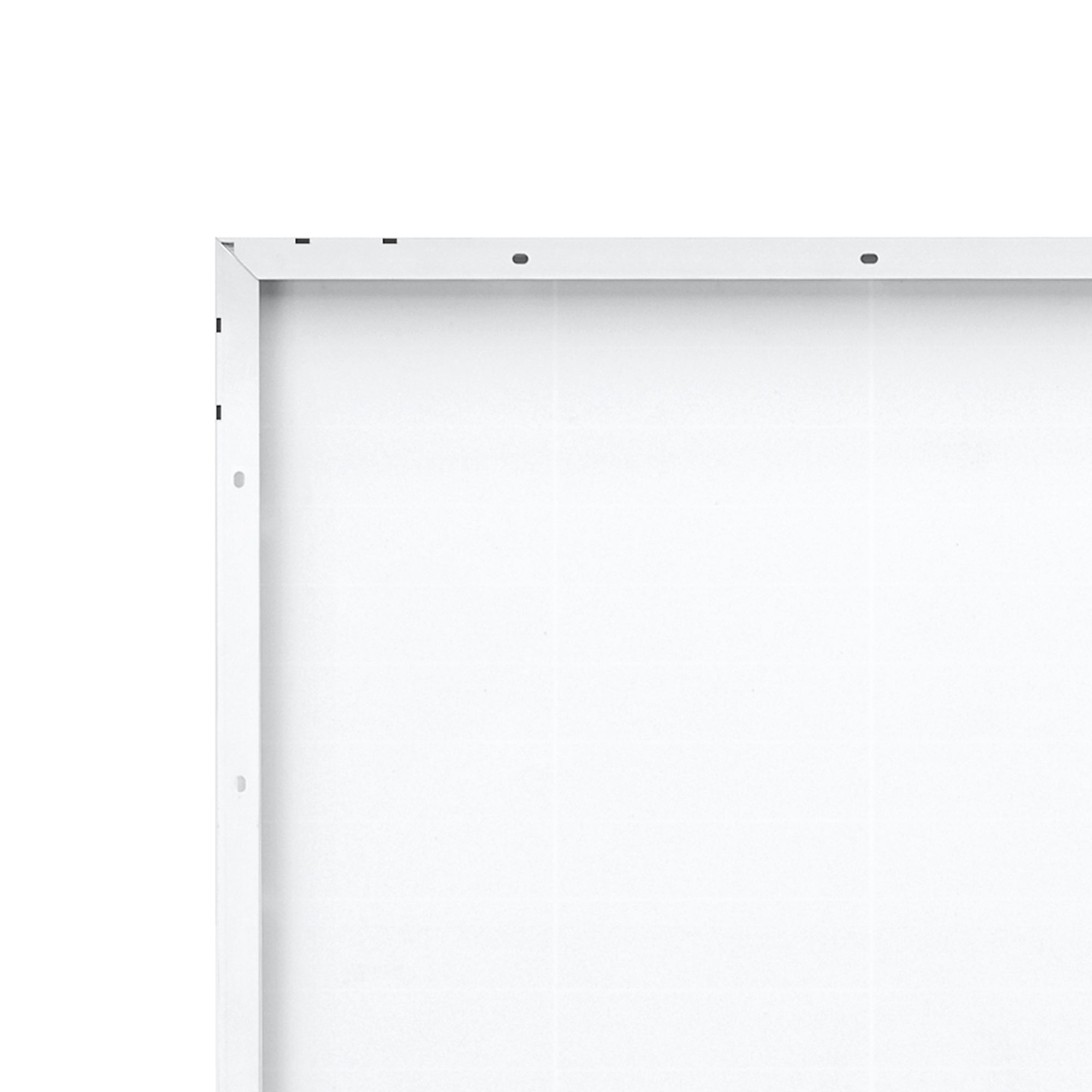

• 14 pre-drilled mounting holes compatible with Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• IP67-rated waterproof junction box and IP67-rated connectors for outdoor reliability.
• Bypass diodes integrated into the junction box to reduce shading losses.
• Compatible with on-grid and off-grid inverters.
• 25-year power output warranty and 10-year workmanship warranty included.

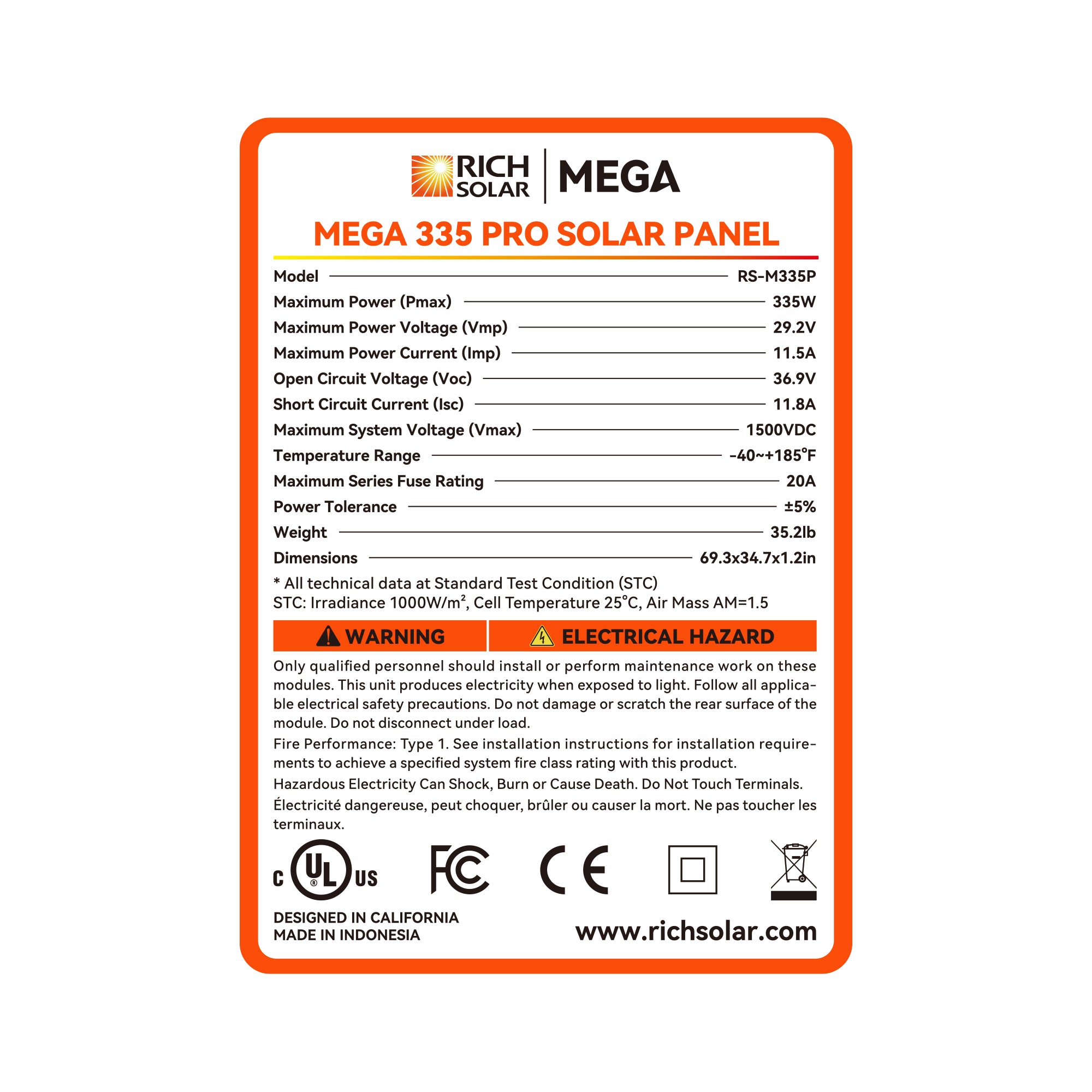

Specifications

• Maximum Power (Pmax): 335W
• Maximum Power Voltage (Vmp): 29.2V
• Maximum Power Current (Imp): 11.5A
• Open Circuit Voltage (Voc): 36.9V
• Short Circuit Current (Isc): 11.8A
• Maximum System Voltage (Vmax): 1500 VDC
• Temperature Range: -40°F to 185°F
• Max Series Fuse Rating: 20A

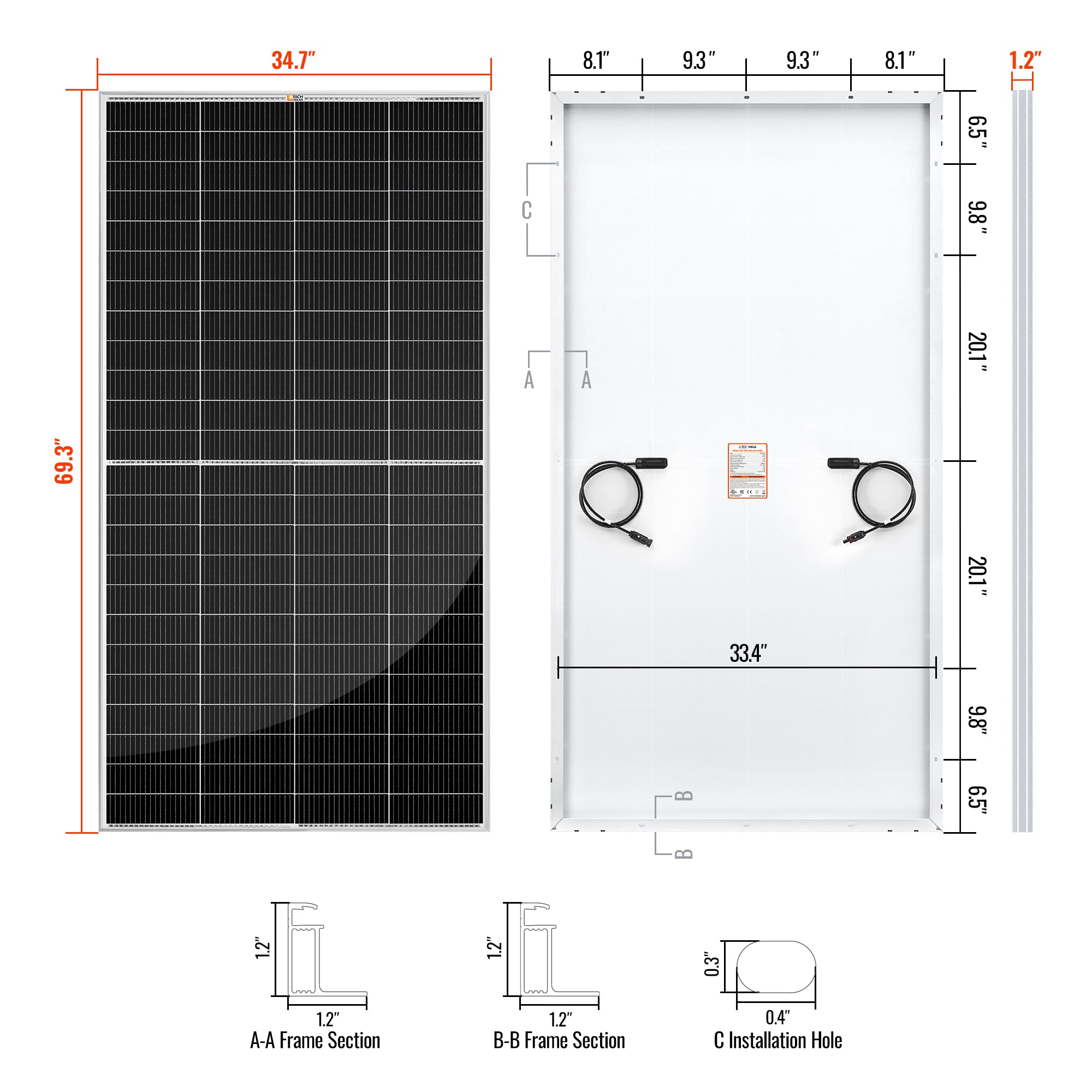

• Dimensions: 69.3 x 34.7 x 1.2 in
• Weight: 35.2 lb
• Panel leads (pair): 3 ft each (quick-connect)
• Junction box: IP67-rated waterproof
• Connectors: IP67-rated waterproof solar connectors
• Built-in bypass diodes located in junction box
• Warranty: 25-year power output warranty; 10-year workmanship warranty
