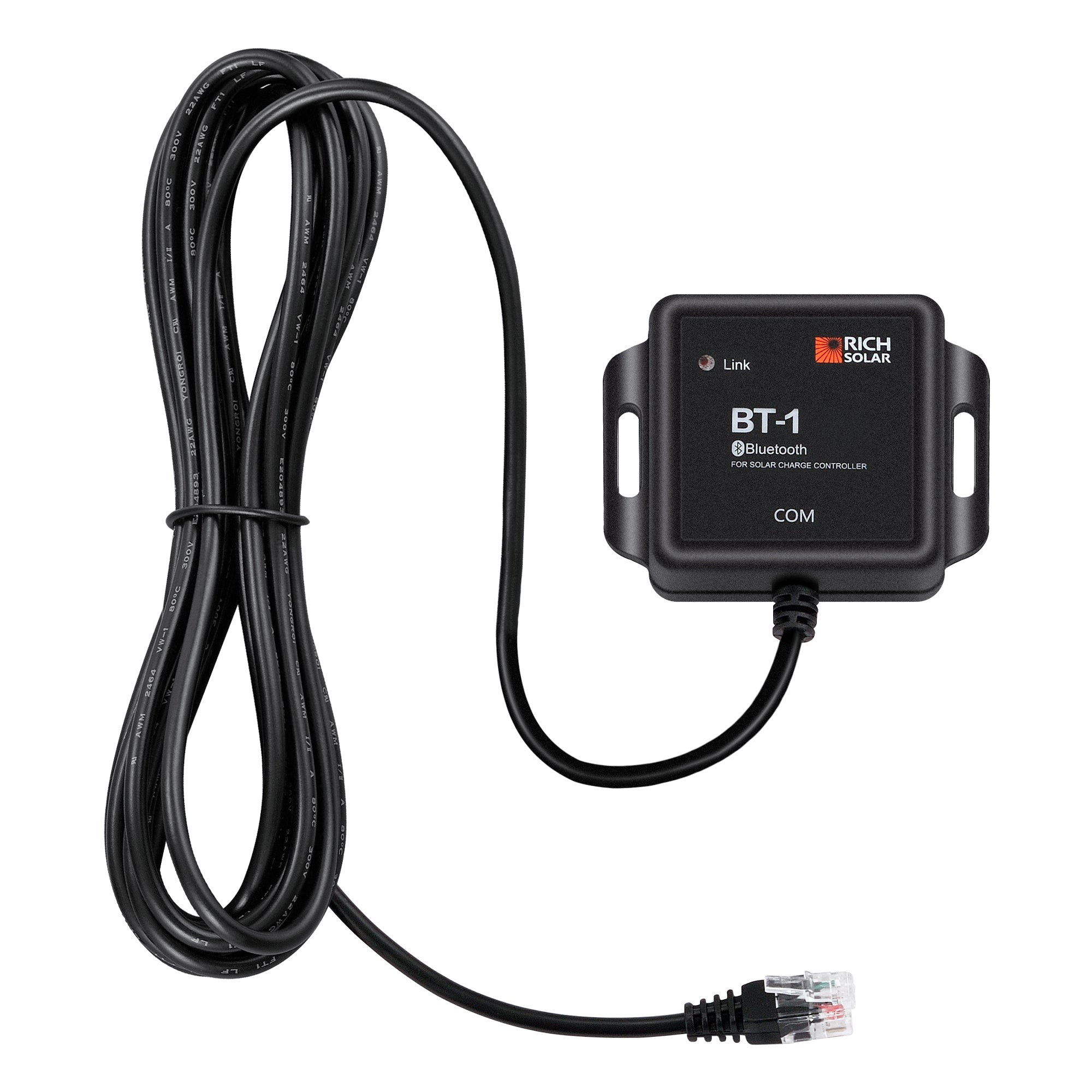

Rich Solar Genasun BT 1 Bluetooth Module For 20 60A MPPT Solar Controllers

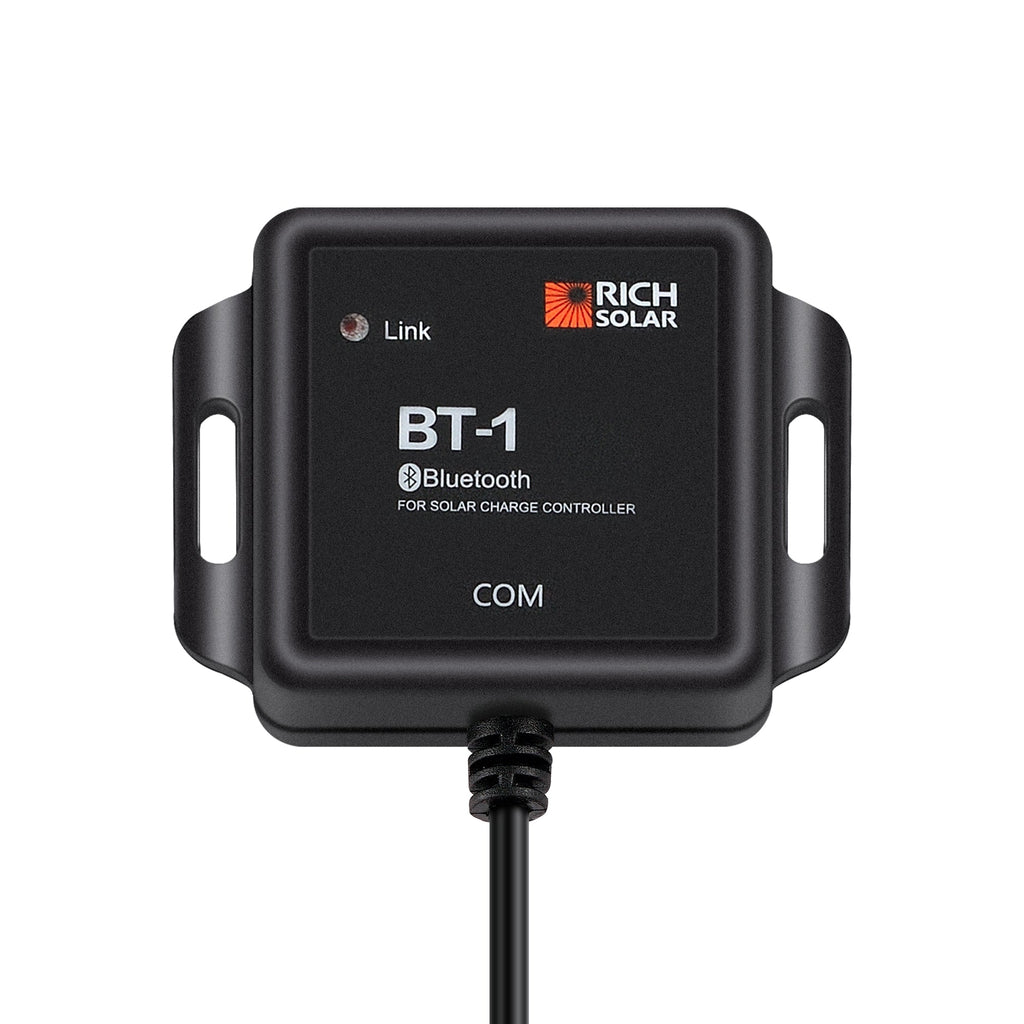

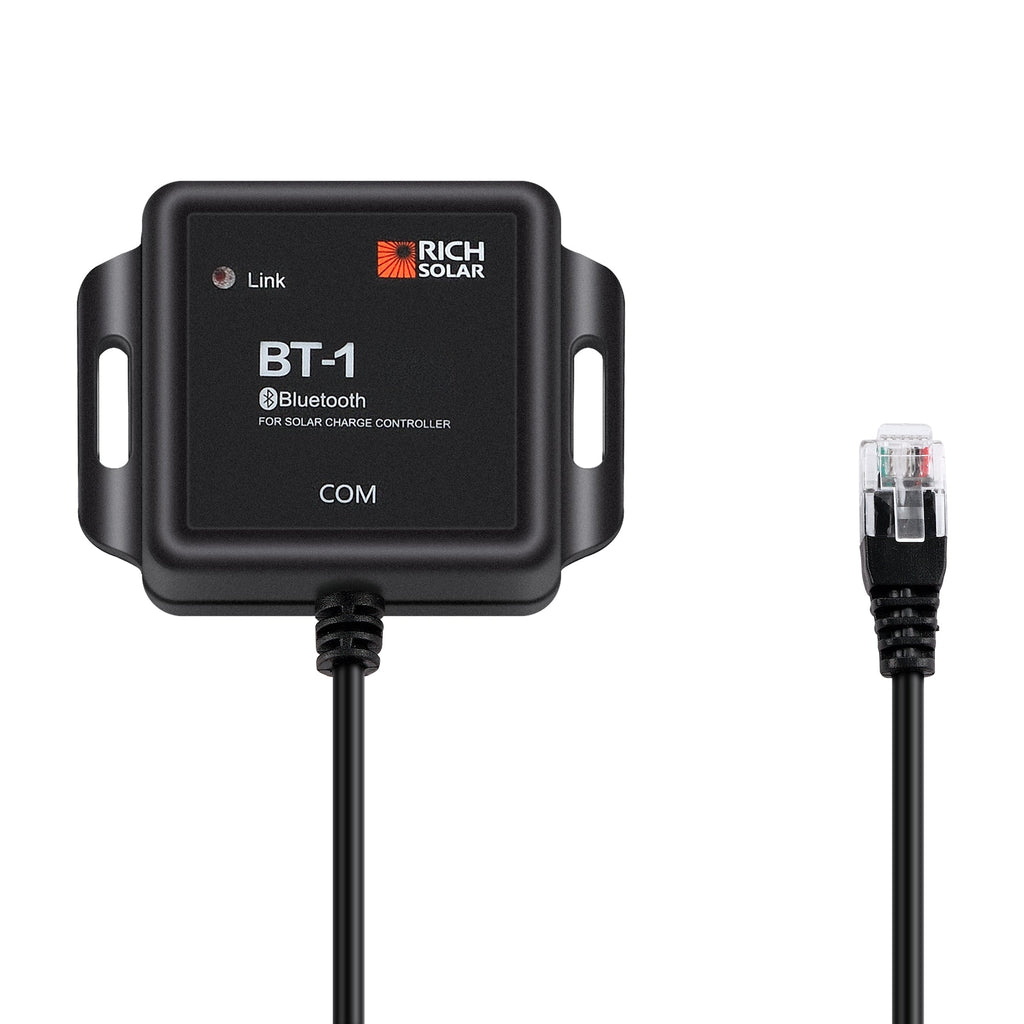

BT-1 Bluetooth Solar Controller Adapter

The BT-1 is a compact Bluetooth adapter that connects to compatible solar charge controllers via the RJ12 port, letting you monitor and control your system from a smartphone app. It uses low-power Bluetooth 4.0 BLE for reliable, continuous communication and is built for simple installation and outdoor durability.

Benefits

• Monitor your solar system from your phone so you can check performance without going to the site.
• Reduce unexpected downtime by spotting issues early with real-time status and alerts.
• Save time on routine checks—quick access to system data cuts travel and manual inspection needs.
• Low power draw preserves battery capacity, so the adapter won’t noticeably drain your system.
• IP67 protection and a durable cable make it suitable for outdoor installations, reducing the need for frequent replacements.
• Plug-and-play connection via RJ12 simplifies setup and removes the need for extra power wiring.

Features

• Wireless monitoring and control of compatible solar charge controllers over Bluetooth.
• Connects to a user-friendly smartphone app for system status, logs, and basic control.
• Embedded low-power Bluetooth chip designed for energy-efficient operation.
• Bluetooth 4.0 with BLE for fast, stable communication.
• Powered directly through the RJ12 communication port—no separate power supply required.
• Reliable wireless range up to 15 m (about 50 ft) in typical conditions.
• 5.00 m (16.4 ft) cable for flexible mounting locations.
• Water- and dust-resistant housing (IP67) for outdoor use.

Specifications

• Model: BT-1
• Input Voltage: 5 V – 12 V
• Standby Power Consumption: 0.04 W
• Operating Power Consumption: 0.05 W
• Communication Range: ? 15 m (? 50 ft)
• Serial Baud Rate: Fixed 9600 bps
• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 2.6 × 2.01 × 0.61 in
• Installation Dimensions: 57.5 mm, Ø3.2 mm (2.26 in, Ø0.13 in)
• Protection Grade: IP67
• Weight: 120 g (4.2 oz)
