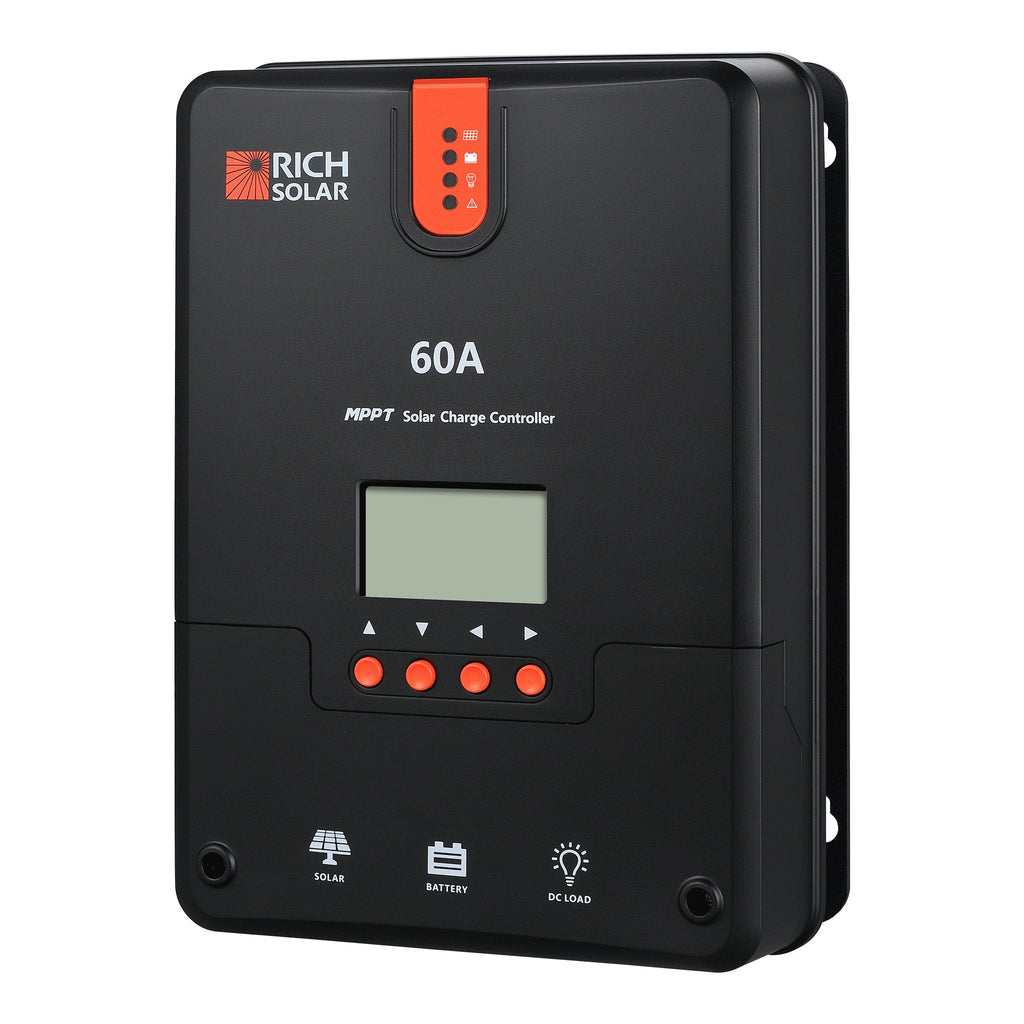

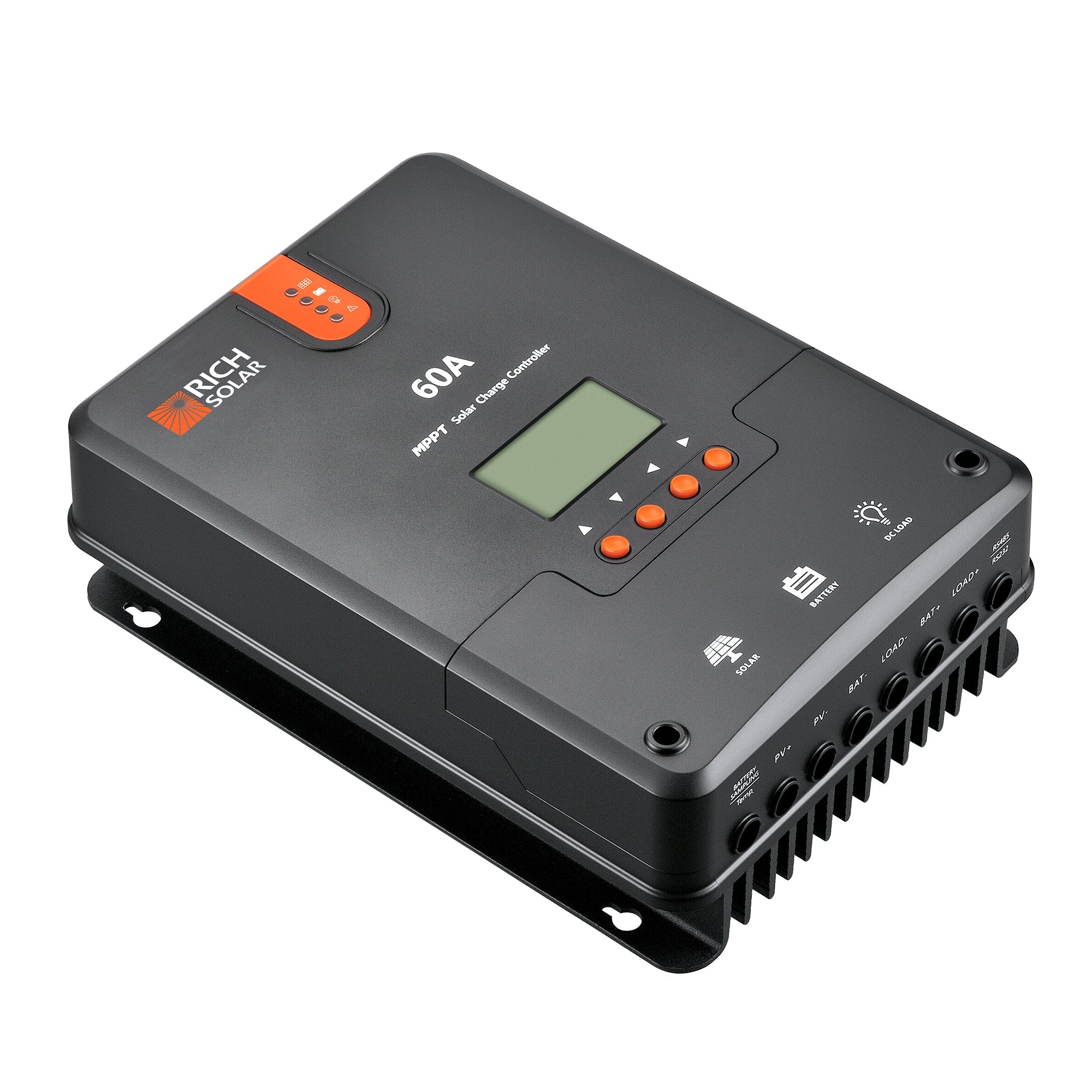

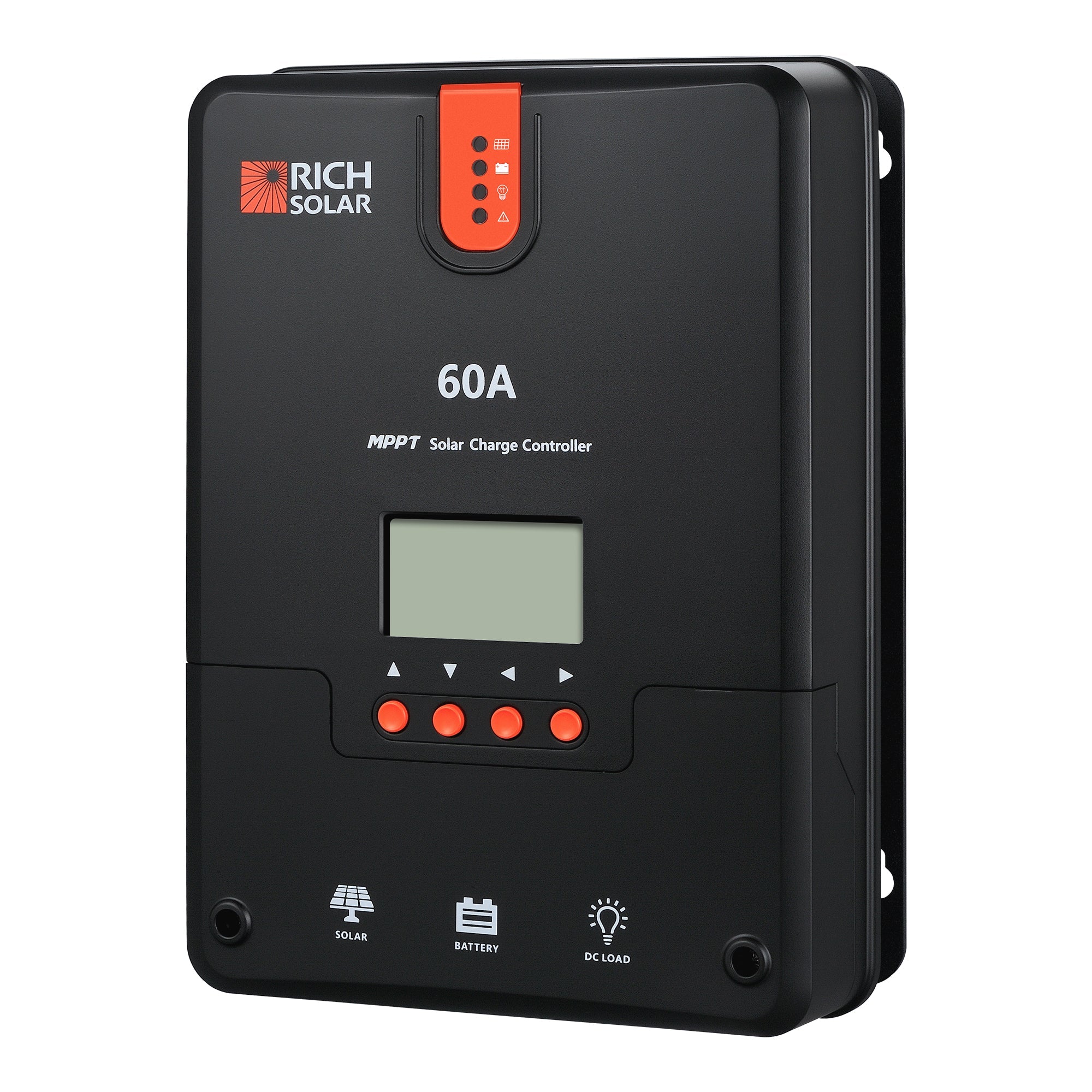

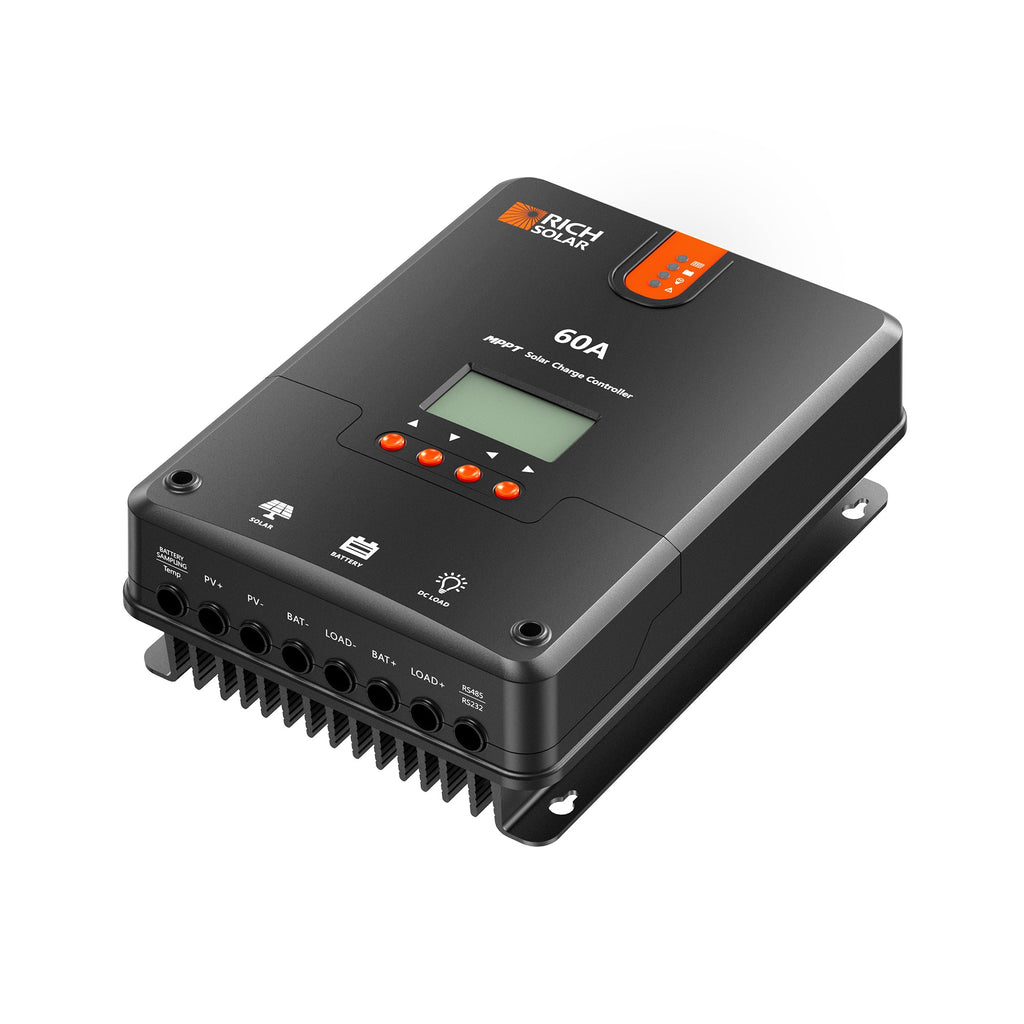

Rich Solar EPEVER 60A MPPT Solar Charge Controller Fast Charging

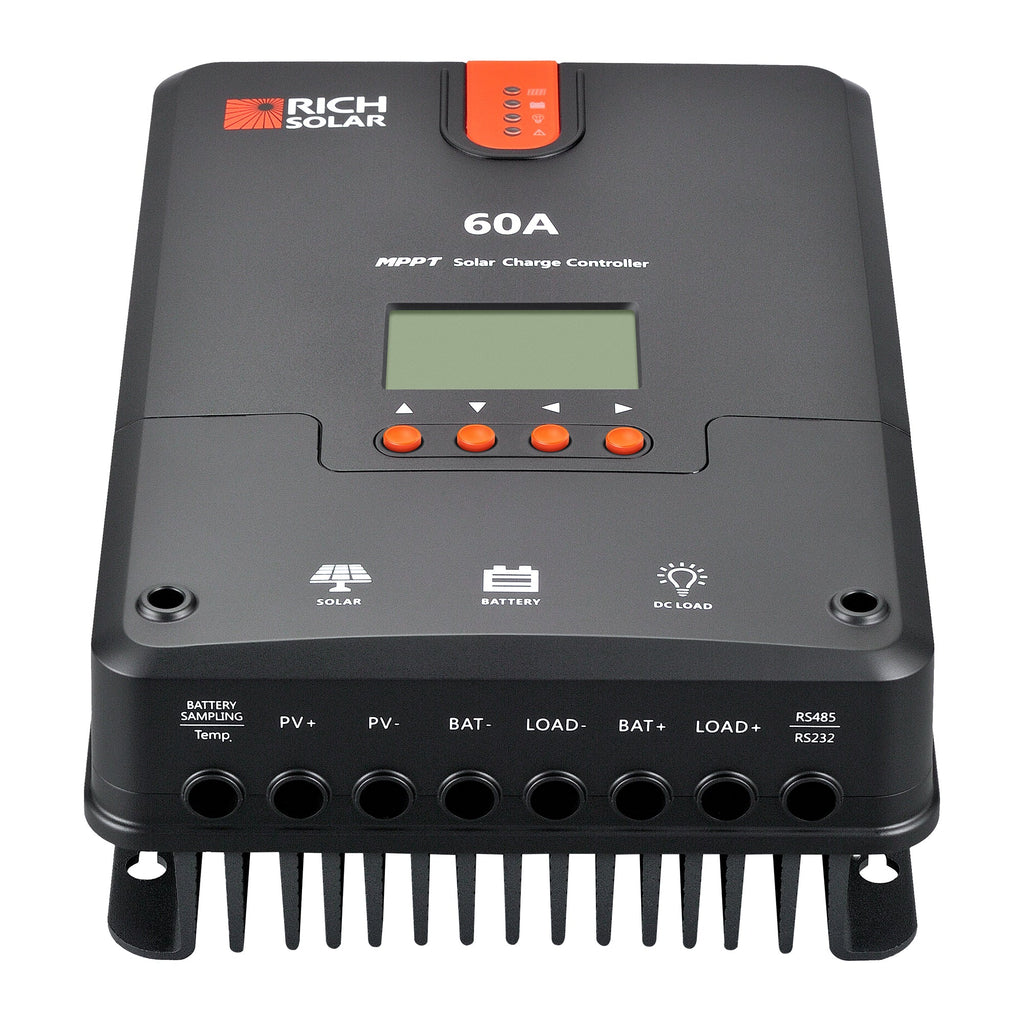

Smart MPPT Solar Charge Controller — 60A

Overview

This MPPT solar charge controller automatically adapts to 12V/24V/36V/48V systems and supports multiple battery chemistries. It uses high-efficiency MPPT tracking to maximize solar input, provides clear status via an LCD and LEDs, and includes protections and load control for safe, reliable off-grid power management.

Benefits

• Get more usable energy from your panels thanks to precise MPPT tracking and high conversion efficiency.
• Spend less time monitoring and adjusting systems — automatic voltage detection and configurable parameters handle setup and operation.
• Protect your batteries and equipment with built-in safeguards that reduce the risk of damage and downtime.
• Install confidently in tight spaces — die-cast aluminum housing dissipates heat efficiently and keeps the unit compact.
• Monitor system behavior and troubleshoot quickly with the LCD screen, LED indicators, and error codes.

Features

• Automatic detection of 12V / 24V / 36V / 48V DC system voltages.
• Compatible with sealed, gel, flooded, and lithium deep-cycle batteries.
• MPPT technology with up to 99% tracking efficiency and 98% peak conversion efficiency.
• Electronic protections for reverse polarity, overcharge, over-discharge, overload, short circuit, and reverse current.

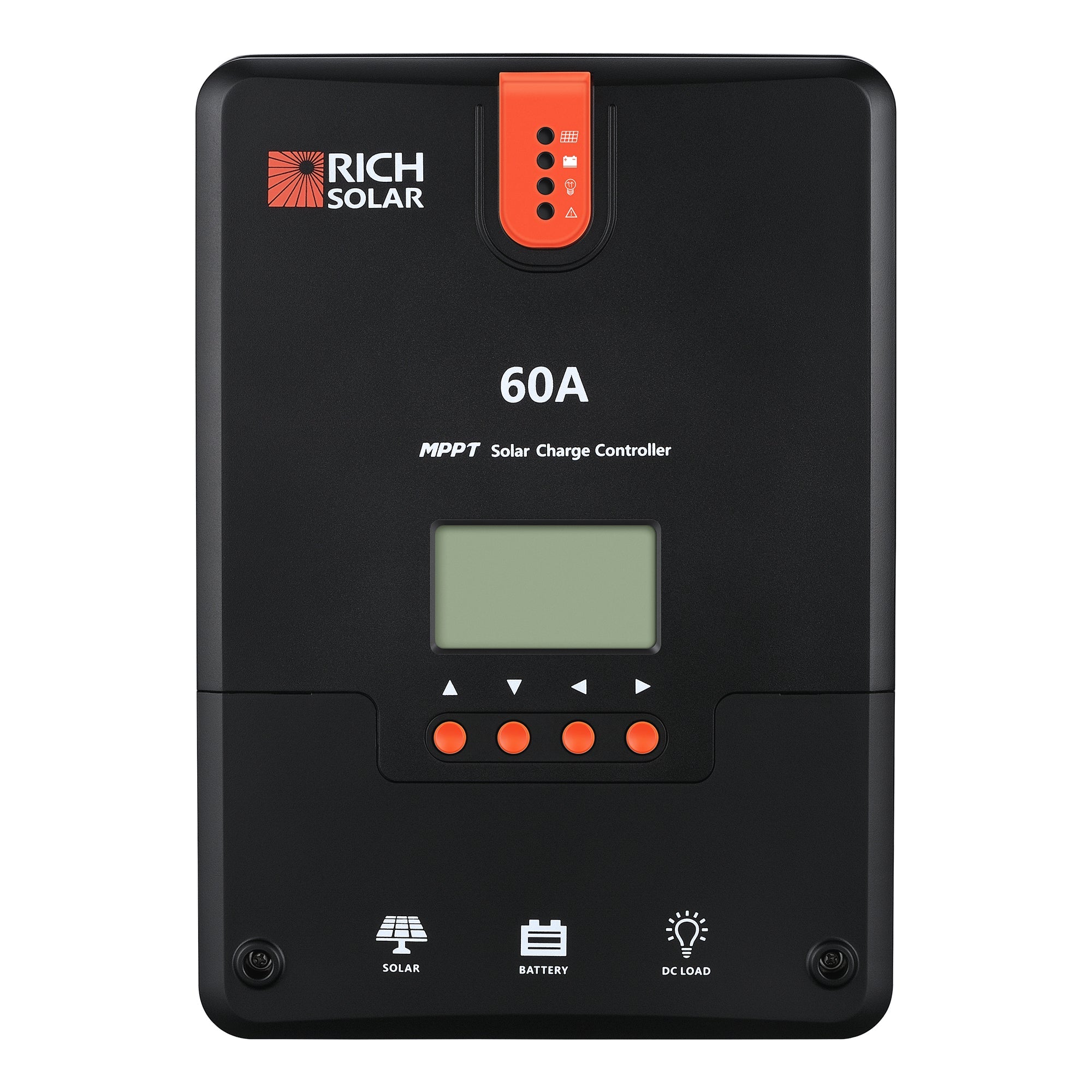

• LCD screen plus multiple LED indicators for system status, programmable parameters, and error codes.
• Load control functions and the ability to charge over-discharged lithium batteries.

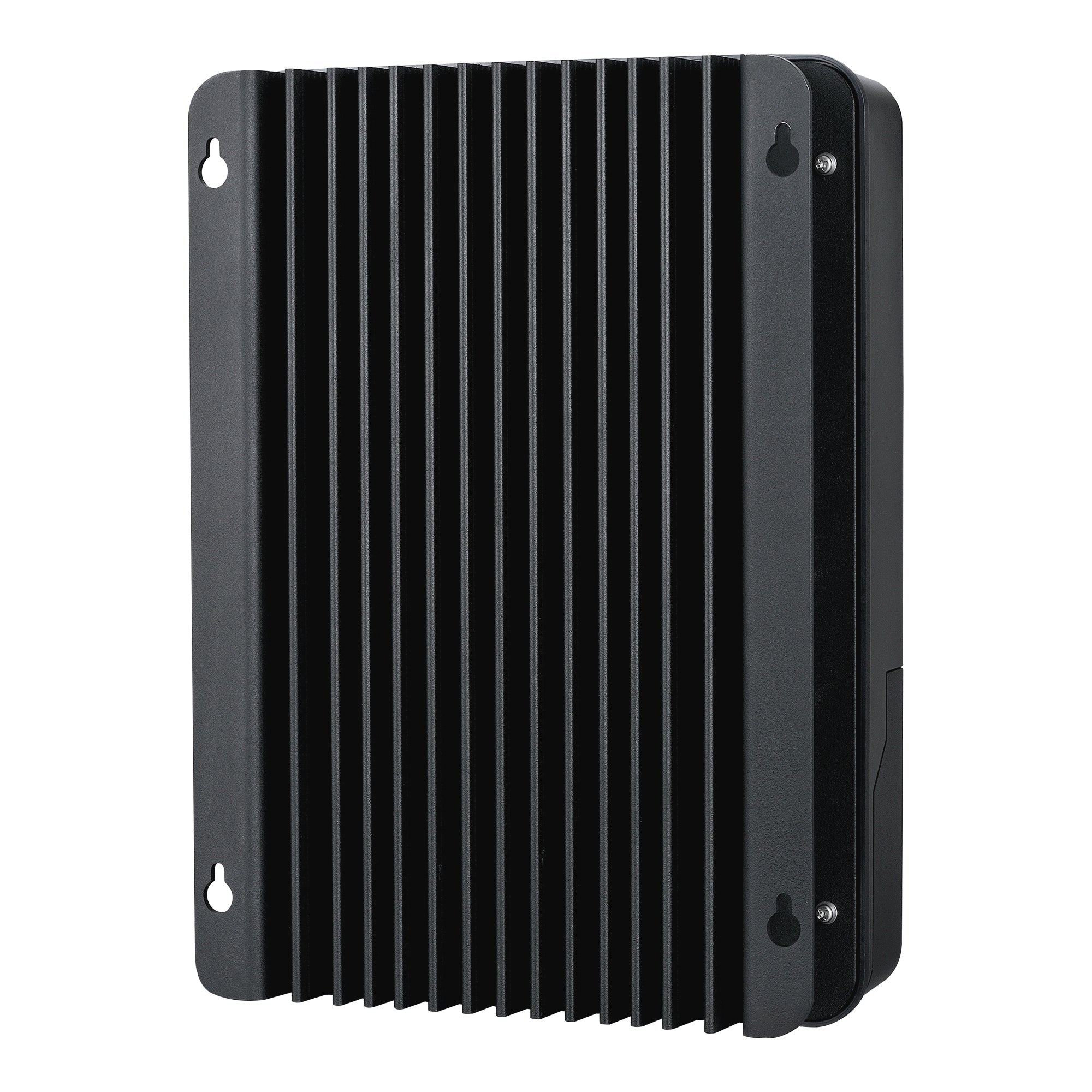

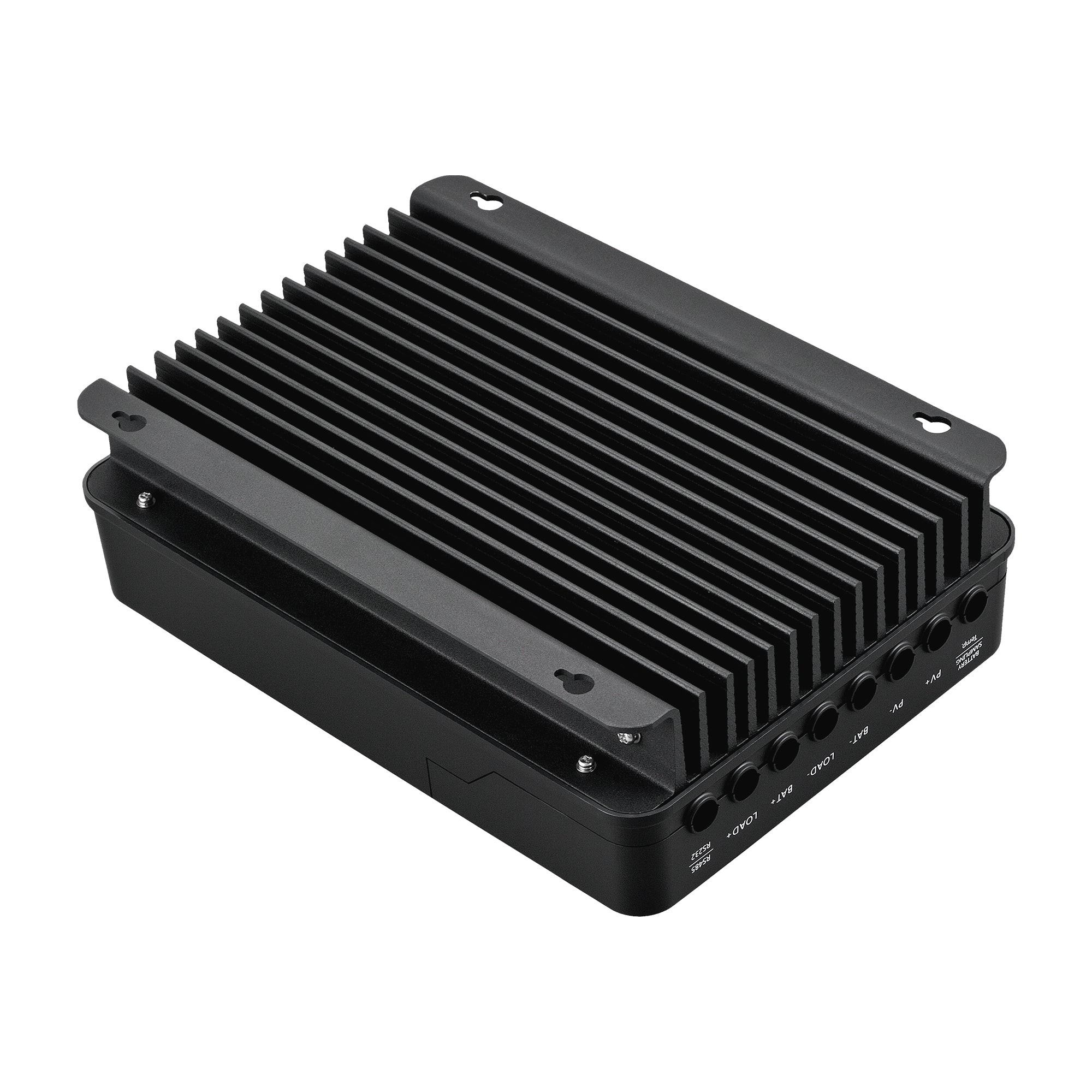

• Die-cast aluminum enclosure for effective heat dissipation.

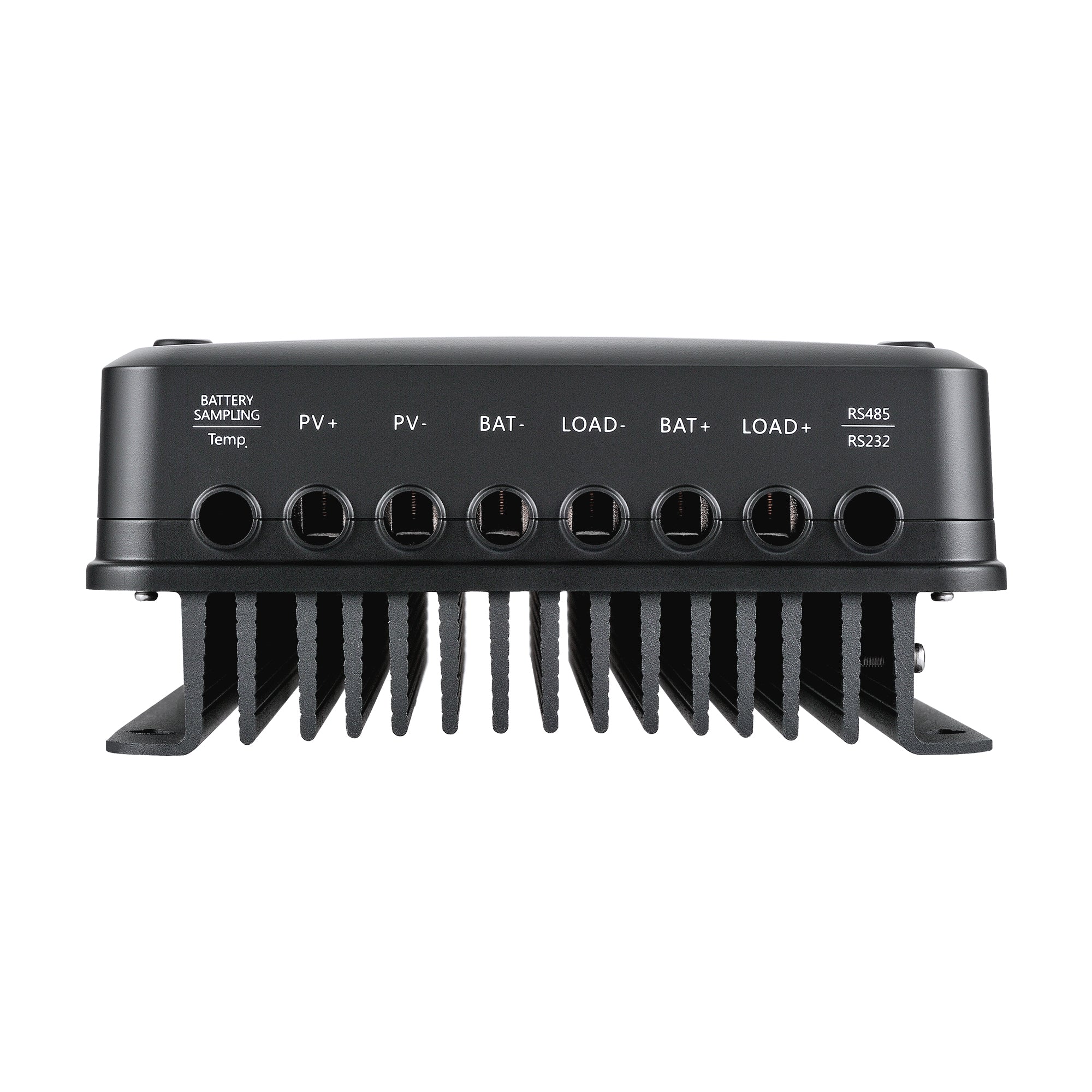

• RS232 port for communication with the BT-1 Bluetooth module.

Specifications

• Rated battery current: 60 A
• Rated load current: 20 A
• Max solar input voltage: 150 V (77°F), 145 V (-13°F)
• Max solar input power:
  • 800 W @ 12 V
  • 1600 W @ 24 V
  • 2400 W @ 36 V
  • 3200 W @ 48 V
• Charge circuit voltage drop: ≤ 0.26 V
• Discharge circuit voltage drop: ≤ 0.15 V
• Operating temperature: -31°F to 113°F
• Max terminal size: <11 mm
• Overall dimensions: 11.2 x 8.1 x 3.7 in
• Net weight: 7.94 lb
