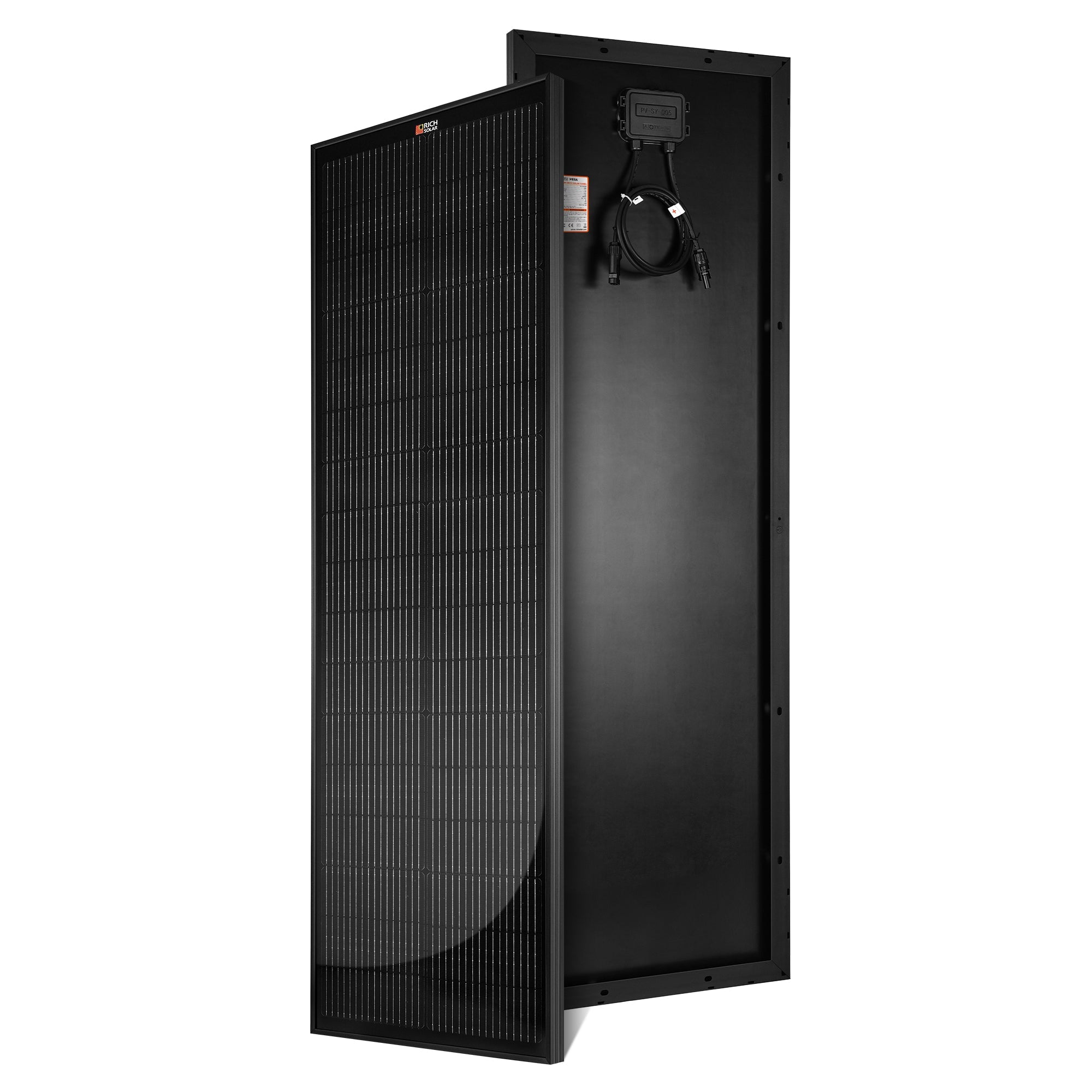

Rich Solar EcoFlow 100 Watt Slim Solar Panel Compact 12V For Vans Boats

100W Compact Monocrystalline Solar Panel — High Efficiency for Mobile & Marine Use

Compact, rugged 100W solar panel built for RVs, vans, truck campers, overland rigs and boats. It combines high-efficiency monocrystalline cells, AR-coated tempered glass, and weatherproof components to deliver reliable power on the move or off-grid.

Benefits

• Keep batteries charged on the road or at anchor so you have power for lights, fridges and electronics.
• Get predictable output — 0 to +5W power tolerance helps ensure you reach or exceed the rated 100W.
• Spend less time installing: pre-drilled mounting holes and 3 ft pre-attached cables simplify setup.
• Dependable performance in varied conditions: strong low-light output for dawn, dusk and cloudy days.
• Reduce maintenance worries with durable materials and extensive environmental testing.

Features

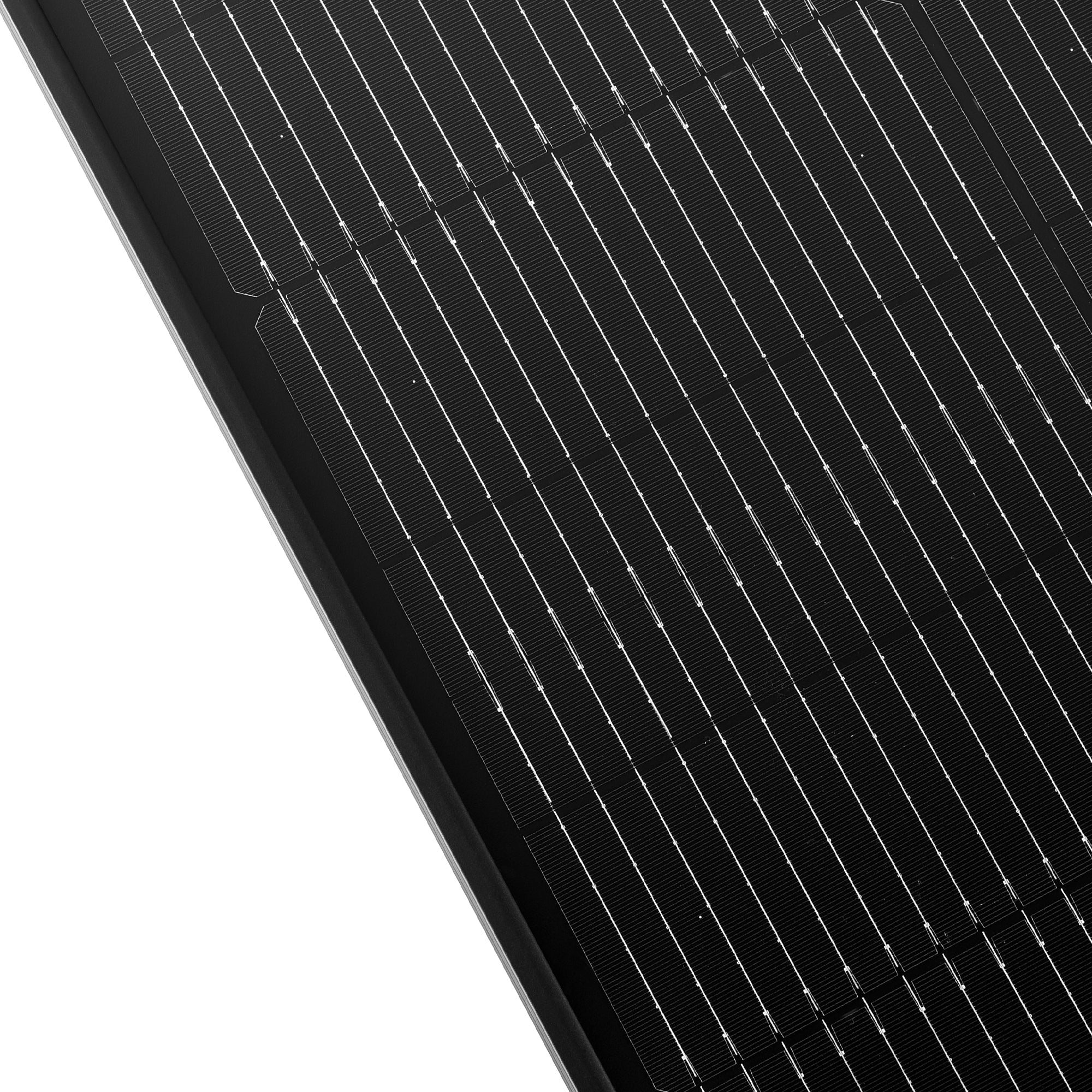

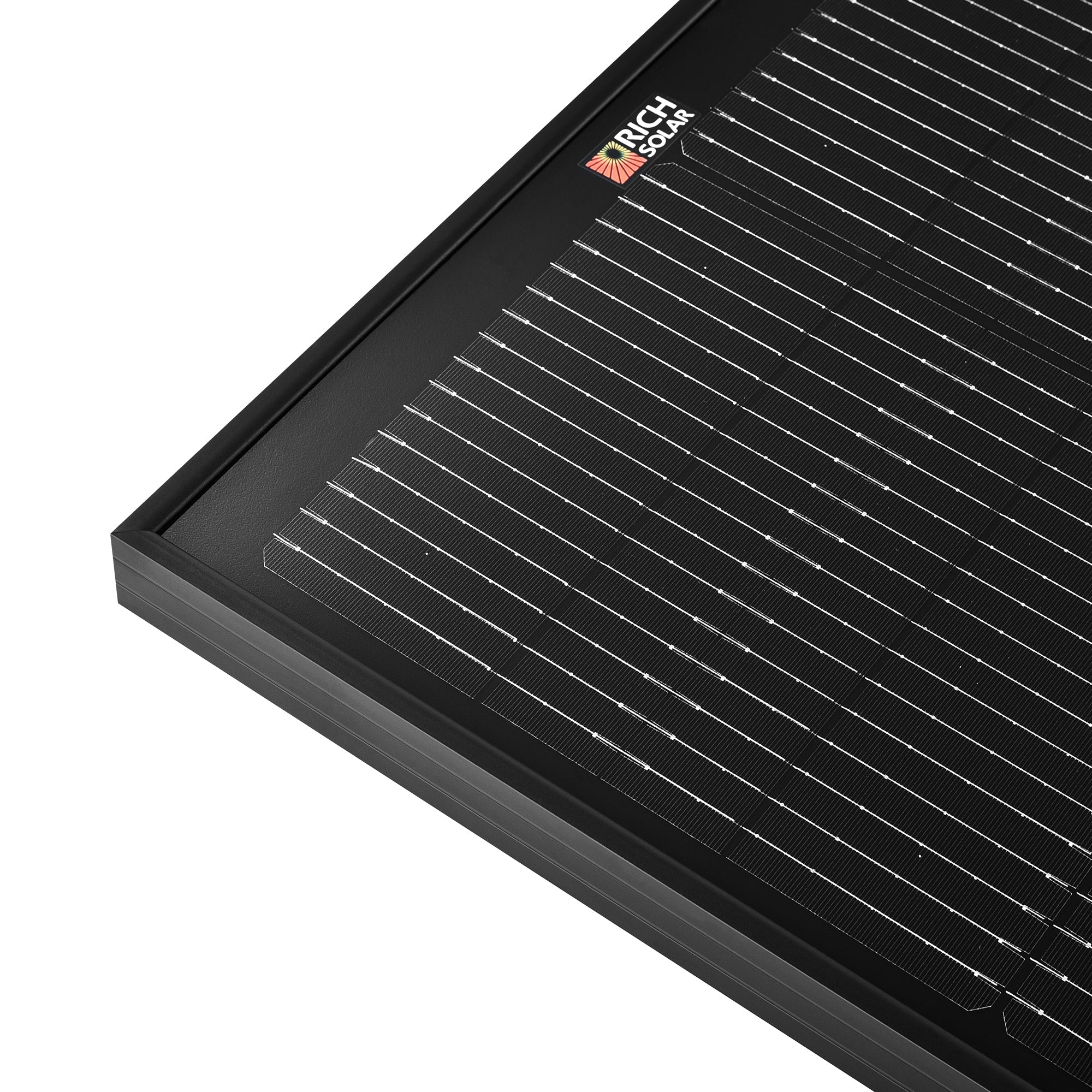

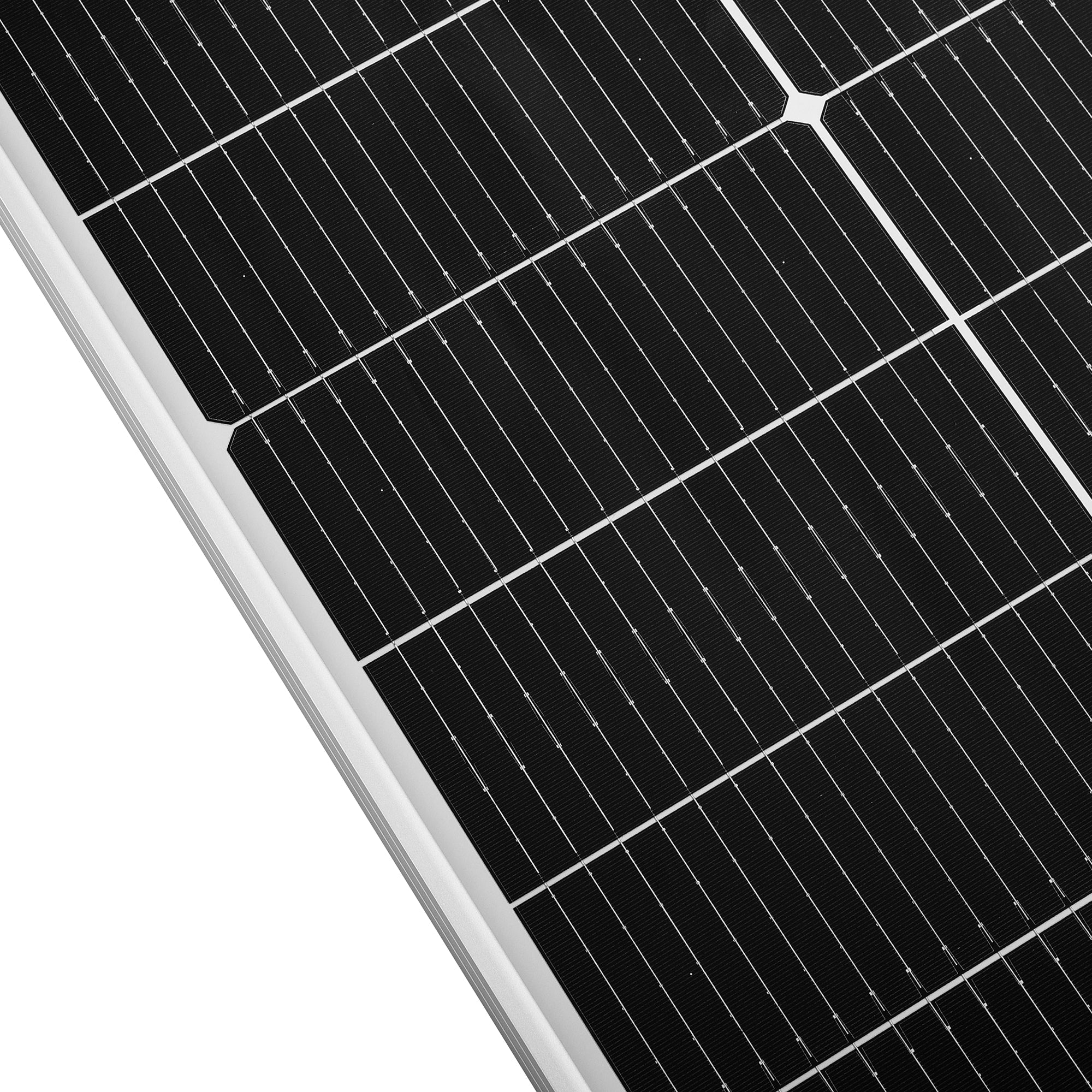

• 16-busbar monocrystalline cells with up to 25.1% cell efficiency
• 34-cell configuration producing a reliable 100W nominal output
• 3.2 mm anti-reflective (AR) coated tempered glass for improved sunlight capture and durability

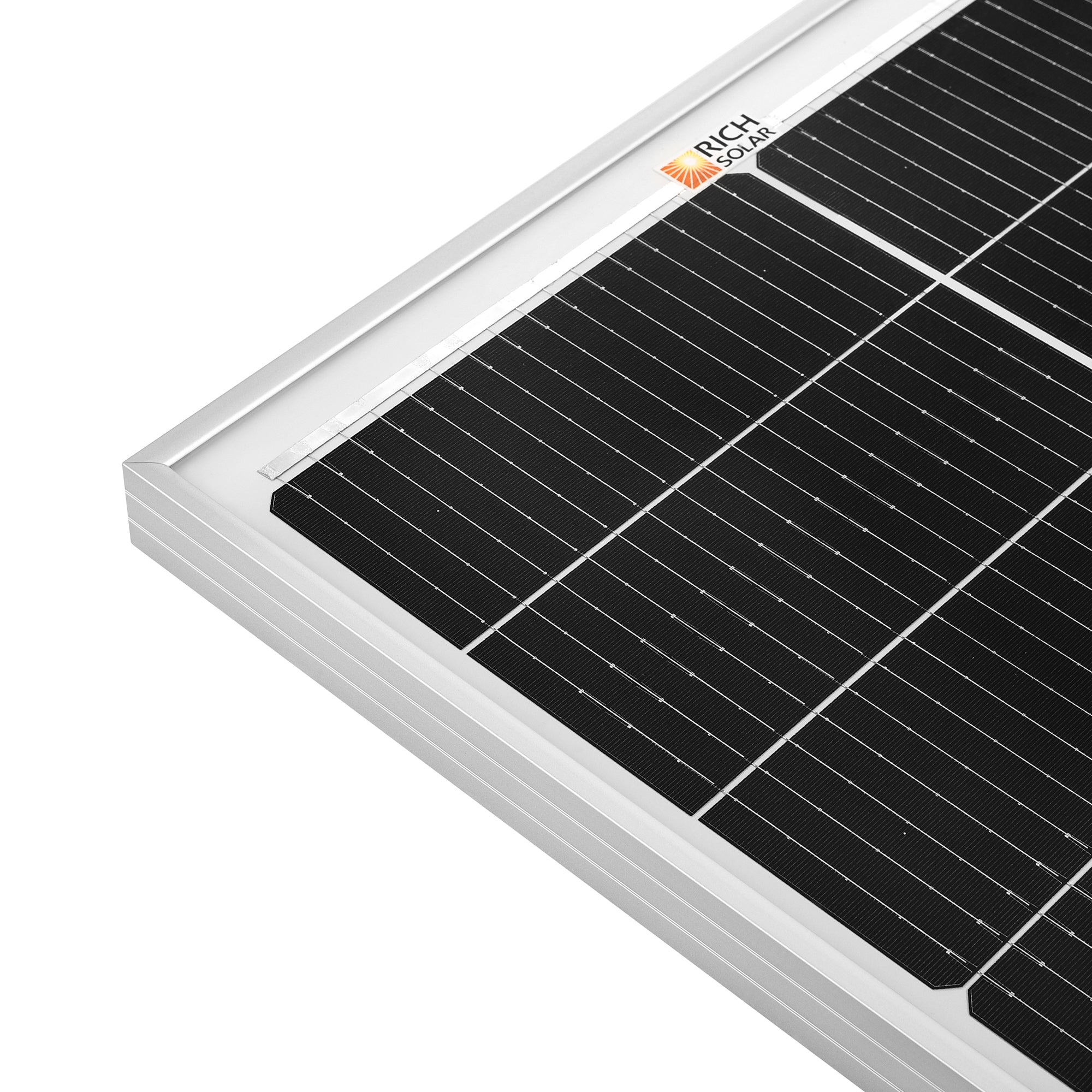

• Anodized aluminum frame that is lightweight and corrosion-resistant
• Power tolerance: 0 to +5W
• Excellent low-light performance for cloudy conditions and early/late sun

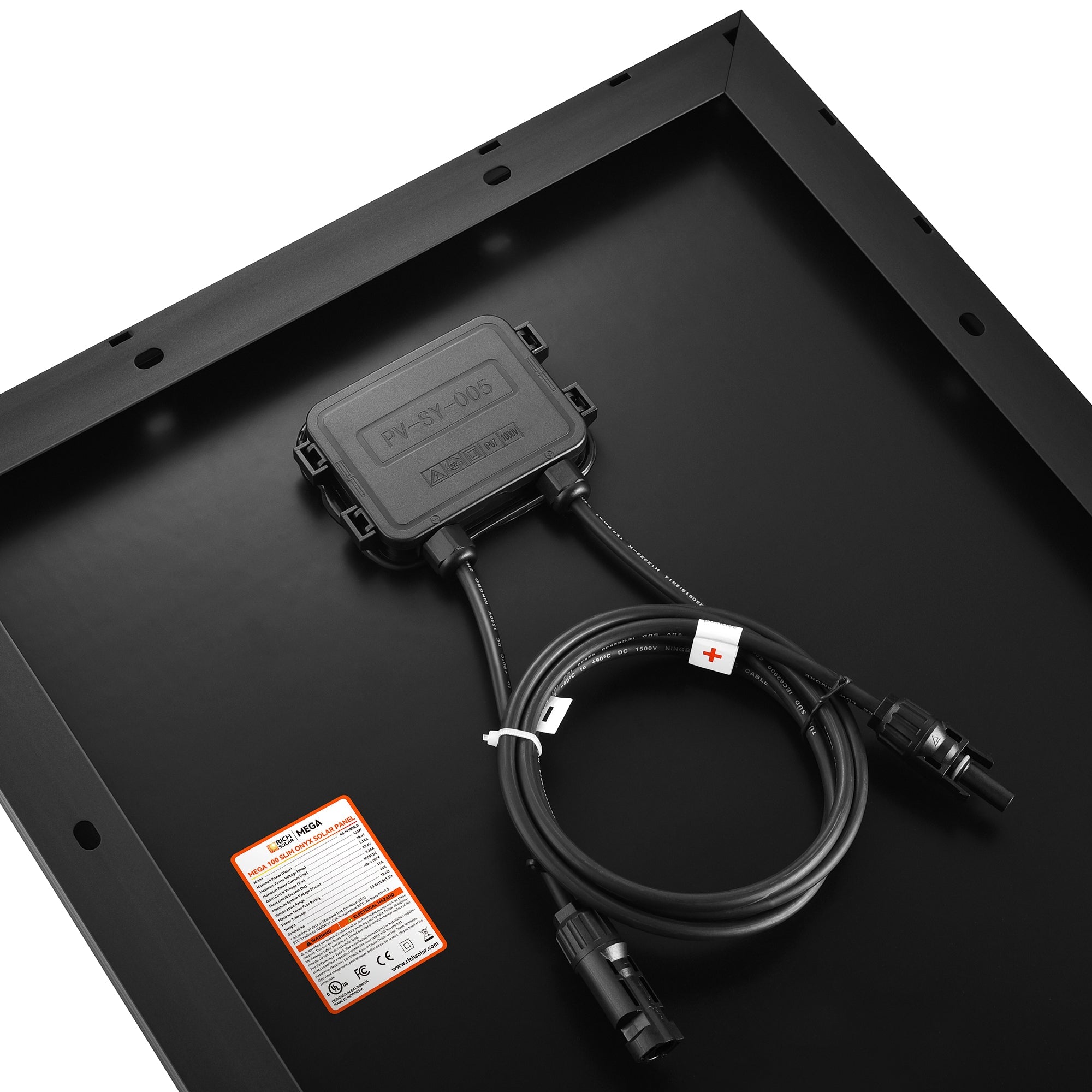

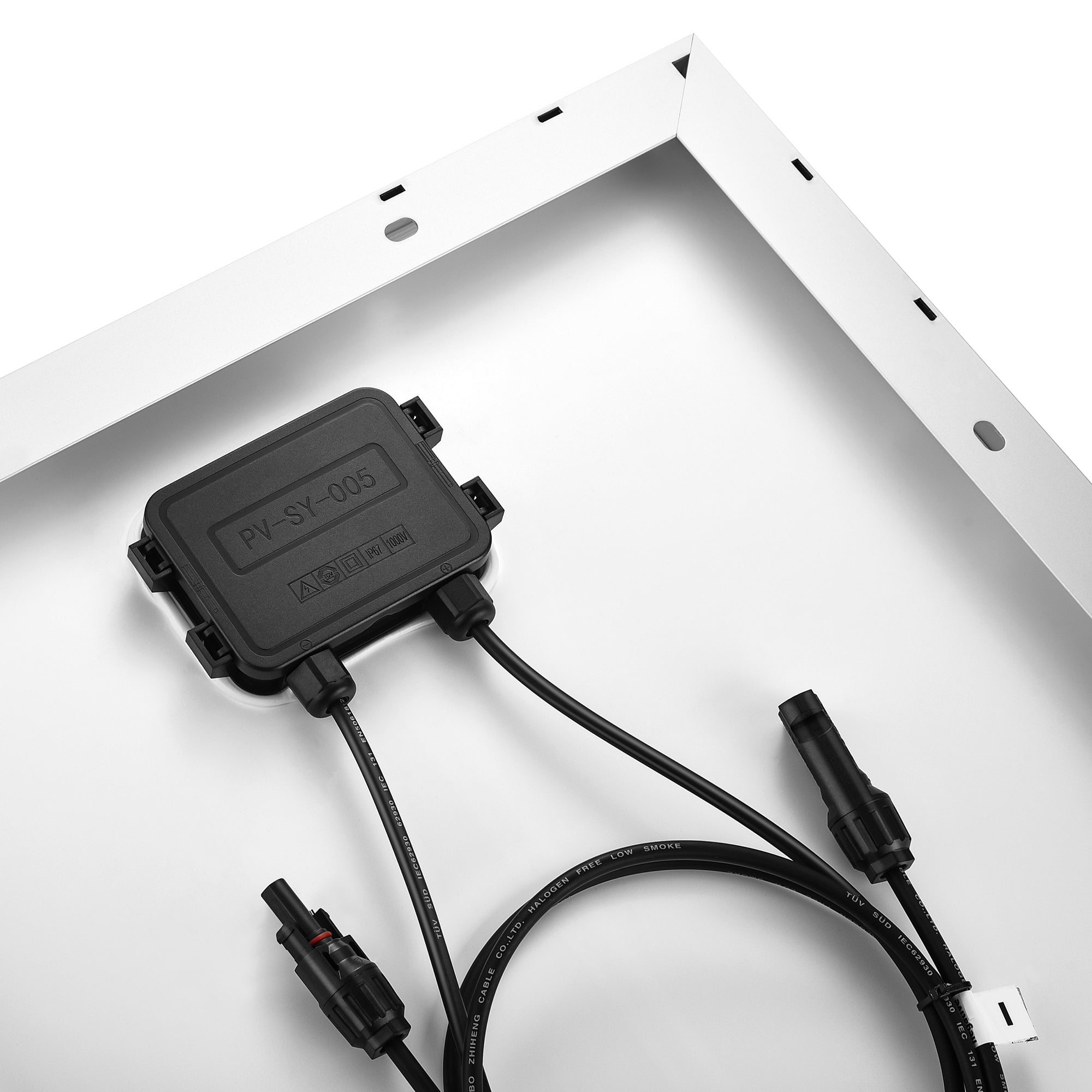

• IP67-rated waterproof junction box and IP67-rated waterproof solar connectors
• MC4 connectors with 3 ft pre-attached cables (pair)
• PID-resistant and 100% EL-inspected to reduce microcrack risk
• Tested for UV exposure, thermal cycling, humidity freeze and other environmental stresses
• 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole or ground installation
• Compatible with both on-grid and off-grid inverter systems
• Mechanically certified to withstand wind, snow and hail impacts

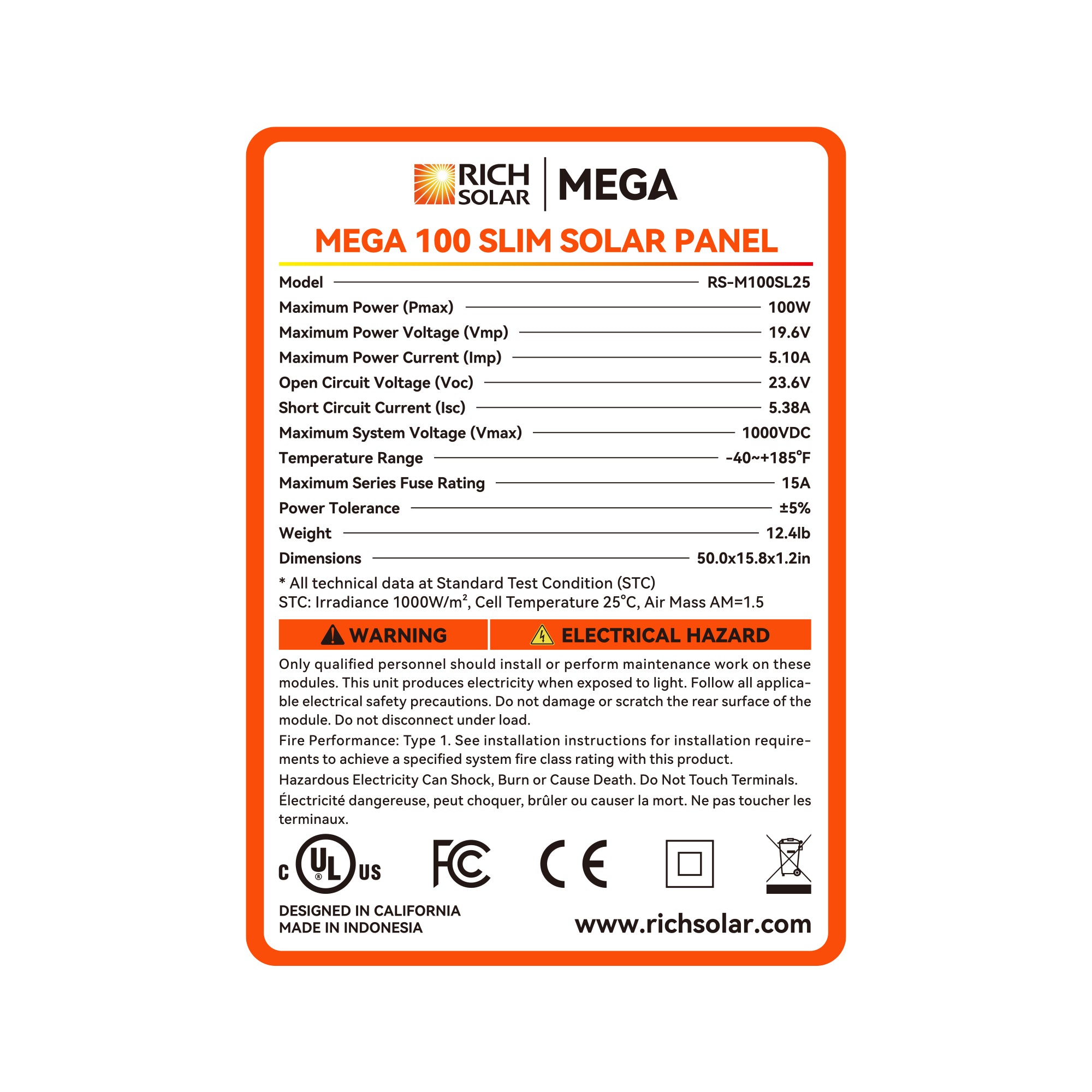

Specifications

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 19.6 V
• Maximum Power Current (Imp): 5.1 A
• Open Circuit Voltage (Voc): 23.6 V
• Short Circuit Current (Isc): 5.38 A
• Maximum System Voltage (Vmax): 1000 VDC
• Maximum Series Fuse Rating: 15 A
• Cell count / layout: 34 cells, 16-busbar monocrystalline
• Cell efficiency: up to 25.1%
• Glass: 3.2 mm AR-coated tempered glass
• Frame: Anodized aluminum
• Panel leads (pair): 12 AWG, 3 ft each (pre-attached)
• Connectors: MC4-compatible, IP67-rated

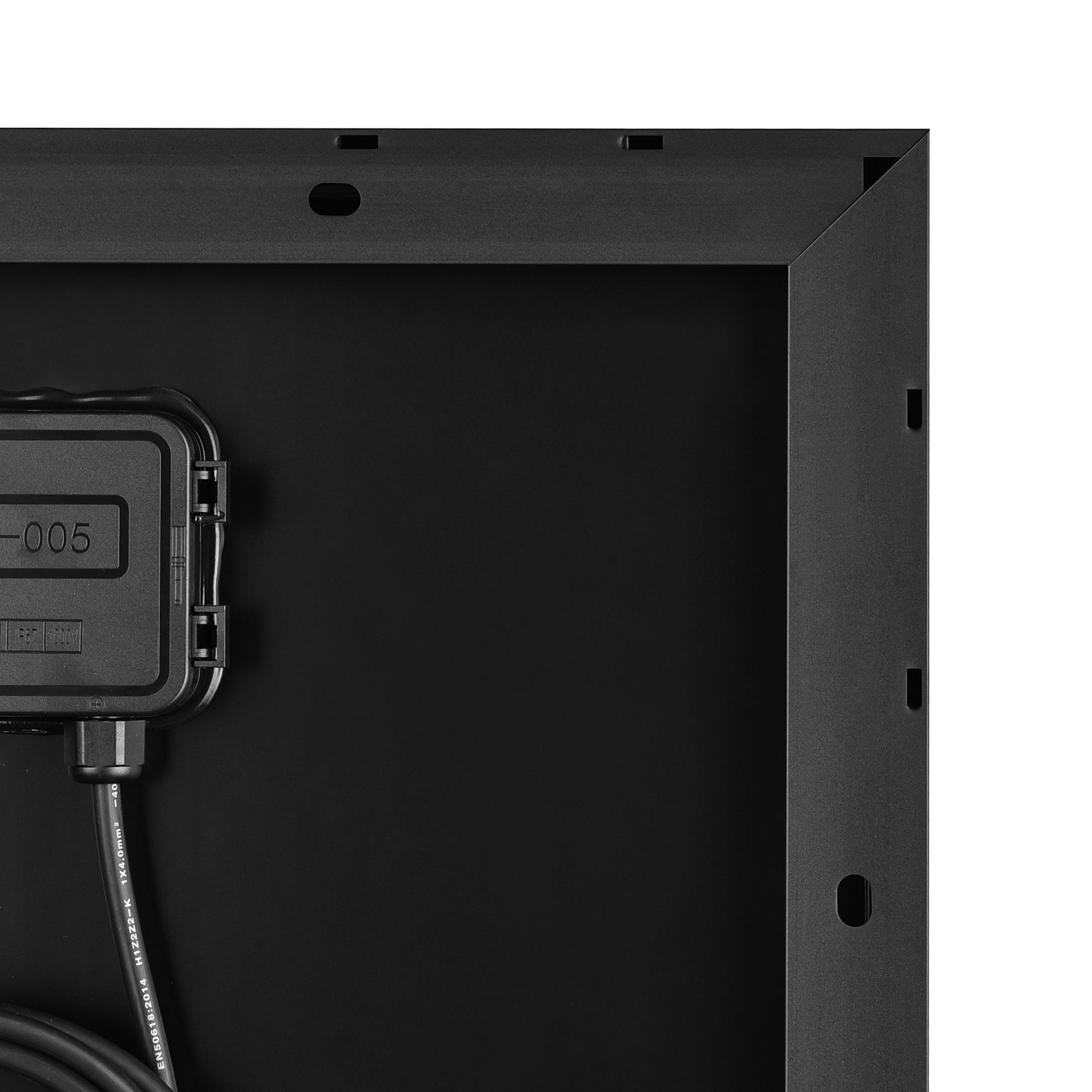

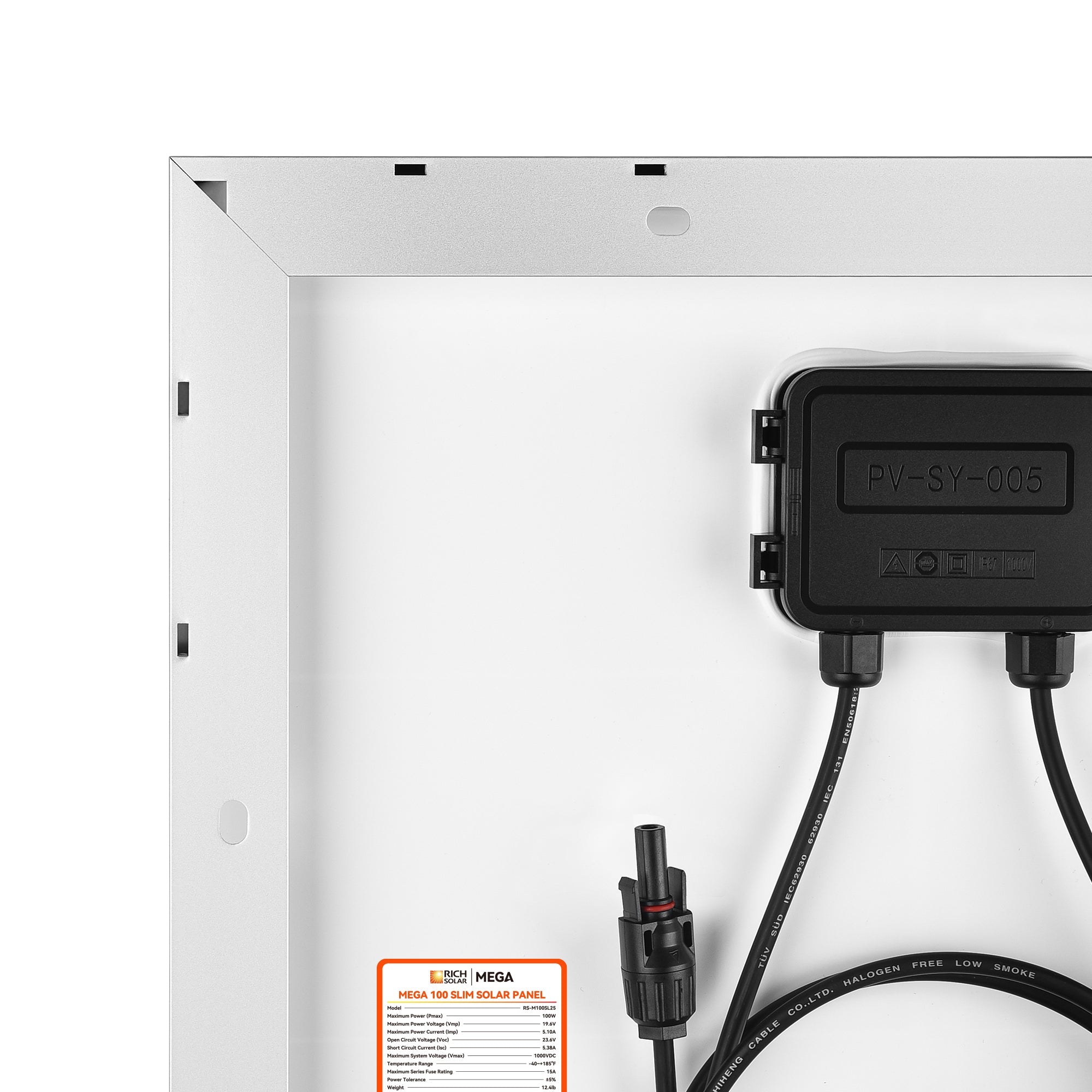

• Junction box: IP67-rated, waterproof
• Mechanical ratings: certified for 2400 Pa wind load, 5400 Pa snow load
• Hail resistance: tested for 35 mm hail at 97 km/h
• Environmental testing: UV exposure, thermal cycling, humidity freeze, etc.
• PID-resistant and 100% EL-inspected to prevent microcracks
• Weight: 12.4 lb

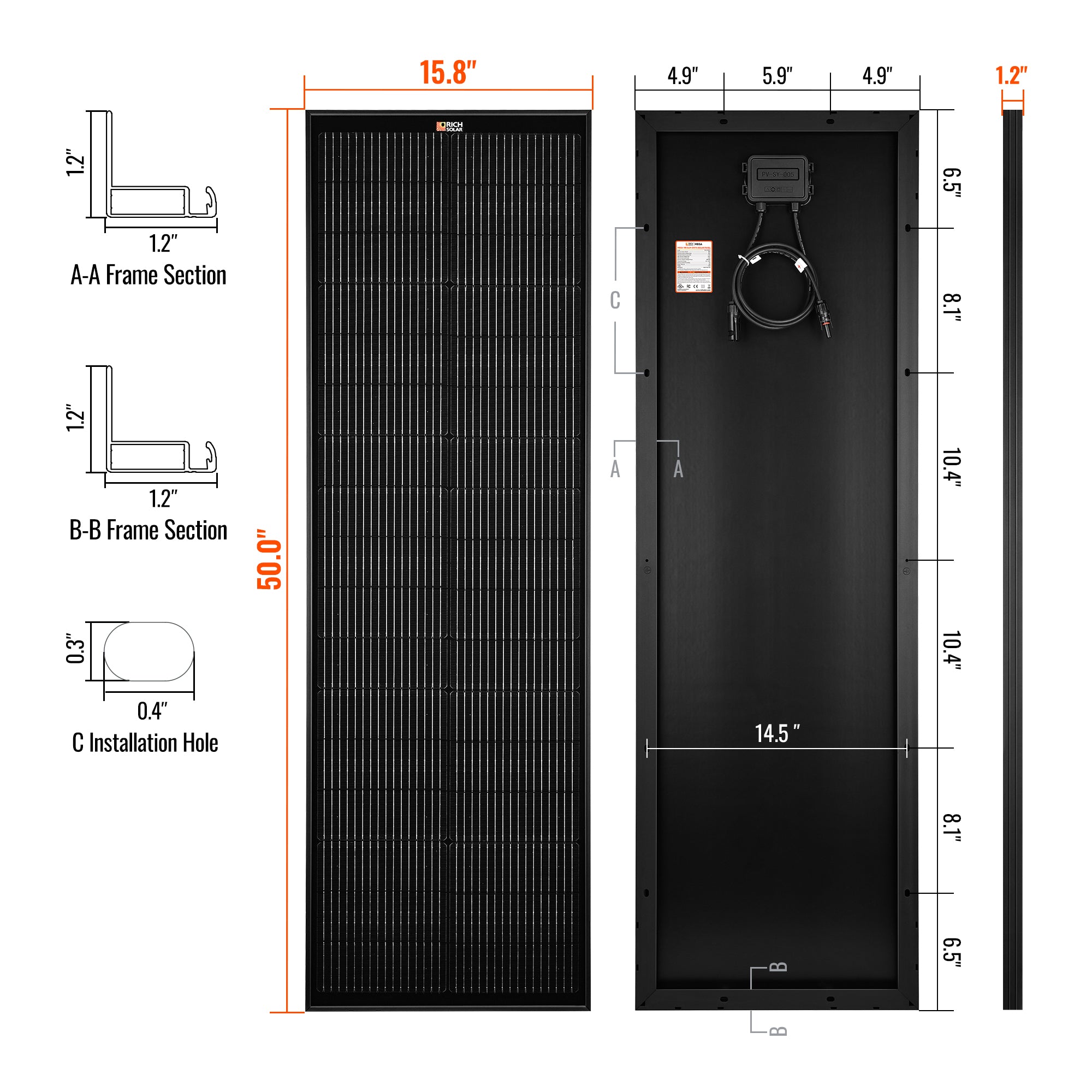

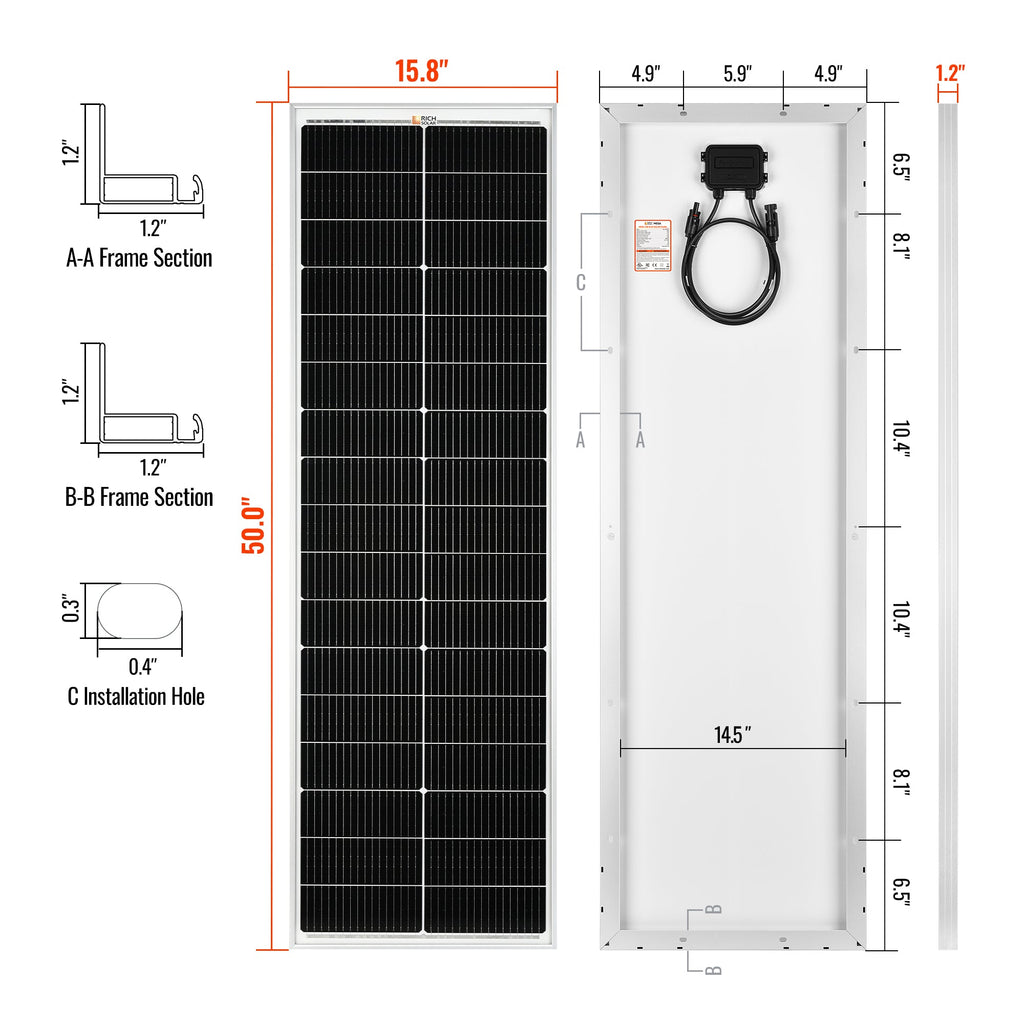

• Dimensions: 50.0 × 15.8 × 1.2 in
• Warranty: 25-year output warranty; 10-year workmanship warranty
