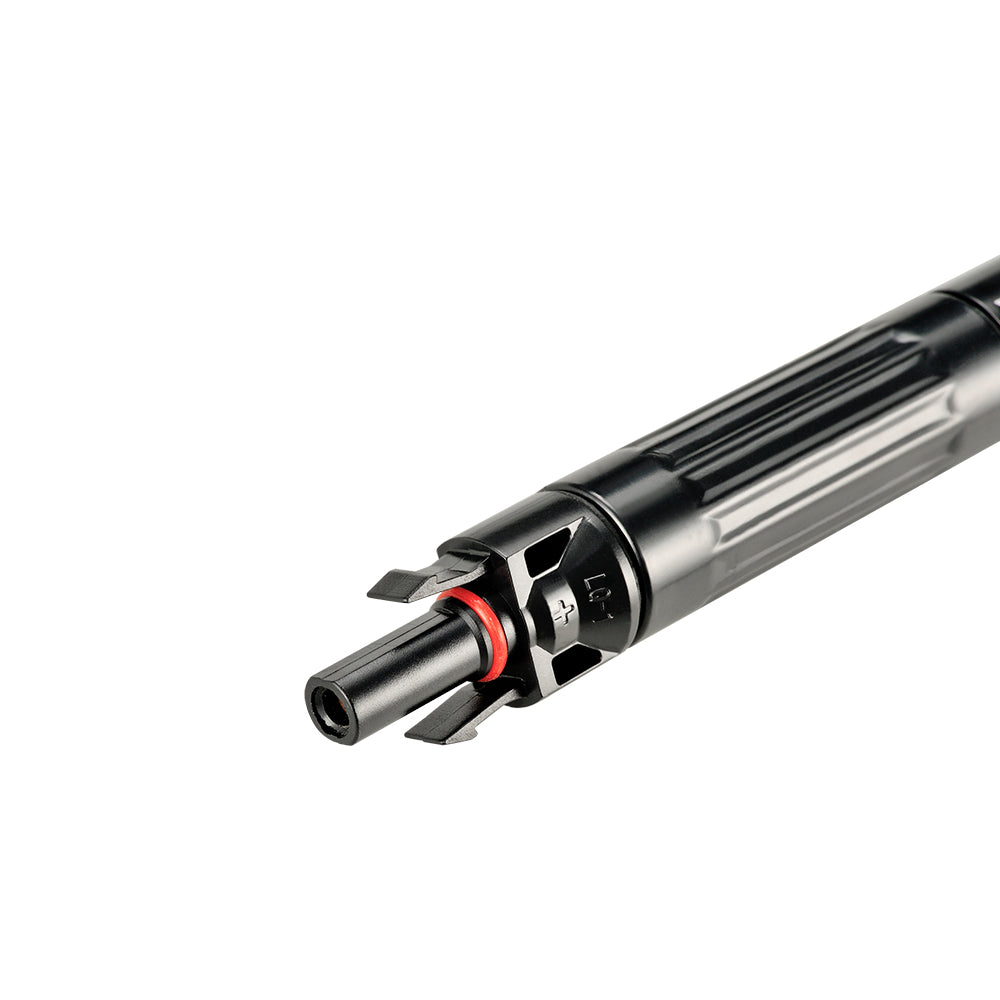

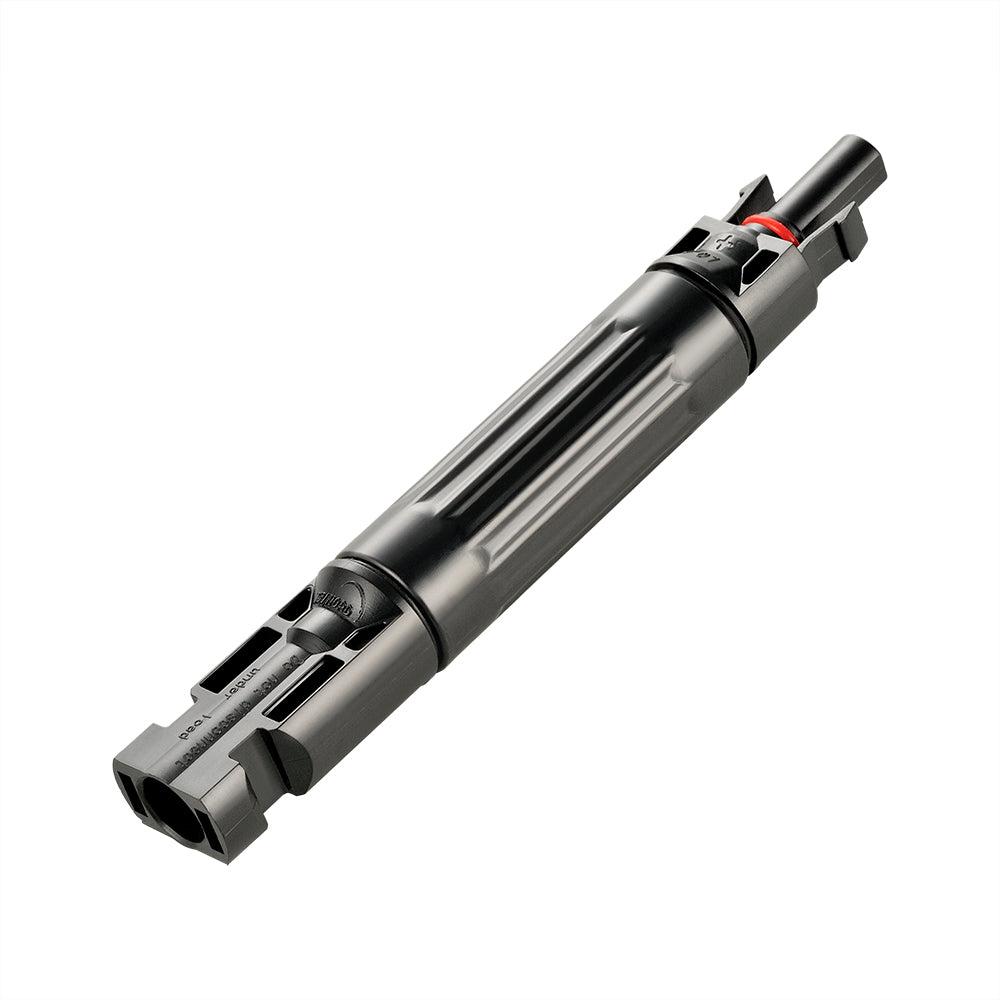

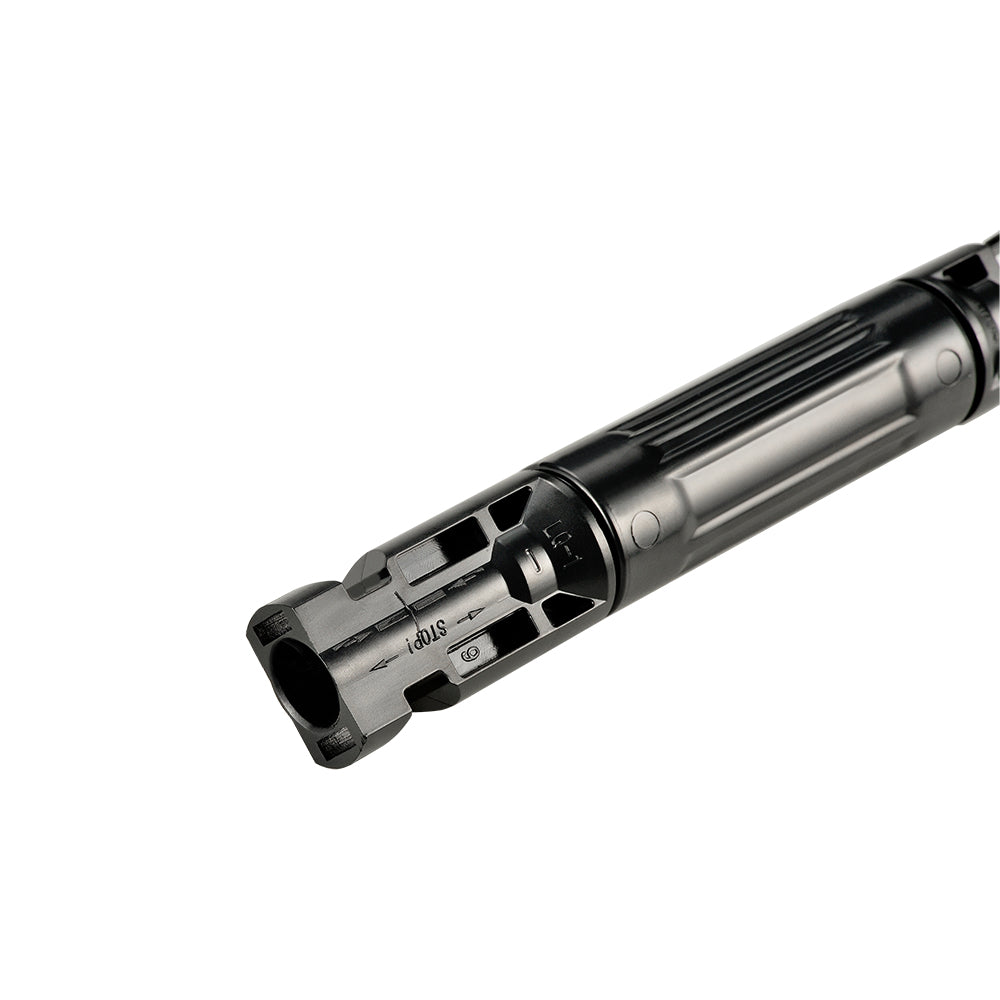

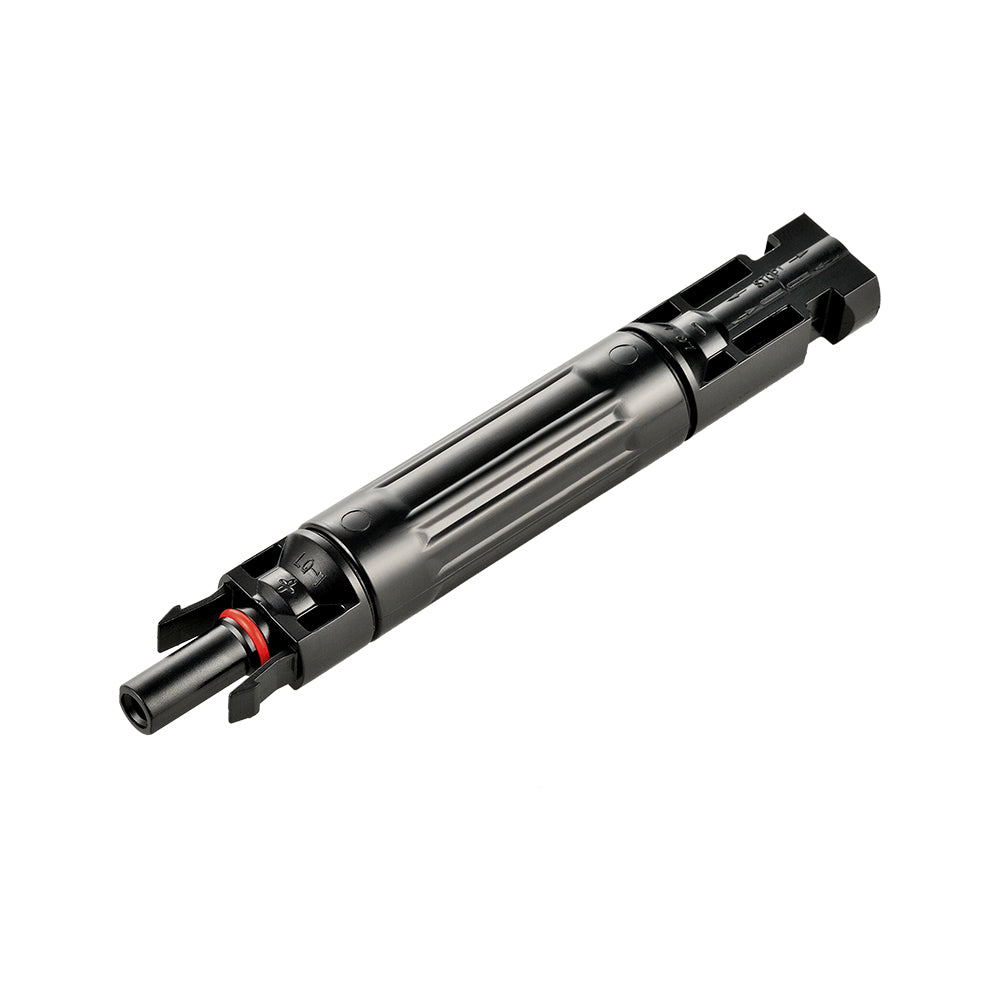

Rich Solar Bussmann Waterproof Inline Fuse Holder 10A To 30A

Waterproof Inline Solar Fuse Holder — Replaceable 10A/15A/20A/30A

Overview

This waterproof inline fuse holder provides replaceable 10A, 15A, 20A or 30A fusing in a compact, IP67-rated enclosure. Designed for DC solar systems and compatible PV cables, it offers a simple plug-and-play connection with secure auto-locking connectors for reliable, weather?resistant protection of a single circuit.

Benefits

• Protects your solar panels and wiring from overcurrent events, helping avoid costly damage and downtime.
• Replaceable fuse lets you restore protection quickly without swapping the entire assembly, saving time and expense.
• IP67 waterproofing and durable materials mean fewer maintenance checks and reliable outdoor performance.
• Plug-and-play MC4-style connectors and auto-locking design speed up installation and reduce installation errors.
• Fits a range of PV cable insulation sizes, so it works with existing installations and new setups alike.

Features

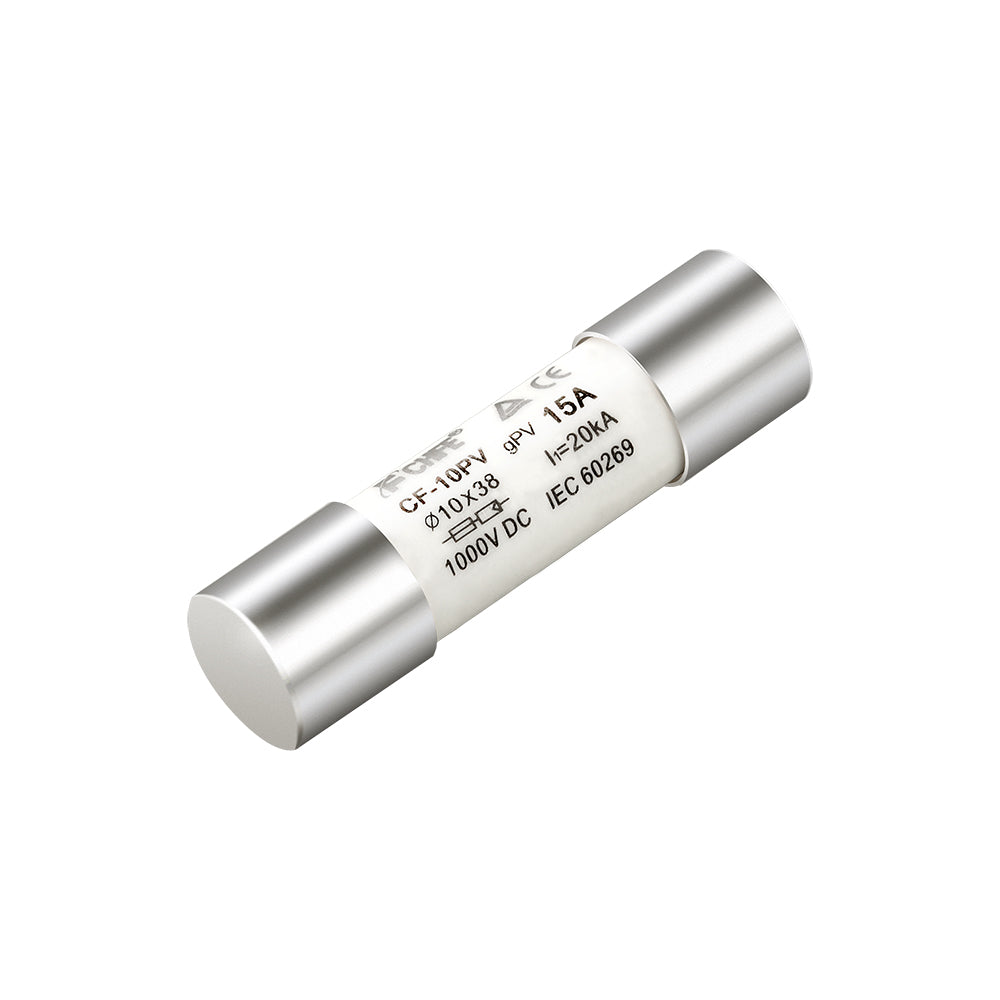

• Replaceable fuse cartridge available in 10A, 15A, 20A or 30A ratings.

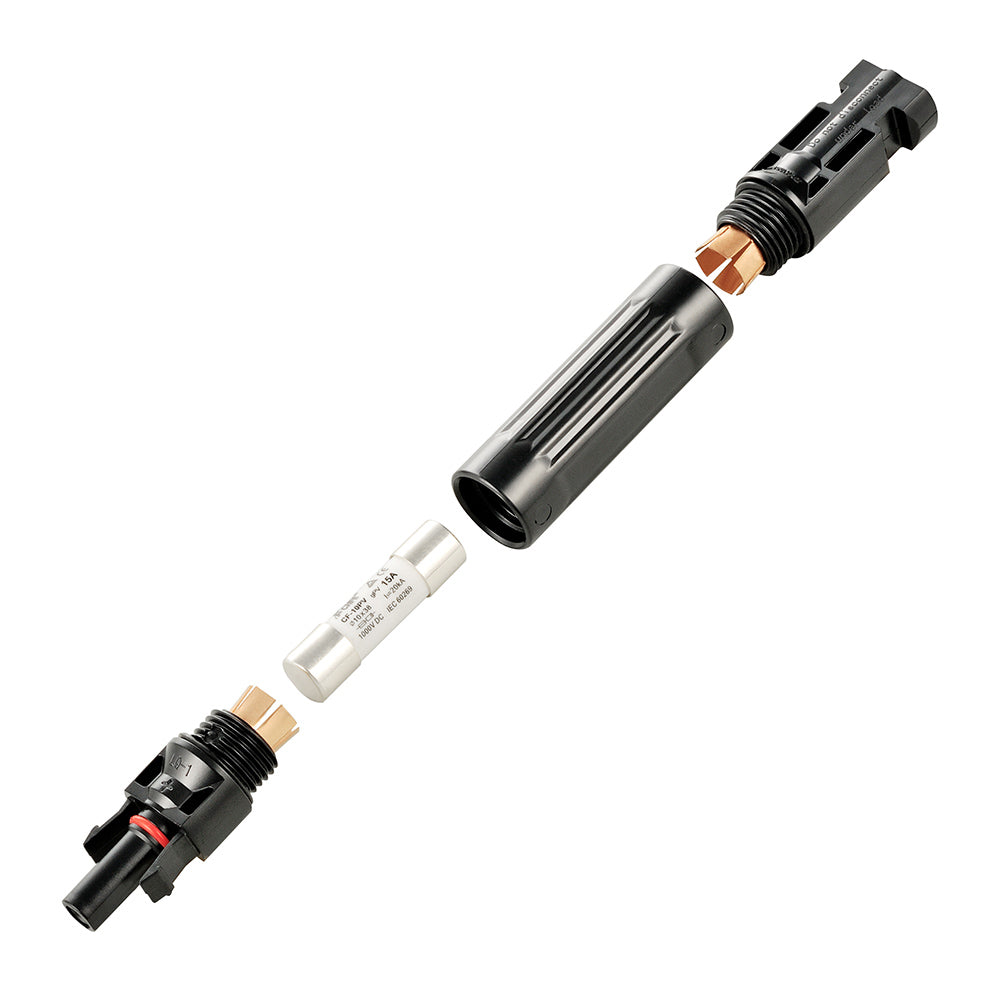

• Embedded fuse in a waterproof holder with solar connector leads on both ends.
• Auto-locking male and female connection points for secure, vibration-resistant joins.
• Compatible with PV cables of varying insulation diameters.
• Designed for a wide range of DC solar applications and single-circuit protection.
• High current?carrying capacity to handle normal system loads safely.
• Reed-style contact with inner?knob insertion for consistent electrical contact.
• Plug-and-play installation — no specialized tools required for connection.

Specifications

• Rated Current: 10A / 15A / 20A / 30A
• Rated Voltage: 1000 V DC
• Degree of Protection: IP2X / IP67
• Flame Class: UL94-V0
• Test Voltage: 6000 V (50 Hz, 1 min)
• Safety Class: II
• Overvoltage Category: CAT III
• Suitable Connector: Solar connector (MC4-style)
• Contact Resistance of Plug Connector: 1 m?
• Insertion Force / Withdrawal Force: ?50 N / ?50 N
• Contact Material: Copper, silver-plated
• Insulation Material: PPO
• Temperature Range: -40 to +257 °F
• Designed to provide complete single-circuit protection for solar power arrays
