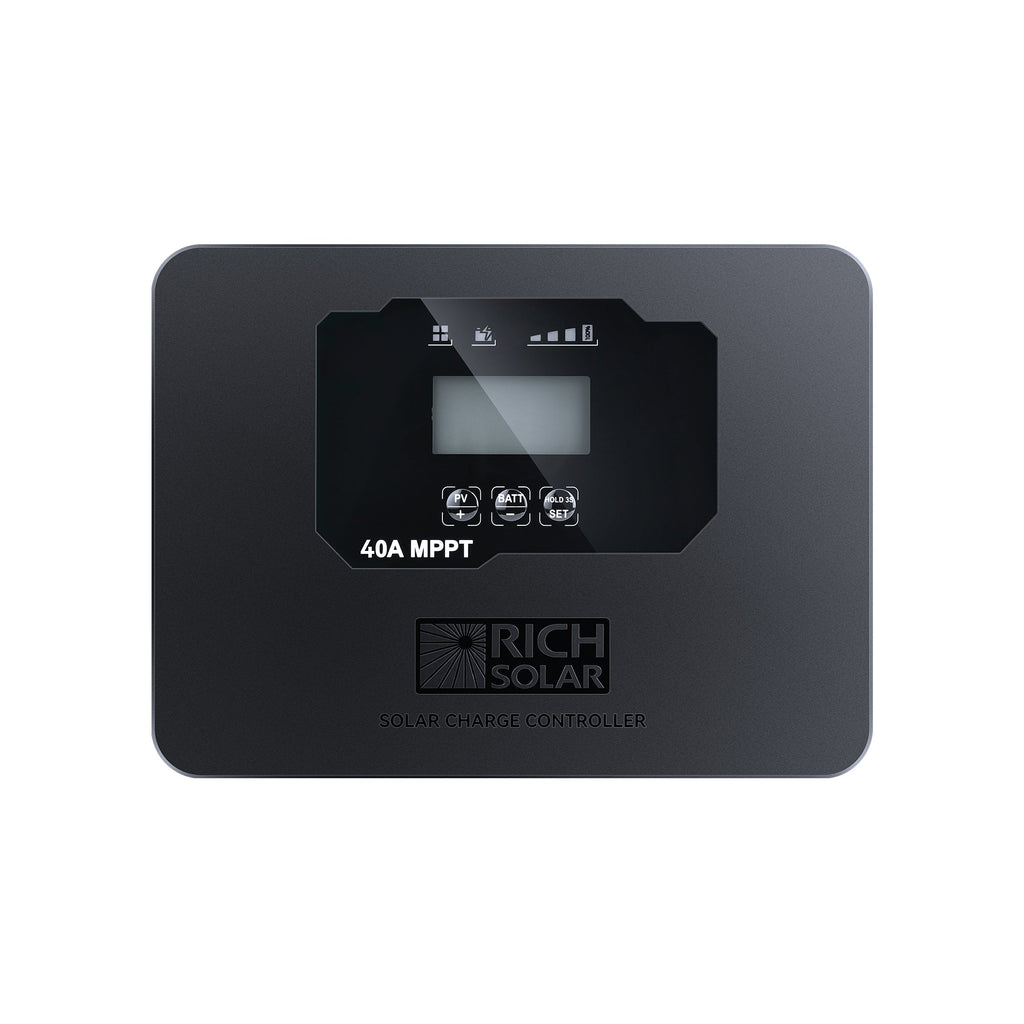

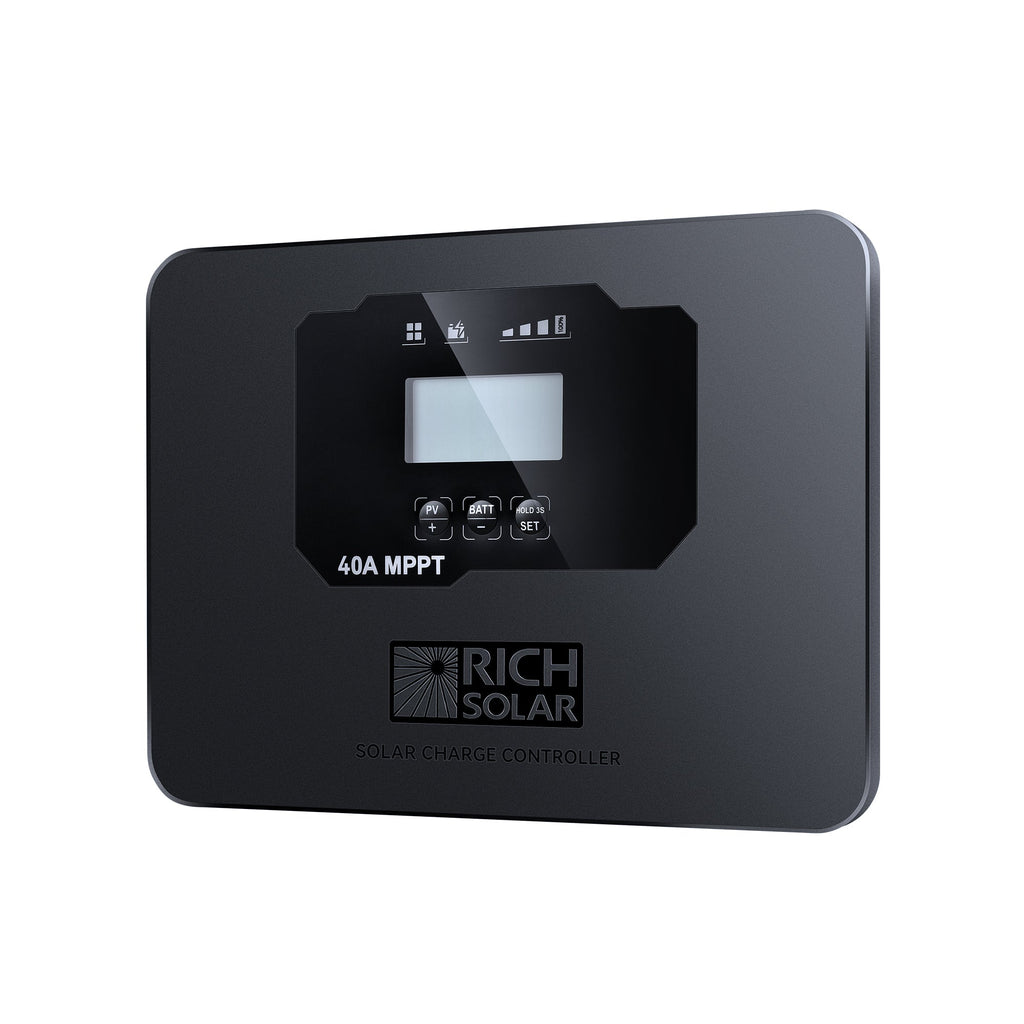

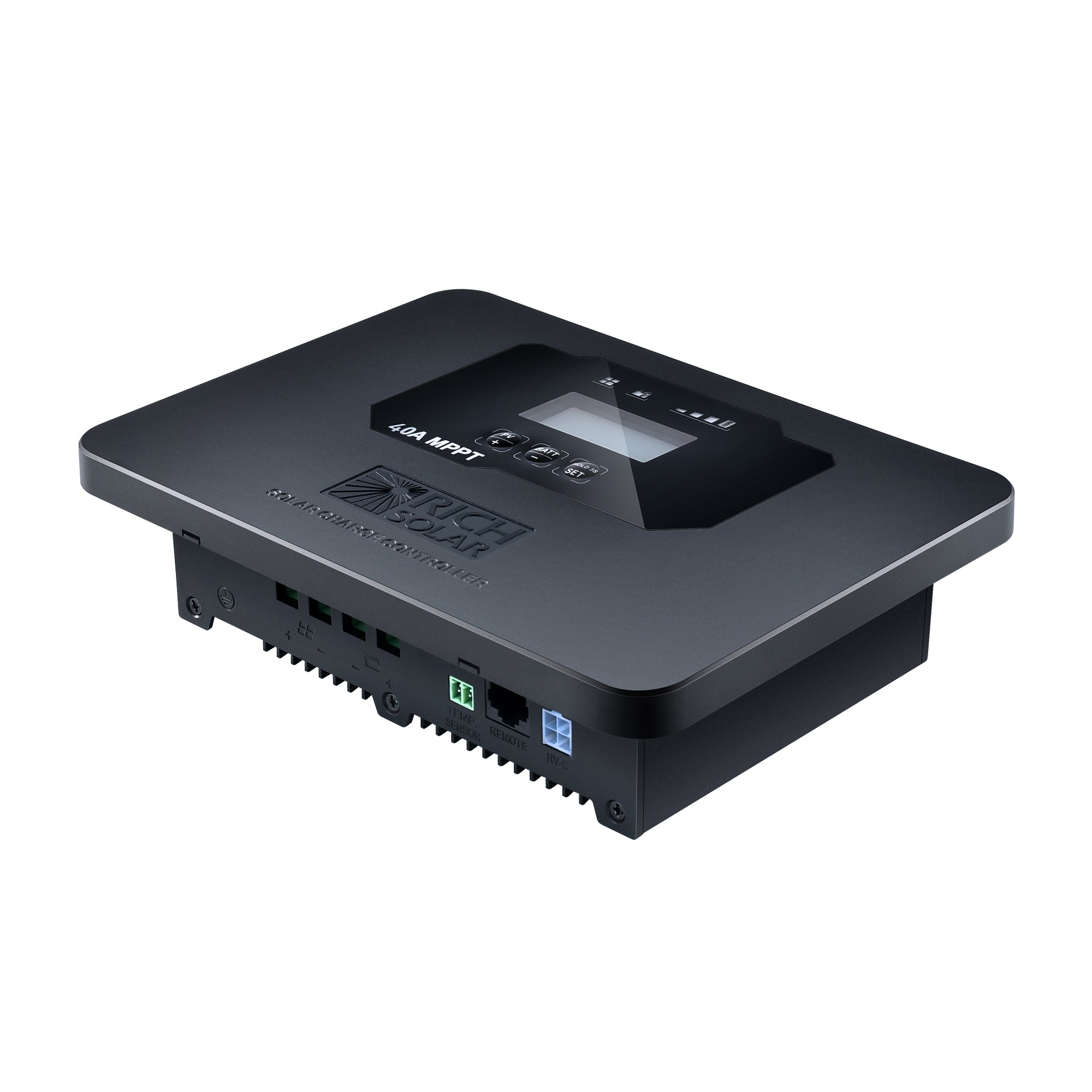

Rich Solar Bravo Pro 40 MPPT Solar Controller 40A Flush Mount

MPPT Solar Charge Controller — 40A, 12/24V (100V PV OC)

Overview

This MPPT solar charge controller delivers efficient, reliable charging for 12V and 24V battery systems. It uses an advanced MPPT algorithm with multi?peak detection to optimize power harvest, provides extensive protections, and includes a clear display and LED status bar for easy monitoring.

Benefits

• Maximize usable solar energy so your batteries charge faster and more completely.
• Protect batteries and connected equipment automatically, reducing maintenance and repair time.
• Works with many battery chemistries out of the box, so you can use the same controller for different systems.
• Clear LED and display make system status and troubleshooting quicker and simpler.
• Durable construction and splash resistance mean fewer weather-related failures and longer life in the field.

Features

• Supports PV open-circuit voltage up to 100 VDC.
• Advanced Maximum Power Point Tracking (MPPT) algorithm for consistent energy capture.
• Unique multi-peak detection technology to find the true MPP on complex arrays.
• MPPT tracking efficiency above 99.5%.
• Wider MPP operating voltage range to accommodate varied panel configurations.
• Common negative grounding for simple system wiring.
• Preprogrammed for up to 9 battery types plus custom battery setting options.
• Extensive in-circuit protection for internal electronics.
• Comprehensive safety protections: overcharge, undercharge, short circuit, reverse polarity, and thermal protection.
• Automatic detection of 12V or 24V DC system voltage.

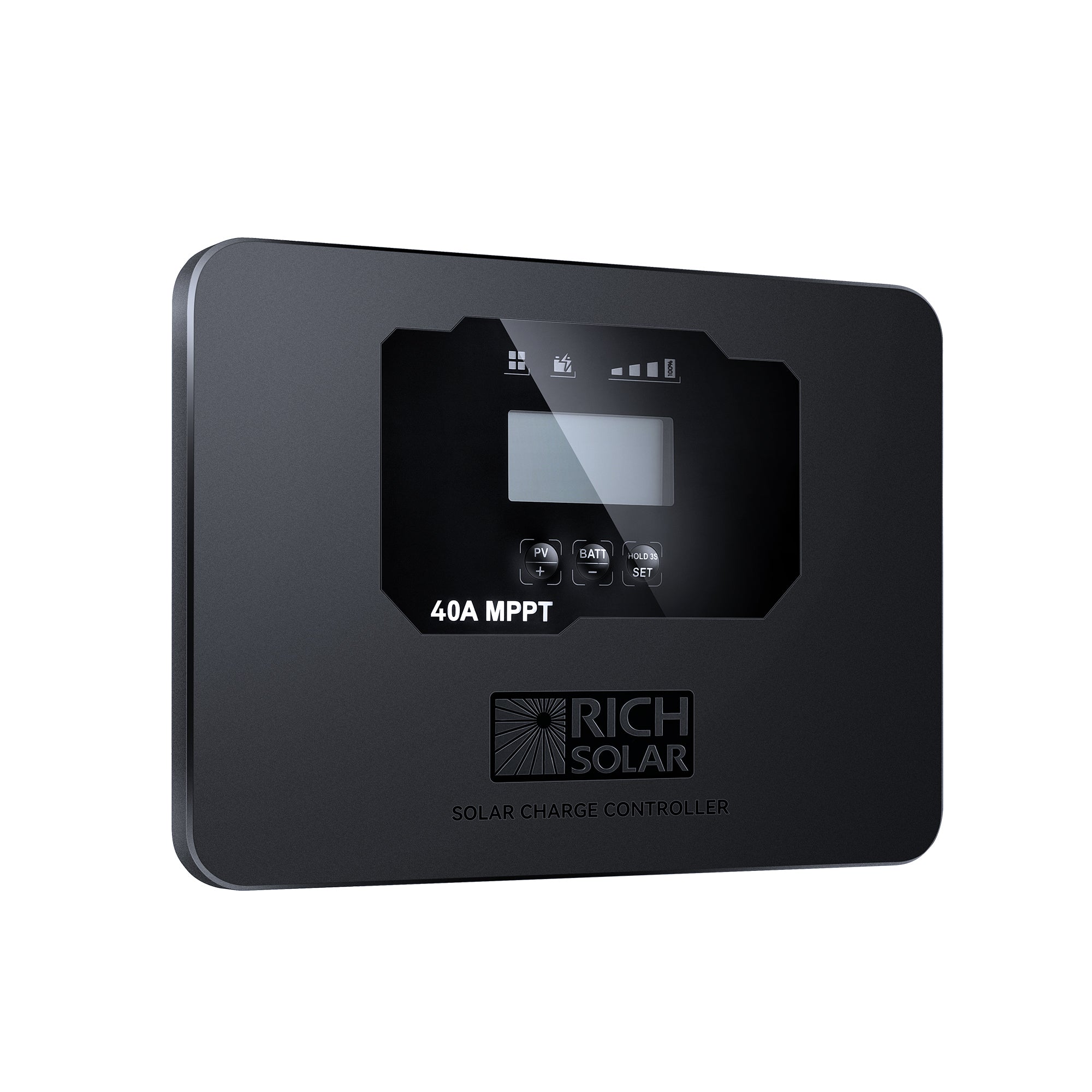

• Concise LED bar that indicates solar input and battery charge status at a glance.
• Large, informative display showing solar parameters, battery charging parameters, battery type, battery temperature, and fault codes.
• Optional plug-in remote digital display meter available.
• Optional external battery temperature sensor supported.
• Splash-proof enclosure (IP43).
• Rubber mask to protect the connection terminals.
• Conformal coating on internal boards for improved reliability.
• Designed to meet UL1741 and EN/IEC 62109-1; EMI: EN61000-6-1 / EN61000-6-3; FCC: 47 CFR Part 15, Subpart B.

Specifications

• Max. PV Open Circuit Voltage: 100 VDC
• Max. Normal Input PV Voltage: 92 VDC
• Max. PV Input Current: 40 AMP
• Max. PV Short Circuit Current: 45 AMP
• Max. Conversion Efficiency: 98%
• Min. Tracking Efficiency: 99.5%
• Nominal PV Power: 600W @ 12V / 1200W @ 24V
• Min. Battery Start Charging Voltage: 5 VDC
• Soft Start Charging Voltage: 5 ~ 10 ±0.2 VDC
• Soft Start Charging Current: 20 AMP
• Max. Bulk Charge: 40 AMP
• Controller Material: Plastic (PC)
• Mounting: Surface mounting
• IP Grade: IP43
• Net Weight: 1.87 lb
• Operating Temperature: -13 ~ 122 °F
• Storage Temperature: -40 ~ 185 °F
• Operating Humidity Range: 0–85% RH
