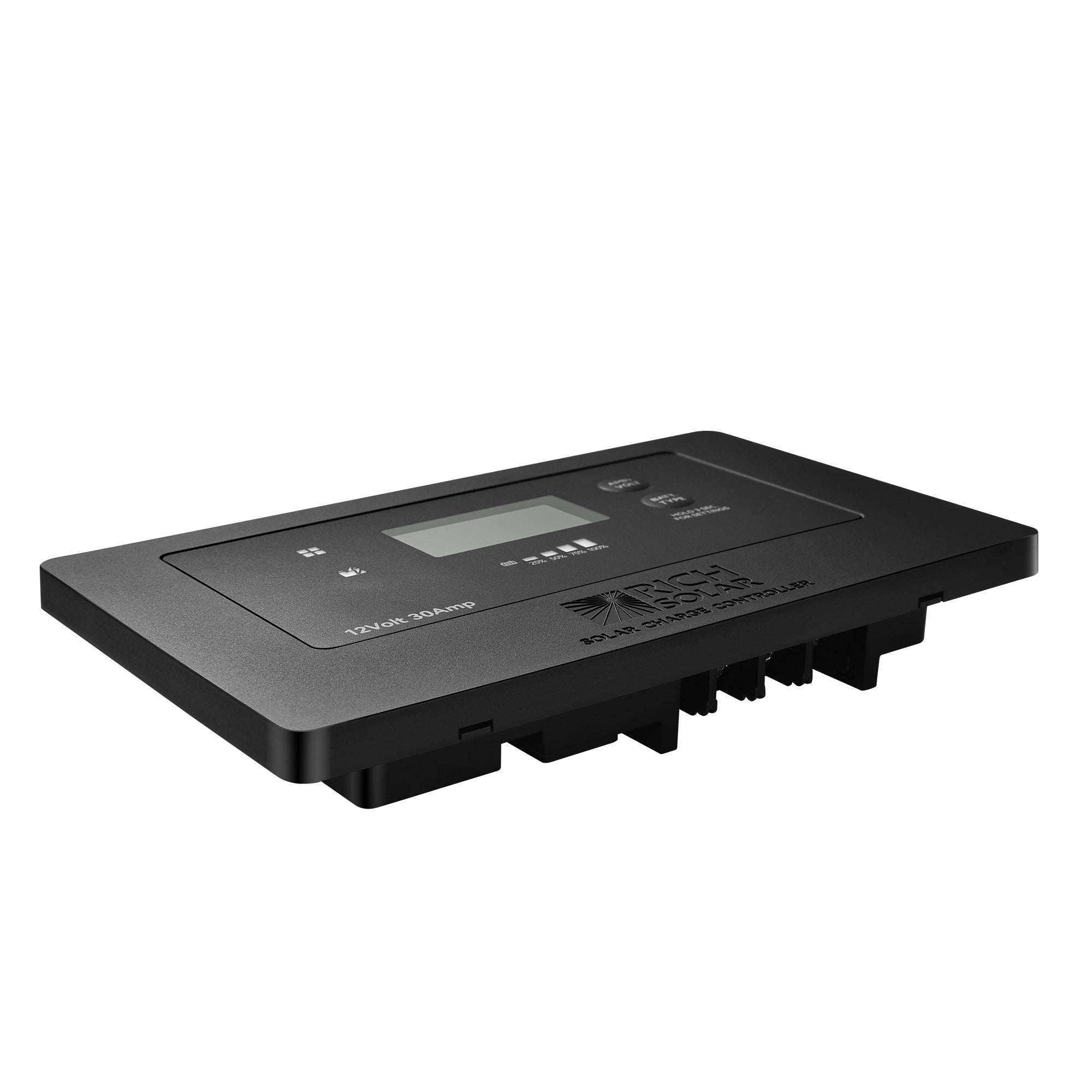

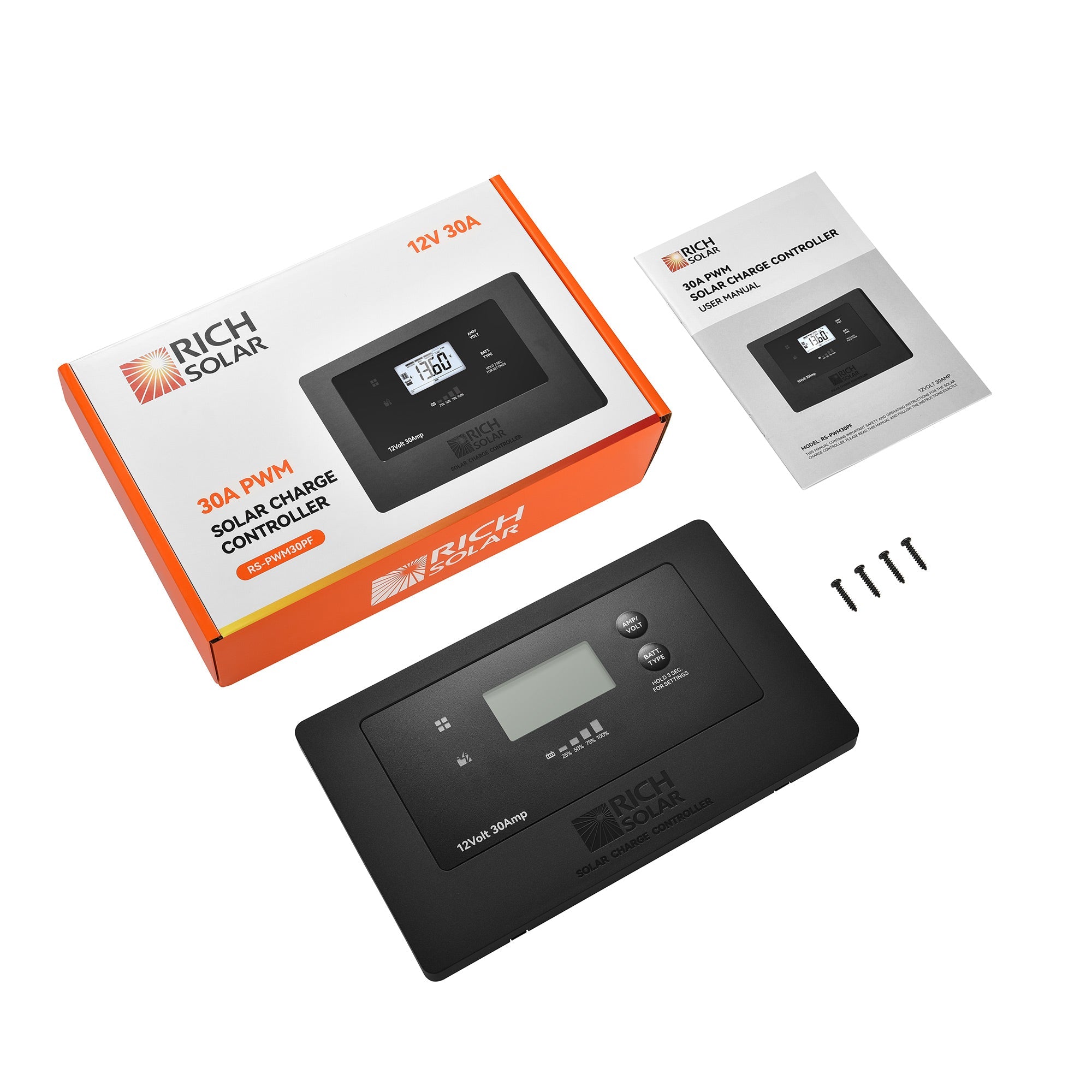

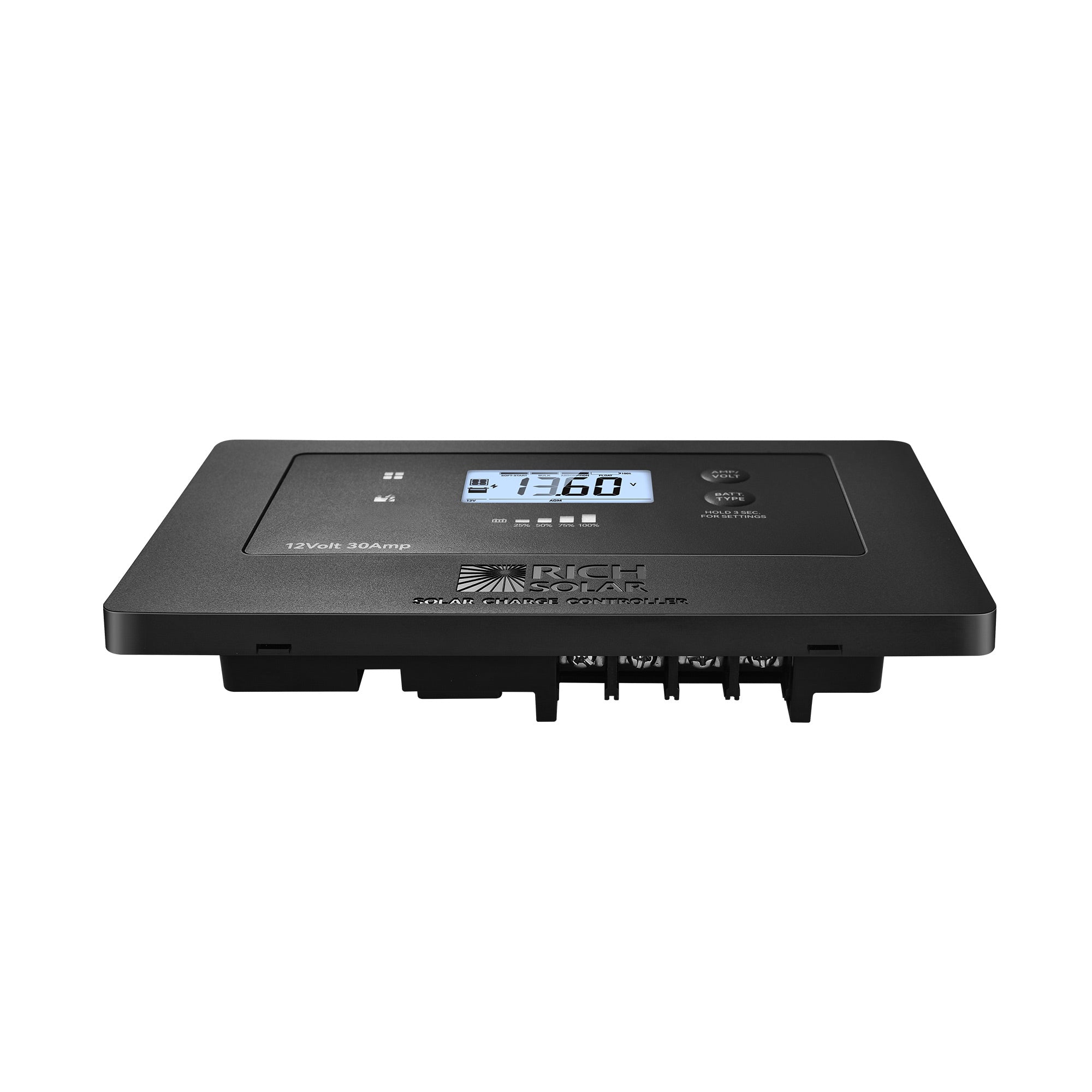

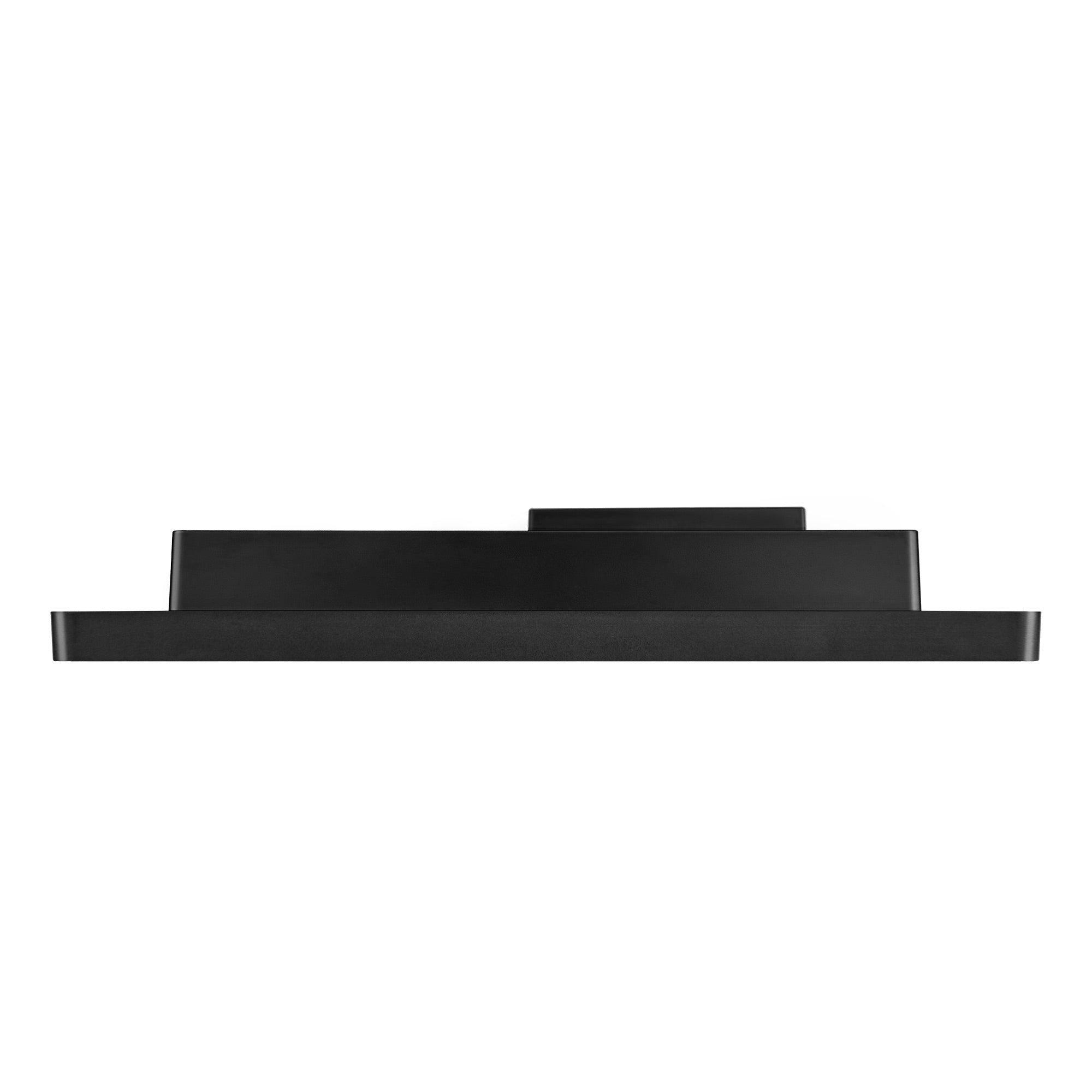

Rich Solar Bravo Air 30A Solar Controller With Bluetooth And Multi Protection

Reliable 30A PWM Solar Charge Controller with Bluetooth

Compact, easy-to-use solar charge controller that delivers stable, efficient charging for a range of battery types. It combines multi-stage charging, safety protections, and Bluetooth monitoring so you can keep batteries healthy and systems running with minimal fuss.

Benefits

• Extend battery life by using intelligent, multi-stage charging that prevents overcharging and undercharging.
• Enjoy fewer maintenance visits thanks to spark-free connections and comprehensive electrical protections.
• Check charging status and battery type remotely via built-in Bluetooth for convenient monitoring.
• Reduce inventory and setup time because the controller supports multiple battery chemistries.
• Keep performance consistent in varying temperatures with optional temperature-compensated charging.

Features

• PWM control with MOSFET switching for efficient, stable power delivery.
• Intelligent multi-stage charging profile for optimal battery conditioning.
• Automatic BMS activation for compatible lithium batteries.
• Built-in Bluetooth for remote monitoring and status updates.

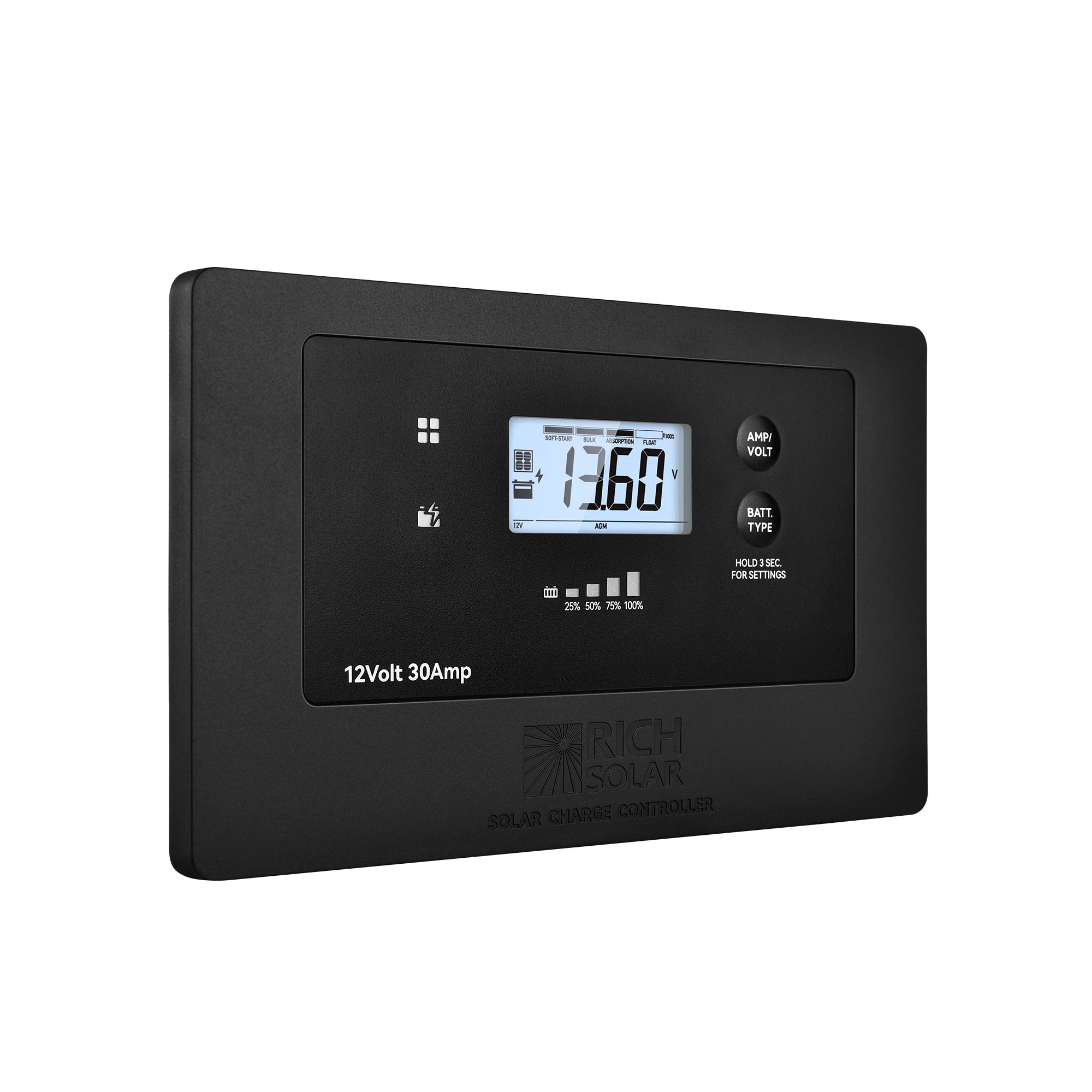

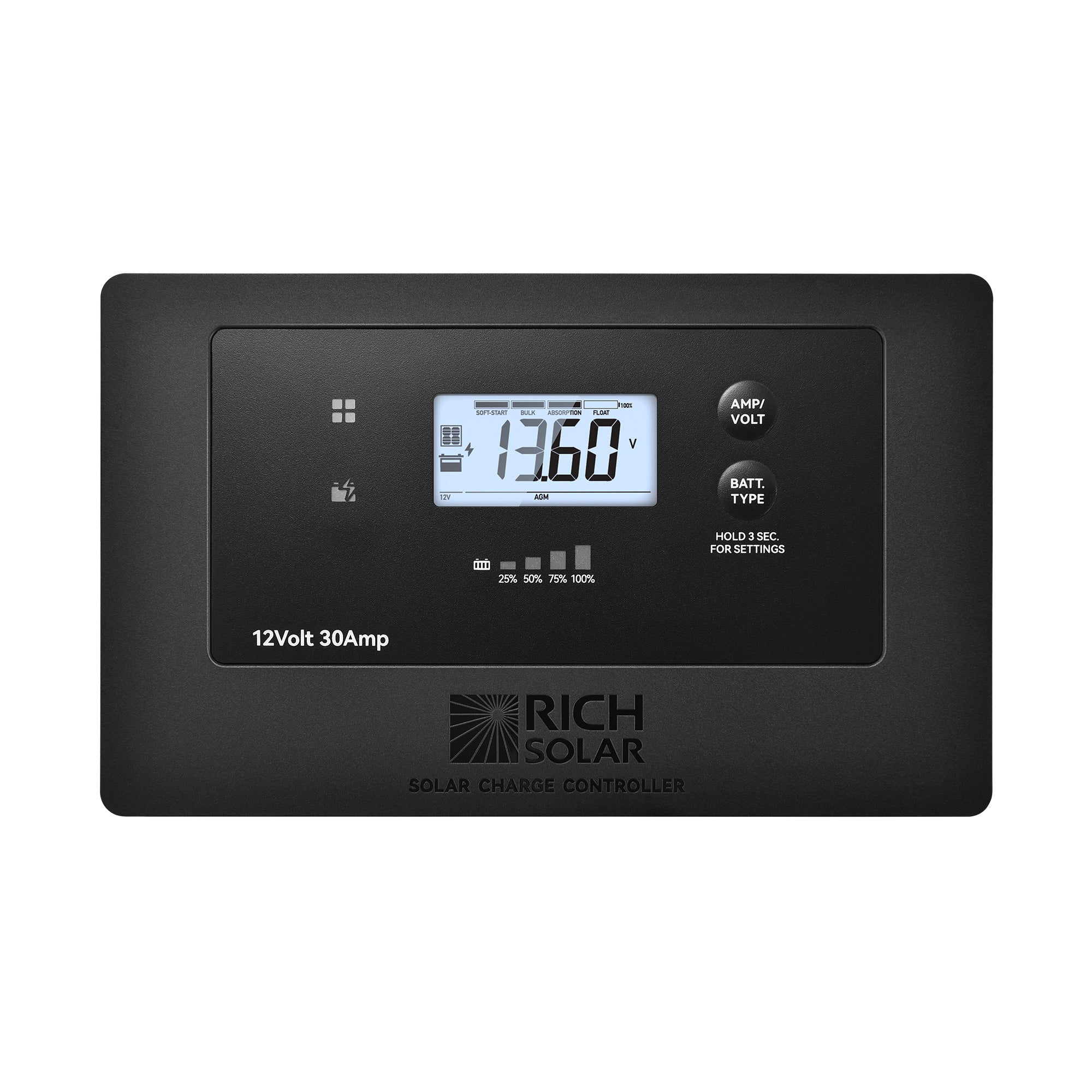

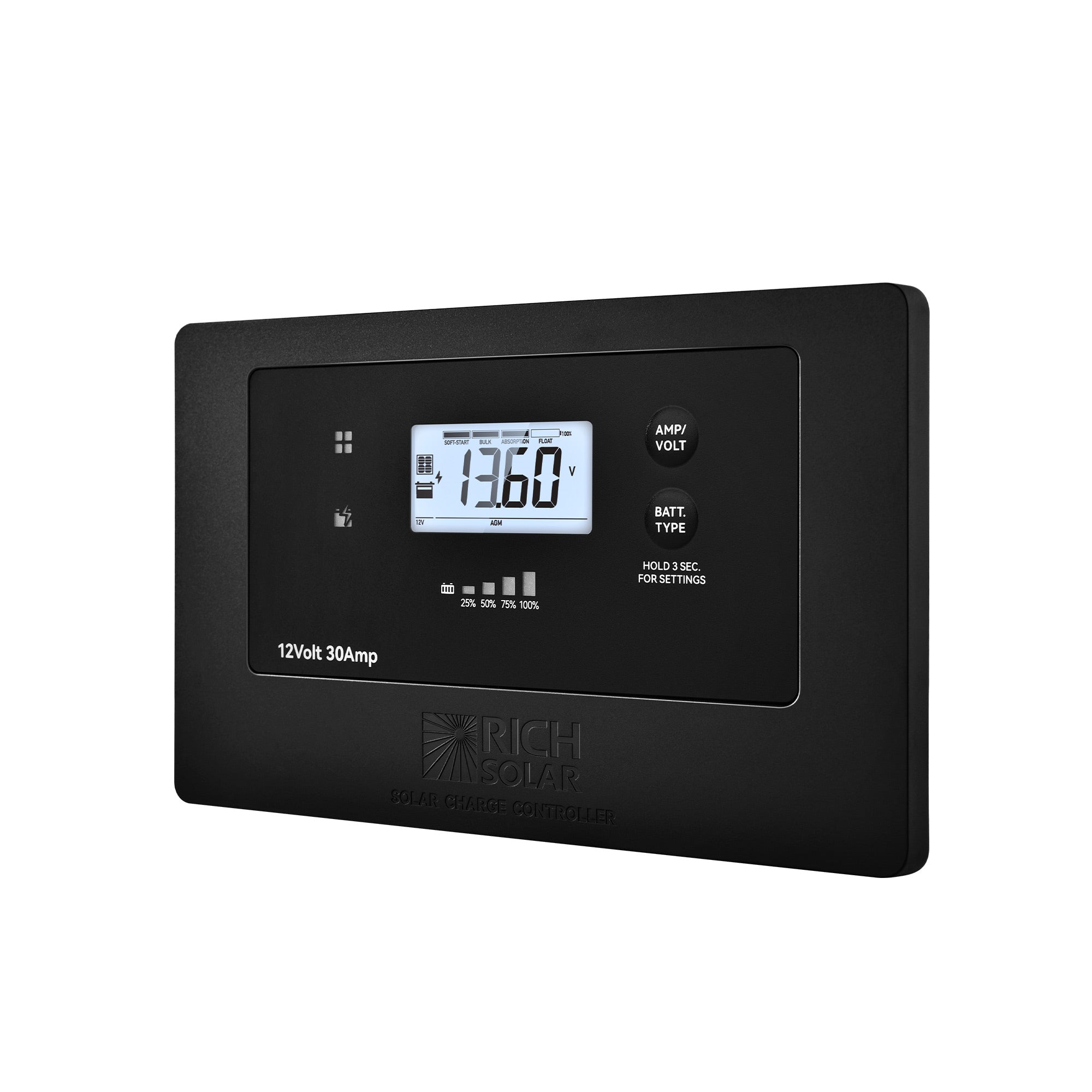

• Selectable battery types with real-time display and LED status indicators.
• Comprehensive electrical protections: over-voltage, short circuit, reverse polarity, and over-temperature protection.
• Spark-free safety design for secure connections.
• Broad compatibility: supports Flooded, AGM, GEL, Calcium, and LiFePO4 batteries.
• Optional external temperature sensor (BTS) for temperature-compensated charging.
• Certified to CE, EMC, and FCC standards.

Specifications

• Rated solar panel current: Max. 30 A
• Normal input solar array voltage: Max. 5–22 V DC
• Maximum solar array open-circuit voltage (no load): Max. 25 V DC
• Minimum operating voltage (solar or battery side): Min. 8 V DC
• Standby current consumption at night: Max. 10 mA
• Maximum voltage drop (solar panel to battery): Max. 0.25 V DC
• Protection against reverse polarity or short circuit at the panel or battery
• Over-temperature protection during charging: 185 °F / 85 °C
• Operating temperature: -13 °F to 122 °F / -25 °C to 50 °C
• Storage temperature: -40 °F to 185 °F / -40 °C to 85 °C
• Operating humidity range: 0–85% RH
• Controller material: Plastic (PC)

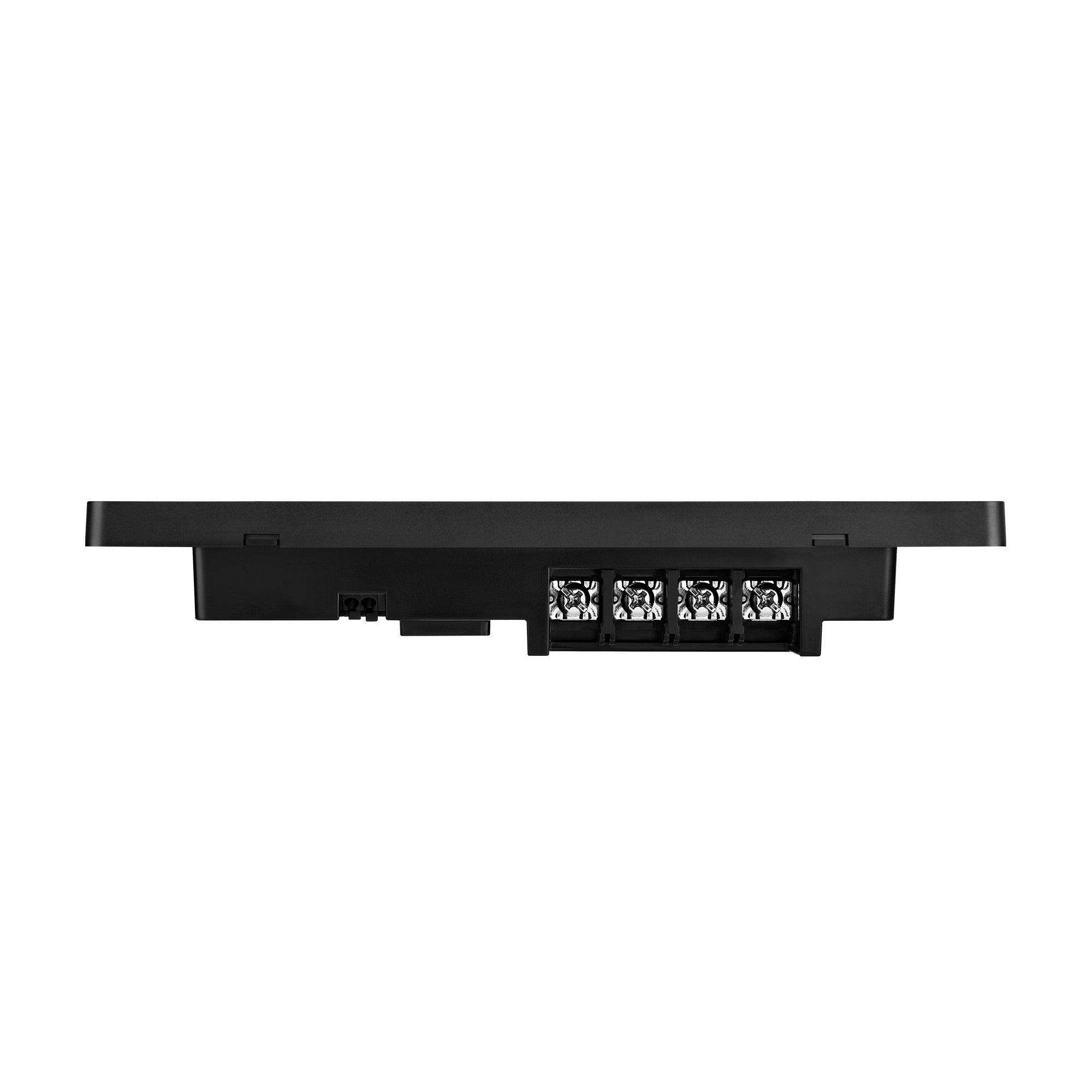

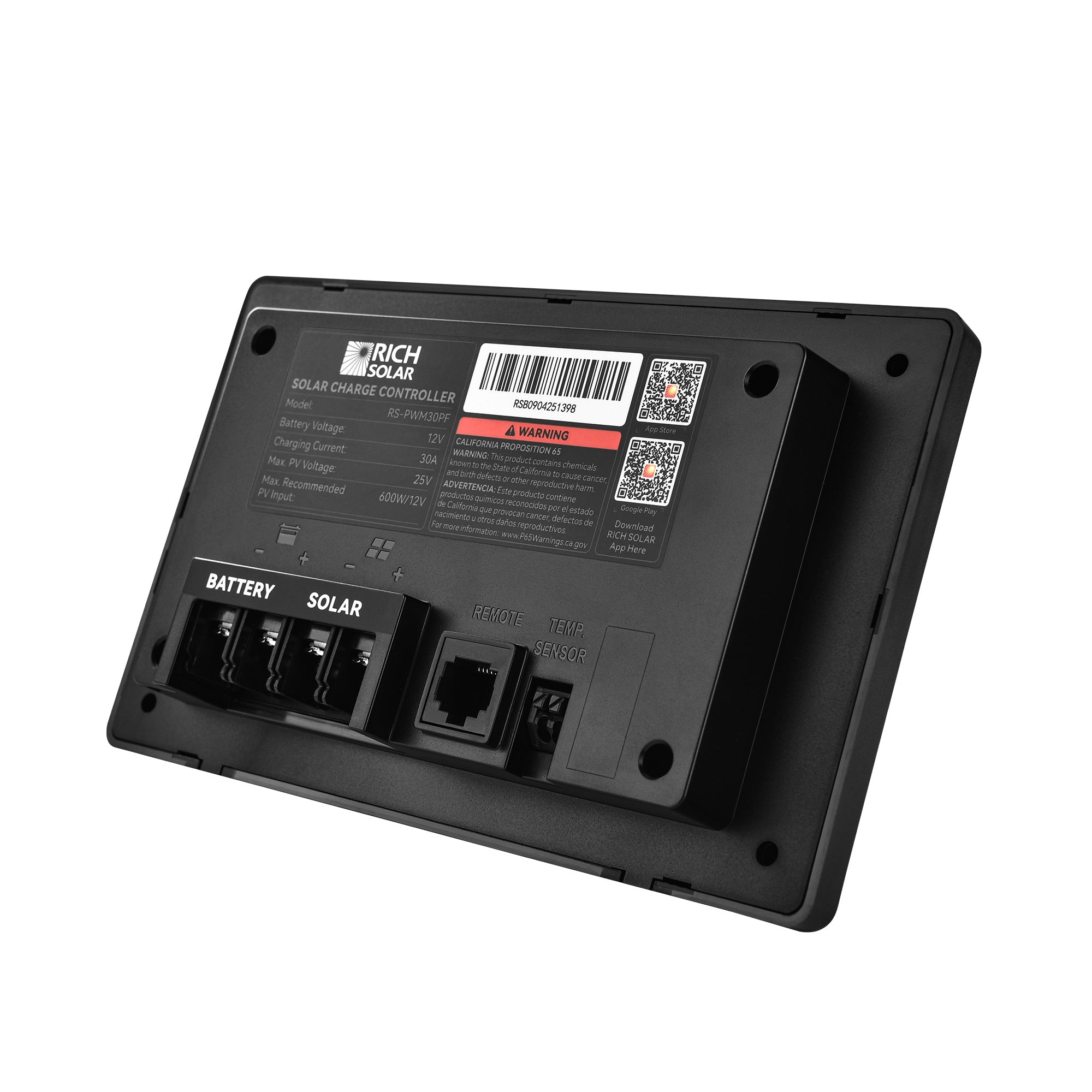

• Power terminal maximum wire size: #8 AWG stranded — 0.2 in²
• Power terminal torque: 6.2–7.1 in-lb (0.7–0.8 N·m)
• Mounting: Vertical wall mounting
• Ingress protection rating: IP22
• Certifications: CE, EMC, FCC
