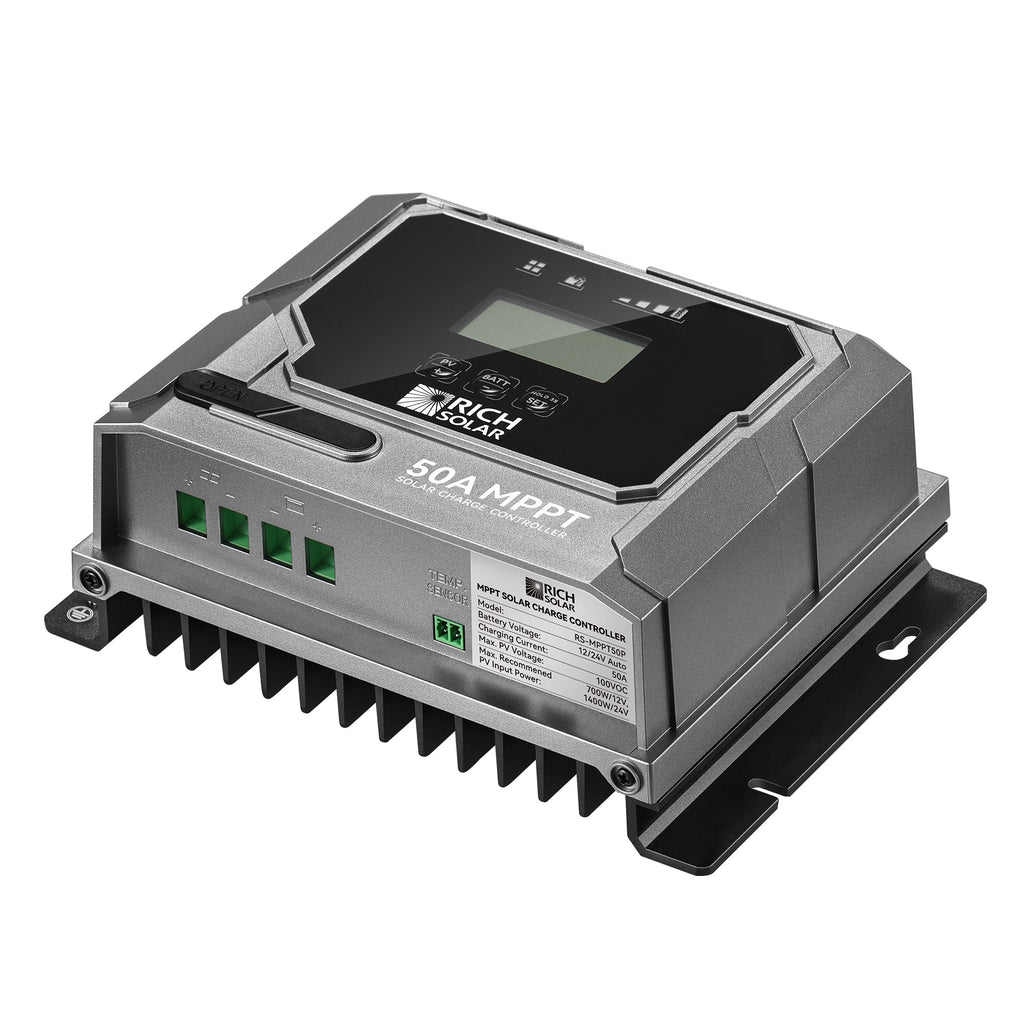

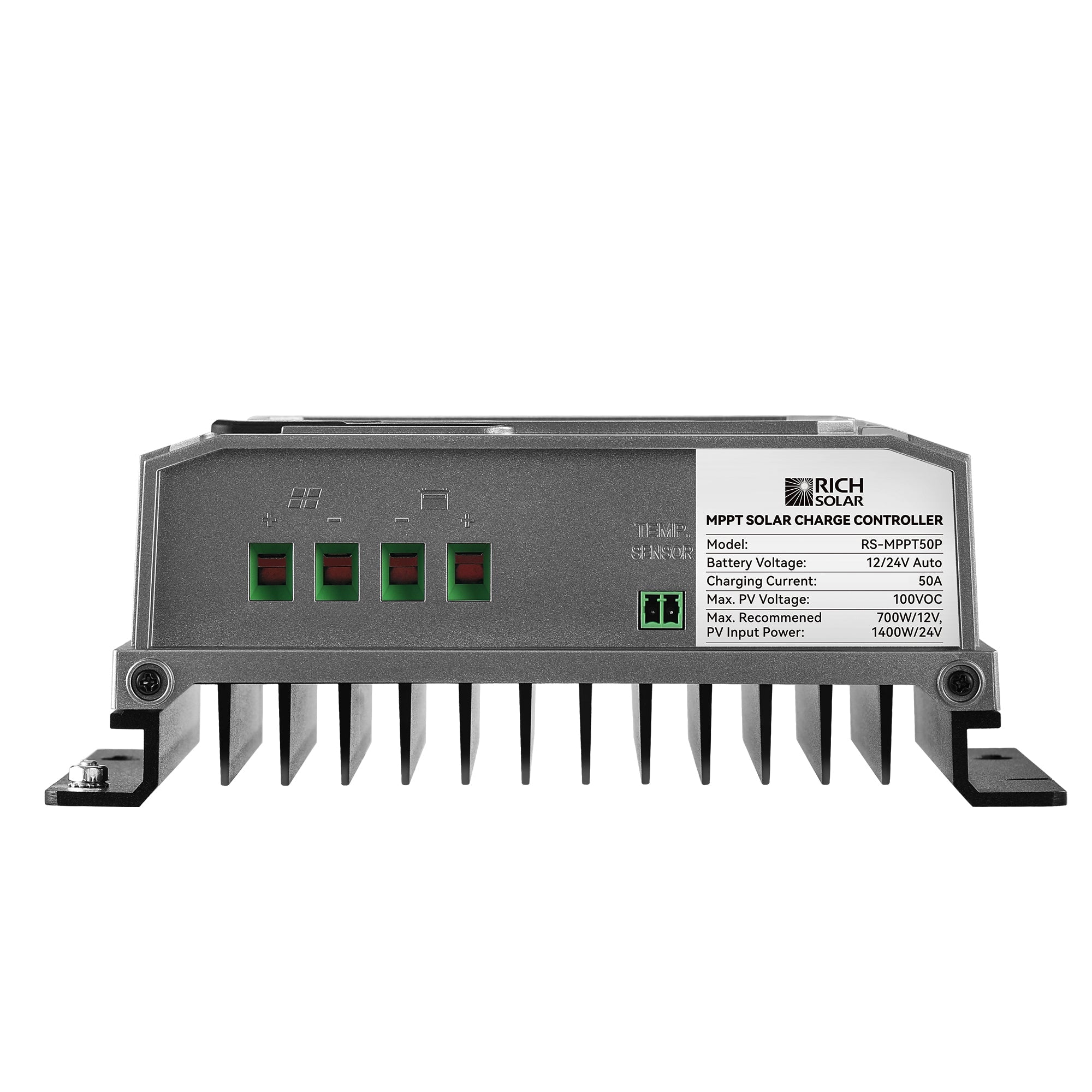

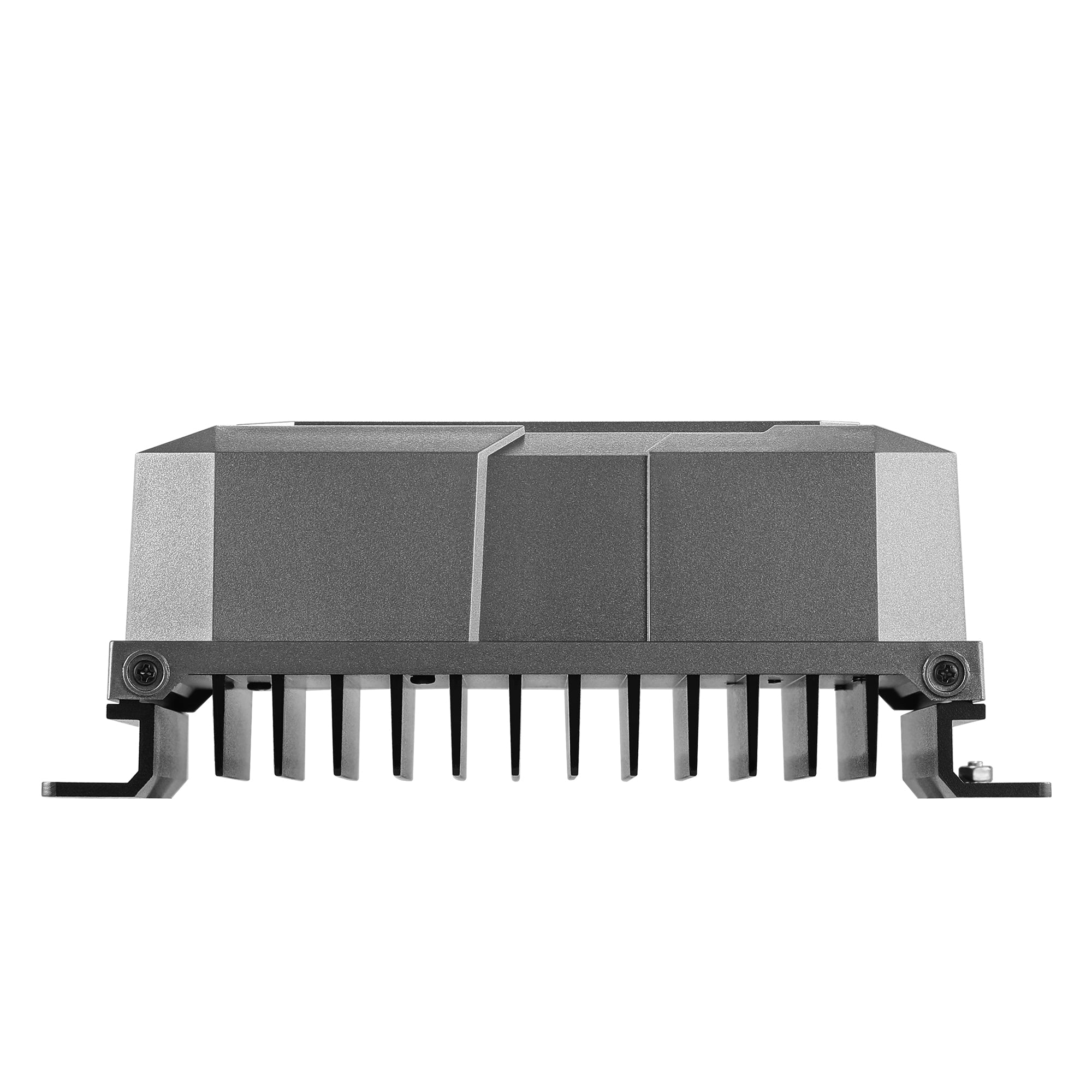

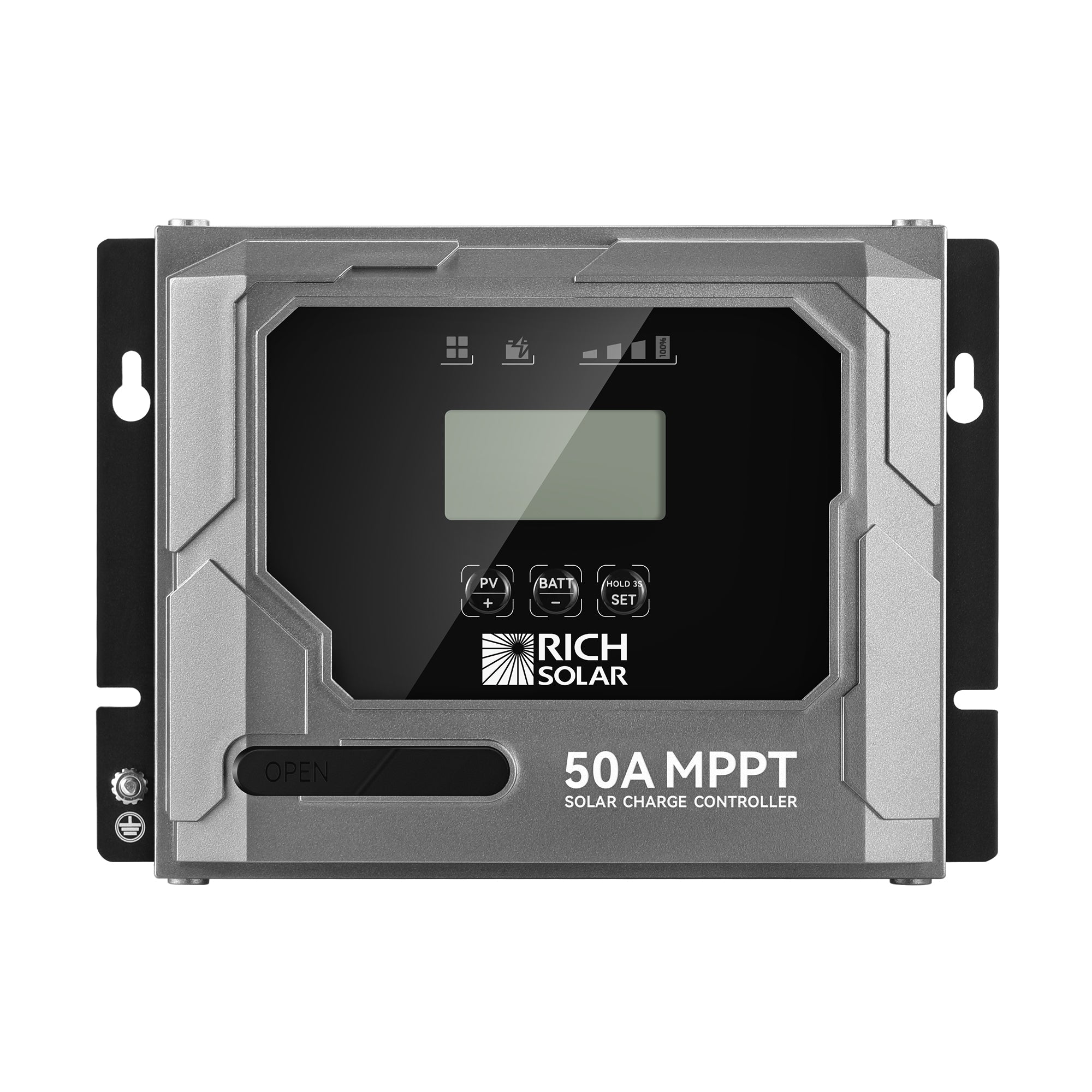

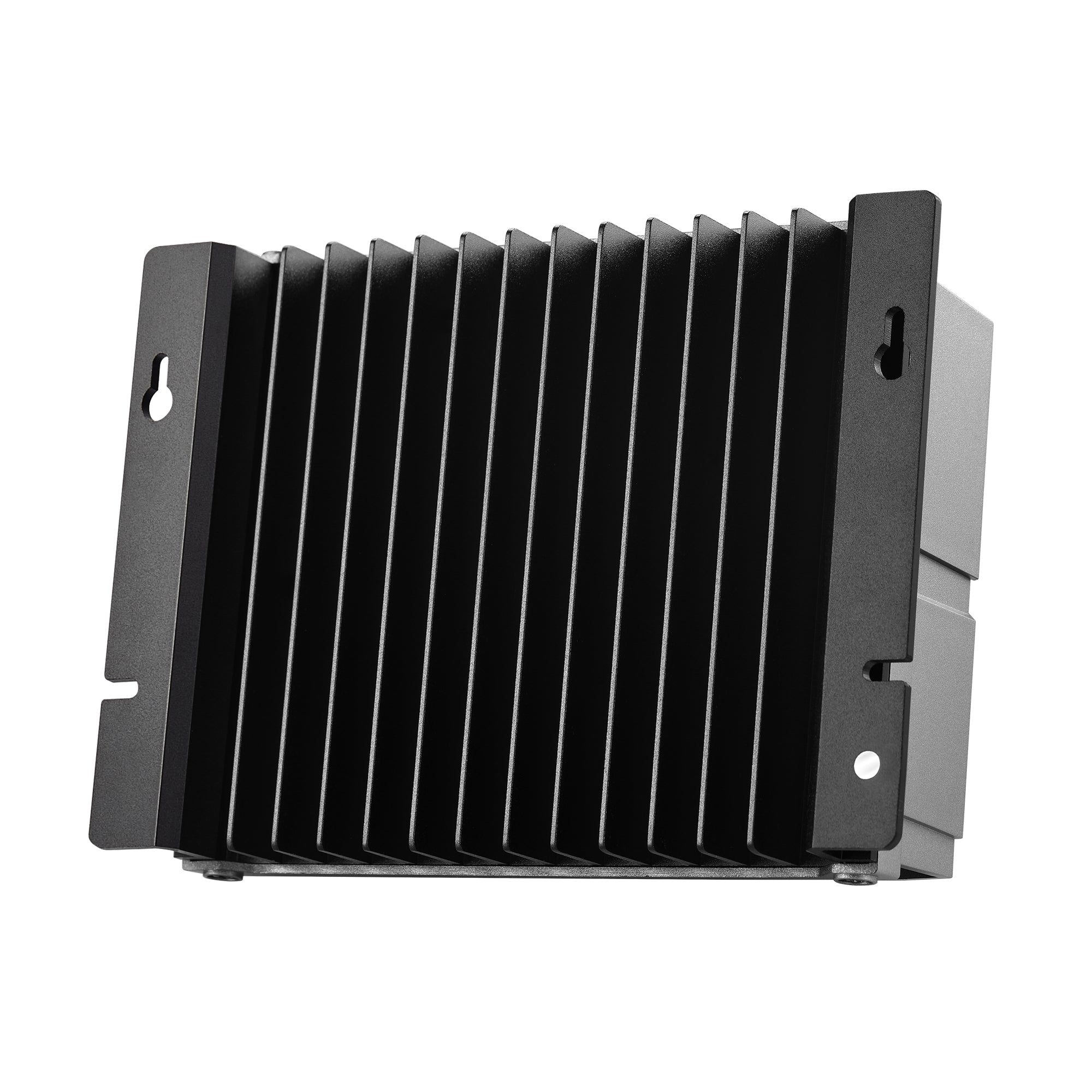

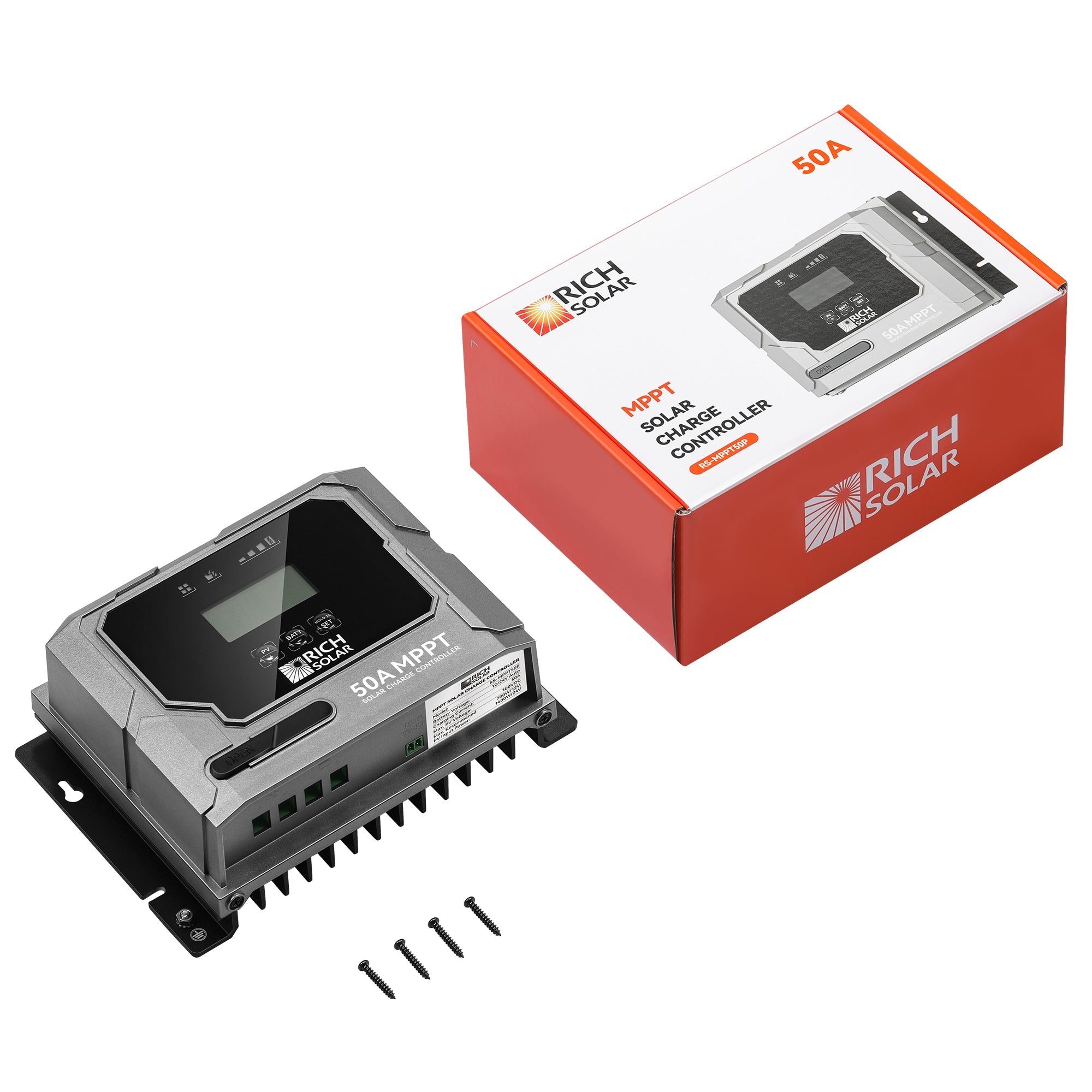

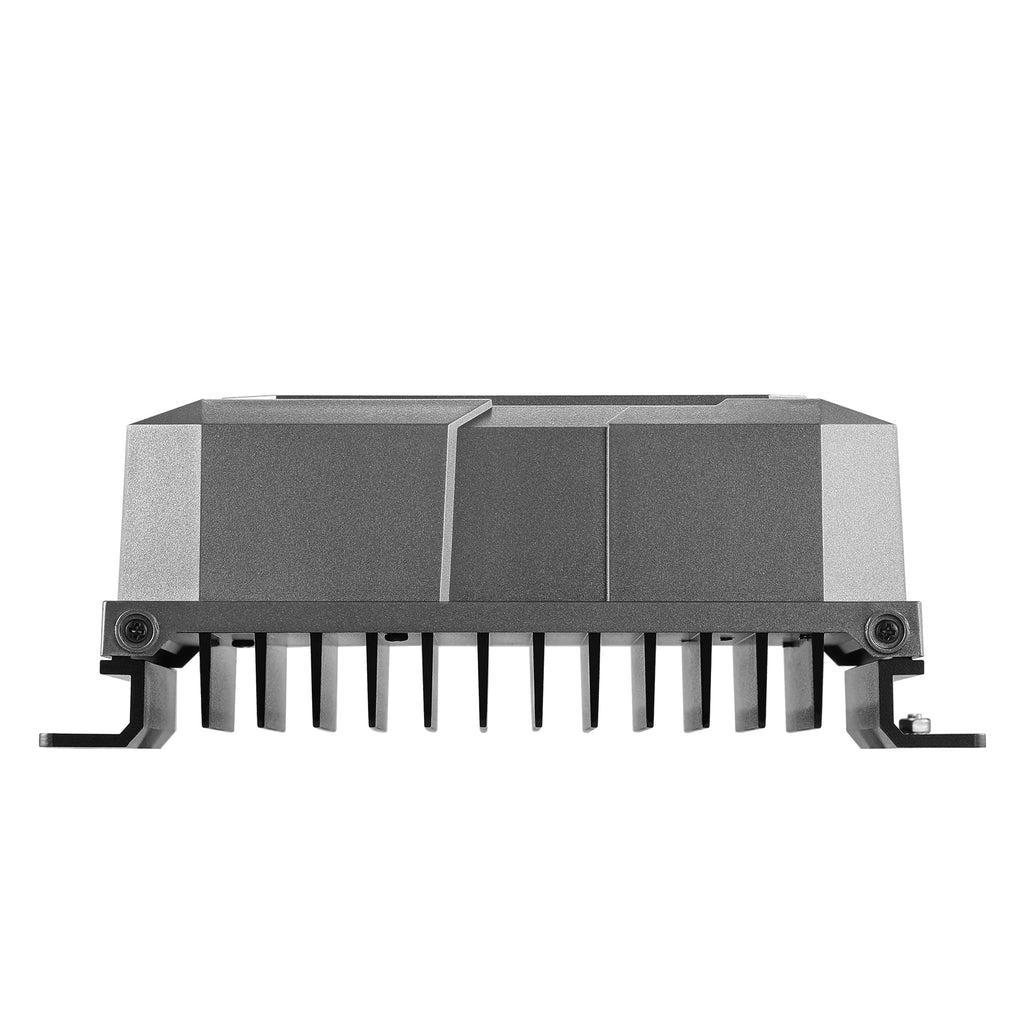

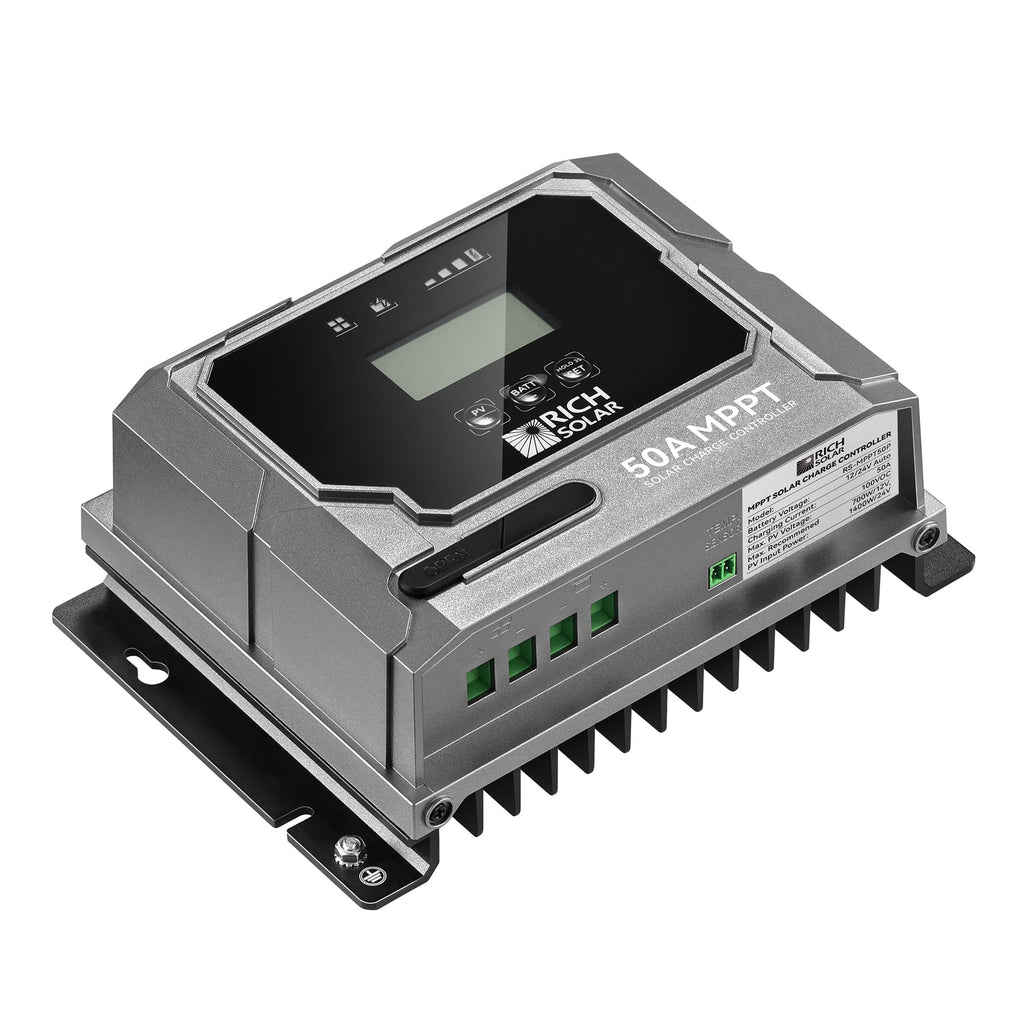

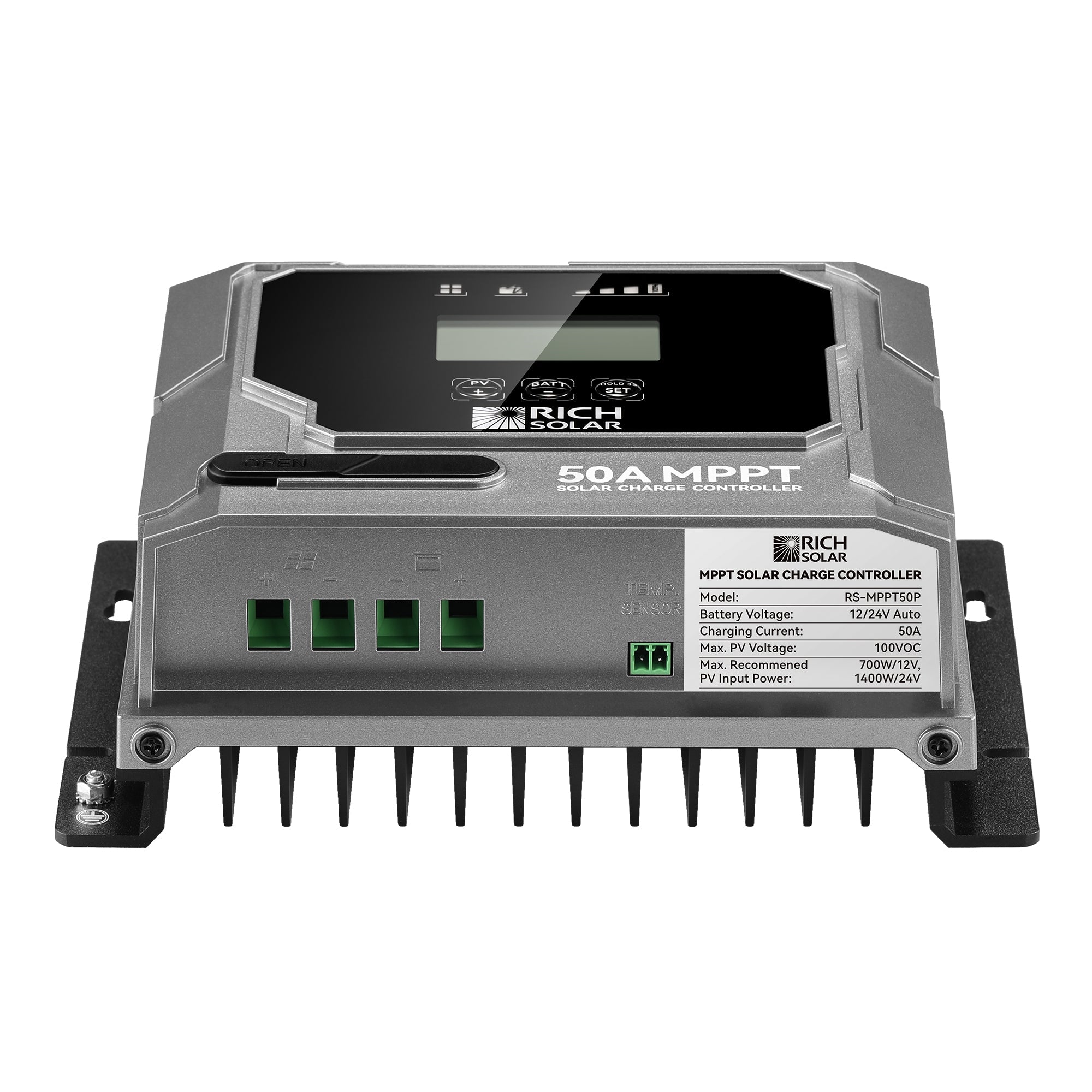

Rich Solar Bravo 50 MPPT Solar Charge Controller 50A For Off Grid Power

Compact MPPT Solar Charge Controller — Accurate, Efficient Charging

Overview

This compact MPPT solar charge controller delivers precise, efficient charging for 12V or 24V systems. It adapts automatically to your system voltage, stores charging data, and includes multiple protections to keep batteries healthy and systems reliable—whether you're running lead?acid or lithium battery chemistries.

Benefits

• Keep batteries healthier longer by using true MPPT tracking and high conversion efficiency.
• Maximize energy harvest from your panels so you get more usable power from the same array.
• Reduce maintenance and troubleshooting with built?in protections and stored charging data.
• Install faster and with fewer compatibility worries thanks to automatic 12/24V adaptation and selectable battery types.
• Gain peace of mind from multiple safety features like reverse discharge and overvoltage protection.

Features

• True MPPT charging technology for fast, accurate power tracking
• MPPT tracking efficiency above 99.5%
• Charge conversion efficiency up to 98%
• Automatic 12V / 24V system detection
• Reverse discharge protection to prevent battery drain at night
• Overvoltage protection for safe operation under fluctuating input
• Common negative connection for simpler wiring
• Charging data storage for performance review and troubleshooting
• Conformal coating on the internal PCB for improved durability
• In?house design and manufacturing with extensive internal electronics
• In?circuit protections and multiple safety measures built in
• Preset battery type selections for lead acid (Crystal, Gel, AGM, WET, Calcium) and lithium (LCO, LFP, LTO)

Specifications

• System nominal voltage: 12/24V auto
• Max PV open circuit voltage: 100 V DC
• Charging technology: MPPT
• Max PV charging current: 50 A
• Max recommended PV input power: 700 W (12V) / 1400 W (24V)
• Charge conversion efficiency: ?98%
• MPPT tracking efficiency: >99.5%
• Battery type presets: Crystal, Gel, AGM, WET, Calcium; LCO, LFP, LTO
• Housing case color: Black / Grey
• IP grade: IP43 (internal PCBA), IP22 (connection area)
• Net weight: 1.40 kg / 3.09 lb
• Dimensions (L × W × H): 195 × 140 × 74 mm / 7.7 × 5.5 × 2.9 in
