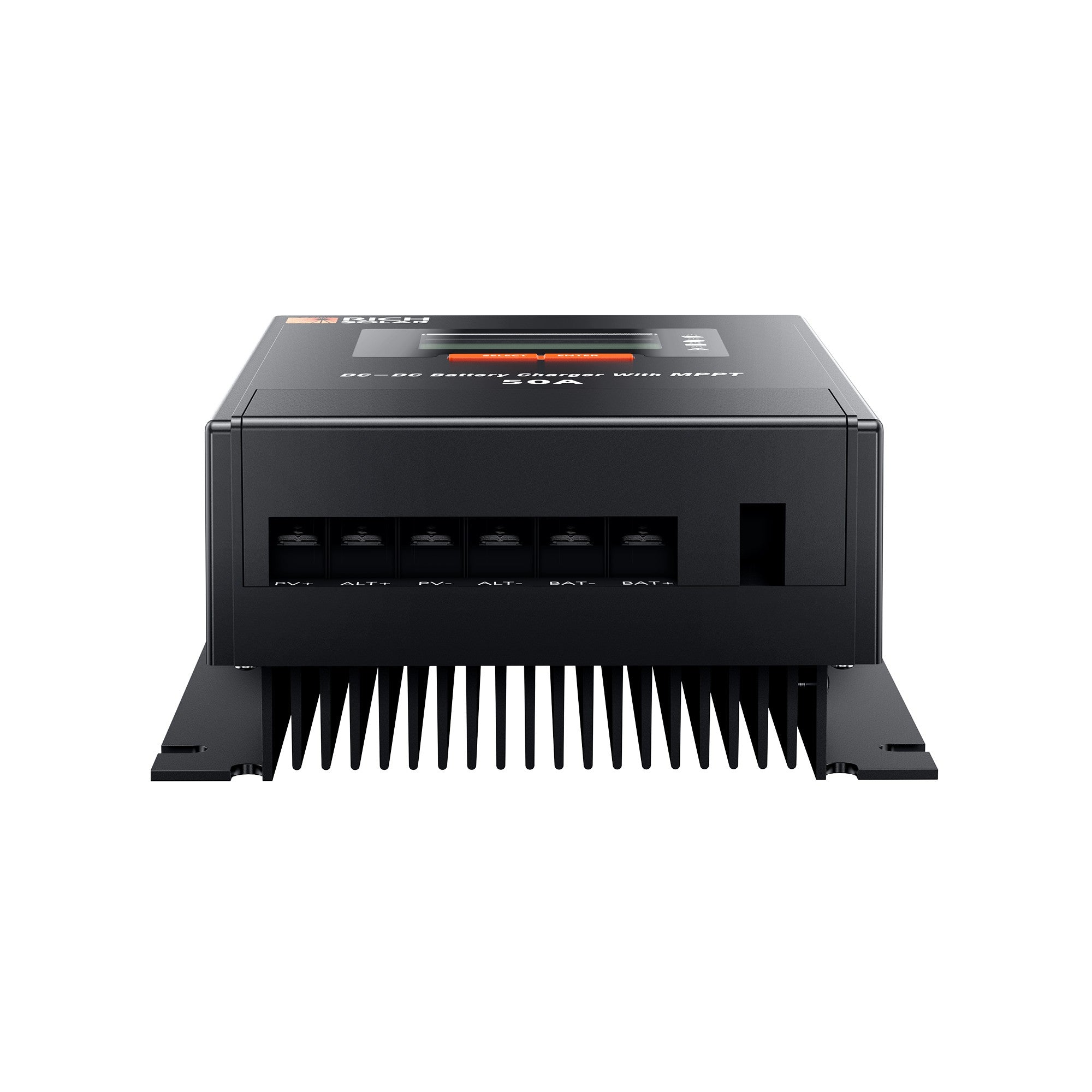

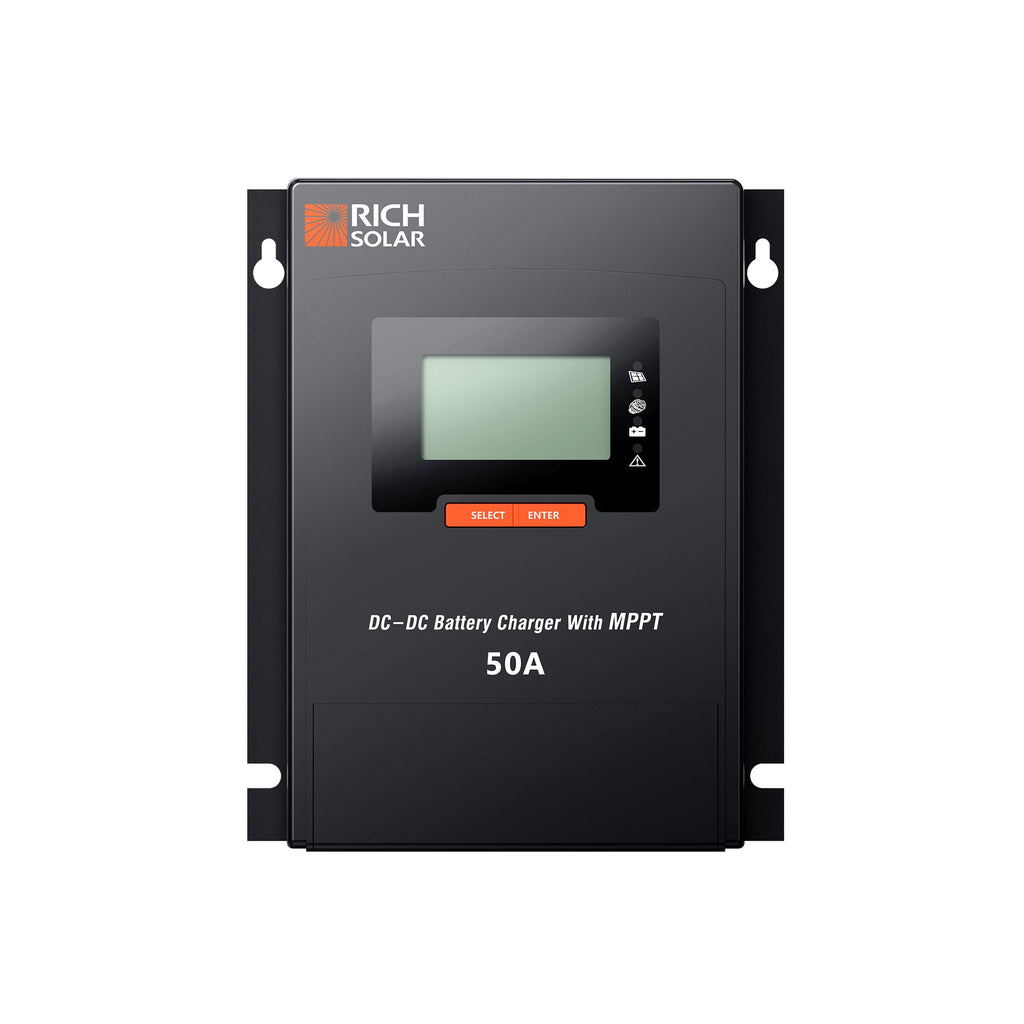

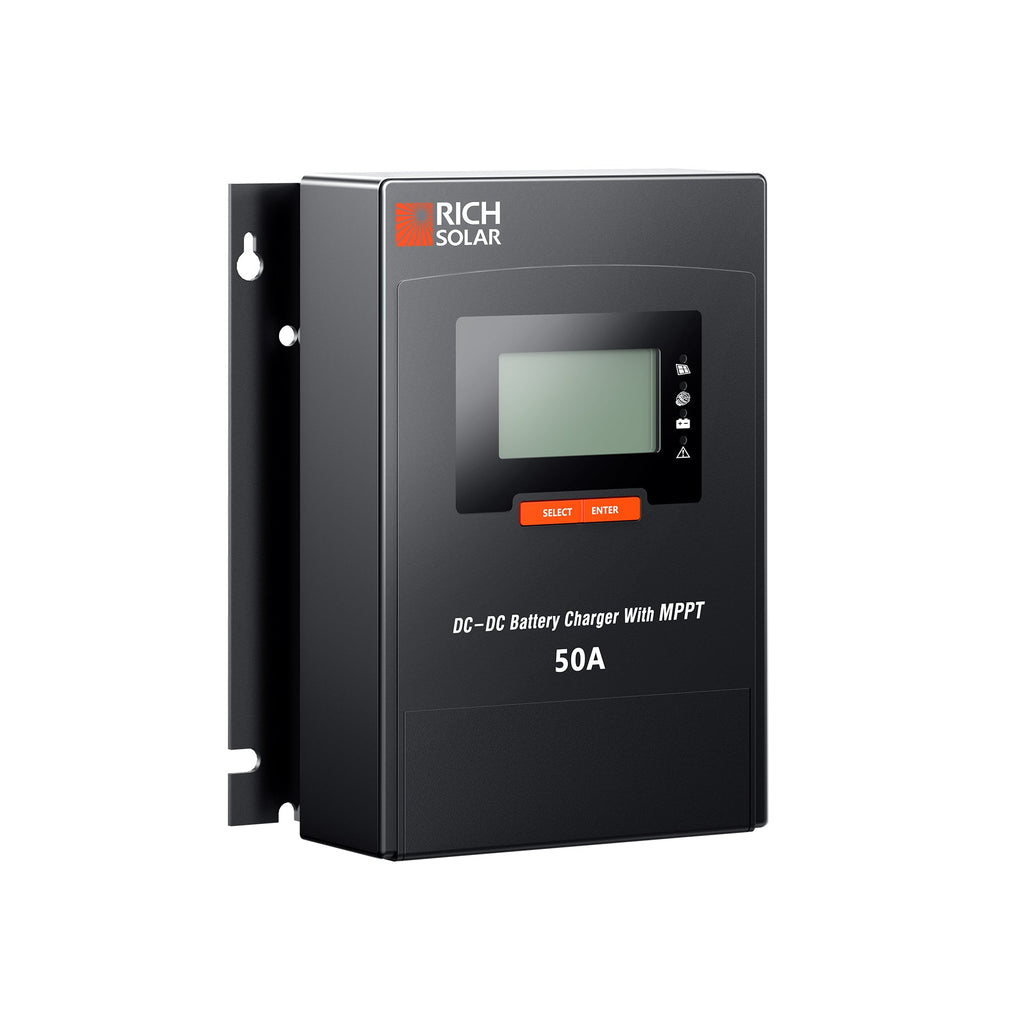

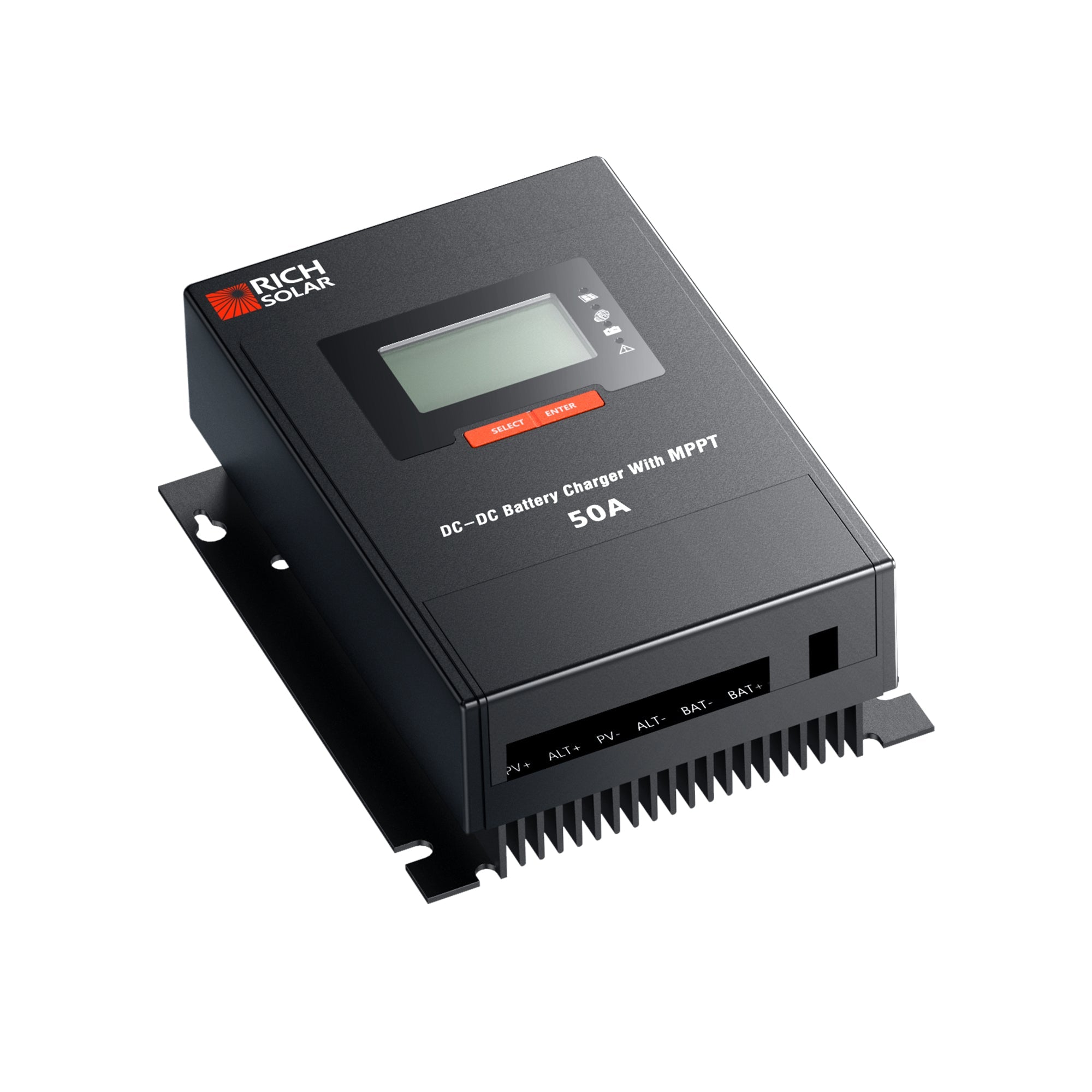

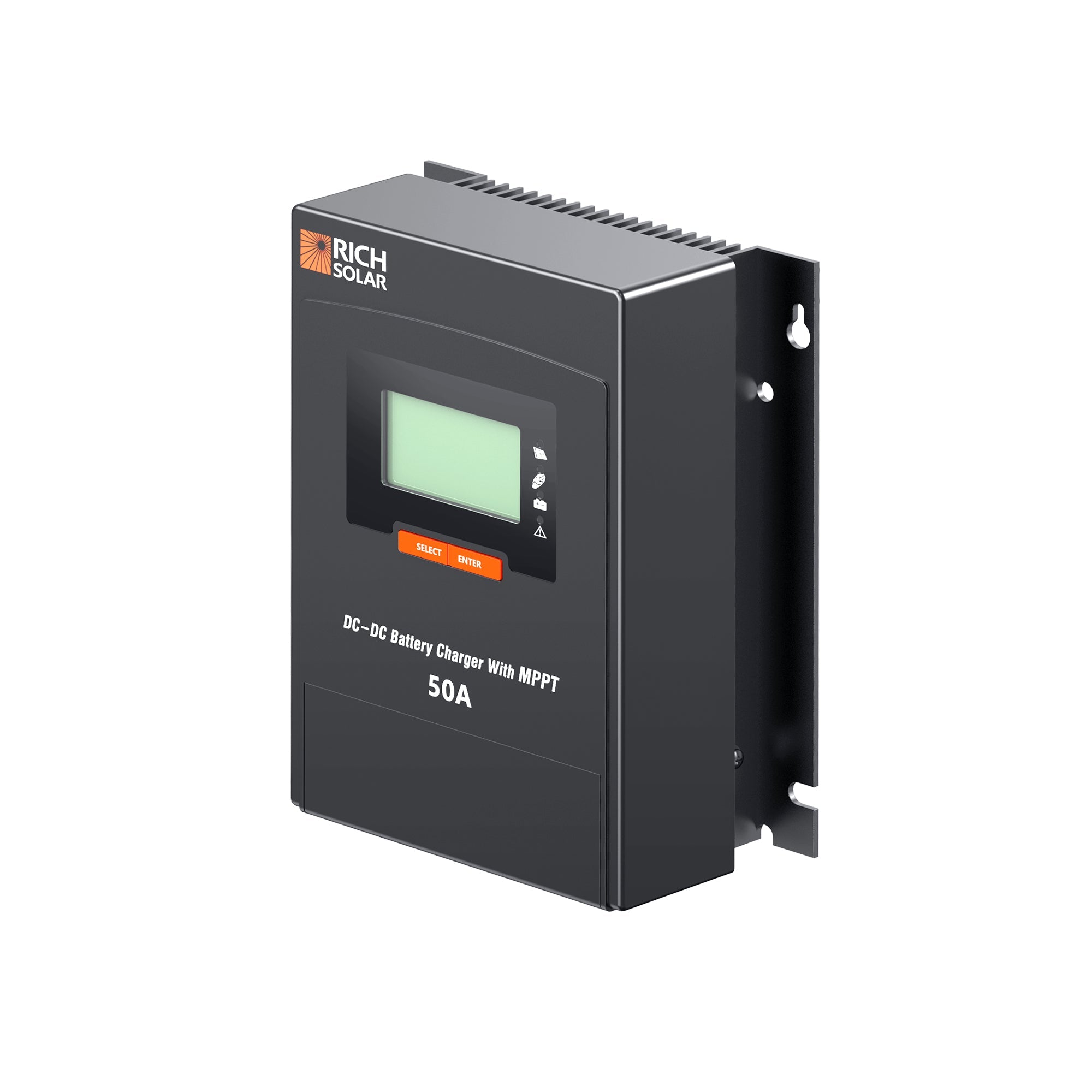

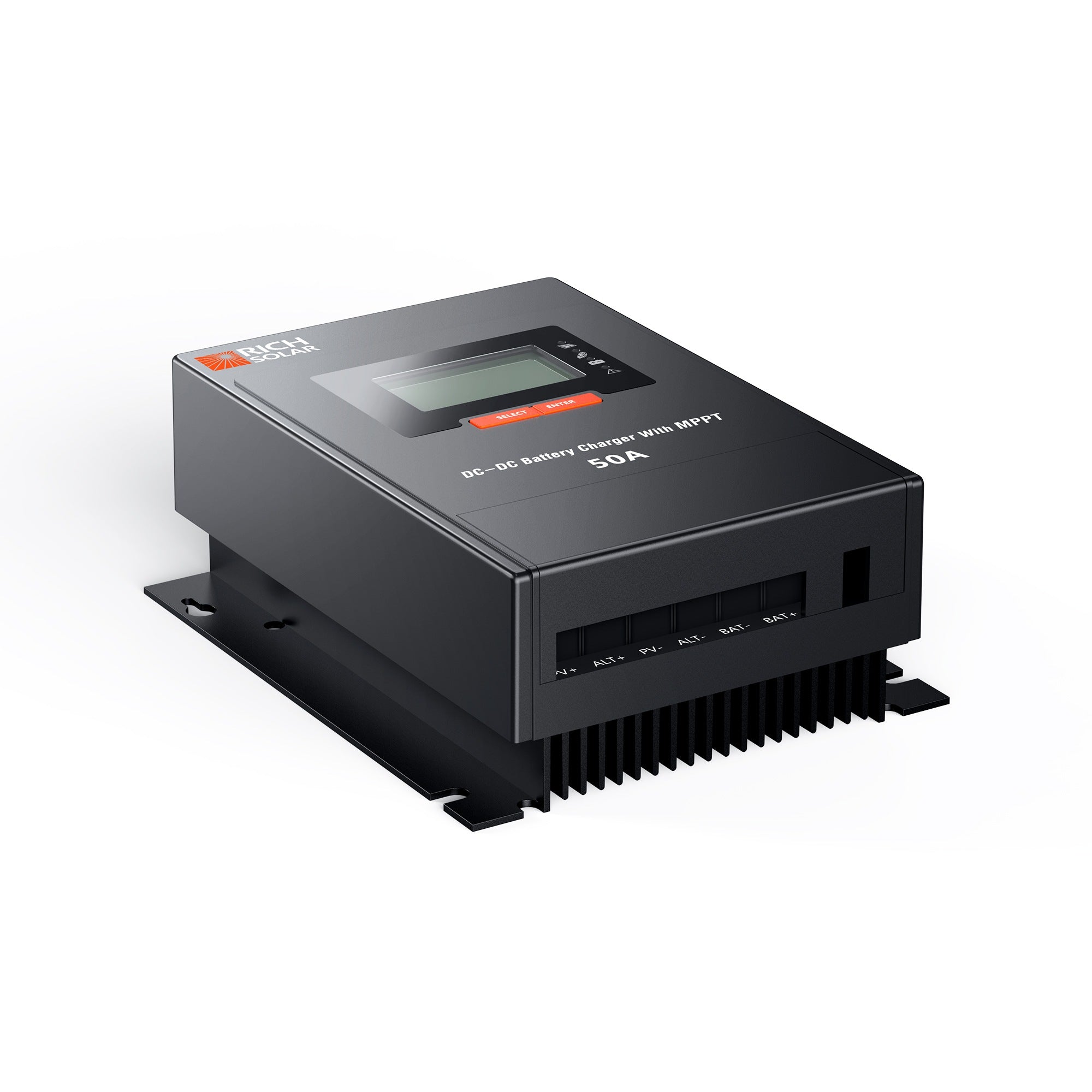

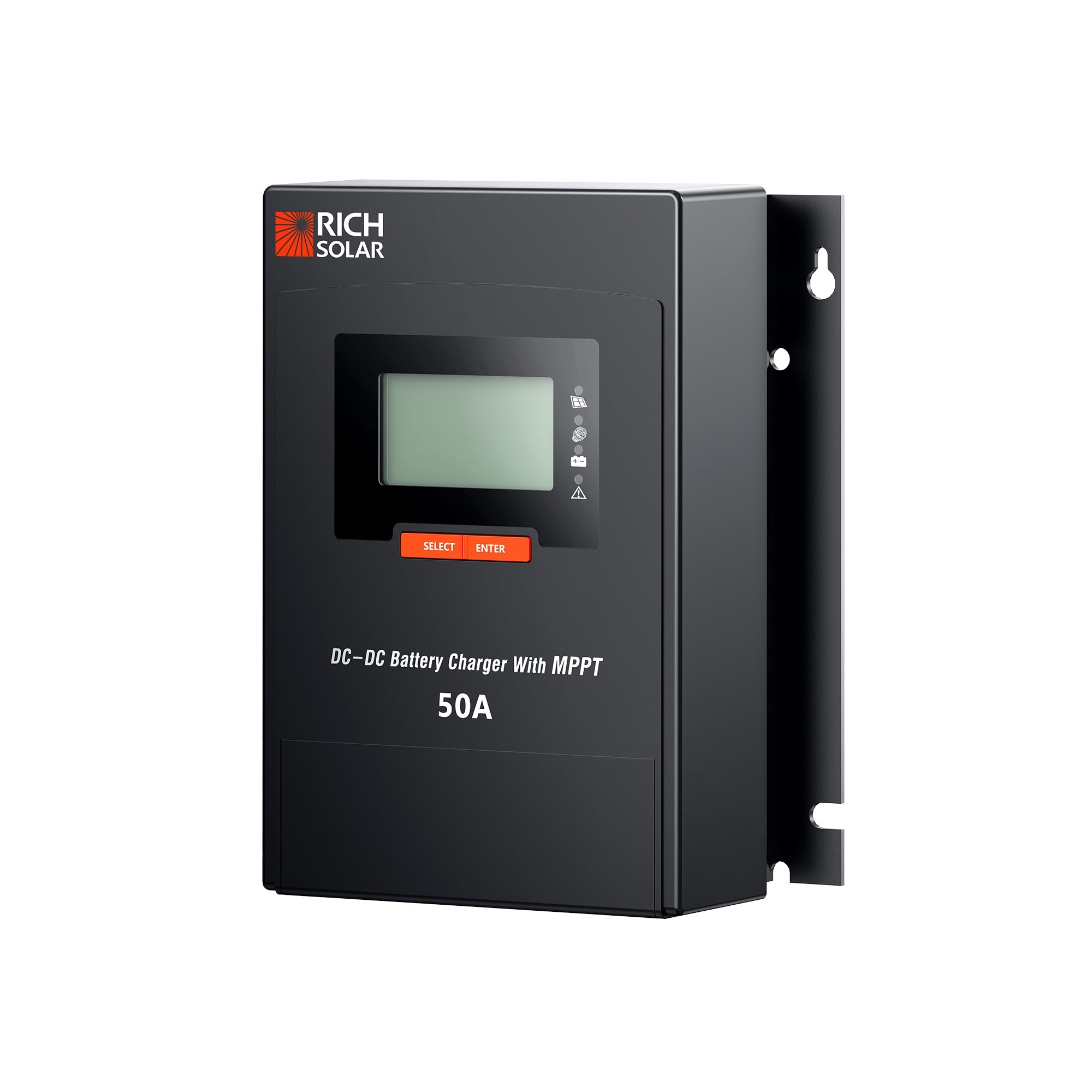

Rich Solar Bravo 50 DC MPPT Solar Charge Controller 50 Amp For RVs Vans

Dual-Input MPPT Charger for 12V Systems — Solar + Alternator Charging

Overview

This compact charger uses advanced MPPT tracking and dual-input charging to keep 12V batteries topped up from both solar panels and your vehicle alternator. It delivers efficient, reliable charging in changing light and while driving, with selectable charging priorities, multiple communication options, and built-in safety protections for long-term, worry-free use.

Benefits

• Harvest more solar energy throughout the day, including in partial shade, so your battery stays fuller for longer.
• Charge on the move from the alternator and from solar at the same time, reducing dependence on shore power or generators.
• Extend battery life with correct multi-stage charging profiles for lead?acid and lithium batteries.
• Reduce maintenance and manual switching with automatic priority selection and straightforward app or wired monitoring.
• Protect vehicle and battery systems with comprehensive safety features that minimize risk of damage or downtime.

Features

• PowerCatcher MPPT algorithm with greater than 99% tracking efficiency for maximum solar harvest.
• Stable MPPT performance in shaded or variable light conditions to keep charging consistent.
• Buck MPPT topology for solar input and buck/boost regulation for alternator input to handle different source voltages.
• Dual-input charging: accepts solar and alternator sources simultaneously or independently.
• Compatible with traditional and smart alternators (12V/24V) for flexible vehicle installation.
• Selectable charging priority (solar or alternator) to match your usage pattern and preferences.
• Multi-stage charging: 3-stage (Bulk / Boost / Float) for lead?acid and 2-stage for lithium batteries with BMS.
• Integrated protections for over-temperature, overcharge, overcurrent, and reverse polarity.
• Multiple communication options: Bluetooth, RS485, CAN (RV?C), and TTL for real-time monitoring and configuration.

Specifications

• Max. Solar Input: 55 V DC / 50 A / 800 W (recommended)
• MPPT Voltage Range: 17–36 V DC
• Alternator Input: 12/24 V, 65 A max
• Battery System Voltage: 12 V (9–16 V range)
• Rated Charging Current: 50 A
• Efficiency: MPPT tracking >99%; conversion up to 96%
• Communication: Bluetooth, TTL, RS485, CAN (RV?C protocol)
• Protections: overcharge, overcurrent, over-temperature, reverse polarity
• Operating Temperature: -35°C to +65°C (-31°F to +149°F)
• Dimensions (W × D × H): 221 × 175.8 × 92.4 mm (8.70 × 6.92 × 3.64 in)
• Weight: 2.34 kg (5.16 lb)
• IP Rating: IP32
