Rich Solar Alpha 400Ah LiFePO4 Battery Kit 5 12kWh Power For Off Grid RV

ALPHA 2 LITE — 400Ah (2 × 200Ah) 12V LiFePO4 Battery Bank

The ALPHA 2 LITE is a robust 12V LiFePO4 battery system built from high-quality lithium-iron-phosphate cells. This listing includes two 12V 200Ah batteries and cabling to form a 400Ah, 5.12 kWh battery bank that delivers steady power, built-in safety, and low maintenance for residential, mobile, or off-grid use.

Benefits

• Dependable power when you need it: supports high loads and keeps sensitive equipment running with a stable output voltage.
• Less upkeep and fewer replacements: long cycle life and low self-discharge reduce maintenance and replacement frequency.
• Peace of mind from built-in safety: individual cell fuses plus BMS protections minimise the risk of cell damage and system failures.
• Simpler installation and handling: lightweight design and removable carry handle make positioning and servicing easier.
• Usable in a wide range of environments: wide charge and discharge temperature ranges let you operate in varying climates.

Features

• Premium LiFePO4 cells for stable chemistry and long life.
• Integrated Battery Management System (BMS) with overcharge, over-discharge, overcurrent, short-circuit, and temperature protections.
• Individual cell fuses so a single cell fault won’t disable the whole battery.
• High continuous discharge and charge current capability for demanding loads (200A).
• Low self-discharge for reliable storage and seasonal use.
• Removable carry handle and lightweight construction for easier handling.
• Stable output voltage to protect electronics and inverters.

Specifications

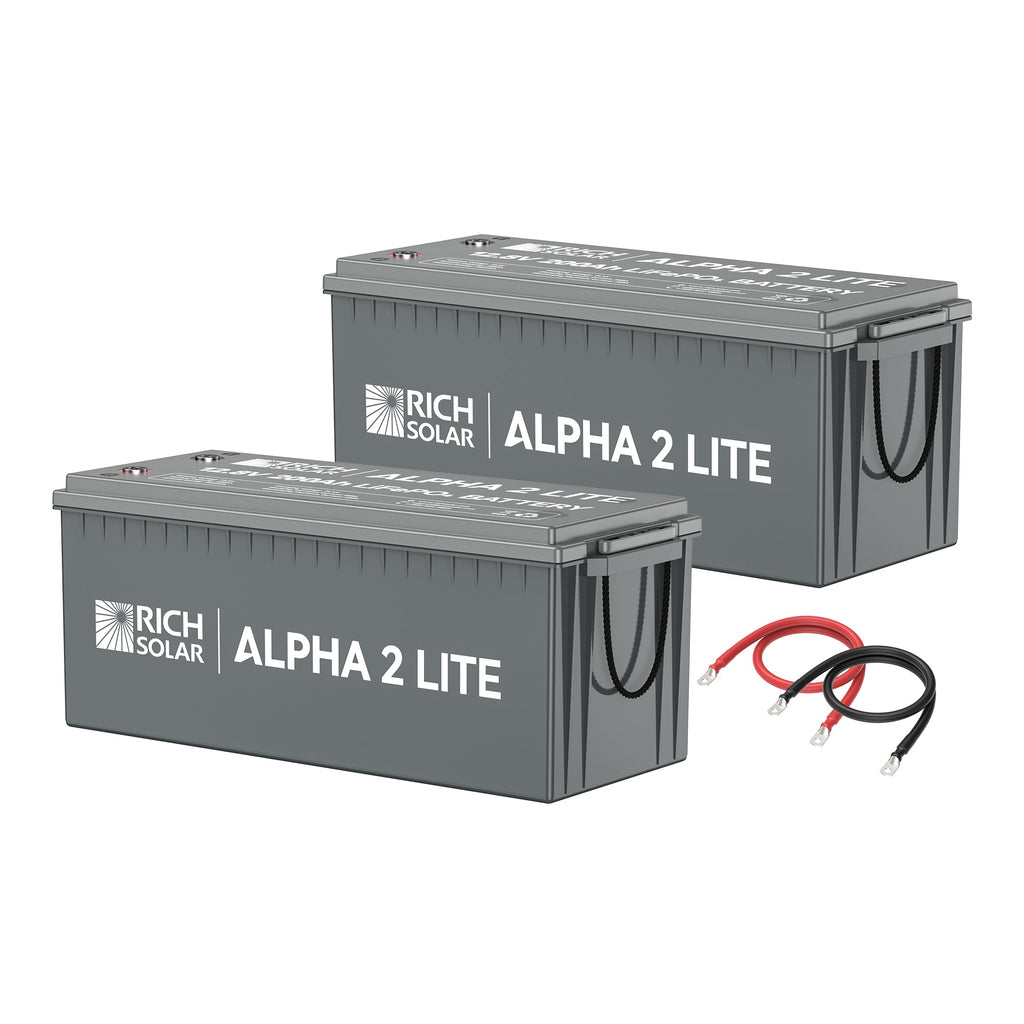

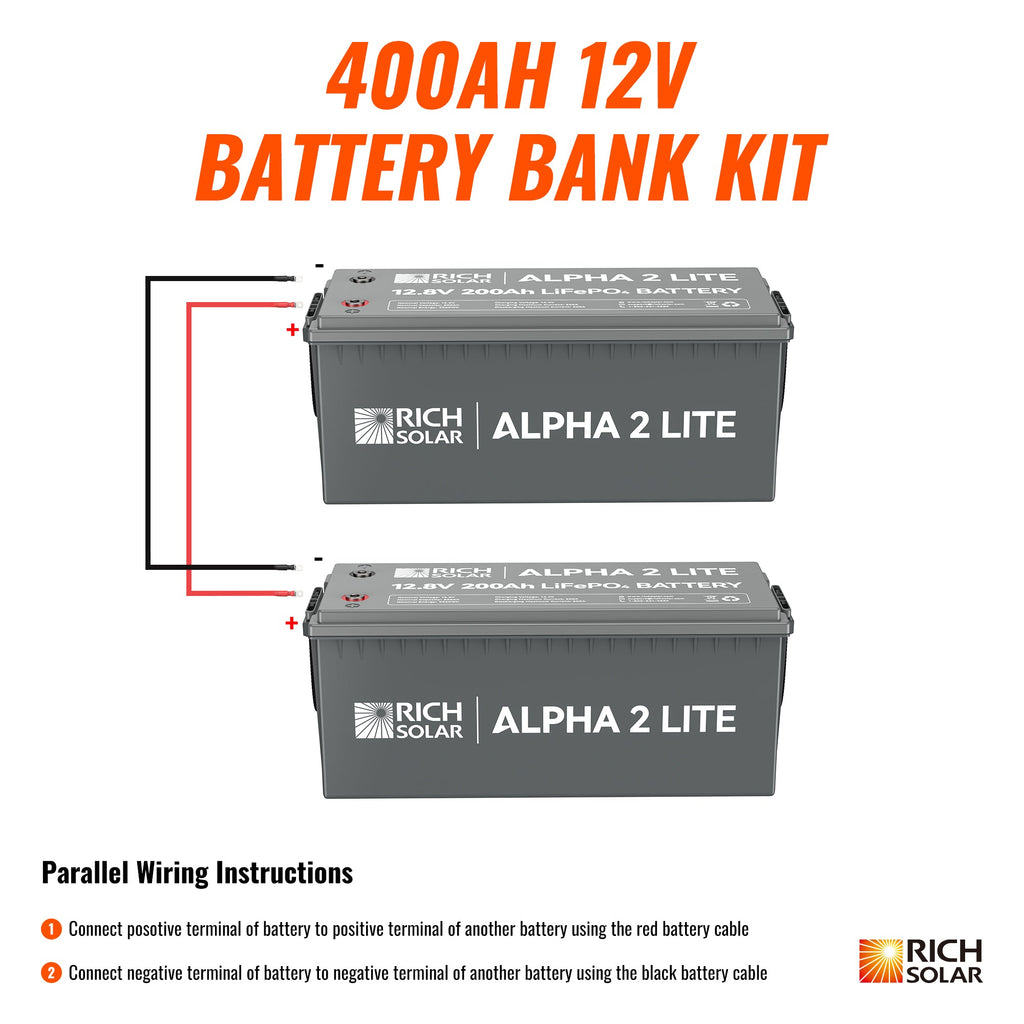

• Package contents: 2 × 12V 200Ah LiFePO4 batteries; 2 × 1 ft 2 AWG battery cables.
• Configured bank capacity: 400Ah at 12.8V (5.12 kWh total energy).
• Per-battery nominal voltage: 12.8V.
• Per-battery nominal capacity: 200Ah (minimum capacity 199Ah).
• Per-battery energy: 2,560 Wh (total bank energy 5,120 Wh / 5.12 kWh).
• Cycle life: >4,000 cycles; expected service life >10 years with proper maintenance.
• Charge voltage: 14.4V.
• Maximum charge current: 200A.
• Maximum continuous discharge current: 200A.
• Self-discharge: <5% per month.
• Charge temperature range: 0°C to 55°C (32°F to 131°F).
• Discharge temperature range: -20°C to 60°C (-4°F to 140°F).
• Storage temperature: -10°C to 45°C (14°F to 113°F), up to 90% RH max for storage over 3 months.
• Physical dimensions (per battery): 20.9 × 8.1 × 8.5 in.
• Weight (per battery): 52.9 lb.
• BMS overcharge detection voltage: 3.75V ±0.03V per cell; detection delay: 1000ms ±500ms; recovery voltage: 3.55V (min 3.40V, max 3.60V).
• BMS over-discharge detection voltage: 2.20V ±0.08V per cell; detection delay: 1000ms ±500ms; recovery voltage: 2.70V ±0.10V.
• Short-circuit protection: yes.
• Each LiFePO4 cell individually fused for safety and to maintain operation if one cell fails.
• Warranty: 5 years.
